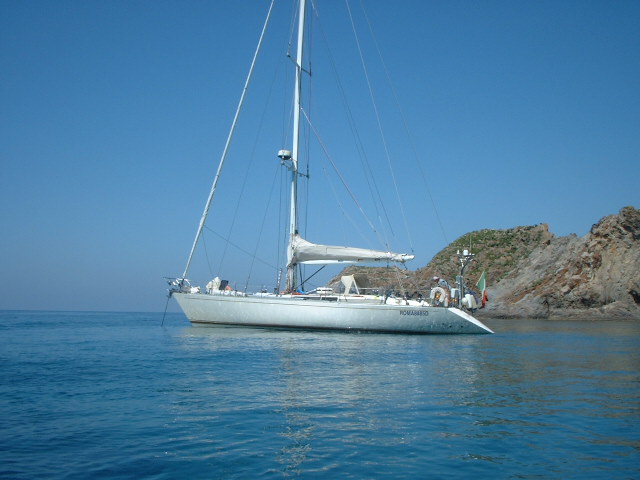

Fast and comfortable cruiser/racer cutter sloop, with accommodation for up to 8 people.
DESIGN
Design notes
Hull and Sail Plan design: Scott Kaufman
Deck and Interior design: Arch: Lorenzo Bellini
DIMENSIONS
LOA
15.00m
LWL
12.09m
Beam
4.42m
Draft
2.80m
Ballast
6.5tkg
Displacement
18.5 tkg
ENGINES
Engines
1 xYanmar 4LH-TE 120 hp
Propeller
Max-prop 3 blades propeller
Engines notes
Engine is completely revised at the shop 2003; starting motor new 2004; fuel injection pump new 2005)
Volvo Shaft seal (new 2003)
Engine room:
1 x Yanmar engine
1 x manual engine bilge pump
TANKS
Fuel
400 l (2xS/S working tanks + 1l
Water
400 l GRP Holding tank: all newl
Holding
Black water holding tank (new 2003)l
ACCOMMODATIONS
Berths number
10
Shower
Yes
Air conditioning
fore, central,aft
Accommodations notes
mahogany craftsman work satin finished interior, from fore to aft:
Fore
1 x 2 crew fore cabin w/sail locker, V-shaped double bed, working area w/ many lockers, 2 x bed lights, 1x central light, 220V Ac and 12 V DC plugs and with direct access from the deck through 500x500 Goiot hatch (rev. 2003/2006) or through the internal connecting door; air intake (shared)

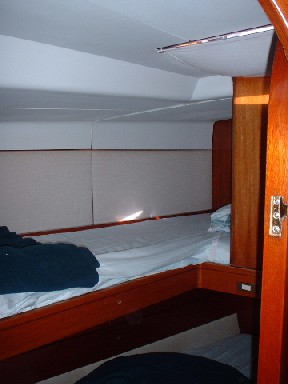

Port: 1 x two single bed guest cabin with lockers, 2 x bed lights and central light; 1x Goiot hatch; air intake (shared)
Starboard: 1 x two single bed guest cabin (folding upper bed) w/lockers, 2 x bed lights and central lights 1x goiot hatch; air intake (shared)
Port :1 x guest toilet with:
Raritan head (new 2003)
1 x sink w/Hot/cold water tap
Separate foot pump cold water tap (new 2003)
1 x Goiot Hatch
1 x roof spot light
1 x night light
220V Ac and 12 V Dc plugs
Starboard: 1 x separate shower cabinet with wet locker (this shower cabin can be transformed in additional equipment/food locker for long blue water crossing) w/ light
Shower/toilet water collector tank with automatic/manual dedicated bilge pump (rev. 2005)
Fore to central connecting passage w/Goiot hatch with roof spot light
Central
Port:
frontal opening fridge with working area and shelves under and Air conditioning central zone 220v AC compressor and fridge heat exchange and 12v DC salt water pump behind:
U-shape settee sitting up to six people w/water maker, Air Conditioning salt water pump and fridge compressor under (tapestry new 2005)
12V DC and 220 AC plugs
books shelf
storage shelf behind and under U-shape settee
Center:
1 x settee sitting 2 people w/batteries banks under (tapestry new 2005)
large central dining table w/ glass locker and Fisherman aux gen. under

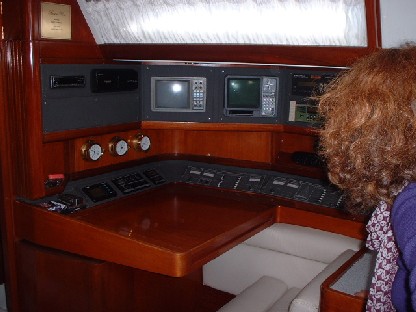

Starboard: Nav station w/ Skipper’s chair (tapestry new 2005) and chart table w/control panel switchboard and electronics and cigarette lighter 12V DC Plug; B&G and autopilot control units under
Central to aft passage:
custom S/S opening windows, 1 x roof spot light
owner’s shower cabinet w/wet suit locker w/ light
dedicated shower water collector tank with manual/automatic submersed bilge pump
sweet/salt water pumps to all inside/outside pressure water taps
water maker control units
Aft:
Aft Owner’s cabin with two large single bed and lockers, vanity table, 3 x custom S/S opening windows and 1x Goiot hatch; 2 x bed lights 1x central light, 1 x night light switches,
Central settee (tapestry new 2005) with aft zone air conditioning 220v AC unit and 12v DC pump (to transfer fuel from secondary to operating tanks)
2 x S/S custom air intake
Aft en suite owner’s toilet with
2 x custom opening windows
Raritan head (new 2003)
1 x sink w/Hot/cold water tap
Separate foot pump cold water tap (new 2003)
1 x Goiot Hatch
1 x roof spot light
1 x night light
1 x automatic/manual dedicated bilge pump
GALLEY
Hot water
yes
Water system
double sink w/ hot and cold water tap (pressure) & foot pump cold water tap (new 2003)
Galley notes

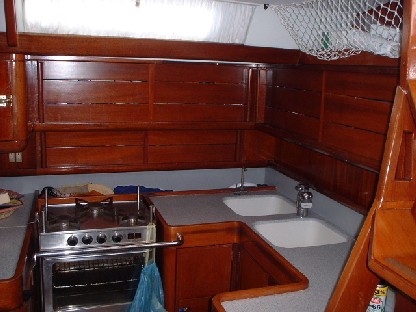

Starboard: Galley with:
3 fires + oven GLP gimballed kitchen
salt water tap (pressure)
foot pump for sink discharge (to be used during navigation)
fresh ice-cold water dispenser
numerous lockers
2x 220V Ac Plugs
1 x central 500x500 Goiot hatch
2 x opening S/S custom windows
2 x S/S custom air intake
8 x roof spot lights
3 x night lights
1 x navigator light
NAVIGATION INSTRUMENTS
Electronics
1 x B&G Hydra 300 navigation system (echo-sounder to be repaired) w/cockpit repeater (two x analogue
GPS
1 x Garmin 128 GPS w/ external aerial (new 2003)
VHF
Sailor VHF
Automatic pilot
1 x Navicontrol autopilot with remote control from the cockpit (rev. 2003/2005)
Radar
Koden 3000 radar w/aerial on the mast
Navigation instruments notes
ICS Navtex receiver with external aerial and connection to 2nd GPS external aerial (new 2003)
Ehopilot FLS Professional forward looking sonar (new 2003, rev. 2005)
Icom R 75 HF Receiver (new 2003)
ICS meteofax decoding sw
Astro-navigation sw
ELECTRICAL
Generator
1 x Fisher Panda 4,5 Kw Auxiliary Generator w/ remote control panel (new 2003)
Electrical notes
2 x alternators on the main engine
220V AC shore line socket
2 x 240 Ah Lifeline AGM House batteries (new 2003)
2 x Optima Blue-Top crank/deep cycle batteries (new 2003)
40A, 3 batteries banks charger (new 2003)
400 W pure sine wave Mastervolt inverter (new 2003)
1 x 6 function switches 220V AC control panel with 220V AC Volt and amp meter, 12V DC charging current amp meter (switch to be checked)
1 x 24 function switches 12V DC control panel with 12V Batteries Voltage Meter and discharge current amp meter
1 x 8 function switches 12 v DC deck lights cockpit control panel (new 2005)
Water maker: Spectra 60 lph 12V water maker (new 2003) with 220 V AC (with dedicated 12V CC to 220v AC inverter) control panel
3 x 220V units (rev. 2003/2005) with shared salt water heath exchange circuit and 220v AC salt water pump (new 2004; rev. 2005)
SPARS & RIGGING
Sails
1 x Hood full batten main w/3 reefs on Harken cars
1 x Speed Sail full batten main w/3 reefs on Harken cars(2001)
1 x Speed Sail Genoa on Harken furling system(2001)
1 x Ullman Yankee Genoa on Harken furling system (new 2003)
1 x Staysail
1 x Storm jib
1xUllman 1.5oz spinnaker (new 2003)
1 x Hood MPS
Rigging
S/S oversized discontinuous standing rigging:
Mast
21,5 m keel stepped white painted (2003) aluminium alloy mast w/ three spreader system
Spinnaker pole
2 x Aluminium 120 mm diameter spinnaker pole w/Harken fittings (new 2003)
Furling system
1 x forestay w/ Harken Genoa furling system
Spars and rigging notes
masthead light, tricolour approved navigation lights, deck and spreaders lights, steam navigation light, B&G wind sensor, windex, VHF aerial, TV aerial (to be checked), Radar reflector, Harken mainsail rail and cars, two spinnaker pole rails (pole rail to be repaired)
1 x removable forestay for staysail with Navtec hydraulic system
1 x baby-stay
2 x upper shrouds
6 x intermediate shrouds
4 x lower shrouds
4 x spectra running backstays (new 2003)
1 x backstay w/ Navtec hydraulic system
1 x Navtec rigid vang Hydraulic system
2 x spectra genoa halyards (new 2003)
2 x spectra spinnaker halyard (new 2003)
1 x spectra mainsail halyard (new 2003)
1 x spectra mainsail/boom up.lift halyard (new 2003)
2 x genoa spectra sheets (new 2003)
2 x staysail spectra sheets (new 2003)
4 x spinnaker spectra sheets ( new2003)
1 x spectra and S/S Cunningam/reefing circuit (new 2003)
3 x spectra reefing sheets (new 2003)
2 x 4 t jack stay
mainsail lazy bag w/sun awning
stay sail lazy bag (new 2003)
DECK EQUIPMENT
Deck hardware
All S/S fittings are top quality oversized and custom made
Winches
Winches (all Harken/Barbarossa ST Winches):
Deck equipment notes
full teak laid deck in good conditions

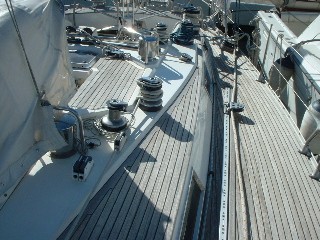

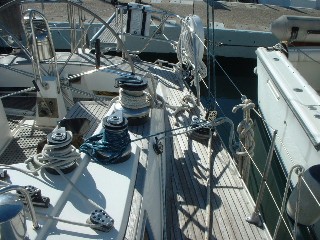

aft cockpit with:
large steering wheel on Solimar custom pedestal
1 x external manual bilge pump
1 x external VHF loud speaker
2 x Hi-Fi external loud speakers
U-shaped crew settee
easy access to sail trimming (genoa and main) and running back-stays winches
cold sweet and salt water showers
switch board for deck lights control (Starboard)
engine control panel (Port)
single leverage engine speed control (new 2003) (Port)
cockpit B&G repeater, Riviera main magnetic compass and 3-ways Navtec hydraulic system control (rev. 2003) on wheel pedestal
Navicontrol autopilot remote control plug in (Starboard)
2 x analogue wind direction B&G repeaters
2 x secondary magnetic compass
2 x access to lazarete under helmsman foot where are installed
Navicontrol autopilot hydraulic system (12V DC pump, hydraulic switch box and Hydraulic actuator, which is directly connected to rudder shaft) (rev 2004-2005)
2 x open lockers under helmsman settee for gas bottles and mooring ropes, rudder emergency tiller, grab bags, etc…
teak grating floor becomes external cockpit table
1 x cigarette lighter 12V DC plug
1 x boom light
aft pulpit mast w/ external aerials (Mini-m, GPS, 2nd VHF, Navtex , HF), fog horn and approved stern navigation light
central cockpit with:
sitting for 4 crew
easy and safe access to saloon through companionway and solid wood ladder
easy access to mainsail and stay sail halyard, spinnaker pole up-lift and down-lifts and reefing sheets winches and stoppers

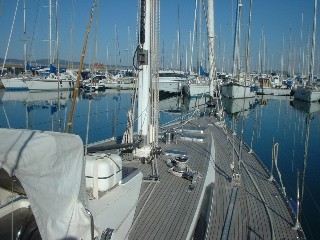

Deck fittings and sailing gear:
Bow fitting w/ two rollers for anchor chain
Chain locker with 70m 10mm chain and Delta primary anchor
1 x CQR second anchor with 40 meter anchor rope
1 x Lofrans vertical (1000W) electric anchor windlass (rev. 2003)
S/S bow pulpit w/ teak grating step and red and green approved navigation lights
S/S stern pulpit w/ gate
Alu & teak disembark ladder
Anodized aluminium toe rail
double life line w/side gates on S/S stanchions on starboard and port side
bathing S/S ladder on starboard side gate
central cockpit spray-hood (new 2003)
fore Goiot hatch spray-hood
SAFETY EQUIPMENT
Safety equipment notes
1 x 3 p. inflatable dingy
1 x Honda 2hp four strokes outboard engine (new 2004)
2 x Ocean Safety Horse shoe buoys (new 2003)
CONSTRUCTION
Construction notes
Rudder mechanics and rudder shaft gear
EXTRA
Speakers
yes
Shower in Cockpit
yes
Swimming ladder
yes
FINAL NOTES
Final notes
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
