#178

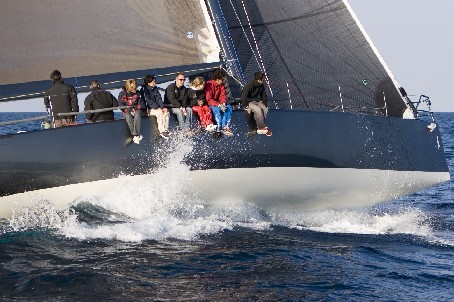

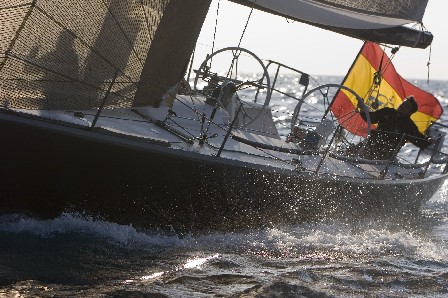

IMS 51 Esp-5777 Ex-Innovision 7

SOLD

GENERAL
Name
IMS 51 Esp-5777 Ex-Innovision 7
Model
IMS 51
Year
1999
Hull material
Aluminium
Located
Castellon
Price
PRICE AT REQUEST
VAT
NOT PAID
Flag
spanish
Type
RACER
Slogan
.
Description
Epoxy, carbon and foam sandwich over cured.
DESIGN
    Builder
    Lymingon
    Designer
    Judel and Vrolijk
    Shipyard
    Neville Hutton
DIMENSIONS
    LOA
    15.00m
    Beam
    4.35m
    Draft
    3.25m
    Displacement
    10200kg
ENGINES
    Engines
    Yanmar 3jh2te-sd Turbo Saildrive 47 hp
    Propeller
    Folding prop. 2 blade Gori Racing series dia. 475 mm.
ACCOMMODATIONS
    Shower
    Yes
ELECTRICAL
    Batteries
    2x200 Ah Gel.
    Electrical notes
    Engine alternator 50 Ah. Converter 12 V.-220 V. 850 W.
SPARS & RIGGING
    Sails
    2002: 1 main Carbono, 1 main Kewlar. 1 genoa Light Kewlar, 1geona Med Carbon, 1 genoa Heavy Carbon, 1 Foque III Carbon, 1 Spinnaker vmg, 1 Spinaker APL, 1 Spinaker Runner. Storm jib Trysail 1 main 3DL with Frederiksen ball cars. 1 jib 3DL reefing system with vertical full batten. 1 spi forestay sail North. 1 jib IV Kevlar North. 3 spis North.
    Rigging
    1 sparcraft + Navtec rigging + spreaders + Track Car Batten Frederikssen.
    Boom
    Aluminium boom.
    Vang
    Trapa Quikiq
    Tuff Luff
    Harken Roller MKIII 2006
    Spars and rigging notes
    1 jockey-pull. 1 Enerpac + 2 pistons. 1 Windex.
SAFETY EQUIPMENT
    Safety equipment notes
    5 harnesses. life line. flares. leak plugs.
CONSTRUCTION
    Keel
    Fin keel, lead with stainless frame.
    Construction notes
    Folding craddle.
FINAL NOTES
    Final notes
    Lazy yacks. Pre-race cockpit covers. Replaced stern balcony.
