Two bladed folded propeller ( New)Bottom bearing with lipseal and gaiter
Engines notes

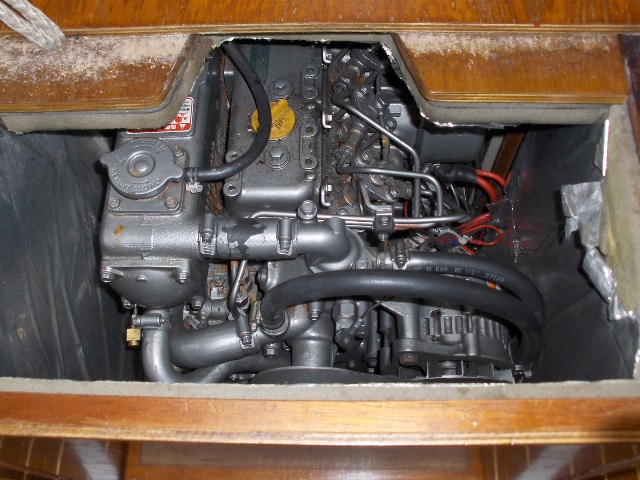

Yanmar 3GM30, 29hp 3 cylinder diesel fitted with SD20 Saildrive
Freshwater cooling system

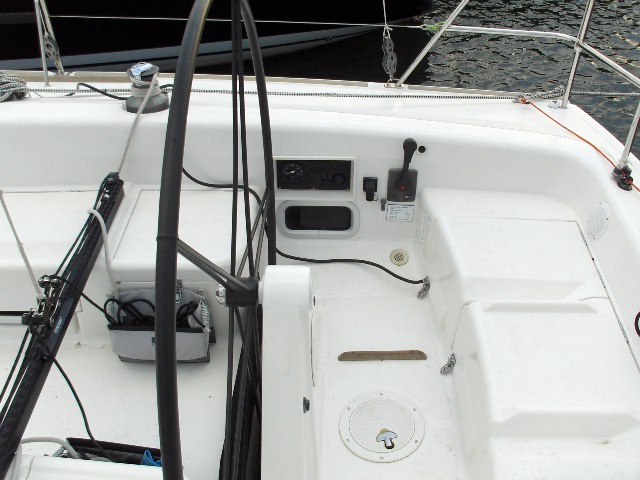

Control panel with rev counter and alarms (cockpit mounted)
Single lever Morse control in cockpit adjacent to wheel
Sound insulated engine box with quick release access panels
Exhaust with water lock and anti-syphon valve Steering
Fibre glass, foam cored rudder blade with anodized alloy stock

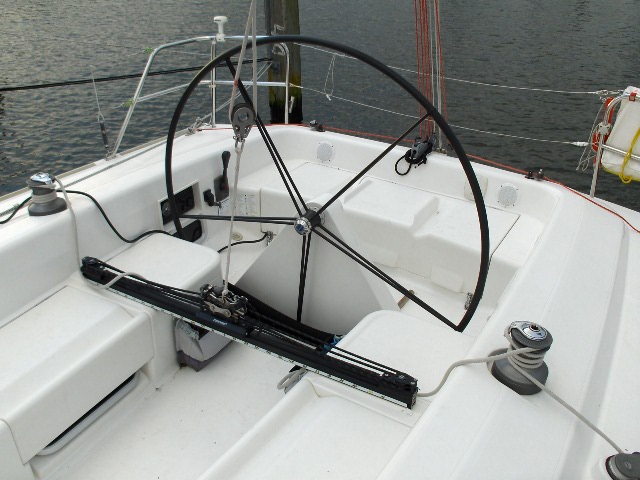

1.5 m diameter aluminum wheel with leather grip (new)
Standard roller bearing cages fitted to top and bottom of stock
TANKS
Fuel
60 litre (13.5 gallon) fuel tank with baffles and sight gaugel
ACCOMMODATIONS
Shower
Yes
Accommodations notes
Forward Cabin with double bed
Starboard side hanging locker

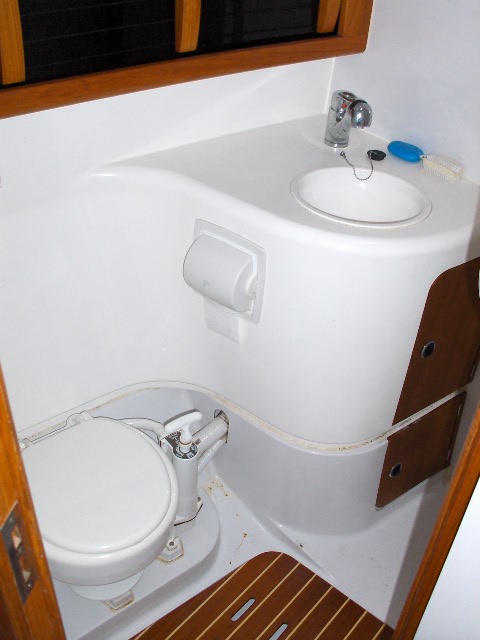

Heads Compartment
Pull-out shower head with hook on bulkhead
Shower tray with automatic electric pump
Manually operated marine toilet
Aft Port Cabin: Double bed with split cushion and stowage beneath
Hanging locker with solid door and positive catch
Two moulded pipecot brackets
Pipecot and tackle

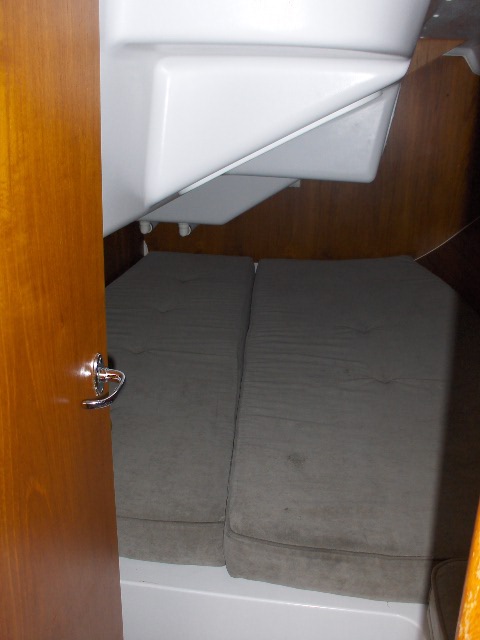

Aft Starboard Cabin: Double bunk with split cushions
Removable bunk base to create footwell
Pipecot and tackle 2 fire extinguishers Saloon

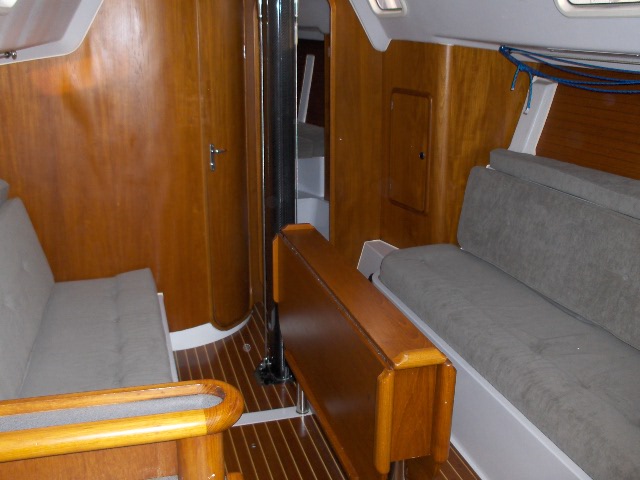

Removable saloon table with drop leaves on stainless frame
Two settee berths with lee cloths
GALLEY
Hot water
Pressurized hot and cold water
Refrigerator
Fridge - top loading
Water system
Calorifier – 20 litre capacity – for hot water system

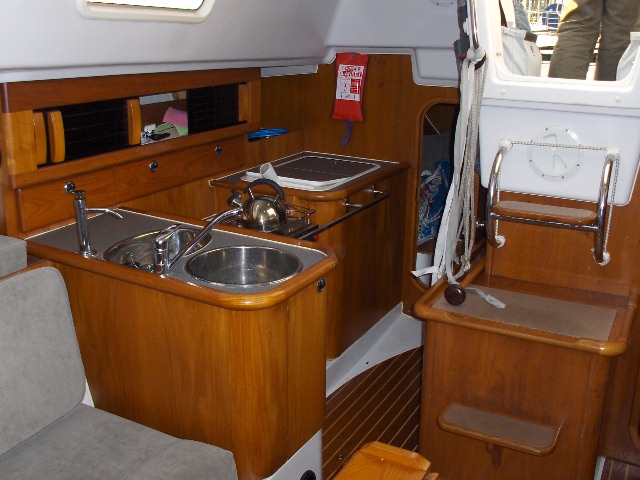

Galley notes
12V cigarette lighter socket Galley

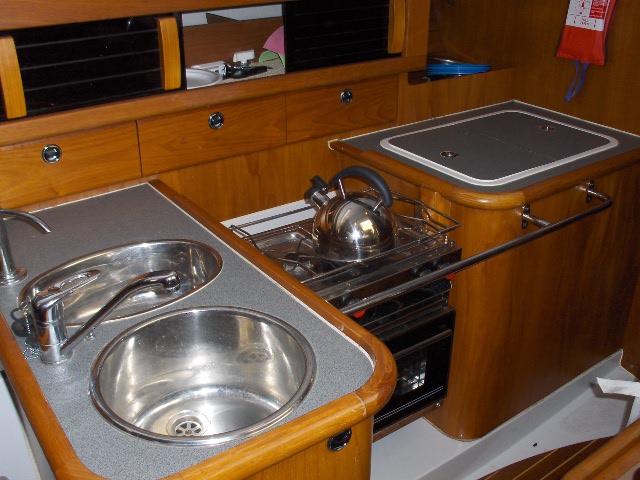

Two sinks with hot and cold mixer tap
Gimballed cooker with hob and oven
Oven with grill
NAVIGATION INSTRUMENTS
Electronics

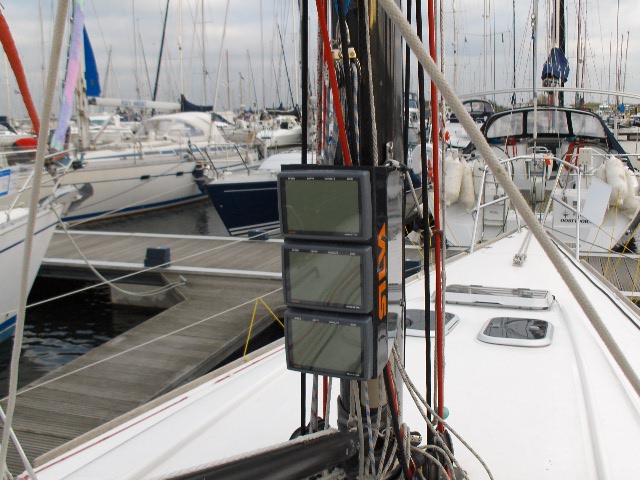

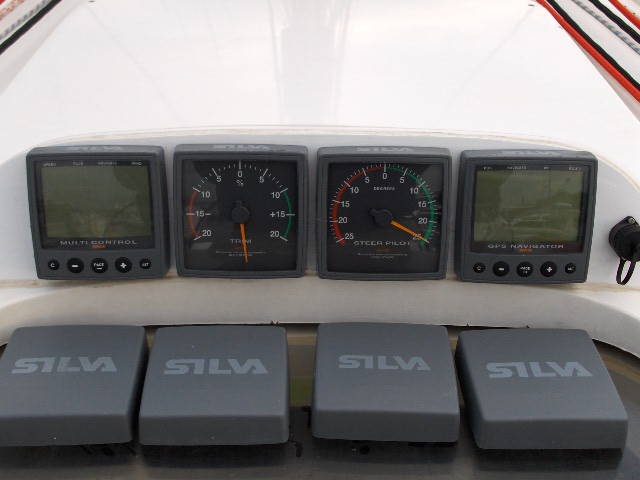

Complete Silva Nexus Electronics including 3 Mastdisplays, 4 Cockpit and 1 navigation station
VHF
New MTech VHF Radio
Automatic pilot
B&G autopilot with Silva control display
Compass
2 Compasses fitted on bulkhead, either side of companionway
ELECTRICAL
Batteries
Three 12 volt deep cycle (2x75 Amp hour, 1x 65 Amp hour) marine batteries (new 2005)
Electrical notes
Negative earth system with in line circuit breakers
Three way locking battery switch

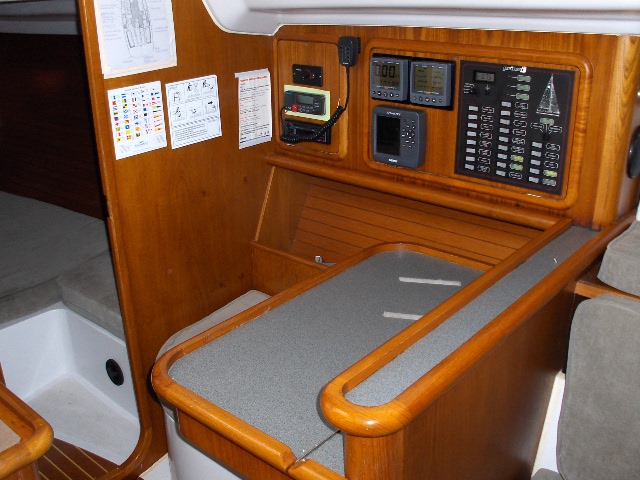

Main switch / circuit breaker panel in navigation area
Bi-colour pulpit mounted bow light and pushpit mounted stern light
Combined steaming / deck light
Masthead tri-colour navigation lights
Fractional three panel carbon fibre mast and alu boom
Vang
Spring loaded strut type vang
Spinnaker pole
Carbon fibre spinnaker pole
Spars and rigging notes
Spectra/Vectran Halyards for genoa and spinnaker x2
Vectran Main Halyard
Two reef line exits and one outhaul exit on boom
Headfoil – twin groove tuff luff.
DECK EQUIPMENT
Winches
Spinlock winch feeders x2 for efficient halyard management. Lewmar 44 st 2 speed primary winches Lewmar 44 st 2 speed mainsheet winches
Deck equipment notes

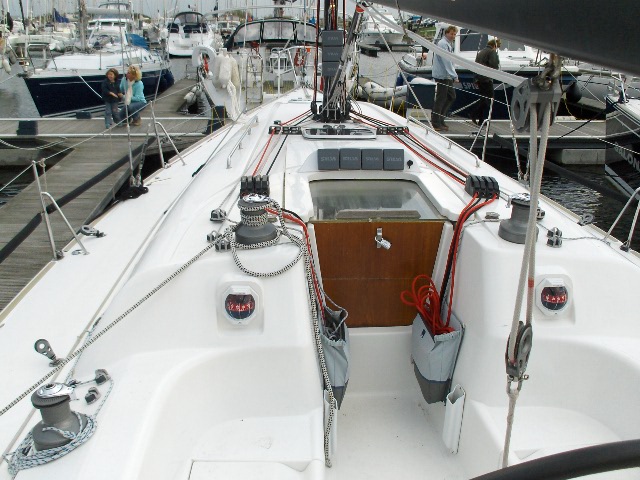

Halyards and reef lines led to Spinlock rope clutches on coach roof (new in 2006)
Pole downhaul led to both sides
Backstay adjustment 48:1
Genoa sheet barber hauler system
Cunningham led to base of mast
15:1 genoa car control system
Asymmetric spinnaker tack line system Lewmar 44 st 2 speed halyard winches
SAFETY EQUIPMENT
Safety equipment notes
Emergency steering tiller
CONSTRUCTION
Keel

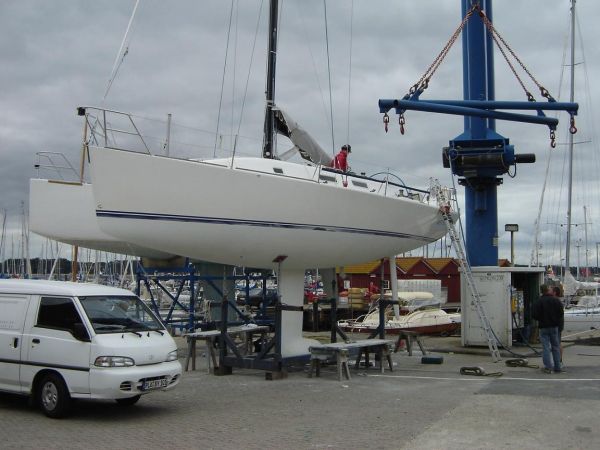

Cast iron fin with lead bulb . Nominal total keel weight 2690kg.
Construction notes
Hand laid GRP with balsa core above the waterline and additional lay-up of Multi-directional E-glass below the waterline
Reinforcement of hull around area of keel
Keel floors and frames formed by a moulded matrix bonded to the hull skin
Watertight bulkhead at bow.
Deck: Hand laid glass fibre with Balsa in flat areas
Plywood and additional reinforcement pads under deck fittings and high load areas
Deck gelcoat in white.
EXTRA
Radio CD
CD radio and speakers/cockpit speakers
Extra notes
Two manual bilge pumps with strum boxes
Halyard tail bags
Warps and fenders, Anchor and chain
Seacocks on all through-hull fittings
