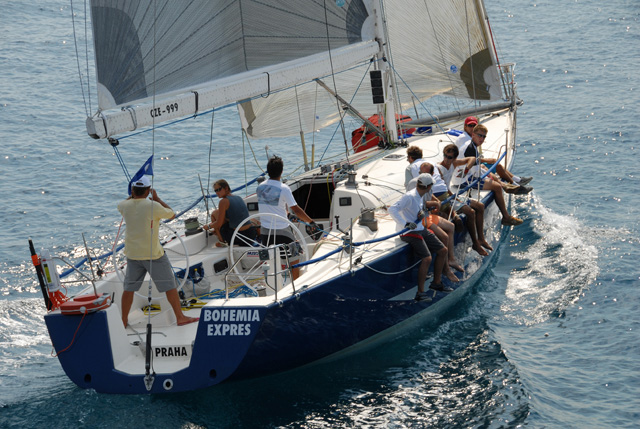

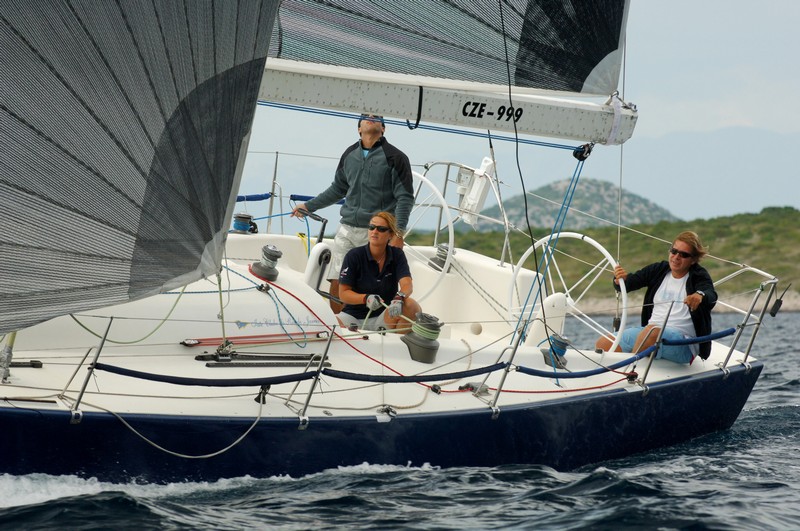

Sydney 46 Bohemia Express

SOLD

GENERAL
Name
Sydney 46 Bohemia Express
Model
Sydney 46
Year
1997
Hull material
GRP
Located
Izola, Slovenia
Price
PRICE AT REQUEST
VAT
PAID
Flag
Czech
Type
RACER-CRUISER
Slogan
.
Description
Previous names: Cutty Sark, Mas! IMS GPH: 536.7 sec/mile IRC TCC: 1,199
DESIGN
    Builder
    Bashford International, Sydney, Australia
    Designer
    Ian Murray
DIMENSIONS
    LOA
    14.00m
    LWL
    12.07m
    Beam
    4m
    Draft
    2.87m
    Displacement
    8087kg
ENGINES
    Engines
    Yanmar 35kW with saildrive
    Propeller
    Two bladed folding
    Engines notes
    Engine: Diesel Throttle control in the cockpit Switch and controls at the chart table
TANKS
    Fuel
    100 l stainless steell
    Water
    2x 100 l flexiblel
    Tanks notes
    Fresh water system: Hand pumps at galley and heads basin Heads: 1x Marine, plumbed for intake of sea water Bilge pumps: Manual, 1 in cockpit, 1 below deck Notes: Flush Sea cocks on all openings below deck Galley and heads sink with overboard drain
ACCOMMODATIONS
    Shower
    Yes
    Accommodations notes
    Interior Layout is designed to meet the IMS Cruiser/Racer Regulations as well as the ISAF Special Regs. Category 2 3 Cabins, spacious Salon, 1x Heads with washbasin Wood used on the sole, Salon wall panels, Chart table, Cupboard doors
GALLEY
    Galley notes
    Stove: Alcohol, 2 burners plus oven Sink: Double, stainless steel Icebox: Insulated
ELECTRICAL
    Batteries
    2x 100 Amp gel batteries
    Electrical notes
    12 Volt DC distribution panel with appropriate switches Battery condition meter Circuit breakers of appropriate amperage Main battery switch under the chart table 220V shore power connection with battery charger and outlets at the chart table Alternator on engine Navigation lights: Lightweight LED units (bow& stern) Interior lights: Recessed halogen lights in salon and heads Halogen lamp on chart table Fluorescent tube in galley Halogen reading lights in cabins
SPARS & RIGGING
    Sails

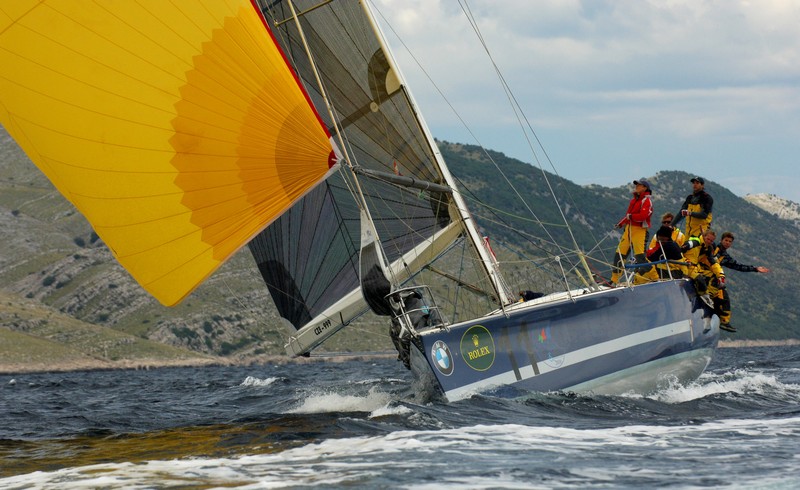

    Sail area upwind: 137 m2 Spinnaker: 177 m2 Racing sails: CBS Sails (Austria) Triradial, Northsails 3DL860 Mainsail offshore carbon, CBS 2005, 2 reef Mainsail light Kevlar/carbon 3DL860, Northsails 2006, 1 reef Genoa code 1 Ultralight Kevlar/Mylar, CBS 2005 Genoa code 1 Medium carbon, CBS 2004 Genoa code 1 Medium/heavy, Kevlar/carbon 3DL860, Northsails 2006 Jib code 3 carbon, CBS 2005 Jib code 4 heavy weather Hydra Net (Dacron/Spectra), CBS 2005 Spi 0.5 AP, CBS 2004 Spi 0.5 Runner, Banks Sails Spi 0.75 AP, CBS 2006 Spi 0.9 AP (heavy), Banks Sails 1998 Delivery sails: Mainsail Dacron, 2 reefs Genoa code 1 Light Kevlar, 2 sails Jib code 4 heavy weather, Dacron Spi 0.5 + 0.75 Various other mainsails and headsails for delivery/practice purposes Storm sails: Storm jib Trysail Heavy weather Dacron Mainsail (approx. ½ size)
    Rigging
    Masthead, 140% Genoa. Stainless steel rod.
    Mast
    Carbon
    Boom
    Alu, riveted
    Spinnaker pole
    1 Carbon, 1 Alu
    Spars and rigging notes
    3 sets of stainless steel spreaders, sweepback angle less than 5 deg. 1 pair of runners (PBO, spectra) Roller bearing Harken spi pole track Single Hydraulic backstay (Navtec)
DECK EQUIPMENT
    Winches
    Halyards: LEWMAR 44 2 speed self tailingPrimaries: LEWMAR 60/3 – 3 speed sheave base winchesLinked to LEWMAR lightweight glass fibre pedestalMainsheet: LEWMAR 44 2 speed self tailingRunning backstays: LEWMAR 44 2 speed self tailing
    Deck equipment notes
    Stanchions etc.: Stainless steel pulpit, pushpit and stanchions with braces Upper and lower adjustable lifelines with covers for hiking Mainsheet system: Lead along boom and mast and below deck aft to trimmer Headsail system: Longitudinal HARKEN tracks – 2 pairs (for code 1 and code 3) Fully adjustable with purchase leading aft to trimmer Rope clutches: Spinlock Other deck equipment: HARKEN Black Magic blocks All controls led to cockpit Circular foredeck hatch
SAFETY EQUIPMENT
    Liferaft
    2 (6 person each) packed in soft valise
    Safety equipment notes
    According to ISAF Special Regs. Category 2
CONSTRUCTION
    Keel

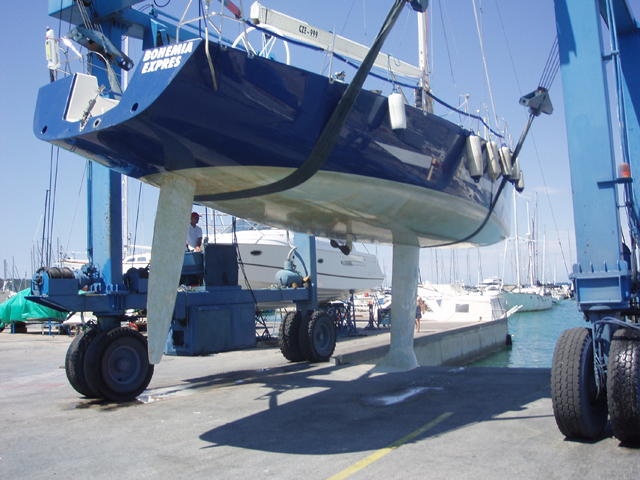

    Cast iron fin with lead shoe
    Construction notes
    Epoxy glass/foam deck, sandwich Rudder: Carbon blade Steering: 2 rudder posts with aluminium wheels Emergency tiller
