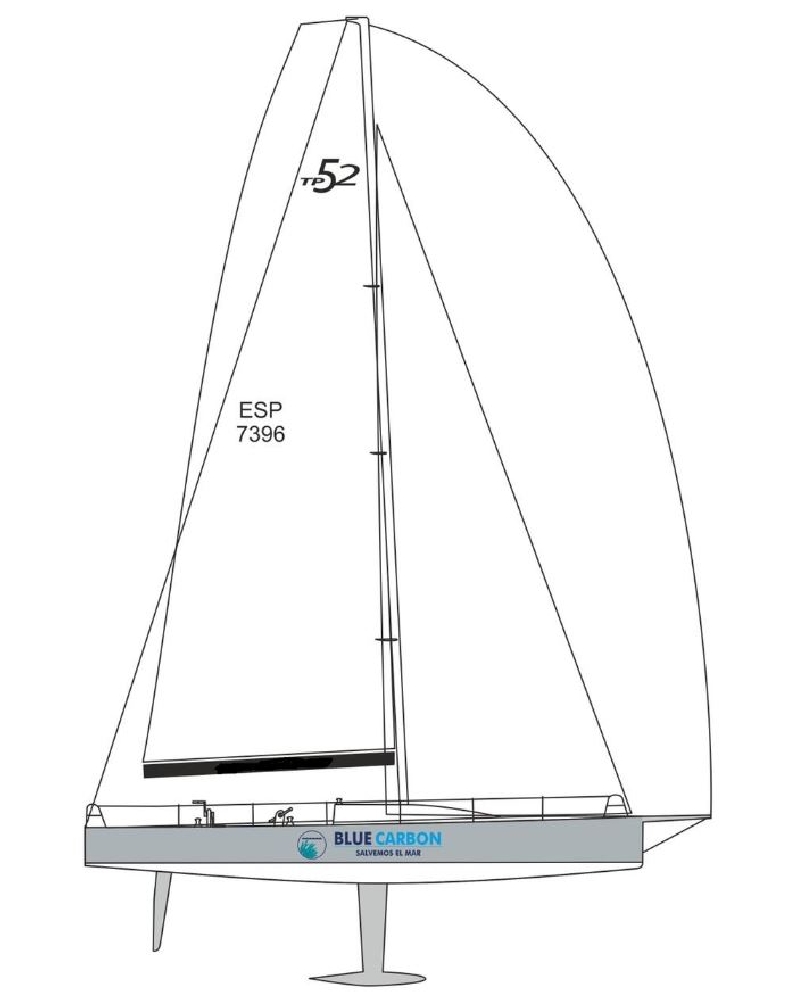

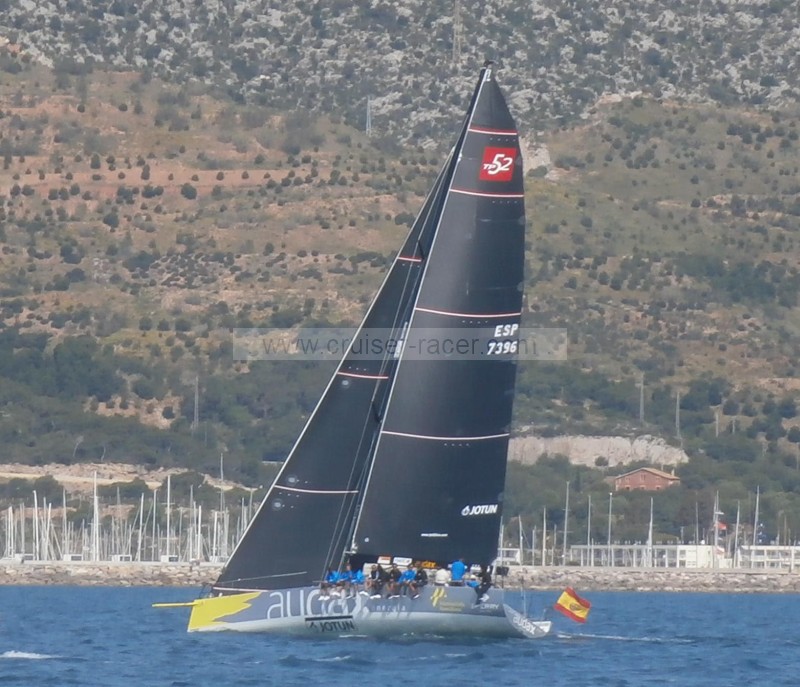

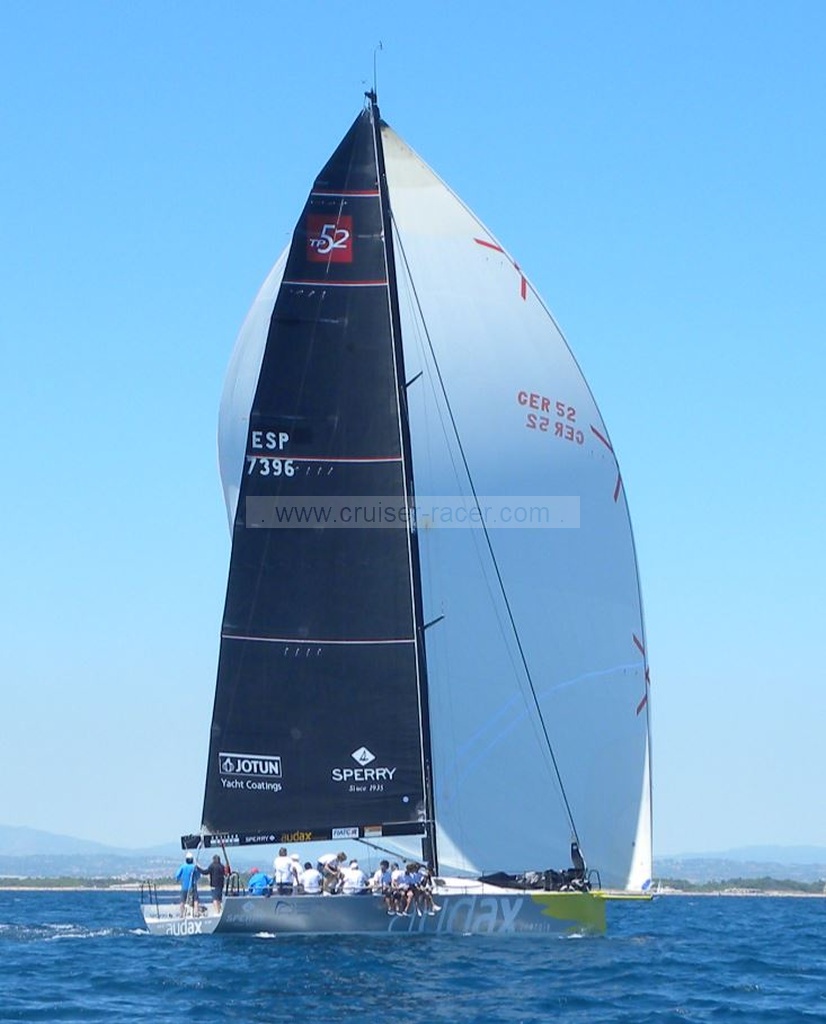

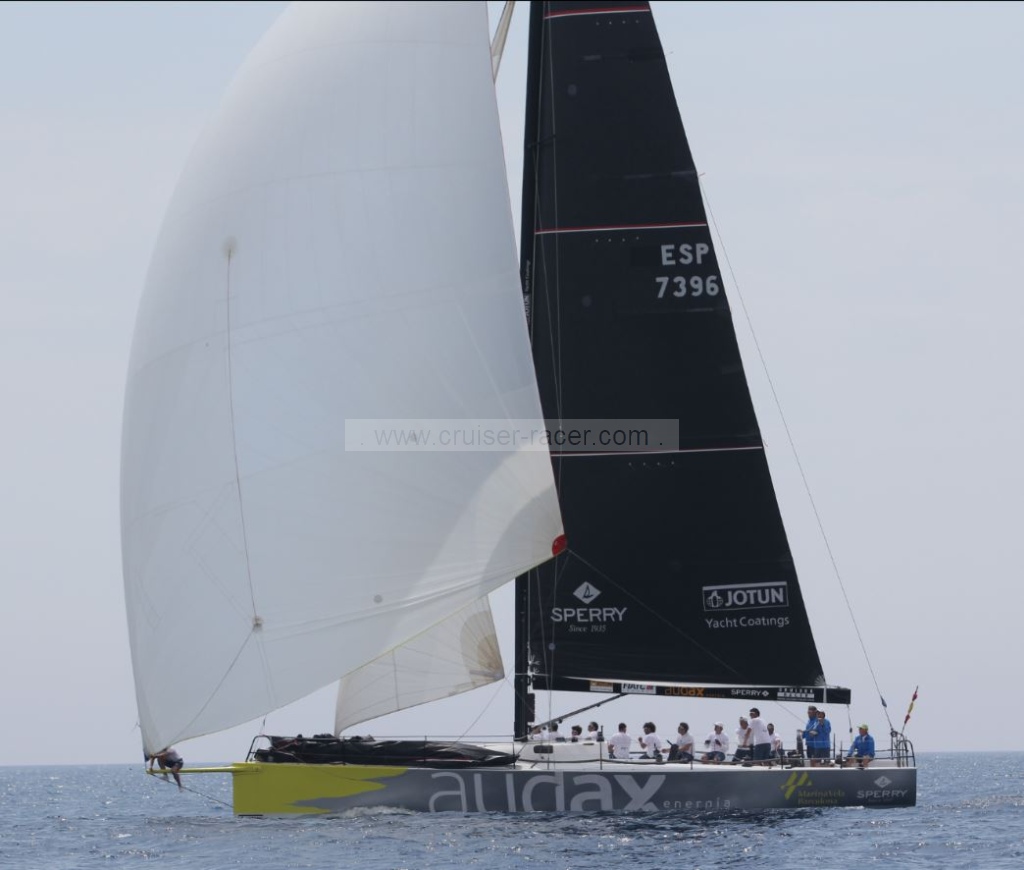

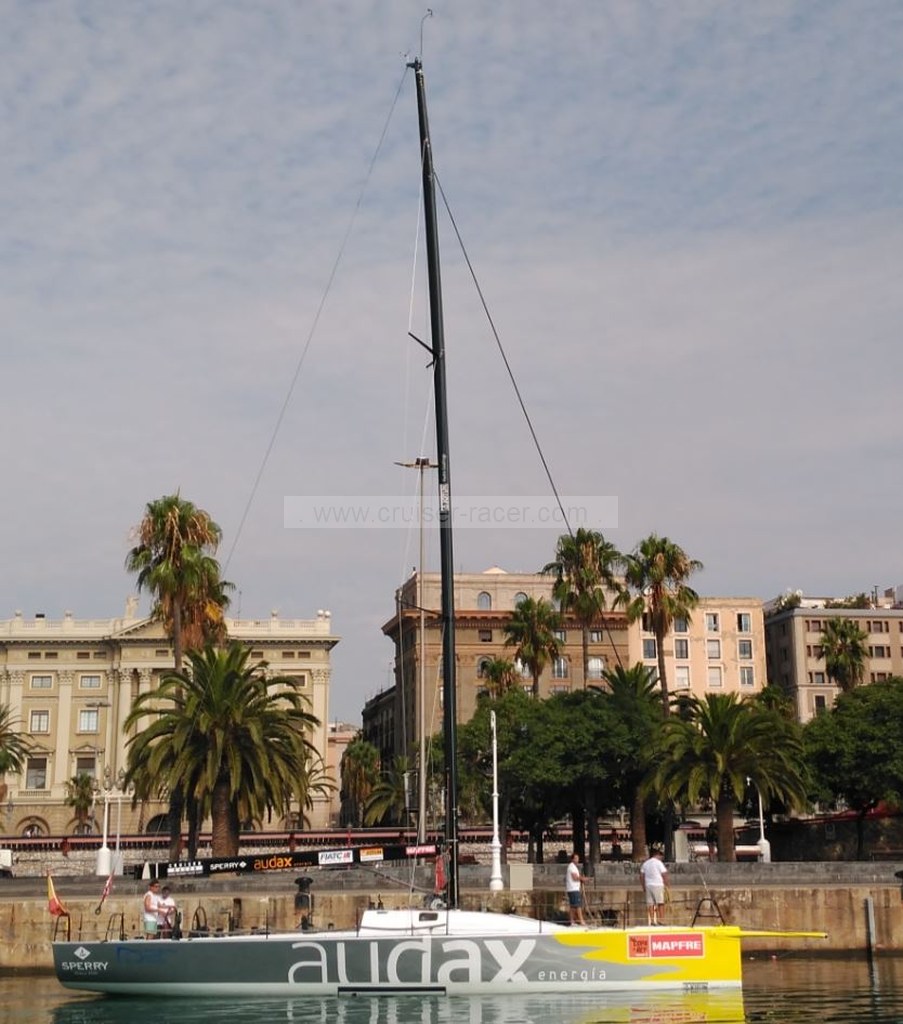

TP 52 BLUE CARBON

FOR SALE

GENERAL
Name
TP 52 BLUE CARBON
Model
TP 52
Year
2006
Hull material
Carbon
Sail number
ESP 7396
Color hull
Green - Blue - Grey Vinyl
Located
Barcelona
Price
270000 €
VAT
NOT PAID
Flag
Spanish
Type
RACER
Slogan
Boat constantly updated, ready to win
Description

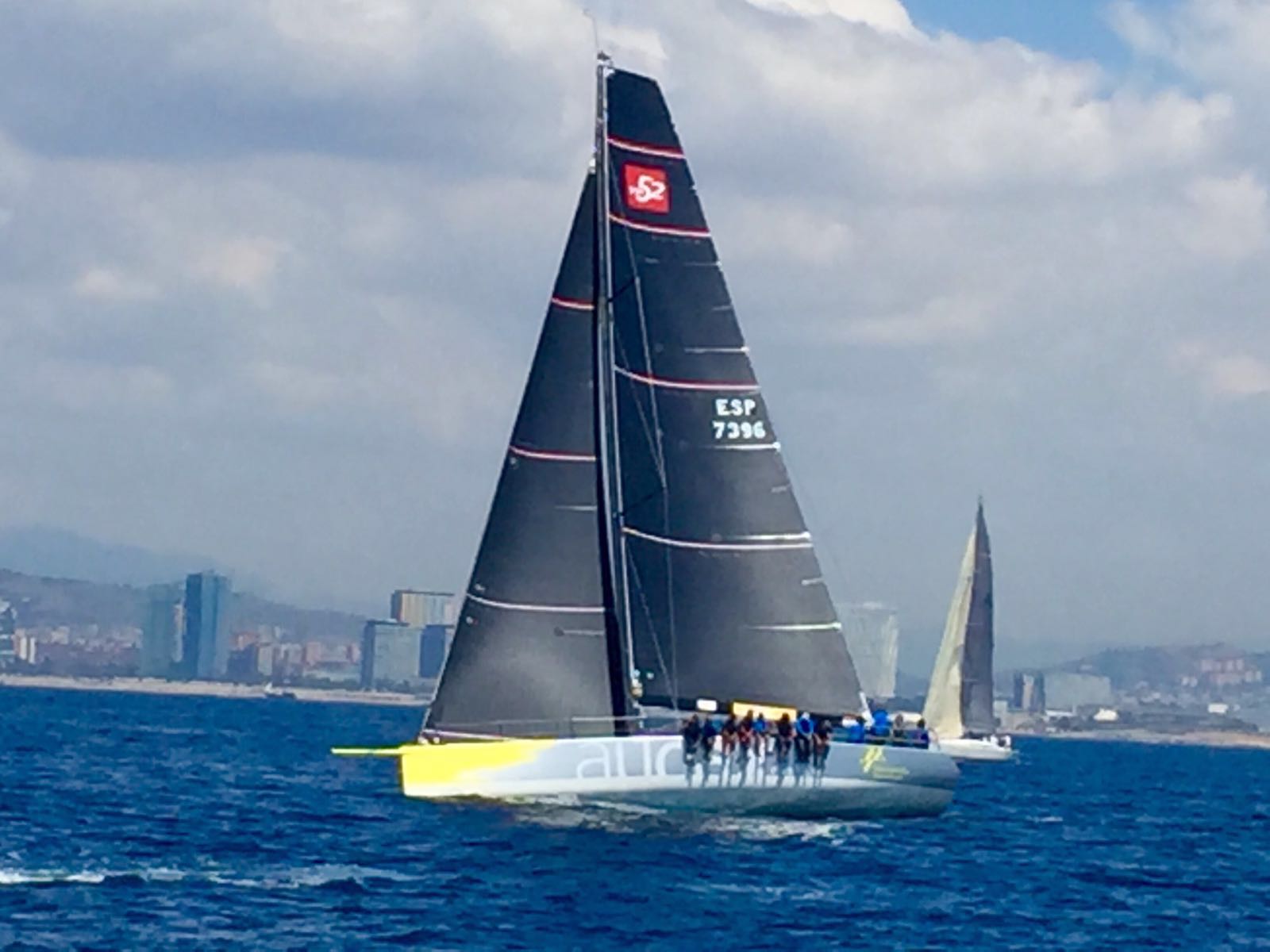

Actual TP 52 Blue Carbon, Ex Audax, Ex TP 52 BALEARIA Great TP 52 built in Longitud Cero and designed by Botin. Twin boat of Pisco Sour. Hull, deck and rudder in pre-impregnated female. Carbon-epoxi sandwich. Construction (Nomex)- foam P.V.C. Keel in L-flange composite. Chain plates in composite. Full refitted 2016 NEW ELECTRONICS H 5000 COMPLETE 2019 ULTRASOUND TEST MAST AND RIGGING 2019 NEW ELECTRIC INSTALLATION 2019 NEW SAILS 2019, 2021, 2022 and 2023
DESIGN
    Builder
    Ximo Lopez
    Designer
    BOTIN & CARKEEK
    Shipyard
    LONGITUD CERO
DIMENSIONS
    LOA
    15.85m
    Beam
    4,372m
    Draft
    3,18m
    Displacement
    7321kg
    Dimensions notes
    UPDATE AND IMPROVE ORC CERTIFICATE 2022
ENGINES
    Engines
    YANMAR sail drive
    Cruising speed
    8kn
    Propeller
    GORI FOLDING 3 BLADES
    Engines notes
    Engine YANMAR 4 JH 2 CE Gori propeller 3 folding blades Morse Spinlock NEW 2023 Complete overhaul 2023 New Injectors, new sump cover, new head gasket. Complete new electric and panel installation 2019 New saildrive SD 60 2019
TANKS
    Fuel
    100l
    Water
    300l
    Tanks notes
    Water tanks 2 x 150 l each. Fridge Coleman Sink, manual faucet. Manual WC New 2020 Underlying faucets with closing Shakewell.

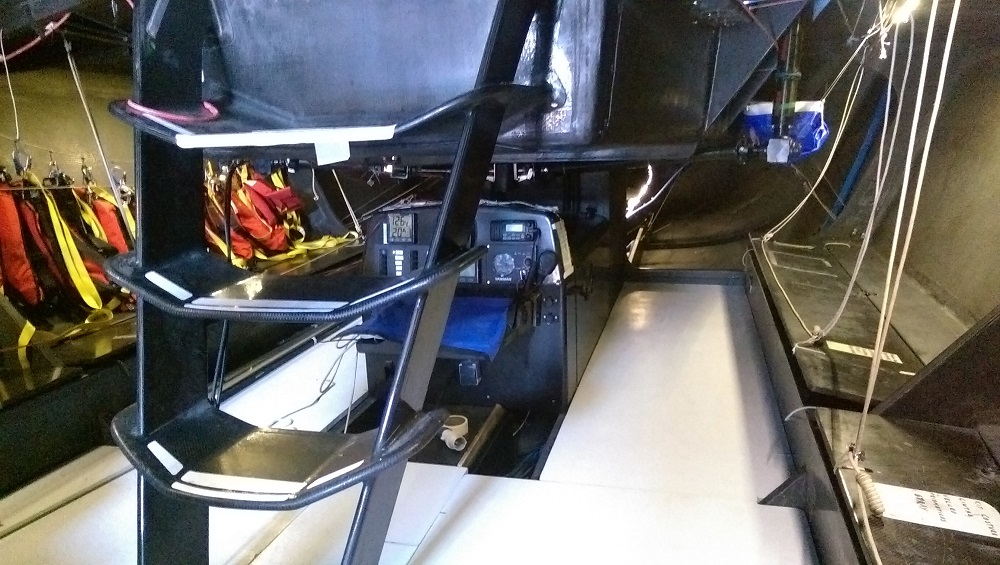

ACCOMMODATIONS
    Berths number
    6
    Shower
    No
    Accommodations notes

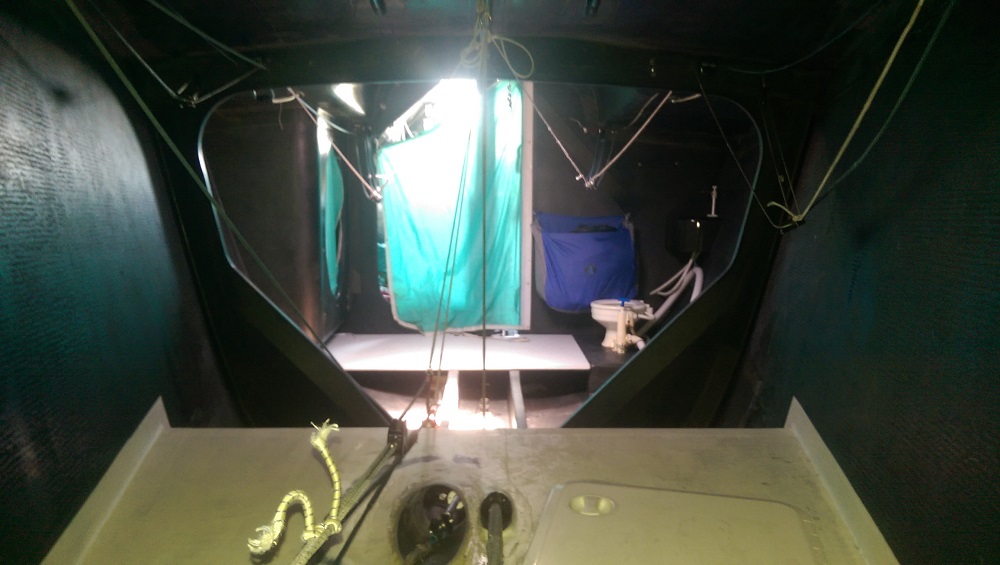

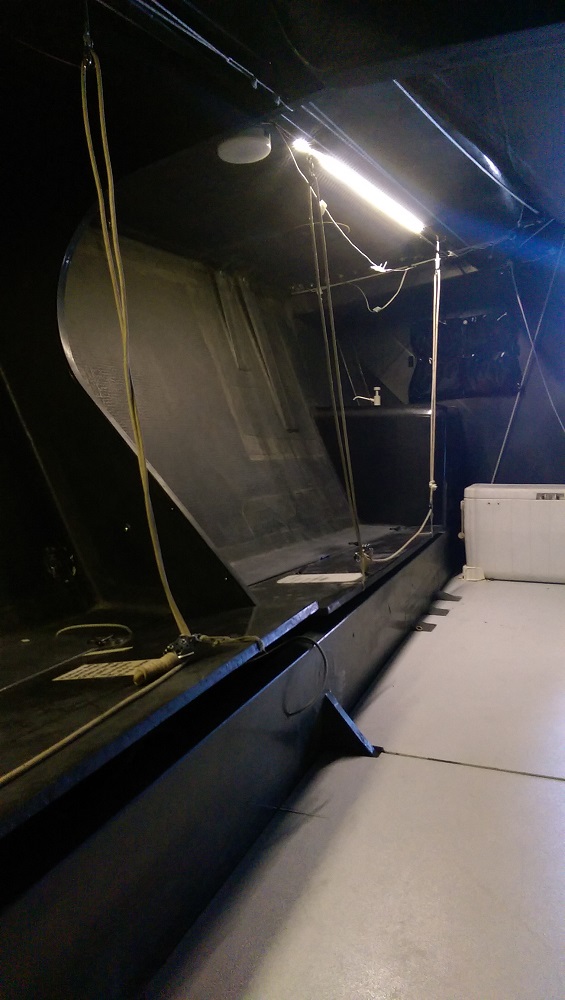

    Extra bow bulkhead that makes two new berth on the bow. Estructural reinforcement.
GALLEY
    Coolbox
    Yes - COLEMAN
ELECTRICAL
    Batteries
    3
    Battery charger
    Yes
    Electrical notes

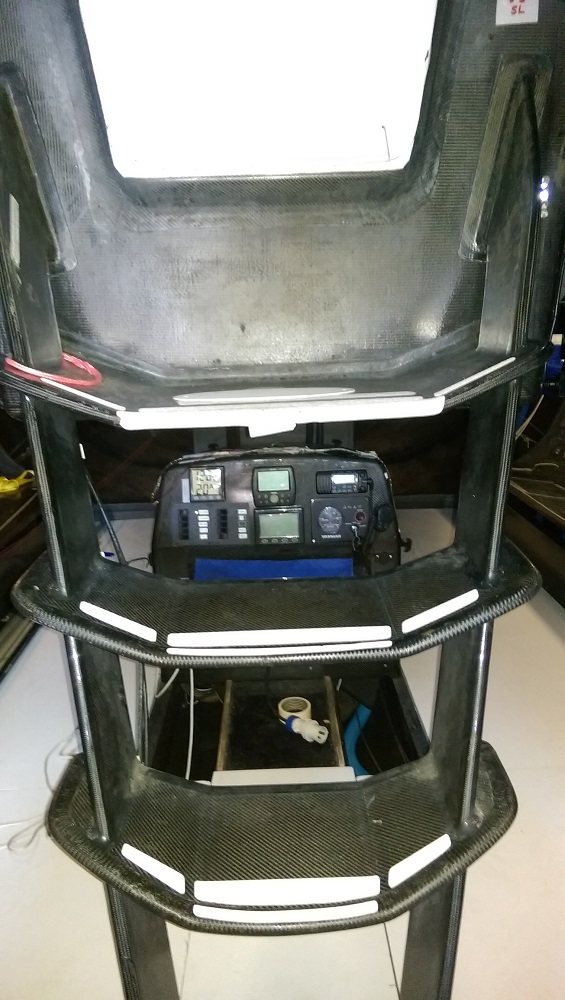

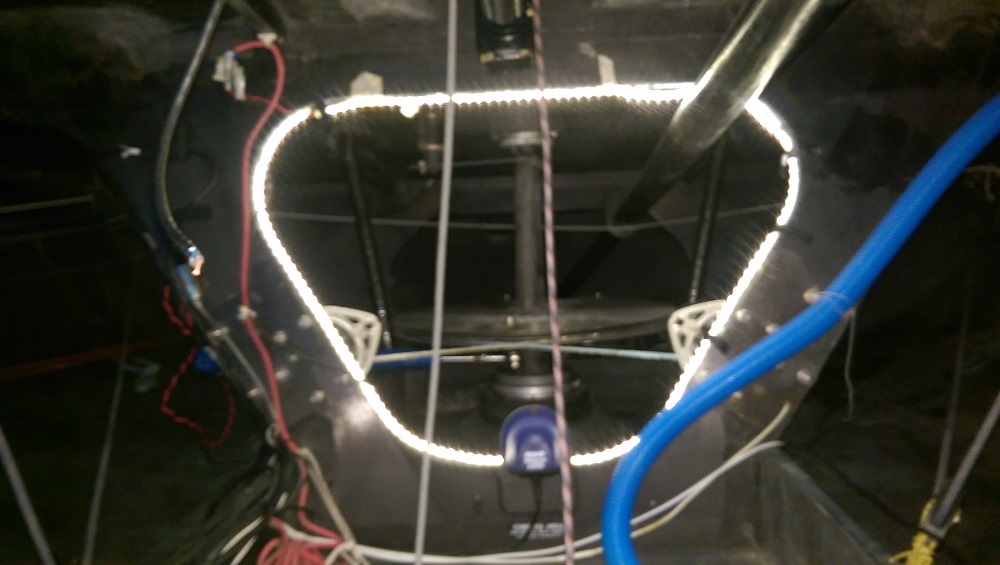

    New Lights and installation 2019 1 Battery manager 1 Battery charger Service 2 x 100 Battery - New 2023 100 AH engine battery - New 2023 Box anti-overturn 3 switches: motor service emergency ORC Lights of navigation Top mast tricolor + anchor led light 7 points of interior light Instruments box, carbon clear-coat Magnetic-termics interrup Panel Voltmeter Ammeter service/engine 2 connection 12V
SPARS & RIGGING
    Sails
    NEW 2022 MAIN, 4 JIBS AND 3 SPINNAKERS. SEPARATE COMPLETE LIST OF MORE THAN 50 SAILS INCLUDING NEW SAILS FOR 2019 MAIN TWO OPTIONS, STANDARD MAIN AND SQUARE MAIN TOP MAIN STORM JIB TRYSAIL
    Rigging
    Rod
    Mast
    Hall Spars Carbon - Painted 2017
    Boom
    Carbon
    Vang
    Quick Vang
    Spinnaker pole
    BOWSPRIT
    Tuff Luff
    Harken 2023
    Furling system
    Code 0 and Staysail
    Spars and rigging notes

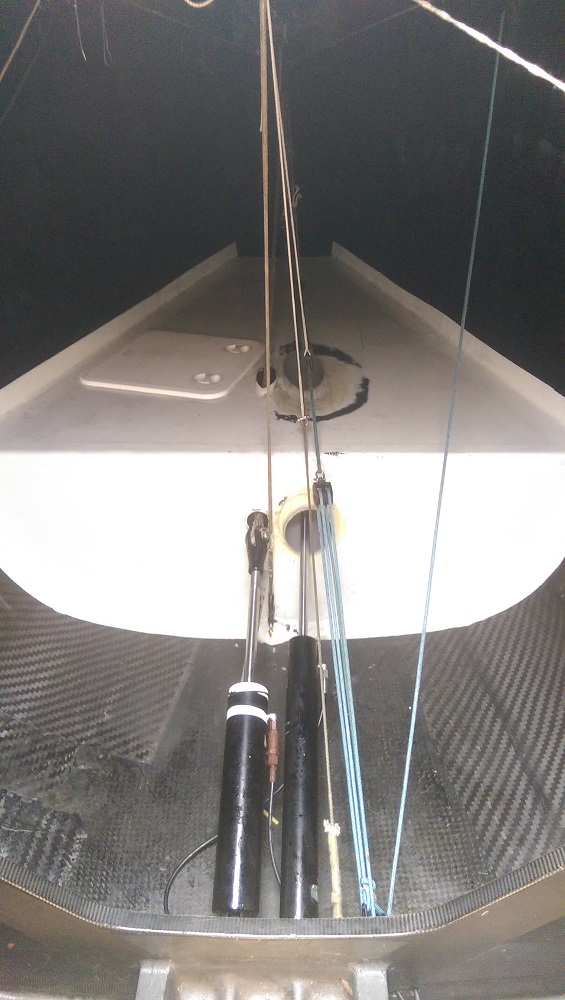

    RIGGING Hall Spars optimized by B&C Reaching strut x 2. Trapa Quick Vang 2000 D-48. Rigging Navtec series 800. (Fully Ultrasound tested 2019) Hydraulic Holmatro mast base Hydraulic rams for forestay and code 0, and genoa tack. New Carbon Runners 2022 Complete ultrasound test on mast and rigging 2019 New locks on main, jib and Code O New loadsense sensor 2019 NEW HAYLARDS AND SHEETS 2023

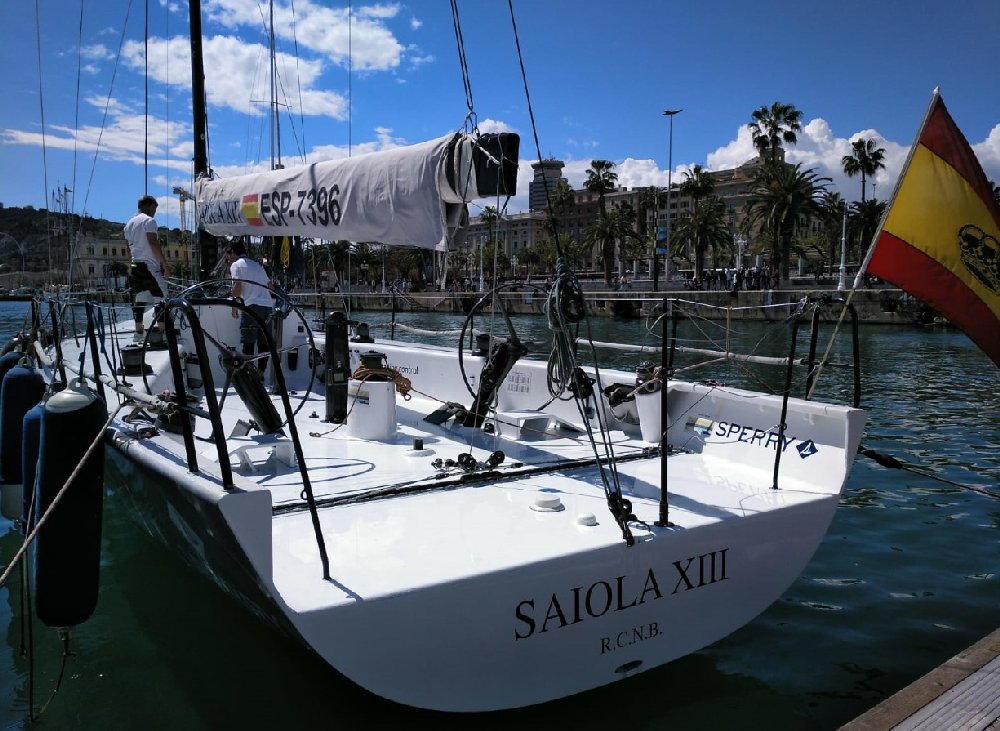

DECK EQUIPMENT
    Deck hardware
    Harken
    Hatches
    Lewmar
    Winches
    Harken
    Deck equipment notes

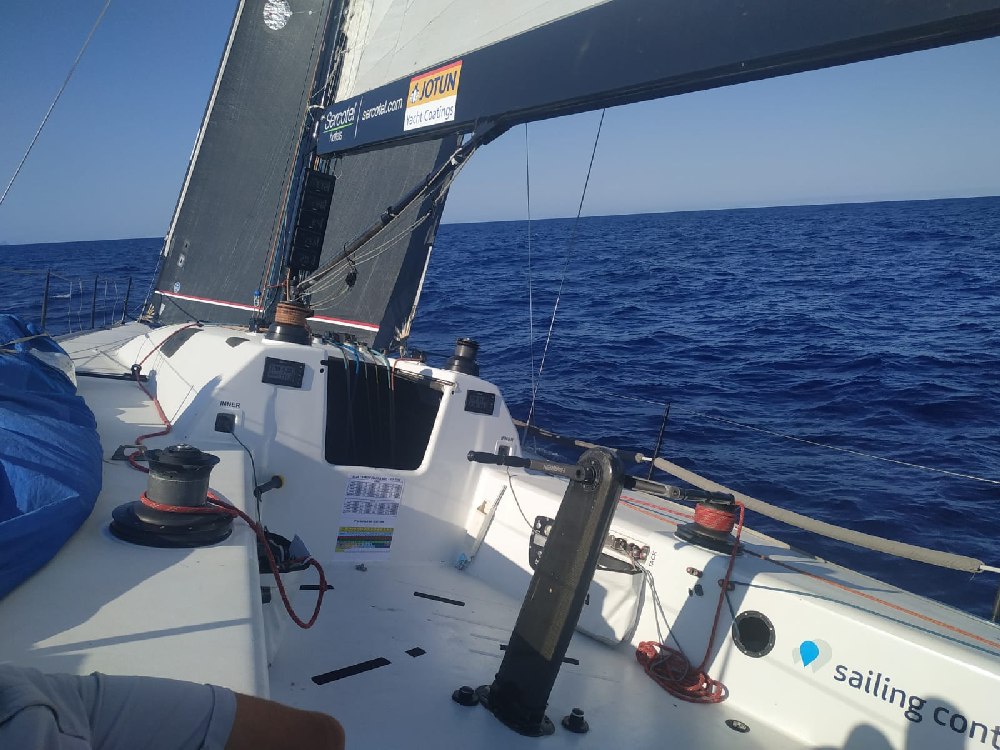

    Winches and pedestals Harken. Cars and travellers by Harken New 2016 bowsprit Hydraulic rams for forestay and code 0. New Harken foil 2023 New runners blocks New vinyl 2022 New 2020 anti skid on cockpit Deck Marine
SAFETY EQUIPMENT
    Fire-extinguishers
    Yes
    Epirb
    Yes
    Liferaft
    Yes
    Safety equipment notes
    Race complete equipment 15 life jackets 2 liferafts x 8 pax - New 2023

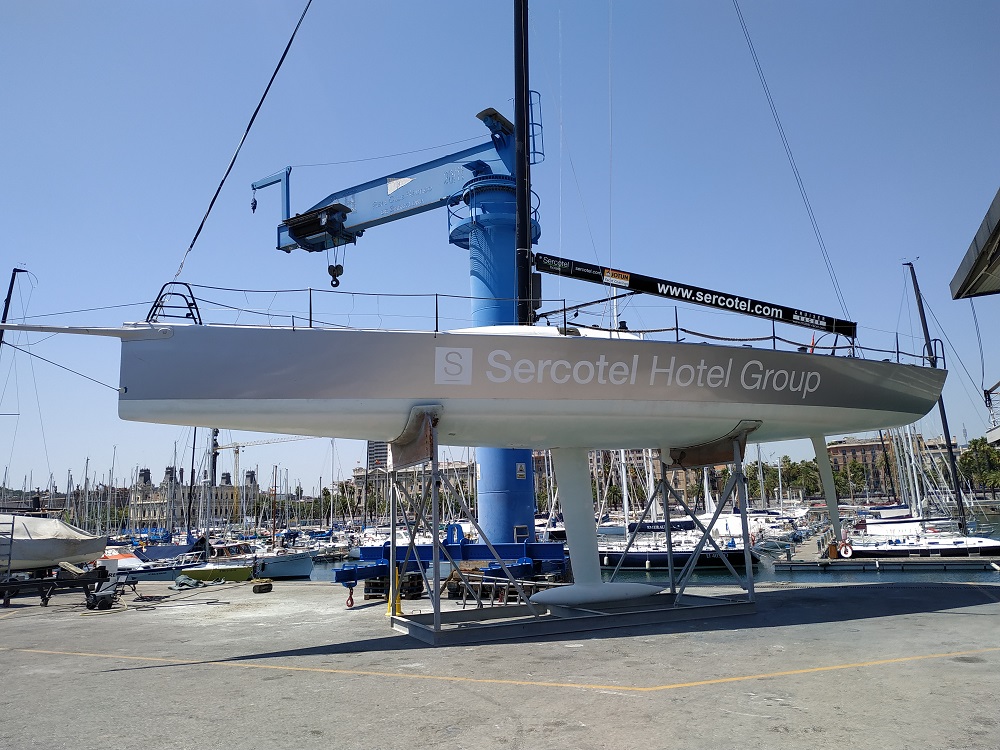

CONSTRUCTION
    Construction notes
    Hull, deck and rudder in pre-impregnated female. Carbon-epoxi sandwich. Construction (Nomex)- foam P.V.C. Keel in L-flange composite. Chain plates in composite. PAINTING Interiors clear coat and polyurethane partially painting. Covered polyurethane-non-skid. Upper works polyurethane grip. Methacrylate display for keel, propeller, rudder APPENDIXES SABLE OF KEEL NEW B&C 2007. BULB NEW (numerical control) B&C 2007. NEW RUDDER B&C 2007. RUDDER DISPLACED BOW 500 mm. REVISION LINED UP WITH LASER. COMPLETE CHECKING HULL AND APPENDIX 2023 NEW RUDDER BEARINGS JP3 2023
FINAL NOTES
    Final notes
    The TP52 is a simple racing machine. No moving parts under water other than a single centreline rudder, no complicated issues on deck or in the rig. Just high quality components allowing proper control of the boat and of a sails wardrobe build for optimum performence at every windangle and windspeed. The interior is the minimum required by the Safety Regulations and TP52 Rule. TP52’s are true Grand Prix Racers, so designed and build to withstand the abuse of yacht racing at the highest level, but not overbuilt and thus ensuring excellent performance. Once you get a chance to sail these magnificient machines and you join the game wherever it is played you will realise why so many before you choose for the TP52.
