Motor YANMAR 4JH-3DTE 125 cv. with battery of 100 Amp/h and 12 volts.
Inversors hydraulics stainless steel shaft 17/4PH.
Propeller MAX-PROP three folding shovels and 60 cm, with two-speed system.
Bow folding propeller MAX POWER 140kgs F. with cockpit control.
Generator FISCHER-PANDA (PMS-6000) with battery of 70 Amp / h and 12 volts.
Diesel fuel tank made of stainless steel with level indicators and cover cleanup, with all kinds of filters and valves and 340 liters capacity.
Cooling Engine.
TANKS
Fuel
330 litresl
Water
800 litresl
Tanks notes
Salt water:
Water filters and box distribution in stainless steel for the following uses:
Cooling Engine.
Cooling of the generator.
Water treatment tapping point.
Tapping point to pump salt water to clean the deck, anchor and chain.
Fresh water:
Two structural tanks of composite with 800 liters capacity, with level indicators and keys and lock for each.
Desalinization-Water treatment SPECTRA 70 liters / h. automatic control at the card table.
Pump pressure GIANNESCHI & RAMACCIOTTI with 25 liters.
Hot water heater 40-liter engine 220v. throughout the boat, including the cockpit shower.
Pipes lined with keys and cut for each zone.
Taps mixers FANTINI in all services.
GROHE showers.
Sewage:
Two electrical WC TECMA with three-way valves and discharge directly to the sea or deposit.
Fuel stainless steel bomb, with deck discharge or sea discharge and control level indicator on the card table.
Waste water:
Structural tank that collects toilets, showers, refrigerators and air conditioning with automatic or manual pump and discharge to the sea.
Bilge: (-painted anti-moho gray).
Division four bilge (bow and stern watertight) with four electric pumps with automatic or manual activation and audible alarm and visual presence of water.
ACCOMMODATIONS
Shower
Yes
Accommodations notes
Teak and stainless steel table in the center of cockpit.
Tinted and laminated crystals in cockpit.
Six mooring bollards fit on deck.
Bimini removable in the cockpit.
Convertible roof fitted in deck that covers entrance and cockpit.
Cushions seats in cockpit and deck for sunbathing.
Air conditioning:
Centralized installation heat pump and evaporator with hot/cold function CLIMA.
Five fan-coils, one in each cabin and two in the living room with separate thermostats and contol in each unit.
Gas:
Installing double valve and outer tank.
Gas leak sensor with alarm and electro-cut valve.
Kitchen:
Kitchen FORCE-TEN with three burners and oven.
Microwave Oven 20 liters ELECTROLUX.
Stainless steel freezer 40 liters FRIGONAUTICA.
Stainless steel refrigerator 160 liters FRIGONAUTICA.
NAVIGATION INSTRUMENTS
Electronics
B&G HYDRA 2.000 con 4 jumbos 20/20 in mast, 2 jumbos multifunction in card table and cockpit with lo
VHF
Remote station V.H.F. FURUNO.
Automatic pilot
Autopilot B & G connected to the central navigation, hydraulic system and repeater functions in cock
Compass
Two compasses SUNTO.
Radar
Radar and card reader FURUNO with satellite G.P.S. and navigation software.
Navigation instruments notes

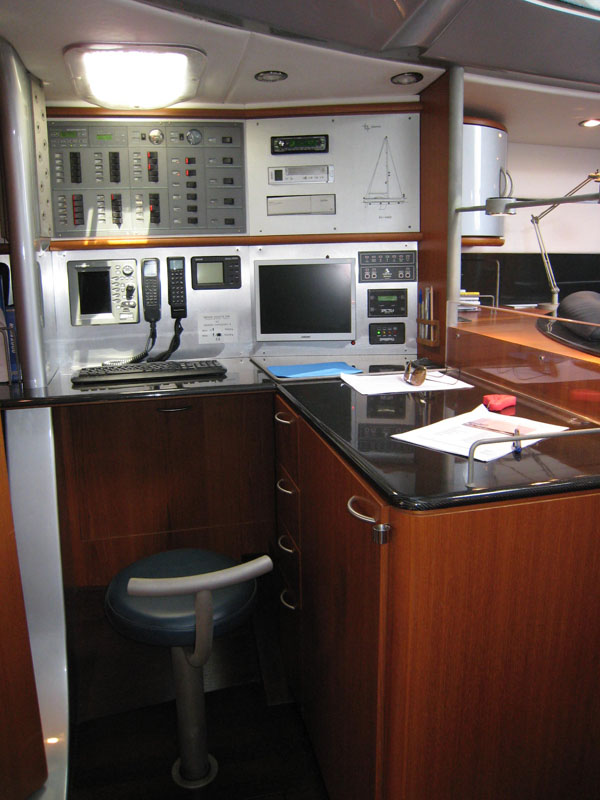

Control table with bow propeller inversor, cockpit lights, courtesy lights, boom and bimini lights, windlass and genoa furler from cockpit.
Control table of the engine.
SONY Computer screen fitted in card table.
Program MAX-SEA navigation.
Internet connection.
Central navigation connection.
GPS connection.
Double station V.H.F. FURUNO in card table and cockpit.
Satellite telephone MINI-M with global cover and small external antenna.
Card reader and GPS cockpit GEO-NAV, with separate antenna.
Multifunction antenna at top of mast for V.H.F., radio and G.S.M. notebook computer.
ELECTRICAL
Battery charger
Battery charger MASTERVOLT, by earth connection and generator.
Electrical notes
12 volt. and 24-volt. installation.
Battery group with SONNESHEIN gel 850 Amp./hr).
Residual alternator 100 Amp./h.
Starter motor batteries and generator 12-volt. by converter MASTERVOLT and batteries.
Installation 220 volt. by earth connection and a generator inverter MASTERVOLT 600 watts.
Ground MARINCO cable.
Plug 220 volt. in each bedroom, bathroom, kitchen, lounge and card table.
SPARS & RIGGING
Sails
Main fully-battened 3DL NORTH 87m2
Genoa 3DL NORTH al 140% 83m2
Forestay sail HALSEY Spectra.
Main fully-battened Spectra HALSEY
Genoa 140% furling Spectra HALSEY.
Genaker light NORTH 260m2
Genaker heavy HALSEY 180m2
Code 0 Kevlar- Carbon with furler NORTH.
Boom
SPARCRAFT in “Park Avenue†aluminiun with lazy-jack blue painted.
Running rigging
Removible hydraulic system for rigging.
Spars and rigging notes
All HARKEN system, mast and deck
Hydraulic system NAUTEC with cockpit box to back-stay, outhaul and boom vang.
Bow chest with windlass LOFRANS 1500W, anchor DELTA 25 kgs and 60 mtrs chain 10mm.
Genoa furler under deck BAMAR A.R.T.E.
Sloop 9/10 with genoa 140%.
Carbon fiber SPARCRAFF mast with three spreaders at 20° painted on the same blue than deck navigation lights, antennas, etc.
HARKEN line with balls for main.
Carbon fiber SPARCRAFT bowsprit.
Backstay, outhaul and vang hydraulic NAUTEK.
Removable forestay sail Kevlar stay.
Removable wind Kevlar backstays.
Kevlar backstay.
Spectra and Rynema halyard.
Spectra sheets.
Rod rigging RIGGARNA ROD-NITRONIC discontiniuos and self-linned.
Genoa halyard brace.
steering wheel

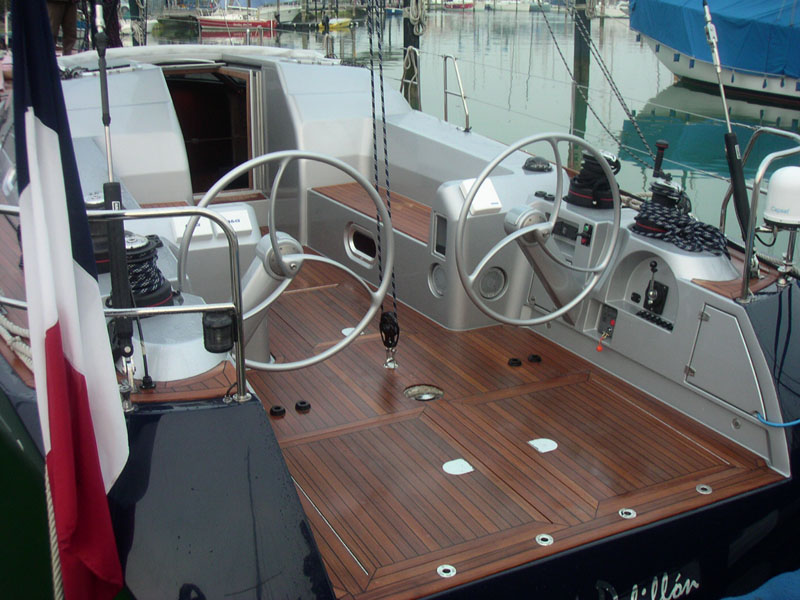

Two wheels with carbon fiber pedestals. SOLIMAR steering gear with aluminum sector and bearing area self-linned.
SAFETY EQUIPMENT
Liferaft
Liferaft for eight people and boat accessories.
Safety equipment notes
Zodiac auxiliary.
Fixed extinguisher in engine room and manual activation.
Portable fire extinguishers in each room.
Installing alarm sensor infra-red and volume.
System access to sensors burglar alarm.
EXTRA
Television
LCD 20 inch LOEWE in lounge, with multi-direction antenna in top mast.
Radio CD
DVD SONY
Speakers
2 in lounge and 4 in cockpit.
Extra notes
CLARION Radio with 6 CD reader in lounge.
FINAL NOTES
Final notes

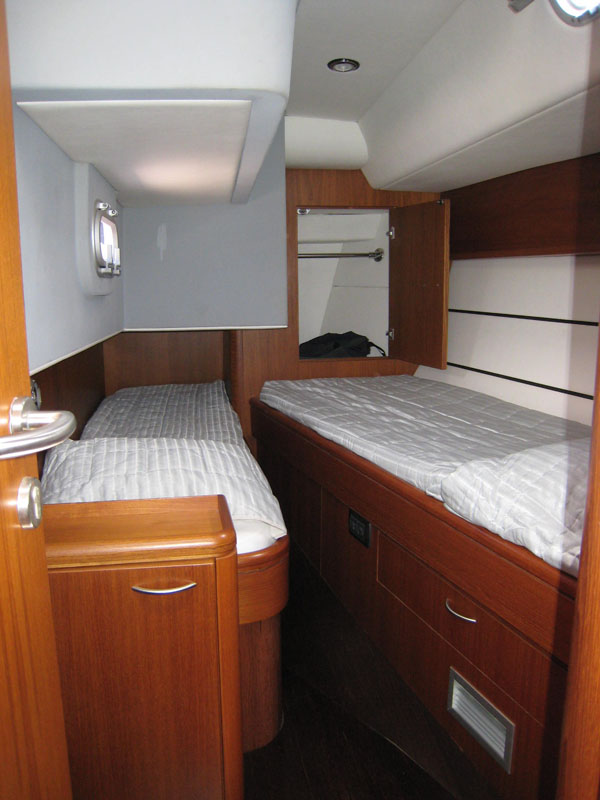

Two cabins in the stern with single beds.
A bath with toilet and washbasin.
A separate shower.

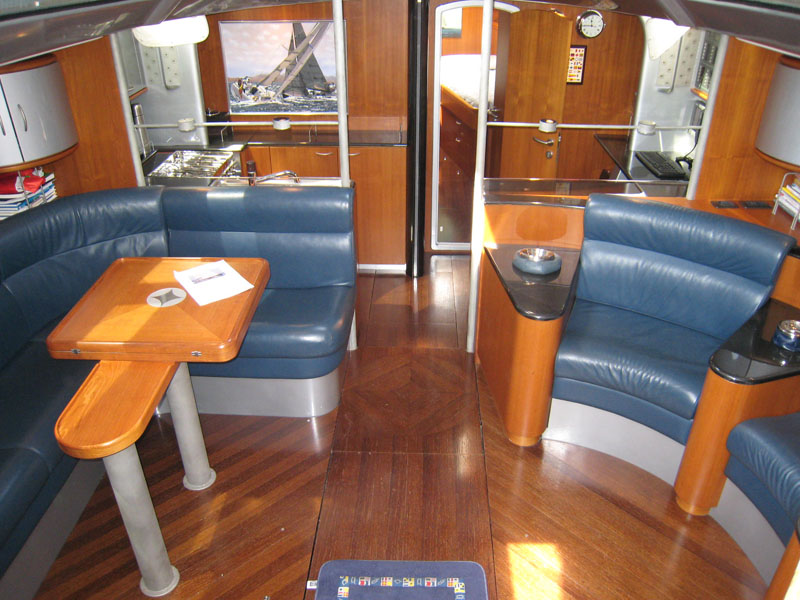

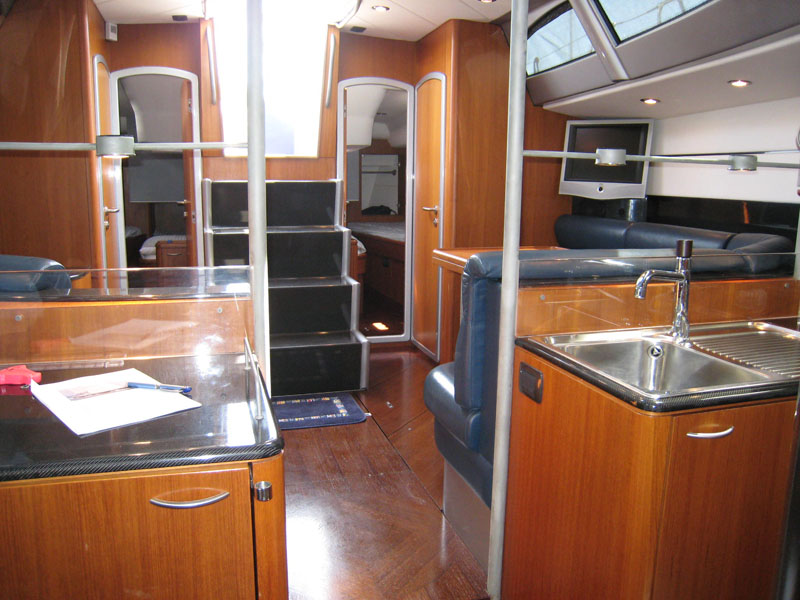

Hall with seating area and dining room.
Kitchen table and navigation separated from the living room.

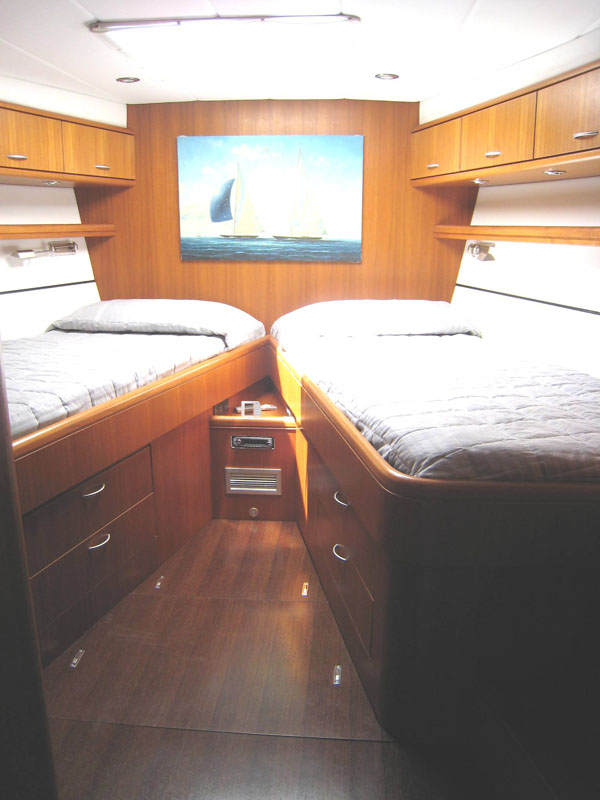

Cabin bow with two single beds.
Bathroom with with toilet and washbasin.
Separate shower.
Cabinets in all cabins.
Mooring ropes.
Life jackets automatic.
Vacuum cleaner.
Two sets of sheets and towels for all the beds and baths.
Motor HONDA 4 times for Zodiac.
E.P.I.R.B.
