#277

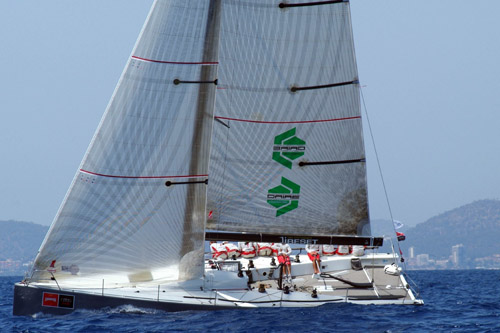

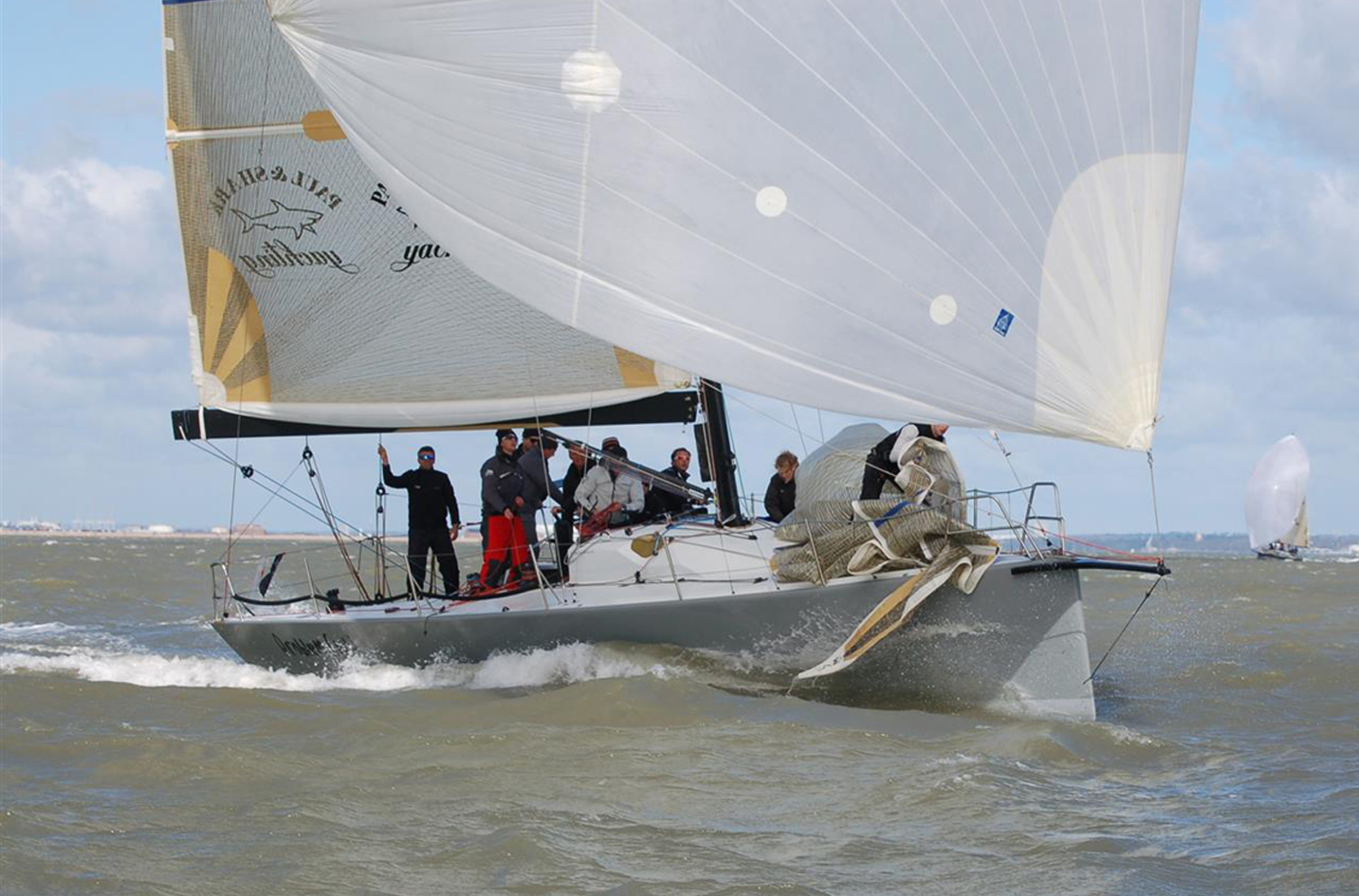

GP 42 Seawonder 007

SOLD

GENERAL
Name
GP 42 Seawonder 007
Model
GP 42
Year
2007
Hull material
Carbon
Located
Italy
Price
PRICE AT REQUEST
VAT
NOT PAID
Flag
italian
Type
RACER
Slogan
..
DESIGN
    Builder
    Marine Composite (Andora, Italy).
    Designer
    Reichel-Pugh Naval Architects (San Diego, USA).
DIMENSIONS
    LOA
    13.00m
    Beam
    3.9m
    Draft
    2.6m
    Displacement
    4400kg
ENGINES
    Engines
    29 hp Yanmar with saildrive.
    Propeller
    Gori 420 Racing.
    Engines notes
    Control Spinlock atcu unit. Exhaust lightweight Vetus Waterlock with silencer.
TANKS
    Fuel
    18 gal. PVC.l
    Tanks notes
    2 x Vetus 21 Gal. (Flexible) water tanks. Fresh water system with hand pumps in galley and head sinks. Bilge pump whale manual in cockpit. Composite sink. 2 x 13 Gal. Plastimo removable ice boxes. Standard RM69 type lightweight toilet. 4 x carbon bunks. Flush fit forespar. Manual pump located at sink.
ACCOMMODATIONS
    Shower
    Yes
    Accommodations notes
    Interior layout is designed to meet the IMS cruiser/racer regulations as well as the ORC special regulations to category 2. Interior finishing will be clear-coated carbon with a choice of contrasting paint for webs, cabin sole, etc.
GALLEY
    Galley notes
    Galley area: Custom moulded unit with recessed sink with locker below. Stove: Custom 3 burner unit.
ELECTRICAL
    Electrical notes
    Batteries: 1 X 75AH T-MAX + 1 X 125AH T-MAX (both sealed gel batteries connected via main battery switch). Alternator: 80AMP (engine mounted) Lighting: ORC approved navigation lights. White 9 Watt led lights for general illumination. Red 6 Watt led lights for navigation purposes. All internal led lighting will have no visible wiring. Custom 12 Volt DC distribution panel complete with breakers, switches, etc.
SPARS & RIGGING
    Sails
    Rig dimensions: I: 16,20 m. J: 5,00 m. P: 16,80 m. E: 5,90 m. Sail area (provisory): Main: 65 sqm. Jib: 46 sqm. Gennaker: 180 sqm. 2014; 1 x Doyle Sails A2 - increased STL (190 sqm) 1 x Doyle Sails A4 - increased STL (190 sqm) 2012: - Zaoli A1 gennaker. - Zaoli light/medium jib. - Zaoli medium/heavy jib. 2011: - Zaoli light jib. - Zaoli A1,5 gennaker. - Zaoli square-top main. - Zaoli A0 gennaker. 2010: - Zaoli A2 gennaker. - Zaoli inshore main. - Zaoli code 0. 2009: - Zaoli inshore main. - Zaoli light jib. - Zaoli medium jib. 2008/2007 (GP42 rule): - 2 x One Sails inshore main. - 2 x #1 jib. - 2 x #2 jib. - 2 x #3 jib. - 1 x #4 jib. - 2 x A0 gennaker. - 2 x A1 gennaker. - 2 x A2 gennaker. - 1 x A3 gennaker. - 1 x spinnaker staysail.
    Spars and rigging notes

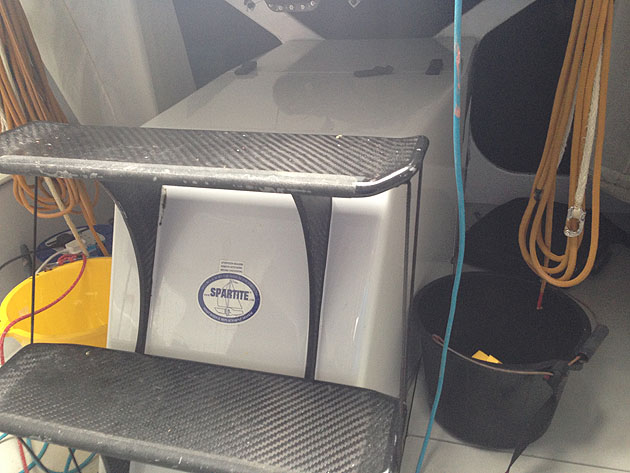

    Full carbon rig by King Composite mast (Argentina). Mast: 2007 ORC 42 rule optimised with tapered topmast section. Two sets aft-swept spreaders. Spartite deck collar. Boom: full depth boom reinforced vang section, custom moulded gooseneck. Oouthaul 16:1 purchase. Spinnaker pole: tapered carbon fiber spinnaker pole with kevlar end patch (forespar outer-end, custom quick-fit inboard end). Jockey pole: 2 x custom carbon with molded outboard end. Standing rigging: rod rigging by Navtec series 800. Harken 7001 headfoil.
DECK EQUIPMENT
    Deck equipment notes

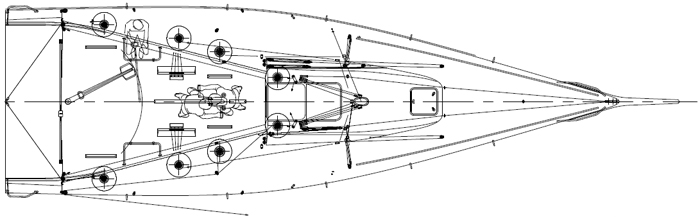

    Deck hardware: Marine Composite and Harken are currently working together to develop even lighter. Foredeck hatch: custom carbon sliding hatchcockpit hatches Lewmar low profile size 20 (2). Primaries Harken 530 TCRHalyard Harken 50 STQR mainsheet Harken 50.2 STRBackstay Harken 50.2 STR. Primary pedestal by Harken. Winch handles: 4 X 10 double grip lock. 4 X 10 speed grip lock. Pulpits: S/S custom bow&stern with lights. Stanchions: 6 tapered with braces, 4 tapered stanch. Bases: custom flush fit to deck radius. Lifelines: upper&lower 1 X 19 S/S wire. Jammers: Spinlock Powerclutch XX0812 for jib halyards (2). Spinlock Jammer XCS0814 for Spinnaker Halyards(2). Spinlock Jammer XCS0812 for main halyard. Deck gear: Harken or Lewmar. Transverse fully-adjustable jib sheting system with underdeck. Purchase lead aft to trimmer. Cunningham led aft to trimmer. Under-deck mainsheet lead aft to trimmer. Cradle: custom built shipping cradle included.
CONSTRUCTION
    Construction notes
    Keel weight: 2300 kg. Construction: hull, deck and internal structural members will be laminated using prepeg carbon over a pre-curved, post-cured Corecell T500 core in appliance with the GP rule. Steering system: Rudder: Isotop carbon blade and stock construction. Tiller: custom carbon tiller. Bearings: JP3 upper and lower self aligning bearings. Keel: Fin high strength 700 MPA steel assembled and machined. Internal keel box fitting with 2205 S/S locking bolts. Bulb: CNC milled antimonium-lead.
FINAL NOTES
    Final notes

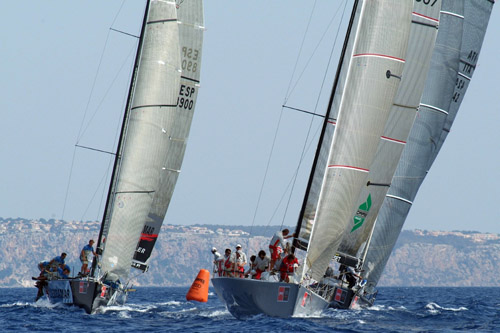

    2nd in the Internationa GP 42 Circuit 2007.
