DOWNLOAD PDF

#287

MaxFun 35

SOLD

GENERAL
Name
MaxFun 35
Model
35
Year
2003
Hull material
GRP
Color hull
Signing on the hull is self adhesive material and easy to remove
Located
North Holland the Netherlands
Price
PRICE AT REQUEST
VAT
NOT PAID
Flag
Dutch
Type
CRUISER-RACER
Slogan
.
Description
This very popular one design class is famous because of her speed, easy handling and stunning looks. This winner is one of the best equiped Max Funn 35`s around and in more than perfect condition and she has been professionally maintained by Roy Heiner The owner is designer of the ABN AMRO project (winner of the Volvo Ocean Race)
DESIGN
    Designer
    Maarten Voogd
DIMENSIONS
    LOA
    11.00m
    LWL
    9.43m
    Beam
    3.25m
    Draft
    2.2m
    Displacement
    3000kg
ACCOMMODATIONS
    Berths number
    6
    Shower
    Yes
    Accommodations notes

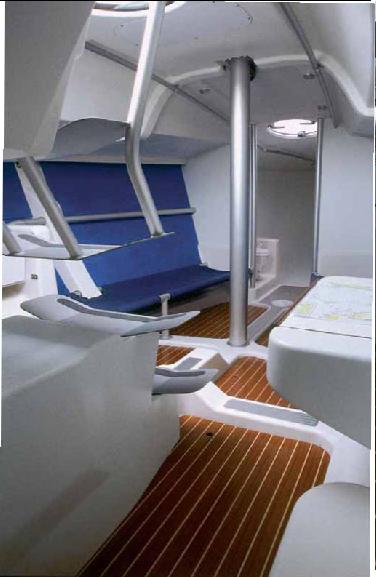

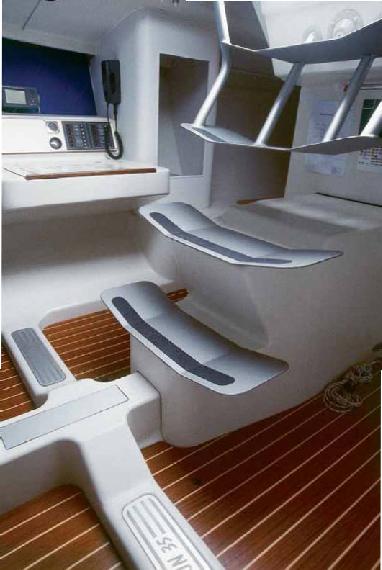

    While the aim was to create a fast yacht the designer did not want the MaxFun to be an empty boat inside. The internal frame is visible throughout the boat but by making the moulding in a dark colour and with a spickle coating it already will look vastly different from what we are used to. The hull sides are finished off in alcantara look alike lightweight panels and with removable leather seats and wooden floor panels the boat has a warm feeling inside. On starboard side is the nav. table with space for a notebook and electronics. The interior can in total accommodate six persons. Two aluminium pipecots can be installed in the bow
GALLEY
    Galley notes
    The galley consists of a sink and three burner stove integrated in a one piece base. This whole unit is gimbaled.
SPARS & RIGGING
    Sails
    2 mainsails 4 jibs 2 gennakers
    Rigging
    Fractional rig, no backstays
    Mast
    Hallspar Carbon mast
DECK EQUIPMENT
    Deck equipment notes

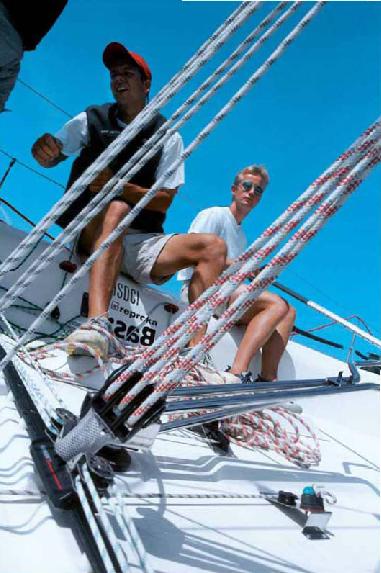

    The deckplan shows a generous cockpit with a clean deck lay-out. Four winches in total with ratchet blocks on the gennaker sheet and a fine trim on the mainsheet is enough to keep the sails under control. The jib furling line and bowsprit control line are fed back under deck All controls are led back to the cockpit over the coachroof. For touring purposes a locker can be installed at the transom to create extra locker space and close off the transom.
CONSTRUCTION
    Keel
    new high performance keel
    Construction notes
    For the building of the boat conventional building materials are used as much as possible. For the hullshell a thick foamcore has been used for panel stiffness. The internal frame is completely built out of glass/ carbon fibre and glued into place. The steel keelfin slots into a recess in the hull and with the keelbolts as well as with the mainchainplate bolts also a mechanical fastening is achieved between hull shell and interior liner. The boat consists basically out of four pieces. Hull, deck, interiorliner and a ceiling liner. Built: 04-2003
EXTRA
    Extra notes
    sailing gear Musto 10 x
