#290

Santarelli 40

SOLD

GENERAL
Name
Santarelli 40
Model
40 Modulo 123
Year
1999
Hull material
Carbon
Color hull
Grigio Vesuvio
Located
Switzerland
Price
PRICE AT REQUEST
VAT
NOT PAID
Flag
Swiss
Type
CRUISER-RACER
Slogan
.
Description
Very nice kevlar built cruiser-racer that combines high performance with comfortable Cruiser philosophy. Easy handling with reduced crew. She surfs even on flat water (more than 20 knots of dowinwind-speed). Interior with 4 to 6 berths. She is kept in immaculate condition (only sweetwater sailing / always covered).
DESIGN
    Builder
    Advanced Composite
    Designer
    Ettore Santarelli - Italy
    Design notes
    HULL MATERIAL Kevlar/Airex DECK MATERIAL Kevlar/Airex 1st SEASON 2000 CE-CERTIFICATE B
DIMENSIONS
    LOA
    12.00m
    Beam
    3.9m
    Draft
    2.12m
    Displacement
    4000kg
ENGINES
    Engines
    YANMAR 2GM20C
    Propeller
    2 blade folding GORY racing propeller
ACCOMMODATIONS
    Berths number
    4 (plus 2 aluminium in the bow)
    Shower
    Yes
    Accommodations notes

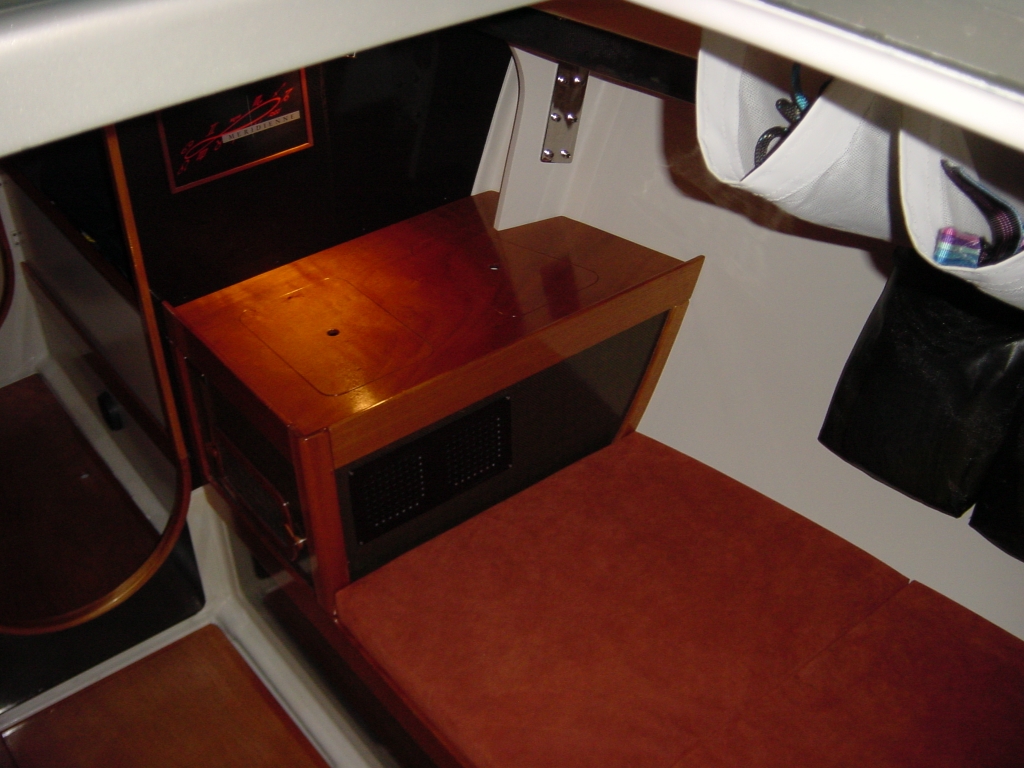

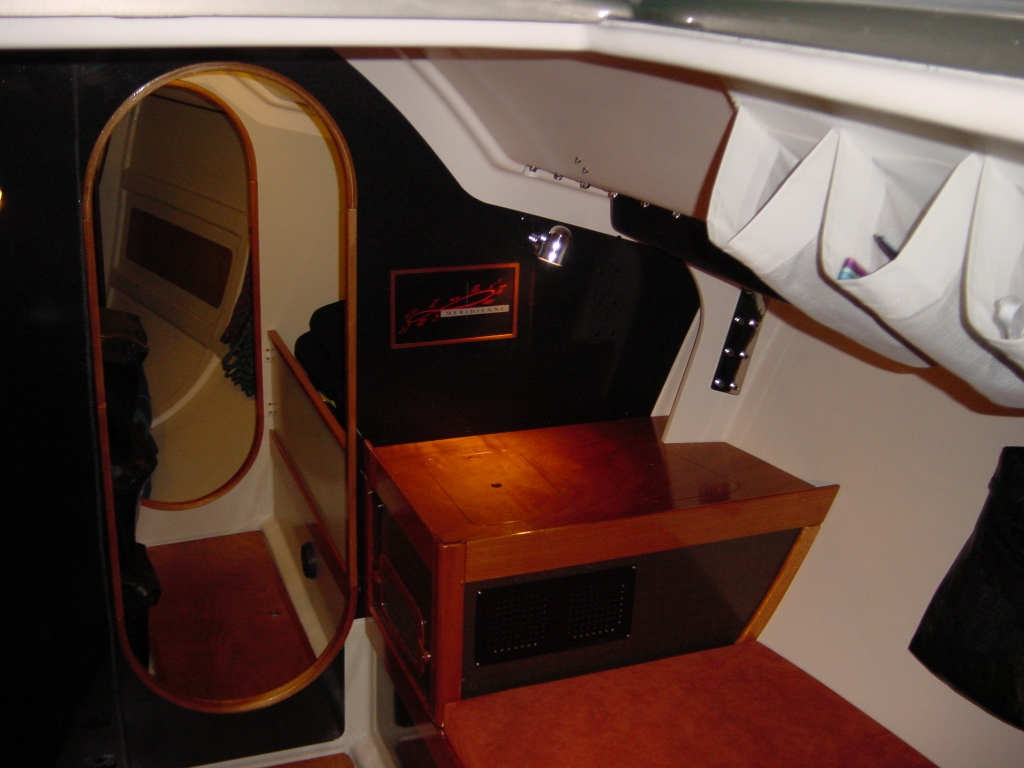

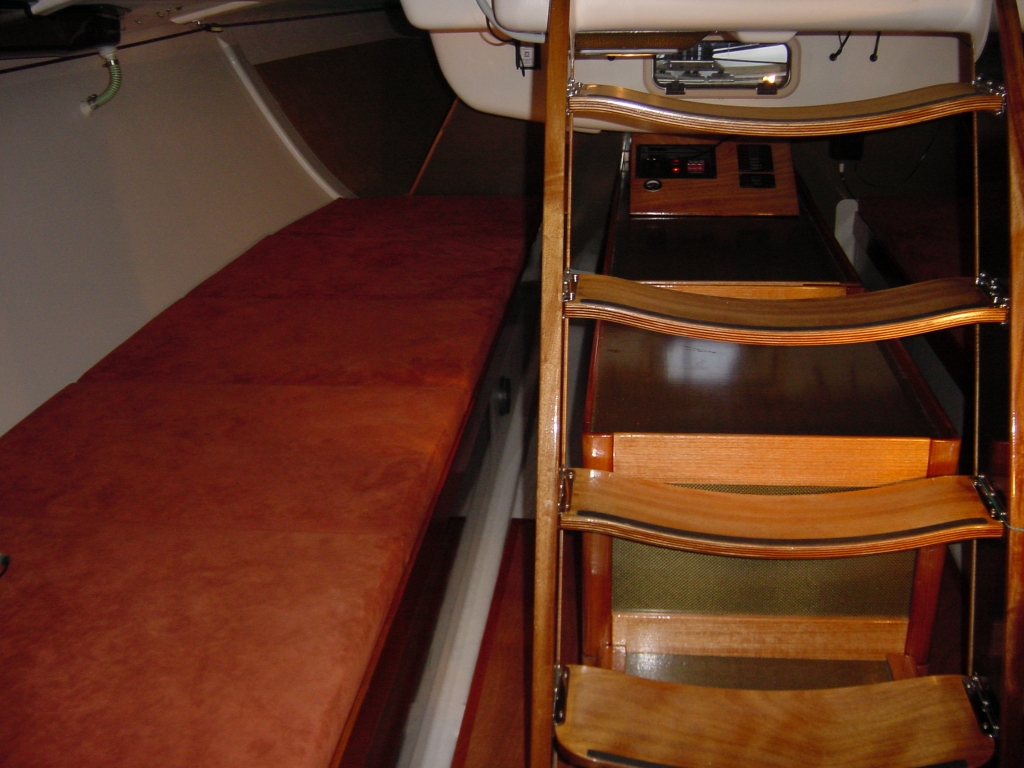

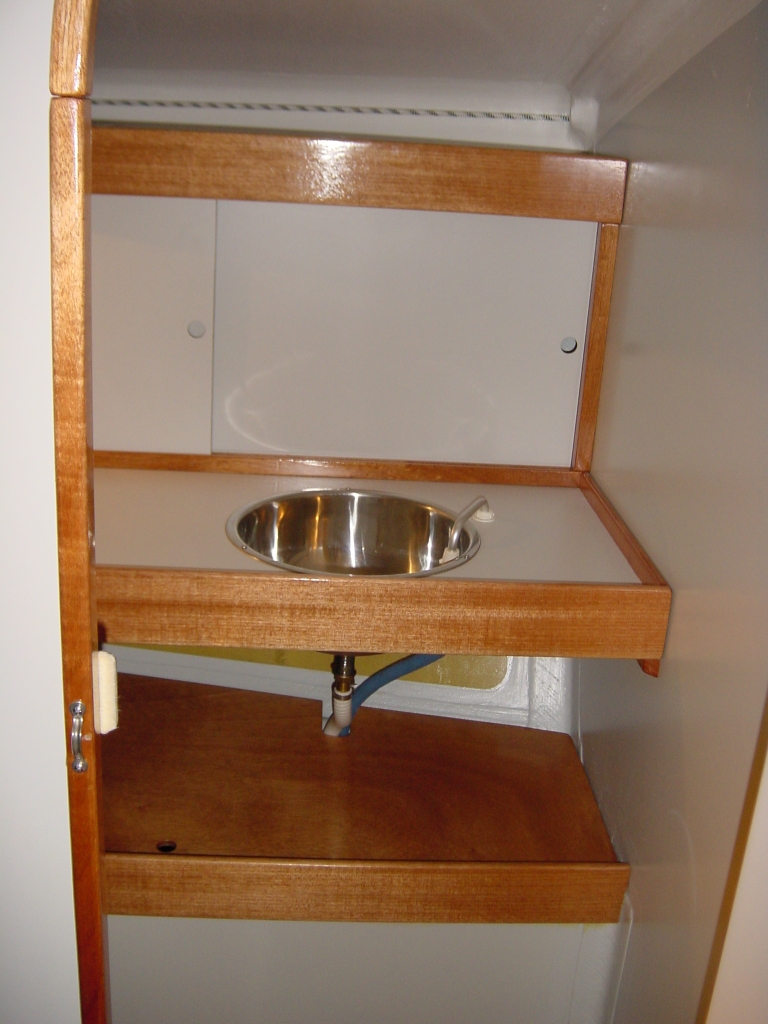

    1 separate lavatory with basic in INOX and PORTA PORTI 365 (WC) Heating-system WALLAS 3000 D 4 spacious berths (210 x 90 cm) with alcantara upholstery Headroom in main cabin: 1.88 cm Card table
GALLEY
    Coolbox
    yes
    Water system
    running water
ELECTRICAL
    Batteries
    2 batteries (DUAL-System) with switch
    Battery charger
    Philippi
    Electrical notes
    LIGHTS 8 interior lights, steaming light, foredeck light, navigation lights, 3-color and anchorlight on masthead (LOPOLIGHT) PANEL 2 distribution panels Shore power
SPARS & RIGGING
    Sails

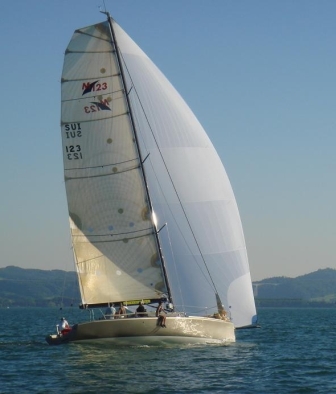

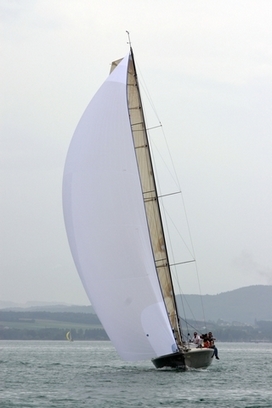

    Main Kevlar 68 m2 3DL Genua 1 Kevl./Carb. 36 m2 3DL Genua 2 Kevlar 35 m2 Genua 4 Dacron 20 m2 Code Zero 115 m2 Gennaker Asy 214 m2 Gennaker Asy 174 m2 Spinnaker 245 m2 the sailwarderobe is by NORTH SAILS
    Rigging
    Fractional rig, no runners- Rod rig
    Mast
    CARBON Mast from Nordic (new 2007) 3 spreaders, hydraulic mast trim system
    Boom
    CARBON
    Vang
    Nordic Masts
    Spinnaker pole
    CARBON
    Tuff Luff
    new Tuff Luff Aero (2007)
    Running rigging
    SPECTRA (all new 2007) with TYLASKA T85
    Spars and rigging notes

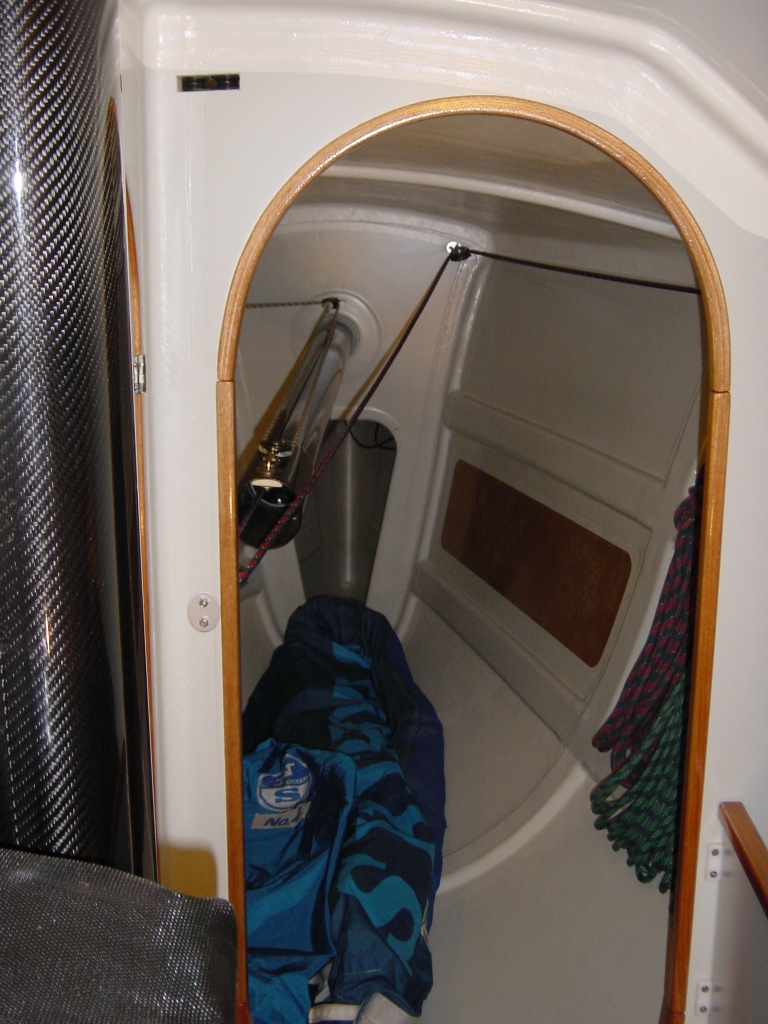

    GENNAKER POLE CARBON
DECK EQUIPMENT
    Deck hardware
    1 FREDERIKSEN custom traveller system
    Hatches
    1 hatchet LEWMAR on roof1 hatchet LEWMAR to the cockpit
    Winches
    8 LEWMAR Racing winches
    Deck equipment notes

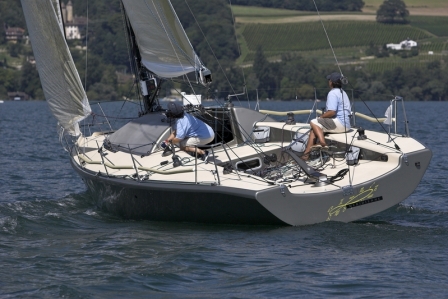

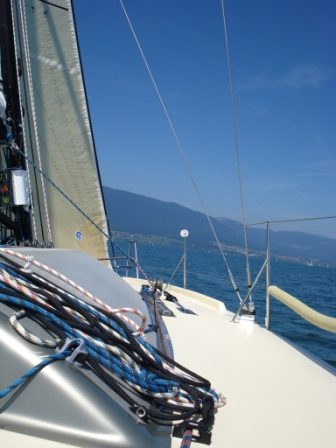

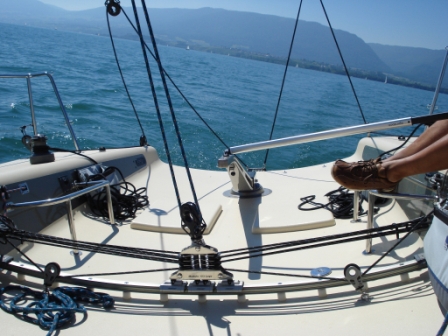

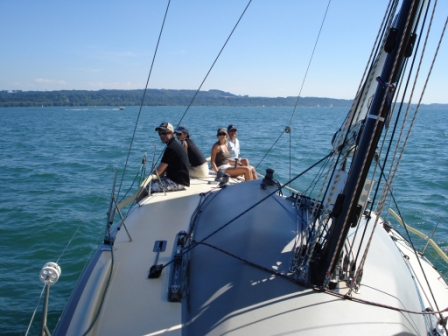

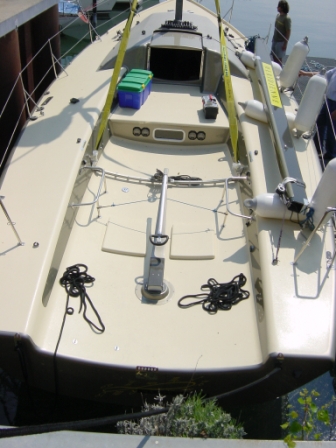

    Deckcolour: Beige. The whole deck equipment has a very ergonomic layout. A generous cockpit and a elegant roof are combined with a clean and high quality deck equipment. The main components are: 11 SPINLOCK stoppers (ZS, XT) 1 SPINLOCK organizer (roof) Blocks from FREDERIKSEN /LEWMAR Padeyes from SPINLOCK and WICHARD
SAFETY EQUIPMENT
    Fire-extinguishers
    yes
CONSTRUCTION
    Keel
    The keel fin is constructed in stainless steel filled up with lead. The bulb is also in full lead.
    Construction notes
    The boat ist built with high-tech materials. Hull and deck are built in KEVLAR-AIREX-Sandwich. The hull-zone (mast, keel, engine) is completely built out of KEVLAR with CARBON. The interior is a very nice combination between KEVLAR, KEVLAR-CARBON- and full CARBON-panels. To give some additional design-elements, some wooden finishing parts (not structural) are added. Rudder, rudder axle and tiller steering are in CARBON.
EXTRA
    Extra notes
    Boat cover (3 pcs) NEW 2006 Mainsail/boom cover NEW 2007 1 anchor FOB light Fenders & mooring ropes Spare material 1 custom drawbar trailer (winter season)
