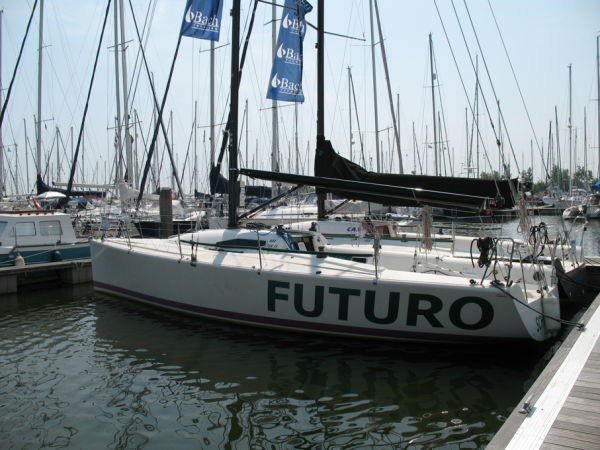

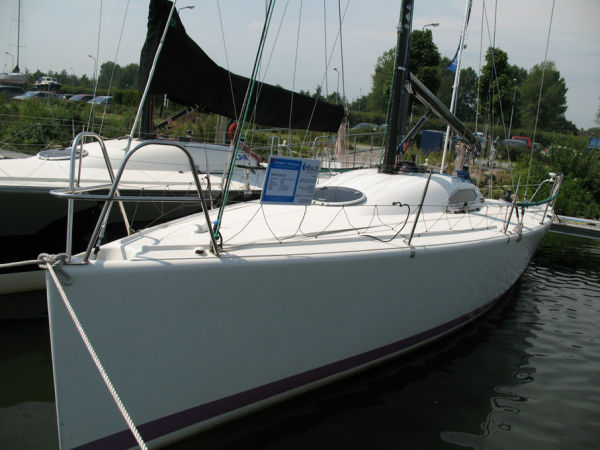

This very popular one design class designed by Voogd is famous because of her speed, easy handling and stunning looks.
She has been very well maintained and was succesful in one design races as wel in IRC and ORC races
DESIGN
Builder
MAX FUN
Designer
M.Voogd
DIMENSIONS
LOA
11.00m
LWL
9.43m
Beam
3.25m
Draft
2.2m
Displacement
3000kg
ENGINES

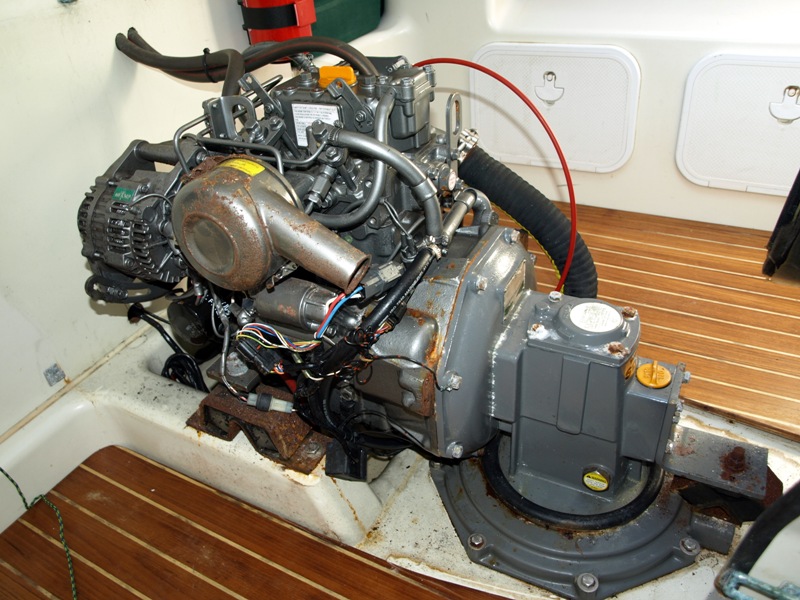

Engines
Yanmar 18 HP
ACCOMMODATIONS
Berths number
6
Shower
Yes

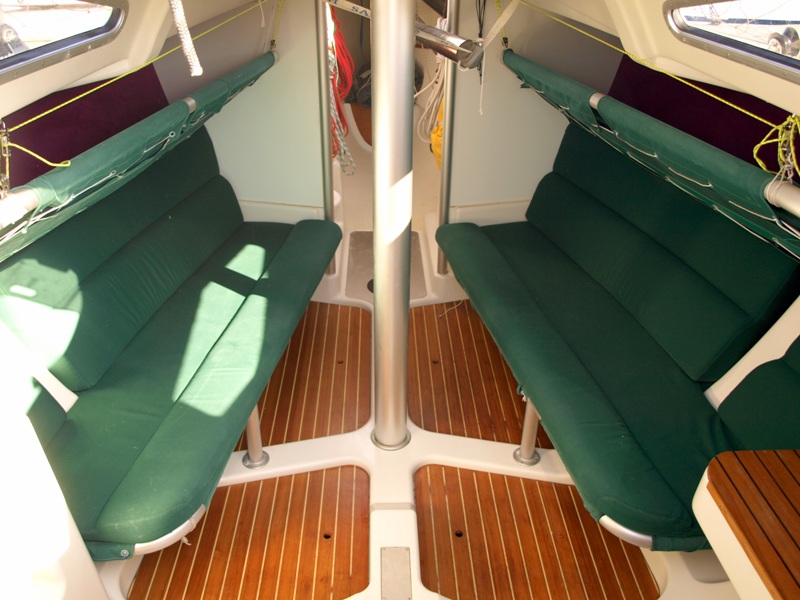

Accommodations notes

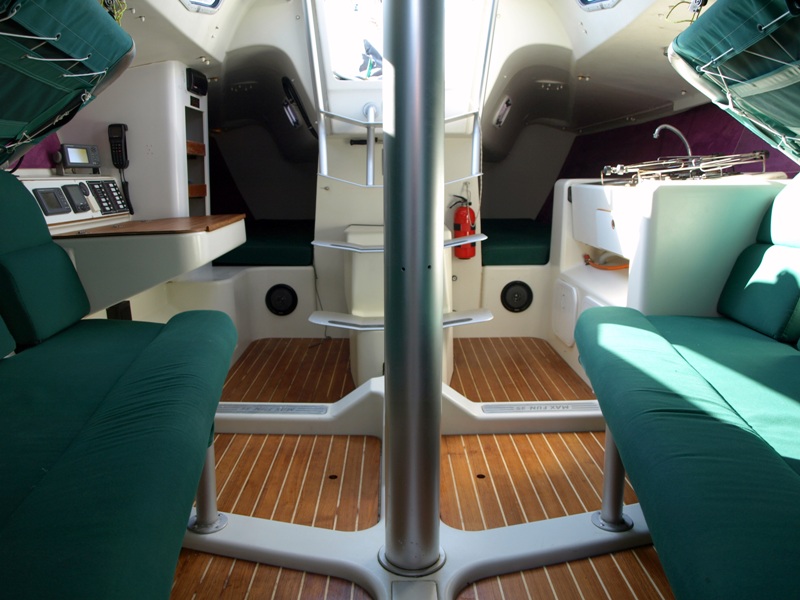

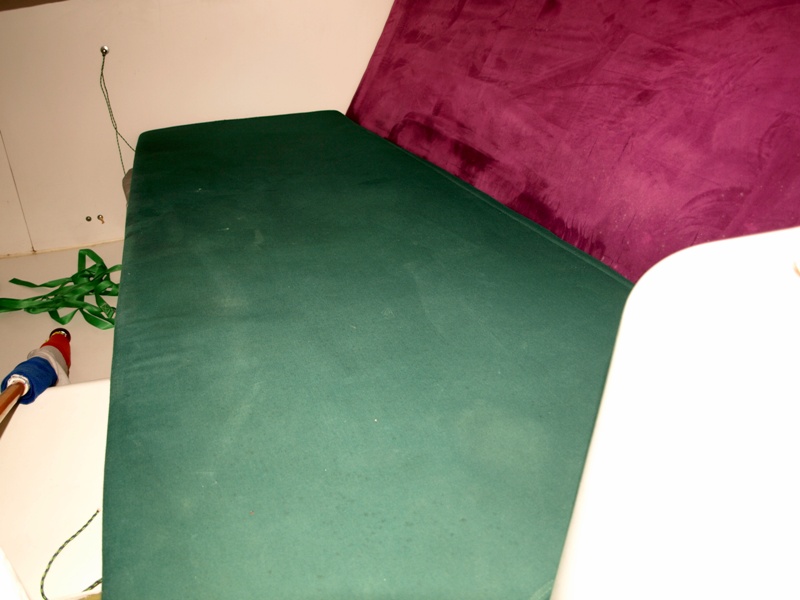

While the aim was to create a fast yacht the designer did not want the MaxFun to be an empty boat inside. The internal frame is visible throughout the boat but by making the moulding in a dark colour and with a spickle coating it already will look vastly different from what we are used to. The hull sides are finished off in alcantara look alike lightweight panels and with removable leather seats and wooden floor panels the boat has a warm feeling inside. On starboard side is the nav. table with space for a notebook and electronics.
Two aluminium pipecots can be installed in the bow
Two aluminium pipecots can be installed in the bow
GALLEY
Coolbox
Integrated coolbox 12 / 220 volts

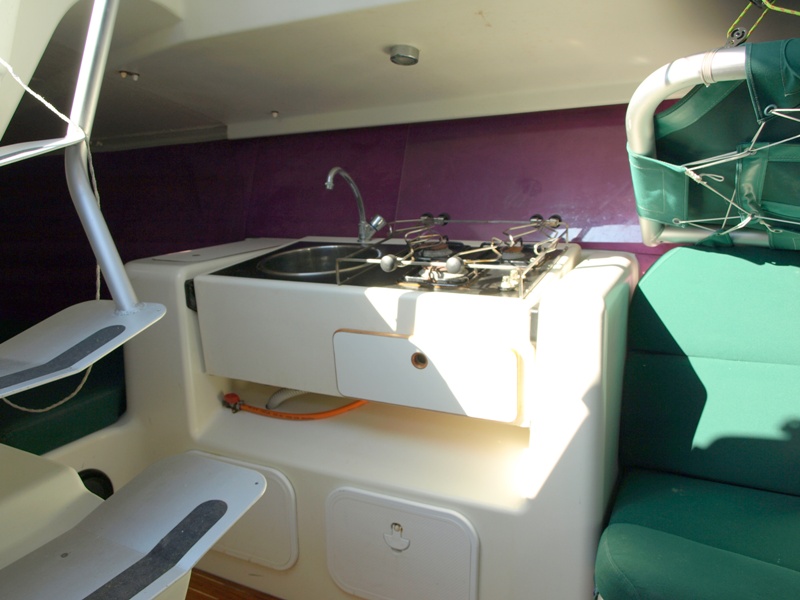

Galley notes
sink
three burner stove

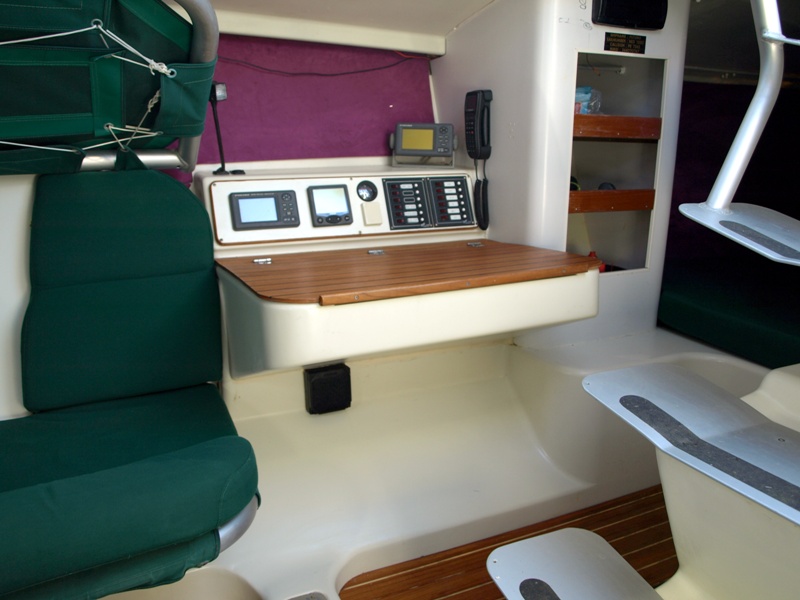

NAVIGATION INSTRUMENTS
Electronics
H1000 B&G System: Speed, depth, wind.
GPS
Furuno GPS GP31
VHF
VHF Shipmate, + atis incl antenna.
Compass
Contest 101 White
Navigation instruments notes
Furuno Navtex NX 300
4 H1000 Displays on mast bracket
Wind mastop unit new in 2007
ELECTRICAL
Battery charger
yes
Electrical notes
220 volts shorepower conection
SPARS & RIGGING

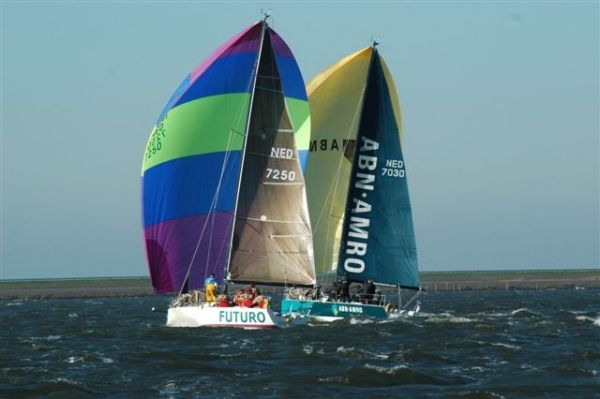

Sails
Sails august 2007:
Quantum sails, fusion X Kevlar main sail
Genoa code 1, 2, and 3
mast top Genaker
Sails 2004: Quantum sails, fusion X Kevlar main sail
Genoa code 1, 2, and 3
Spinaker: runner, VMG, AP
Storm Jib
Trysail
mast top Genaker

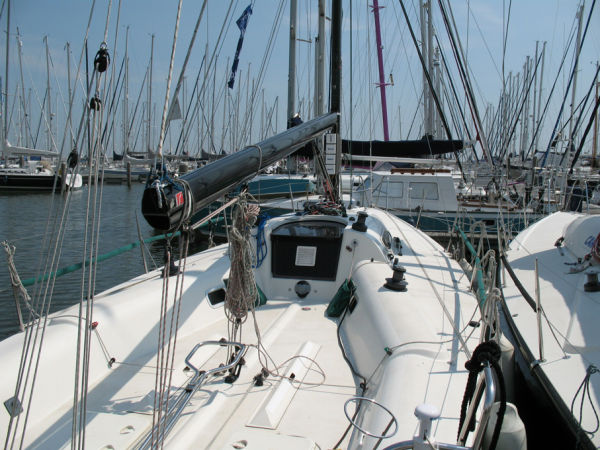

Rigging
Fractional Rig, no backstay's. Rod Rigging
Mast
3 spreader mast
Spinnaker pole
Carbon spinaker pole
Tuff Luff
yes
Spars and rigging notes
CONSTRUCTION
Construction notes
Construction
For the building of the boat conventional building materials are used as much as possible.
For the hullshell a thick foamcore has been used for panel stiffness. The internal frame is completely built out of glass/ carbon fibre and glued into place. The steel keelfin slots into a recess in the hull and with the keelbolts as well as with the mainchainplate bolts also a mechanical fastening is achieved between hull shell and interior liner.
The boat consists basically out of four pieces. Hull, deck, interiorliner and a ceiling liner.
