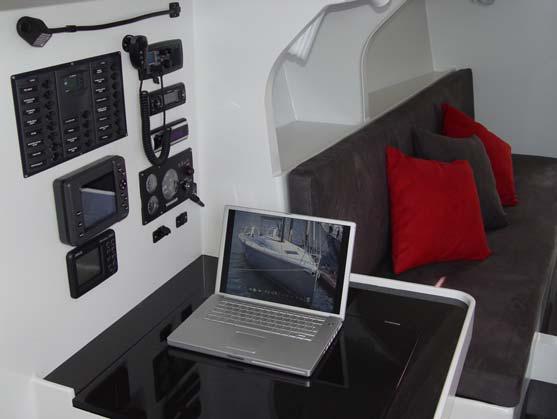

Comfortable Nav station to port
Port and starboard upper/lower bunks with storage lockers

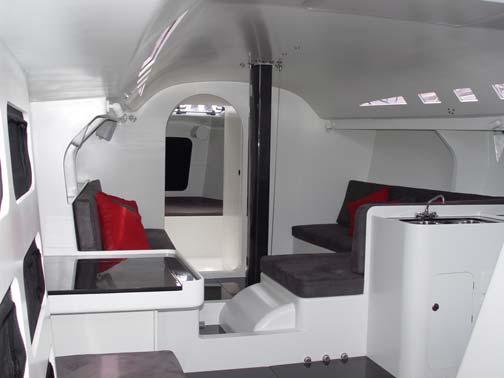

saloon with settees and upper and lower bunks
Canting keel ram and wet-box are under the starboard “L” shaped settee.
large fixed “V” berth with plenty of storage underneath in front
Shower in forward head
Seat back stowage
Interior Cushions
Removable bulkhead doors
Additional Pipe Cots
Lee Cloths
GALLEY
Hot water
Hot / Cold Water System
Coolbox
2 cold boxes, Isotherm Fridge & Freezer Units
Galley notes

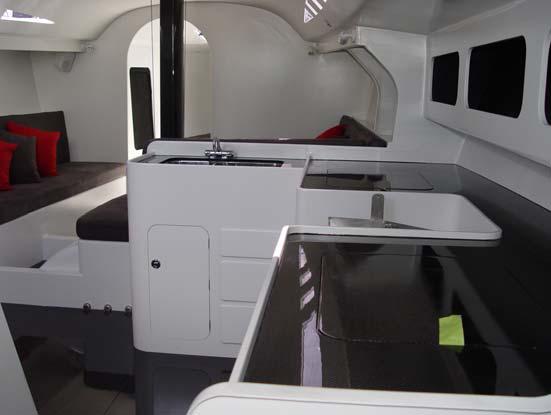

Large “L” shaped galley set to starboard with lots of storage space
Stove (with room for a full oven)
Double sinks
NAVIGATION INSTRUMENTS
Electronics
B&G H300 Performance Instrument Package with B&G H3000 Hercules Base Pack
VHF
Simrad RT 62 VHF
Automatic pilot
B&G Auto pilot w/type 2 hydraulic drive unit
Compass
2000 Compass
Plotter
Simrad CX 34 GPS / Chart Plotter
Navigation instruments notes
2 – FFD Displays in the cockpit bulkheads
42” Wind instrument mast wand
2 – FFD Displays at the helm stations
Speed & Depth sensors
3 – 20 / 20 Displays on the mast bracket
1 – FFD Display on the mast Bracket
Hercules performance processor w/ RS232
1 – FFD Display at the Nav Station
B&G Mast bracket canvas cover
ELECTRICAL
Electrical notes
20 circuit breaker electrical panel
Battery Monitor Meter
12v electrical socket at Nav Station
Inverter
LED Navigation Lights
Electric roving bilge pump
SPARS & RIGGING
Sails
North 3DL Carbon Mainsail
North 3DL Carbon Medium Jib
North 3DL Carbon Light Jib
Quantum Fusion Membrane Heavy Jib
Rigging
PBO Composite Standing Rigging
Mast
High Modulus Carbon Fiber Spars from NZL Rigging: (700mm taller than standard) . 2 spreader, swept-s
Spars and rigging notes
Bolt rope Track
Carbon Fiber retracting bow sprit
Portable mast jack (10 ton w/ gauge)
Full set of running rigging
Spinnaker Staysail equipment
Set of spinnaker peel sheets and tack line
Genoa Staysail equipment
DECK EQUIPMENT
Deck hardware
Deck hardwareAll deck gear is Harken and Spinlock with Harken fore & aft jib tracks with inhaulers
Trilux 33 Antifouling
Twin Wheels

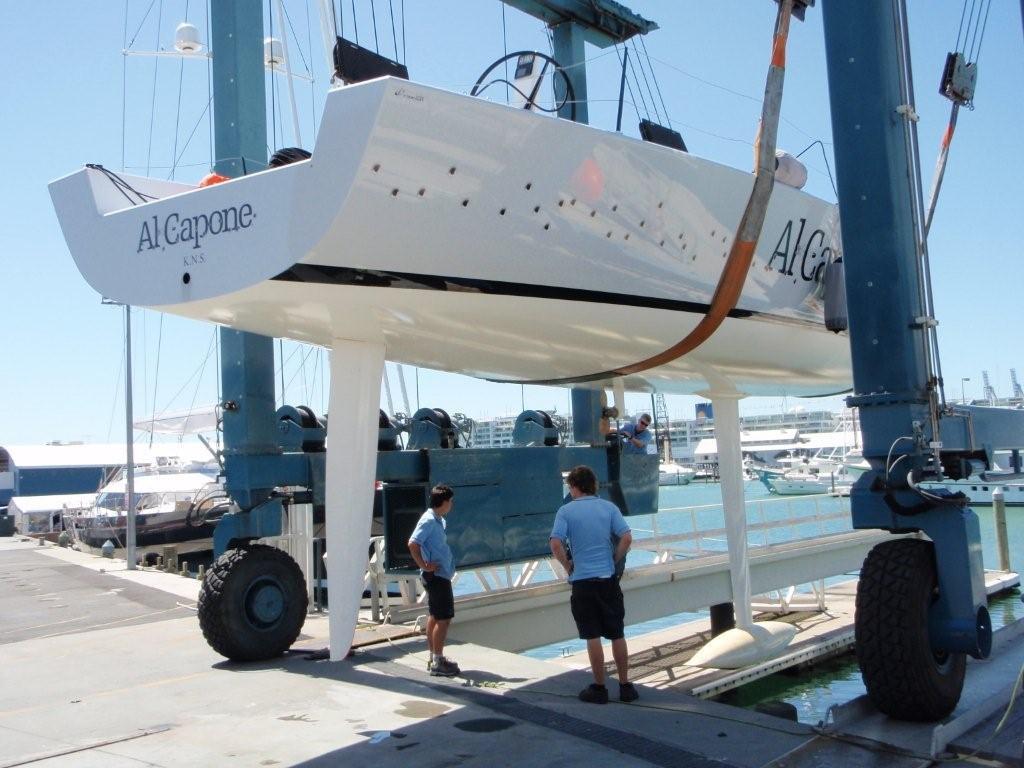

Carbon fiber and PVC foam core sandwich composite with varying density foam utilizedthroughout the hull and deck.
The Cookson 50 hull and deck are built in female molds, assuring a fair hull surface with minimal fairing a good weight savings.
Bulkheads, structural frames and longitudinal are constructed from Carbon/E-glass laminates with closed cell foam core. Reinforced in high load areas with carbon laminates.
