#411

NELSON & MAREK 41

SOLD

GENERAL
Name

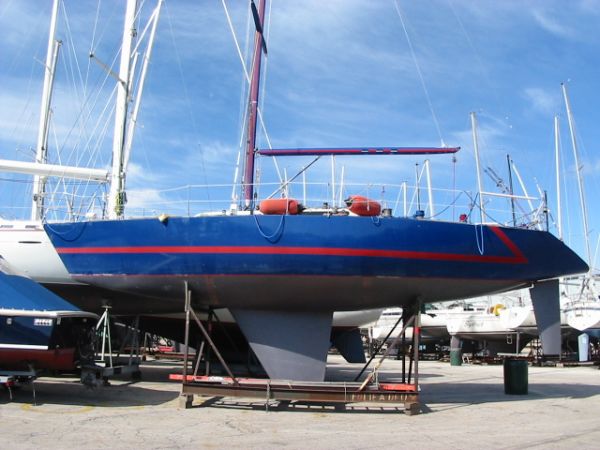

NELSON & MAREK 41
Model
41
Year
1984
Hull material
GRP
Color hull
BLUE
Located
AT REQUEST
Price
PRICE AT REQUEST
VAT
PAID
Flag
BUL
Type
CRUISER-RACER
Slogan
In good condition
Description

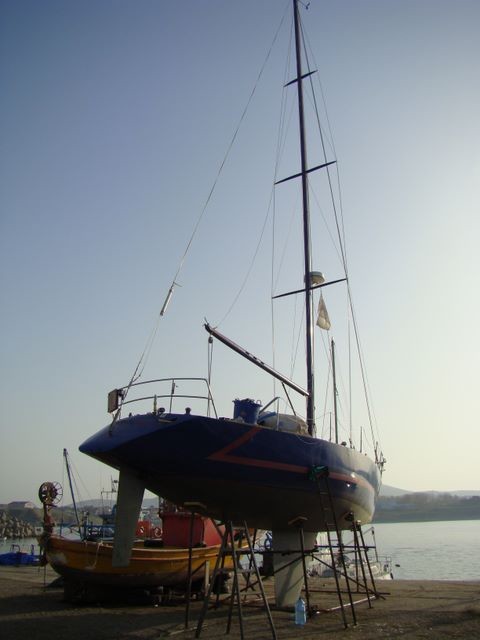

Until 2008 this Nelson & Marek 41 has been sailed only in Lake Michigan, Chicago, USA, used only for race events with impressive record. The boat design is entirely racing. Sailed throught the Atlantic ocean with no problems. She is dry stored for the winter. Comment of the owner: Hull, engine, rigging, sails are in perfect condition. She needs some deck work, but nothing serious.
DIMENSIONS
    LOA
    12.00m
    Beam
    3.87m
    Draft
    2.26m
    Displacement
    6000kg
ENGINES
    Engines
    Perkins Diesel 4108, rebuild 2002 45 HP
    Propeller

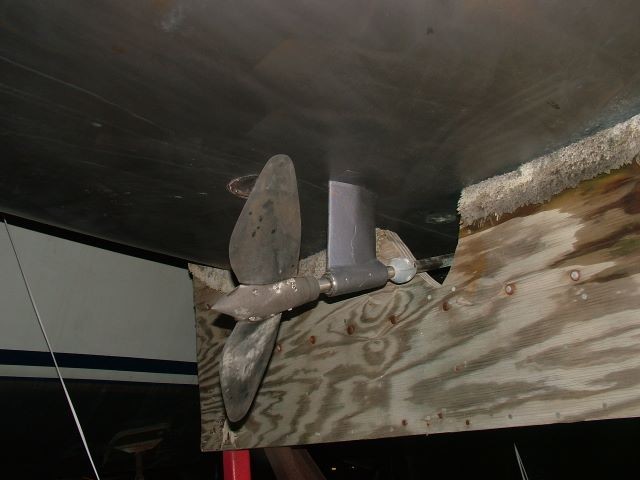

    2 blade racing automatic feathering Max-Prop from PYI Inc.
TANKS
    Fuel
    60l
    Water
    75l
ACCOMMODATIONS
    Shower
    Yes
    Accommodations notes

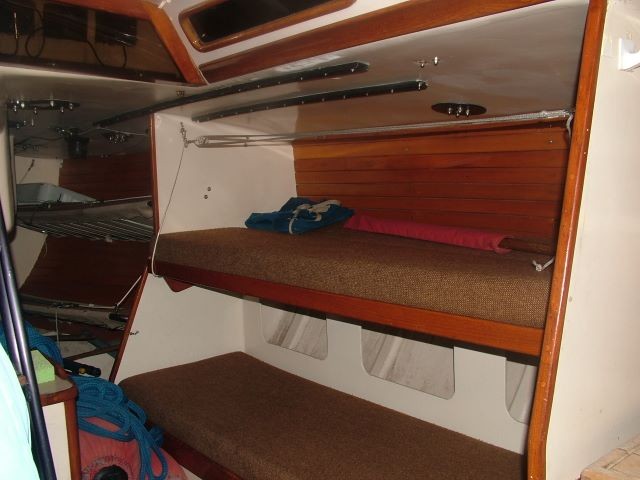

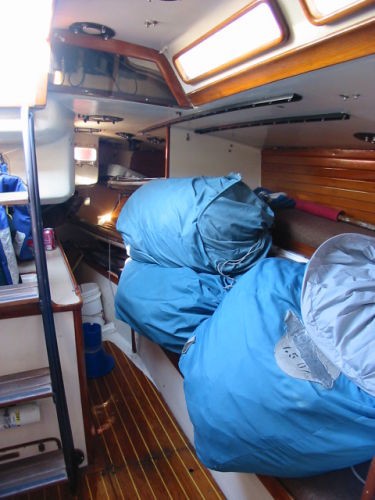

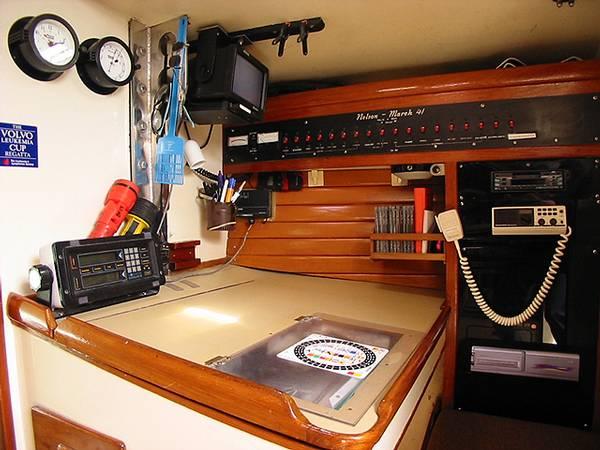

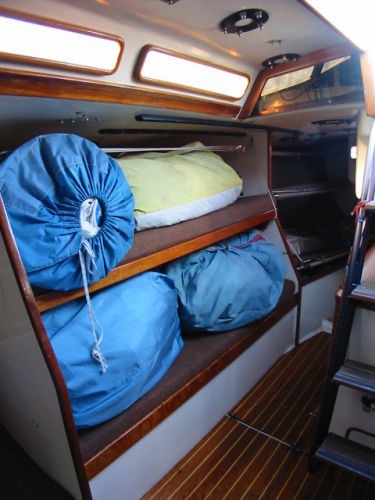

    4 Pipe Berths Cushions 4 Settee Berths, 4 Cushions, Stowage Below Cabin Sole Is Varnished Teak and Holly Plywood Sanded and Varnished Each Year 2 Teak Ceiling Handrails Aluminum Companionway Ladder with Teak Steps Mid Ship Nav Station With Stowage in Table

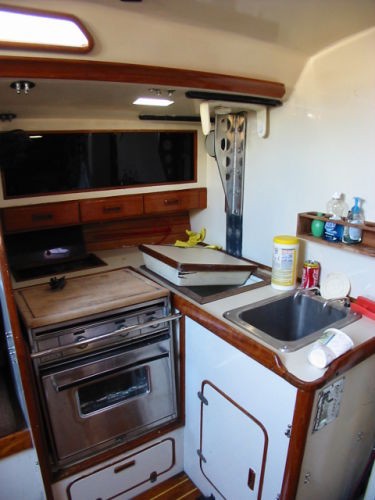

GALLEY
    Coolbox
    2 Large Ice Boxes
    Water system
    Manual Fresh Water System
    Galley notes
    3 Burner Gas & Oven CNG Stove Deep Stainless Steel Sink With Faucet and Foot Pump Large Storage Cupboards
ELECTRICAL
    Batteries
    2 Large Deep Cycle Batteries, 1 Backup starting battery
    Electrical notes
    Alternator and Tachometer Rebuilt '08 12 Volt (DC) Electrical Panel with 15 Magnetic Breakers Two Voltage Meters For House and Engine Batteries 2 Cockpit External DC Powered Outlets to Run GPS From Cockpit Guest 4 Battery Switch 2 Solar panels with charge regulator Navigation Lights
SPARS & RIGGING
    Sails

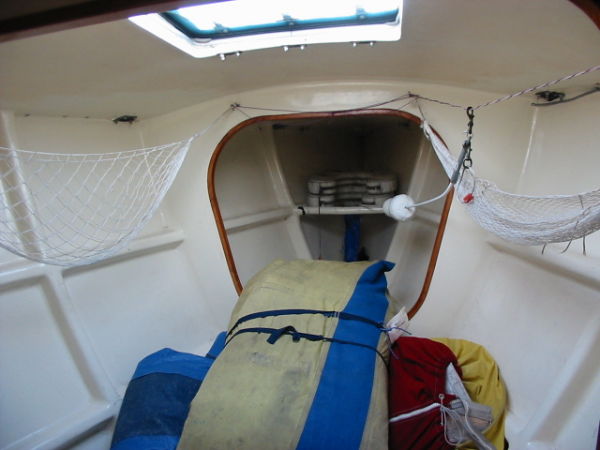

    Mainsail, UK Tape Drive 2006 Mainsail, North Dacron 2006 Mainsail, UK Tape Drive 1996 Mainsail, North Dacron 1990 AP #1, UK Tape Drive 2006 #2, UK Tape Drive 2006 #2, UK Tape Drive 2002 #3(blade), UK Tape Drive 2006 #3, UK North 1995 #4, North Dacron Storm Jib Dazy Staysail, North Storm Try Sail, North 2 Bloopers Spin .65, UK Spin .75, UK Spin .80 Spin 1.5, North Spin 1.5, North Main Sail cover, spin turtle and genoa full length sausages.
    Spars and rigging notes

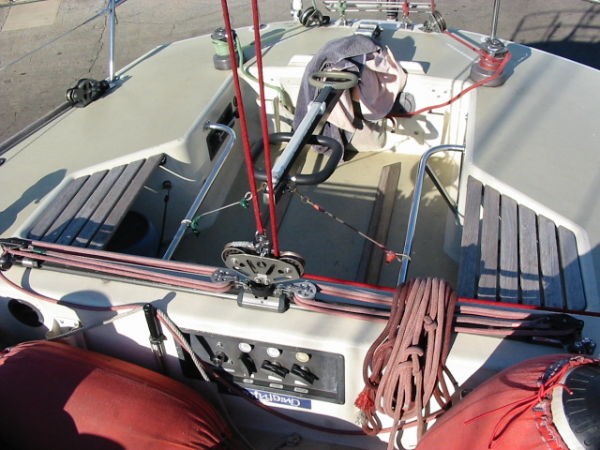

    2 Running Back Stays Lewmar #40, 2-Speed Alum 2 Spin Halyards - Rope 1 Genoa Halyards - Rope/Wire 1 Topping Lift - Rope/Wire 1 Main Halyard - Rope/Wire 2 Rope spin guys 2 Rope spin sheets 3 Rope genoa sheets 2 Rope changing sheets 2 Light air technora (Blue) spin sheets Steering: (2) Aluminum tillers with extension

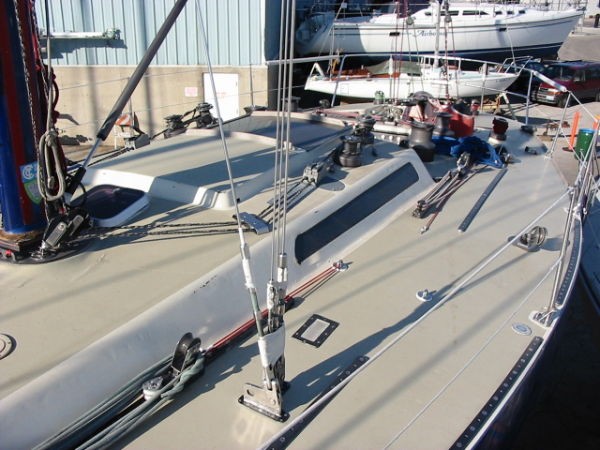

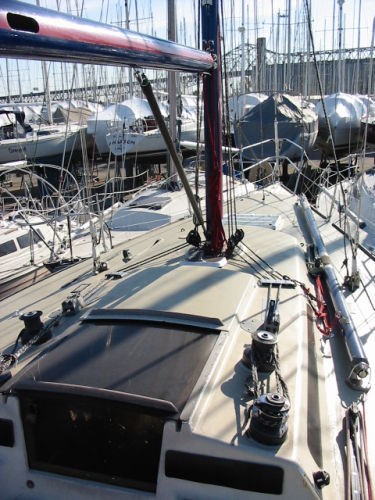

DECK EQUIPMENT
    Winches
    2 Main Sheet Lewmar #43, 2- Speed Alum 2 Primary Lewmar #55, 3- Speed Alum 2 Secondary Lewmar #50, 3- Speed Alum 2 Cabin Top Lewmar #40 2- Speed Alum 2 Cabin Top Lewmar #43 2- Speed Alum 2 Handles Double Lock-In 10" 6 Handles Single Lock
    Deck equipment notes
    2 Lewmar Rope Clutches
SAFETY EQUIPMENT
    Epirb
    yes
    Liferaft
    Liferaft for 8 people
    Safety equipment notes
    Solas Flairs 2 Jim Buoy Stern Mounted Life Rings Other safety equipment Two Manual whale titan pumps with handles, one in cockpit one below. one whale gusher foot pump below.
CONSTRUCTION
    Construction notes

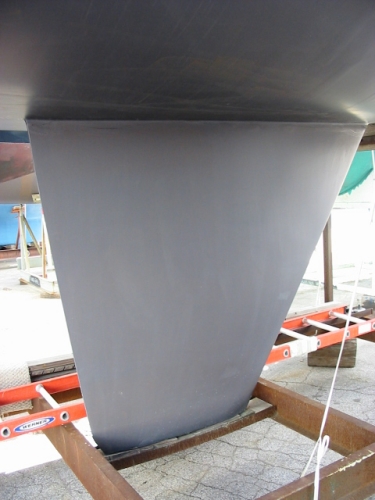

    Hull Construction Uni- Directional Glass Over Core, Solid Glass Laminate for keel and headstay load direction. Two thru hull fitting Rudder Molded fiberglass filled with high density foam and faired to high performance standards. Solid aluminum rudder post with new delron bearings. Rudder removed and rebuilt in 2001.
EXTRA
    Radio CD
    AM/FM Stereo and a JVC 12 CD Disk Changer (New 2008) with 4 Bose Speakers(2 inside, 2 outside - wate
    Extra notes
    2 Danforth Anchors Bow Pulpit with Rails Side Stanchions with Lifelines Fenders and Dock Lines
FINAL NOTES
    Final notes
    Disclaimer The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
