#442

IMX40

GENERAL

DIMENSIONS

ACCOMMODATIONS

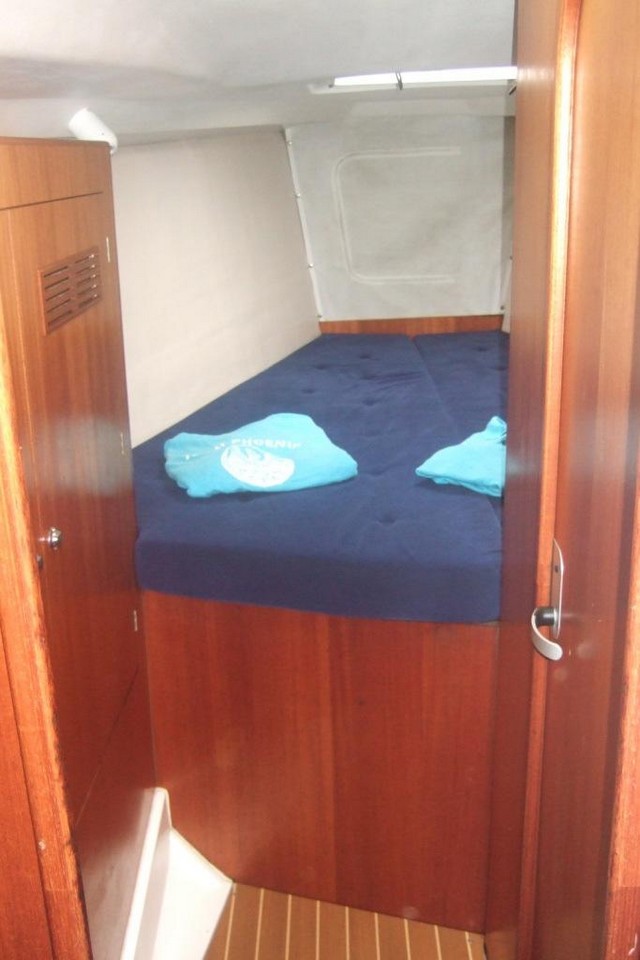

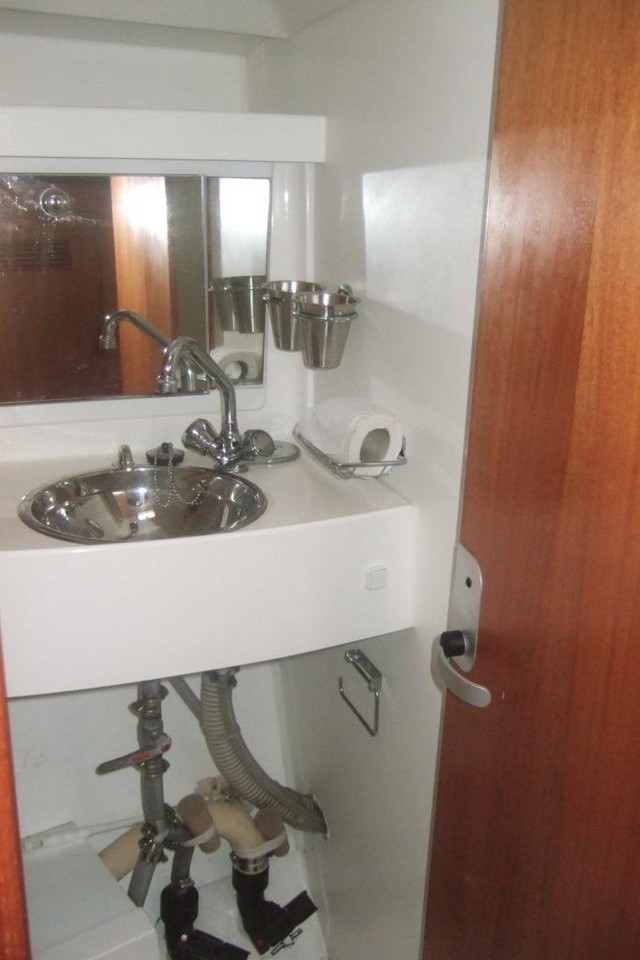

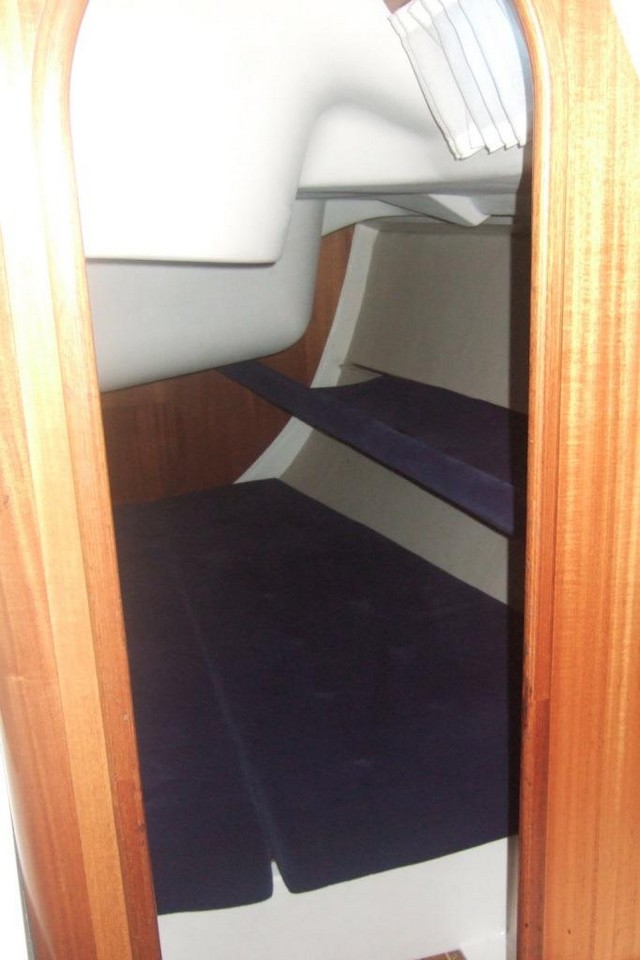

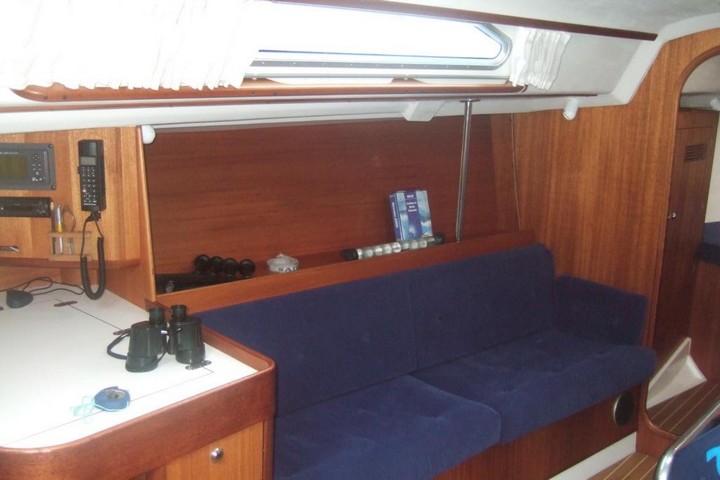

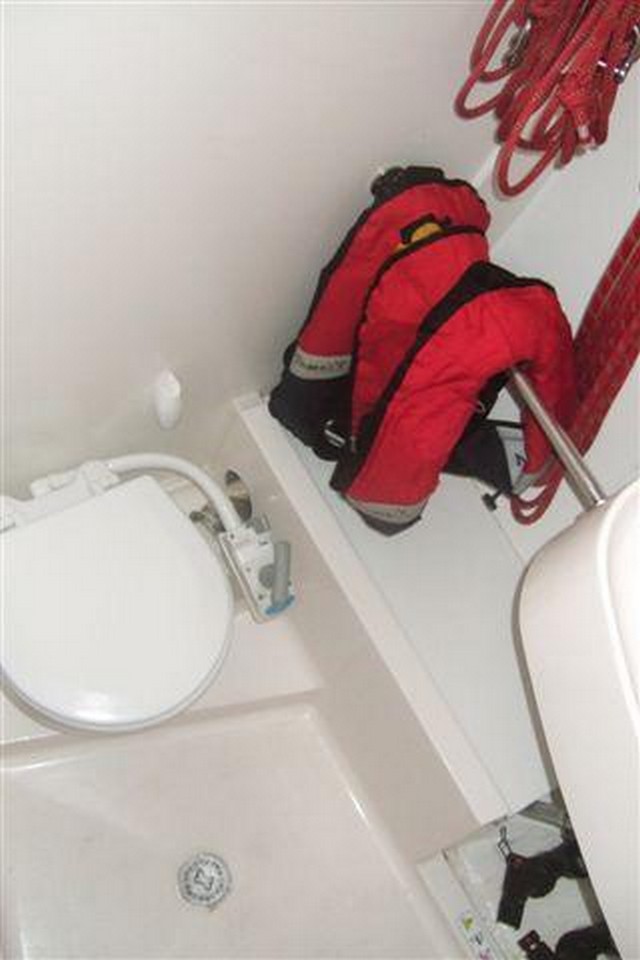

Accommodations notes: blue upholstery Blindes for portlights and hatches Extra lock for main entrance 2005 handrails and curtains with rails 2005 extra race table (100x50cm) 2005 saloontable (120x112cm) varnished 2009 sofacushions (10cm ) darkbue 2001 (seawater protected Alcantara) woodwork in 4mm Mahony Plywood varnished 2009 2x sofa/bed 2.01m with adjustable backrest 2x aftcabins with 2.10mx1.50m beds 2x seabeds (in both aftcabins) 3x doors to the cabins head with shower and washbasin seperate toilet next to wet locker room

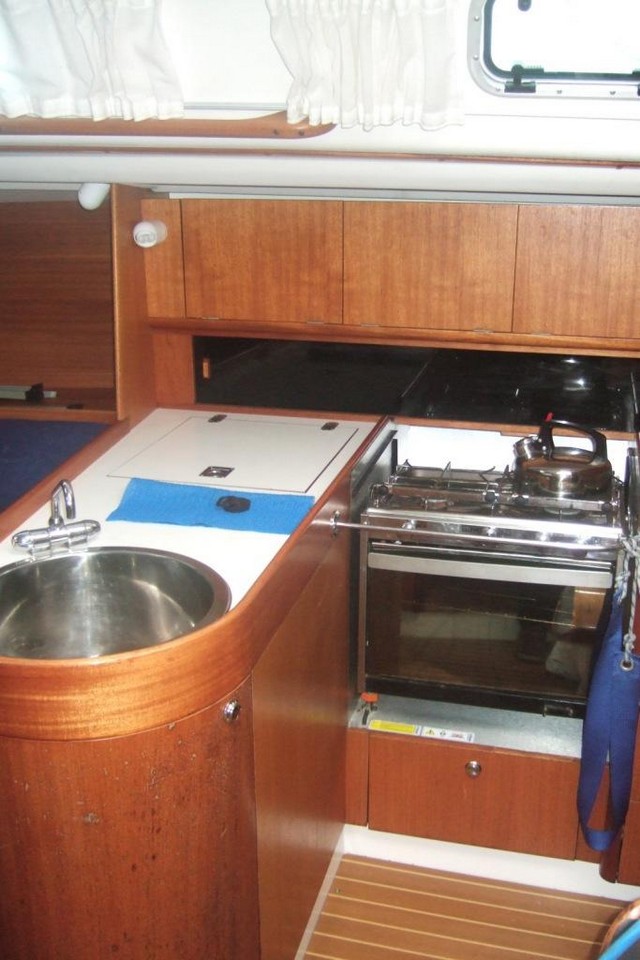

GALLEY

Galley notes: 145L alu watertank with electr. pump + levelregulator 2kg Gasbottle/holding, gashose to the stove hose 2005 Gimballing oven+ 3-pits stove 2007 Coverplate on stove and anti-movement belt Extra Techno Race stove 2 burner 2008 12V Danfoss Coolmatic CU 84 + cooling element 2001 Water heater 20L 2007 Kitchen sinkunit of Melamine Garbage bucket under RVS sink Pantry

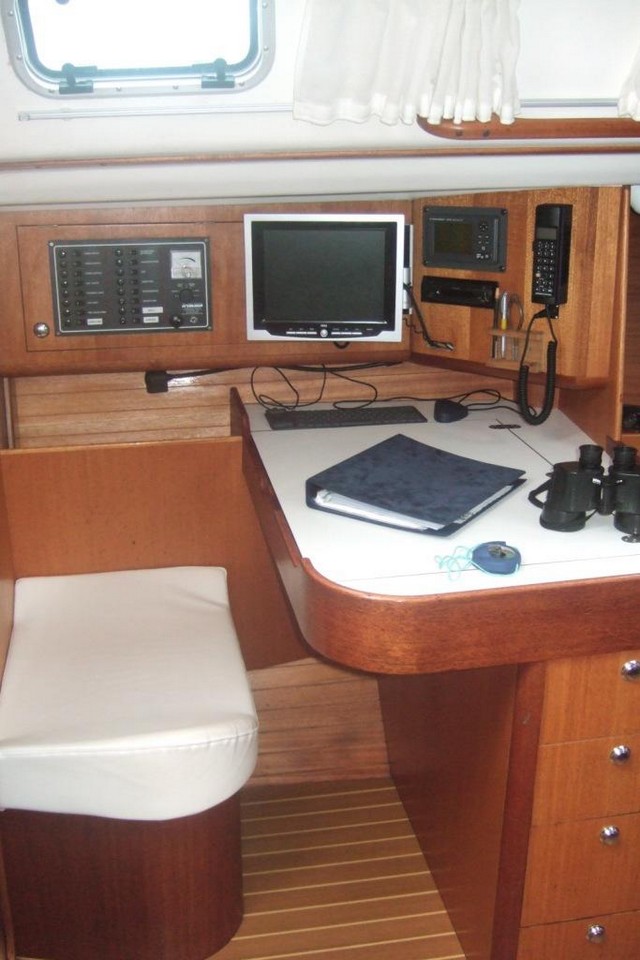

NAVIGATION INSTRUMENTS

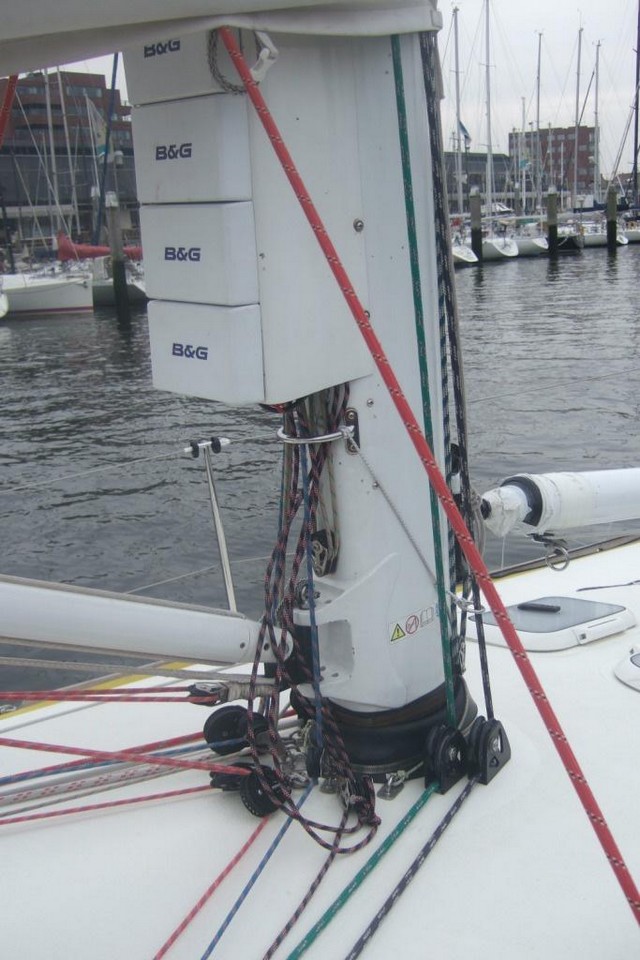

Navigation instruments notes: B&G Hydra autopilot, lineair drive 2001 handheld controller for pilot improved 2008 VHF antenna in masttop New 2009 B&G covers 6x Hydra speed/depth flush sounders B&G windunit in masttop B&G Hydra 2000 system with 2x FFD-display in cockpit 4 grafical 20/20 multi repeaters on carbon mastunit NMEA connection for software system B&G, toughbook and Windows

ELECTRICAL

Batteries: 70amp startbattery 2006 , 140amp deep-cycle gel-battery for lights 2008, 90amp extra lightbattery 20

Electrical notes: threecolour Lopolight ledlamp-topthreecolour 2009 aftlight, steam-/decklight, port/sb lights 2008 electrical moisturiser, mobile 2008 electrical bilge pump with automat 2001

SPARS & RIGGING

Sails: - mainsail 49m2 3dl kevlar/mylar/carbon North Sails 2007 - mainsail 48m2 3DL Kevlar/Mylar North Sails 2004 - mainsail 46m2 dacron/spectra + Frederiksen karren, North Sails 2005 - long mainsailcover North Sails 2005 - short mainsailcover North Sails 2001 - gennaker 0.85oz 125m2 (white) Quantum 2.5A 2007 - Code Zero 1.5oz 100m2 Quantum (grey) 2008 - spinnaker 0.7oz 3S 138m2 (white) Kooy Sails 'VMG' 2006 - spinnaker 0.6oz 2S 131.2m2 North Sails (white) 'runner' 2001 - spinnaker 0.85oz 4S 131.2m2 Quantum (blue) "runner" 2006 - spinnaker 0.75oz MH 145m2 Kooy Sails (white plus logo) "runner" 2007 - spinnaker 5S 1.5oz 115m2 North Sails (white plus logo) 2005 - spinnaker 0.45oz 1S 131.2m2 North Sails 'AP' (white) 2001 - genua I 155% 55.8m2 light 3DL North Sails 2001 - genua I 155% 55.8m2 light 3DL North Sails 2002 - genua I 155% 55.8m2 light/medium 3DL North Sails 2001 - genua I 150% 54.4m2 medium 3DL North Sails 2002 - genua I 150% 54.4m2 medium/heavy 3DL North Sails 2001 - genua I 150% 54.4m2 heavy 3DL North Sails 2002 - genua II 145% 52.6m2 3DL North Sails 2001 - genua III HA 115% Quantum Fusion M laths 2008 - genua III HA 115% North Sails 3DL carbon laths 2007 - genua III HA 115% Hagoort Maxx laths 2006 - genua III H.A. 112% 40.6m2 3DL North Sails laths 2003 - genua IV W.J. 80% 26.2m2 panelled North Sails laths 2001 - Trysail orange with sailnumber NED6606 2001 - staysail 28m2 dacron spectra luffline North Sails 2007

SAFETY EQUIPMENT

Safety equipment notes: 6x fenders+protection blue 2009 Bruce ancher 10kg with 30m 14mm polyester line (of which 1/3 leadline) 2001 Danford ancher, 10m chain and 30 meter line 2005 radarreflector 2006 Lifelines+pushpit, mounted (rope) and steel 2009 lowest lifeline 25cm above deck Emergency helm in aluminium

CONSTRUCTION

Construction notes: Hull colour in white NGA cellcoat, 3x white stiping Hull above waterline polished shureguardsystem 2009 Hull made of Vinylester resin sandwich, galvanised TPS-steel H-frame underwater SP epoxy 3 layers (grey, 2x white) last layer 2002, Sanded with 800 waterproof antifouling NautiX 2 layers 2009 keel+rudder shaped with rudder knive renewed 2006 cast iron keel with lead bulb extra lead icw X-yachts 2007 all water outlets shaped, smooth, flat and automatic close-able 1x set original X-yachts moults for shaping of the keel outlet saildrive kitted with epoxy plate 2009 RFS hull protection line around the ship 2005

EXTRA

Radio CD: Sony radio/CD/USB/bluetooth player 2009, 4x radiospeakers in headcabin and cockpit 2009

Extra notes: 4x railingwheels for genua protection 4x hikingstraps (white) with pvc-hose New 2009 Several Tylaska spliced snapshackels New 2009 Galvanised steel craddle type 3 (detractable) with original IMX-40 moulds , -keel hanging free of the ground- (located in IJmuiden) Whitelock white carbon steerwheel diameter 170cm (Gleistein Vectran cable 1:60) 2x bucket

FINAL NOTES

Final notes: Disclaimer The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
