Simply one of the best cruiser racer in the world.
Description
Simply one of the best cruiser racer in the world.
DESIGN
Builder
X- YACHTS
DIMENSIONS
LOA
15.00m
Beam
4.28m
Draft
3m
Displacement
12500kg
ENGINES
Engines
75 HP VOLVO D2-75/5
Engines hours
40
Propeller
3 blade folding 20x14 for D2-75 engine
Engines notes
Automatic switch on keel bilge pump.
Extra manual bilge pump.
Bowthruster: Retractable, max Power VIP 150 12V.
Anchors: 2
TANKS
Fuel
250 l.l
Water
450 l.l

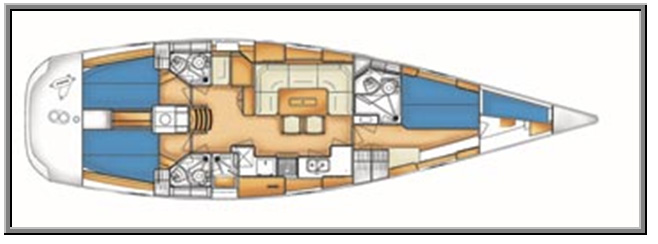

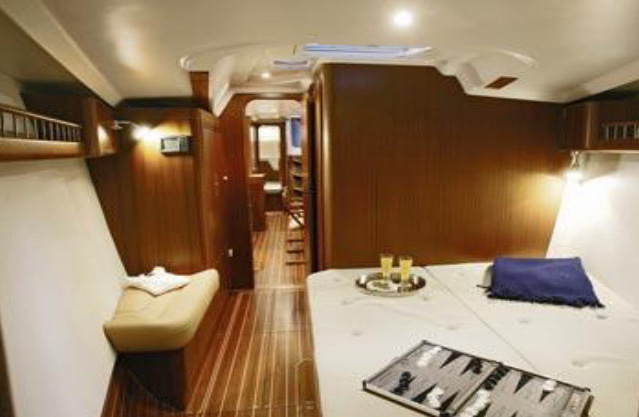

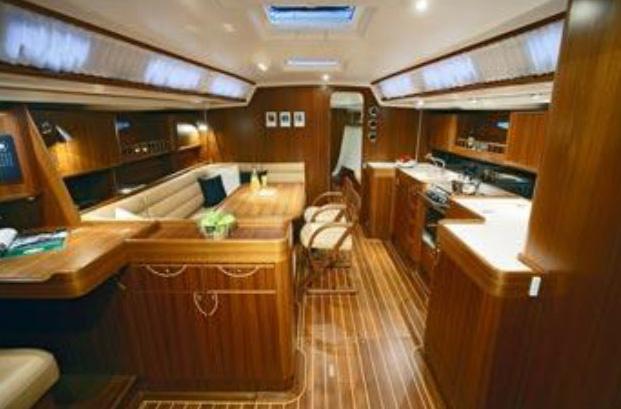

ACCOMMODATIONS
Shower
Yes
Accommodations notes
Guest cabins: 3
Crew cabins: 1
NAVIGATION INSTRUMENTS
GPS
Shimrad CX44 TFT 10â€
Automatic pilot
Hydra 2000 display w. autopilot drive type 2, mounted
Compass
Digital Compass B & G Halcyon Fluxgate 2000 tactical compass instrument in cockpit and outread at 20
Navigation instruments notes
Instruments: Hydra 2000 starter pack, consisting of FFD display with NMEA, interface box, log, echo and wing transducer
Red night lights: over floor in saloon.
Windex antenna with FM filter- wired to chart table
Radio Ray 240E DSC-D- full function handset
Ray 240 VHF cockpit loudspeaker including on/off switch
ELECTRICAL
Electrical notes
60 Amp Maastervolt IVO Smart 12/60 Battery charger, repl. Standard 40 amp.
Additional 120 AH Gel Service batterie securely mounted under main cabin’s sofa.
12 V socket , mounted.
220 V socket , mounted.
Galvanic isolator type Guest 30 Amps.
SPARS & RIGGING
Sails
Main Sail 3DL 600 L 22400 1 reef
Genoa 1 Light 143% 3 DL 600 L 8820
Genoa 1 Medium 143% 3 DL 600 L 16800
Genoa 1 Heavy 143% 3 DL 600 L 19600
Jib Top 143% 3 DL 600 L 14700
Genoa 3 108% 3 DL 600 L 22400
Genoa 4 Max ORC 98% 3 DL 600 L 23800
Main Sail 3 DL 600 MC 22400
Genoa Furling 143% 3 DL 600 MC 22400
Storm Jib C- cut polyester NSP Premium 9.5 L
Trysail C- cut polyester NSP Premium 9.5 L
Wind seeker / SPI Staysail D- cut Racing Normal 1.7 NL
Spinnaker S-1 Gradient Spinnaker Superlite 50
Spinnaker S-2 Gradient Spinnaker Superlite 50
Spinnaker S-3 Gradient Spinnaker Airx 900
Spinnaker S-4 Gradient Spinnaker Airx 700

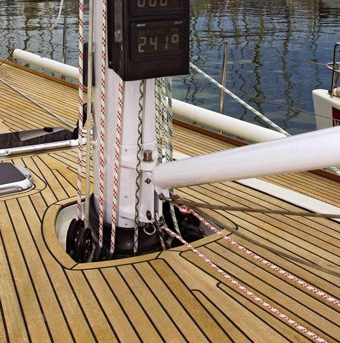

Spinnaker pole
Carbon Spinnaker pole
Spars and rigging notes
20/20 Maxi display mounted on mast bracket or above garage.
FFD display- none NMEA mounted on mast bracket, at garage, nav. Station or helm.
Mast Jack hydraulic arrangements.
Îavtec system 5 for hydraulic backstay with pump in cockpit.
Gasspring in vang.
Spinnaker Equipment:
Slider and sidewinder for mast end fitting and operation of spinnaker pole,
alloy spinnaker pole with deck shoes, spectra sheets and guys with spliced on shackles,
spectra down haul,
sheet blocks and additional 2 snatch blocks
DECK EQUIPMENT
Winches
Genoa Winches: HARKEN 74.3STA (instead of HARKEN 64.3STA) Set, 2 pcsAnchor winch Lotramns (1500 W)Port Genoa Winch Electric
Deck equipment notes
Carbon fibre wheel: 2 pcs
SAFETY EQUIPMENT
Safety equipment notes
Fire fighting
Fire detection
Life Rafts
Life Jacket
Life Rings
VHF/ GMDSS
CONSTRUCTION
Construction notes
Bottom Treatment: Mat sanding, 3 x epoxy / 2 x antifouling (required for osmosis guarantee).
Steel cradle (Foldable, galvanized type 4).
Polyester strap and galvanized shackle for central hoist (attachment eye is standard)
EXTRA
Extra notes
Chain.
Mooring lines.
Boarding ladder.
Shower with hot/cold freshwater at bathing platform.
FINAL NOTES
Final notes
IMS Measurements.
Disclamer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
