#579

TP 52 Bribón

SOLD

GENERAL
Name
TP 52 Bribón
Model
TP 52
Year
2009
Hull material
Carbon
Located
Sydney
Price
PRICE AT REQUEST
VAT
NOT PAID
Flag
British Virgin Islands
Type
RACER
Slogan
One of the best TP 52 in the world.
Description
The best TP 52 in the market.
DESIGN
    Builder
    KING MARINE S.A. Valencia
    Designer
    Judel & Vrolijk
    Design notes

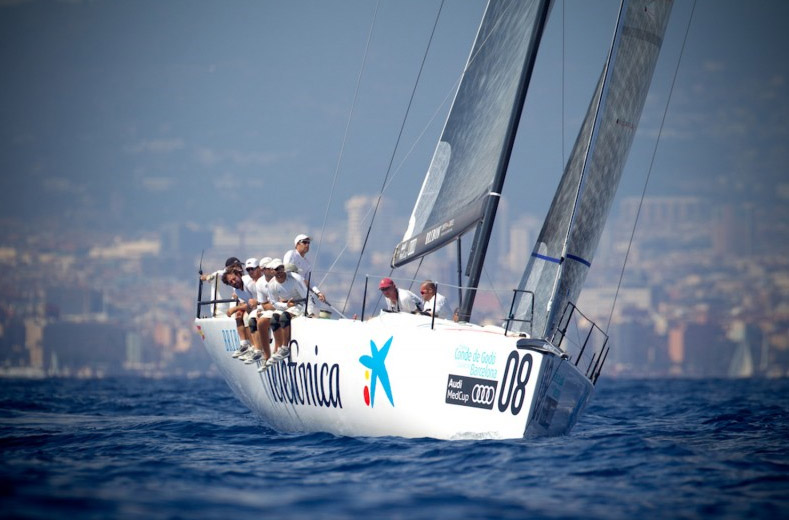

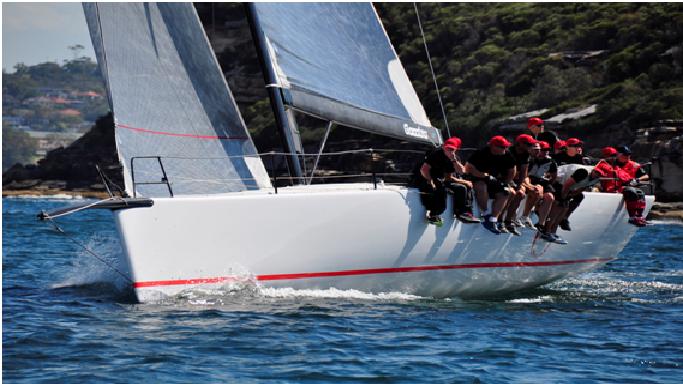

    This boat started life as Matador winning the 52 worlds championships in 2009. King Juan Carlos of Spain campaigned the boat in 2011 as Bribon finishing second in the Med Cup and winning Copa Del Rey. In 2013 she was shipped to Australia to compete in the TP52 Southern Cross Cup Series as Team Beau Geste winning all four events to claim the title. As Team Beau Geste she was set up to the 2013/14 IRC rule. In 2014 Team Beau Geste has had a clean sweep of Australia winning the NSW State Championship and Audi IRC Australian Championships without having to sail the last race in both events making it seven wins in a row against top 52s and other new IRC yachts.
DIMENSIONS
    LOA
    16.00m
    Beam
    4.42m
    Draft
    3,50m
    Displacement
    7200kg
ENGINES
    Engines
    Yanmar 4JH4ACE (54HP) .
    Propeller
    GORI Racing 2 blades LH Diam. 450 x P330.
    Engines notes
    SD50 Sail drive
ACCOMMODATIONS
    Shower
    No
ELECTRICAL
    Batteries
    2 batteries.
SPARS & RIGGING
    Sails
    Main Sails M1 – 2013 M2 – 2014 Jibs J1 – 2013 J1 - 2014 J2 – 2013 J2 – 2014 J2 – 2011 J3 – 2014 J3.5 – 2013 Storm Jib Kites A1 – 2014 A2 – 2013 A2 – 2014 A2 – 2014 A4 – 2013 A4 - 2014 Staysail – 2014
    Rigging

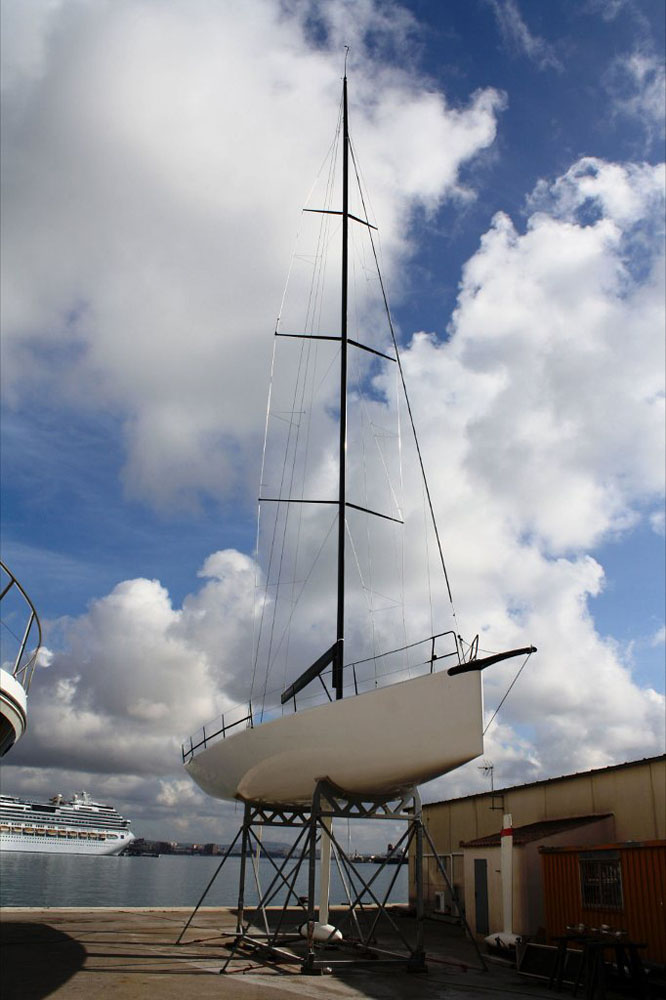

    1 SSNZ 3 SPREADER RIG (2009).
    Boom
    1 SSNZ carbon Boom.
    Vang
    1 SSNZ carbon vang tube.
    Spars and rigging notes

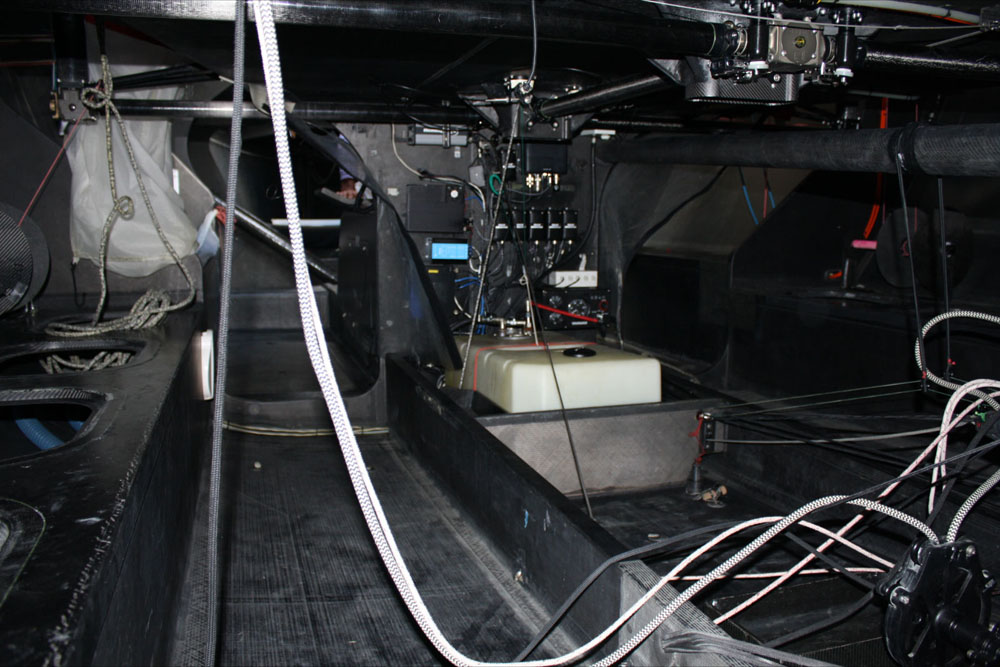

    Forestay Hydraulic Pressure sensor Wika. V1-V2-V3&4 had been change to a bigger size to fit the new RM in July 2011. 2 Carbon Bowsprit - new for 2013 for bigger downwind area Running rigging – New 2014 Hydraulic system - Cariboni CL45-250mm stroke forestay cylinder. Cariboni IPA 1225 Two speed pumps. Cariboni HC800 pump handles. Cariboni Single manual FAC type valve. Mast jacking permanent cylinder in mast.

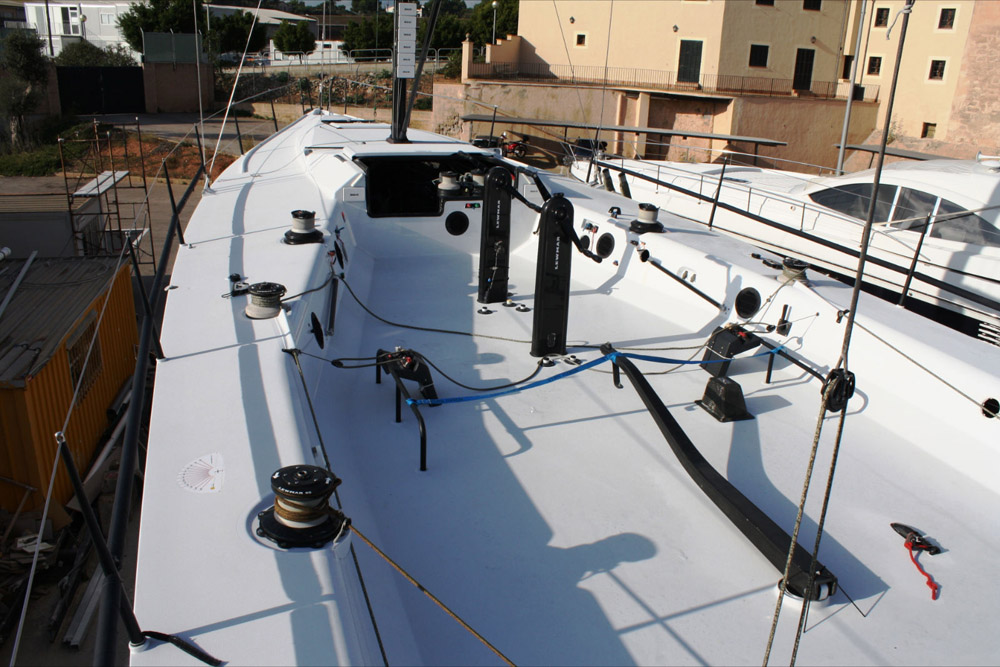

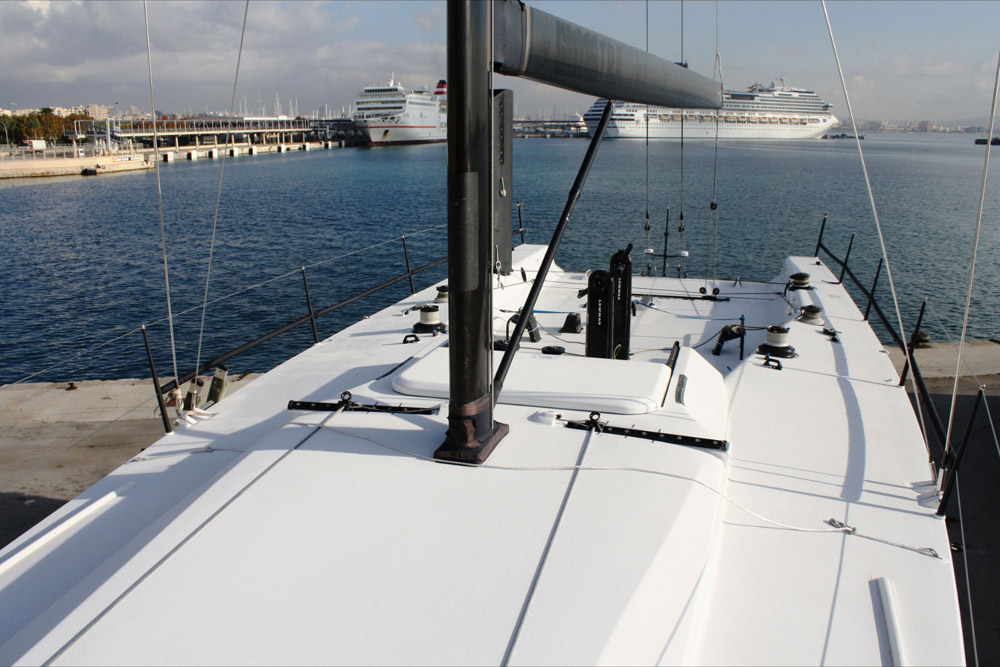

DECK EQUIPMENT
    Winches
    Lewmar carbon/ Ceramic drum winches:Lewmar 68 / 3 speed; Pit Utility winch. Lewmar 50/ 2 speed: Pit service winch.Lewmar 60 / 3 speed: Jib winches with rotating bearing below winch.Lewmar 68 / 3 speed: Backstay Winches.W/ self tailing.Lewmar 68
    Deck equipment notes
    Oil bath bevel boxes transmissions for primary winches and pit utility winch connected to two carbon fibre pedestals with x 1: 2.8 ratio over drive and 1:1,17 ratio to mainsheet winches. Carbon fibre transmission shafts. Lewmar carbon fibre pedestals x 2. Full Harken SSR and Black Magic Air Block line for deck running gear. Internal Purchases and lead systems with Harken & Ronstan Blocks. Harken Magic Trim for Main traveler with 1:18 ratio. SPINLOCK Stoppers XCS Clutches & XXC0812 power clutch with weight reduction in side fairings and handles on Pit and Spinsheet. JP3 Rudder bearings racing light weight bearing.
EXTRA
    Extra notes

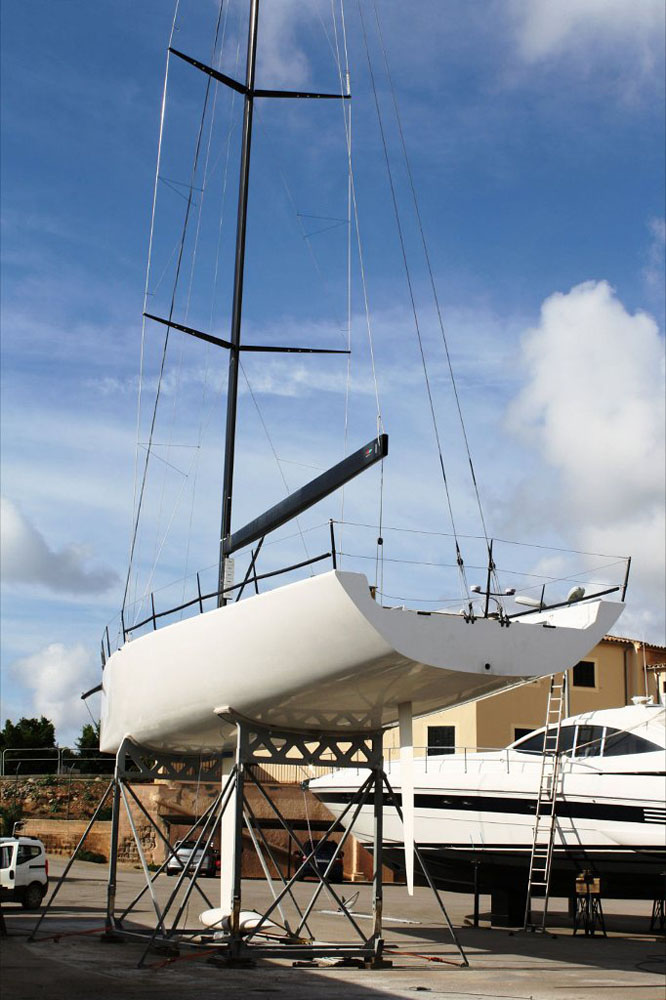

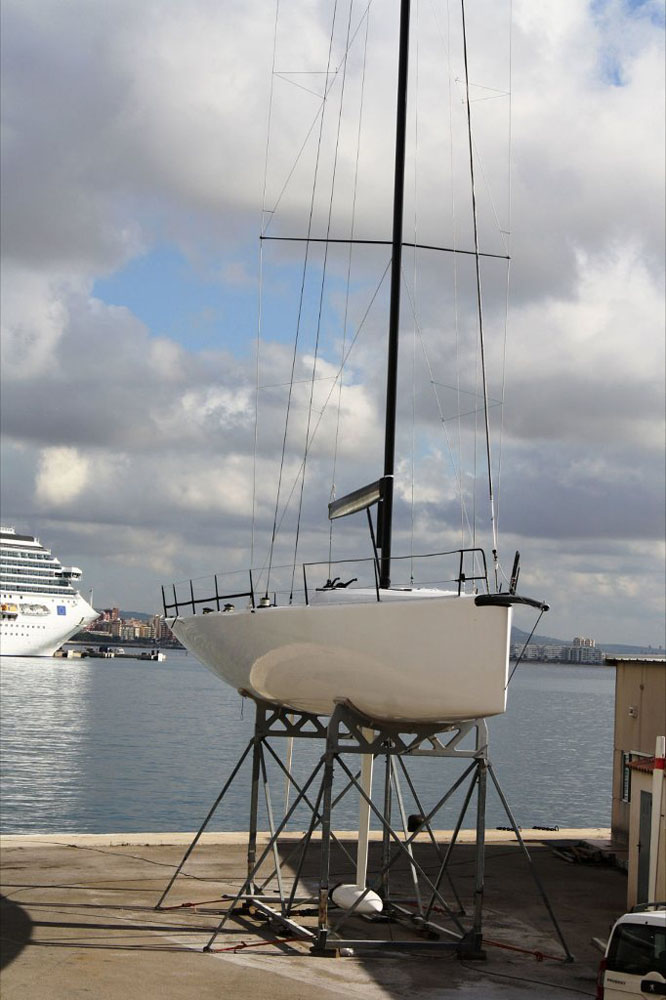

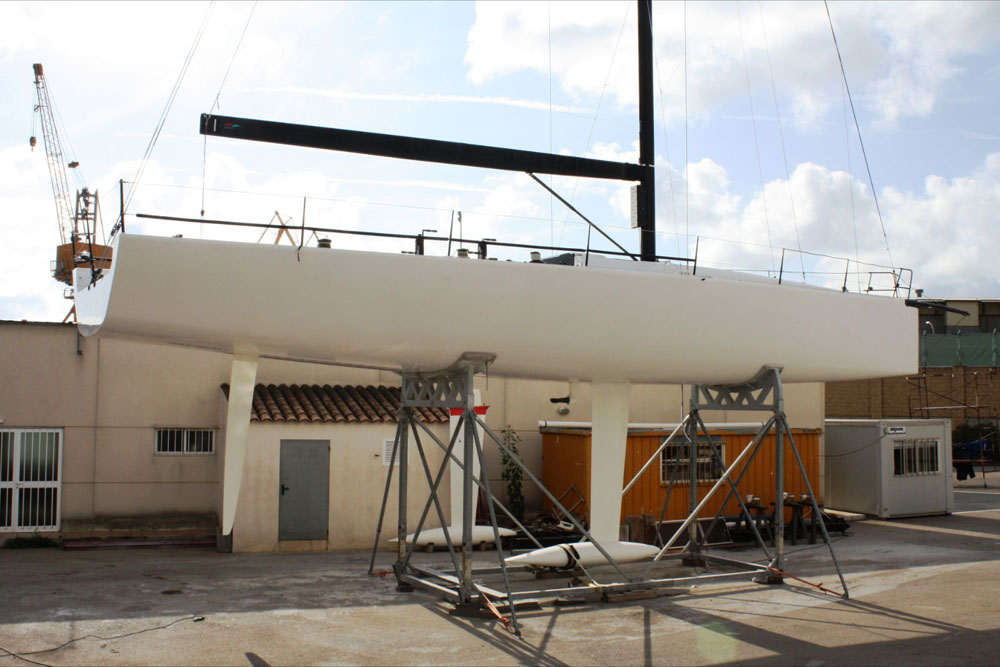

    Complete boat cradle. New keel fin 2014 to increase draft and section shape. New long prods. Upgrades to mast for IRC 2014. Full New set of North Sails 2014. New bottom and deck paint 2014. New instruments 2014. New rigging package 2014.
FINAL NOTES
    Final notes
    1st 2009 TP52 World Championships 1st Copa del Rey 2009 1st Copa del Rey 2010 1st Copa del Rey 2011 2nd Audi Med Cup 2011 1st TP 52 Southern Cross Cup Melbourne 2013 stage 1 1st TP 52 Southern Cross Cup Melbourne 2013 stage 2 1st TP 52 Southern Cross Cup Sydney 2014 stage 3 1st TP 52 Southern Cross Cup Pittwater 2014 stage 4 1st TP 52 Southern Cross Cup Series 2014 1st NSW IRC State Championships 2014 1st Audi Australian IRC Championships 2014 1st Audi Hamilton island Race Week 2014
