#600

Grand Soleil 42R Papillon

SOLD

GENERAL
Name
Grand Soleil 42R Papillon
Model
Grand Soleil 42R
Year
2003
Hull material
GRP
Sail number
JPN5995
Located
Japan.
Price
110000 €
VAT
NOT PAID
Flag
japanese.
Type
RACER
Slogan
Fast and competitive racer. Ready to win.
Description
Fast and competitive racer. Ready to win.
DESIGN
    Builder
    Del Pardo (Italy).
    Design notes
    Bermudian sloop.
DIMENSIONS
    LOA
    12.00m
    LWL
    10.34m
    Beam
    3.22m
    Draft
    2.54m
    Ballast
    1.090 kgkg
    Displacement
    5.833 kgkg
ENGINES
    Engines
    Yammar SD40 Sail Drive.
    Propeller
    Pera 2 blade folding/feathering propeller.
    Engines notes
    Inboard engine: 198 kg.
TANKS
    Fuel
    50 l.l
GALLEY
    Galley notes
    Electric bulge pump. Manual bulge pump (with a handle).
ELECTRICAL
    Electrical notes

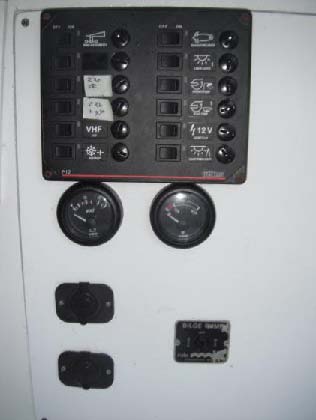

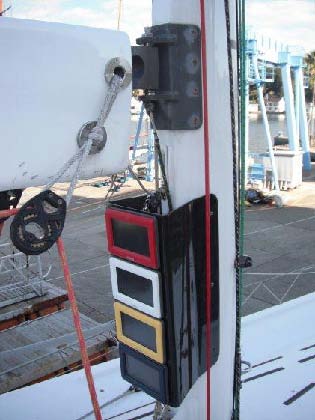

    Fuel gage. Voltage meter. 2 sockets 12V. Chart lump. Some interior light.
SPARS & RIGGING
    Sails

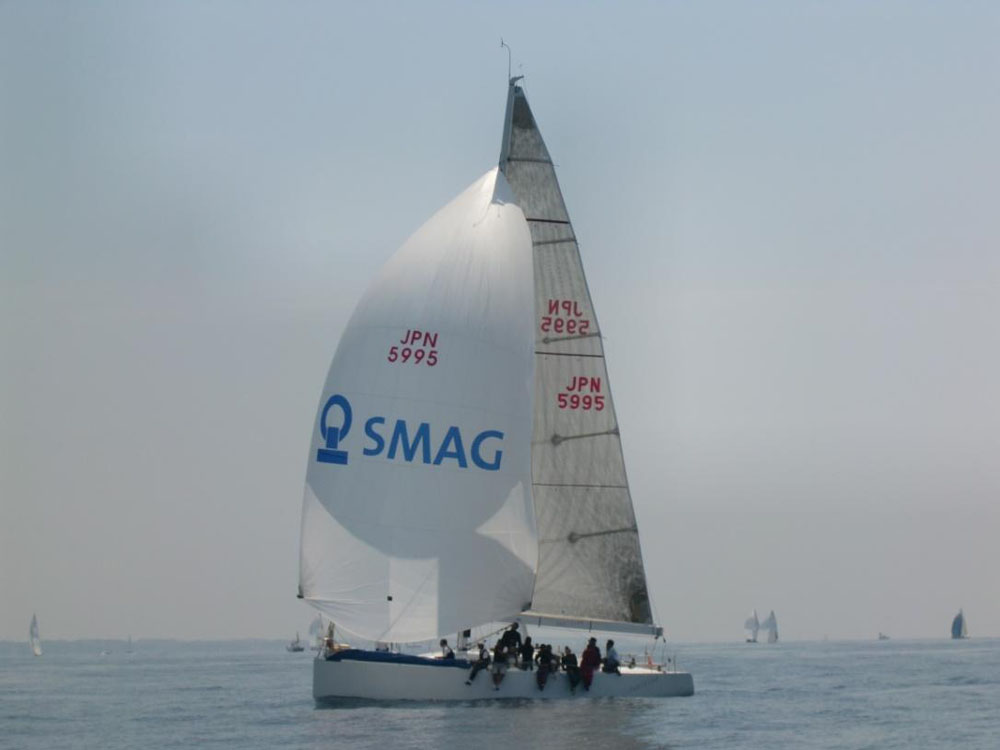

    Main sail: 2003 North 3DL Carbon 2004 North GP Panel 2005 North GP Panel 2006 North 3DL Aramid Head sail: (Light Jib) 2003 North 3DL Carbon 2004 North GP Panel 2005 North GP Panel (Mid Jib) 2003 North 3DL Carbon 2004 North GP Panel 2005 North GP Panel (Heavy Jib) 2003 North 3DL Carbon 2004 North GP Panel 2005 North GP Panel (No.3 Jib) 2005 North GP Panel (No.4 Jib) 2006 North 3DL Aramid Spinnaker: 2003 1.5S North 2003 2S North 2003 Runner North 2004 1S North 2005 2S North 2004 Runner 2005 1 A (Asy-spinnaker) 2008 AP Spinnaker (Quantum) 2010 IRC Big Spinnaker (Quantum) Storm Jib North Trysl North Wind Seeker North
    Rigging
    rod standing rigging.
    Mast
    carbon composite.
    Boom
    carbon composite.
    Vang
    aluminum.
    Spars and rigging notes

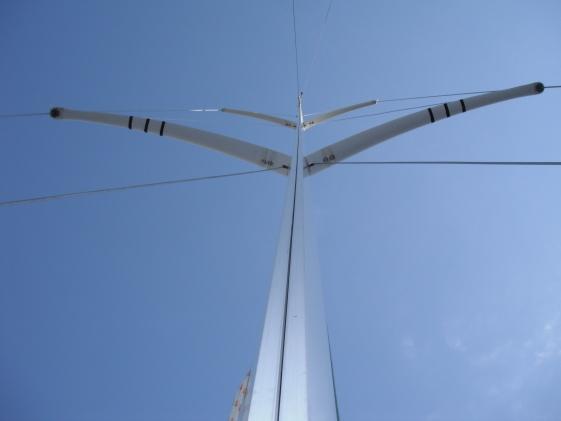

    Spreader: 2 spreaders carbon composite. Backstay: Aramid. Jack system: hydro single cylinder (Enapac). Harken Car spin pole system. Carbon spinnaker pole. 2 wing halyard (2010). Topping lift (2009). Center halyard (2010) 2:1 main halyard (2010). All halyards are Donaghys. Set of Donaghys jib sheet(2010). Set of Donaghys spinnaker sheet(2010). Set of Donaghys spinnaker guy sheet(2010). Someson endless mainsheet(2008). Someson backstay sheet(2008).
DECK EQUIPMENT
    Winches

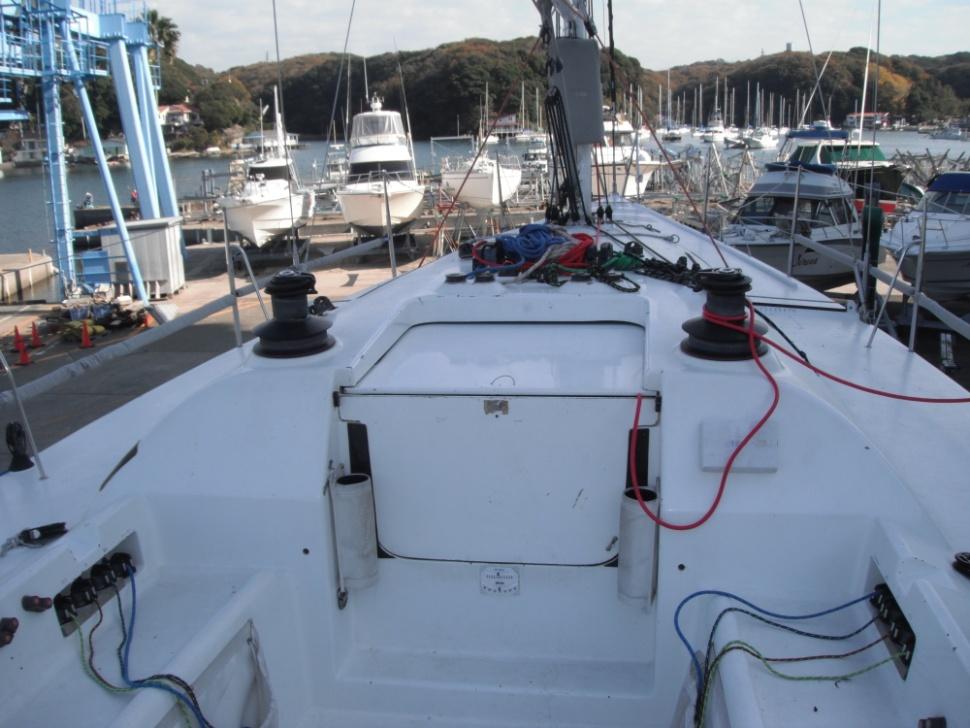

    2 Harken Quatoro cock pit winches. 2 Harken primary winches (headsail). 2 Harken primary winches (main). 2 Harken primary winches (backstay).
    Deck equipment notes

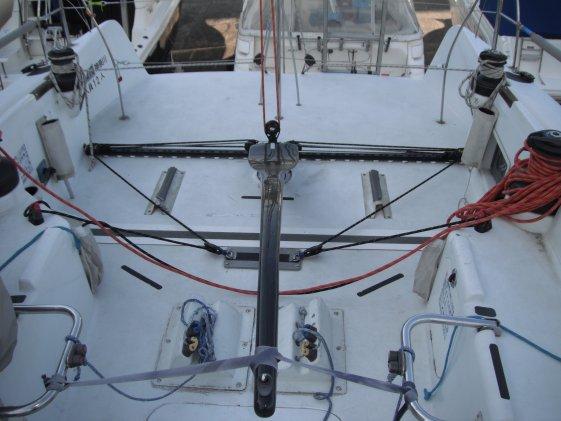

    Tiller is carbone composite. There is Carbone Weel system, too. 4 Spinlock sheet stopper. Harken CRX main car is on the deck (it can replace to down below). Rope is Donaghys 8mm Spectra Speed. Control ropes are using Donaghys. Backstay ropes replaced Donaghys Ocean 12 SK75 (2010). Head sail In-haul Ropes are Donaghys Ocean 12 Sk75 (2010). Foreguy rope is Donaghys (2010).
CONSTRUCTION
    Keel
    lead keel.
EXTRA
    Extra notes
    Rudder cover. Deck cover. Display cover.
FINAL NOTES
    Final notes
    Enapac System`s Cylinder and tubes replaced new one in 2010. Crew nr:10 This boat has a 2004 Copa del Rey trophy.
