#610

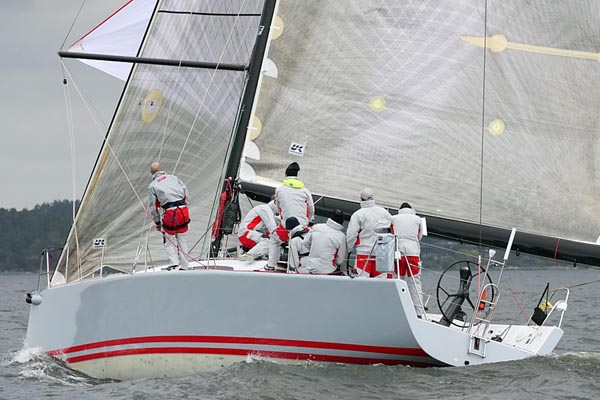

Landmark 43 Air IV

SOLD

GENERAL
Name
Landmark 43 Air IV
Model
Landmark 43
Year
2008
Hull material
GRP
Color hull
Kingston Grey and Matterhorn White deck.
Located
Sweden.
Price
PRICE AT REQUEST
VAT
PAID
Flag
swedish.
Type
CRUISER-RACER
Slogan
.
Description
Very good Cruiser with the Racer performance.
DIMENSIONS
    LOA
    13.00m
    LWL
    11.40m
    Beam
    3.85m
    Draft
    2.75m
    Displacement
    7.950 kgkg
ENGINES
    Engines
    Volvo 40 HP
    Engines hours
    180 h
    Cruising speed
    7,5 knkn
TANKS
    Fuel
    170 l.l
    Water
    340 l.l
    Holding
    50 l.l

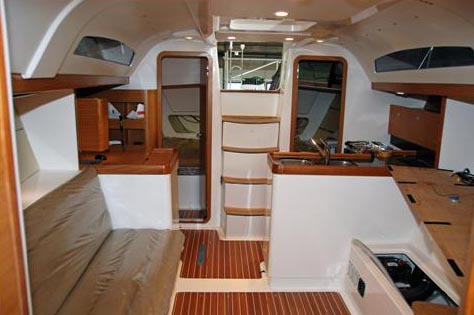

ACCOMMODATIONS

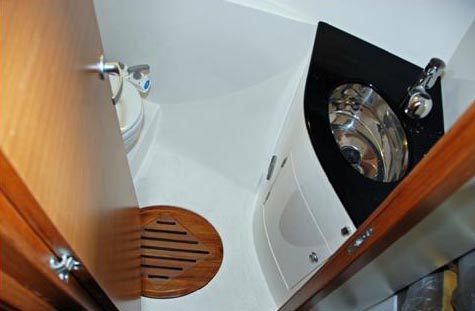

    Shower
    Yes
    Accommodations notes

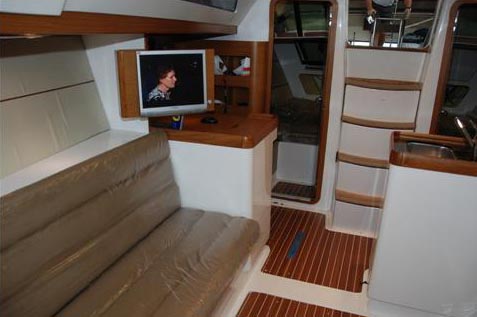

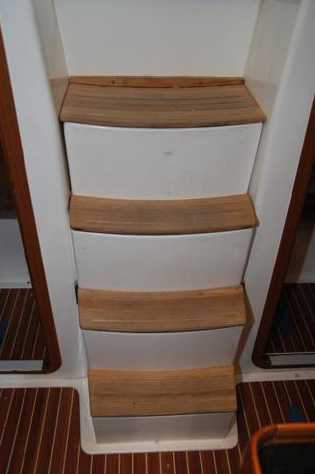

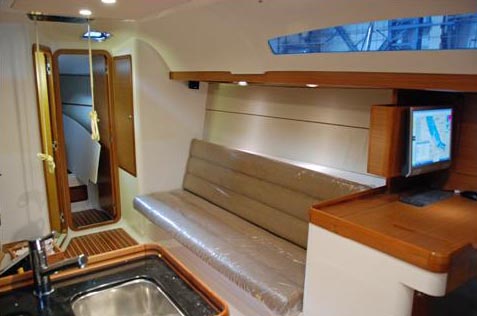

    LED and halogen interior lights. Two cabin tables, one wood and one in carbon (extremly light). Two stairways, one light composites and one cruising. Two sets of floor boards and bunktops, light composites and one steup for cruising, looks the same.

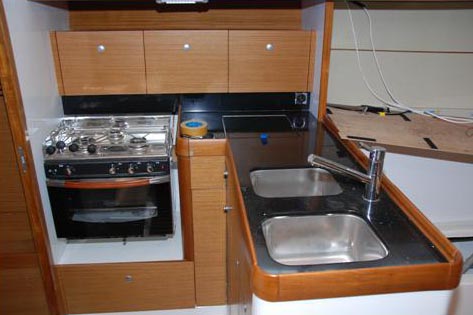

GALLEY
    Galley notes
    Munter MG50 dehumidifier. Hot water with electric pumps. Eberspracher 4 D heating system.
ELECTRICAL
    Electrical notes
    Electric shore power system for 220v and maintenance of batteries. Two set ups for batteries, 2 for racing and 5 for cruising.
SPARS & RIGGING

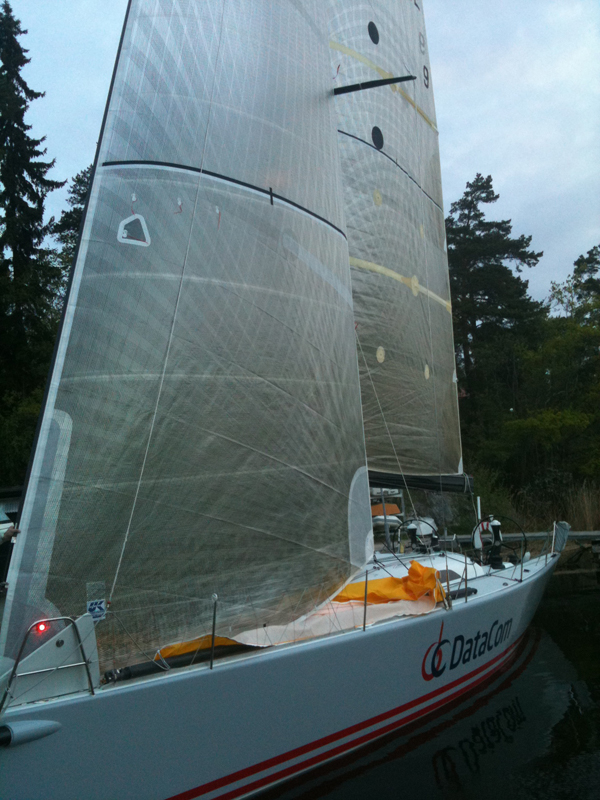

    Sails
    Sails by UK: 1 Main Matrix Carbon 2008 (fully recut and ok). 1 Main Tape Drive Hydra with glass tape 2010 (as new, perfect cruising). 1 Main Matrix Carbon 2012 (to be delivered). 1 Jib L Matrix Carbon 2008 (fully recut and ok). 1 Jib M Matrix Carbon 2011 (used two regattas). 1 Jib H Matrix Carbon 2008 (ok). 1 Jib L/M Matrix Carbon 2012 (to be delivered). 1 Jib #4 Matrix Kevlar/tafetta (few used). 1 Jib Top Tape Drive kevlar/carbon (ok). 1 Staysail 2012 (to be delivered). 1 Code 0 CZ30 2008 (ok). 1 Spinn L Airx 2010. 1 Spinn M 0.9 2011. 1 Spinn H 1.5 2008 (hardly used). 1 Storm Jib.
    Spars and rigging notes
    4x 20/20 on carbon bracket mast. 1x FFD,1xGFD, 1x GPD in cockpit. Formula Spars Carbon with hydraulic tensioning. Enerpac system with adjustable mast step. Antal track and car system. Equipped with spinboom, Harken system. Bowsprit in carbon. Rodrigand composite backstay (two panel electro-hydraulic system in cockpit). Lazy Jack system for cruising. All racing gears Harken or Antal. 2 reef to Spinlock built in boom. 6 halyards, main 2:1, 2x masthead, 1 fractional, 1 jib, 1 topping lift. All running rigging replaced by 2010/2011.
DECK EQUIPMENT

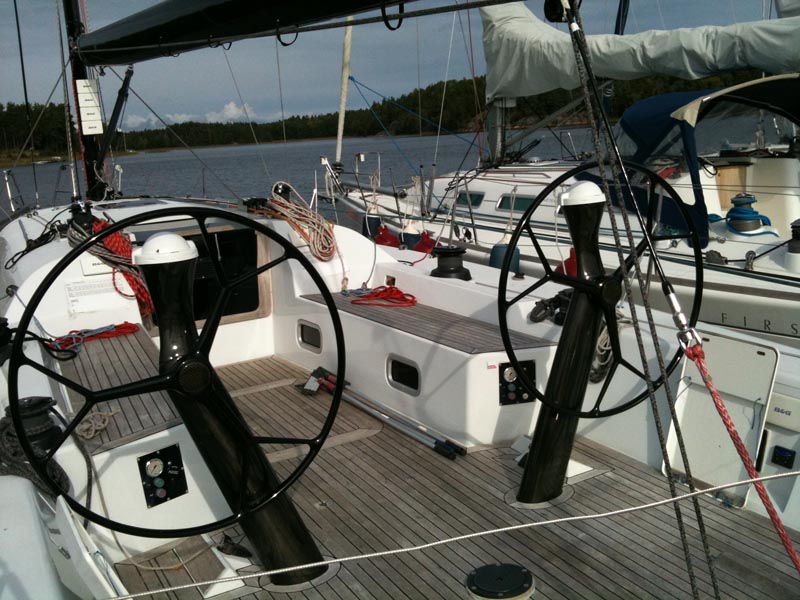

    Winches
    Deck equipment all Harken high load and Harken winches.2x Harken Carbon B50.2STR.2x Harken Carbon B55.2STR.2x Harken 48 selftailing on roof, one electric.
    Deck equipment notes

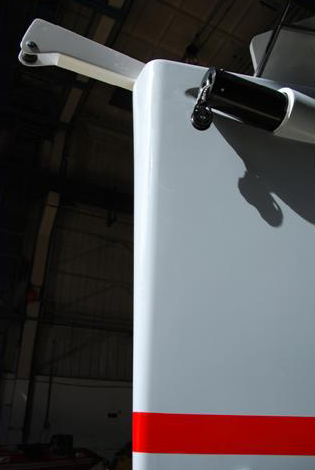

    Electric windlass system fully removable, -Lightweight anchor chain box.
SAFETY EQUIPMENT
    Safety equipment notes
    1x Liferaft soft 6 pers. 2008. 1x Liferaft hard 6 pers. 2008. Plastimo ISO approved an inspected 2011.
CONSTRUCTION
    Construction notes

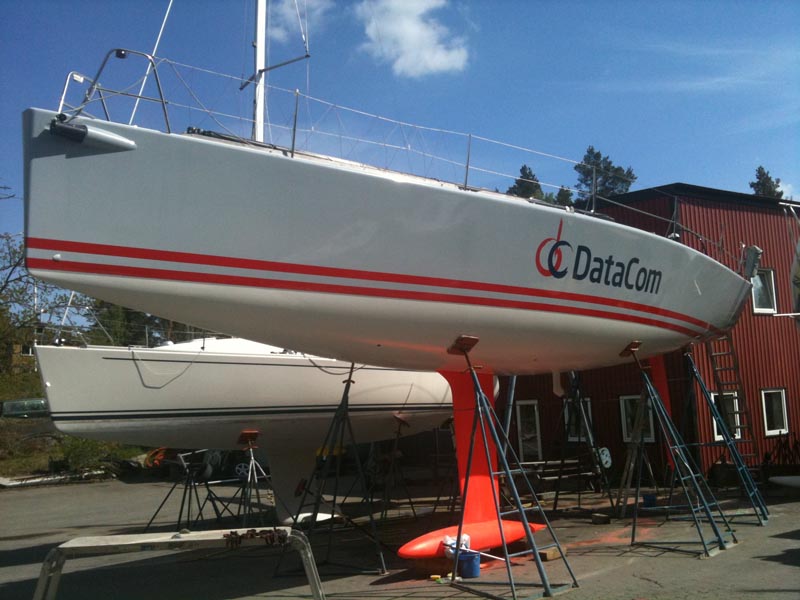

    New design keel and bulb 2011 by Mark Mills.
EXTRA
    Radio CD
    Stereo, speakers in salon and cockpit
FINAL NOTES
    Final notes
    CE Category: A Ocean.
