#697

TP 52 Aniene

FOR SALE

GENERAL
Name
TP 52 Aniene
Model
TP 52
Year
2007
Hull material
Carbon
Sail number
HL 60348

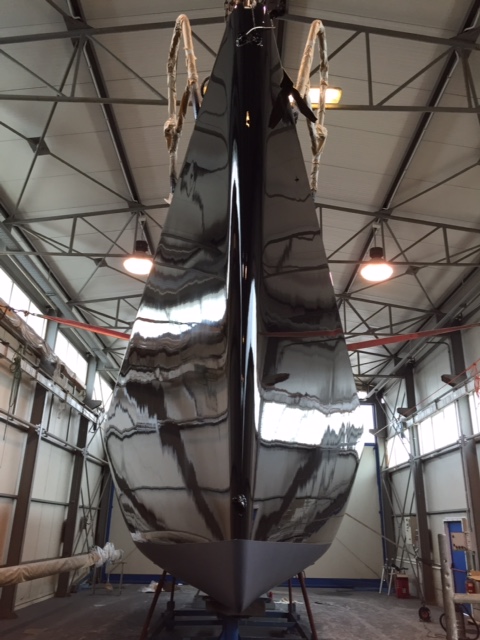

Color hull
Black
Located
SPAIN
Price
PRICE AT REQUEST
VAT
NOT PAID
Flag
UK
Type
RACER
Slogan
A dream for regatta winners
DESIGN
    Builder
    Botin & Carkeek
    Shipyard
    Longitud Cero (Spain)
DIMENSIONS
    LOA
    16.00m
    Beam
    4.42m
    Draft
    3.20m
    Displacement
    7.600kg
ENGINES
    Engines
    Yanmar 54hp
    Propeller
    2-blade Gori propeller-custom.
    Engines notes
    S-drive. Full spare engine.
TANKS
    Fuel
    80l
    Water
    100 l
ACCOMMODATIONS
    Shower
    Yes
GALLEY
    Galley notes
    Plumbing: 1 piston forestay CF 50 with corresponding pump, control unit, relise (all Cariboni).
ELECTRICAL
    Batteries
    2
SPARS & RIGGING

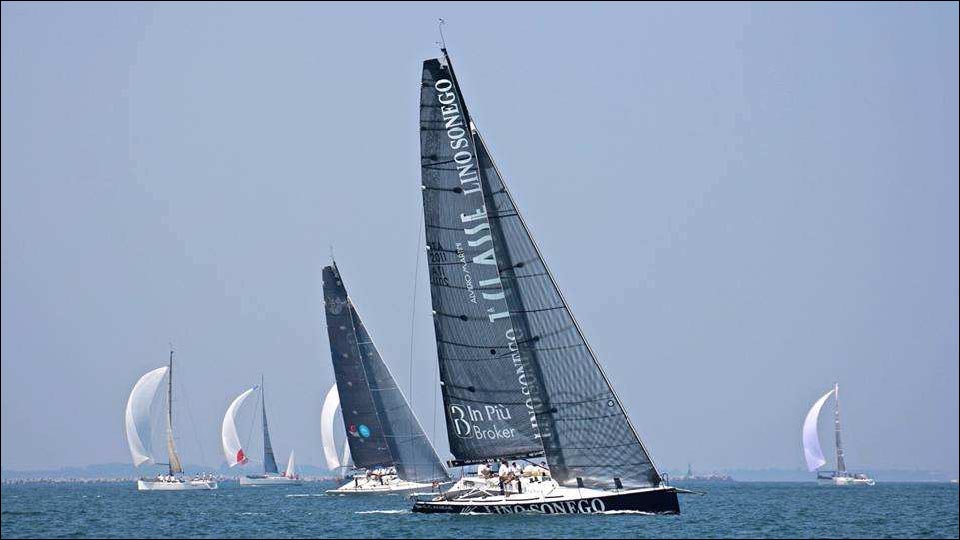

    Sails
    Storm sail. Trysail. Code 0 Spynnaker staysail Jib staysail. A0. A1. A1.5. A2. A4. A5 Main offshore 2 reefs. Main inshore Jib light. Jib medium. Jib 2 & 3 Jib 4. A2. A0.
    Rigging
    Rod
    Mast
    Carbon
    Boom
    Carbon
    Vang
    Yes
    Tuff Luff
    Yes
    Running rigging
    Dyneema
    Spars and rigging notes
    Mast Hall Spars: 2 spreader with Holmatro pump. Two spinnaker halyard lock on head. Forestay with Harken double carbon and windex. Running rigging Arming ropes: 2 spinnaker halyards head. 1 halyard fractional. 1 topping jib. 1 jib halyard. 1 main halyard. 4 jib sheets. 2 spinnaker sheets. 2 spin guys. 1 downhaul. 1 mainsheet (with winch center) 2 sheets stay-sail Traveller jib in. Traveller jib out Traveller up/down jib Traveller spinnaker pole. Traveller main system Traveller backstay. Forestay. 1 ​​back in car with custom fitting spliced.
DECK EQUIPMENT
    Deck hardware
    Harken
    Winches
    Harken
    Deck equipment notes
    Winches and blocks Harken: 1 mainsail winch 65.3. 2 primaries 65.3. 2 winch back / spin guy 65.3. 1 utility 65.3. 1 pit assists 50.2. 2 Lewmar 50 for twin backstay. 2 columns with shaft for connection in series, overdrive button.
SAFETY EQUIPMENT
    Fire-extinguishers
    YES
    Liferaft
    2 x 8 PAX
    Safety equipment notes
    15 life jackets. 15 belts.
CONSTRUCTION
    Construction notes
    Pre-preg carbon, nomex core with vacuum lamination.
