#745

MAT 1010

GENERAL

DIMENSIONS

ENGINES

Engines notes: Engine panel recessed in the cockpit for protection Teleflex single lever engine control

TANKS

ACCOMMODATIONS

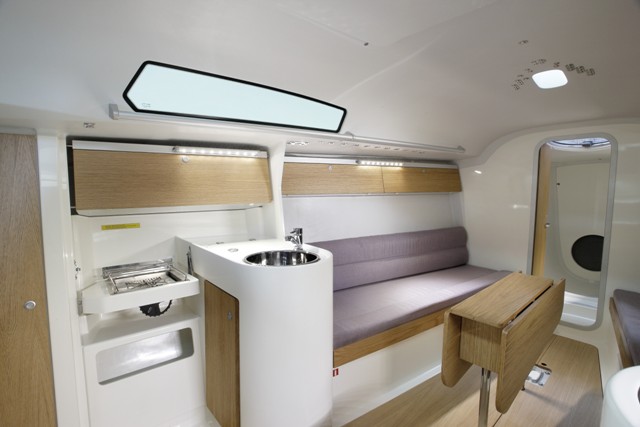

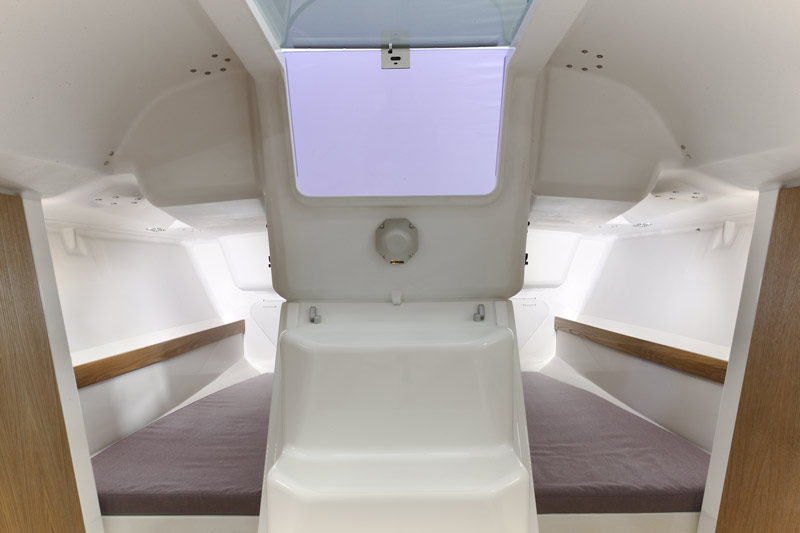

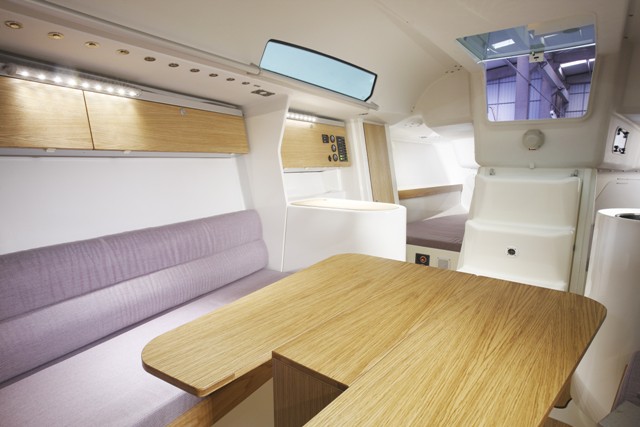

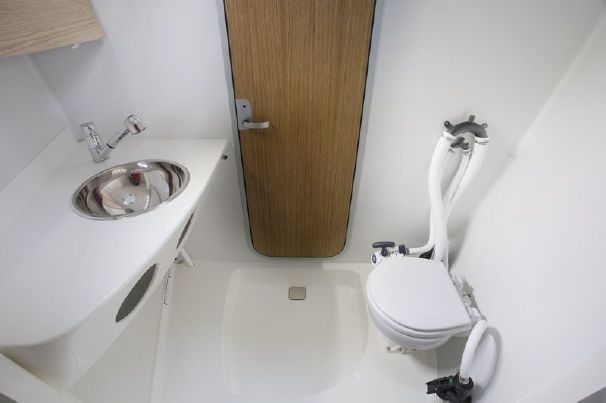

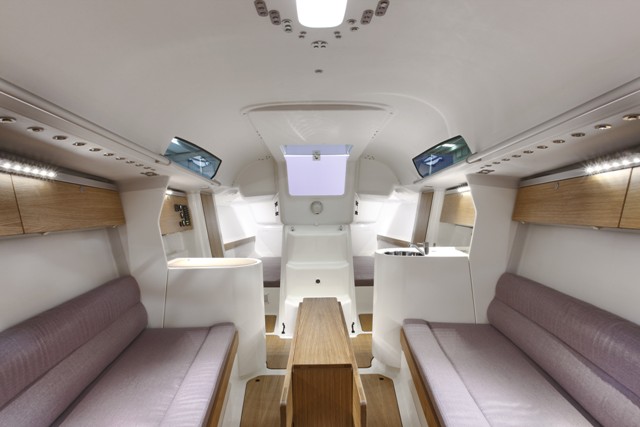

Accommodations notes: 2 aft cabins with double bed Large head in forecastle with shower and wahsbasin. Also serves as large sails storage room. Spacious saloon with saloontable with foldable leafs, 2 sofa's alongside Navigation station on starboard side with table and seat Galley on port side 2 large lockers for storage lockers throughout the saloon LED interior lights

GALLEY

NAVIGATION INSTRUMENTS

Navigation instruments notes: B&G Hydra 3000 performance processor incl GFD display 10/10HV display on mast Vertical mast Head Wind unit H3000 Speed and Depth sensors Halcyon 2000 compass GPS 18X VHF Icom 421 incl antenna

ELECTRICAL

Electrical notes: 12 volt 60 A alternator on engine Deka 1x90 amp hour group 27 deep cycle house battery Deka 1x70 amp hour group 24 starter battery BSS main DC panel with house, engine and emergency switches 12 volt DC distribution panel with automatic circuit breakers Voltmeter 12 volt DC plug

SPARS & RIGGING

Sails: All from North 3DL Racing Main 3DL Code 1 Jib 3DL Code 2 Jib 3DL Code 3 Jib Nylon S1.5 Spinnaker Nylon S4 Spinnaker Nylon A3 Asymmetric

Mast: Alloy mast with 2 sets of aft swept spreaders Alloy racing boom with internal outhaul purchase Sparc

Spars and rigging notes: Composite mast collar Composite T5 backstay Long stroke integral hydraulic backstay adjuster Sailtec Solid mechanical vang Lopolight combined LED navigation lights/anchor light on mast Harken track on mast for spinnaker pole Halyards, Jib, Fractional, Main, topping lift Full Spinnaker gear Main Sheet, Jib Sheets

DECK EQUIPMENT

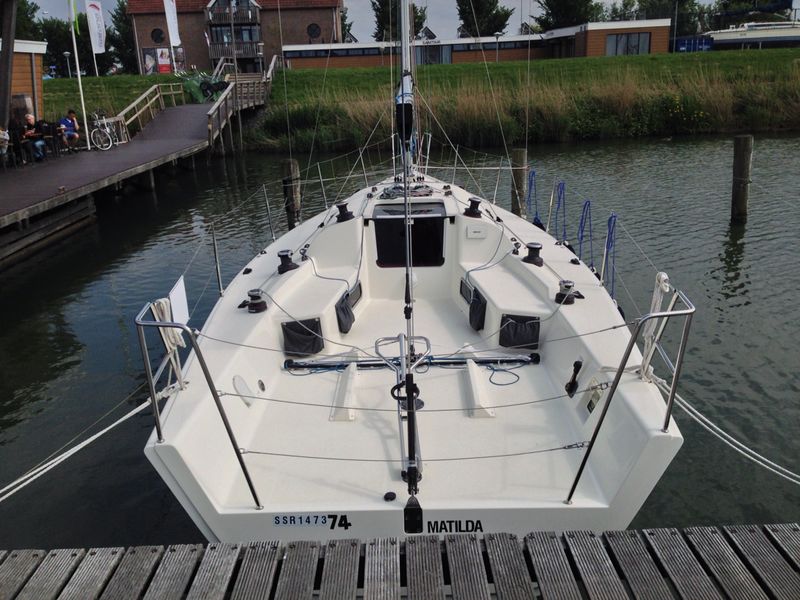

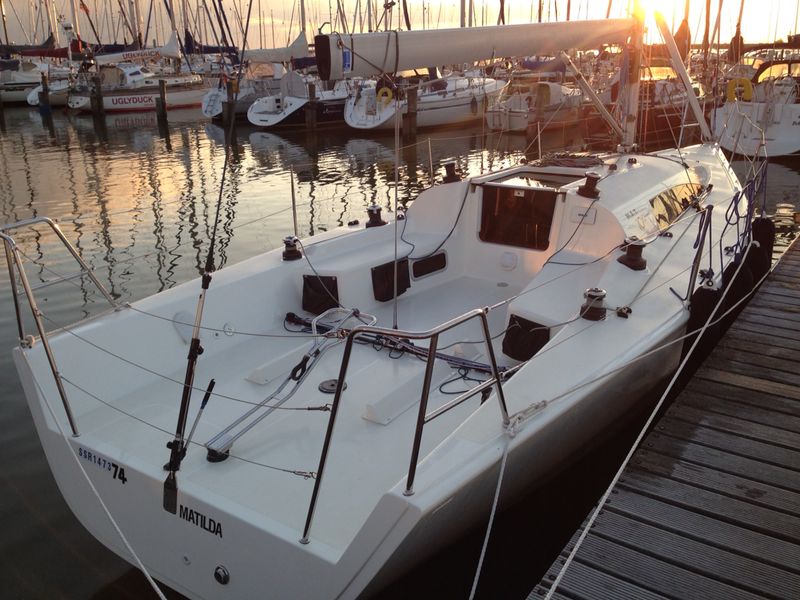

Deck equipment notes: Harken Deck gear package including blocks and winches Spinlock XTS series rope clutches on centerline Custom alloy fairleads 4 opening BSI moonlight coach roof portlights 2 opening BSI moonlight portlights in cockpit 1 opening BSI moonlight round foredeck hatch Portlights interior trims in anodized alloy Molded toe rail to mast Custom stainless steel open bow pulpit and stern rail Custom stainless steel chainplates recessed in hull Recessed companionway sliding hatch Plastimo 135 mm compass in cockpit under compagnionway Stanchion patches Winches : Halyard winches upgrade to Quattro Harken 46 2 sp. 2x Harken 40 2 sp 2x Harken 35 2 sp 2x

SAFETY EQUIPMENT

Safety equipment notes: Bilge pump automatic Rule Bilgepump Whale Fenders Fire extinguisher

CONSTRUCTION

Construction notes: Hull and deck produced with vacuum assisted resin infusion technology (VAI) in PVC foam cored vinylester/e-glass Bulkheads produced in PVC cored vinylester/e-glass, laminated and structurally bonded to hull and deck Multiaxial structural e-glass reinforcement fabrics White colored isophtalic NPG acid gelcoat on hull, deck, bulkheads and interior molding Moulded nonskid on deck and cockpit floor Composite structural liner for interior arrangement Light composite interior components in cored polyester/e-glass 550 kg SG iron fin with 1600 kg lead/antimony bulb = 2150 kg (approximate) Recessed in the hull and bolted to structural composite frame Coated and faired with a layer glass/epoxy Composite rudder and carbon fiber stock Jefa high performance self-aligning top/lower rudder bearings

EXTRA

FINAL NOTES

Final notes: Disclaimer The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
