Long distance cruiser yacht ready to go around the world, praised for her combination of cruising comfort, performance under sail and responsive handling in all weathers. Great interior volume, powerful main engine in a well-insulated compartment, with a 3-bladed folding propeller; large fuel and fresh water tanks, all strategically located low and central in the yacht for optimum weight distribution; an immensely strong steel hull girder frame, taking the loads from the composite lead/cast iron keel as well as from the keel stepped mast, and the discontinued rod rig. 3 cabin version, very well maintained, no damage has occurred to the yacht. Lot's of special extras, unique Mastervolt electrical installation.
DESIGN
Builder
X Yachts
Designer
Jeppesen
Shipyard
X Yacht Denmark
DIMENSIONS
LOA
15.00m
Beam
4.56m
Draft
2.35m
Displacement
17500 kg
ENGINES
Engines
Yanmar 4 cyl turbo 110
Engines notes
mainatained by service Yanmar
anmar 4HJ-HTE 4cyl Turbo 110 BHP incl Gory 24X15X3
Altenator DC12V/60A
Charger AC 220V DC-12V/25A

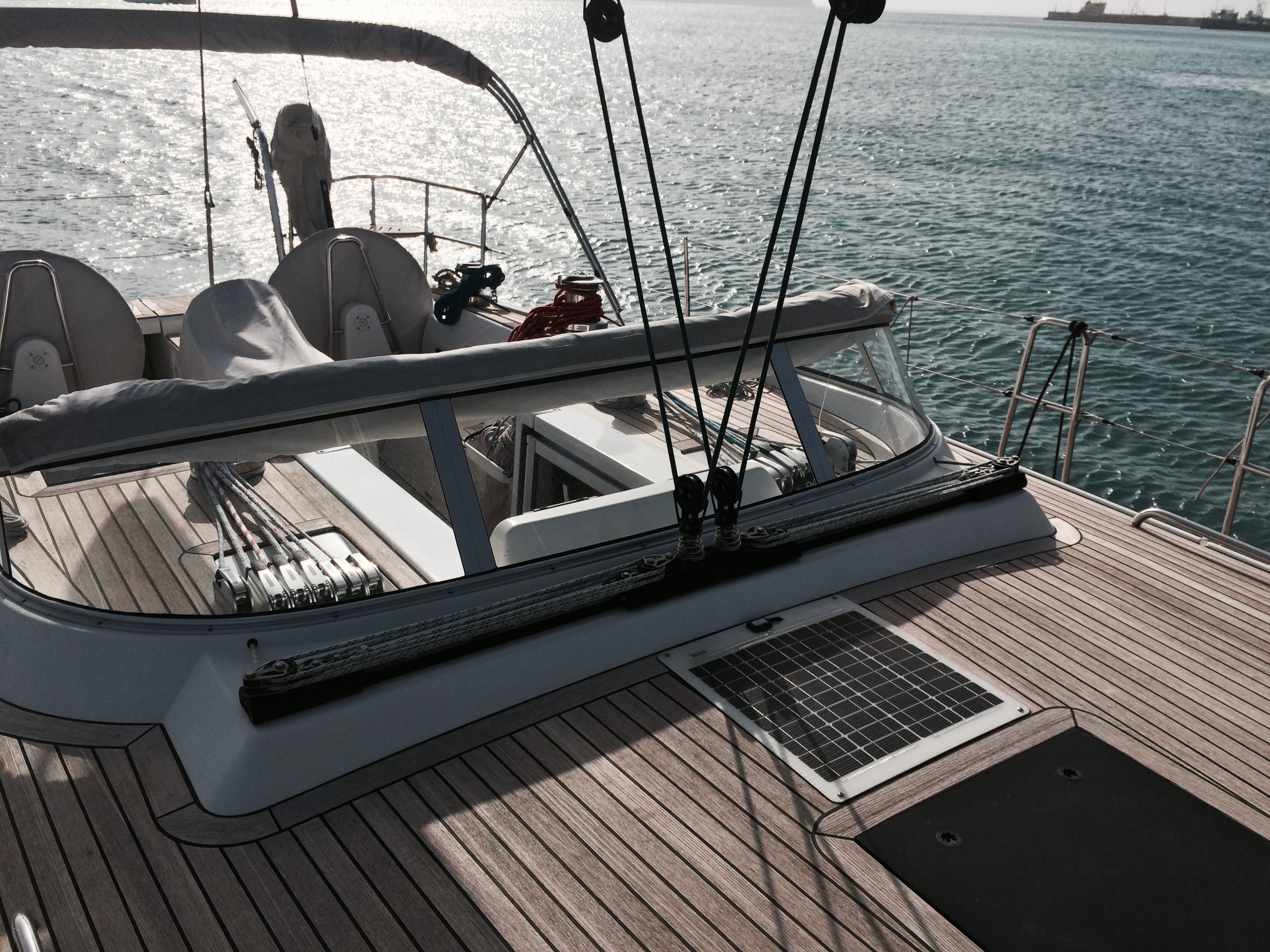

Solar Panel DC-12V / 24Wp
generator
Airco
Service Power System Mastervold DC-24V & AC-220V (110V)
12/220 v sockets
Ventilators Bosch
3X stainless steel watertanks total 800 liter
2X waste tank stainless steel 60 liter
TANKS
Fuel
300l
Water
800l
Holding
2X120l
ACCOMMODATIONS
Berths number
7
Cabins number
3
Shower
Yes
Air conditioning
yes
Heating
yes
Accommodations notes
Front cabin A1 additional wardrobe in steat of sofa laninated in hull
drawer under the bed
airco 10000 BTU
front batroom
shower, lockers, drawers, teak floor, washing machine, large bowl toilet
aft cabin P
large size (no bathroom)
searberth cloth
airco 6000 BTU
aft cabin S
1 berth & workbench/machineroom
sea berth cloth
airco 6000BTU
Desolator DC24V/AC-220V 110l/h
aft bathroom
shower, lockers, drawers, cloth hanger barlarge bowl toilet
Bulkheads & Lockers in teak isnstead of white
Leather cushions 71017
Seaberth cloth
2X B&W high end speackers media player Sony in custom teakbox incl remote at helmsman
Airco
Heater
Galley:
Isotherm water cooled fridge & freezer
Bosch Microwave
Force 10 gas stove with 3 jets & grill oven
DC-24V cut of gas valve near gas bottles
DC-24V Quooker boiled water tap
DC-24V Nespresso
Sweet and saltwater footh pump
GALLEY
Hot water
yes
Coolbox
yes
Refrigerator
yes
Water system
yes
NAVIGATION INSTRUMENTS
GPS
yes
VHF
yes
Automatic pilot
yes
Plotter
yes
Radar
yes
Navigation instruments notes
Raymarine
VHF 218E at charttable
extra mic at helmposition
hail horn
AIS-500
Navtex Furuno NX-300 at charttable
Solas Raykife tags
Autopilot SPX-30 processor
Hydrolic drive linear
Electric drive back up linear

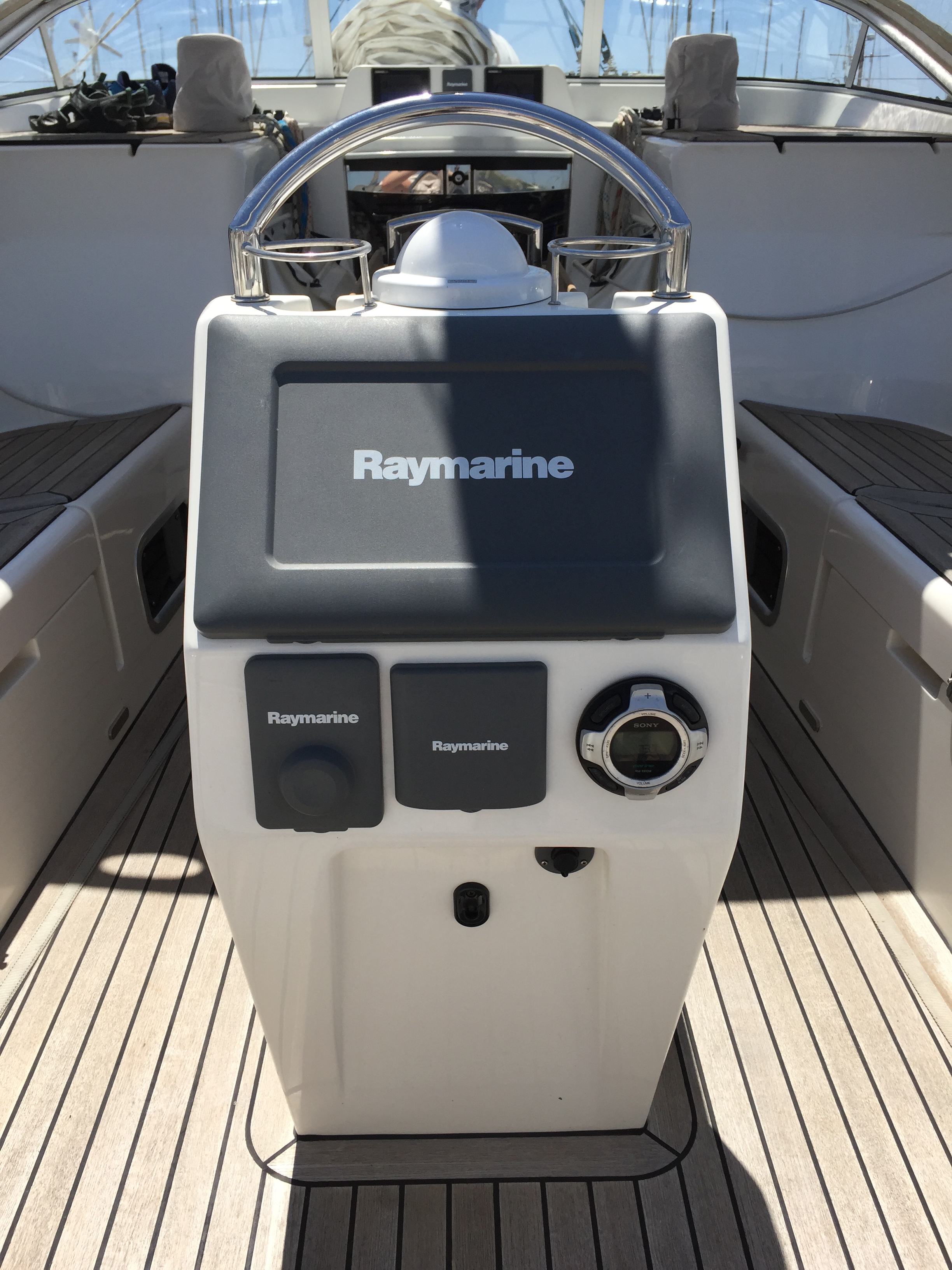

ST70 controle panel helmsman position
Wireless remote control

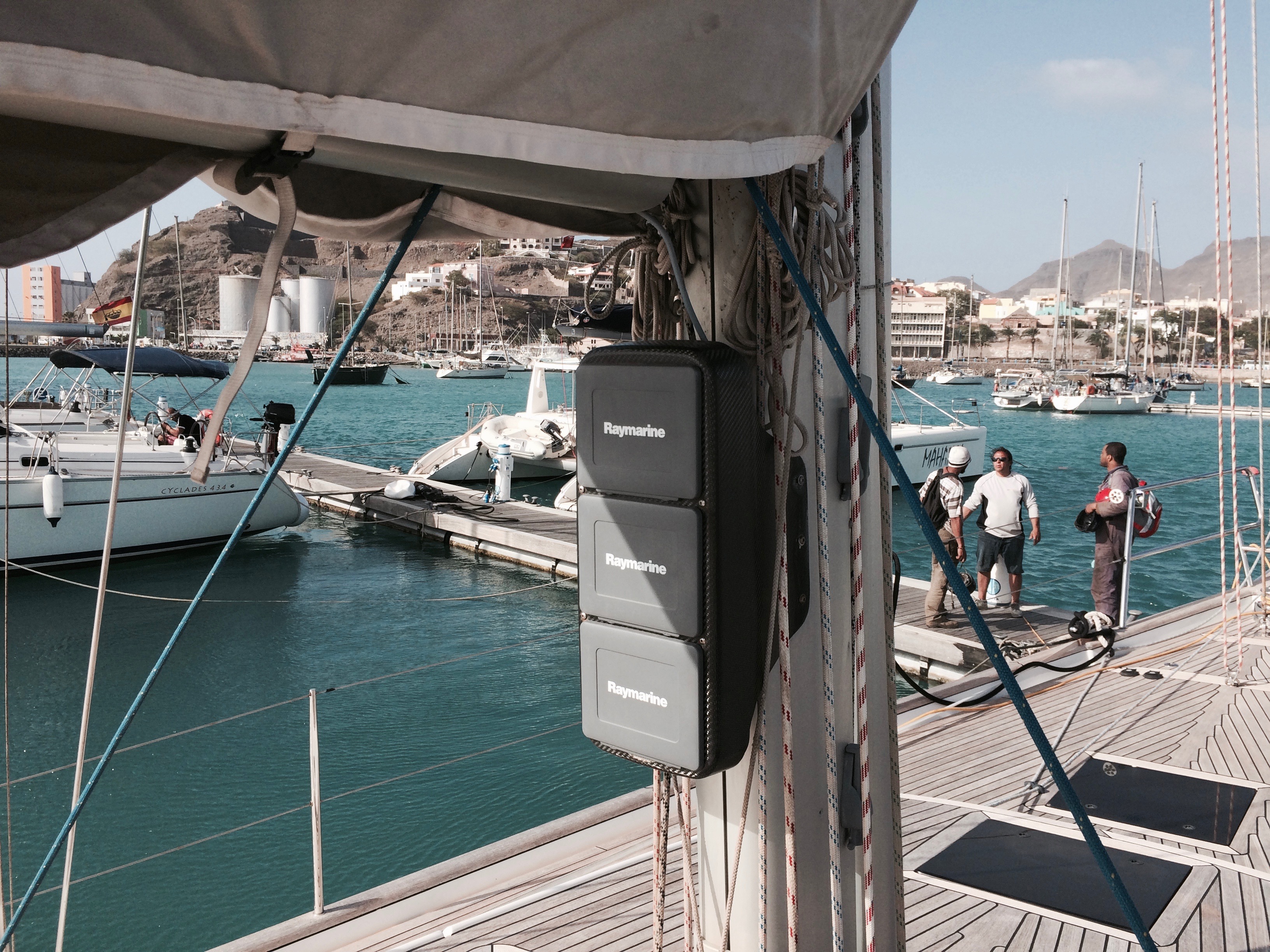

ST70 display 2X cockpit &2X mast
GPS tranducers dept, speed and wind
E120W chartplotter
radar RD418-HD
keybord & monitor at chartable incl 19 inch monitor
ELECTRICAL
Batteries
yes
Battery charger
yes Mastervold
Generator
yes
Electrical notes
Custom built Mastervolt system high quality
SPARS & RIGGING
Sails
John Mast
Reckman furler (not standard)
2 additional inner genua cars
double pad eye genua (not standard)
Kevlar inner forestay retractable
mast track Harken
outhal track Harken
Spinnaker euipment boom, 2 halyards, tack line & blocks
tricolour strobe light 12V LED
North Sails:
full batten main spectra 3 reefs
jib 120% spectra UV
staysail spectra UV
storm jib
Spinnaker A0.75-0.90 nylon supercote incl snuffer
6X maststeps
Andersen Winches
2X68 STE 24V electric genua
2X52 STE manual main
2X46 STE 1X electric & 1X manual
