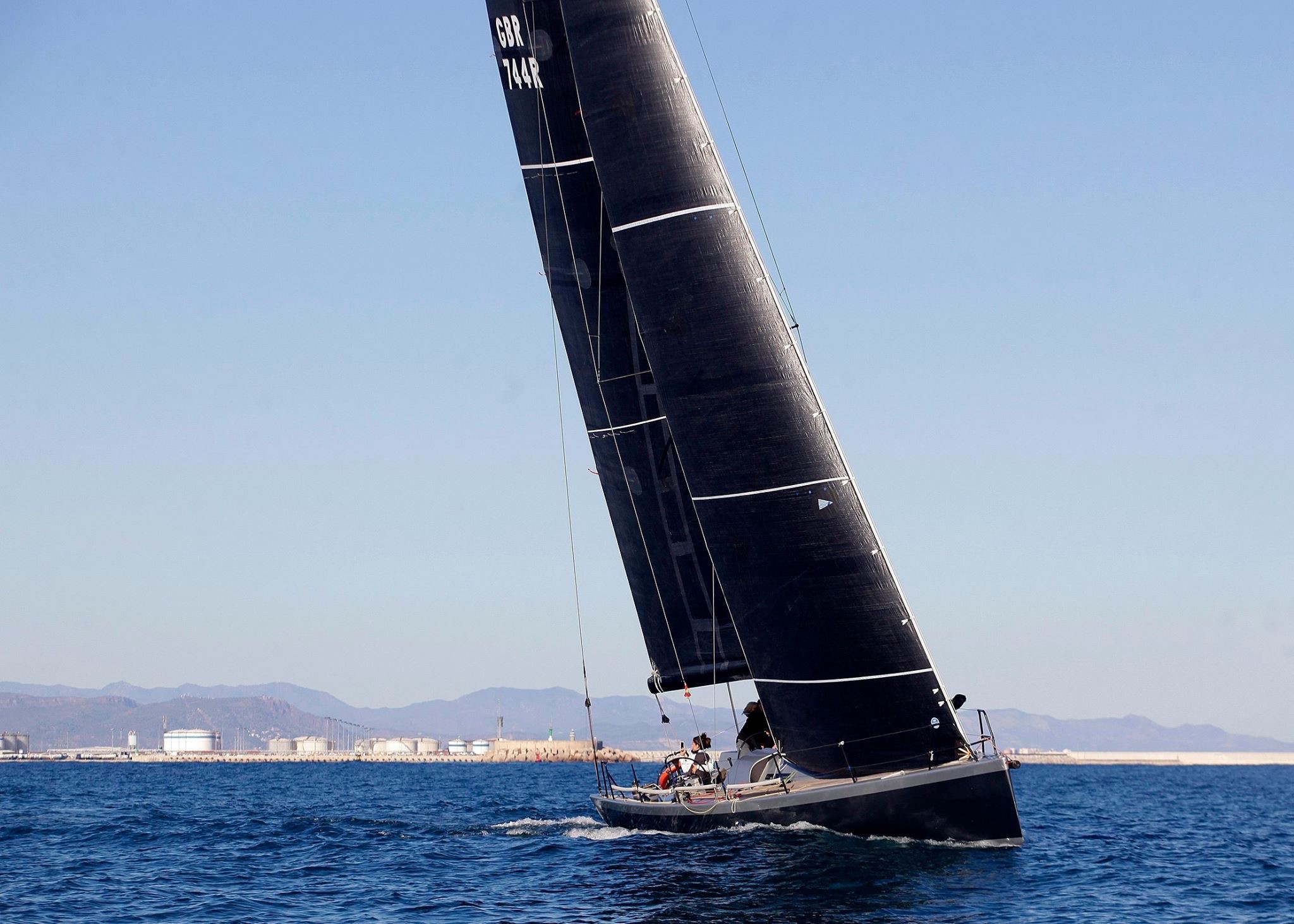

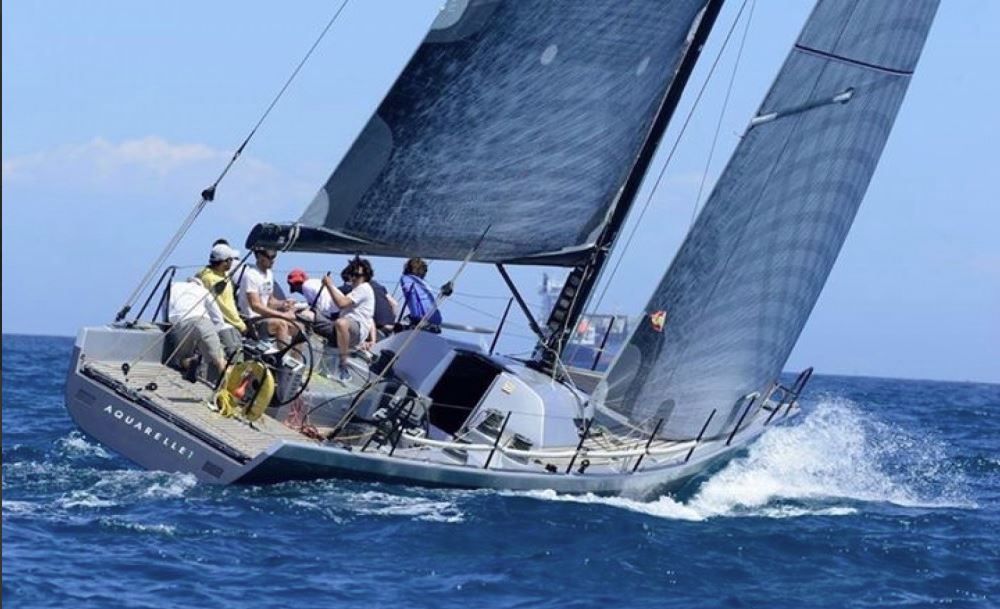

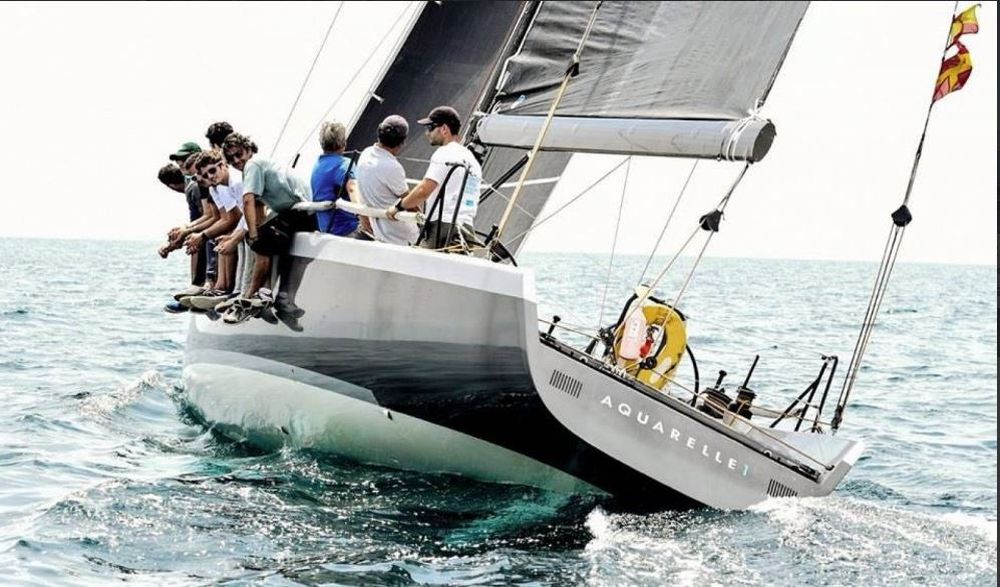

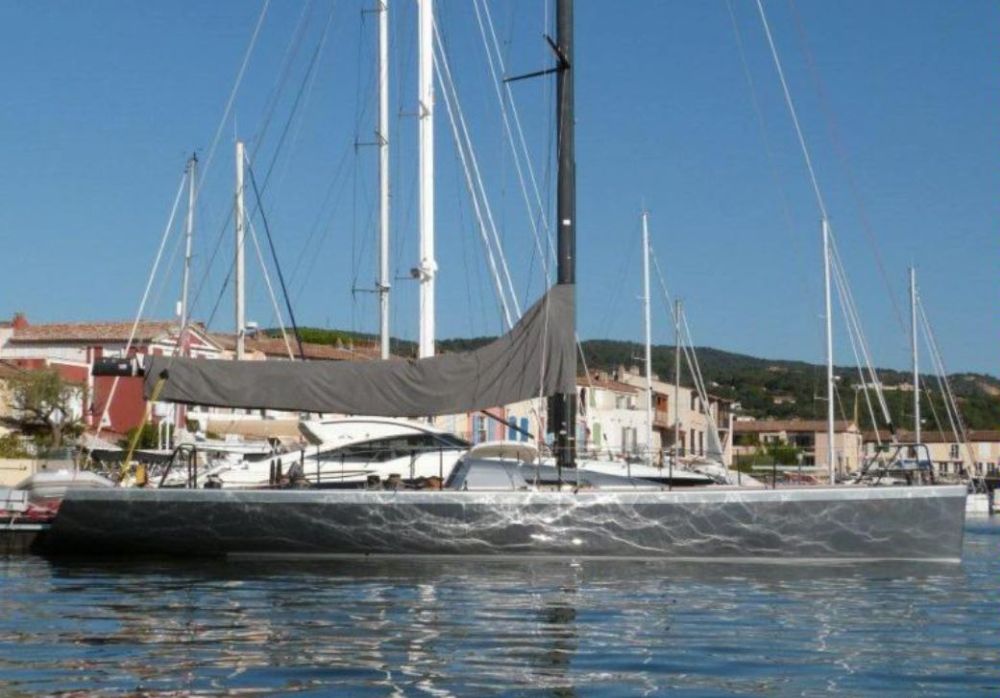

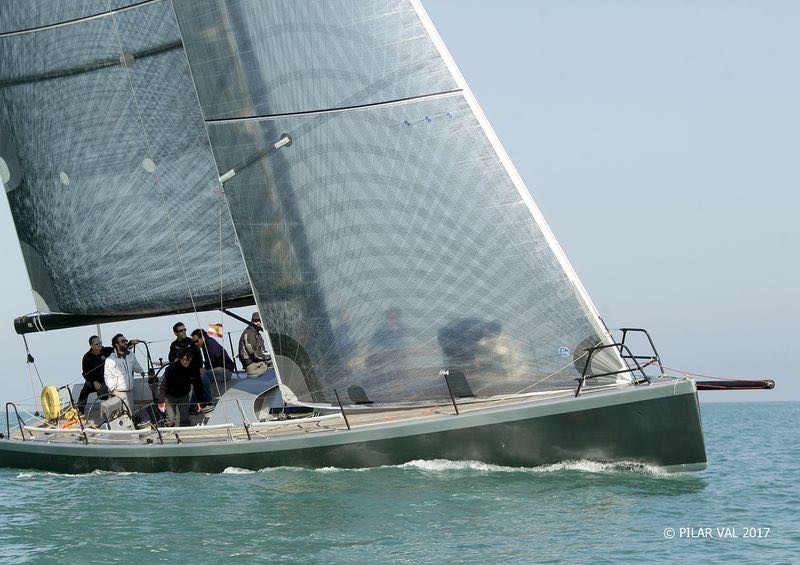

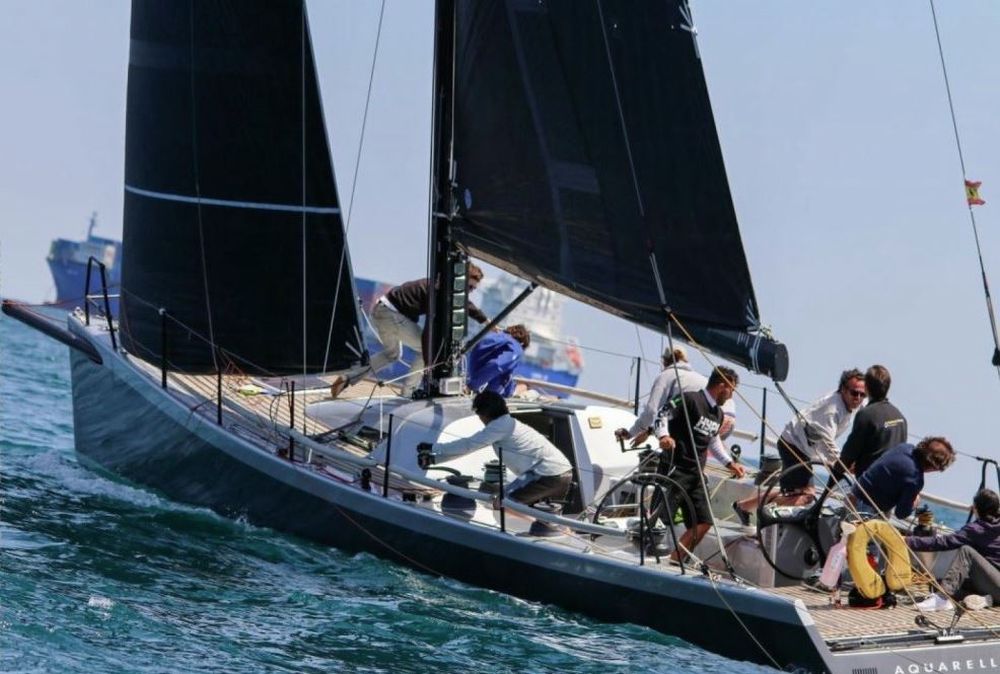

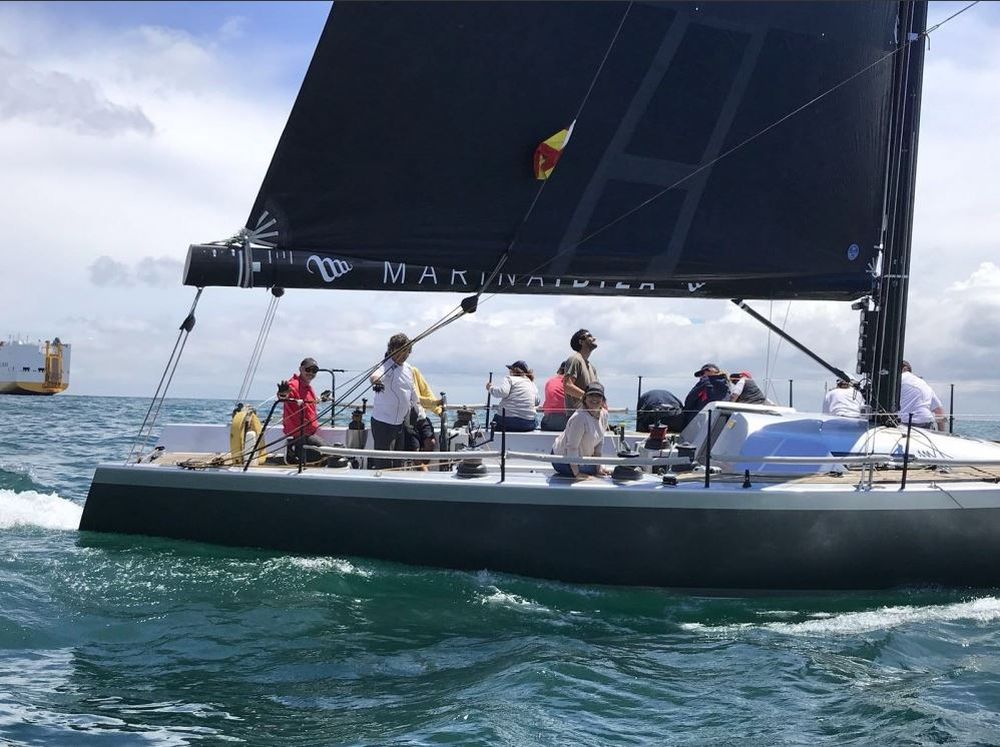

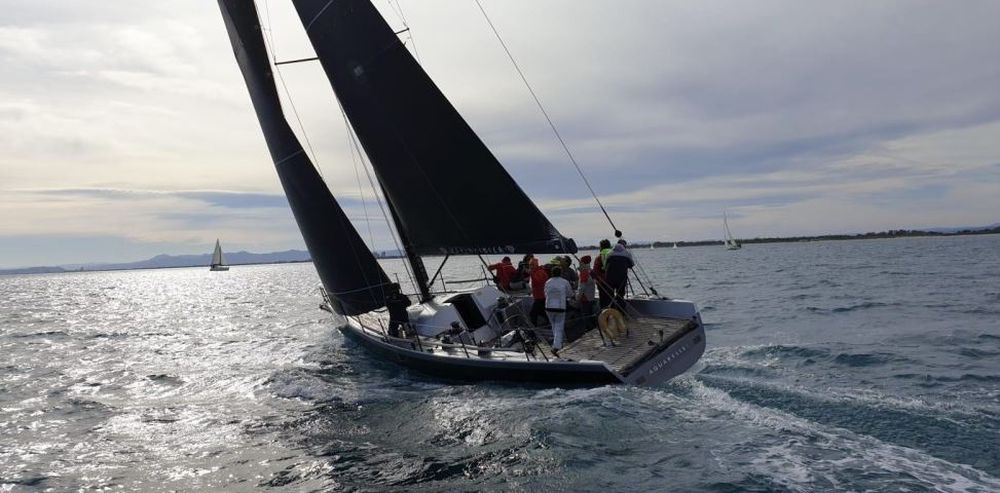

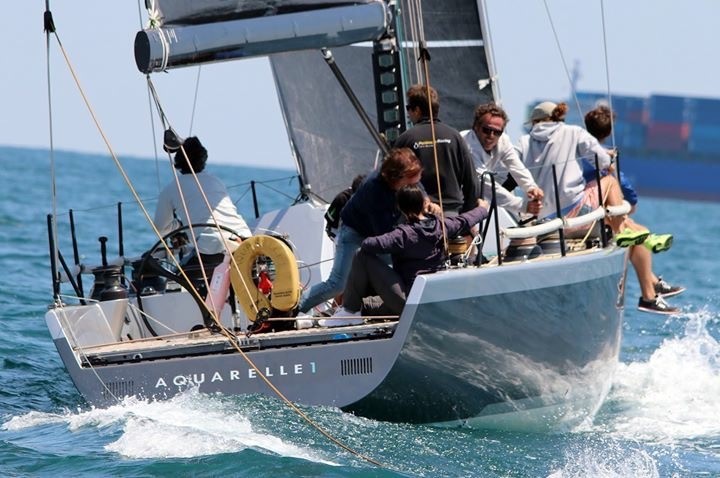

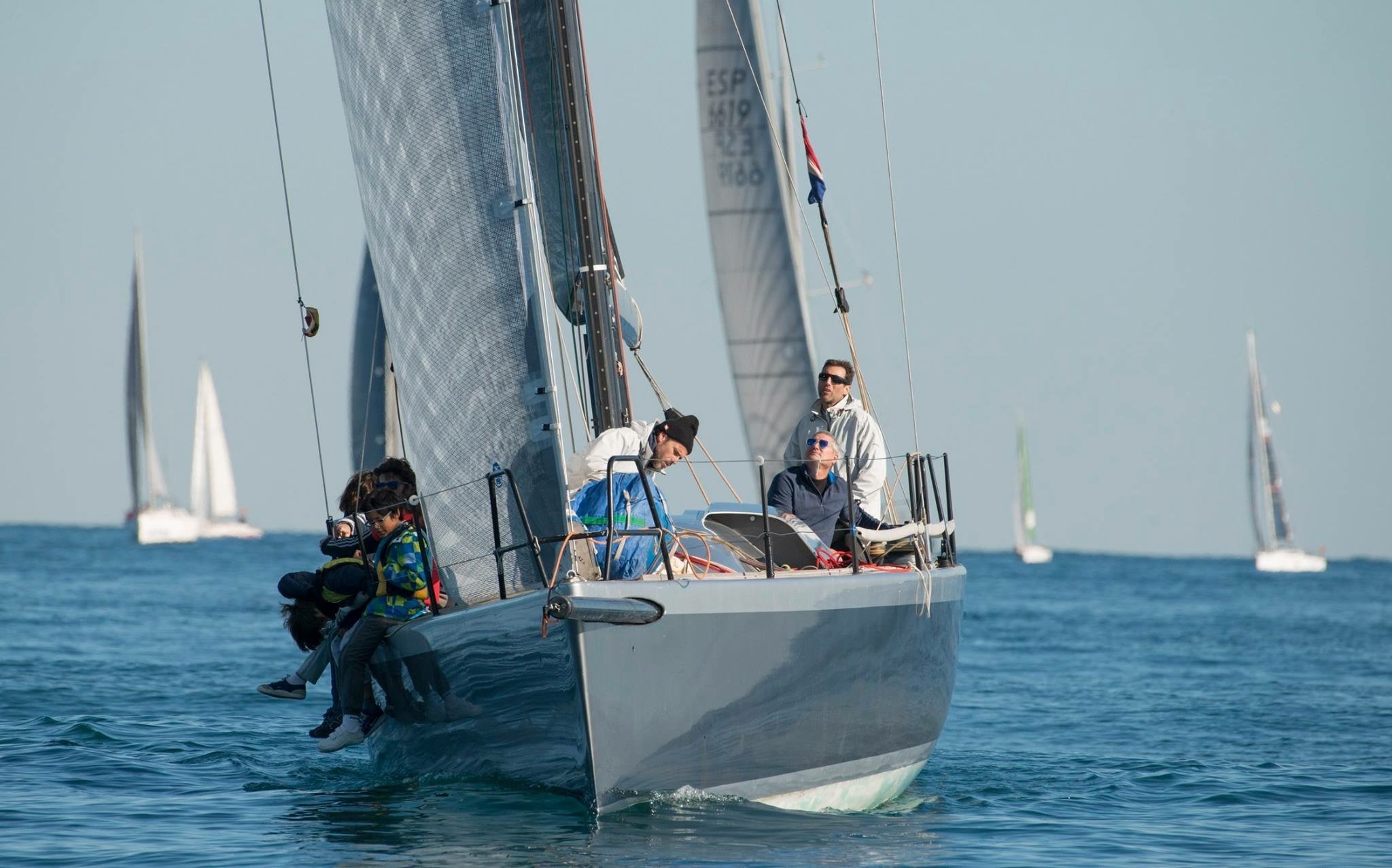

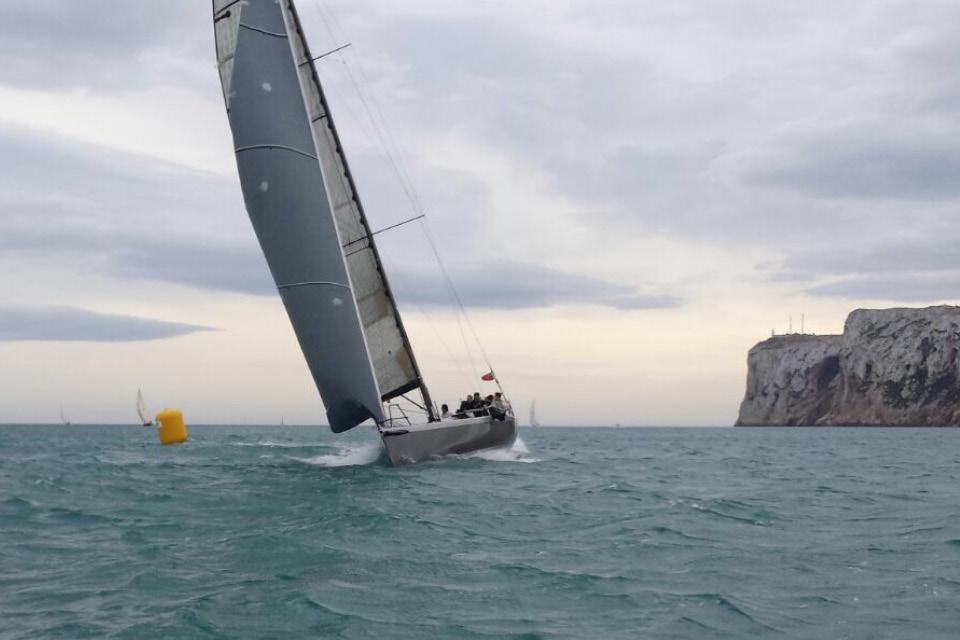

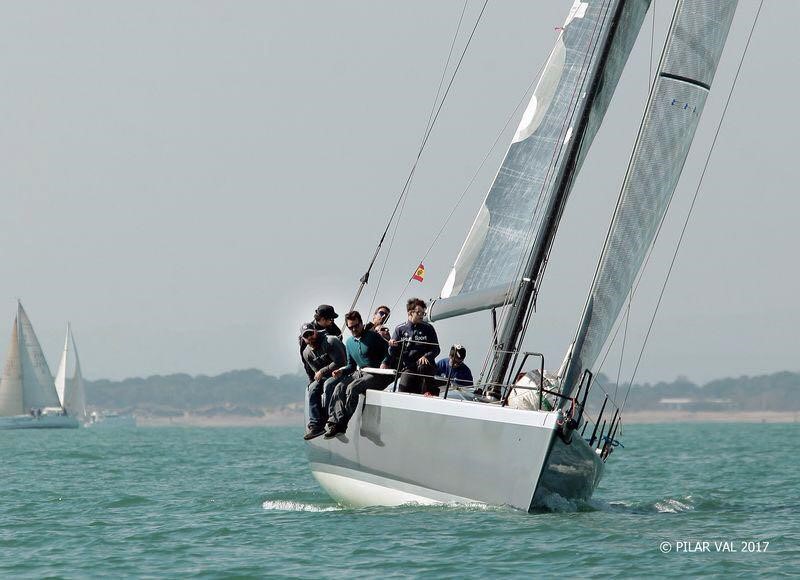

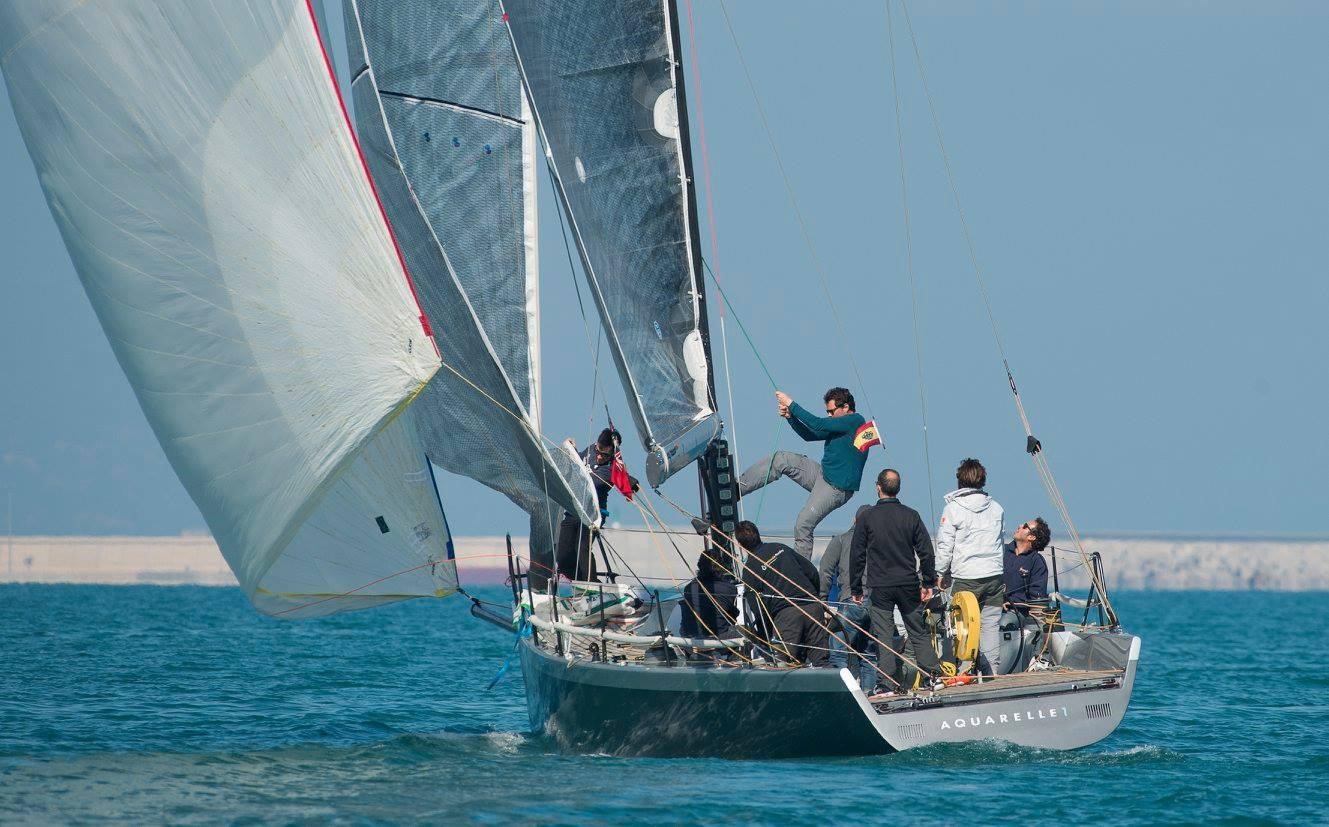

One of the two Frers 44 built by Composite Works. AQUARELLE 1 is ideal for racing, match racing; day sailing or light cruising. She is a very nice design built in composite materials which ensure very good performance in all weather conditions. The deck layout, conceived to be functional in all aspects can be converted from race to cruise mode, as can the interior and the rig layout of modern design. In the cockpit there are 8 Harken self-tailing winches which can be used manually for racing or electrically for cruising. The rigging is controlled by manual hydraulic systems. Also included are a custom transport cradle and a 20ft storage container for cruising gear and spare equipment.
DESIGN
Builder
Composite Works
Designer
Frers
DIMENSIONS
LOA
13.70m
Beam
3.4m
Draft
3.0m
Displacement
7000kg
ENGINES
Engines
Yanmar 3YM30
Propeller
Folding 2 blades
Engines notes
8 knots high speed , 7 knots @ cruising speed and 3.000 rpm
TANKS
Fuel
165l
Water
300l
Tanks notes
PLUMBING AND TANKS: Bilge Pumps Manual & Electric, Black Water Tanks, Hot Water System Via main engine, Water pressure pump
ACCOMMODATIONS
Berths number
6
Cabins number
3
Shower
Yes
Accommodations notes

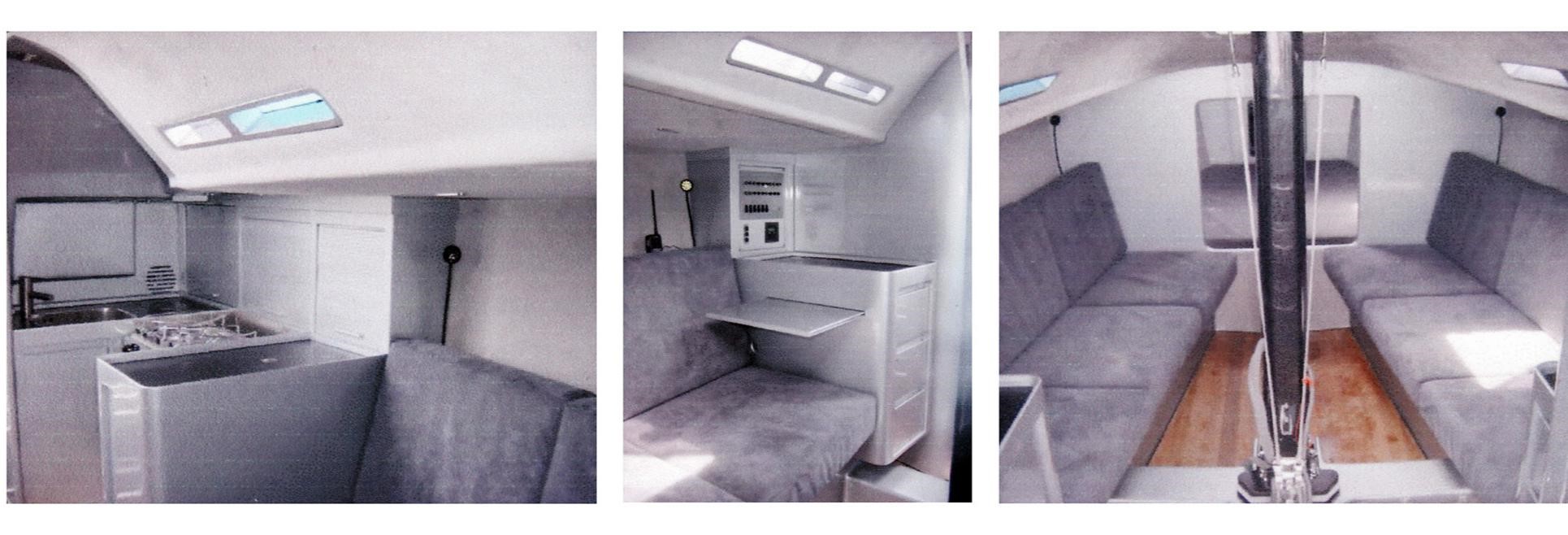

Interior: Saloon with seats/berths, Interior wood Painted metallic grey, Teak floor, Interior Upholstery: Dark grey, Number of Berths: Two in saloon and a forward V berth.
CHART TABLE: Yes
SALOON: 2 sofas that can be used as sleeping berths
CABIN Forward V berth
SHOWER ROOM/HEAD: bathroom Worktops Carbon, Toilet & basin
GALLEY
Galley notes
Sink Hob basic for race mode, Oven with hob for cruise mode, Refrigerator, Cool box ,Galley worktops in carbon.
Mainsails Various from 2005 & 2009,Lazy Jacks On mainsai,l Jib Various from 2005, 2009 & 2010, Storm Sail 2005, Genoa Various from 2005, 2009 & 2010, Try Sail 2005, Code Zero 2005 & 2010 Cuban fibre, Other sails from 2010 - 3DI and 3DL
Rigging
Rod rigging
Boom
Carbon
Running rigging
Spectra
Spars and rigging notes
HALL SPARS 2 spreaders carbon mast, HALL SPARS carbon boom, Retractable carbon bowsprit, Spinnaker Pole
Furlers : Roller furling head stay equipment
DECK EQUIPMENT
Winches
Harken
Deck equipment notes

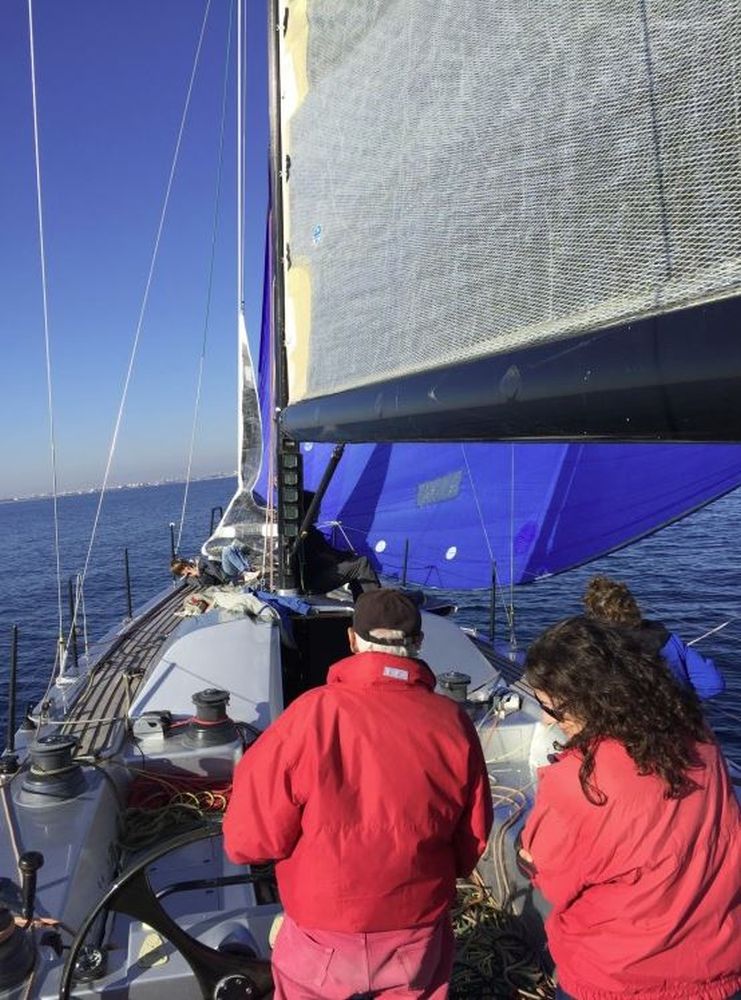

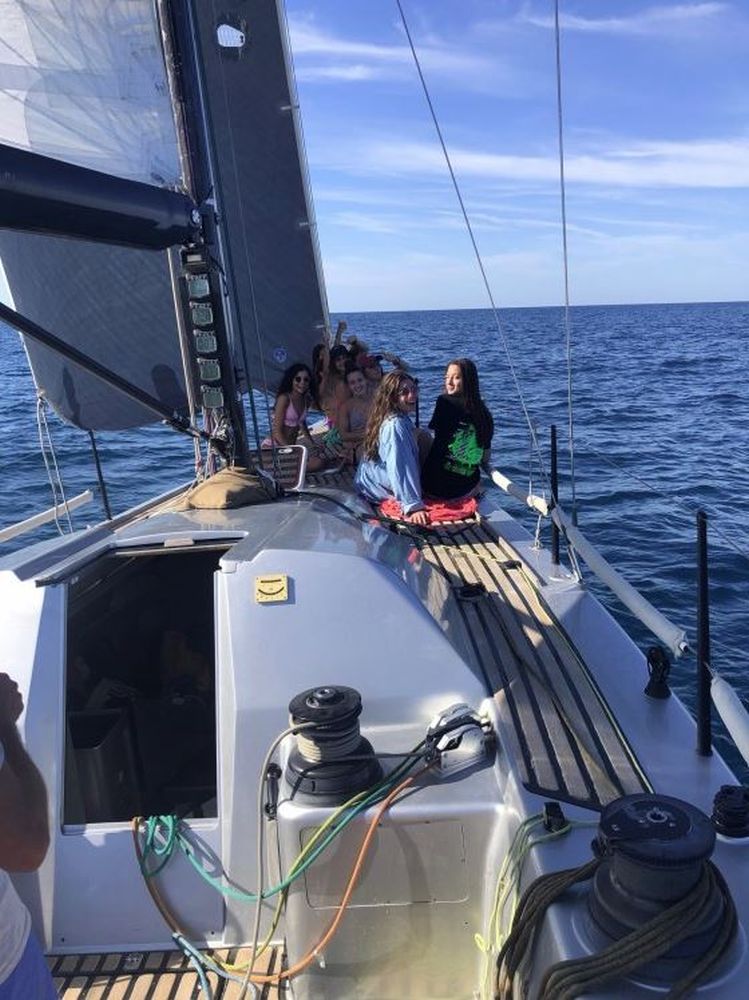

DECK AND COCKPIT : Deck laid up with teak, Sail Locker, 8 HARKEN electric winches, Cockpit with removable cruising seating, Cushions for cockpit seating & for aft deck, Cockpit laid up with teak, Full deck cover, Aft deck awning, Lazarete with gas strut support, Helm station with carbon wheels.
SAFETY EQUIPMENT
Fire-extinguishers
Yes
Epirb
Yes
Liferaft
6 person liferaft
Safety equipment notes
Lifejackets 12, Safety Harness 12, Liferaft 6 Person 01, EPIRB 01, Fire Extinguishers 02, Flares Full Kit 01, Lifebuoy, line etc. 01 set. Danbuoy 01, Fog Horn 01, Torch 01, First Aid Kit 01
EXTRA

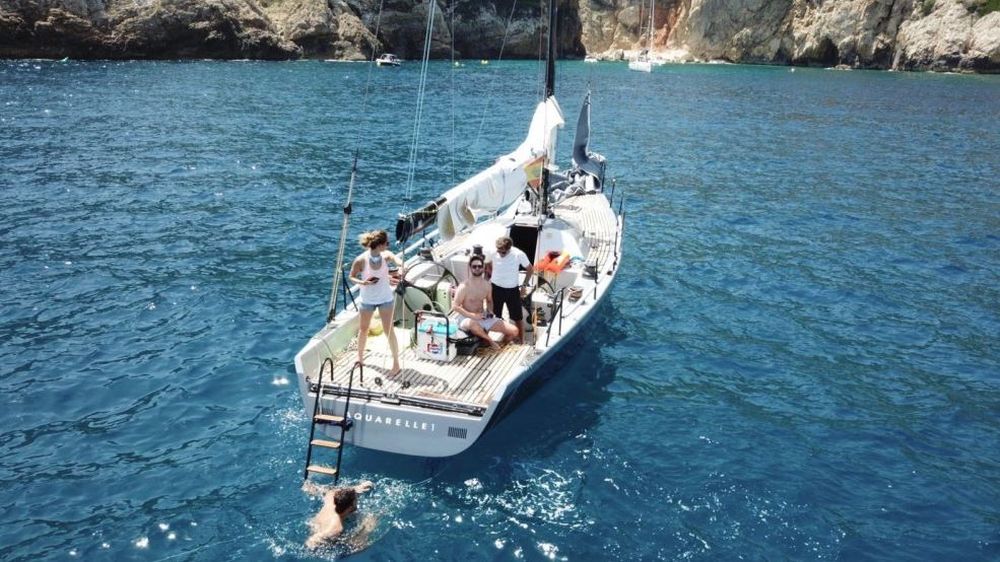

Swimming ladder
Yes
FINAL NOTES
Final notes
MOORING: Anchor, Bow Roller Carbon removable, Chain 5 m + 40 m mooring line, Mooring Capstan.
