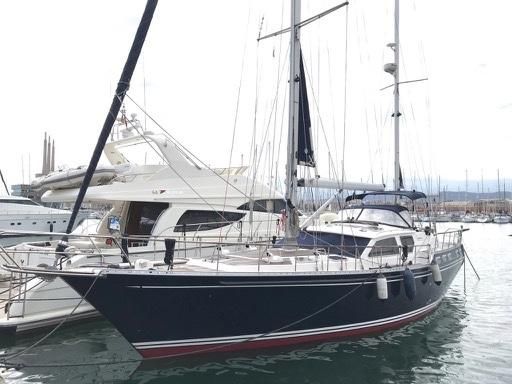

Nauticat 525 Minky

Imagen 1
Imagen 2
Imagen 3
Imagen 4
Imagen 5
Imagen 6
Imagen 7
Imagen 8
Imagen 9
Imagen 10
Imagen 11
Imagen 12
Imagen 13
Imagen 14
Imagen 15
Imagen 16
Imagen 17
Imagen 18
Imagen 19
Imagen 20
Imagen 21
Imagen 22
Imagen 23
Imagen 24
Imagen 25
Imagen 26
Imagen 27
Imagen 28
Imagen 29
Imagen 30
Imagen 31
Imagen 32
Imagen 33
Imagen 34
Imagen 35
Imagen 36
×

Sold

  • Name

    Nauticat 525 Minky

  • Model

    Nauticat 525

  • Year

    2013

  • Hull material

    GRP

  • Located

    Barcelona, Spain

  • Price

    850.000€

  • VAT

    Not Paid

  • Flag

    Spain

  • Type

    Cruiser

  • Slogan

    Fully equipped, recently refitted

  • LOA

    17.00 m

  • LWL

    12.20 m

  • Beam

    4.60 m

  • Draft

    2.20 m

  • Ballast

    17650 kg

  • Displacement

    52900 kg

  • Dimension notes
    Headroom: 1.97 m

  • Engines

    Yanmar 4LHA-HTP

  • Engine Hours

    1600

  • Propeller

    Folding propeller

  • Engines notes
    160 HP Engine info: Single Diesel, Inboard. Flex-O-Fold 3 blade folding prop. Bow propellor Series 125 (duo) 117kg/10.7hp/24V, control panel in cockpit. Annual servicing on engine and generator.

  • Cabins number

    4

  • Shower

    Yes

  • Air conditioning

    No

  • Heating

    No

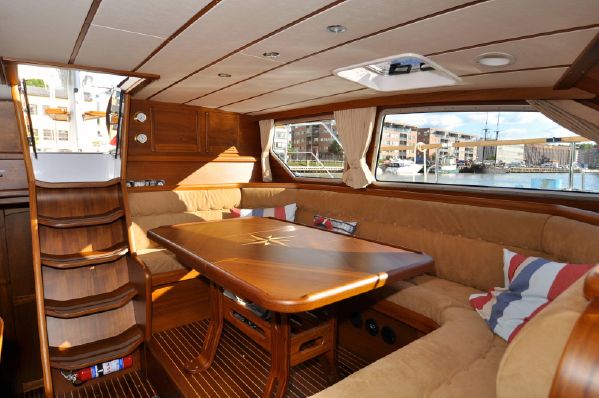

  • Accommodations notes

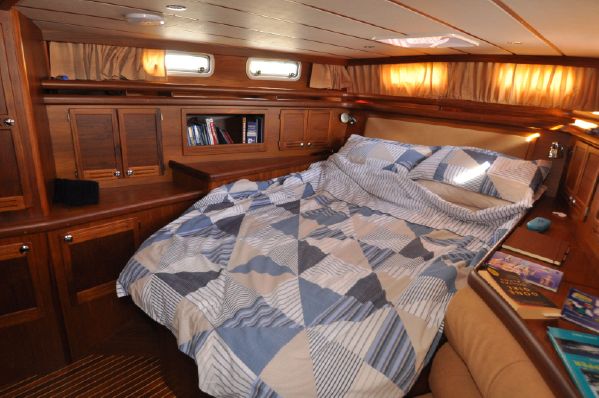

    2 heads. Alcantara textiles in all cabins and cover for mast inside. Wet locker with GRP bottom, drainage to bilge and heater outlet. Helmsman's seat in teak with floor fastening in pilothouse. Safebox. Spacer with cushion between fore cabin berths. Strip LED light in fwd guest cabin, mat tube lights in aft and fore cabins. Additional reading light in both dinette corners. Electric WC for aft head. Additional stainless steel refrigerator 160l with Frigoboat cooling system. Freezer, 30l/24V at pantry fwd corner. Webasto AT5500D Evo, 5000W heater with thermostat. Aurora 6kW air heating by main engine. Microwave oven with grill 230V/900W. Washing machine 230V. TV/FM radio antenna Glomex. Fusion MS-AV700 CD/DVD/FM/AM/AUX in/iPOD IR Remote control. Loudspeakers in pilothouse and aft cabin. Lee cloth, one in aft guest cabin and one in fwd cabin. 19"/230V Samsung LED/HD TV in pilothouse with lift system.

  • Hot water

    Yes

  • Coolbox

    No

  • Refrigerator

    Yes

  • Water system

    No

  • Galley notes

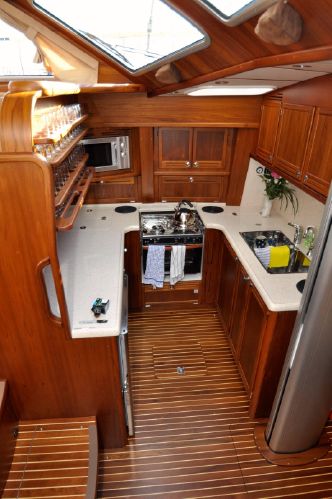

    Heating, Sea water pump, Bow thruster, Washing machine, Deep freezer, Electric head, Microwave oven. Isotemp water heater 50l, connection to 230V system. Approx. 200W electric radiator connected to shorepower, 2pcs.

  • GPS

    Yes

  • VHF

    Yes

  • Automatic pilot

    Yes

  • Plotter

    Yes

  • Radar

    Yes

  • Navigation instruments notes

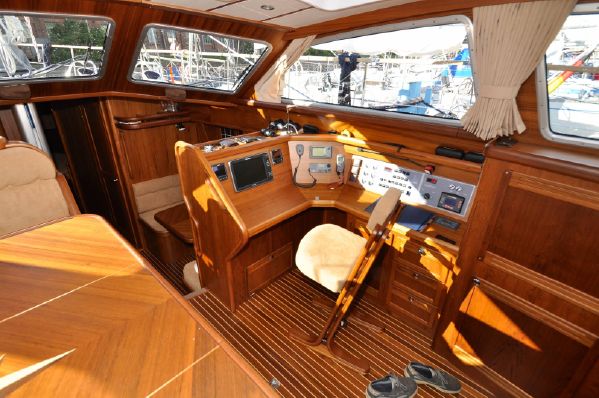

    Radar, Depthsounder, Wind speed and direction, Log-speedometer, Radar Detector, Navigation center. Raypilot SPX30 and P70 autopilot outside, P70R Rotary control inside. Raymarine ST Smart wireless pilot remote control. Raymarine i70 colour instrument inside. Raymarine i70 wind transducer. Raymarine RD418D 45cm 4kW radar radome antenna in mast. Raymarine e125 plotter/radar display installed inside. Raymarine e95 display installed outside in fixed deck structures. Raymarine AIS650 class B transmitter/receiver. Interface between PC and Seatalk instrument. Navtex receiver Furuno NX-300H. Tachometer in cockpit. VHF Raymarine Ray-55E, second station for Ray-55E. VHF/AIS/FM aerial on mast, cable in pilothouse.

  • Battery charger

    Yes

  • Generator

    Yes

  • Electrical notes
    Shorepower system 230V, 25m cable and 5pcs grounded sockets. Additional 24V socket, 12pcs. Mastervolt MASS 230V-24V/50A battery charger. Mastervolt MASS sine wave inverter 24V/230V/1500W. Std lead acid batteries changed to AGM batteries. Mastervolt MICC battery monitor. Emergency switch between start battery and consumption batteries.

  • Sails

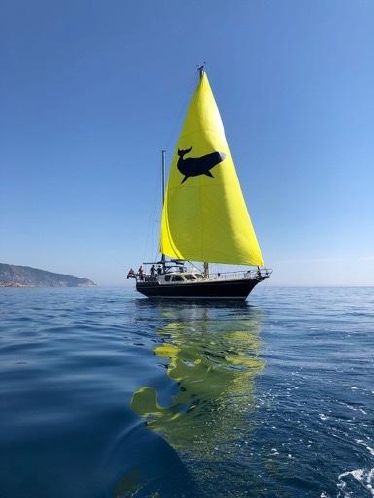

    Gennaker/Cruising spinnaker. Furling genoa. Storm jib. Spinnaker. Furling mainsail.
  • Spinnaker pole

    Yes

  • Spars and rigging notes
    Main mast Selden Furlin' electrical, instead of standard control panel in cockpit. Electric reefing gear for genoa Furlex 400E, control panel in cockpit. Mizzen mast Selden Furlin', mechanical. Additional removable forestay with wire halyard and deck eye for storm jib. Additional halyard in main mast. North Sails furling mainsail. North Sails furling genoa II with dark blue UV cover. North Sails storm jib. North Sails furling mizzen sail. Cruising chute.

  • Winches

    Electric Harken

  • Deck equipment notes

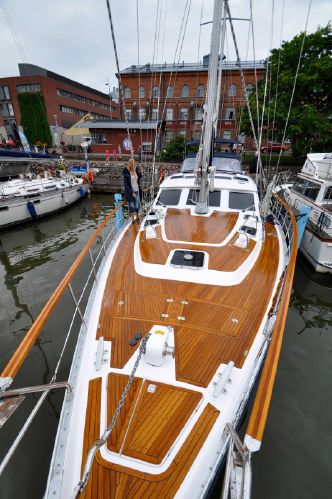

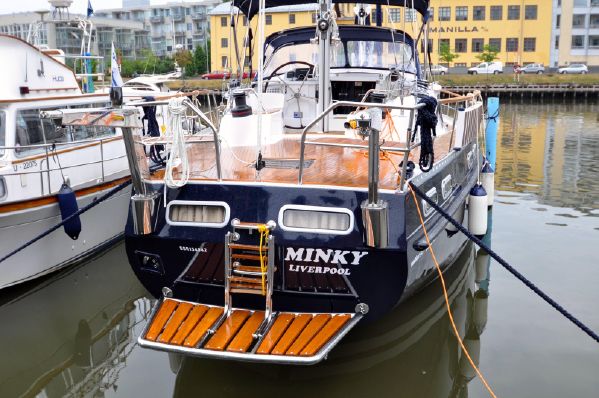

    Harken 60.2 STA winches, pair, for spinnaker. Hydraulic outhaul, switch panel in cockpit. Harken 46 Rewind Radial winch at pilothouse roof Windex. Electric horizontal Lewmar windlass 24V/1500W, control panel in cockpit, up/down. Anchor chain tension releaser. Avove Deck: · Dark blue hull with white lines. · Teak decks. · Teak on upper side of backrests in cockpit. · Boarding ladder with teak steps. · Bowsprit with Bruce type anchor and roller, additional roller. · Additional cleats, pair. · Side ladder, toe rail fixing. · Synthetic moulded rubbing strake. · Solarvent for pilothouse roof. · Bimini fwd from mizzen mast, dark blue. · Light sun cover for cockpit, dark blue. · Sprayhood, wide, dark blue. · Sun cover for pilothouse front windows at outside, beige. · Safety lines on deck. · Davits with stainless steel brackets on transom. · Side boarding gate on port side in addition to standard. · Corner benches on aft deck above the stern, pair. · Cushions on cockpit seats, beige. · Fixed table with foldable surface in cockpit. · Bathing platform, with integrated telescopic swimming ladder. · Viking RescYou Pro Iso Pack II liferaft in container for 8 persons. · Bracket for outboard motor. · GRP gangway, 2.5m, storage at reelingAdditional fenders, 2 pcs. · Additional anchor chain, 50m. · Fresh water shower on aft deck, hot/cold. · Loudspeakers in cockpit, waterproof. · Full width deck storage with 2 hatches on fore deck.

  • Liferaft

    Yes

  • Safety Equipment Notes
    Total Liferaft Capacity: 8 pax.

  • Tv

    Yes

  • Radio CD

    Yes

  • Speakers

    Yes

  • Cockpit Shower

    Yes

  • Swimming ladder

    Yes

  • Extra notes
    TV set, DVD player, Cockpit table, Teak cockpit, Outboard engine brackets, Gangway, Teak sidedecks, Cockpit cushions, Davits, Electric windlass, Genoa cover, Spray hood, Cockpit cover, Bimini Top. Finnish std 5kg gas bottle and reducing valve. Wempe clock and barometer. Solar panel 2 x 45W with regulator. Electric seawater pump, outlets on aft deck, anchor box, tap in galley. Silent exhaust pipe system for generator. 230V compressor for dinghy. Additional boom eye at the end of the mizzen boom for dinghy lifting.
