#1016

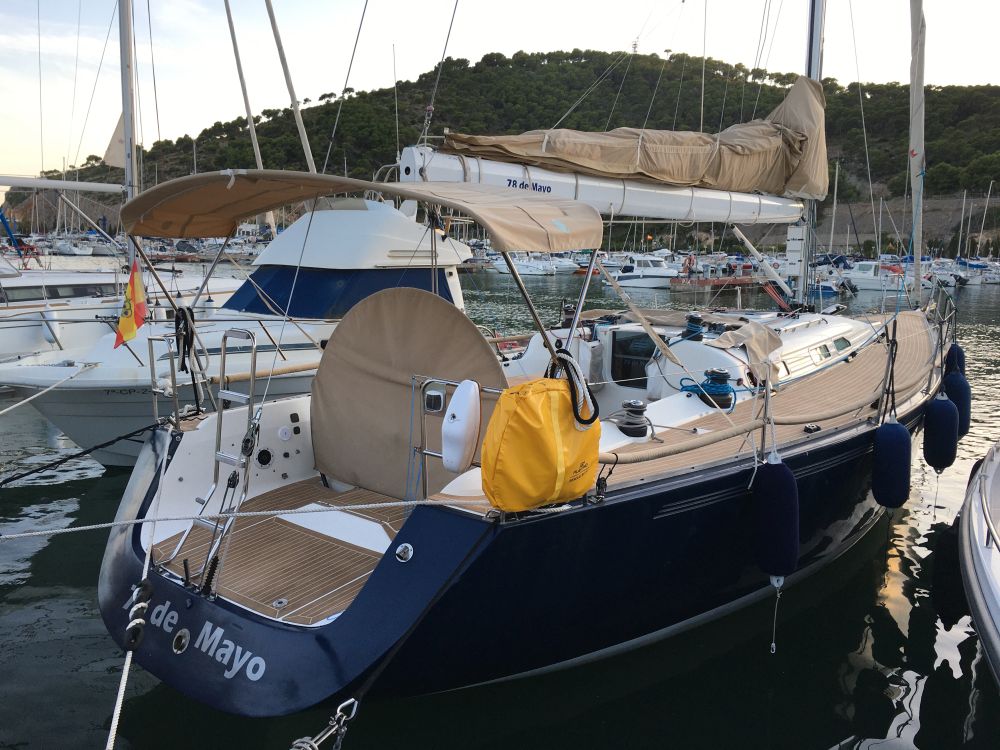

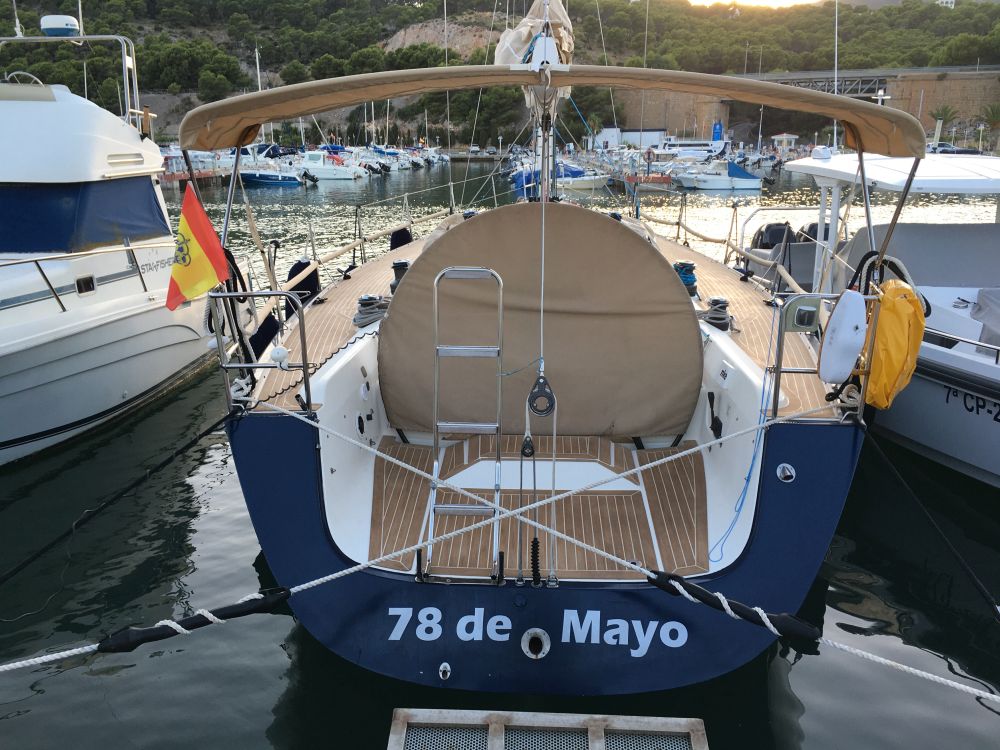

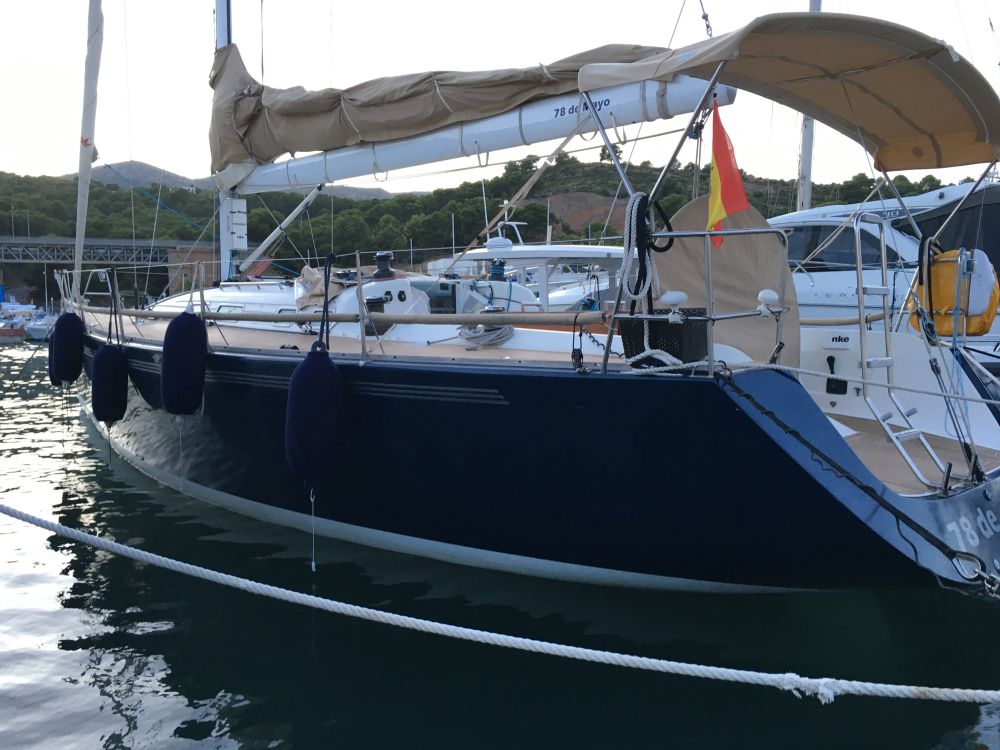

IMX 45 - 78 de mayo

FOR SALE

GENERAL
Name
IMX 45 - 78 de mayo
Model
IMX 45
Year
2003
Hull material
GRP
Sail number
ESP 8045

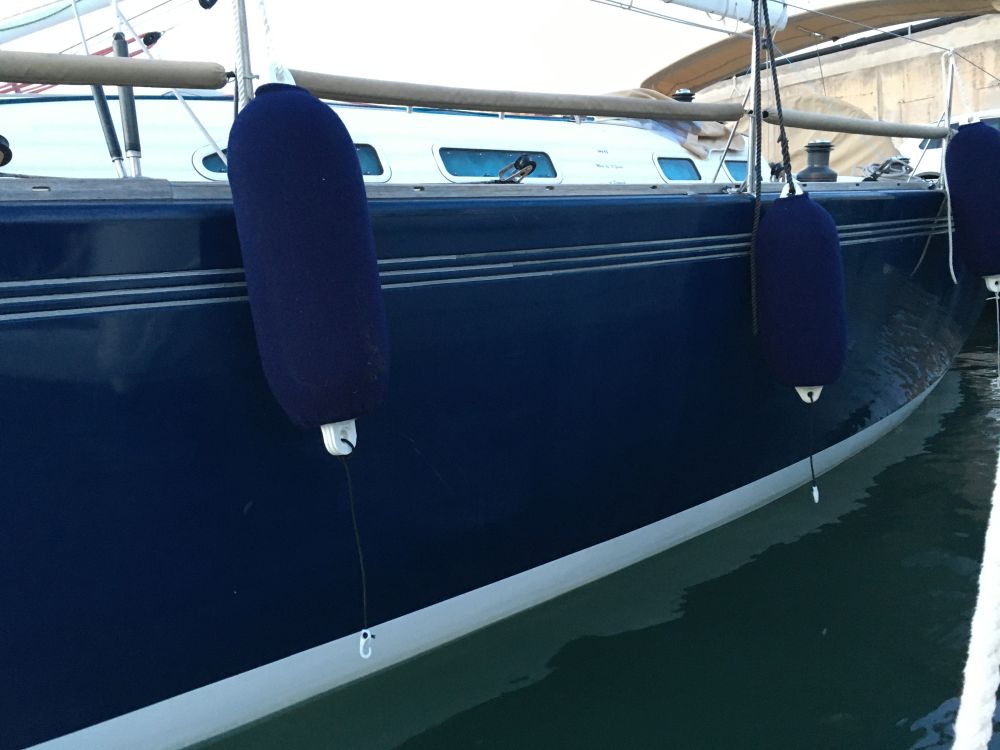

Color hull
BLUE
Located
Castellón
Price
140000
VAT
PAID
Flag
Española
Type
CRUISER-RACER
Slogan

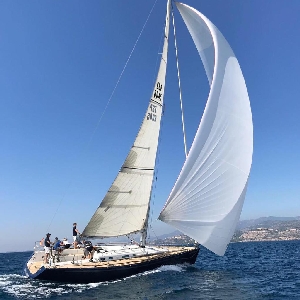

A one-handed racing machine.
Description

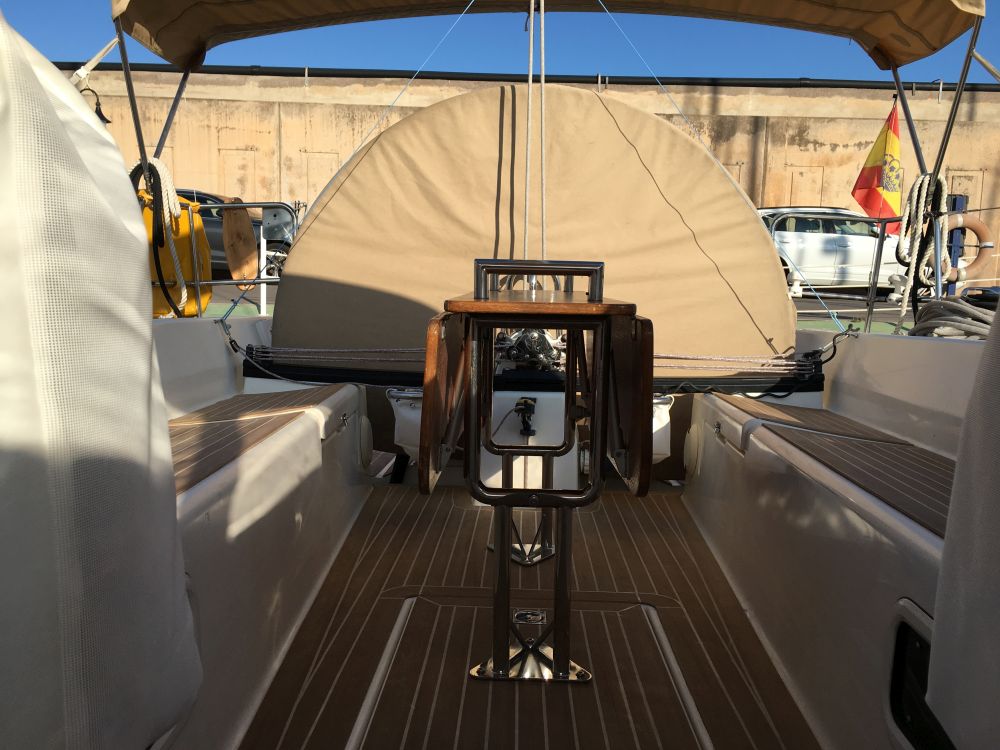

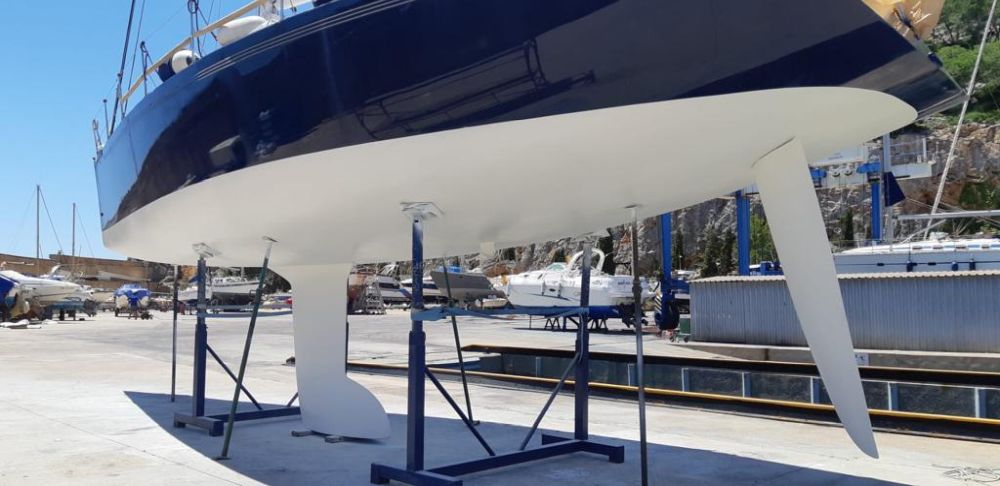

IMX45 last unit produced. Short centreboard version with additional 600 kg of lead. Configurations: Solitaire distance regatta, sticks regatta, cruise self tacking jib, cockpit table, aft chest, electric windlass, etc...
DESIGN
    Builder
    X-Yachts
    Designer
    Niels Jeppesen
    Design notes

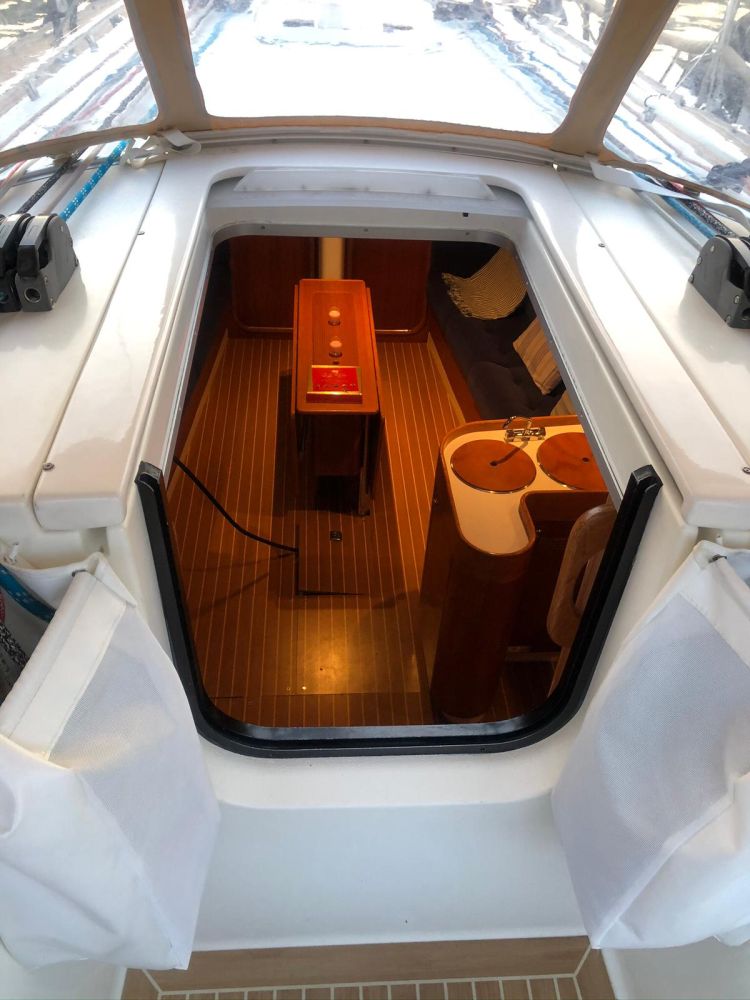

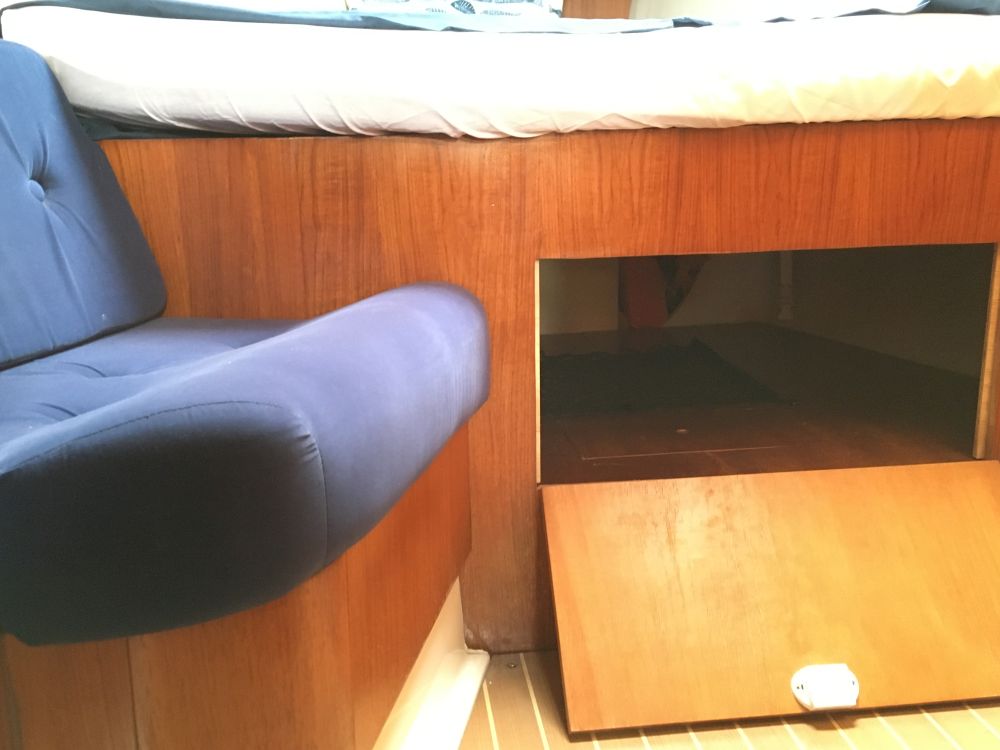

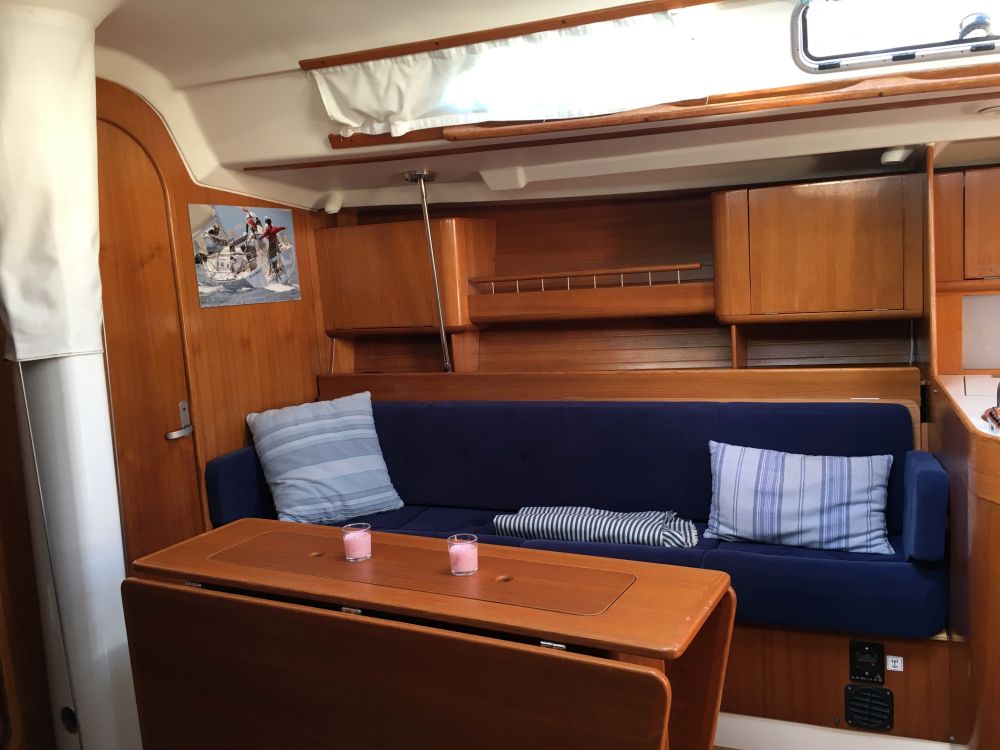

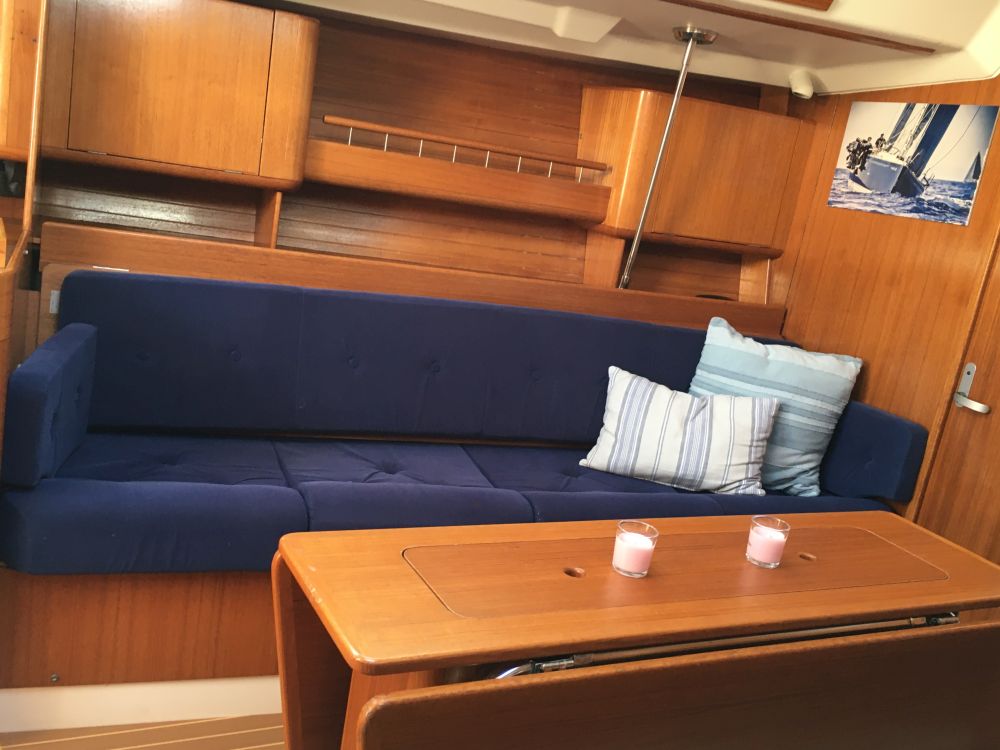

    NTERIOR QUALITY AND DETAILS Here you wil realy see how it comes that X-Yachts was able to sel almost 20 units of this yacht model in advance targeted for racing at a relatively high level, even before she proved to be a winner. Saloon The saloon features two longitudinal bench seats separated by a large table hung on a strong stainless steel bar on the centreine, It has been desipned so the port-hand leaf and the central part lift off and can be left ashore offering more storage space for sails during races. Cabinet sections/book shelves are optional, and can be taken out for optimun racing.
DIMENSIONS
    LOA
    13.75m
    Beam
    4.15m
    Draft
    2.75m
    Ballast
    4130kg
    Displacement
    9100kg
ENGINES
    Engines
    Volvo Penta 55CV
TANKS
    Fuel
    175l
    Water
    300l
ACCOMMODATIONS

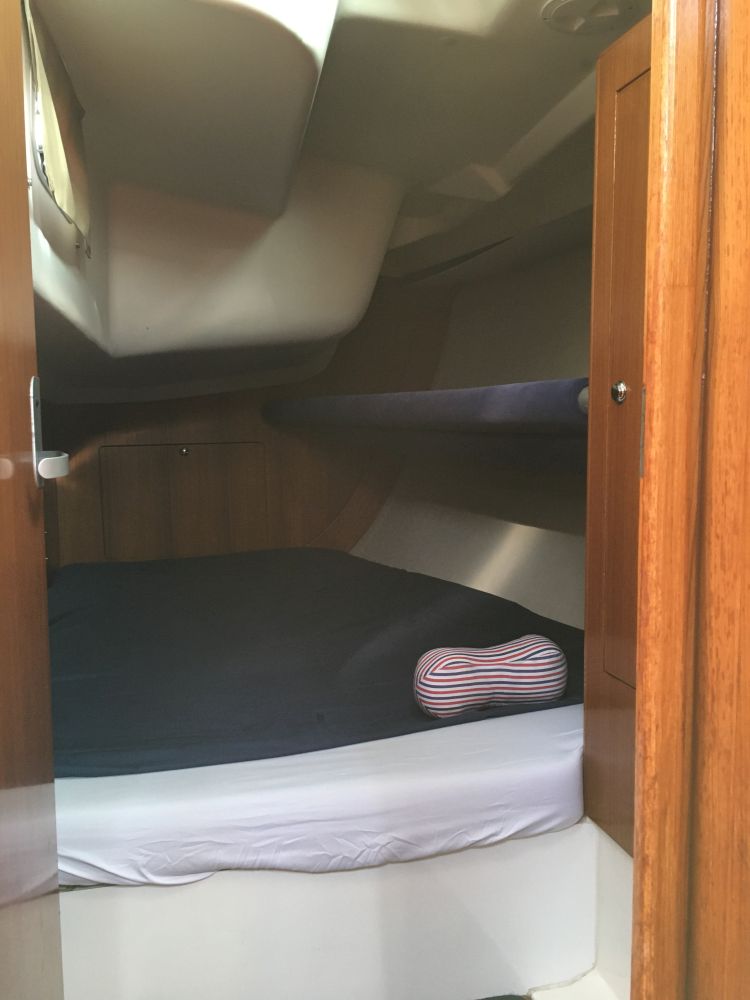

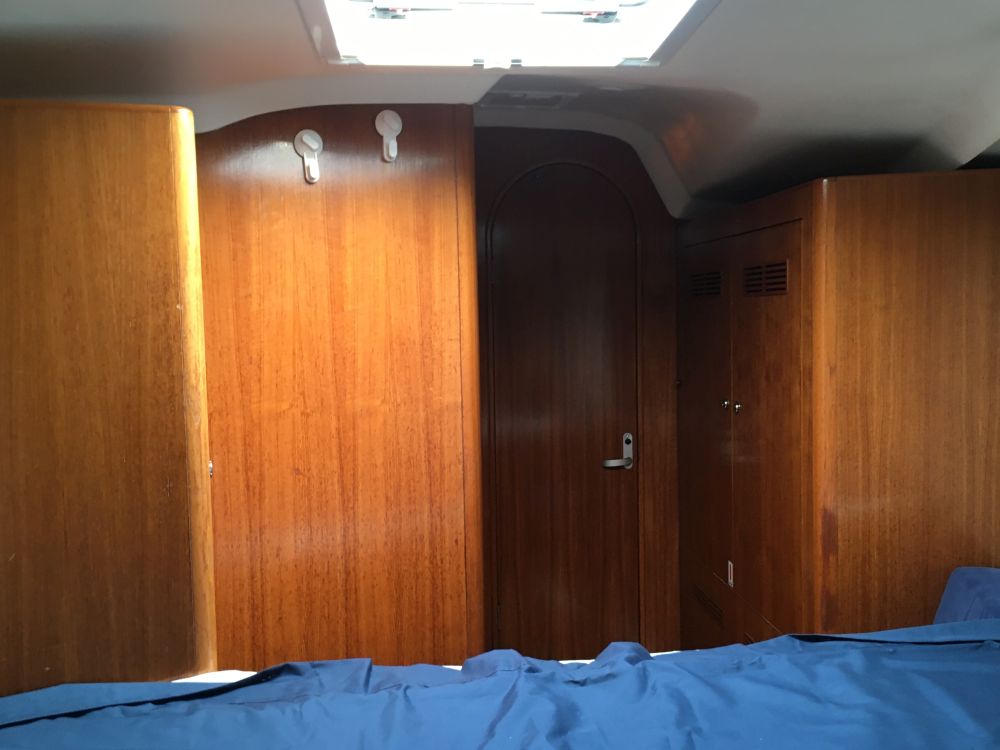

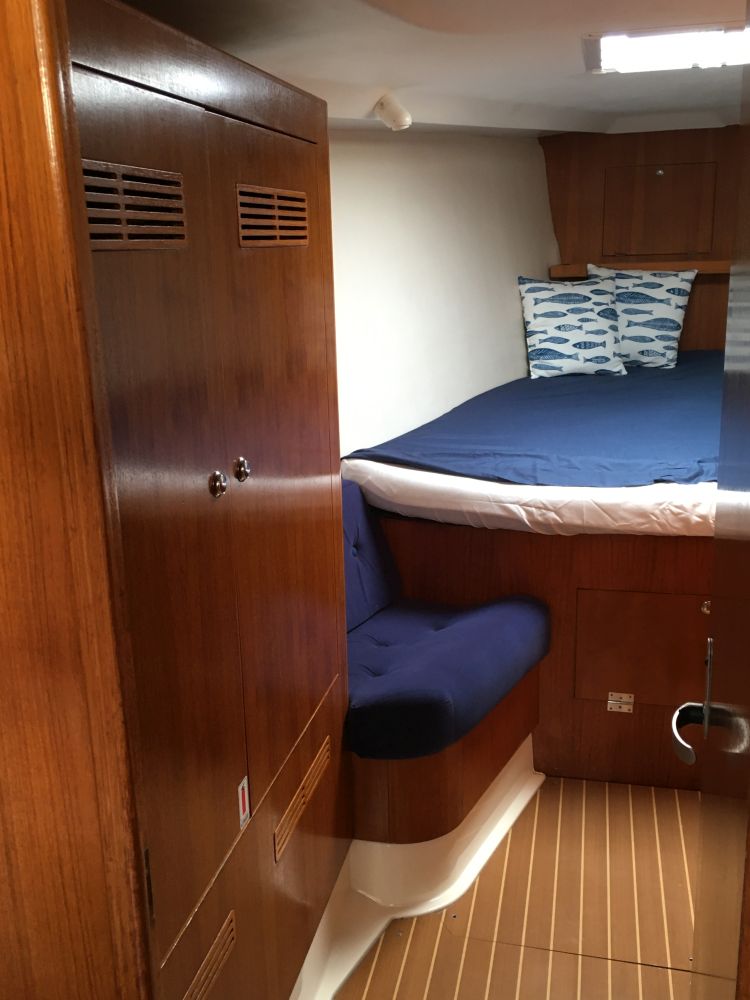

    Berths number
    10
    Cabins number
    3
    Cabin height
    >2mm
    Shower
    Yes
    Heating
    yes
    Accommodations notes

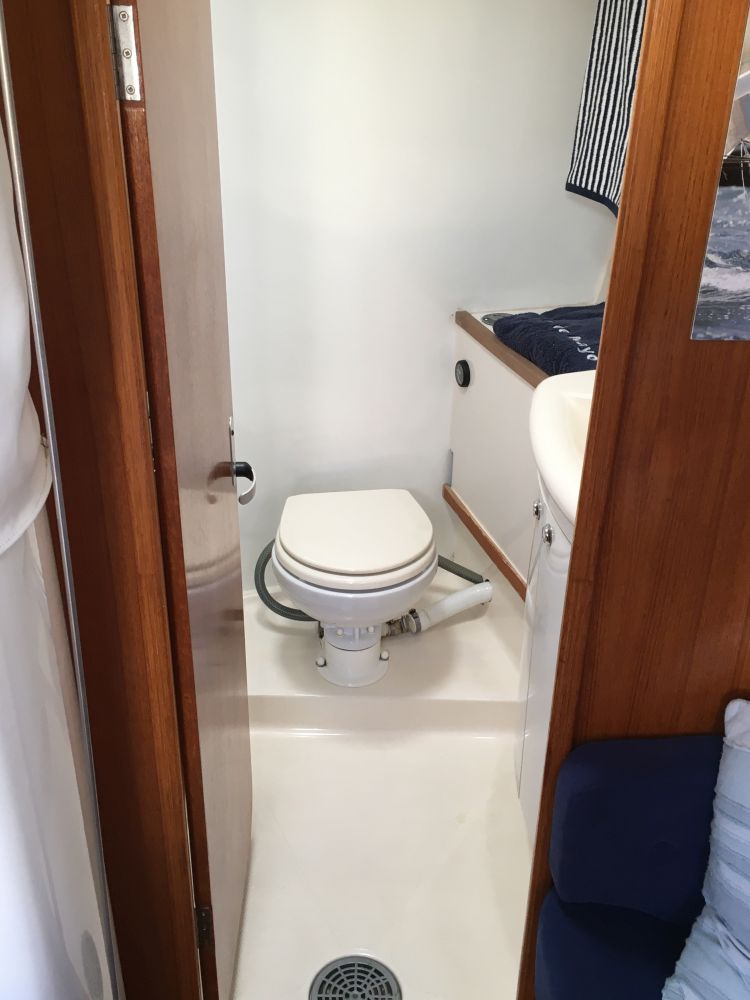

    2 hot water showers
GALLEY
    Hot water
    yes
    Coolbox
    yes
    Refrigerator
    isotherm
    Water system
    yes
    Galley notes

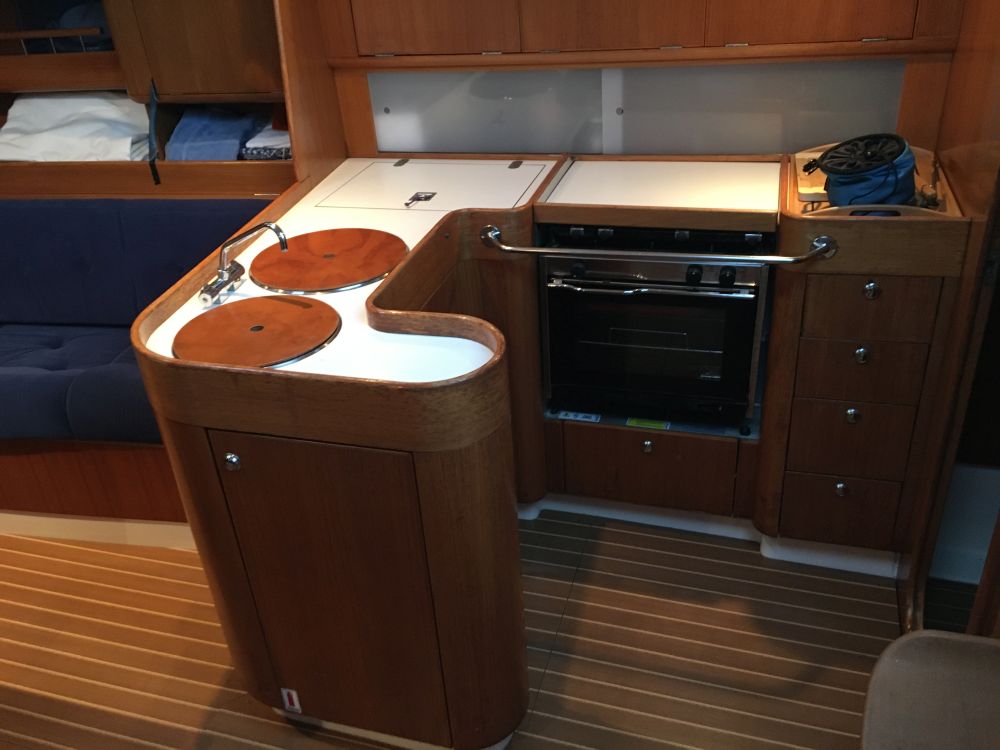

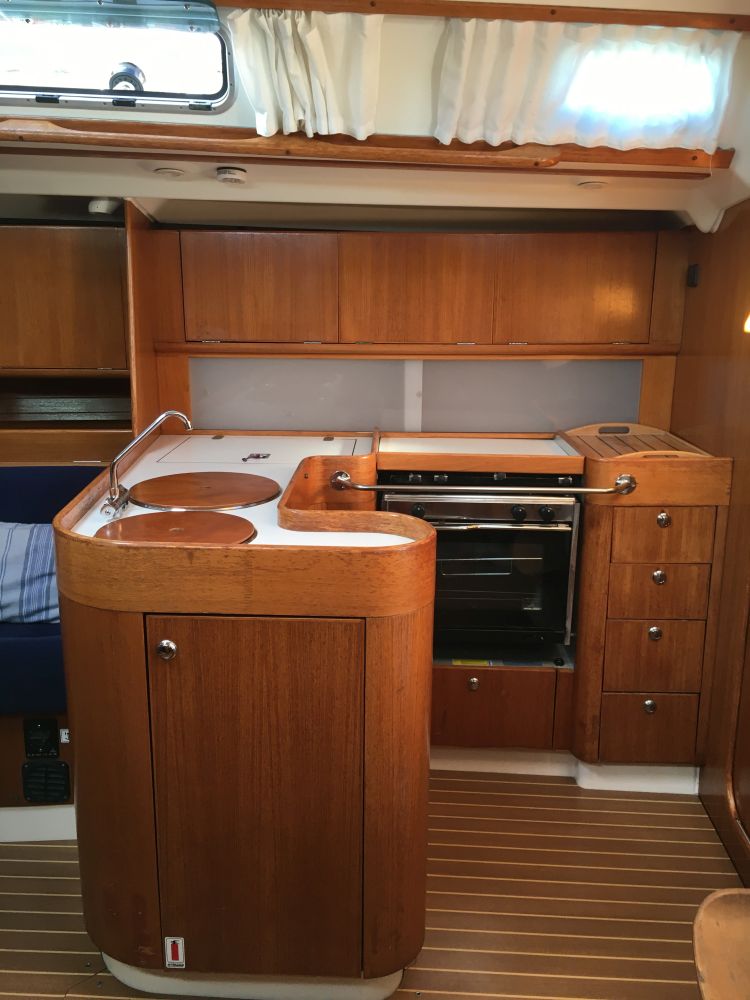

    Large offshore user-friendly U-shaped galley with plenty of storage space. All crawlers run on ball bearing tracks.
ELECTRICAL
    Batteries
    2
    Battery charger
    1
    Electrical notes

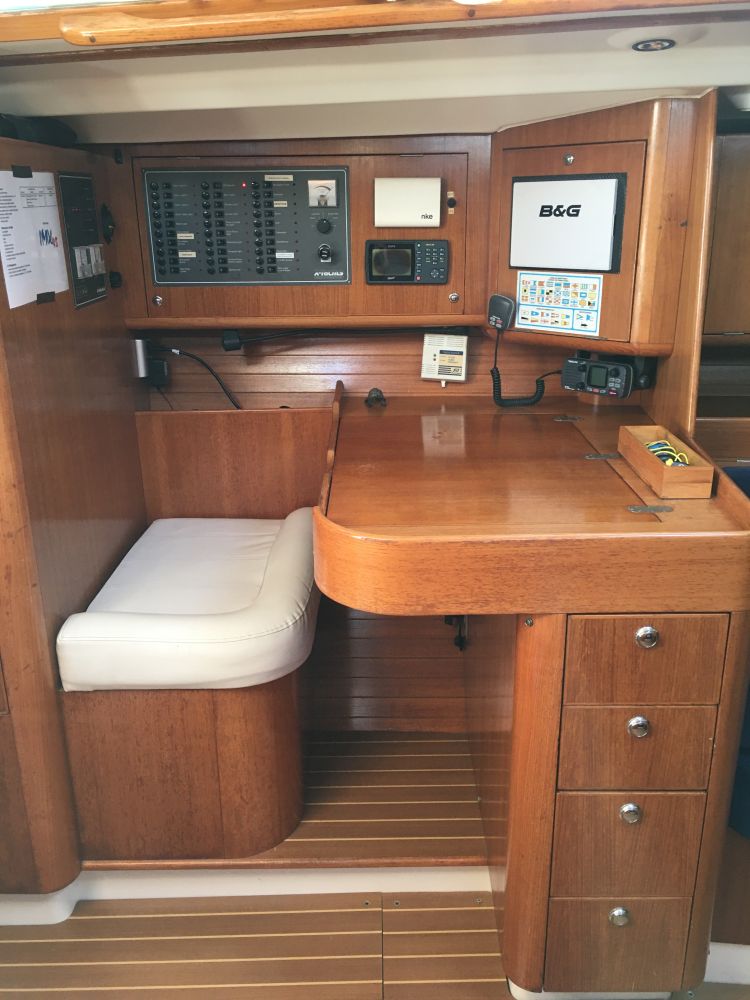

    220V installation and differential distribution panel. 12-220v inverter 600w.
SPARS & RIGGING
    Sails
    Main for cruising and racing Pentex de Advaned Sails Main for racing 3DI North Sails Genoa 1 3DI North Sails Genoa 1 Kevlar Technique Genoa 2 Kevlar Technique Genoa Enrollable Pentex Advanced Sails Jib 3 3DI North Sails Jib 4 Dacron Technique Spinnaker S2 Elvstrom Spinnaker S2 Quantum Spinnaker S2 North Sails Spinnaker S4 Technique Spinnaker S5 North Sails Spinnaker S1 Technique Asimétrico A1 Elvstrom Jib Autovirante medio Jib Autovirante Pesado Jib Ligero Technique Jib Medio Technique Jib Pesado Technique
    Rigging
    Rod rigging

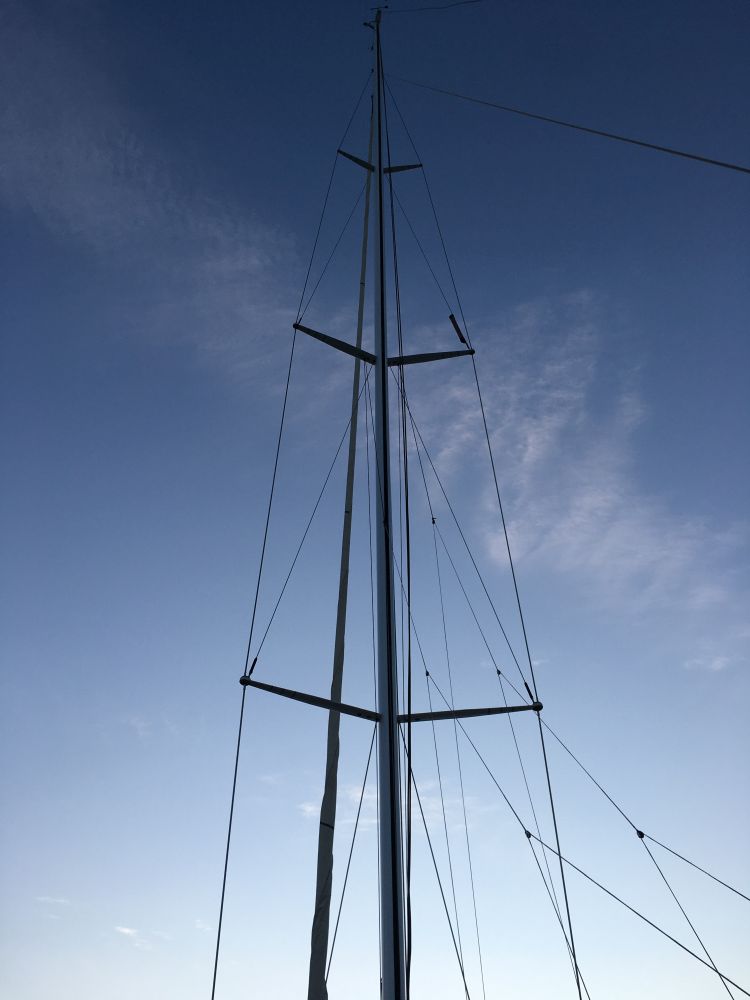

    Mast
    Nordic Mast Carbon
    Boom
    Nordic Mast Carbon
    Vang
    Nordic Mast Carbon
    Furling system
    Reckman 2000 with drum below deck
    Spars and rigging notes

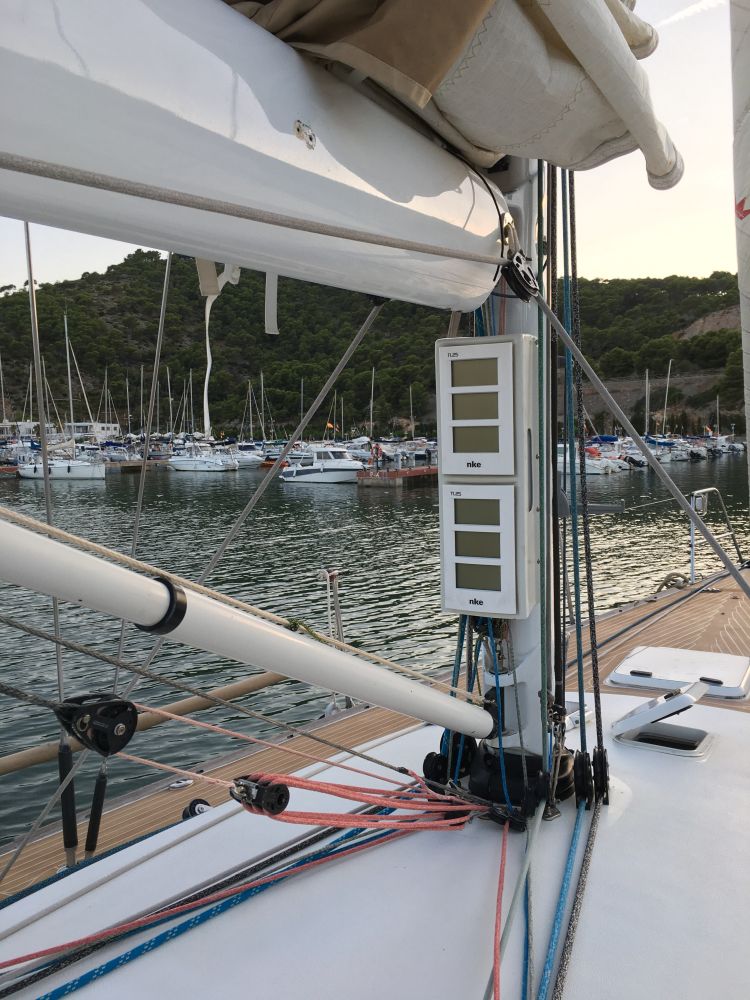

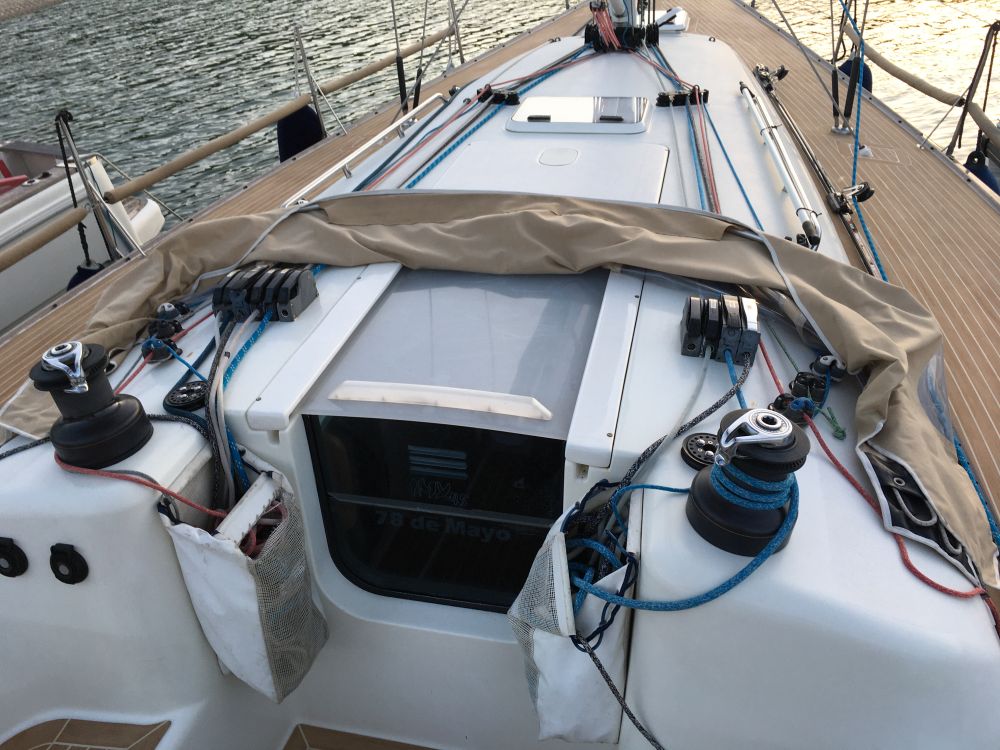

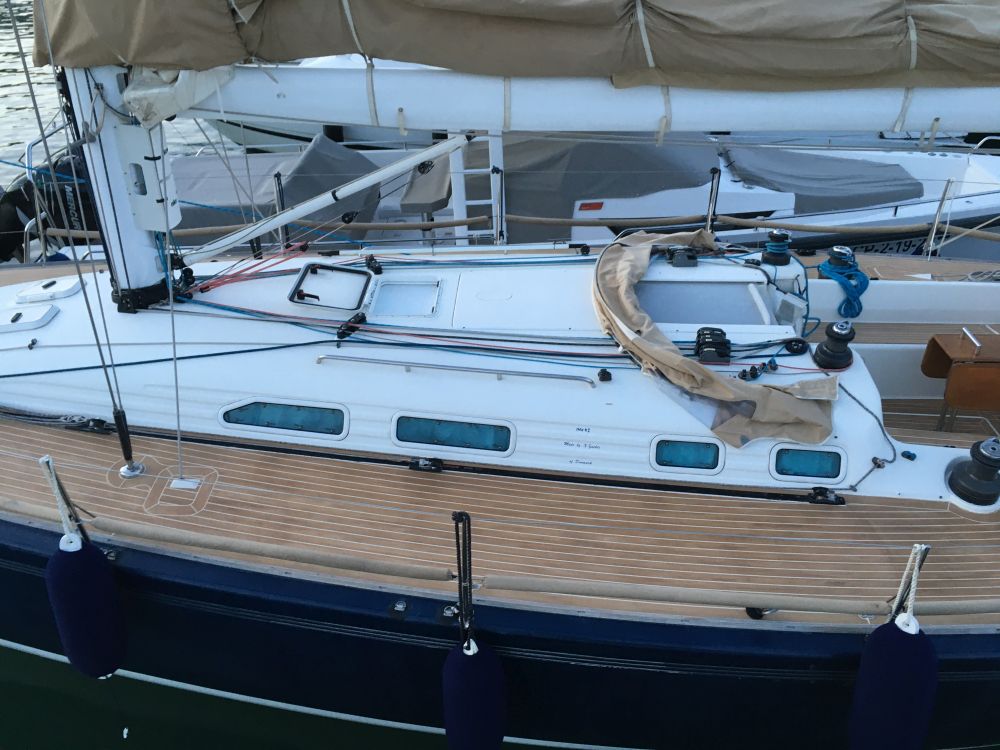

    Carbon fibre mast and boom and sweptback spreacers ensure a comfortable and simple tuning of the rig and keep the safety at a high level The permanent backstay is tuned via a deck recessed crum/block system, which operates with a power ratio between 1:30 and 10. Tuning of boom outhaul, vang and cunninghams operated via turnable cleats on the coech roof sides
SAFETY EQUIPMENT
    CE Registration
    Yes
    Fire-extinguishers
    3
    Epirb
    Yes

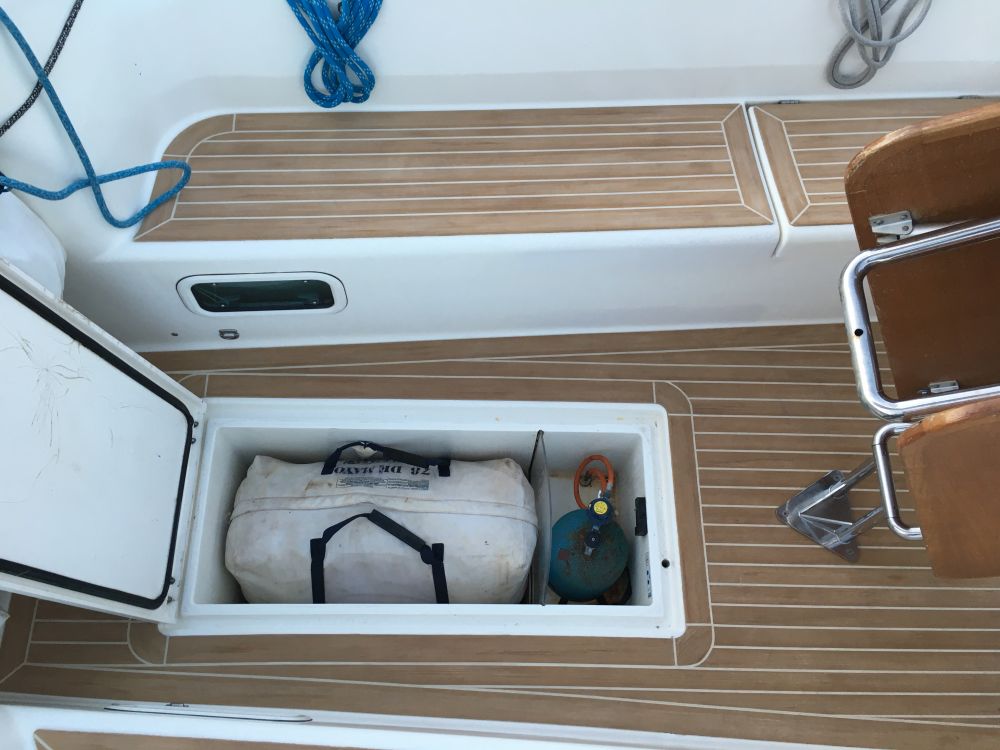

    Liferaft
    Yes
CONSTRUCTION
    Keel
    Lead
    Construction notes
EXTRA
    Radio CD
    Yes
    Speakers
    Yes
    Shower in Cockpit
    Yes
