#1104

SWAN 56-03TOUCAN

FOR SALE

GENERAL
Name
SWAN 56-03TOUCAN
Model
SWAN 56-03 TOUCAN
Year
2003
Hull material
GRP
Color hull
WHITE
Located
Helsinki
Price
549000 €
VAT
PAID
Flag
FINLAND
Type
CRUISER
Slogan
Fast cruising yacht
Description

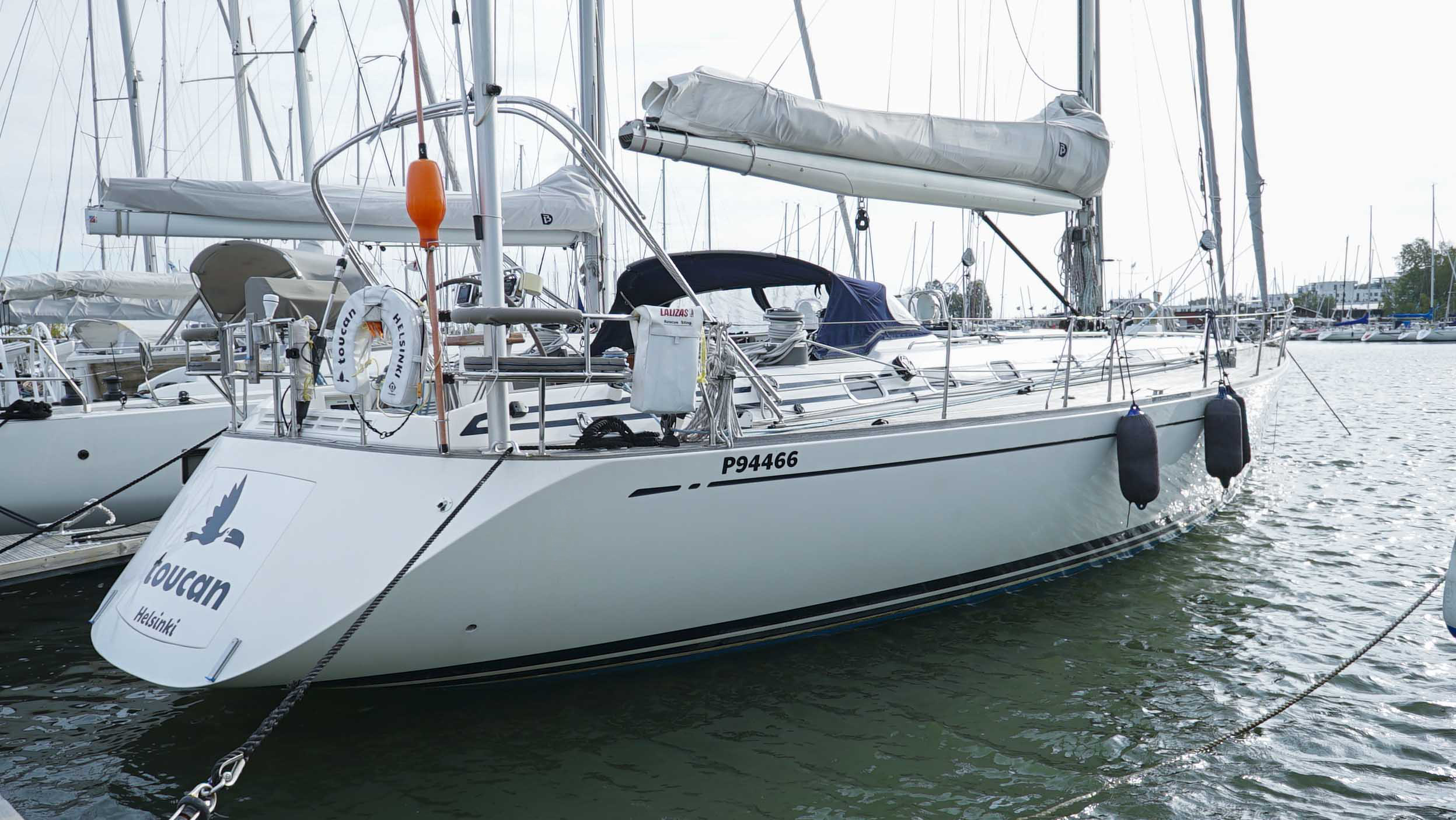

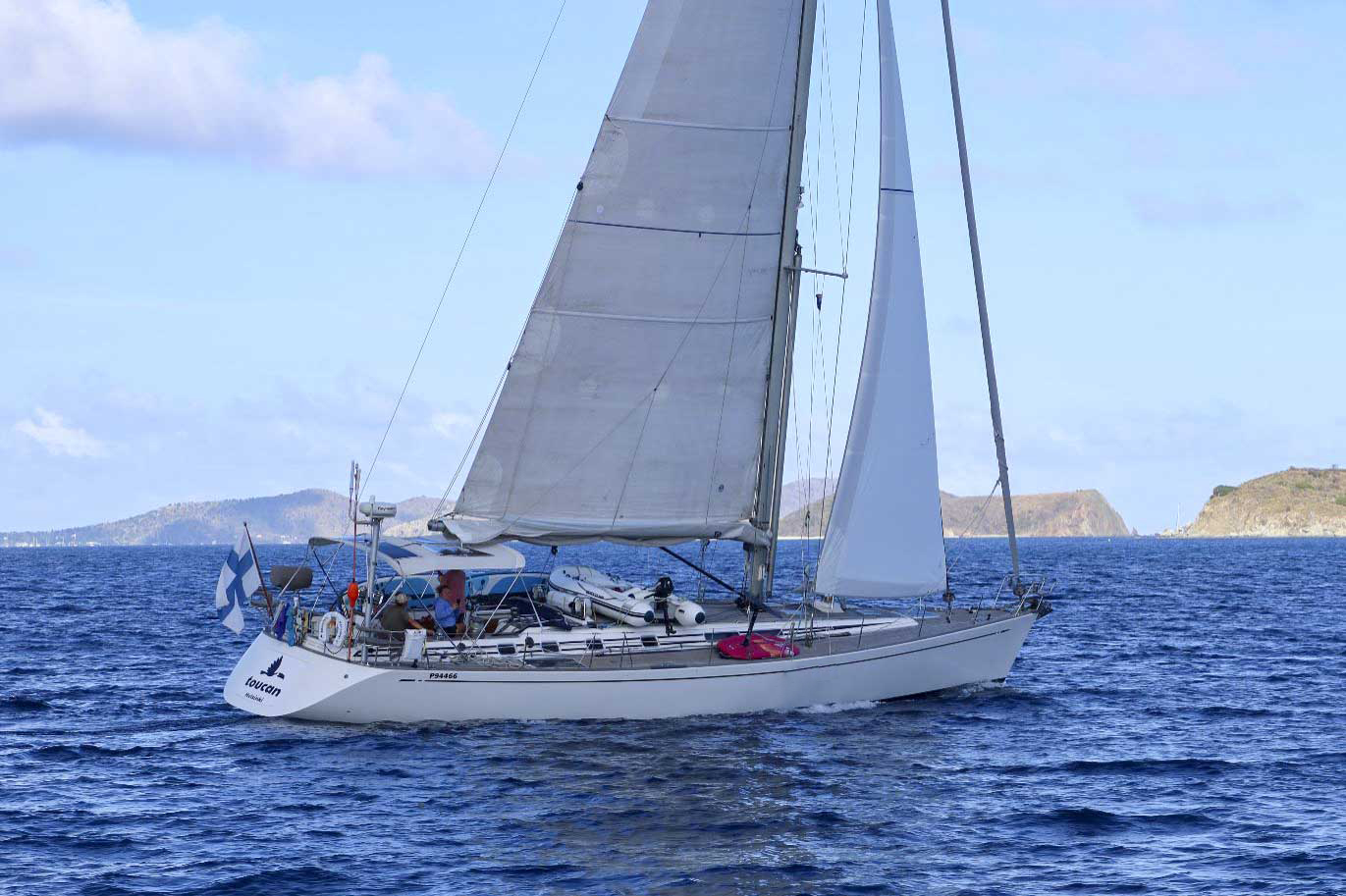

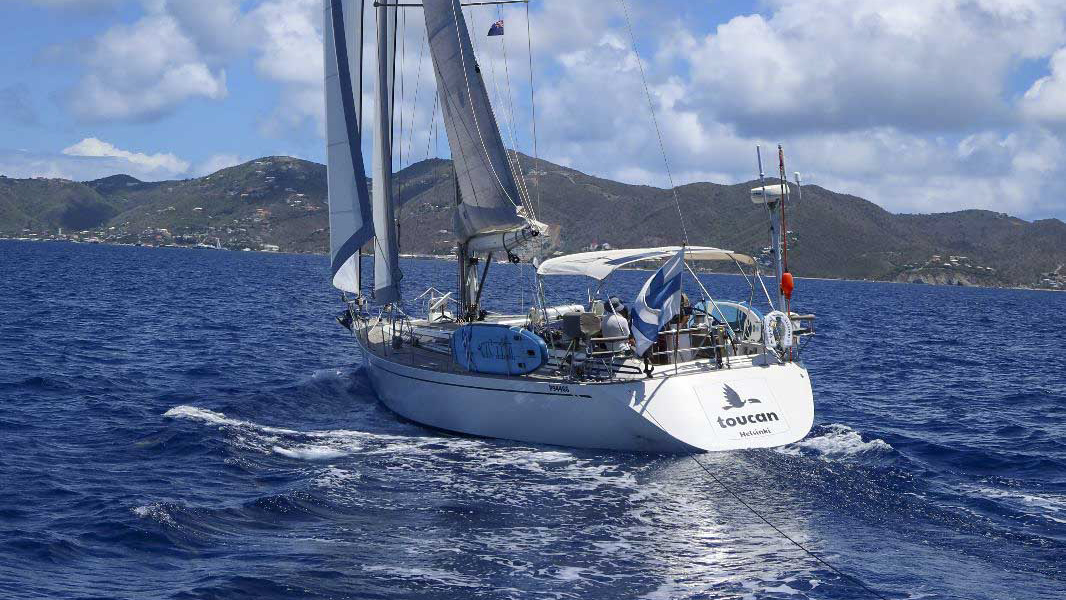

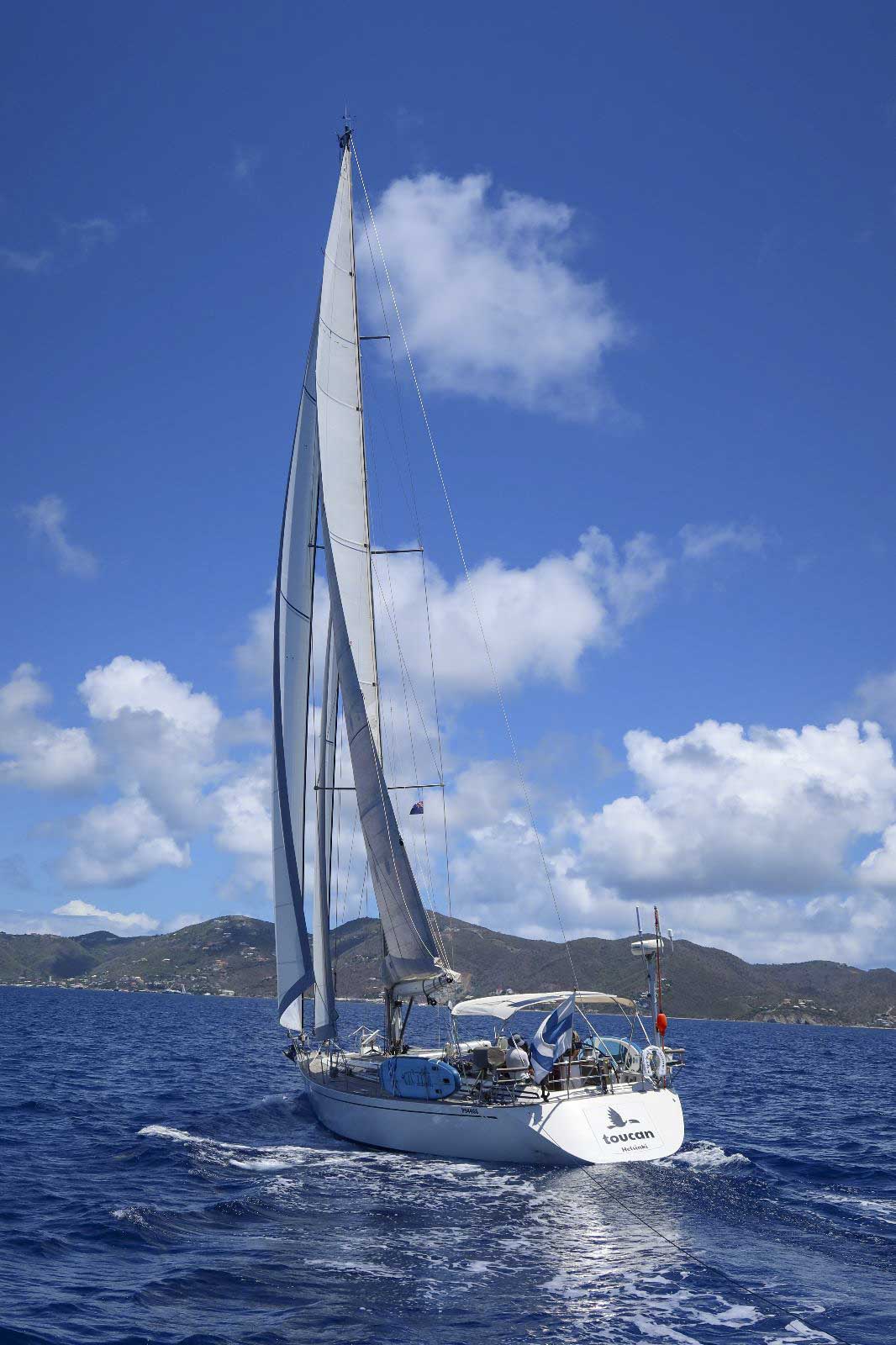

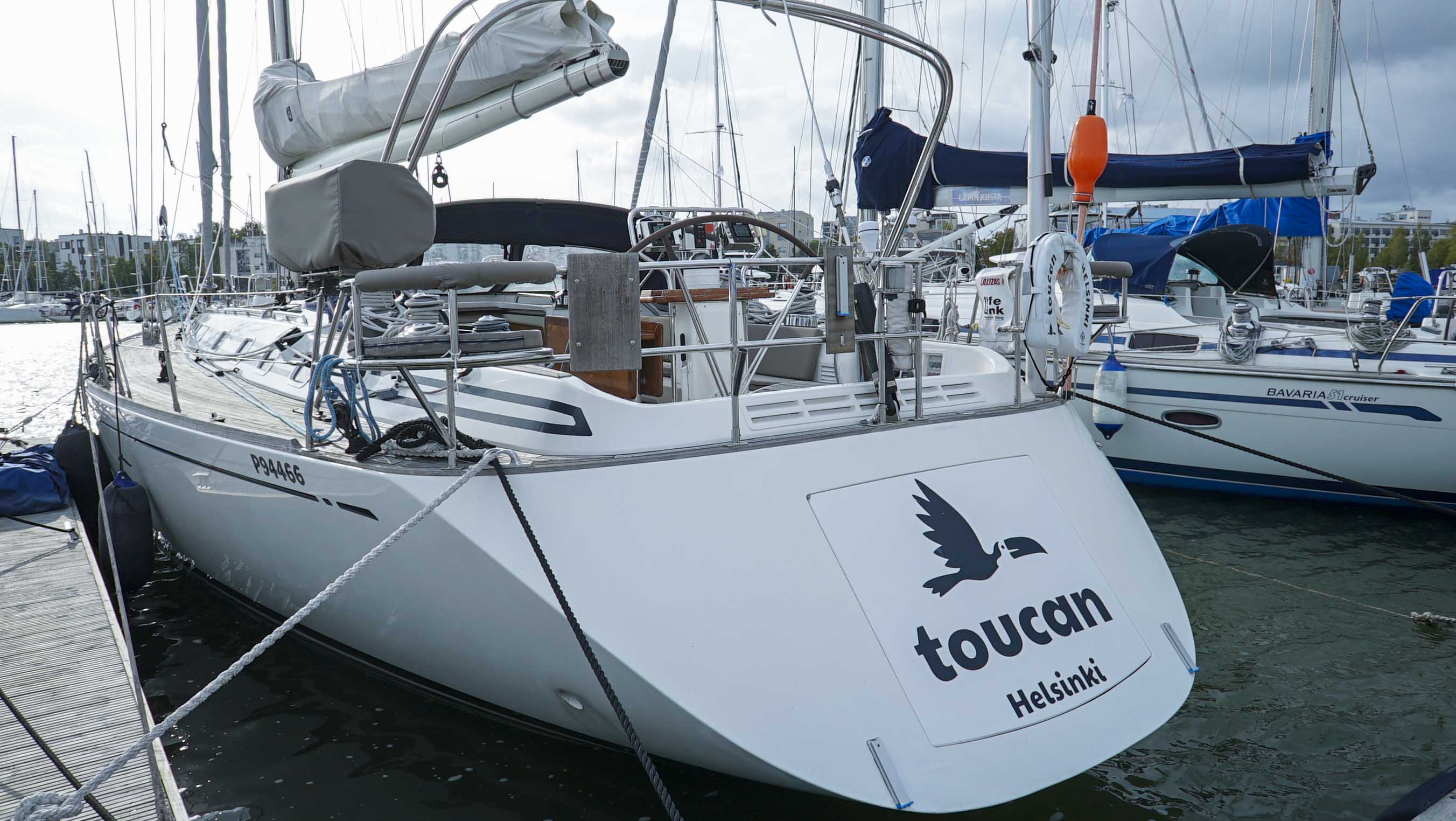

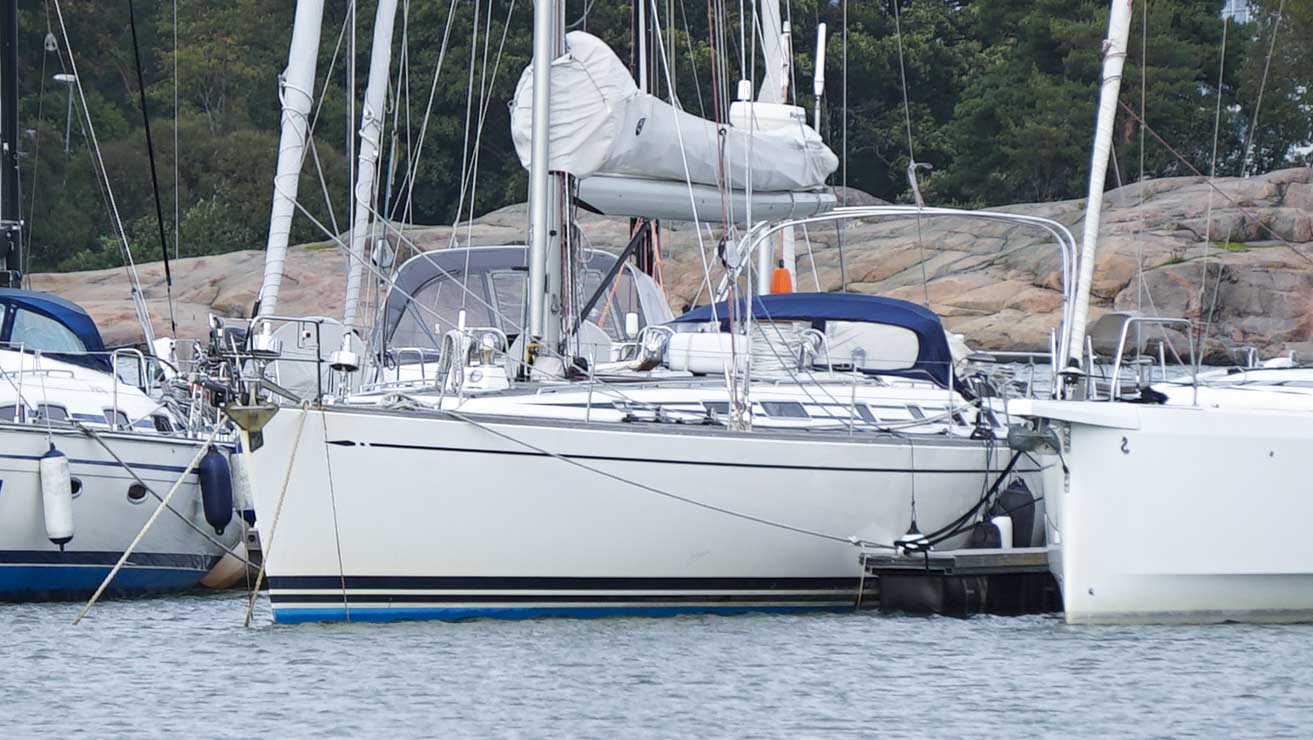

SWAN 56-041 “Toucan” is an extensively equipped, very well-maintained fast cruising yacht. She is probably one of the most beautiful Swan 56’s sailing around. One of the newest (2003) and equipped with a modern single cockpit, which makes her very manageable and easy to sail. Toucan has been used for long-distance cruising. She is well maintained and currently based in Helsinki, Finland. The yacht is stored in a heated hall for the winter. The boat has an ORC measurement certificate. Four owners since new.
DESIGN

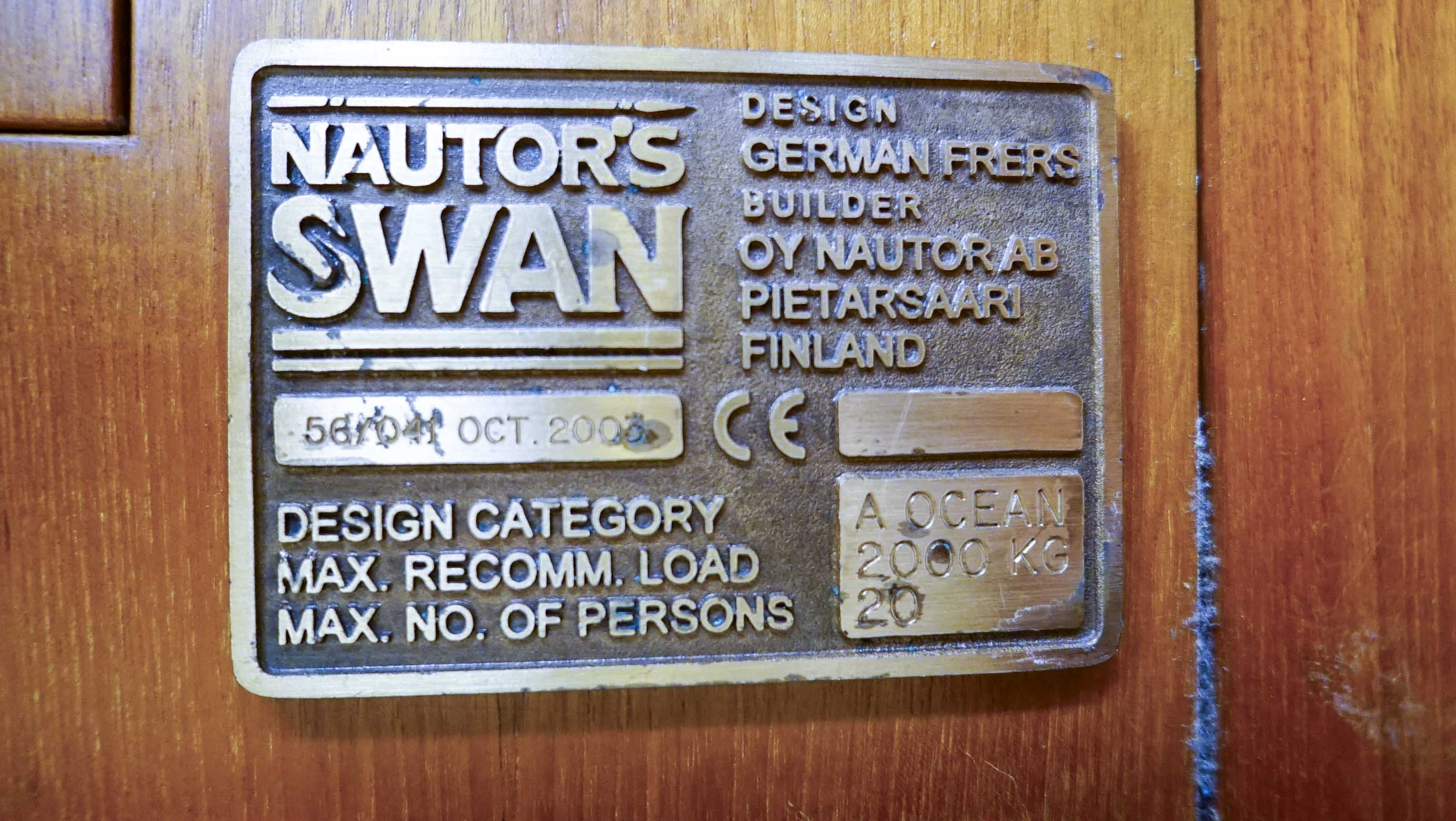

    Builder
    NAUTOR SWAN
    Designer
    Frers Naval Architecture
DIMENSIONS
    LOA
    17.53m
    Beam
    4.73m
    Draft
    2.75m
    Displacement
    19.500kg
ENGINES
    Engines
    Yanmar 4JH3-HTBE
    Engines hours
    2000
    Cruising speed
    7kn
    Propeller
    3-blade folding propeller
    Engines notes

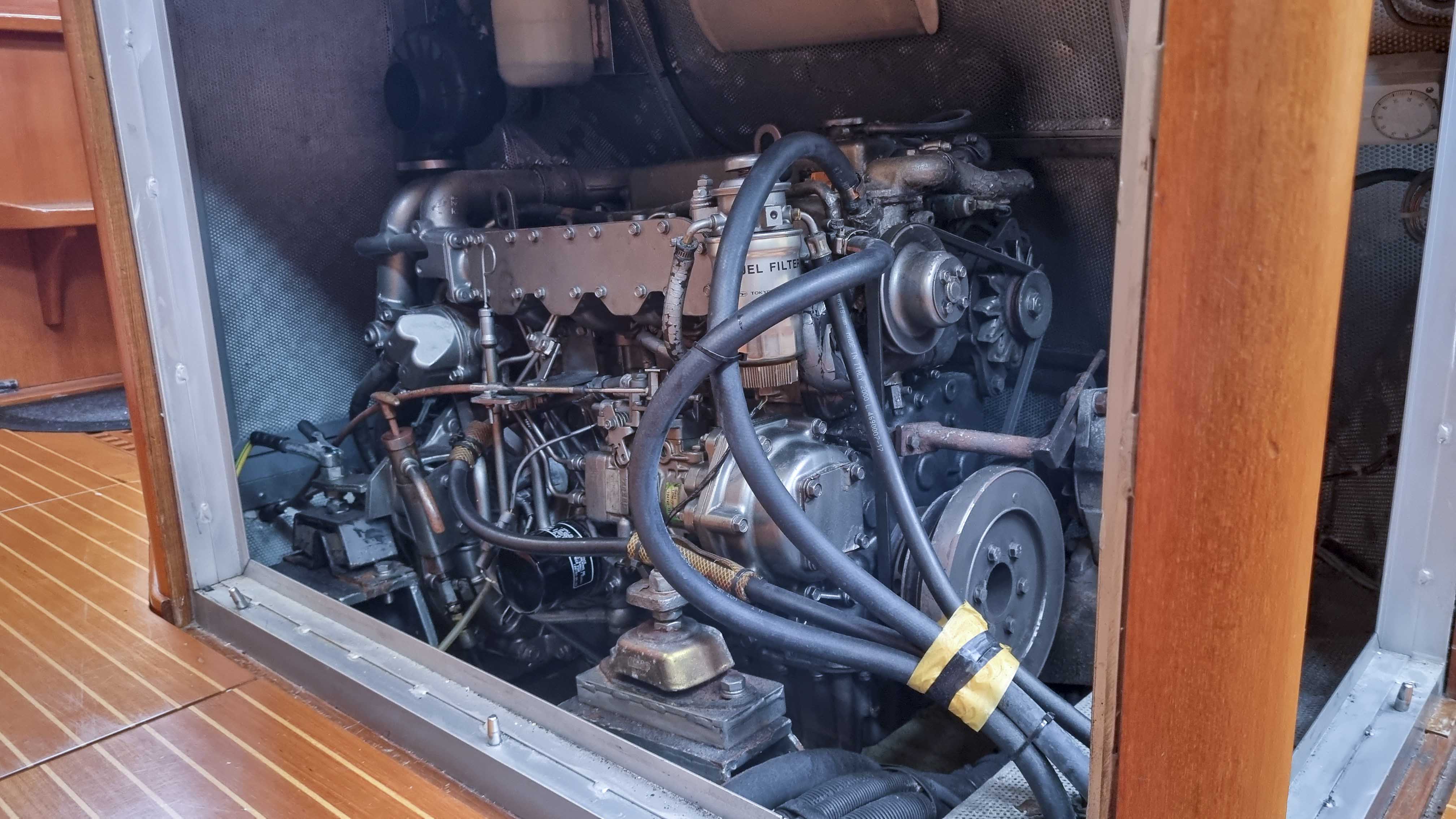

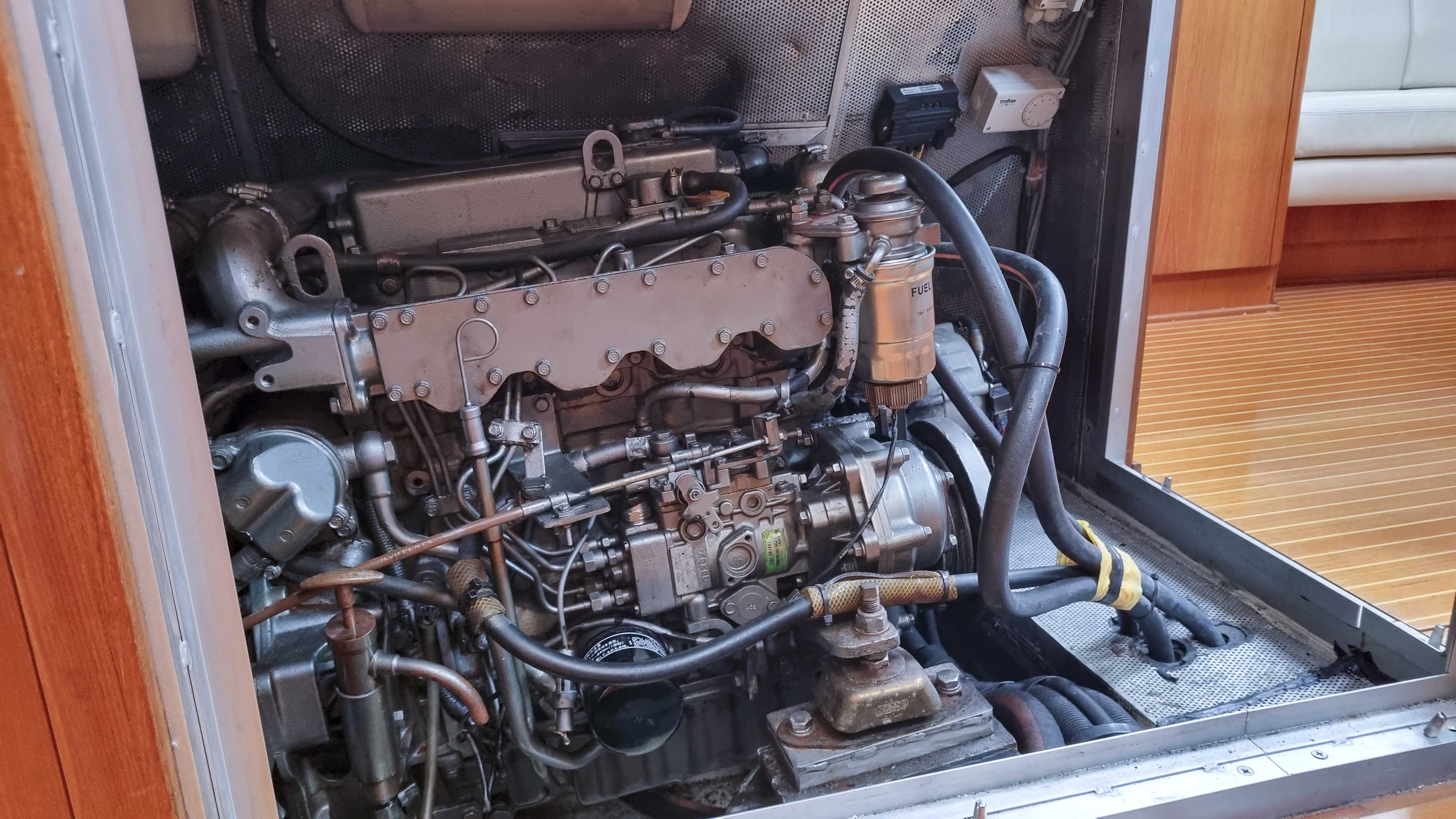

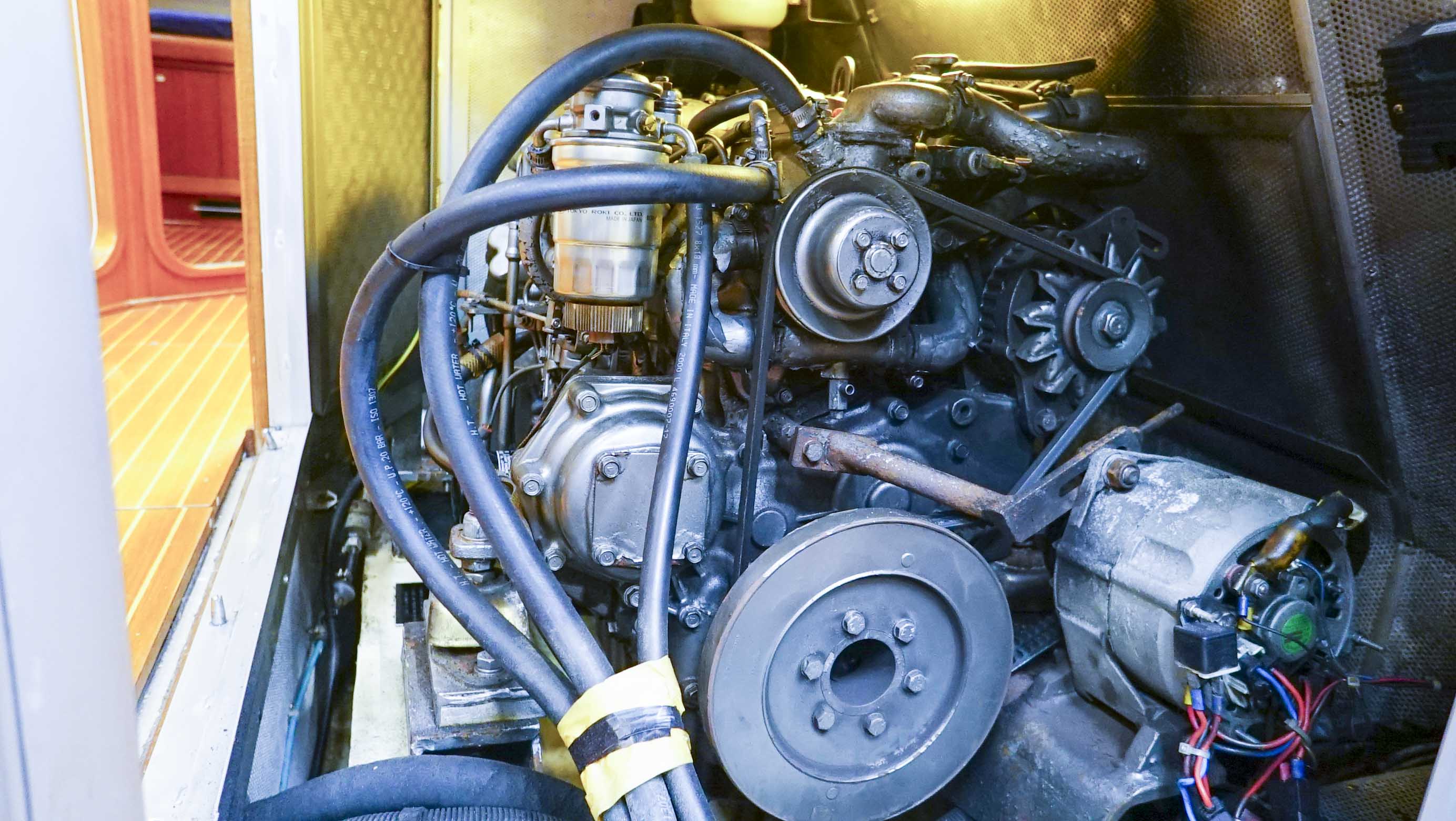

    • Yanmar 4JH3-HTBE • 100hp • Year 2003 • Shaft driven • Yanmar reduction gearbox 3.3:1 mechanical • Maxprop RH 3-blade folding propeller with spurs rope cutter • Speed max. 8,9 knots, cruising 7 knots • Cruising range 900NM (700 litres useable at 5L/h at 7 knots)
TANKS
    Fuel
    780l
    Water
    480l
    Holding
    YESl
    Tanks notes
    • Watertank: 480L (320L + 160L) • Diesel tank: 780L (200L + 190L + 200L + 190L) • 2 x holding tank • Hot water heater • Holding tanks (black): o Separate tanks for forward and aft head o Pump-out system (ashore/electric sea)
ACCOMMODATIONS
    Berths number
    3 double + 1 single
    Cabins number
    4
    Shower
    Yes
    Air conditioning
    yes
    Accommodations notes

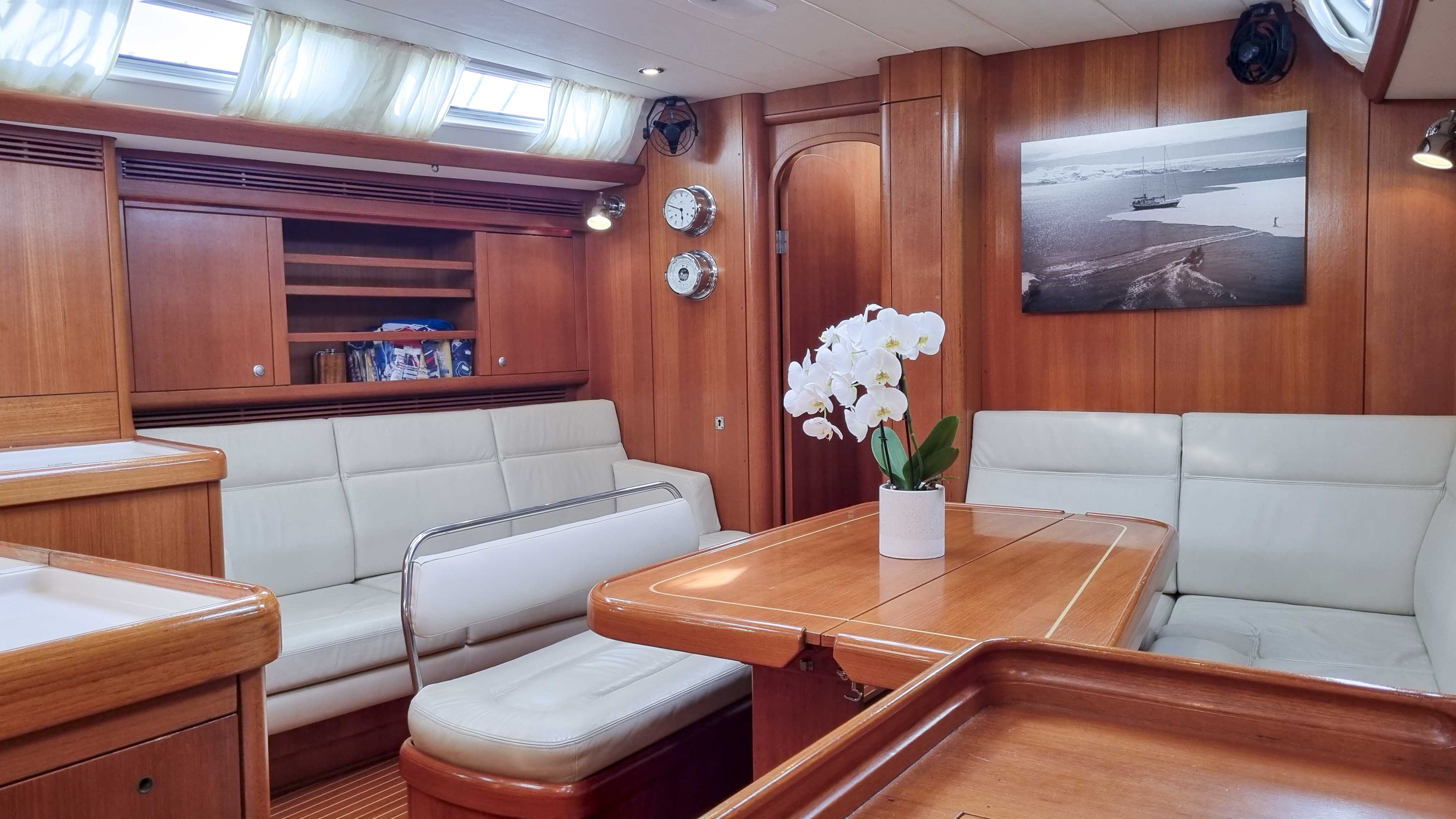

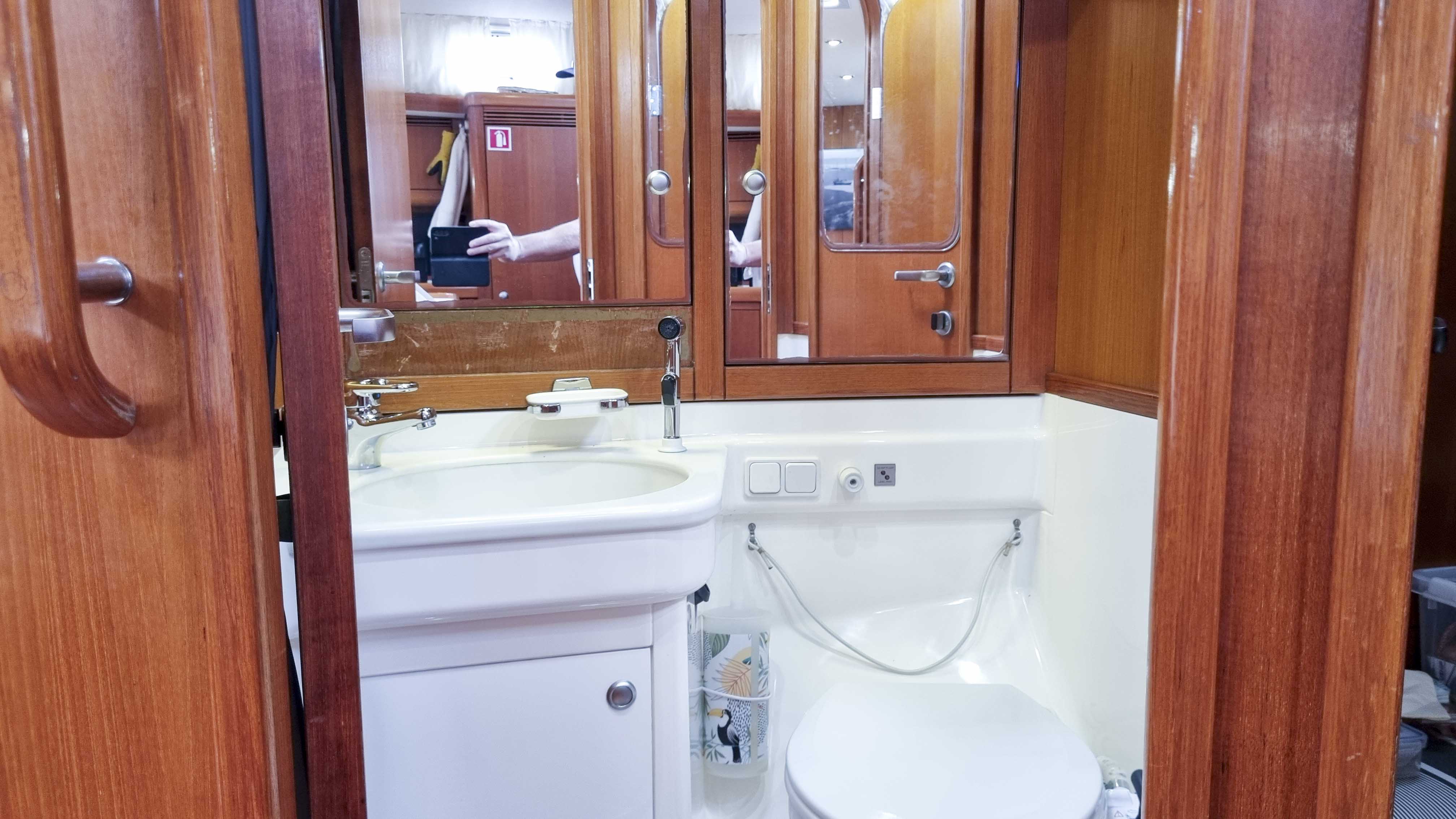

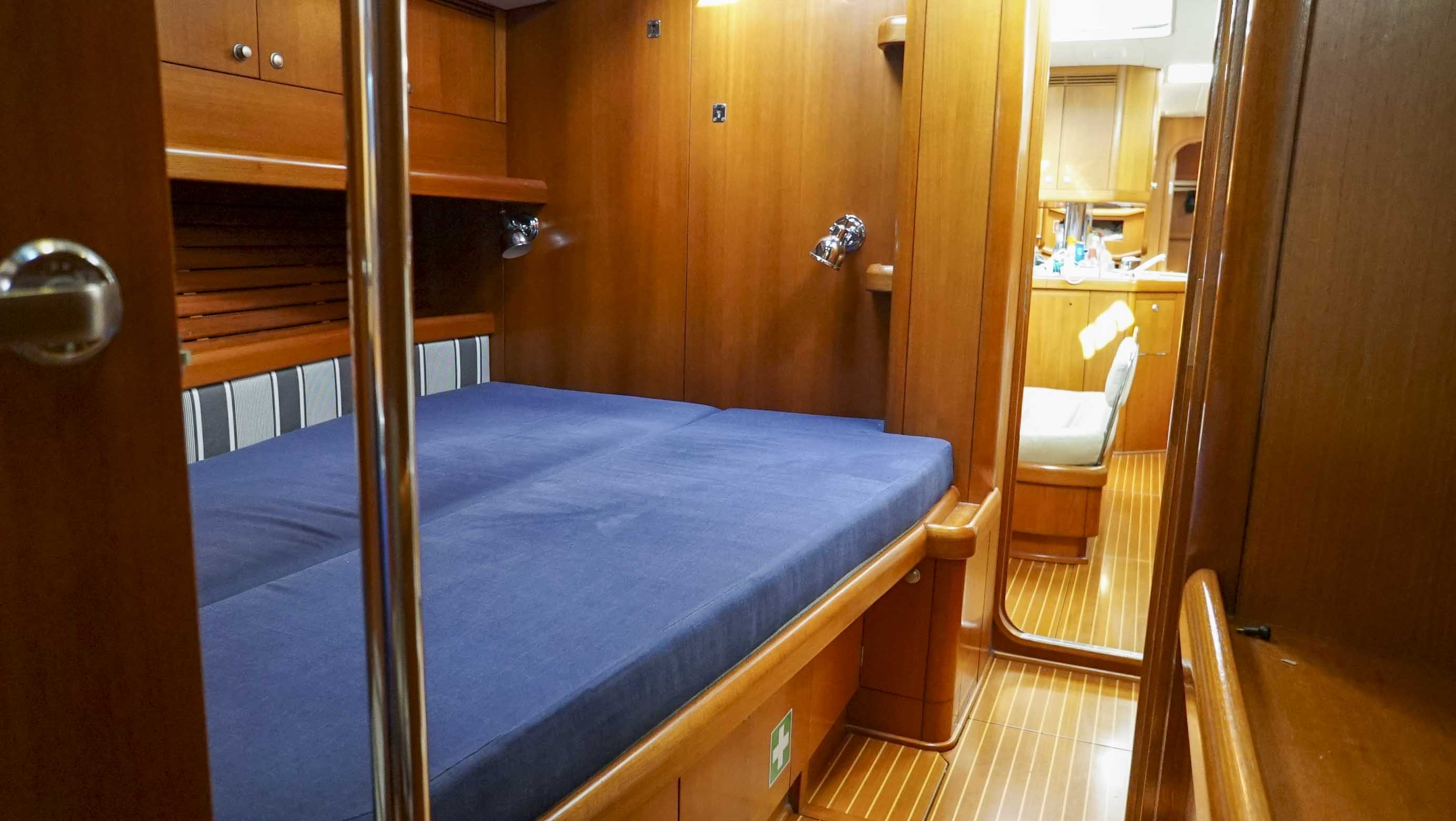

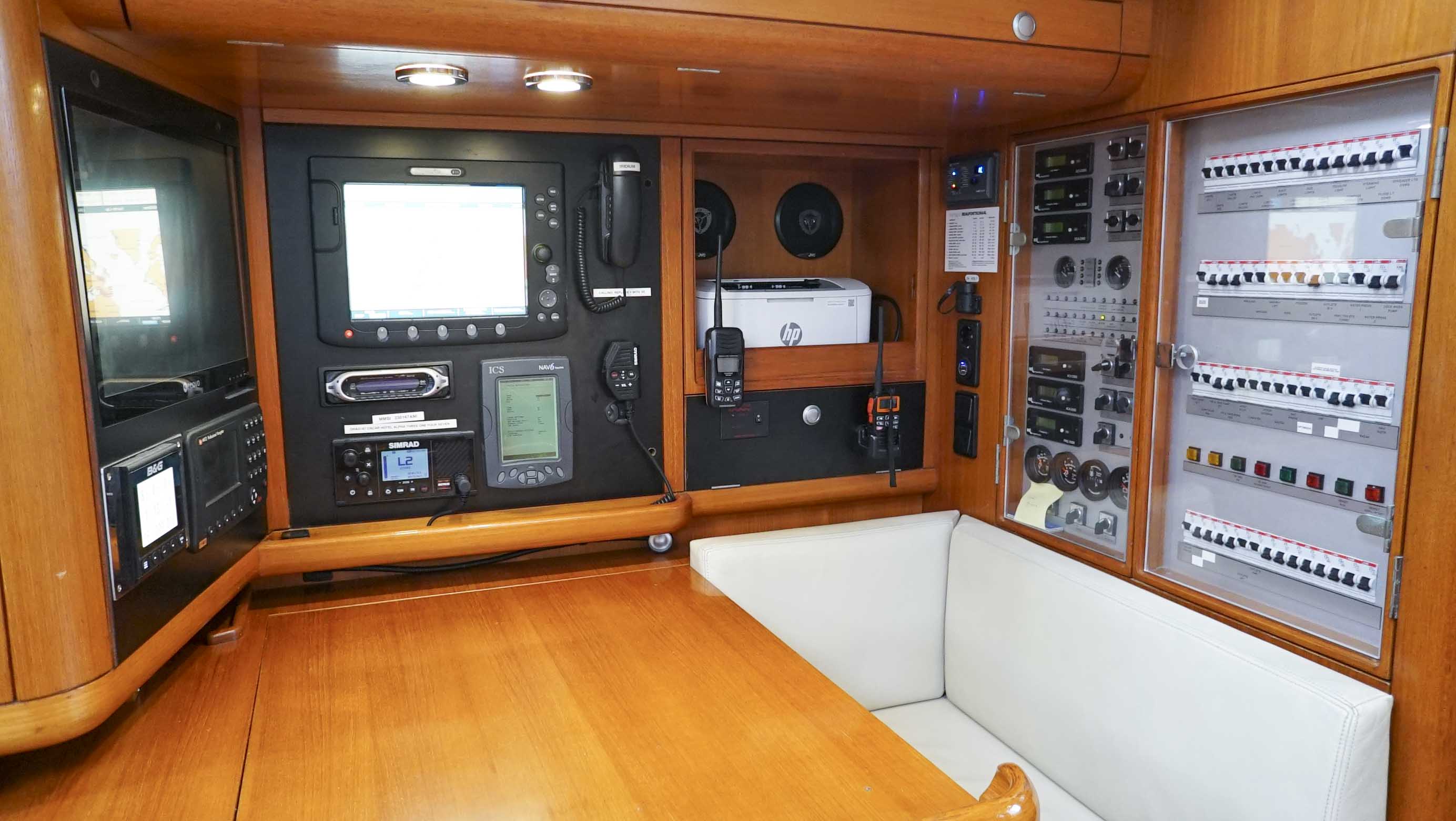

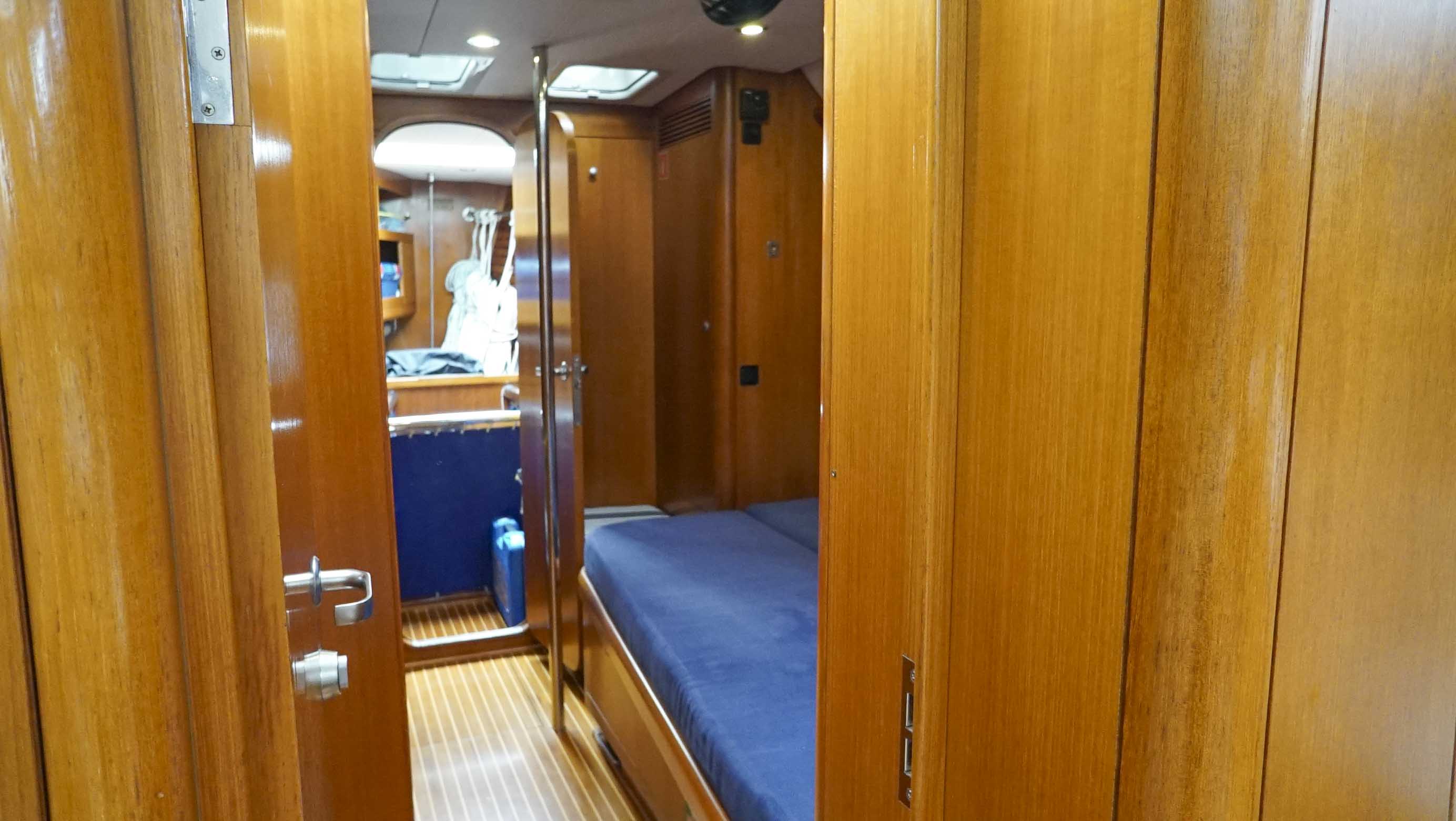

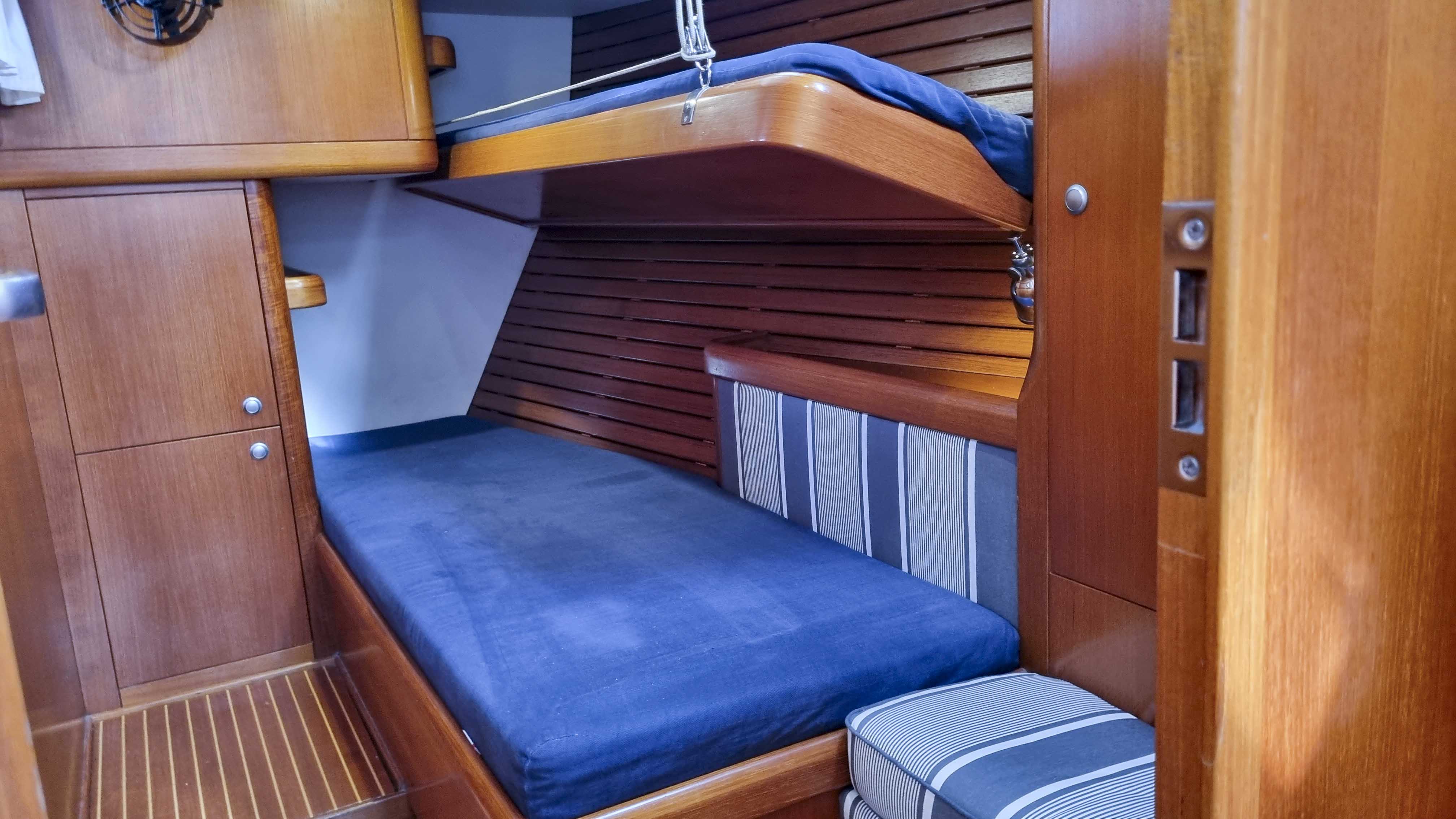

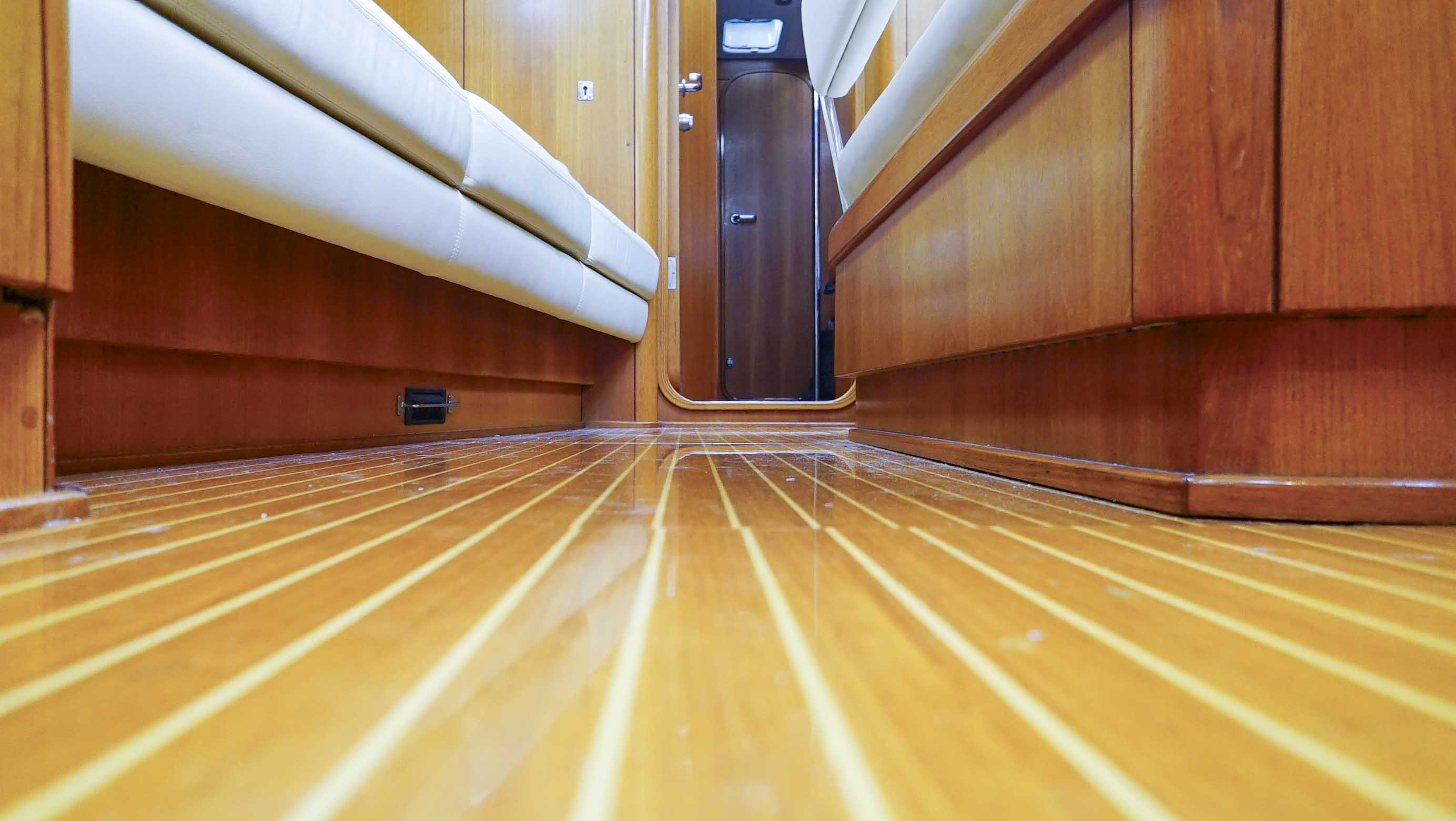

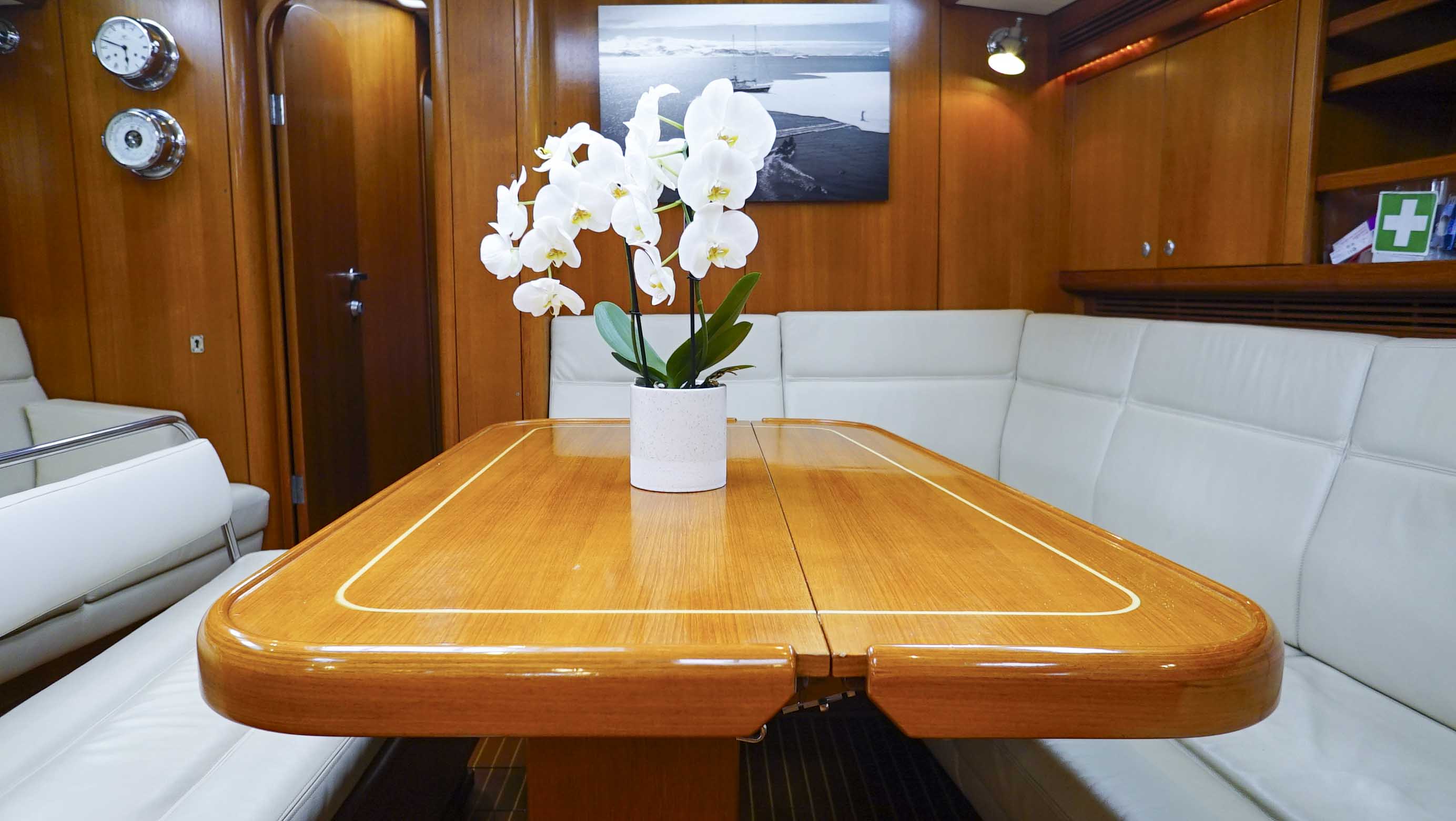

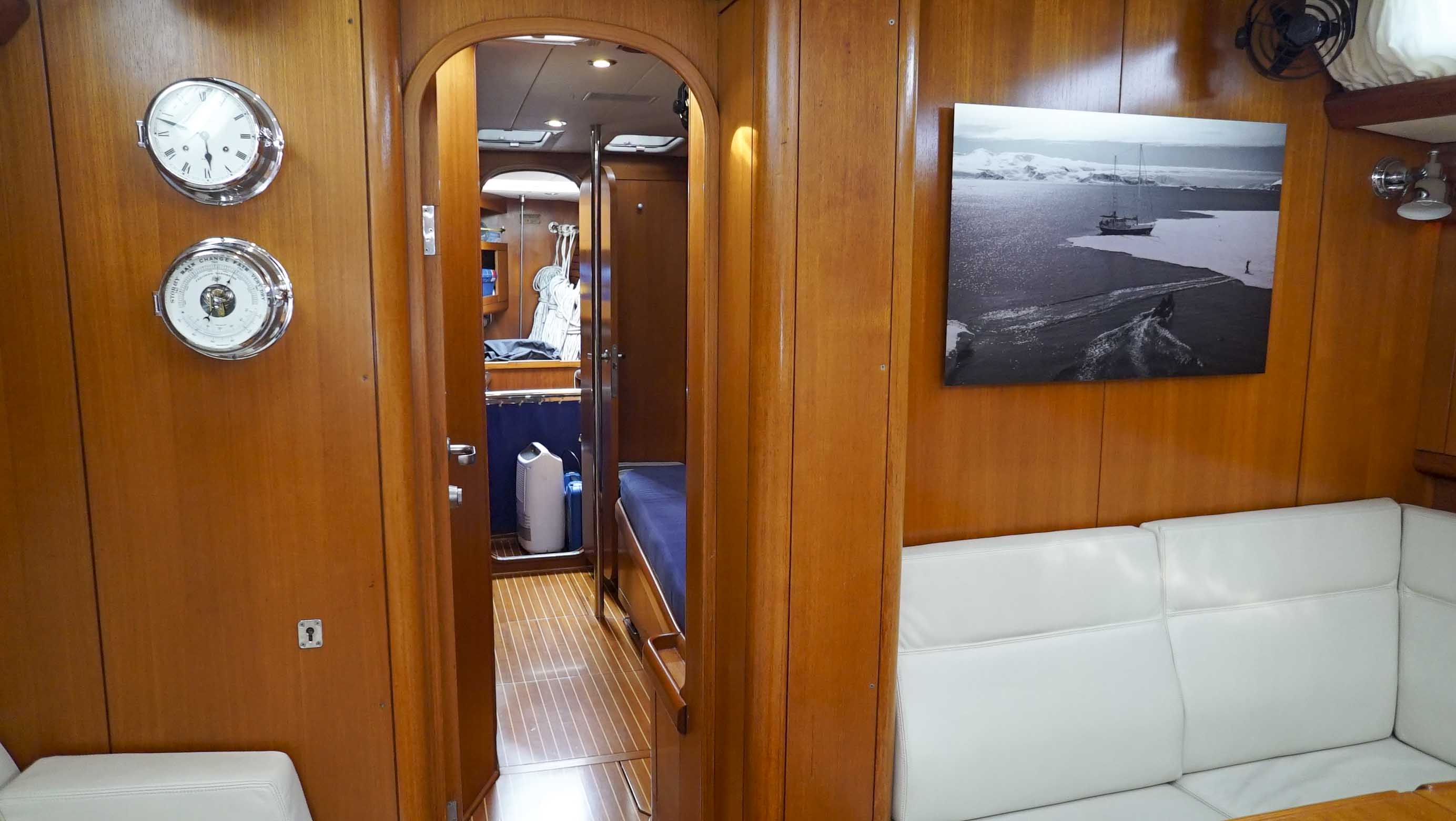

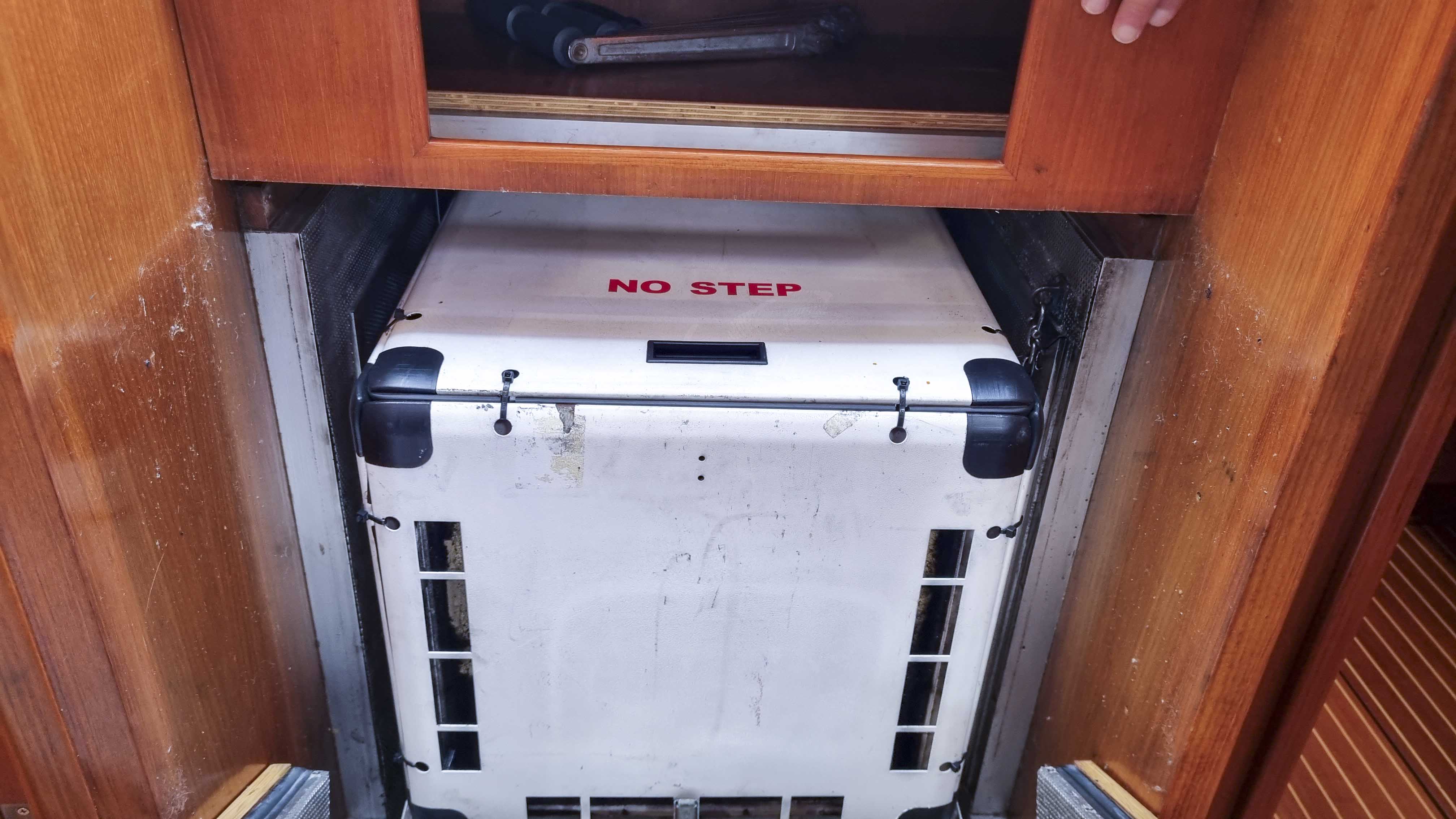

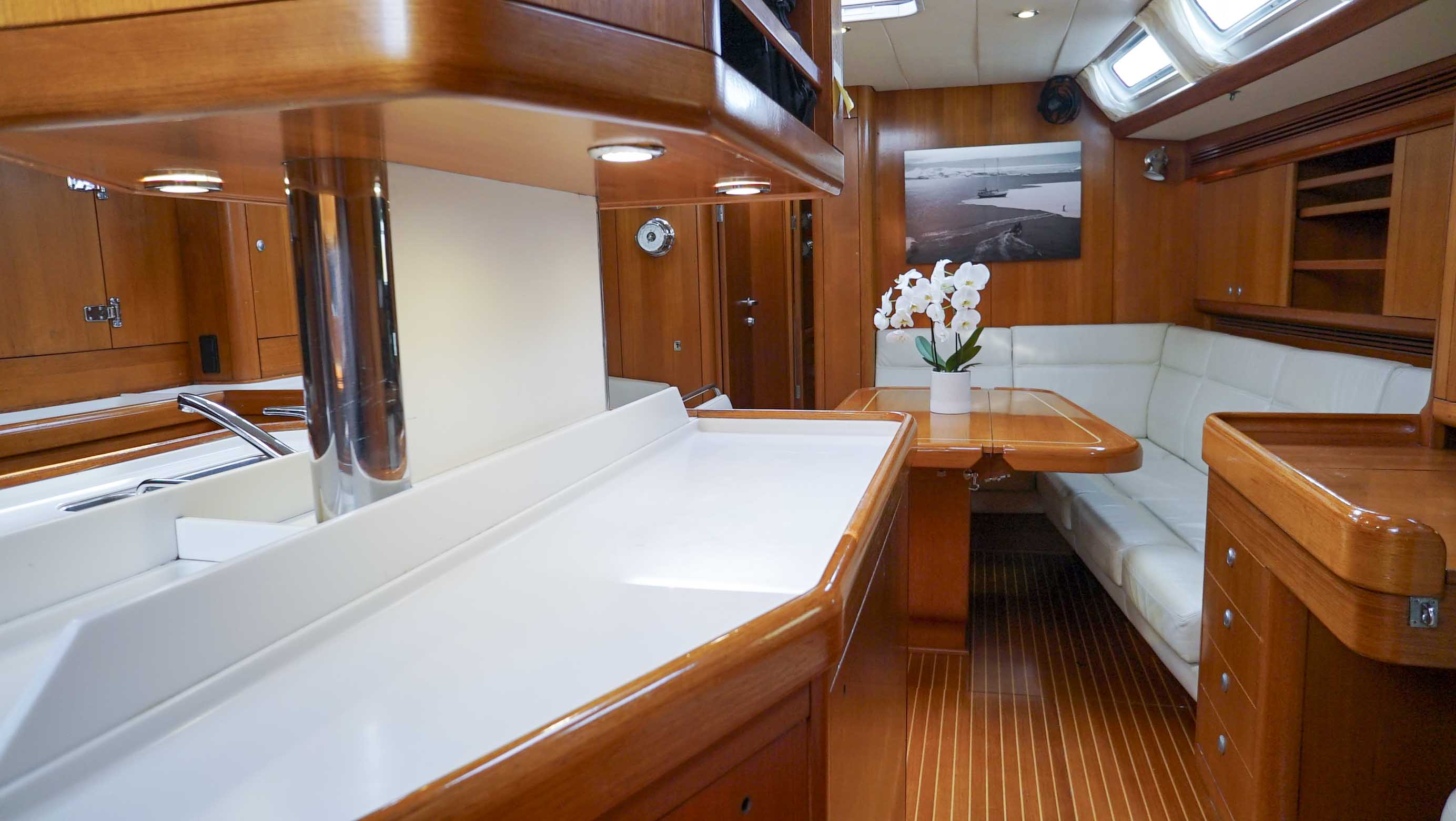

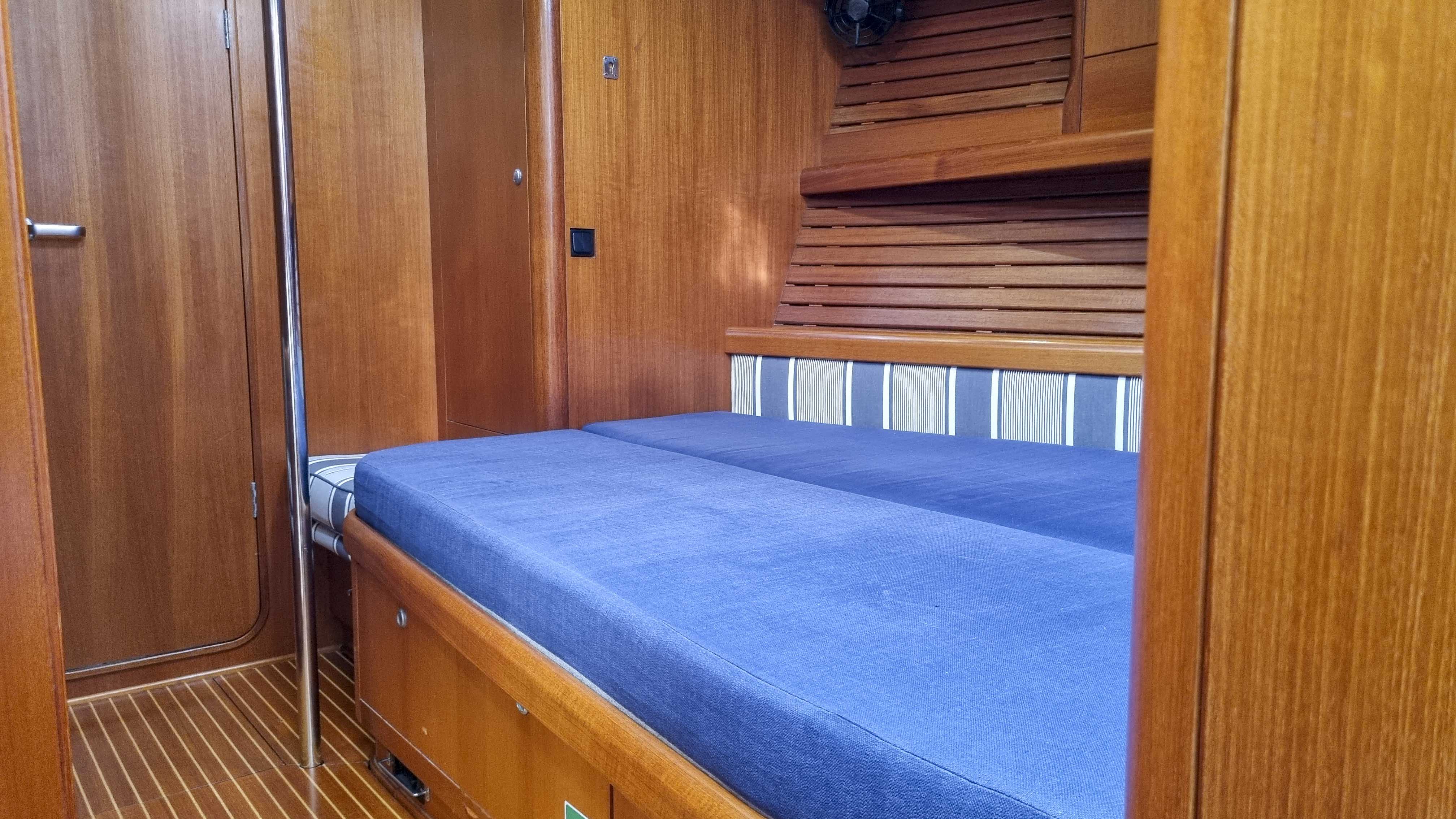

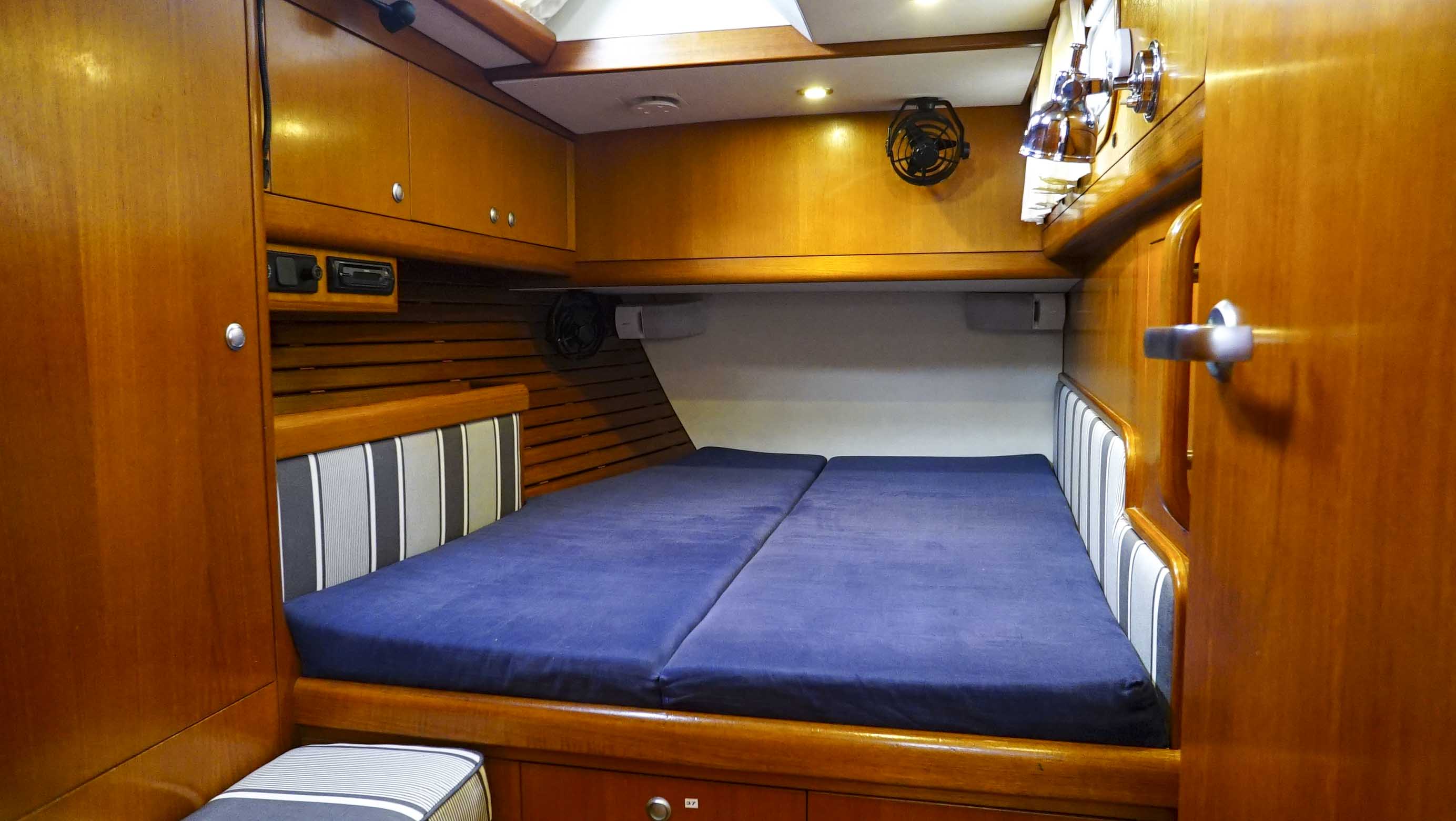

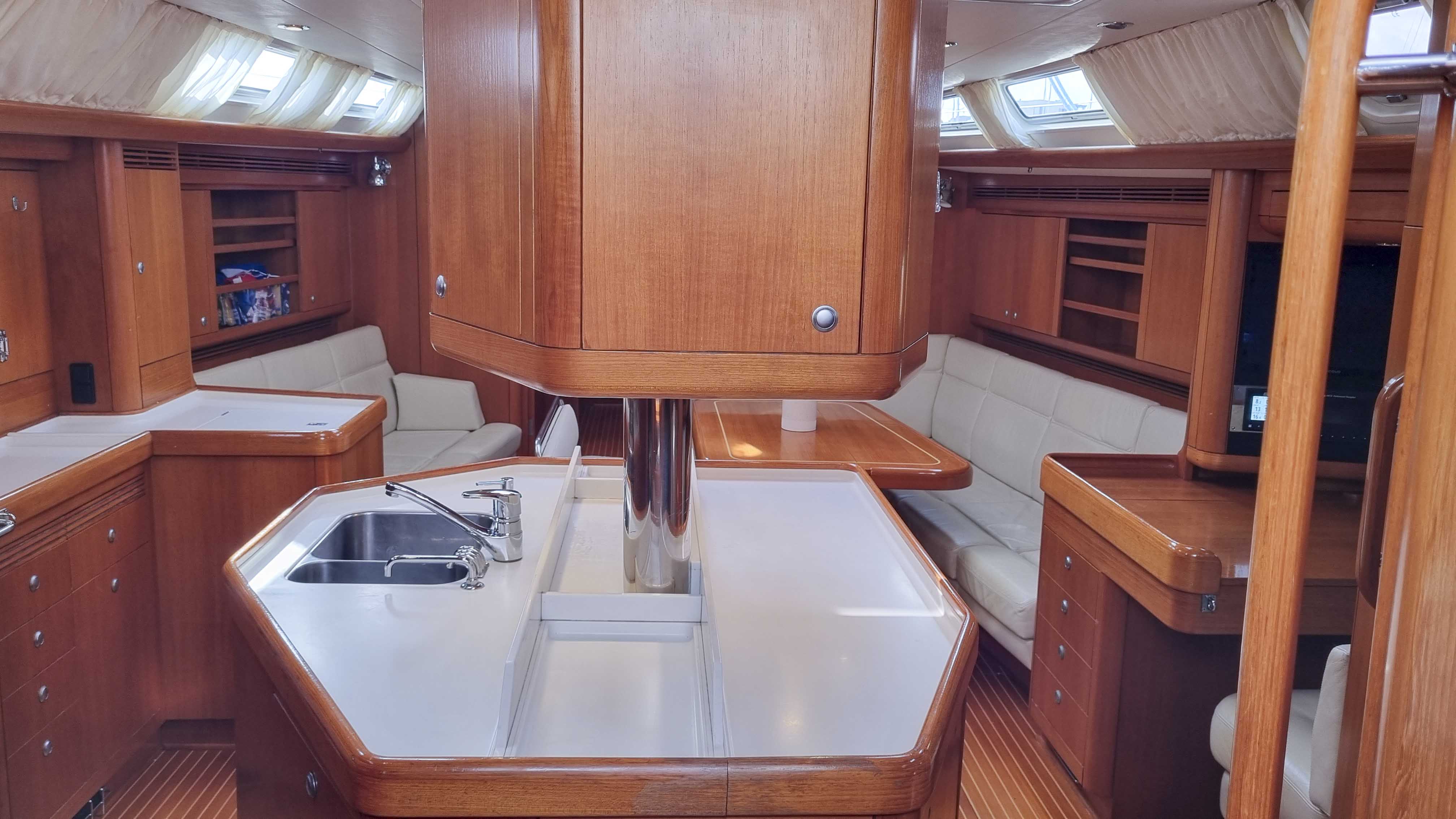

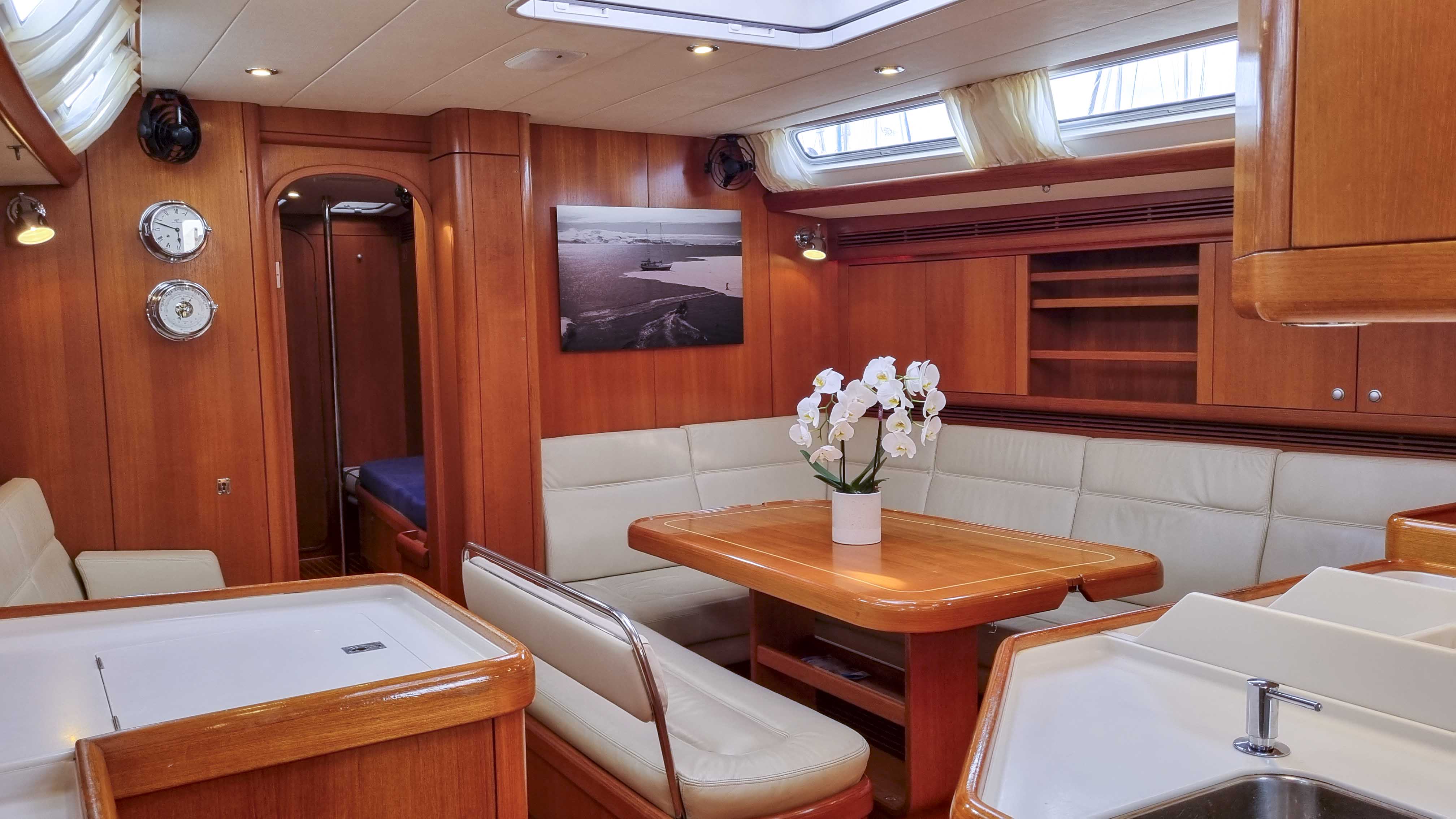

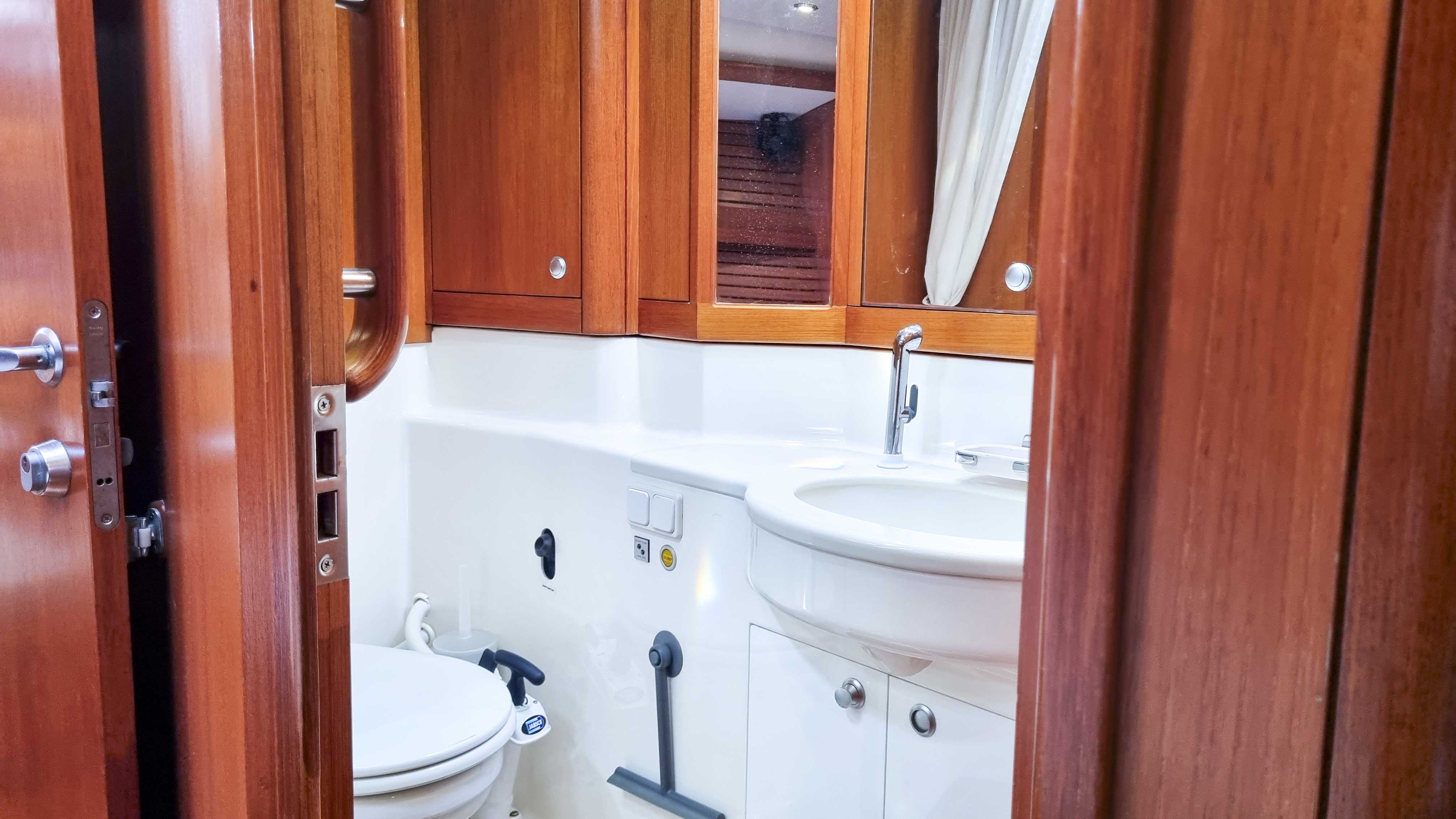

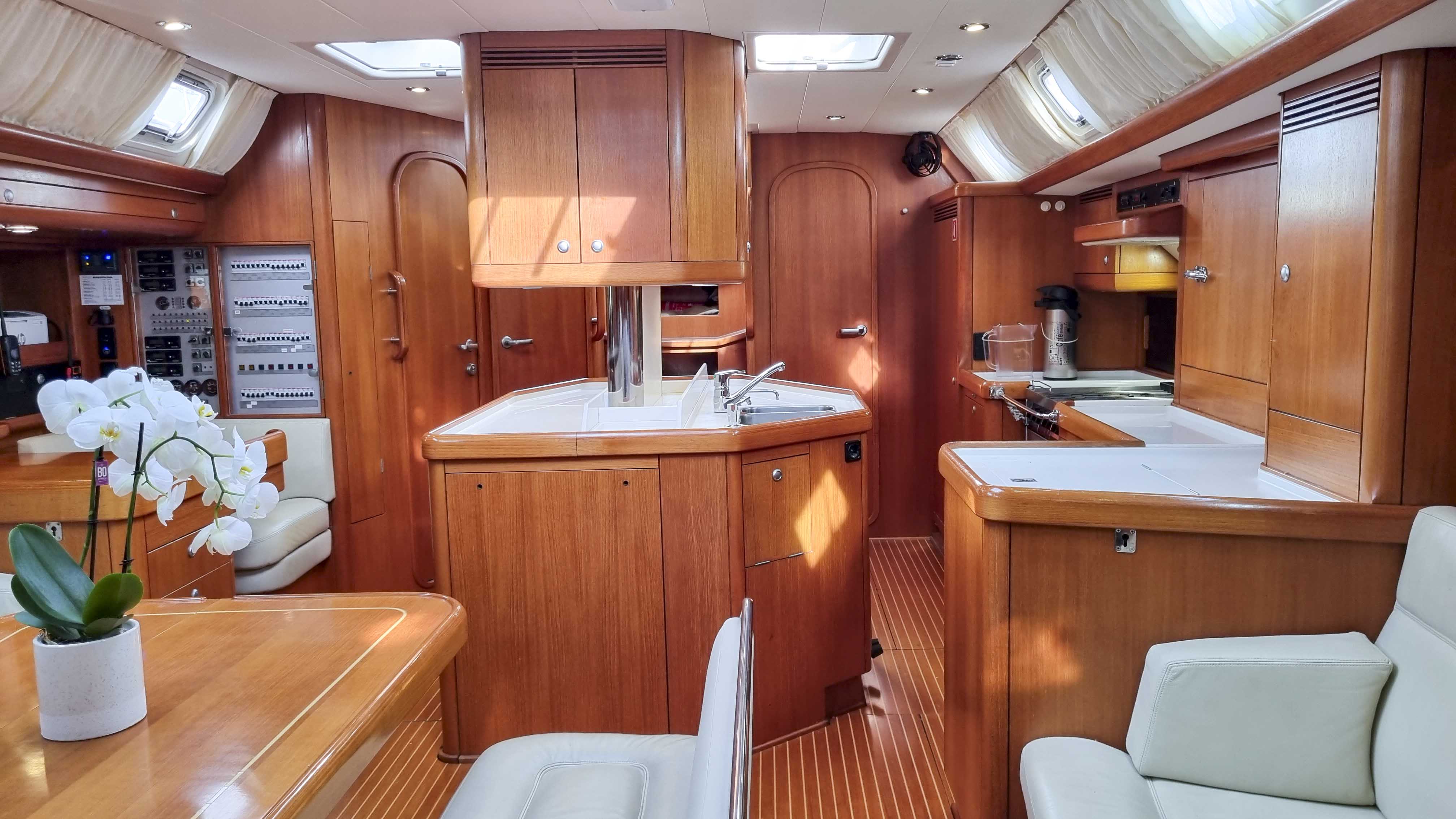

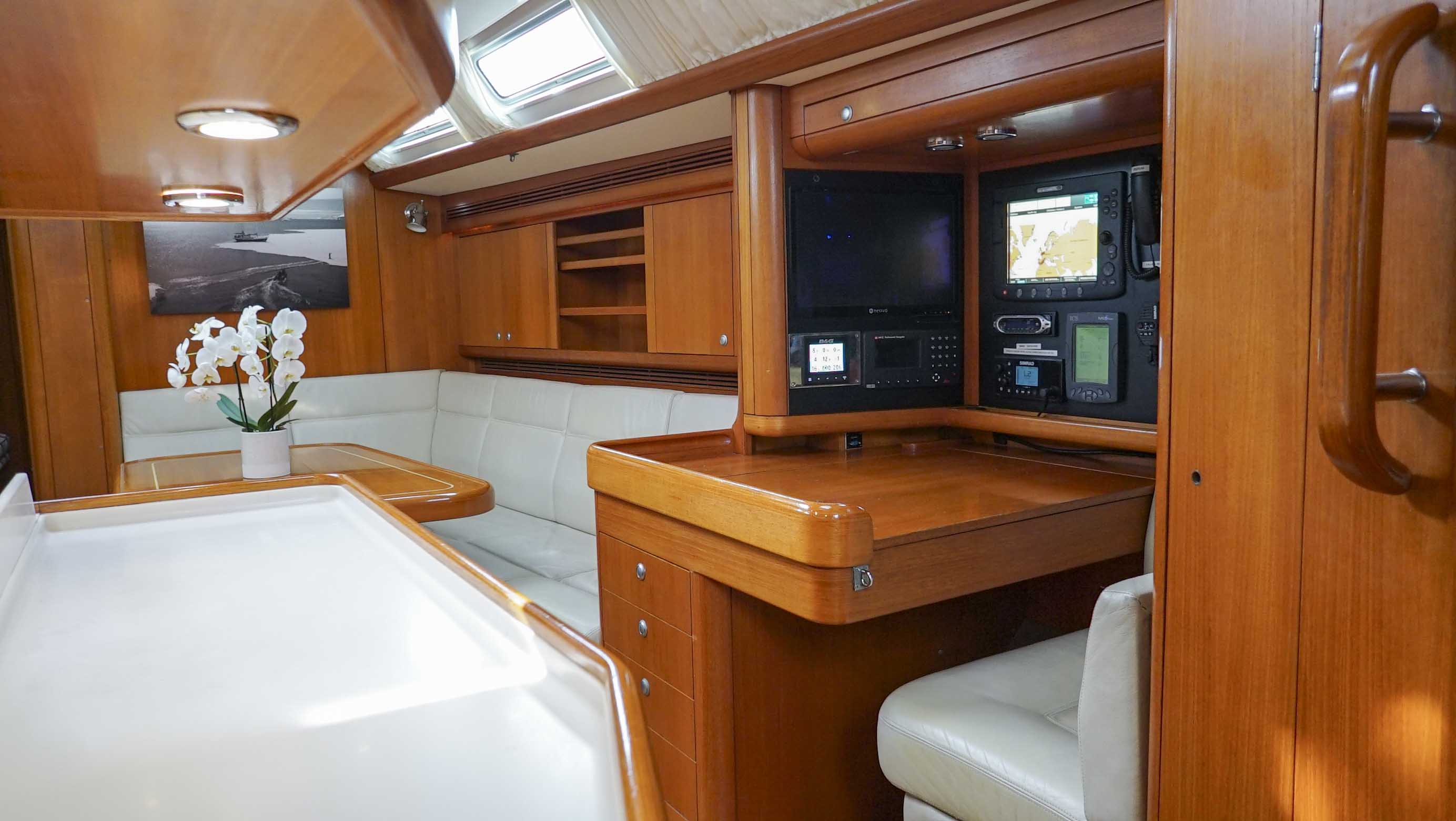

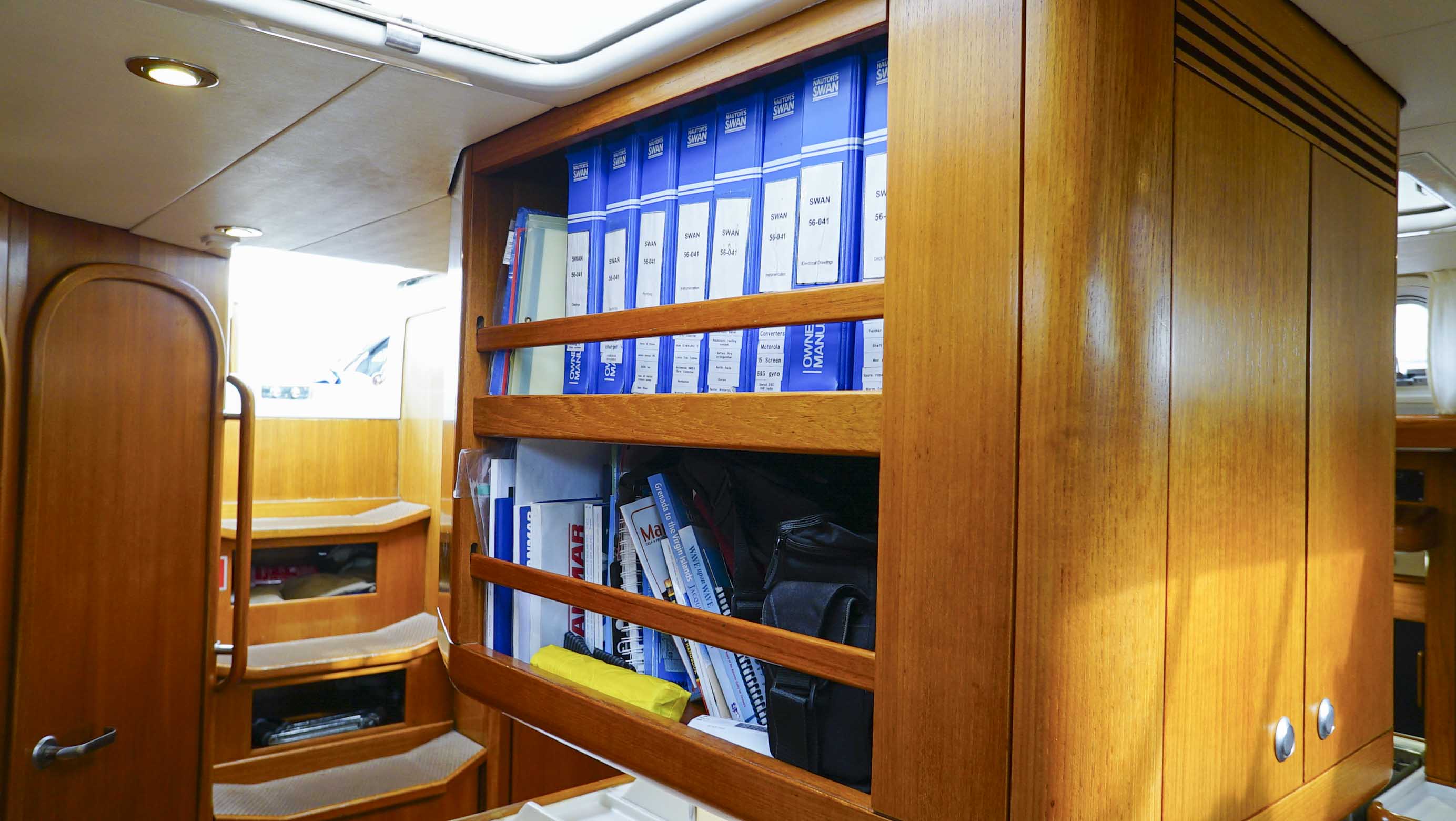

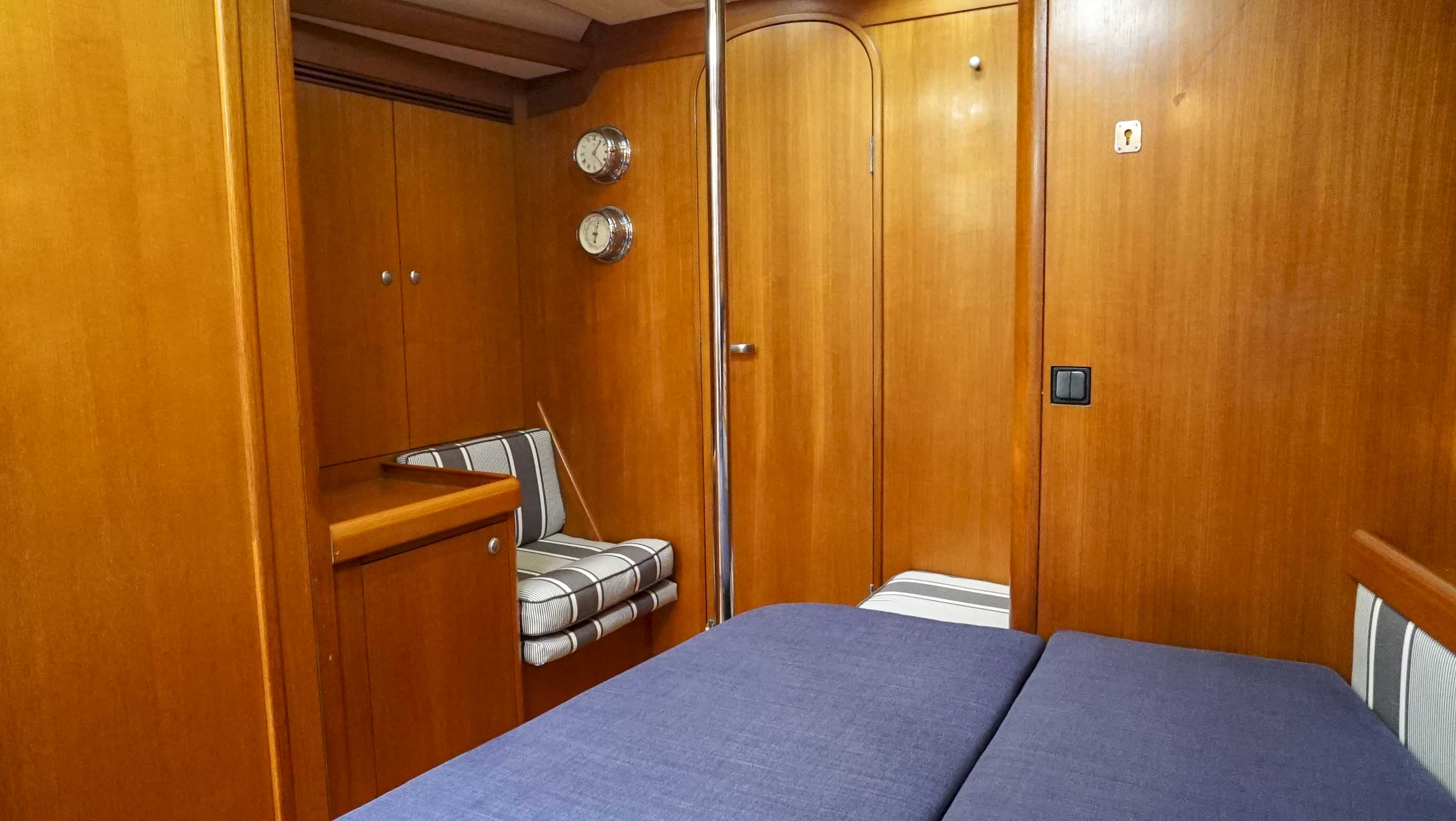

    INTERIOR Honey colour teak with Corian surfaces in heads and galley and teak and holly sole boards, white leather upholstery (2011) 4(5) single berths, 2 double berths in 3 cabins + saloon. Bow storage Aft of the forward watertight bulkhead is a large storage area with ample room for spares, sails and sheets. Doorway to forward cabin. Owner´s cabin The forward “owner” cabin with a double berth to starboard. (In storage is a Pullman berth that can be installed above the double bed). To port is access to a head with a shower. Doorway to saloon. Salon The main salon is large with L shape seating and teak dining table to starboard and a sofa to port. The interior is very light and airy. Aft of this is a large navigation station and an island storage / galley area with main engine under (access from 4 sides). The island provides good support for anybody working inside when underway even in rough seas. Aft of the island is the companionway under which is the generator. Also to starboard is a second head and shower. PB aft cabin A twin cabin with a separate beds, lots of stowage. SB aft cabin A double cabin with a double bed (with access to the aft head and shower), lots of stowage. 2 x head Owner´s head with the shower, manual salt or freshwater flushing (plumbing renewed 2022), aft head with a shower; showers with sump tanks and pump-out (electric + manual). • Lightweight floorboards laid with teak veneer. • Floor cover for racing. • Removable lightweight white ceiling panels. • Blinds for the owner cabin and saloon hatches with mosquito screens. Mosquito screens for saloon and aft cabin side portlights. • Reading light for each berth (LED 2022) • All lights changed to LED (2022)
GALLEY
    Hot water
    yes
    Refrigerator
    yes
    Water system
    yes
    Galley notes

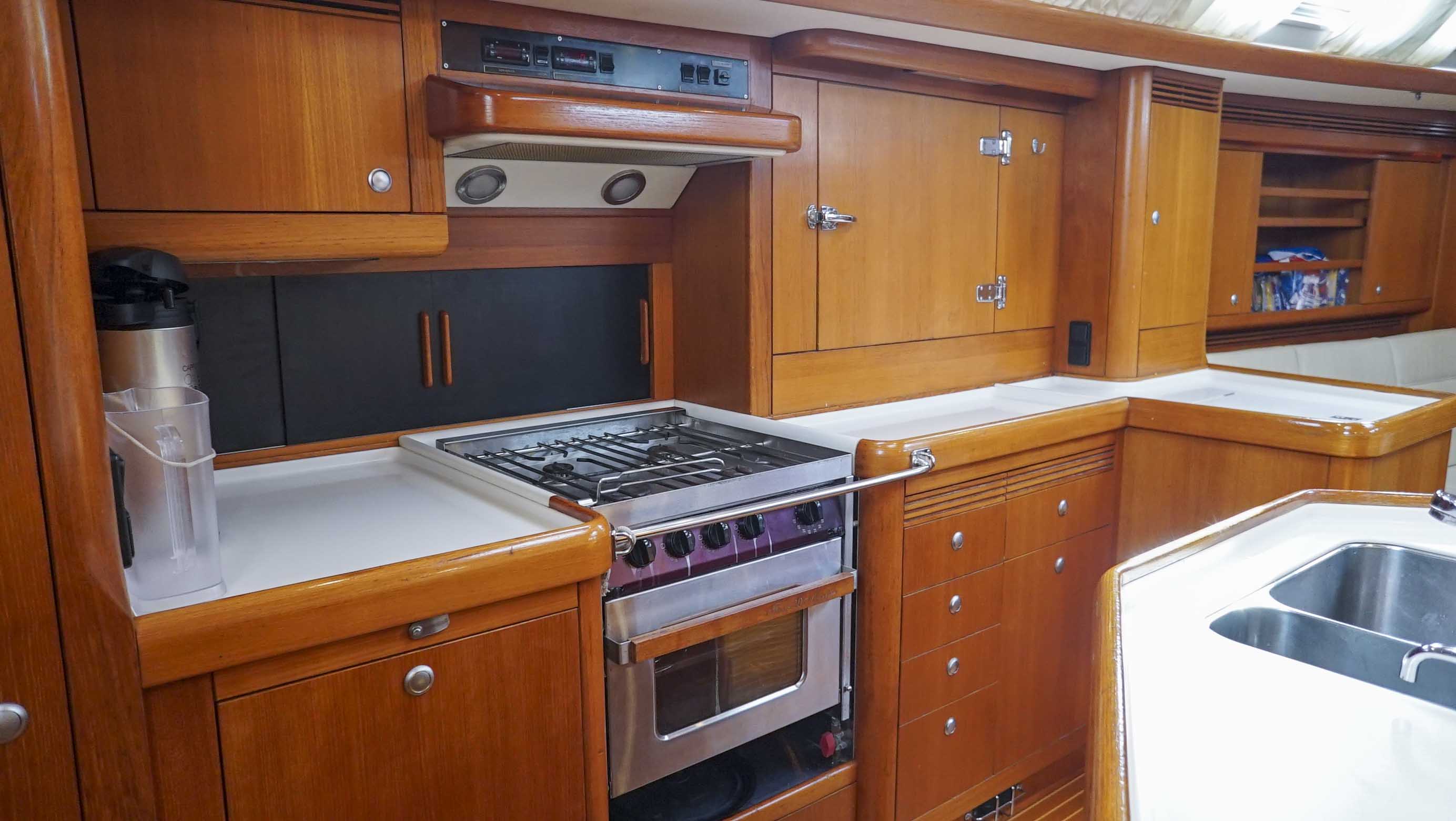

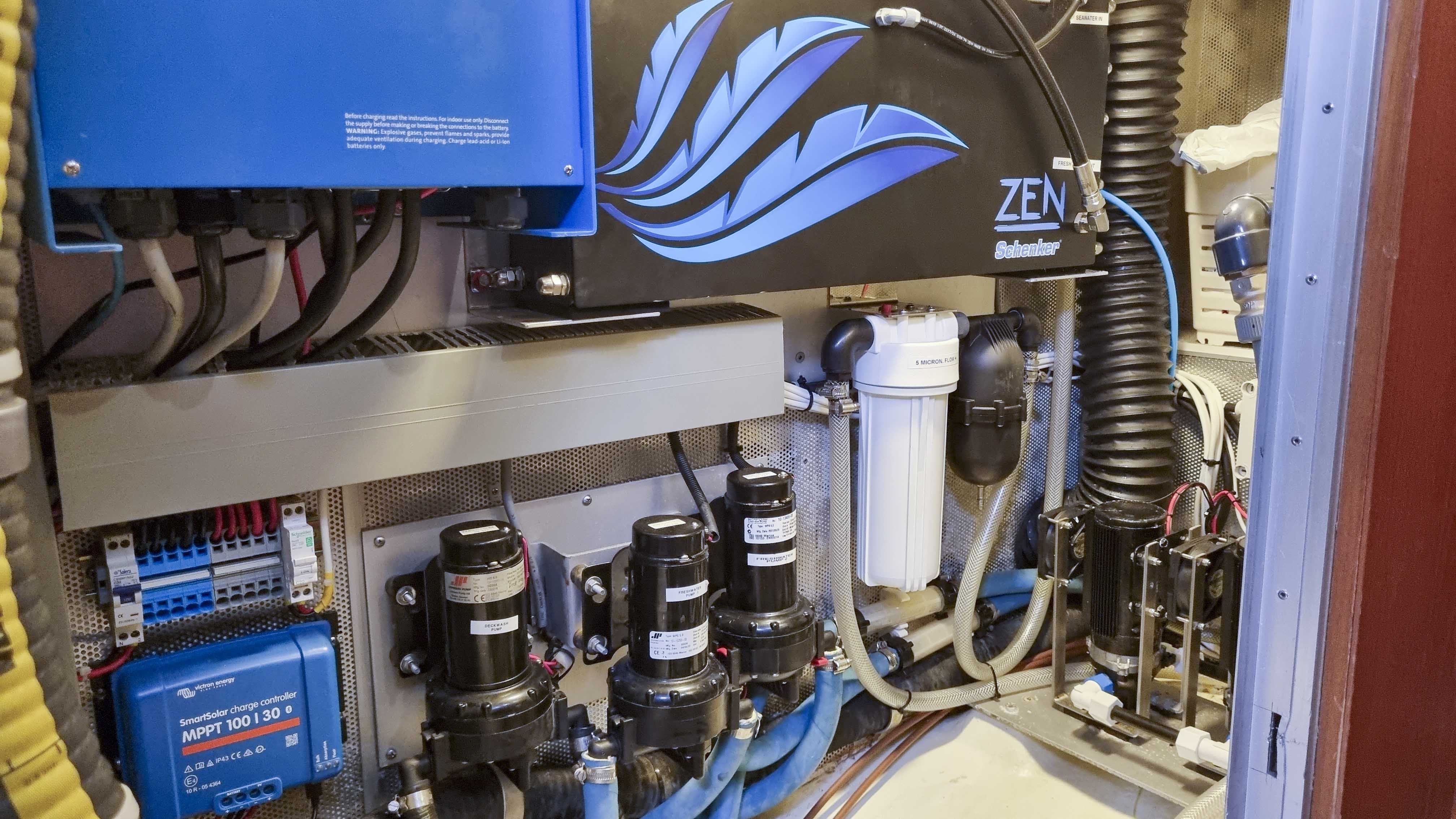

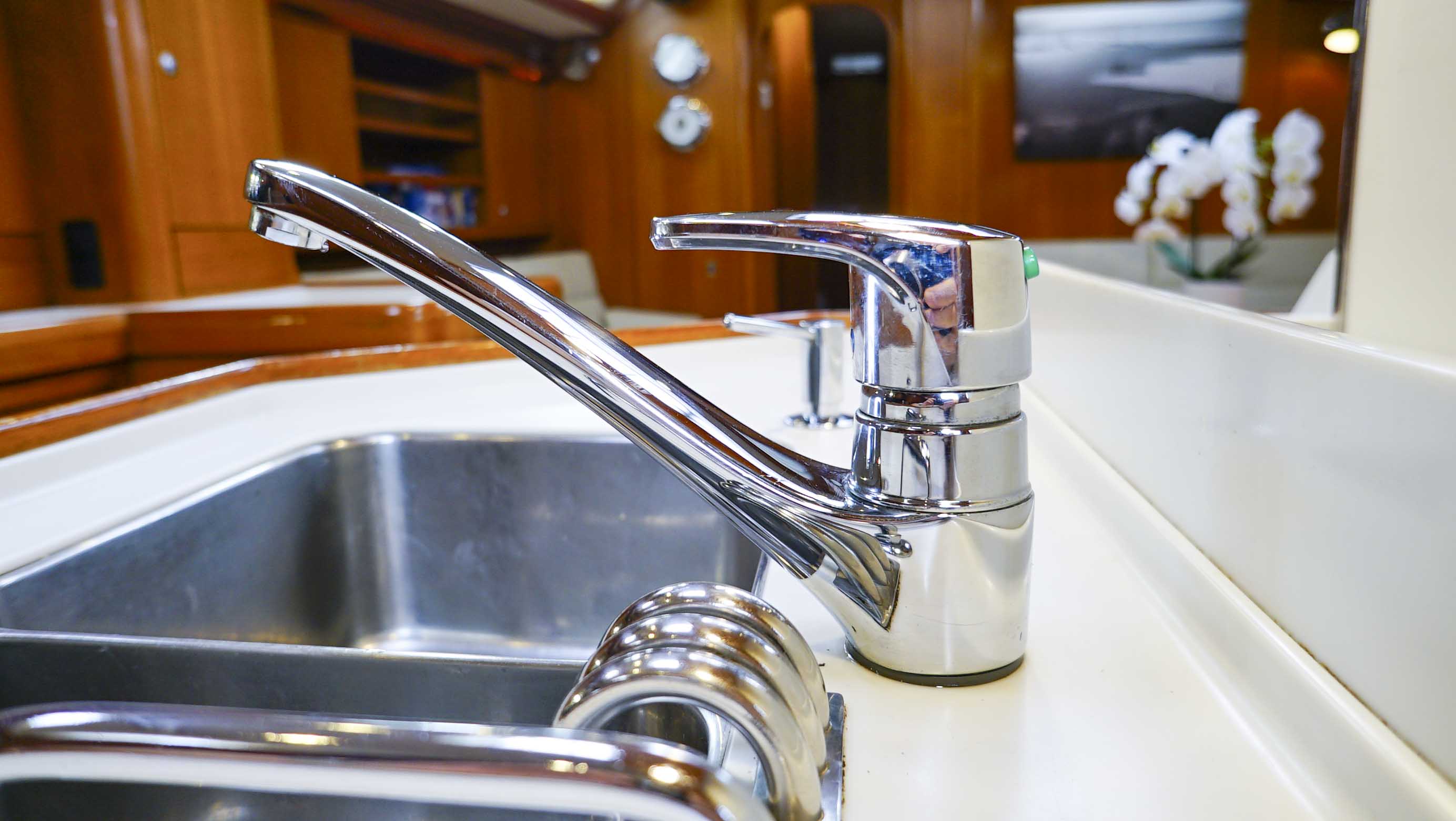

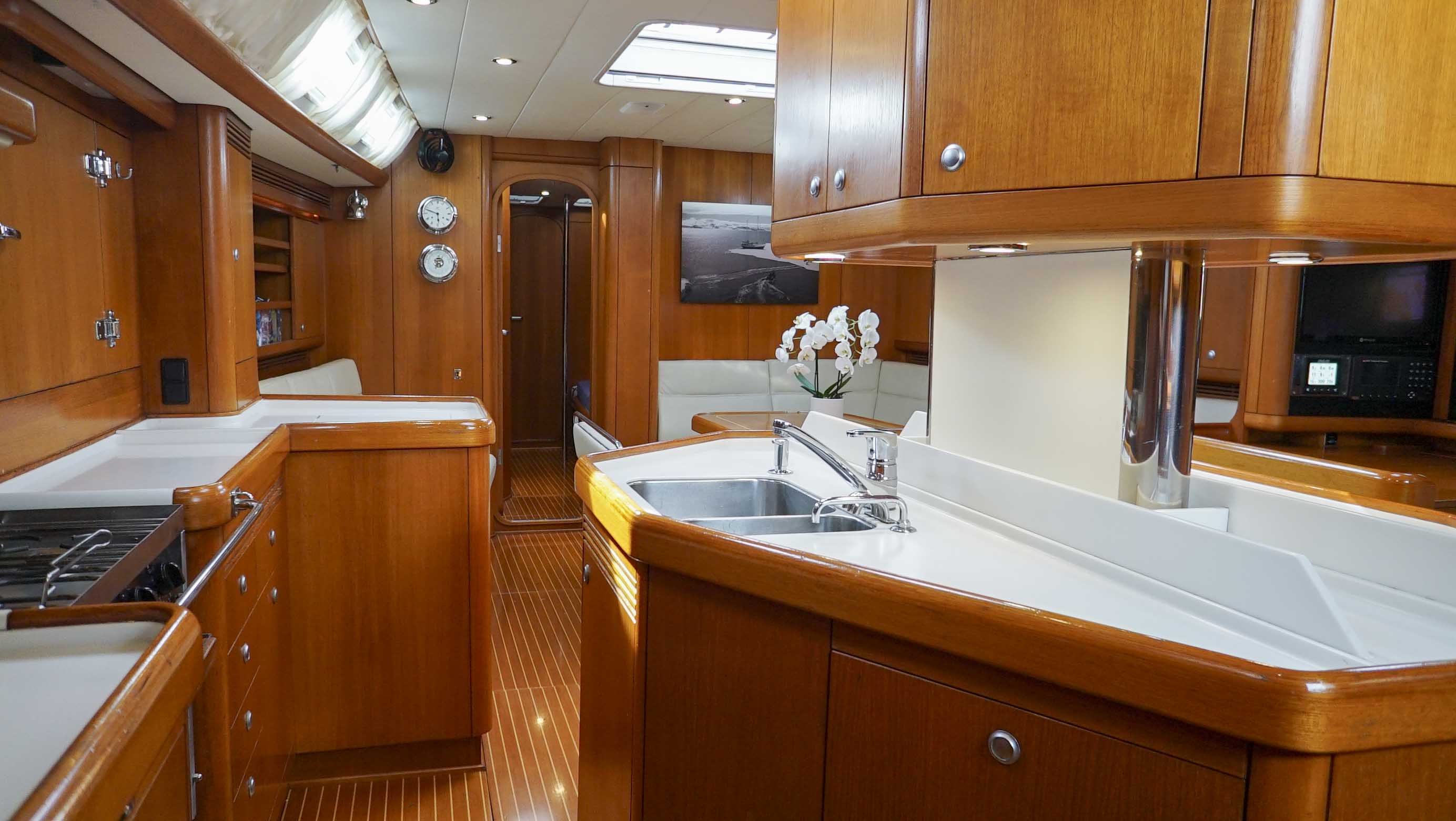

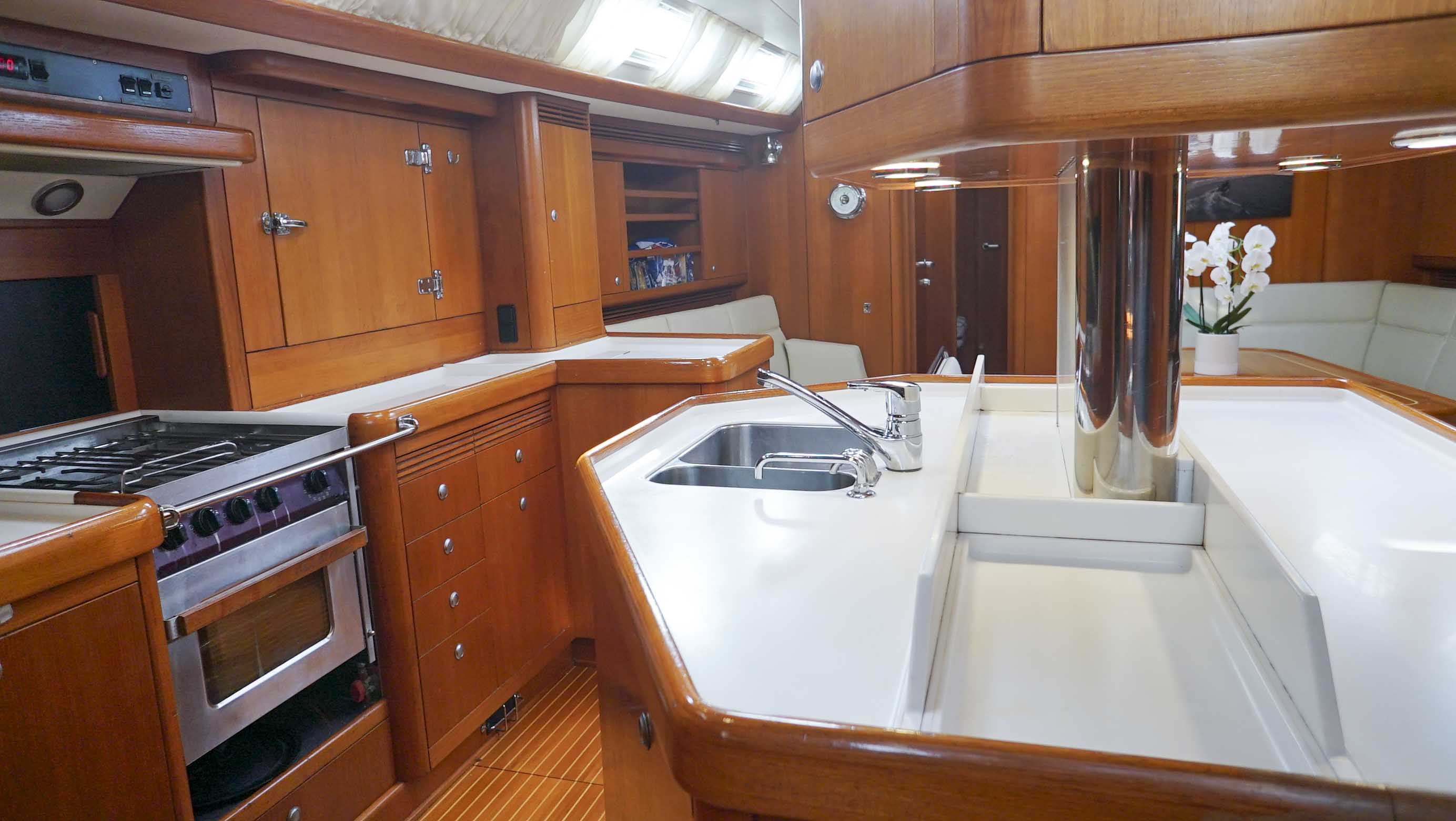

    Galley Galley to port with 4 burner Force 10 gas oven and a cooking hood. Refrigerator on the wall and a refrigerator/fridge integrated to the working surface with temperature displays and controls on the cooking hood (refrigerator units fully serviced 2017). • Refrigerator: 150 litres • Deep freeze: 135 litres • Pressurized hot and cold water o Water heated via engine cooling or AC element. o Electrical (with stand-by spare pump)/manual water pressure system. Main pump replaced 2022. • Water heating system: 220v 150 liter (2015) • Watermaker: Schenker Zen 50 24V (2022) (50 liters/hour) • Bilge pumps: auto in sump, 2 x manual: in galley area and cockpit. • Deck wash • Heating: Eberspacher 37W 24V 3 fan unit.
ELECTRICAL
    Batteries
    24V 522 Ah (2022)
    Battery charger
    Shore power + Mastervolt Mass 24V 80A
    Generator
    Fischer Panda 10000 PMS 8.0KW/9.4KVA
    Electrical notes

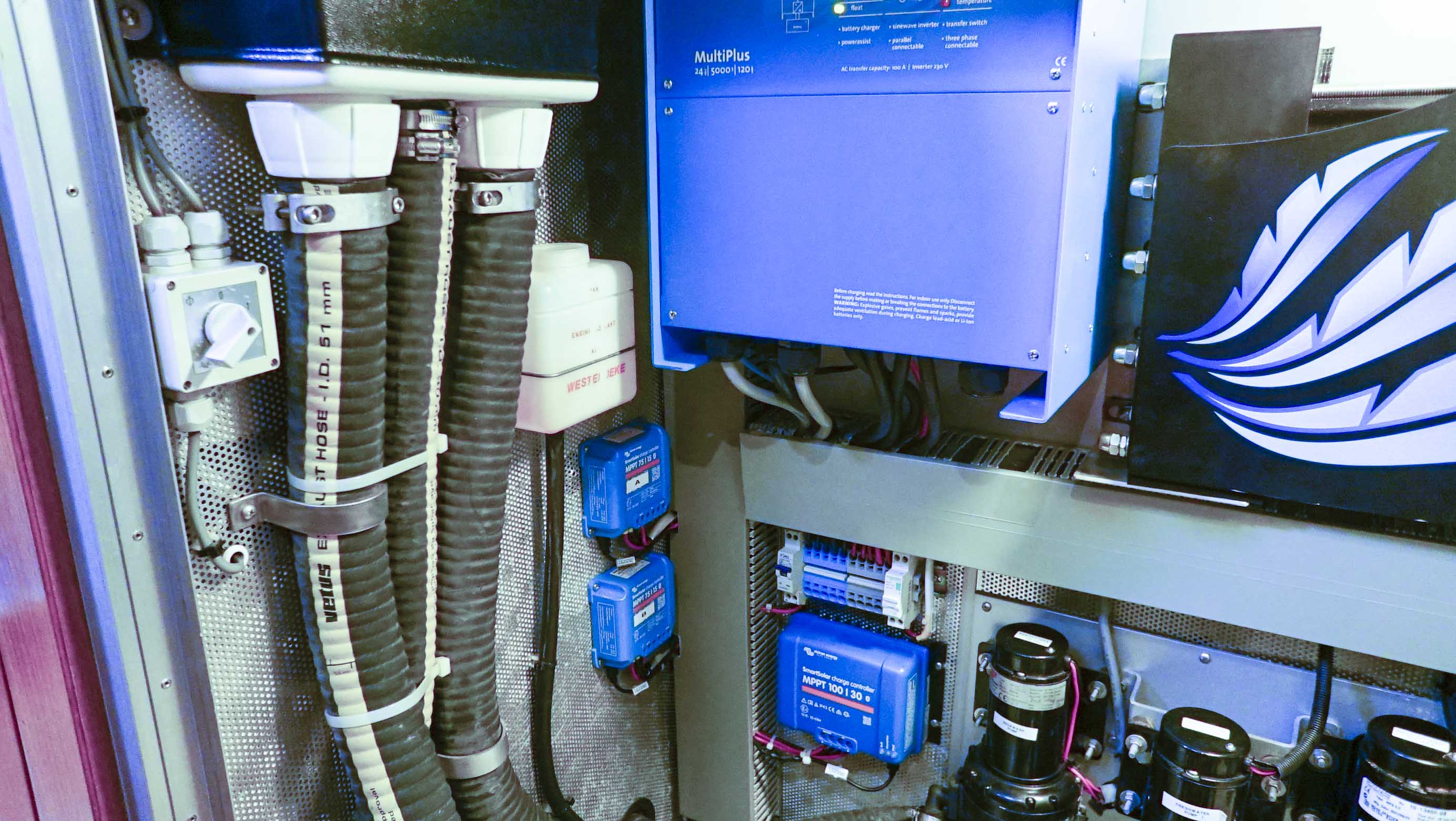

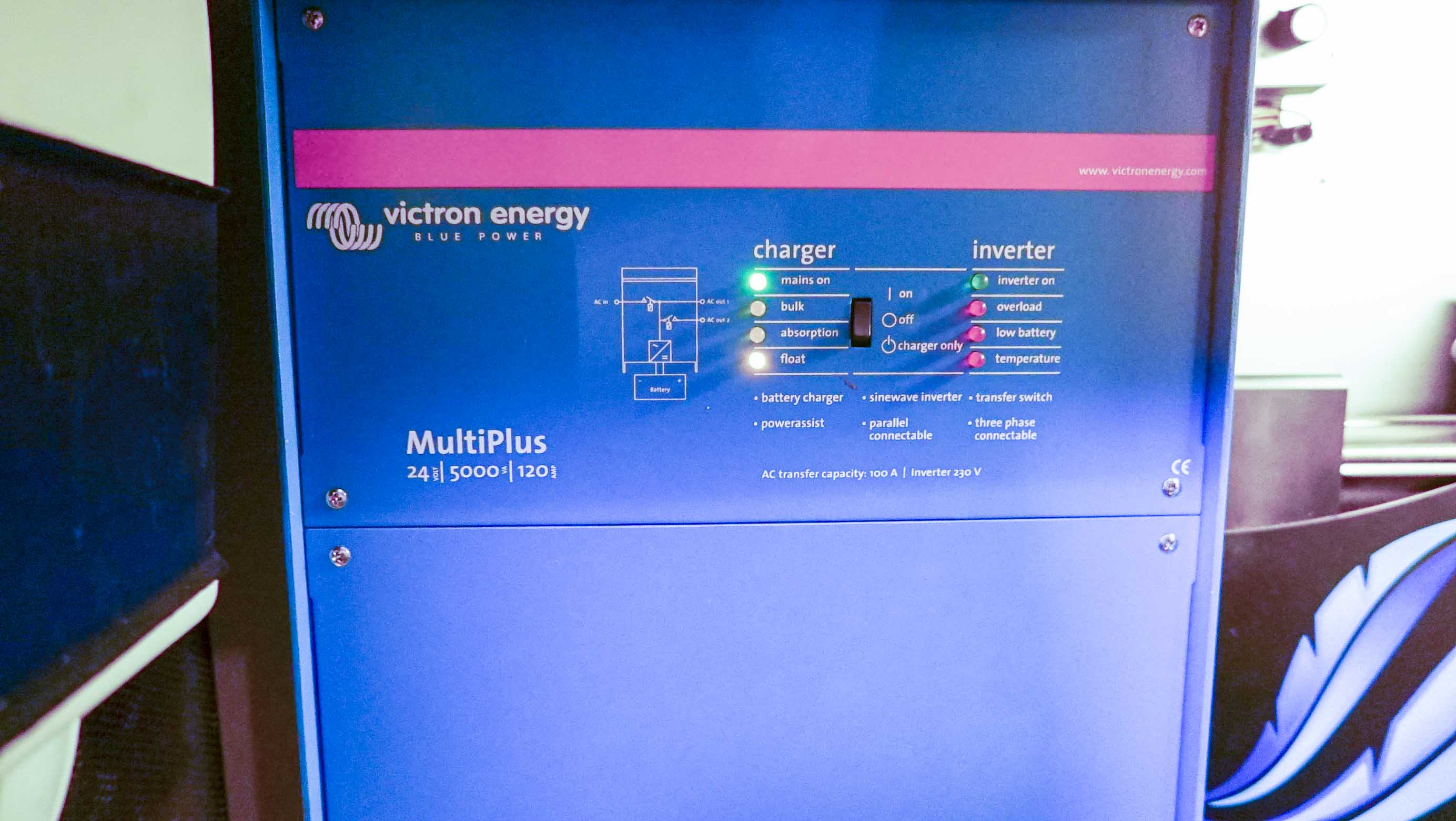

    ELECTRICAL SYSTEM • 24 V DC system • 230 V AC system • Service batteries 24V 522 Ah (2022) • Starter battery engine and generator (2019) • Mastervolt alternator 80A built in regulator (2015) • Victron Multiplus Inverter/Charger 5000 VA • Westerbeke 50hz generator, 6 kw (2003, new diesel engine 2023) DECK AND NAVIGATION LIGHTS • Mast-head tricolor and anchor light (LED 2022) • Spreader lights down (LED 2022) • Front-deck flood light down • Steaming light • Navigation lights on pullpit (LED 2023) and stern light on pushpit • Windex-light (2022) • Compass-light
SPARS & RIGGING
    Sails
    • Main sail: OneSails Full-batten Triradial PalmaUltra (August 2023) • Furling Yankee 100%: Horizon Sails Custom Crosscut Dimension Polyant® Dacron (2023) • Furling Genoa 3 95%: North Sails DL • Furling Inner-staysail: Horizon Sails Custom Crosscut Dimension Polyant® Dacron (2023) • Spinnaker: WB-Sails 230 m² (2022) • Gennaker: North Sails with snuffer
    Rigging
    Rod
    Spars and rigging notes

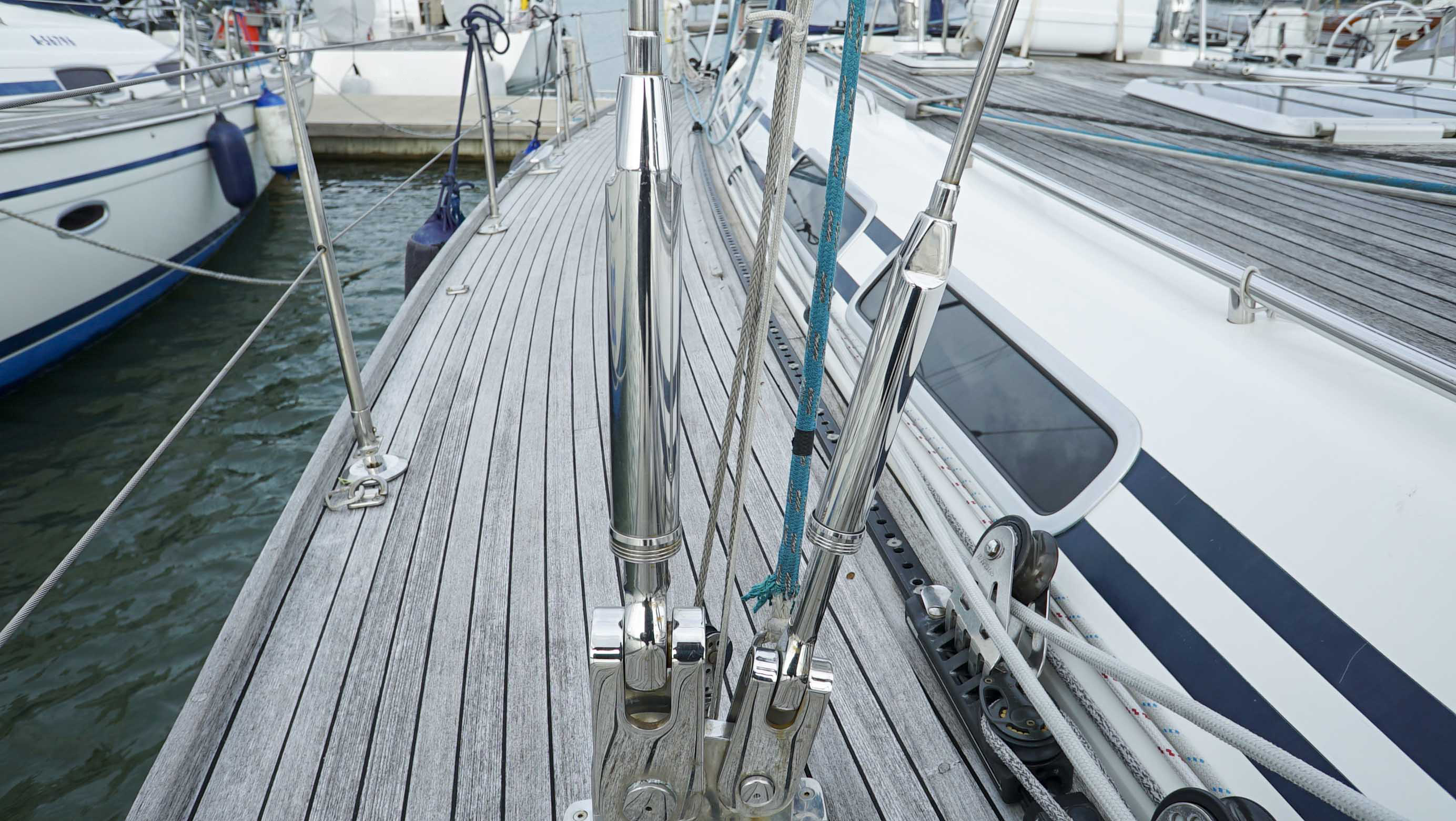

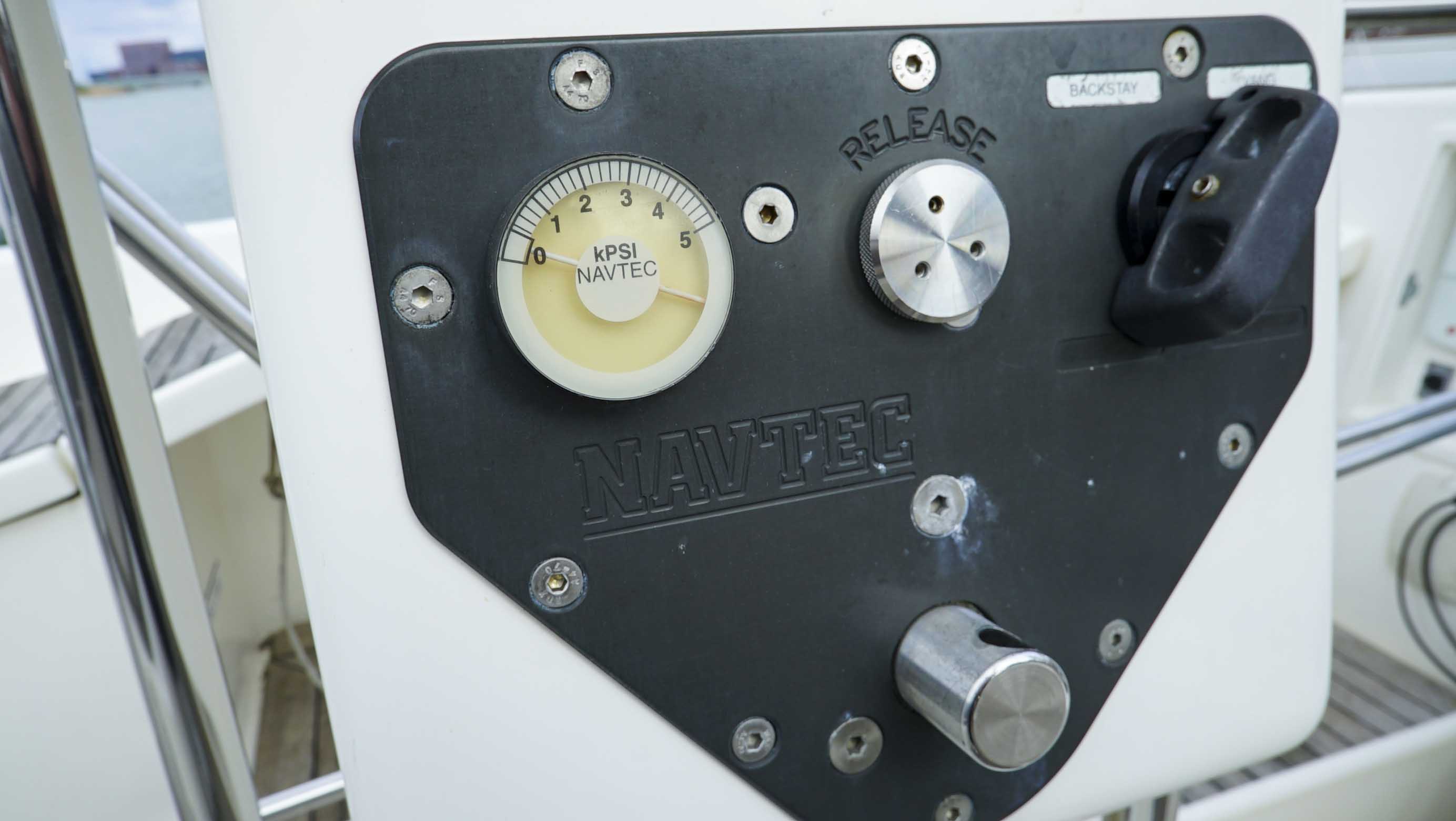

    • Rig: cutter headed sloop, triple spreader mast, with bowsprit for asymmetric. • Offshore Spars aluminium, keel stepped mast • Standing rigging: New BSI discontinuous rod rigging (2022), Harken blocks. • Single lowers, runners & checkstays, babystay, • Navtec Hydraulic tensioner for backstay and boomvang • Spinnaker guy blocks x 2, spinnaker sheet blocks x 2 • Full running rigging • IG = 22.60m 74.15 ft fore triangle 70.8m2 762.6 sq.ft • J = 6.27m 20.57 ft mainsail 67.7 m2 728.7 sq.ft • P = 20.30m 66.60 ft 150% genoa 106.3m2 1144 sq.ft • E = 6.67m 21.88 ft spinnaker 255 m2 2745 sq.ft • Mainsail cover (2019) • Lazybag (2022)
DECK EQUIPMENT
    Deck hardware
    LEWMAR
    Winches
    Lewmar
    Deck equipment notes

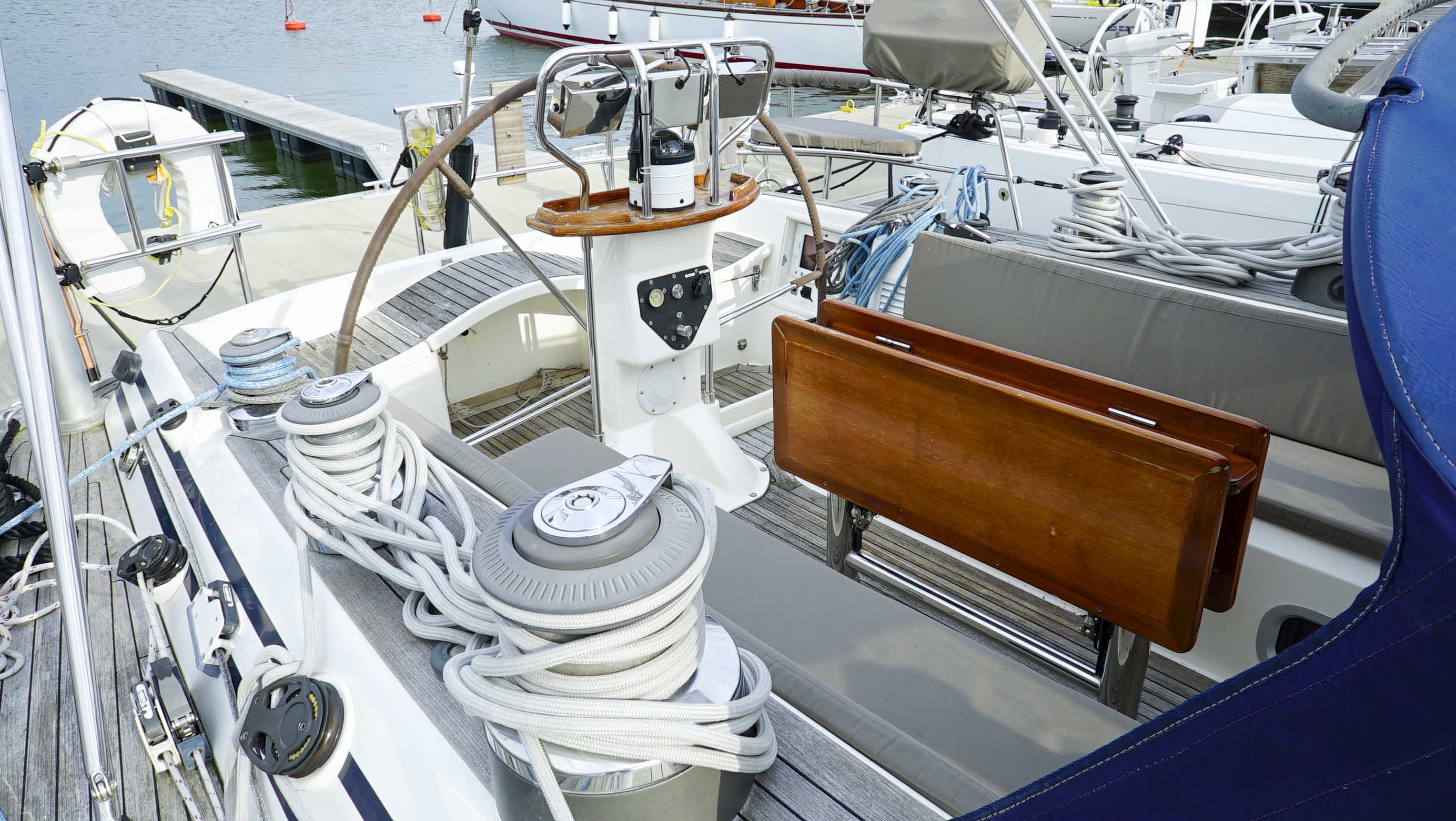

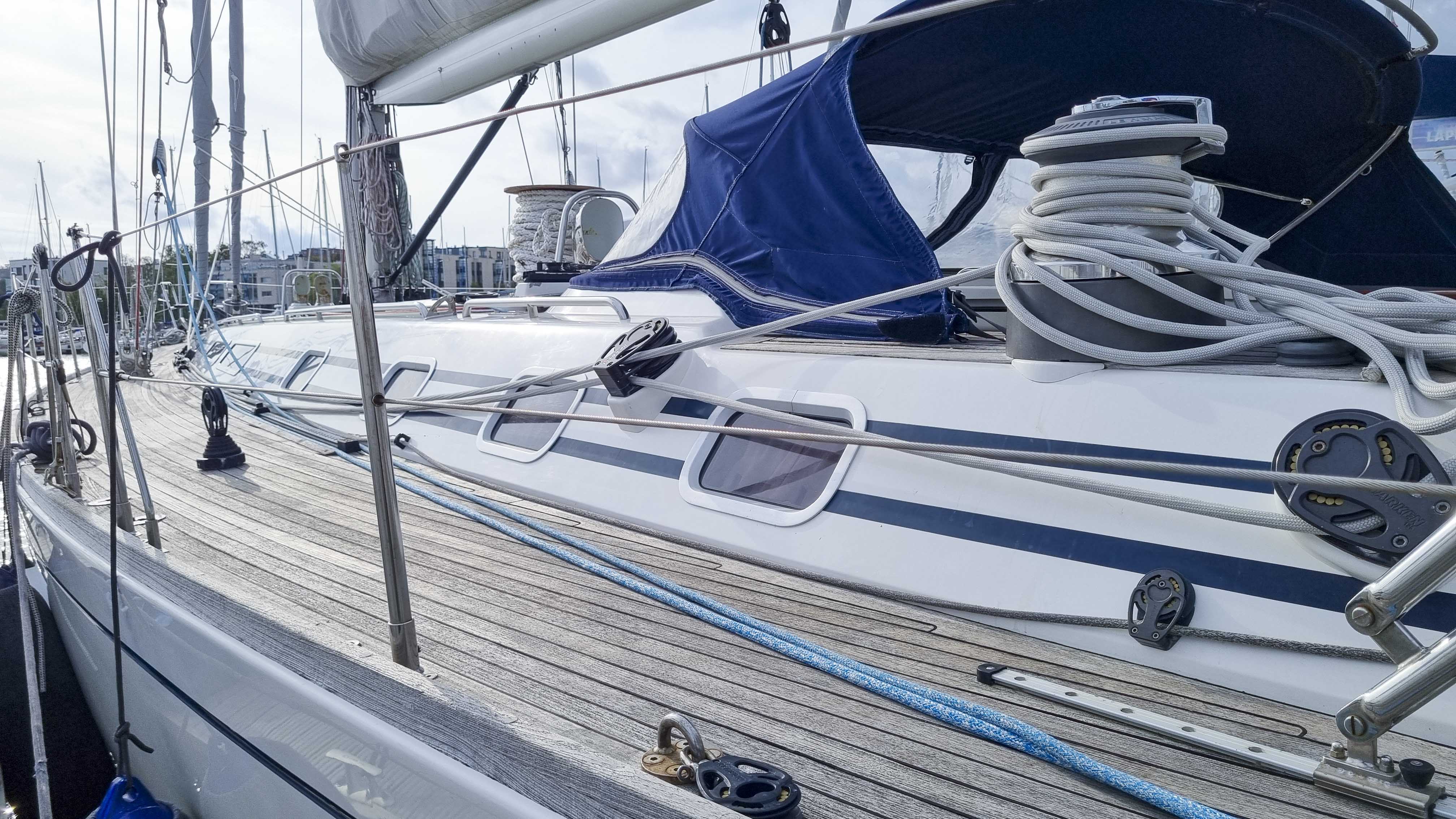

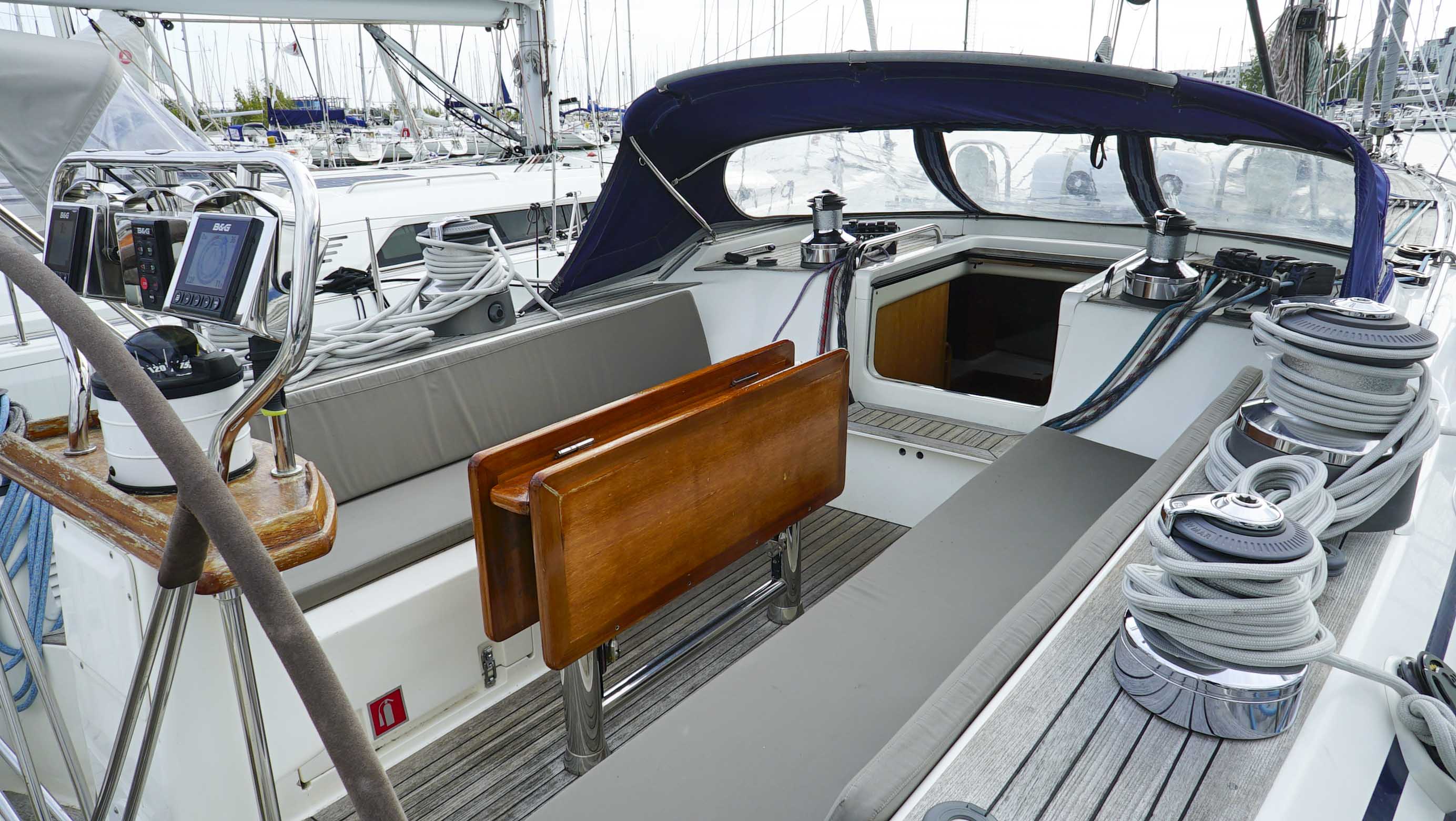

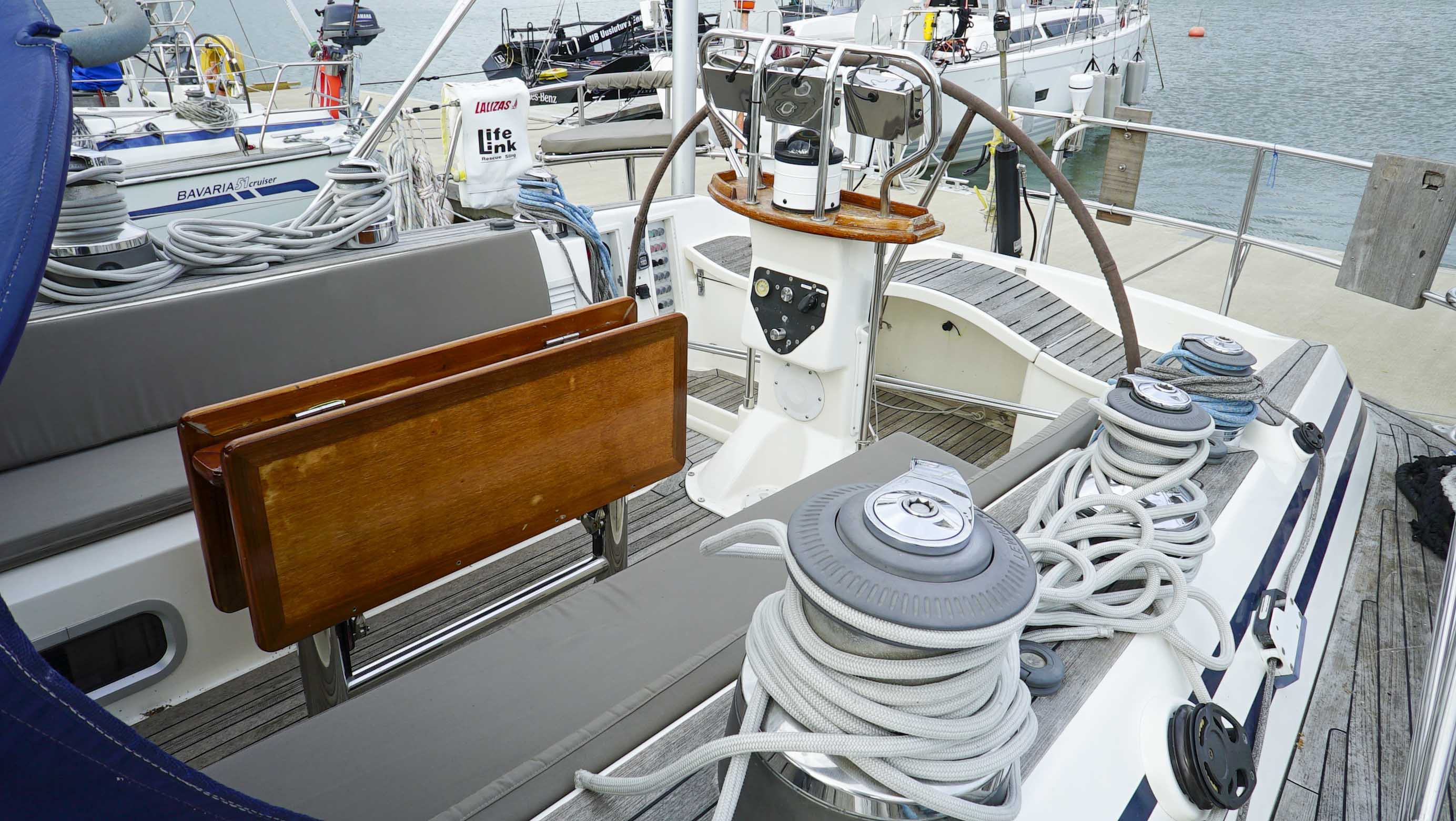

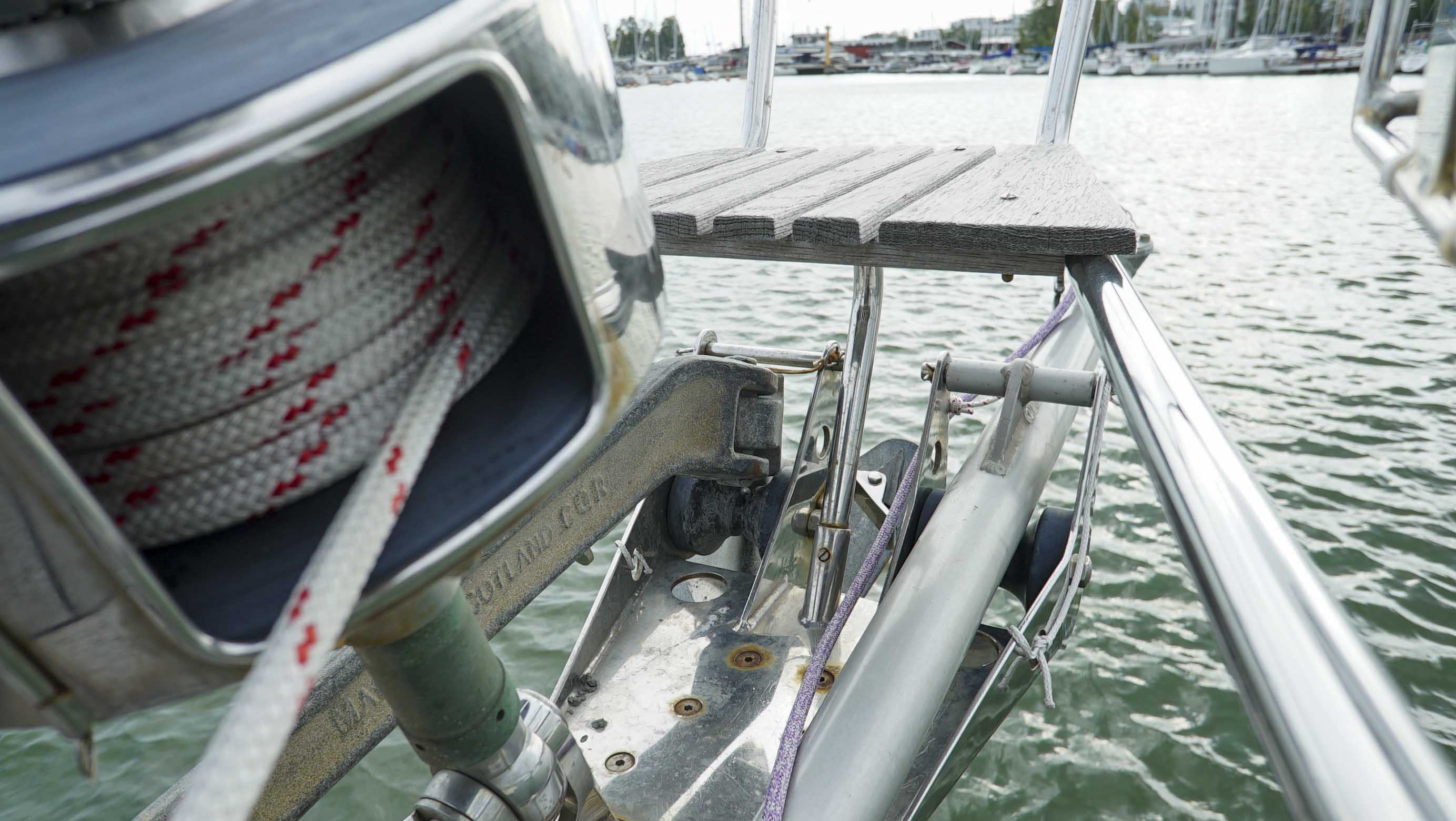

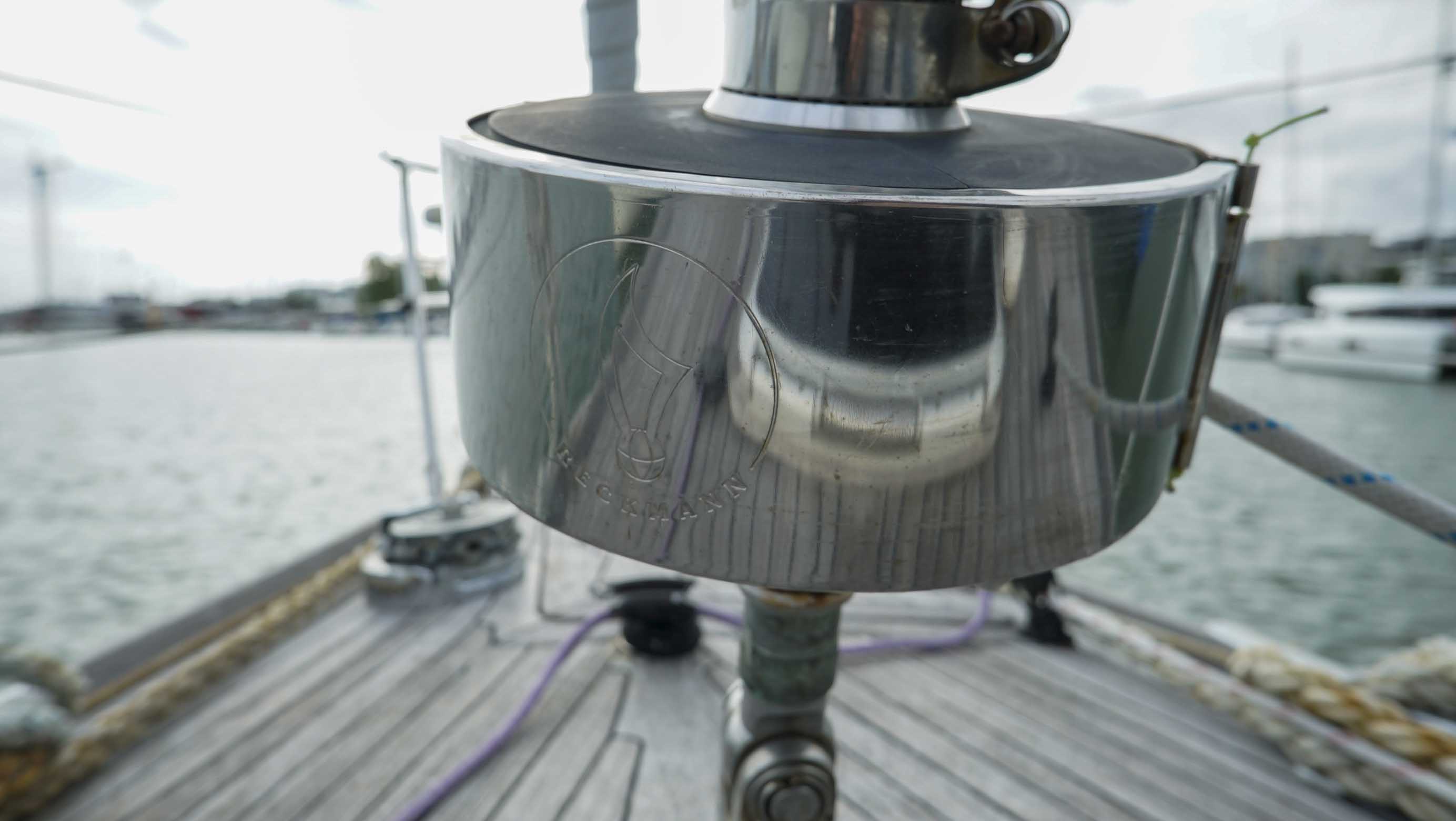

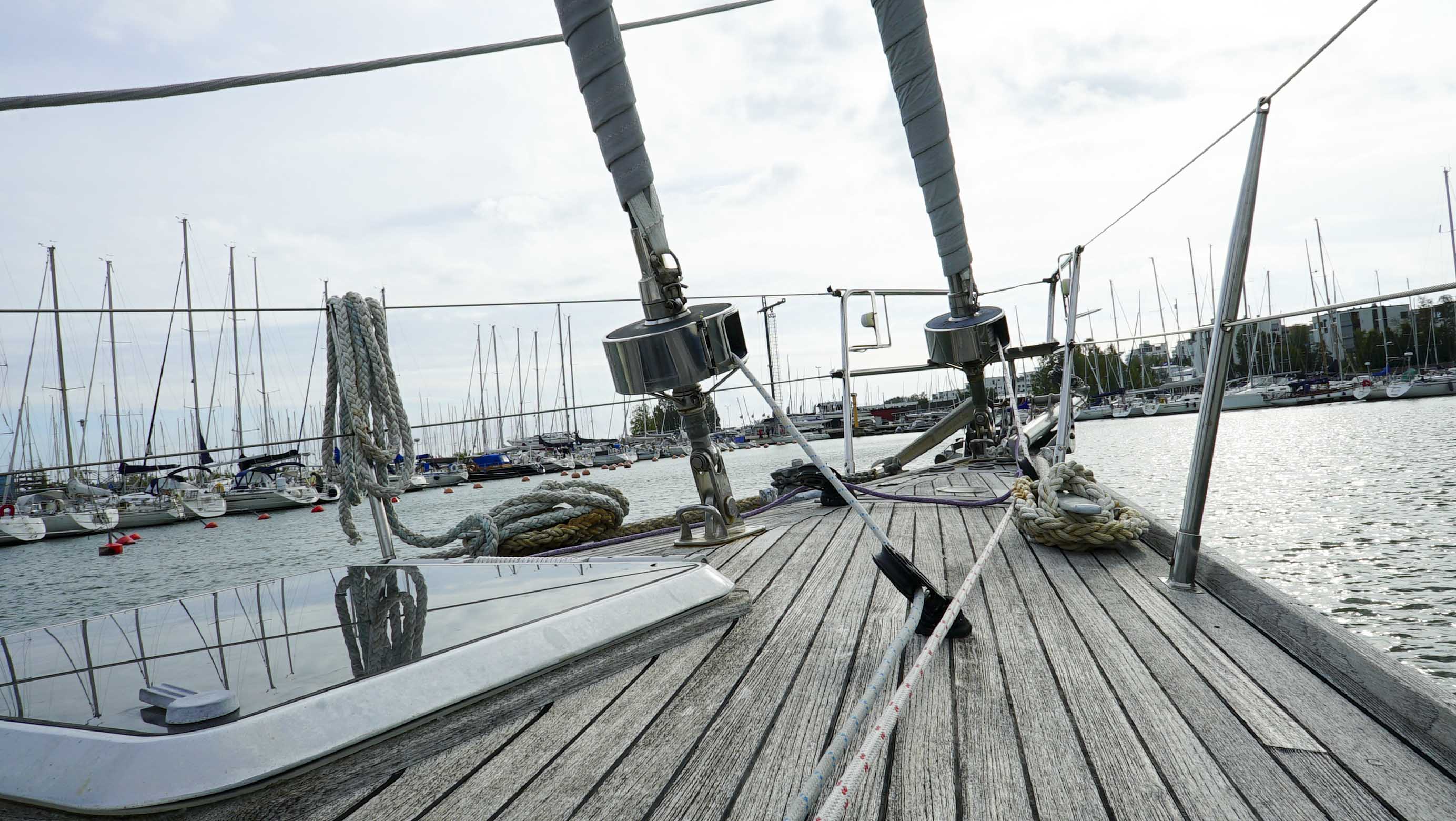

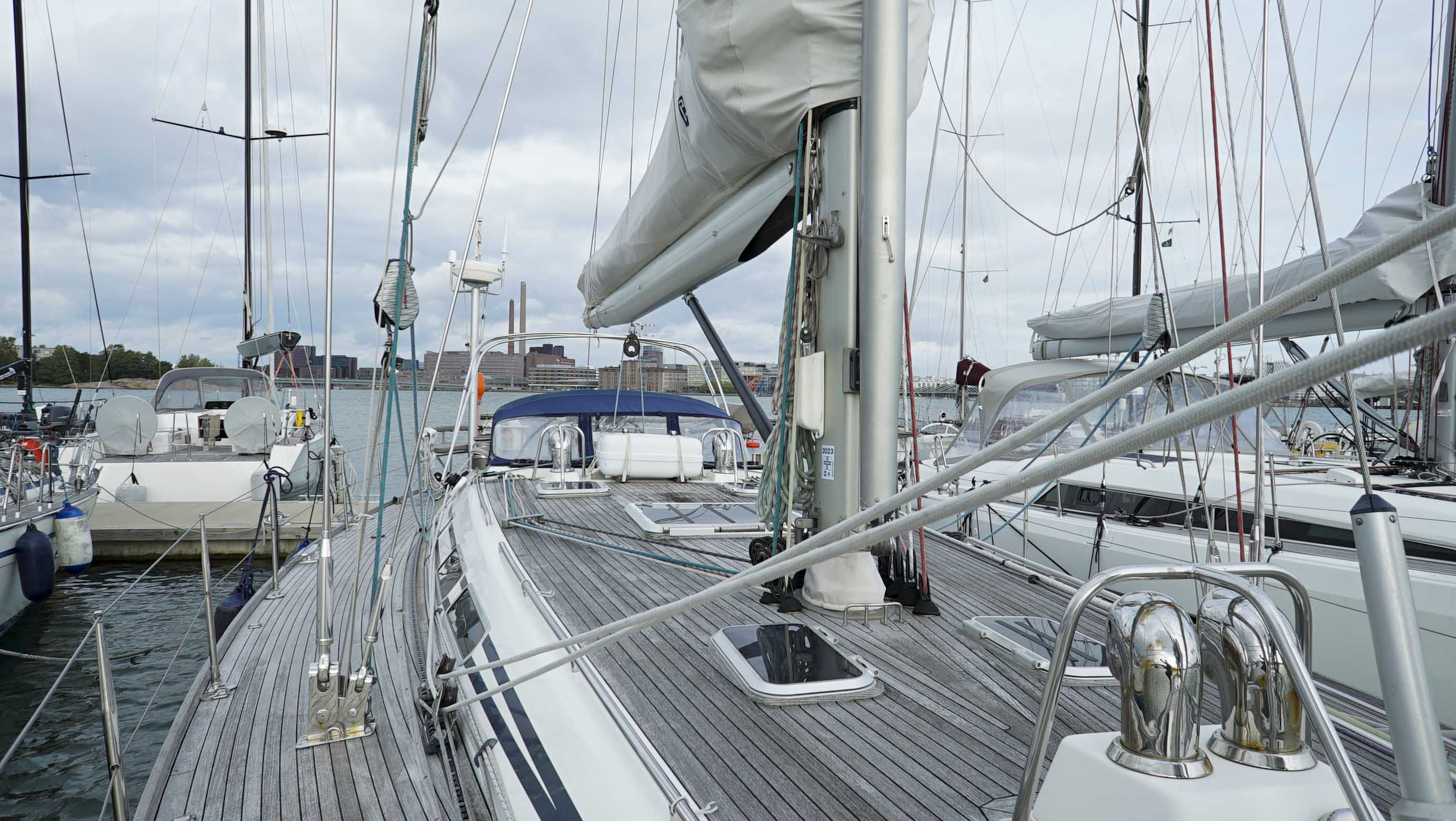

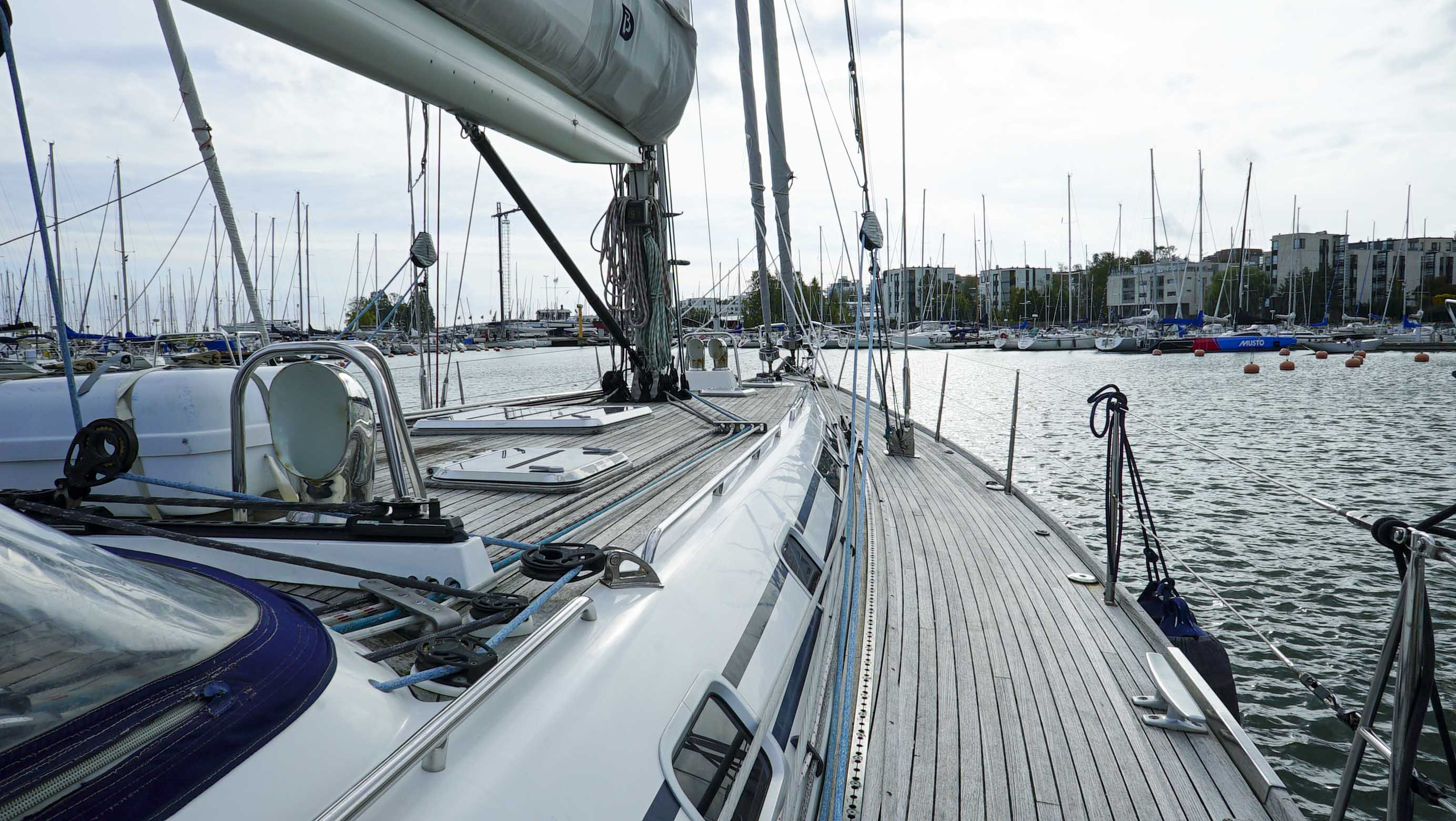

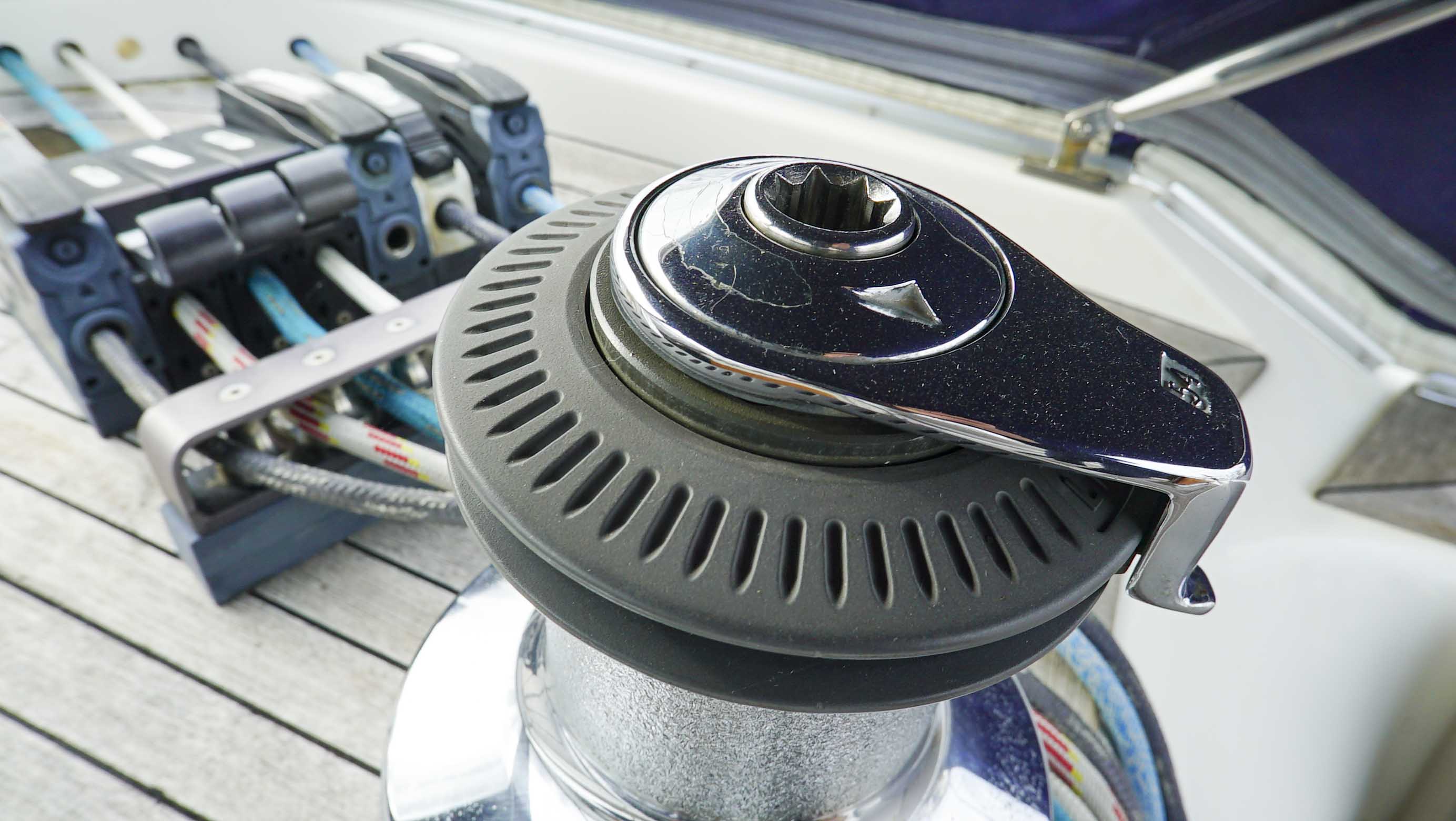

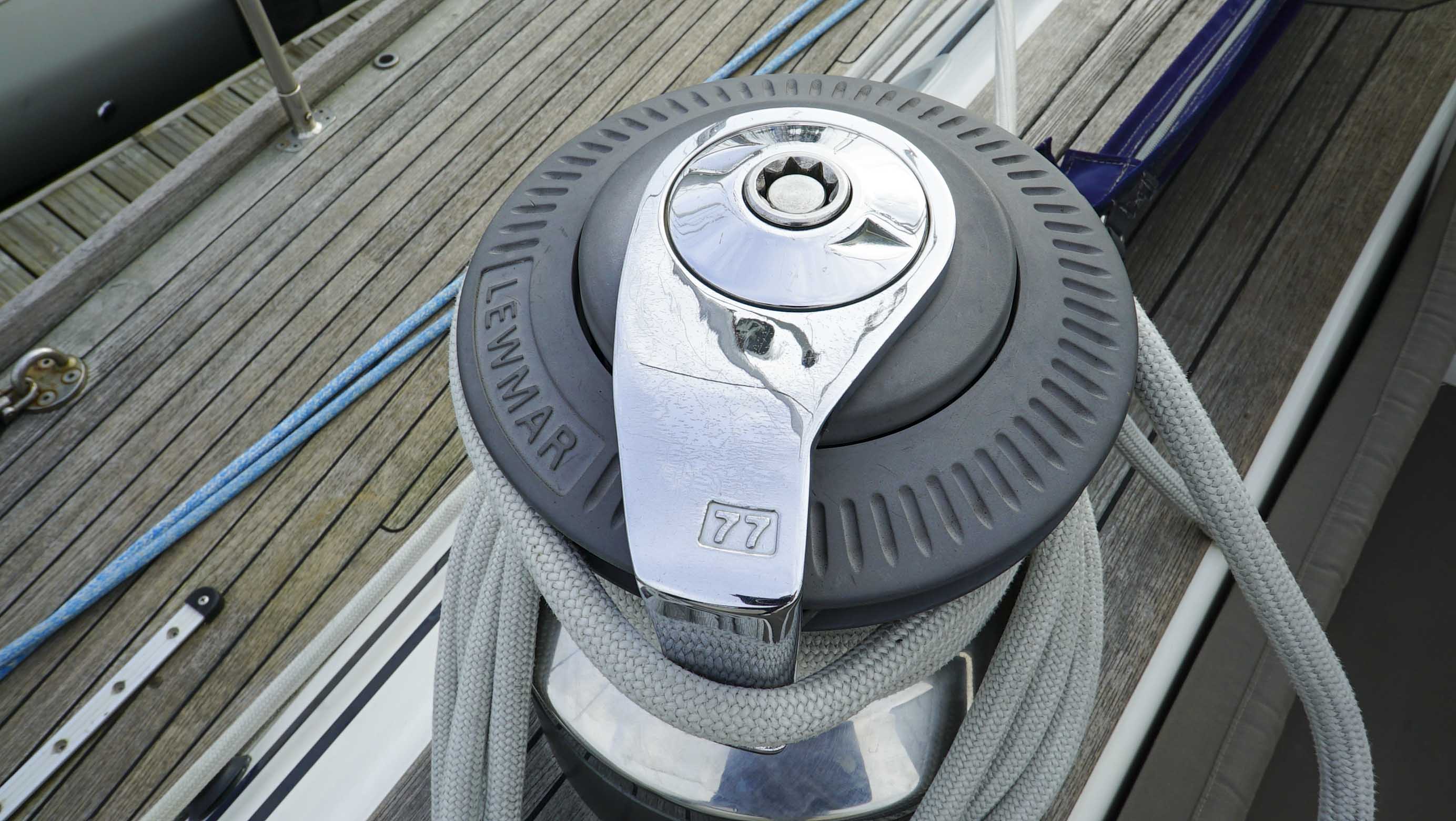

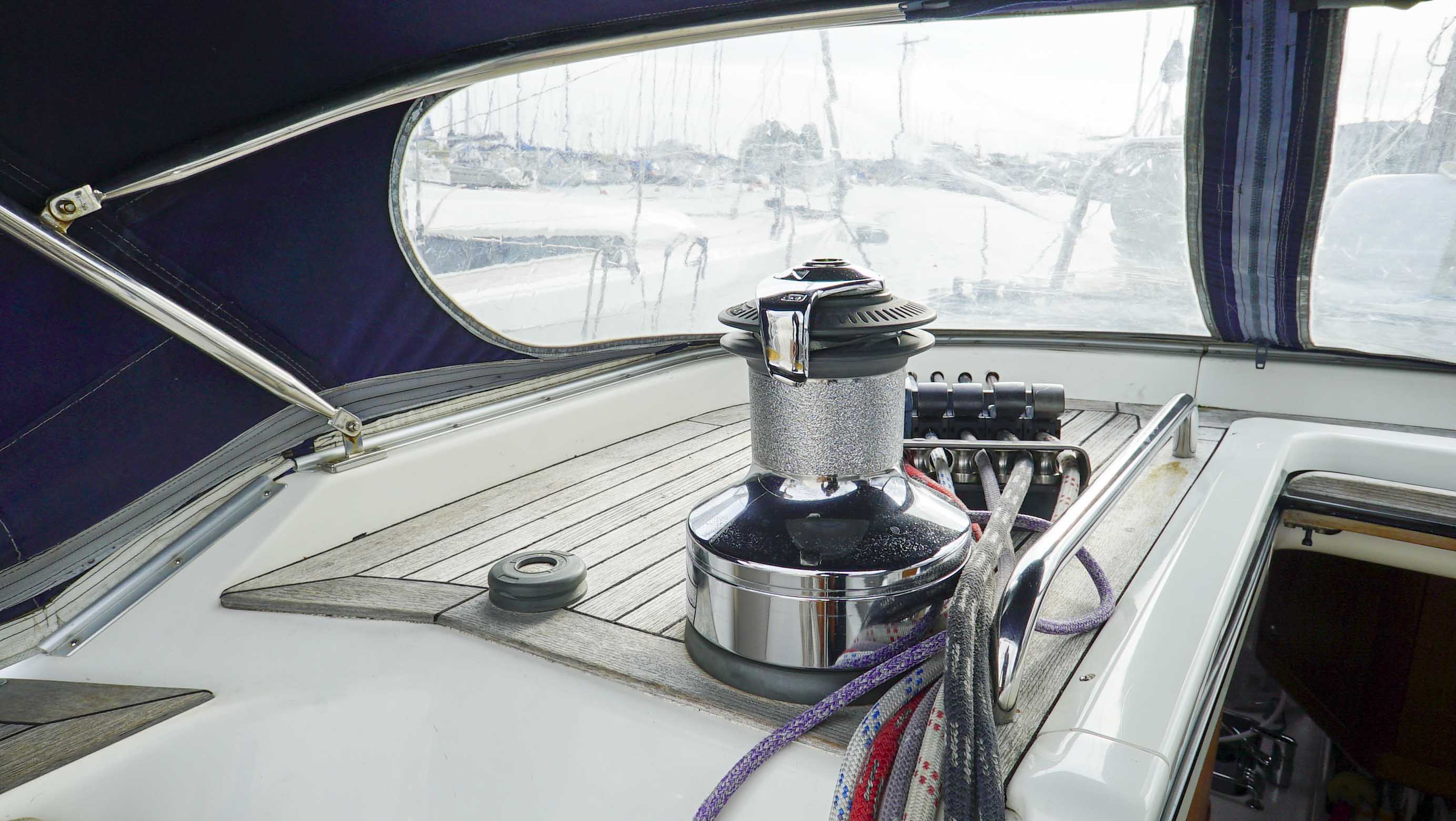

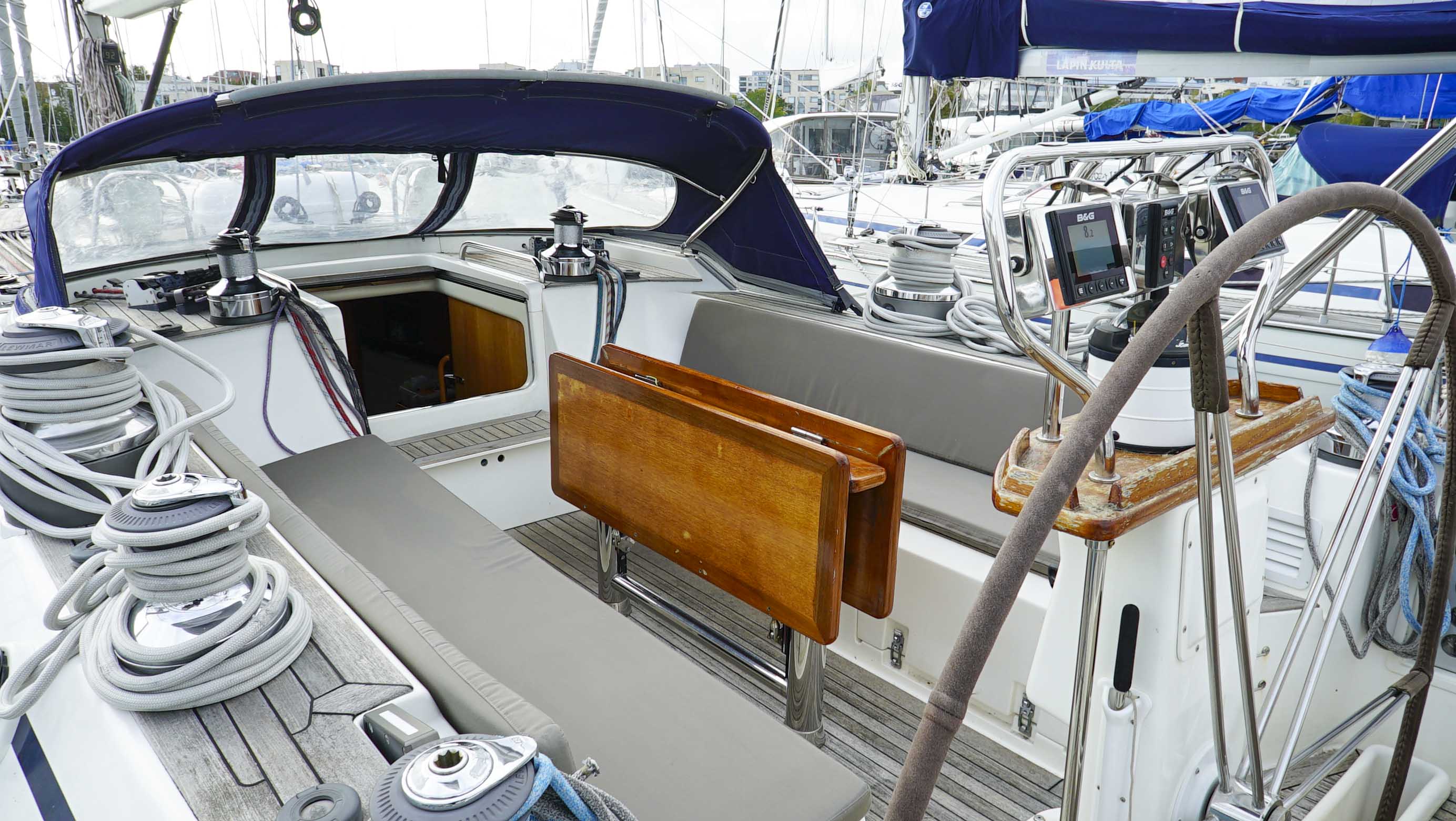

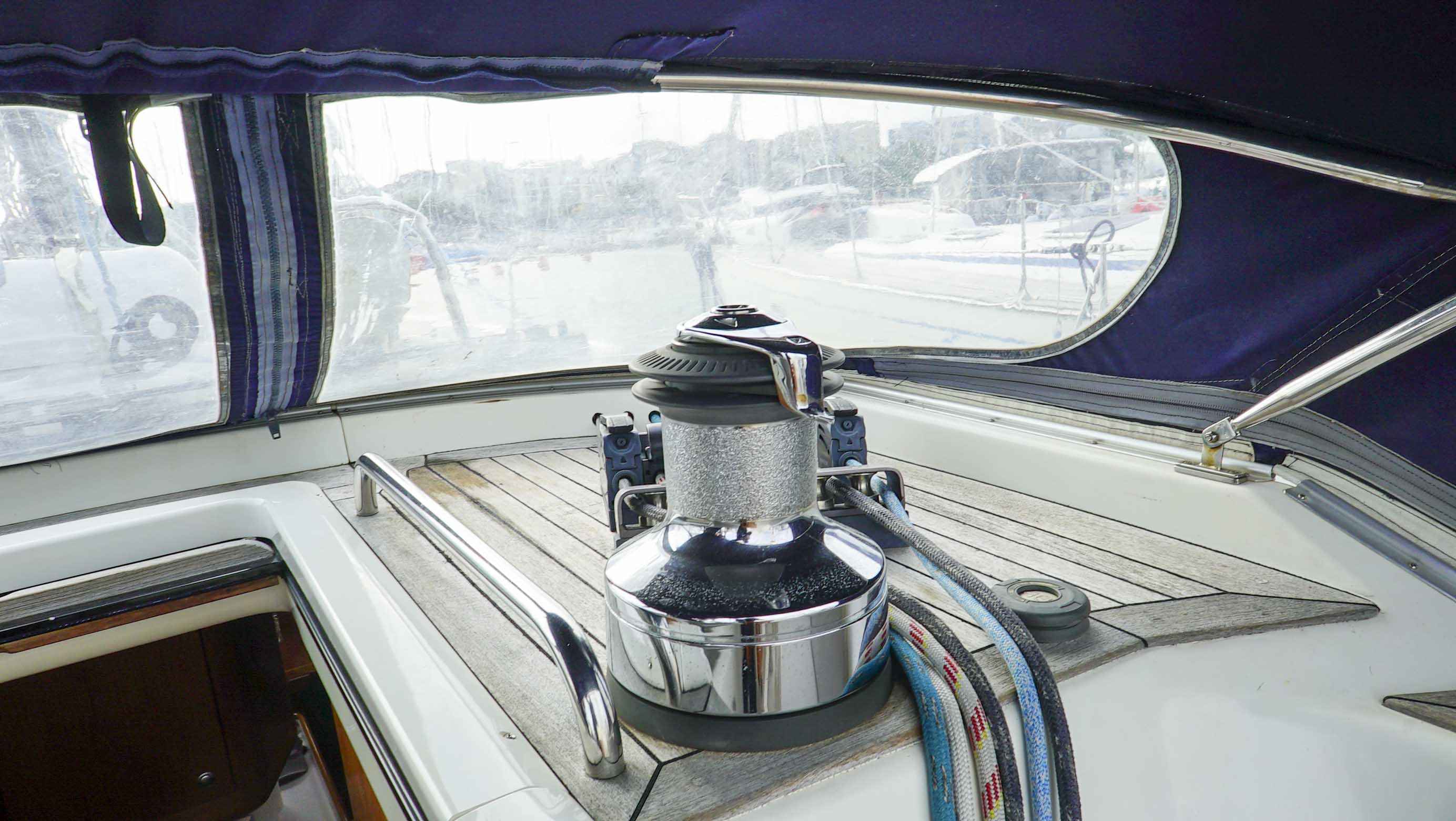

    • 2 x electric 54 Lewmar (2 speed) o Stbd: outhaul, spin.hal. mainsheet, gen. hal., Stay. hal., traveller, reef 1 o Port: traveller, foreguy, topping lift (spin pole), gen. hal., spin. hal., reef 2, main hal. • 2 x electric 77 Lewmar (3 speed) o Primaries • 2 x manual 54 Lewmar (2 speed) o Runners/staysail sheet • 2 x electric 48 Lewmar (2 speed) o Furlers/staysail sheet car pulls, mainsheet • Teak deck and swimming platform • Bathing ladder • Pulpit, pushpits and lifeline stanchions 640 mm high of stainless steel • Stainless life lines • Mooring cleats: 2 x stern, 2 x midship, 2 x bow • Anchor CQR 27kg, anchor chain 80m • Electric windlass Lewmar Ocean 3 • Anchor roller (x 2) on stemhead • Genoa furler • Spinnaker equipment • Gennaker equipment • Hot and cold deck shower • Cockpit table • Cockpit cushions - 2022 • Socket for flagpole on transom • Sprayhood • Bimini • Coachroof awning - 2023 • Cockpit table cover • Wheel cover • Binnacle cover • Wheel steering
SAFETY EQUIPMENT
    CE Registration
    yes
    Fire-extinguishers
    yes
    Epirb
    2022
    Liferaft
    8 pax (serviced in 2022, valid through 2025)
    Safety equipment notes
    • Fire blanket x 2 • Automatic Fire extinguishers in engine space • Manually operated fire extinguishers in: cockpit locker, companionway cave, forward cabin, oilskin locker • Liferaft 8 pax (serviced in 2022, valid through 2025) • Jackstays • EPIRB (2022) • Foghorn/hailer in mast (2022) • Life ring + whistle + drogue + light • Bosun’s chair (2022) + safety harness (2022). • Throwing line • Drogue OTHERS • Tender, inflatable 3,2 m (2022) + outboard engine 4 hp • Fenders and mooring lines
CONSTRUCTION
    Keel
    Lifting daggerboard
    Construction notes

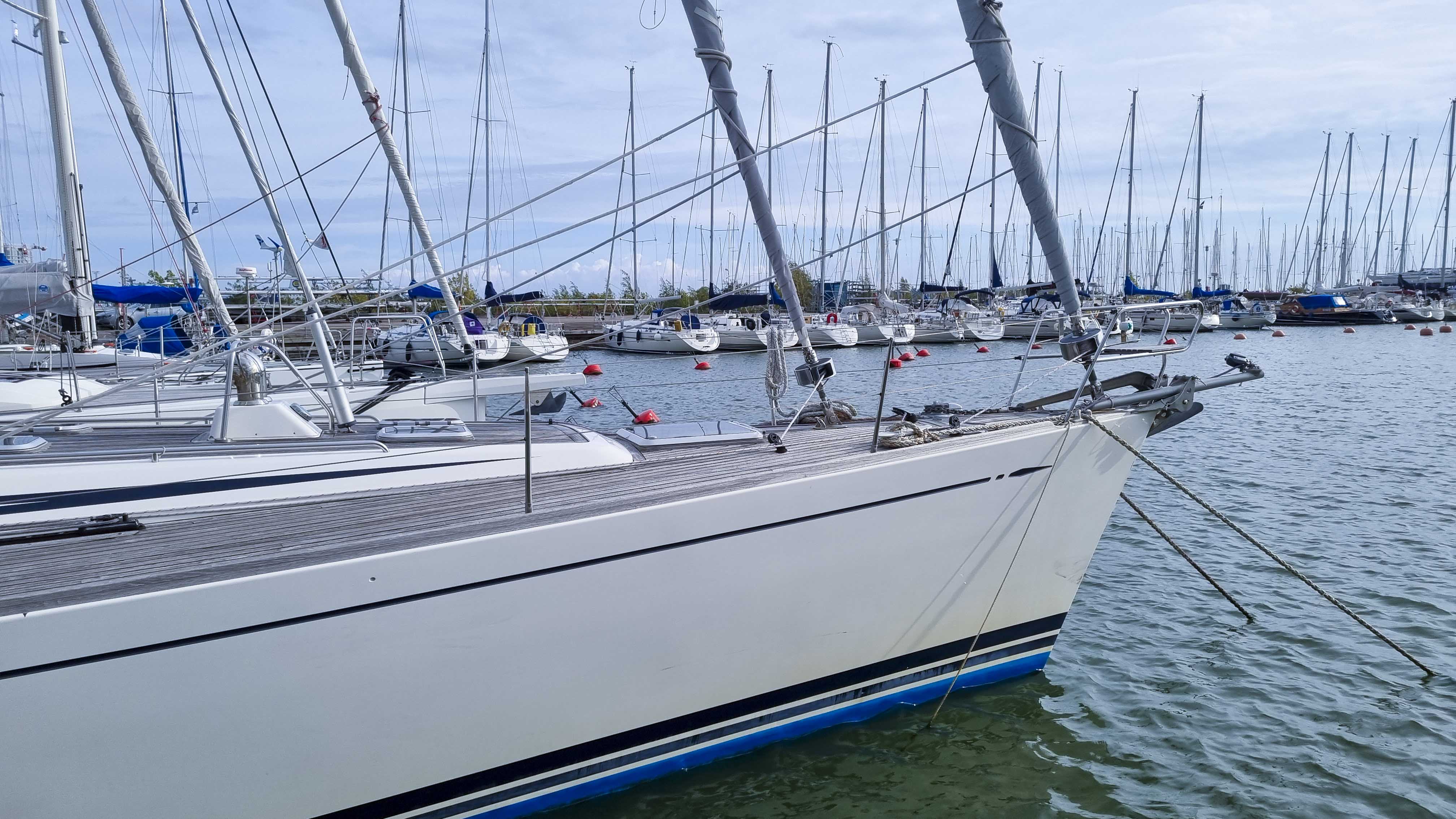

    GRP hull, spade rudder with self-aligning bearings and composite stock, hydraulic fold-out bathing platform. Watertight bulkhead forward. Dark blue line and boot top lines and blue stripe through white superstructure. KEEL Lead with Antimony; bolted externally
EXTRA
    Swimming ladder
    yes
