#1113

CATCH ME

FOR SALE

GENERAL
Name
CATCH ME
Model
GP70
Year
2023
Hull material
GRP
Color hull
Oyster White
Located
PORTUGAL (LISBON)
Price
PRICE AT REQUEST
VAT
NOT PAID
Flag
Antigua
Type
CRUISER
Slogan
A NEW HIGH-TECH CARBON CATAMARAN-Seamanship and comfort for a family willing to sail around the world.
Description

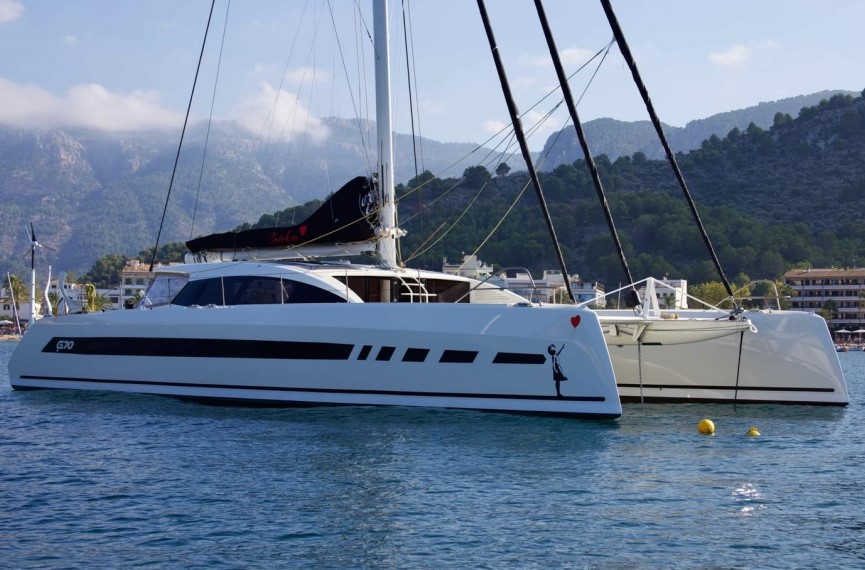

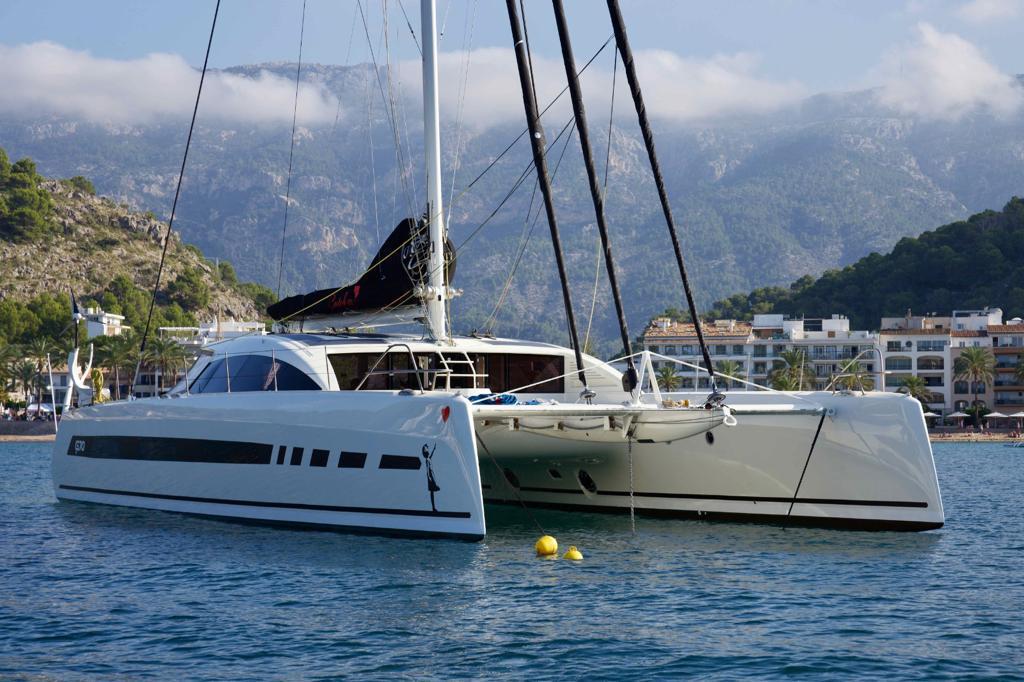

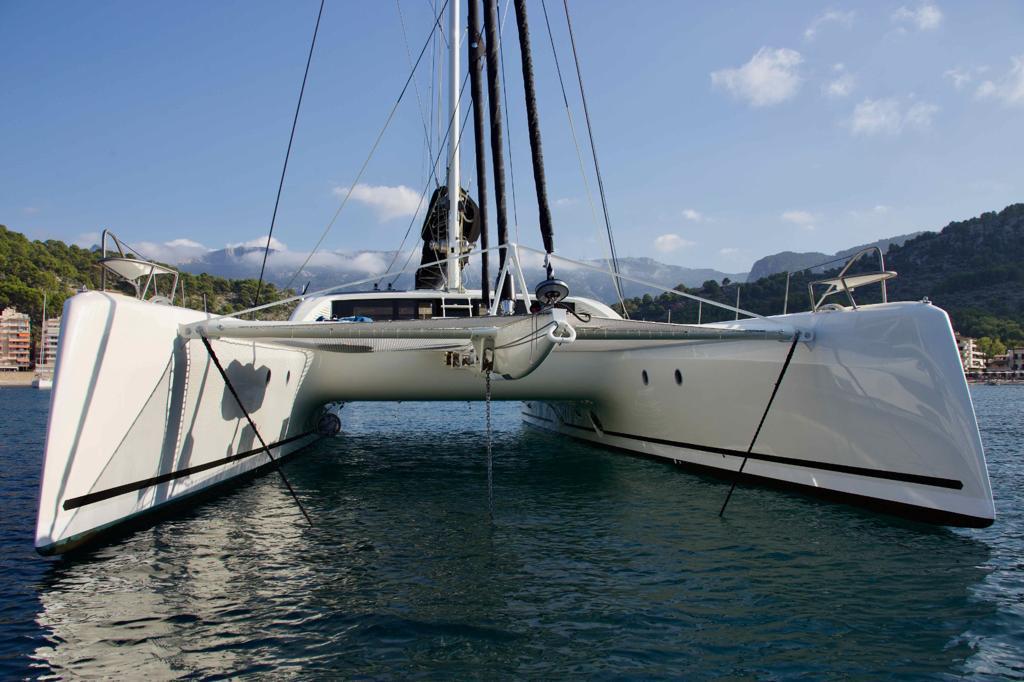

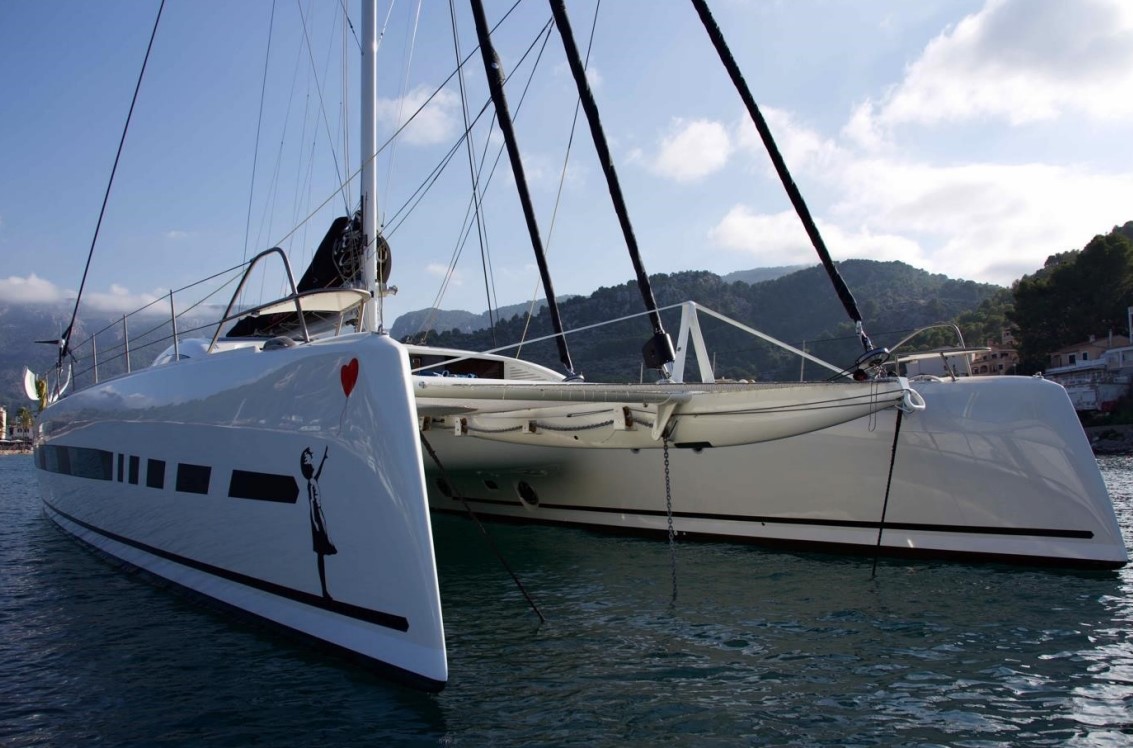

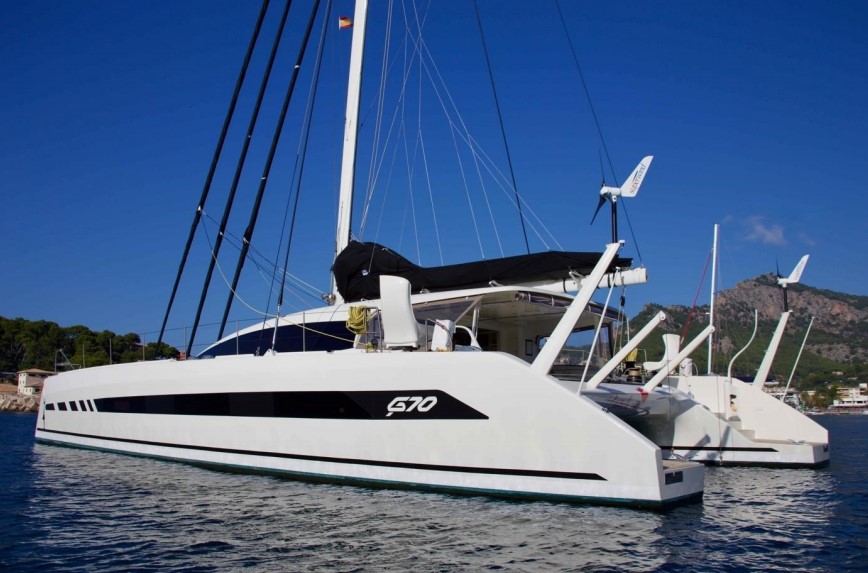

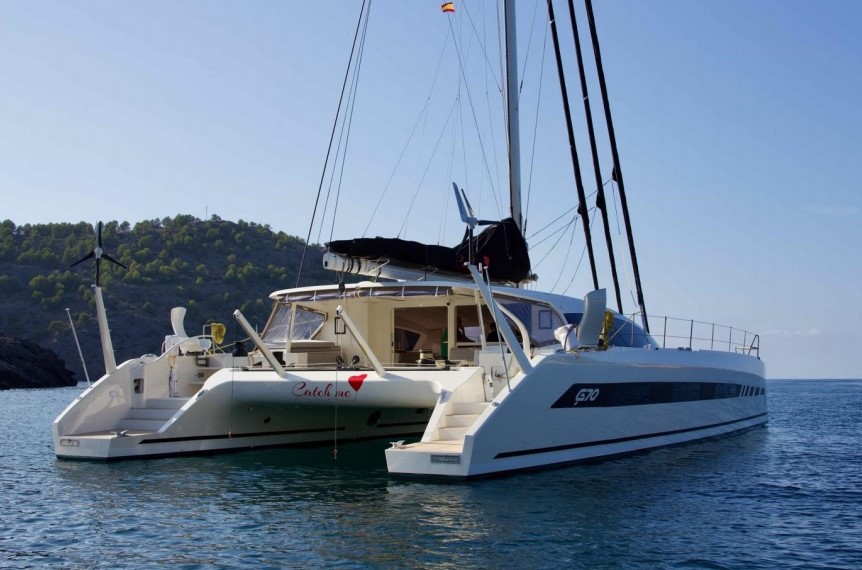

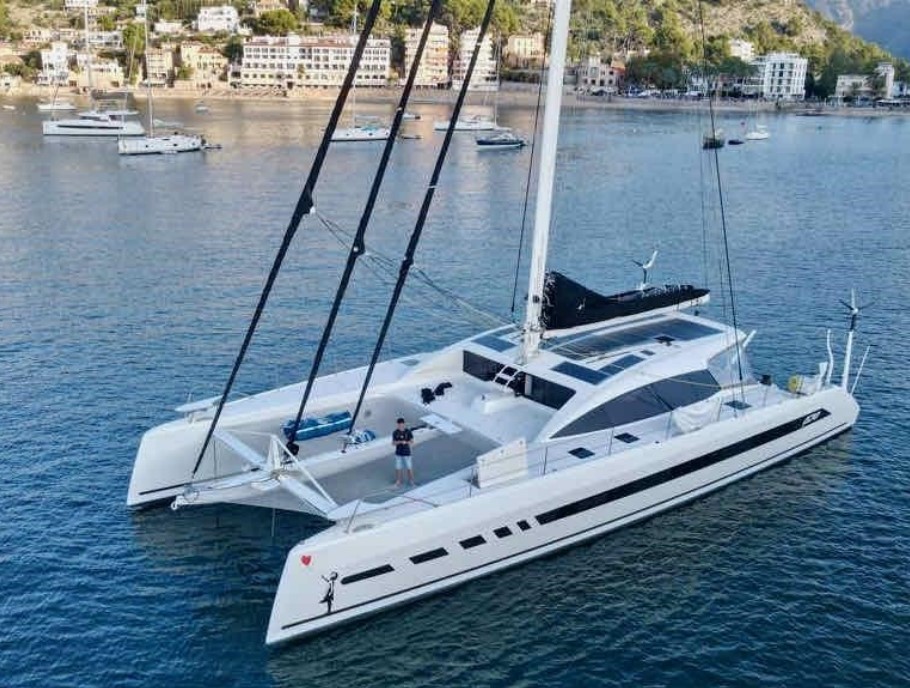

A NEW HIGH-TECH CARBON CATAMARAN TO LEAD THE CATAMARAN MARKET. CATCH ME is the first of the GP70 cruising catamaran. Fast Cruising Catamaran – One off Design Classification:Pleasure Yacht Designed by VPLP for a well experienced Owner, The GP70 CATCH ME is a perfect combination between sailing performances, seamanship and comfort for a family willing to sail around the world in an easy-to-handle yacht. Built by TRIMARINE, a distinguished shipyard with a legacy of quality craftsmanship, proud of its latest marvel in nautical engineering: the GP70, a 70-foot catamaran that embodies the pinnacle of LUXURY and PERFORMANCE. This shipyard, based in Portugal, has long been famous for its exceptional racing yachts, which perfectly combine elegance with high-speed efficiency, thanks to its advanced carbon construction techniques. Incredibly luxurious motorboats have been created there for the prestigious Hermès company. PERFORMANCE because, with her slender hulls equipped with centreboards or low-aspect-ratio keels and her powerful sail plan, she can reach speeds of up to 25 knots on a smooth sea. LUXURY because The interior design has been meticulously crafted in a classic, sober, almost timeless style. With its large airy saloon and galley which open out onto the dining area on the stern deck. This ship is not just a ship; She is a statement of sophistication and speed, designed to satisfy the discerning sailor seeking the thrill of racing without compromising comfort or style. GP70 IS MORE THAN A YACHT: IT'S AN EXPERIENCE THAT PROMISES TO ESTABLISH A NEW STANDARD IN THE WORLD OF LUXURY SAILING CATAMARANS. THE GP70 IS THE IDEAL BOAT FOR FAST ROUND-THE-WORLD SAILING IN TOTAL COMFORT AND SAFETY. HULL Material: Glass Corecell Epoxy sandwich.
DESIGN
    Builder
    TRIMARINE
    Designer
    VPLP
    Design notes
    Built with high quality materials and benefiting from an exceptional finish, the result is a very light and strong sailing catamaran ready to sail across the oceans. The interior design has been done by Jean-Yves Carteret from Linea Concept. HULL Material: Glass Corecell Epoxy sandwich.
DIMENSIONS
    LOA
    21.00m
    Beam
    9.79m
    Draft
    1.60m
    Displacement
    21000kg
ENGINES
    Engines
    2 X YANMAR 4JH80
    Cruising speed
    9kn
    Engines notes

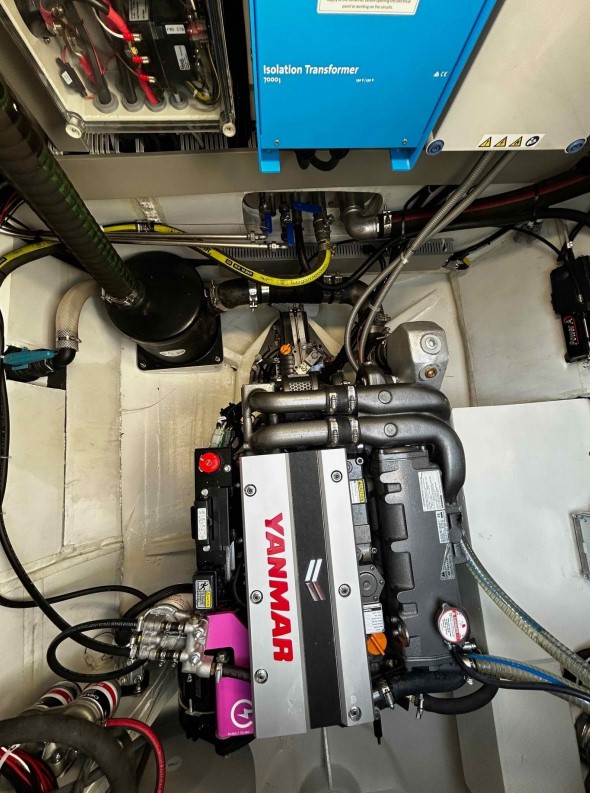

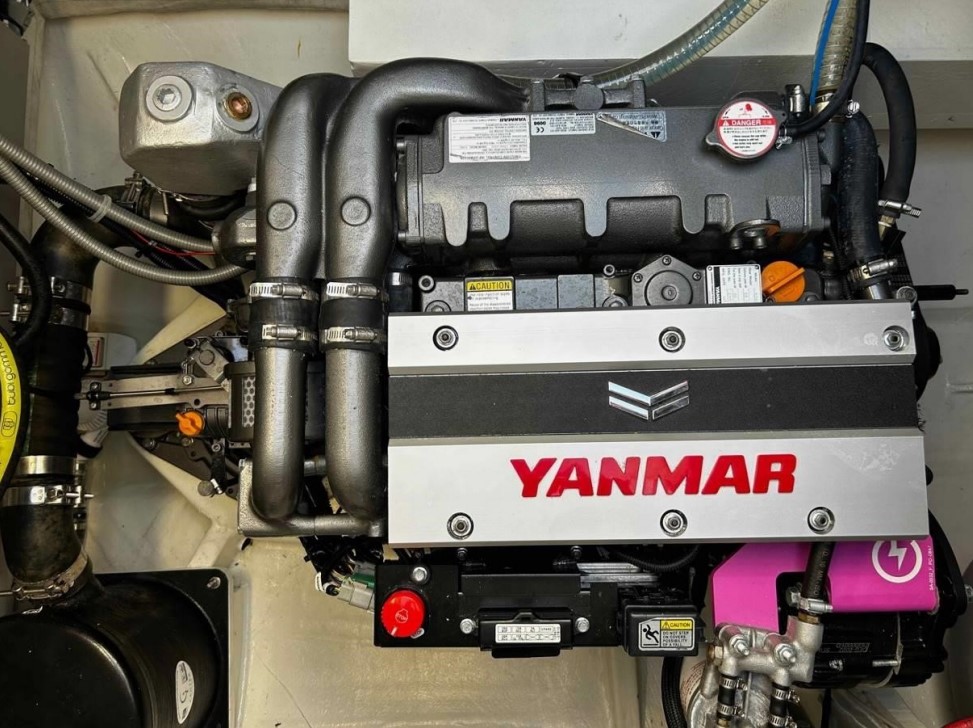

    2 x 80 HP YANMAR 4JH80 2 x 58.8 kW @ 3,400 rpm SD 60 SAILDRIVE transmissions 2 x 9 kW Alternators 9 - INTEGREL 4,890 kW *Performances: 9 knots @ cruising speed 12 knots @ maximum speed *Consumption: 15 l/h @ cruising speed *Range: 1,200 NM @ cruising speed Batteries: Service MG LFP - 25.6V/280Amp/7,200W - MGLFP240280 Engines start 2
TANKS
    Fuel
    2000l
    Water
    1100l
    Tanks notes

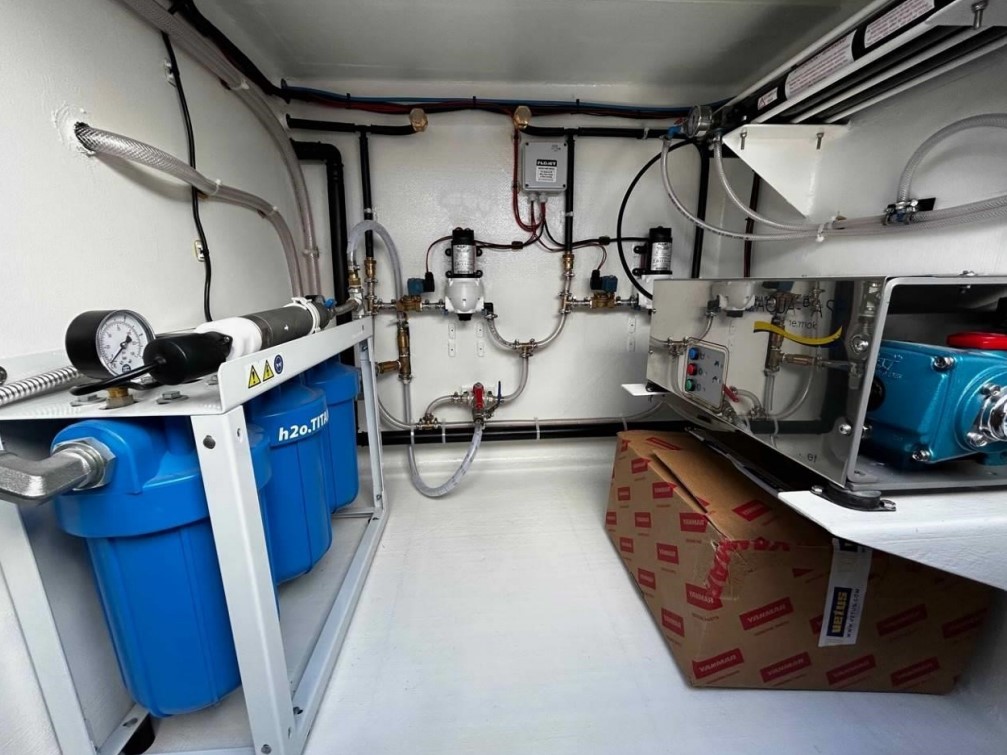

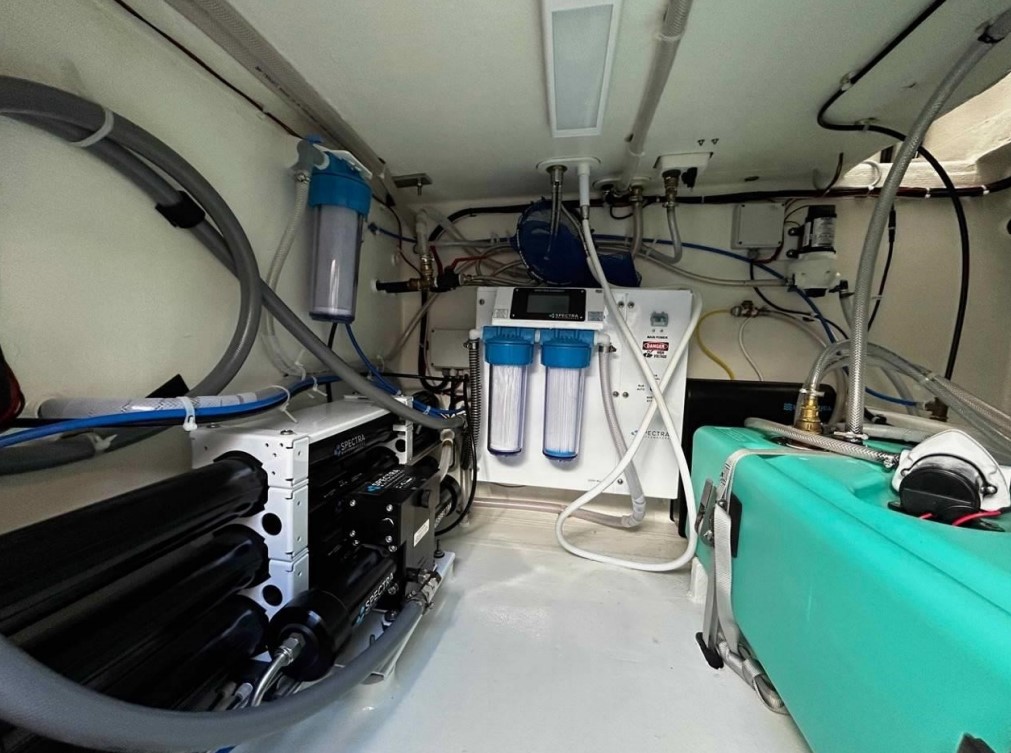

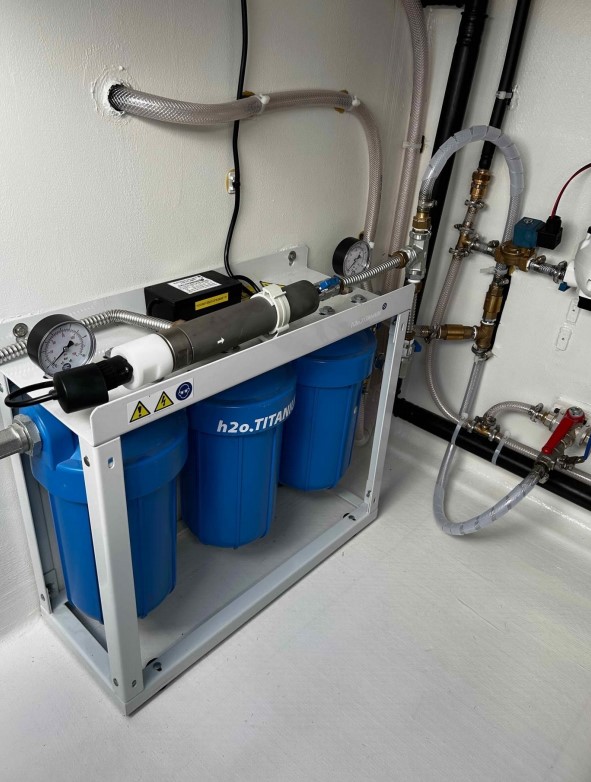

    Grey Water: Yes Black Water: Yes Boiler: Yes Water maker: Utility water SPECTRA Newport 1000C Drinking water AQUABASE - XD242-24DC Refrigerator: 2 x FRIGOBOAT Frigomatik K35F 24V/29A Deep freezer: 1 x FRIGOBOAT Frigomatik K35F 24V/29A Air conditioning: FRIGOMAR Self Contain Inverter BLDC, SCU07VFD-48VDC/24A Heater:WEBASTO Air Top Evo 55/22A PUMPS: Grey water JABSCO 50890-1100 24VDC / 10A Bilge pumps VETUS BLP24500 24VDC ATTWOOD HD2000 P/N - 4770 24VDC Shower: SEAFLO 06 Series 600GPH Sea water: WHALE WD4527TB Water pressure: FLOJET R3626344 24VDC MARCO Fluid Tech 164 62413 - UP6/E-DX 24V Fuel transfer: TELLARINI ENM 25 TOILETS: TECMA Silence Plus 2G Water maker: Utility water SPECTRA Newport 1000C Drinking water AQUABASE - XD242-24DC Water filter: H2O Titanium UPA 500 STD 230V
ACCOMMODATIONS
    Berths number
    10
    Cabins number
    5
    Shower
    Yes
    Air conditioning
    yes
    Heating
    yes
    Accommodations notes

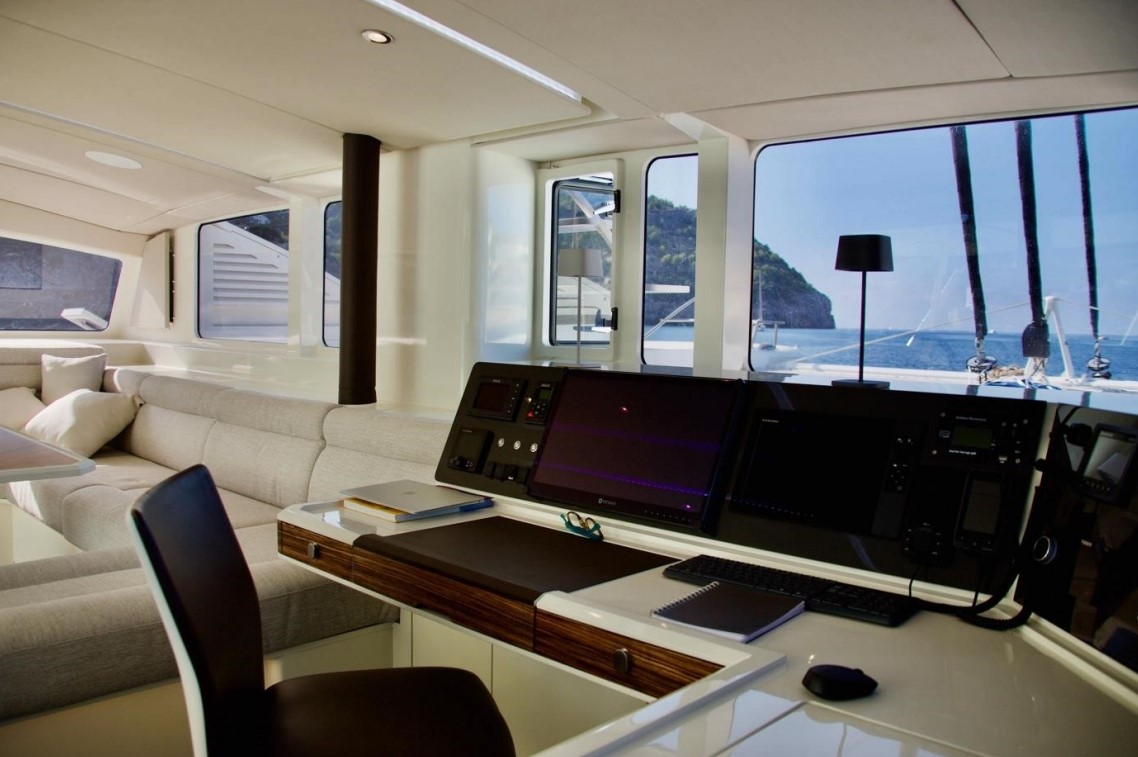

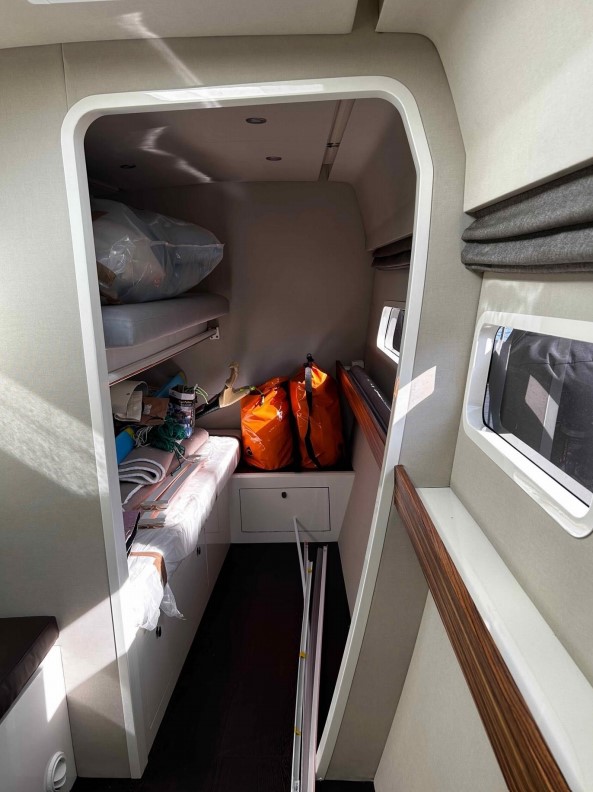

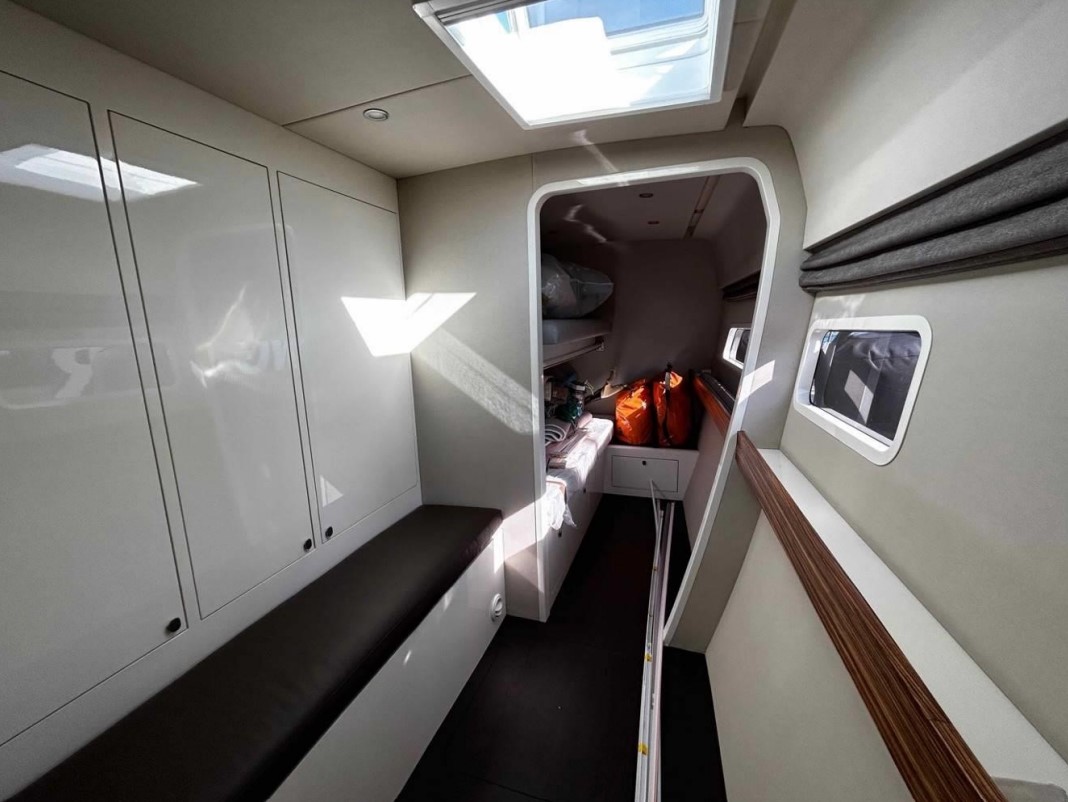

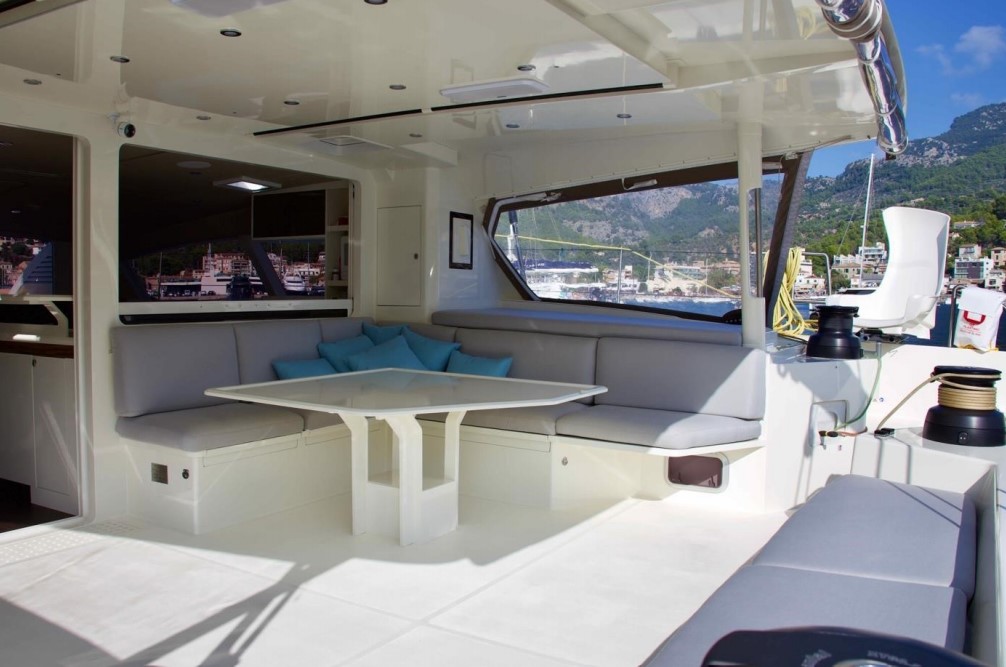

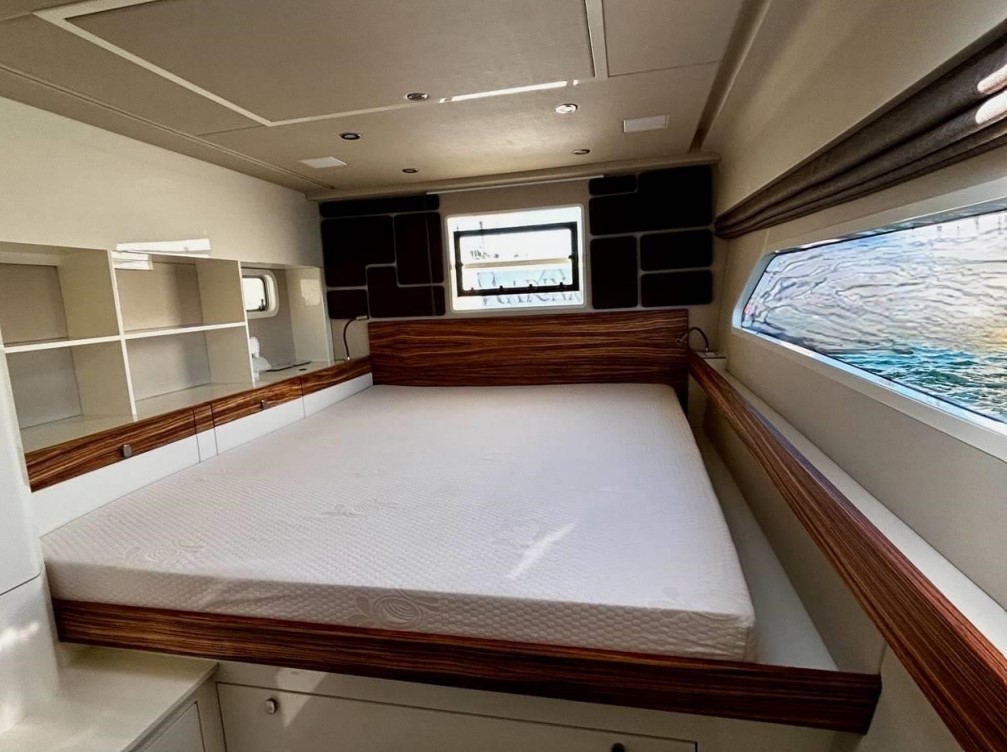

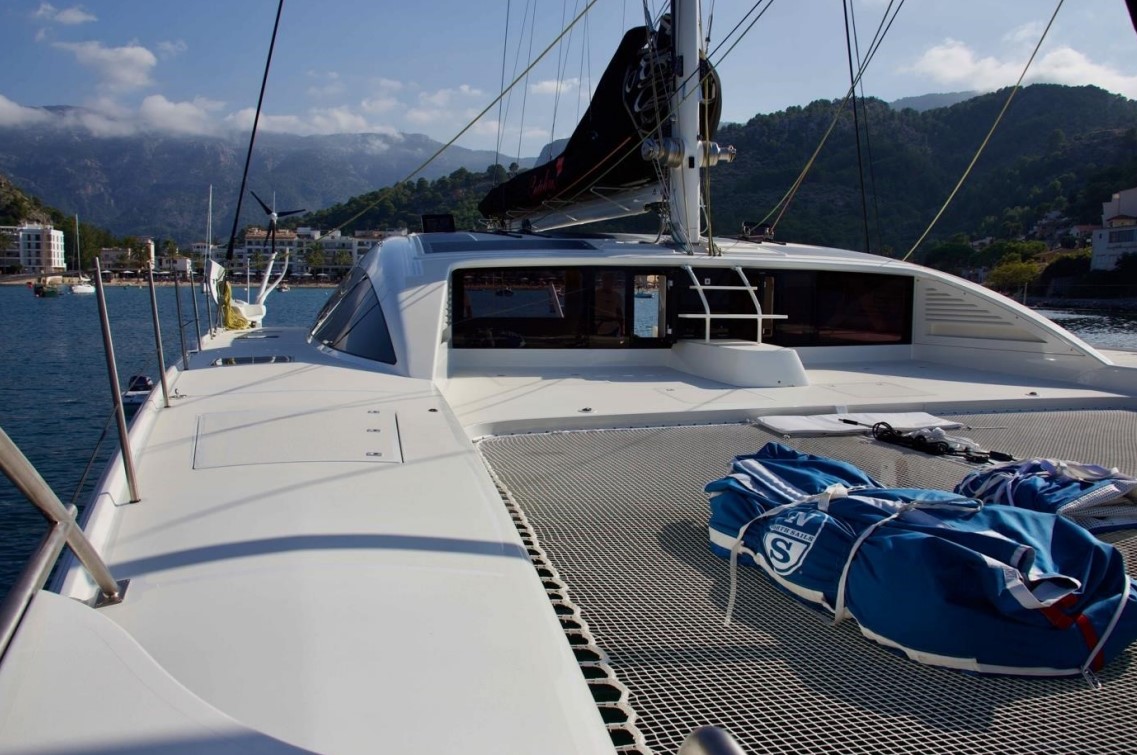

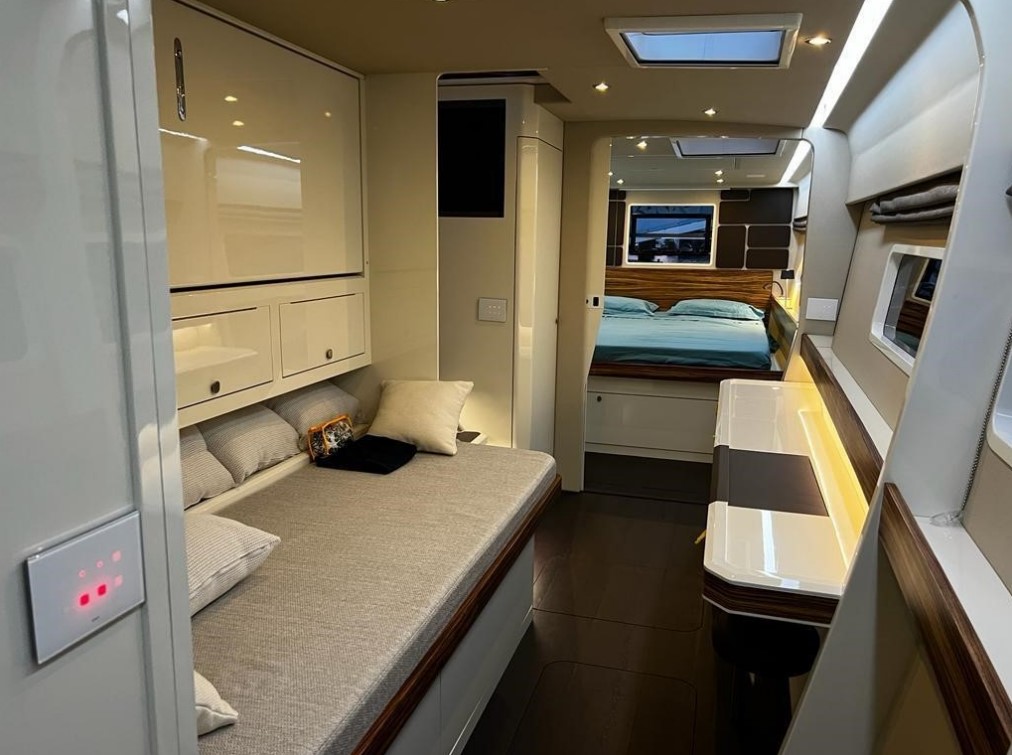

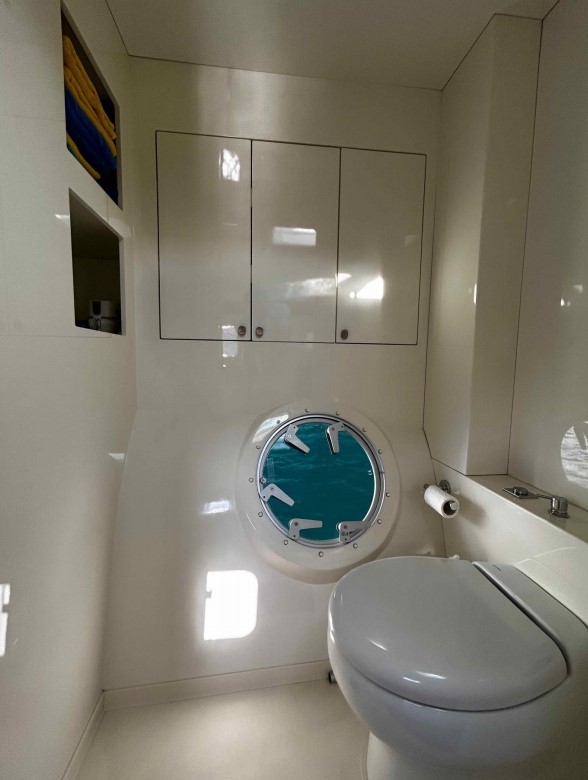

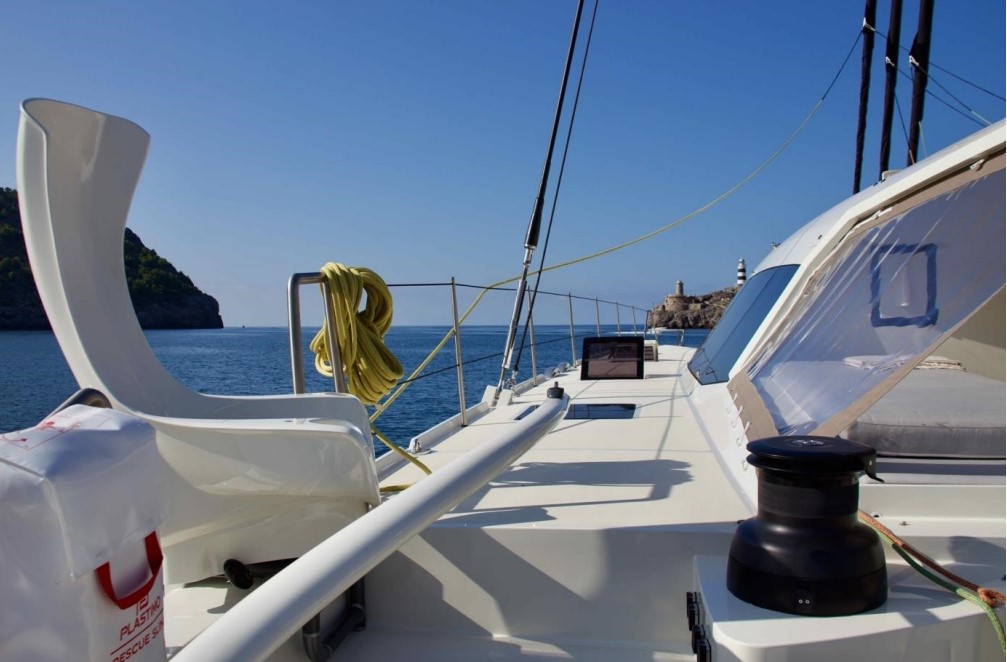

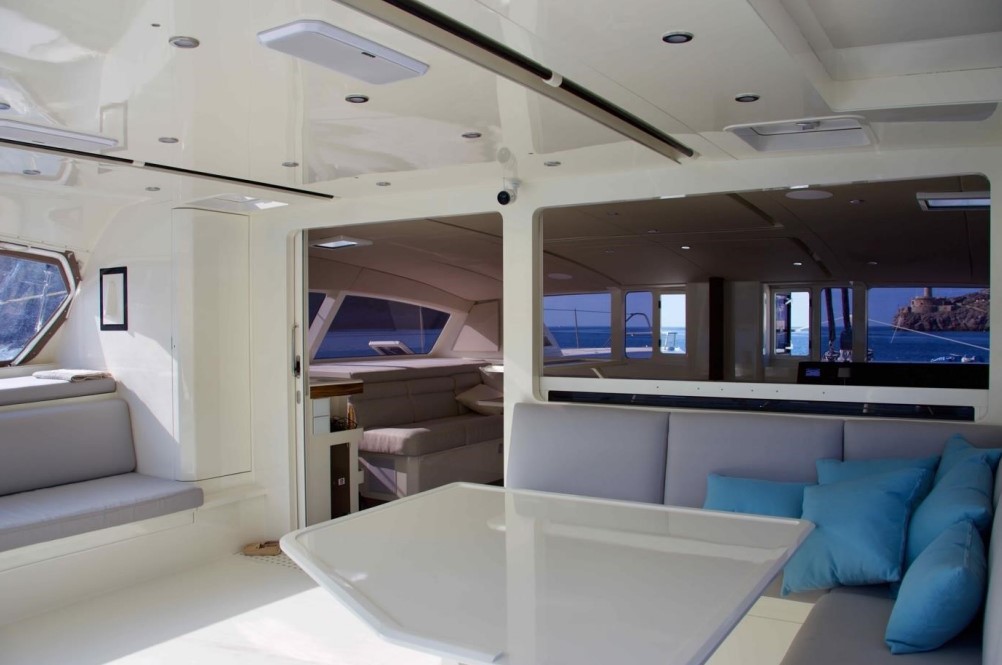

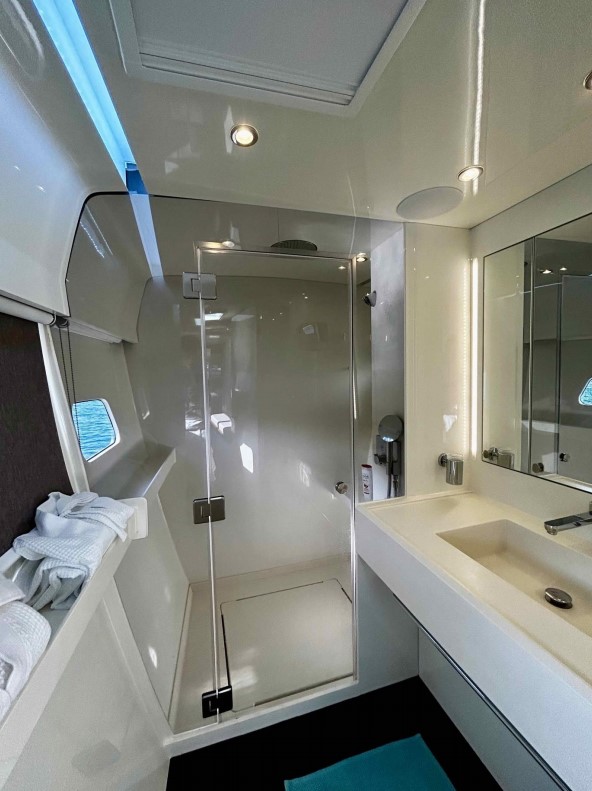

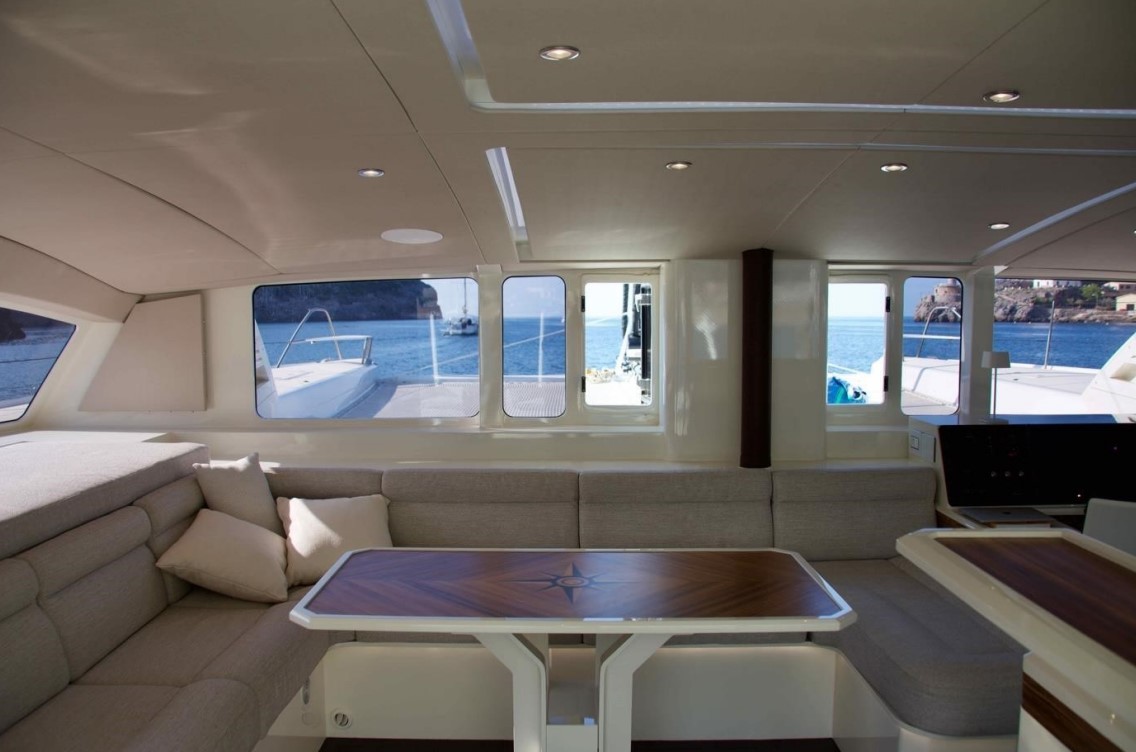

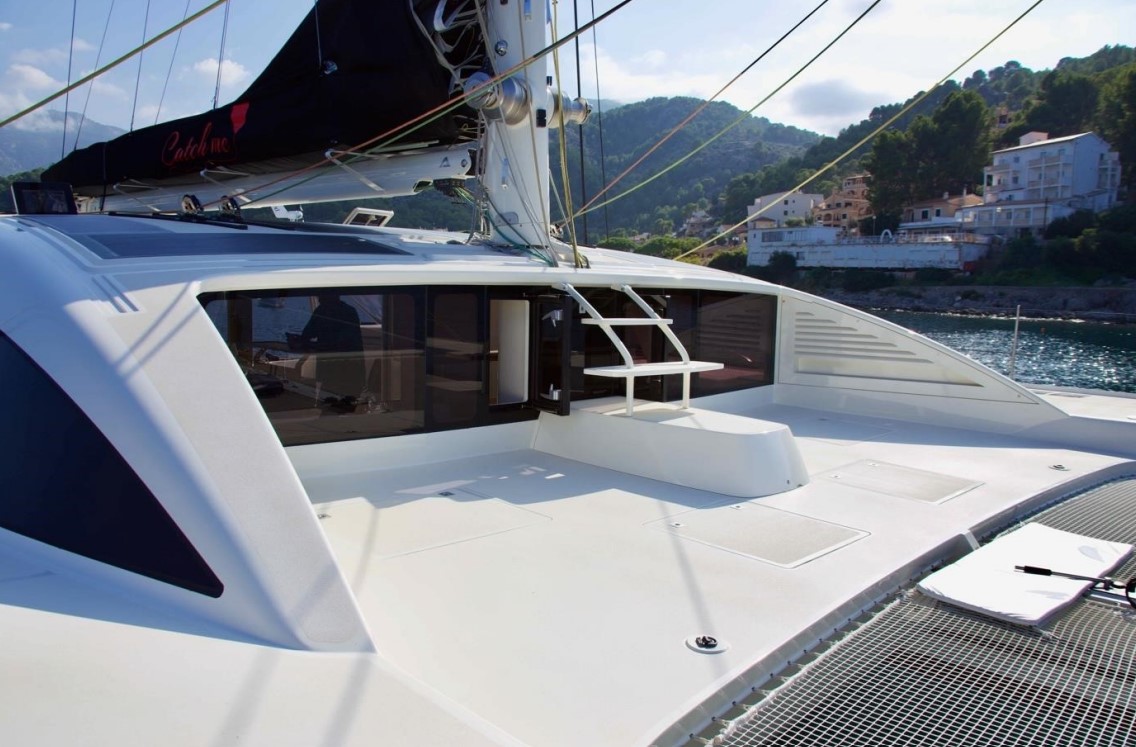

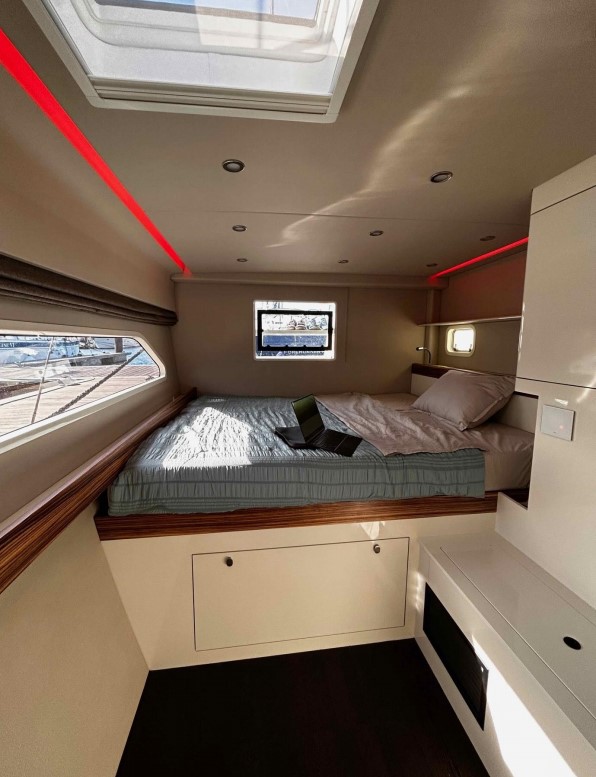

    - Big owners cabin - 1 double bed + 2 single bed - Guests 2 double bed cabins - Crew double bed cabin DECK AND COCKPIT Nice aft cockpit with shelter Cockpit table on starboard with L sofa Sofa aft facing up front Sofa to port Spacious and clear for up to 6 guests in total comfort. CHART TABLE Up front on starboard side of the saloon with a L shaped desk facing front and a chair. SALOON 360° panoramic view Galley aft to starboard Dining table and U sofa up front to port CABINS Guests: 3 double bed cabins Crew: 1 upper & lower bed cabin • Port hull: Owner’s stateroom • Starboard hull: 2 guest cabins + 1 crew cabin up front SHOWER ROOM/HEAD 2 with TECMA Silence Plus 2G toilets, basins and showers
GALLEY
    Hot water
    yes
    Coolbox
    yes
    Refrigerator
    yes
    Water system
    yes
    Galley notes

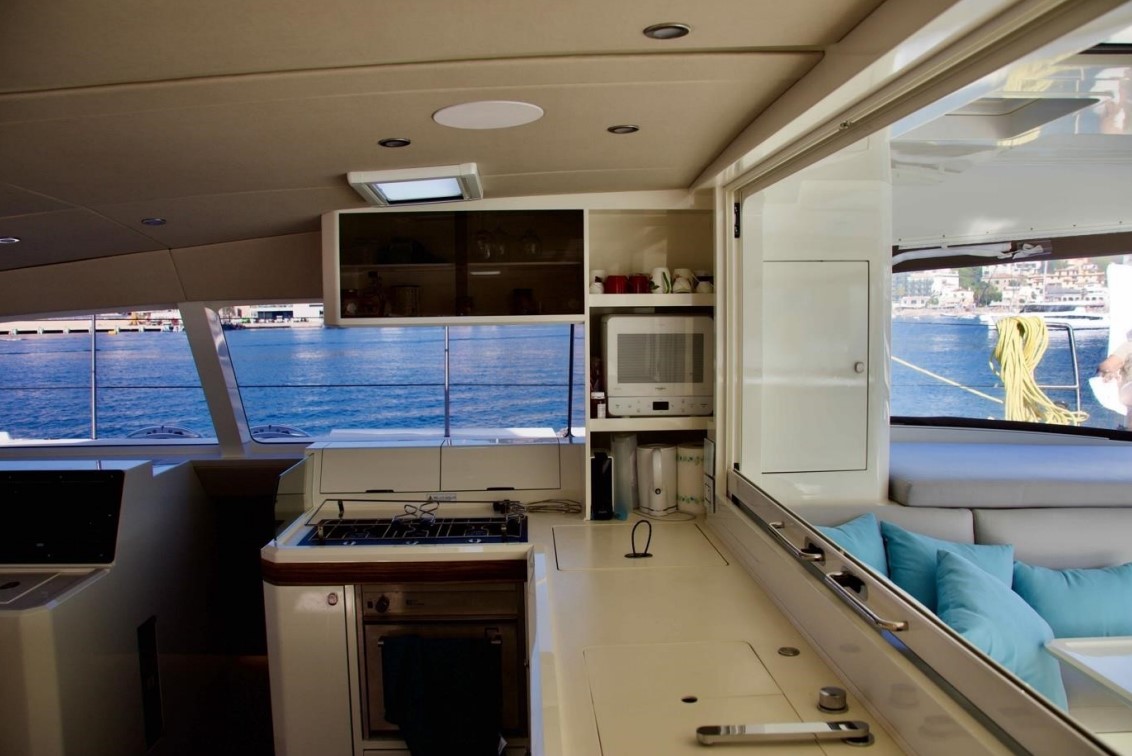

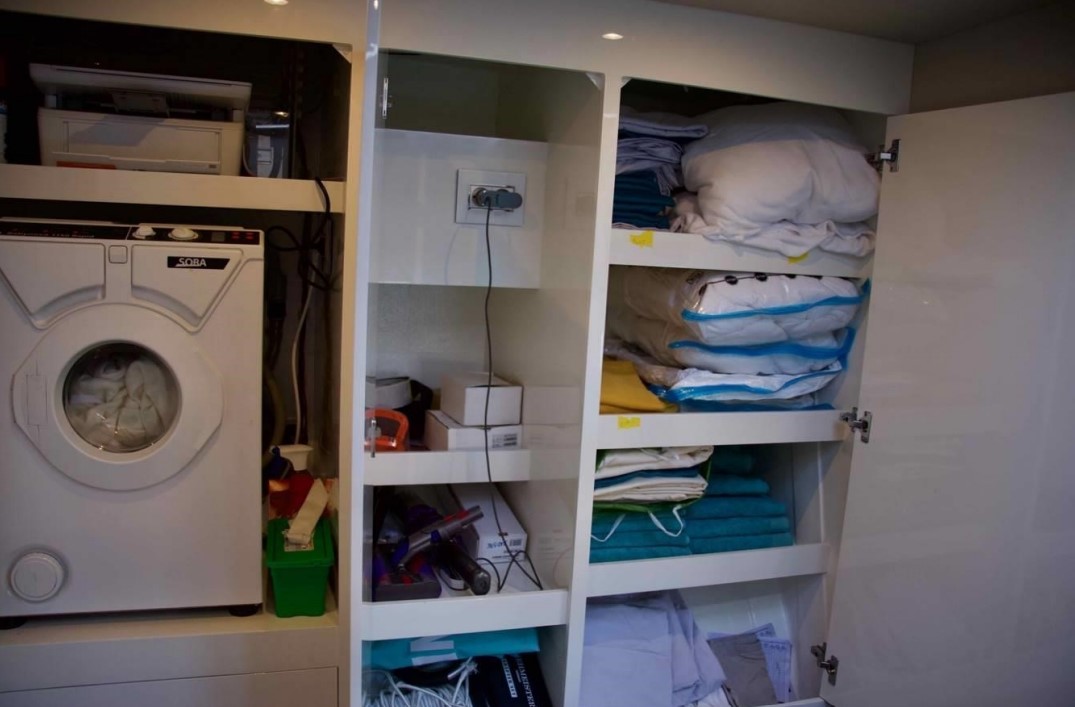

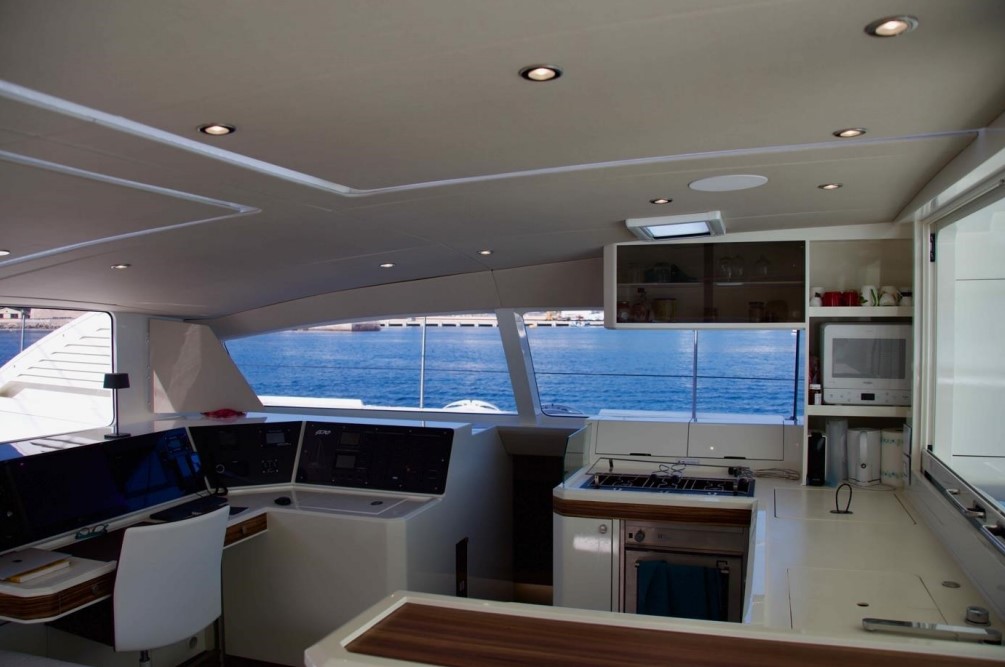

    GALLEY U shaped facing aft with opening windows to the cockpit. DOMESTIC EQUIPMENT Cooker-Oven: ENO Dishwasher MIELE G-5890 Svi-SL Microwave: WHIRLPOOL Max Refrigerators: 2 x FRIGOBOAT Frigomatik K35F 24V/29A Deep Freezer: 1 x FRIGOBOAT Frigomatik K35F 24V/29A Washing machine: SOBA BABY NOVA 1150 Rapid Air Conditioning: FRIGOMAR Self Contain Inverter BLDC, SCU07VFD-48VDC/24A Heater: WEBASTO Air Top Evo 55/22A
ELECTRICAL
    Batteries
    6 x Lithium Batteries
    Battery charger
    Yes
    Generator
    INTEGREL
    Electrical notes

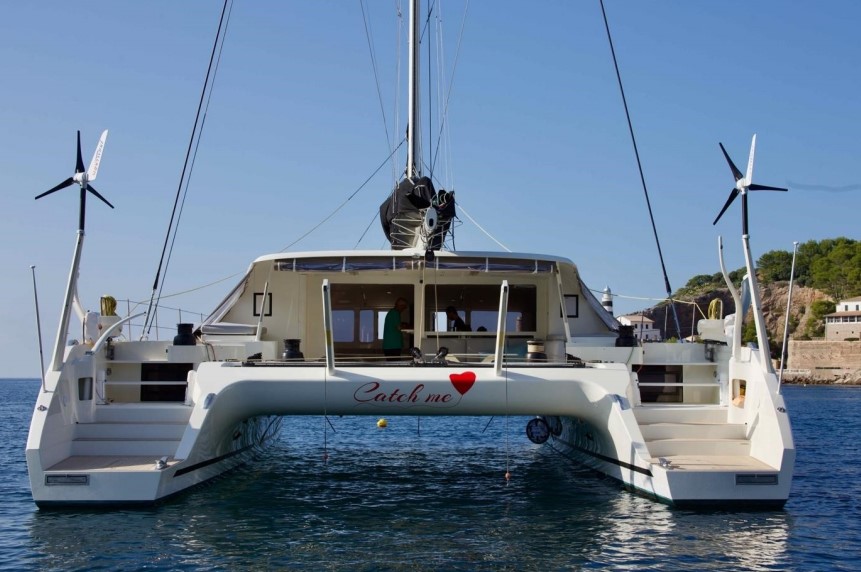

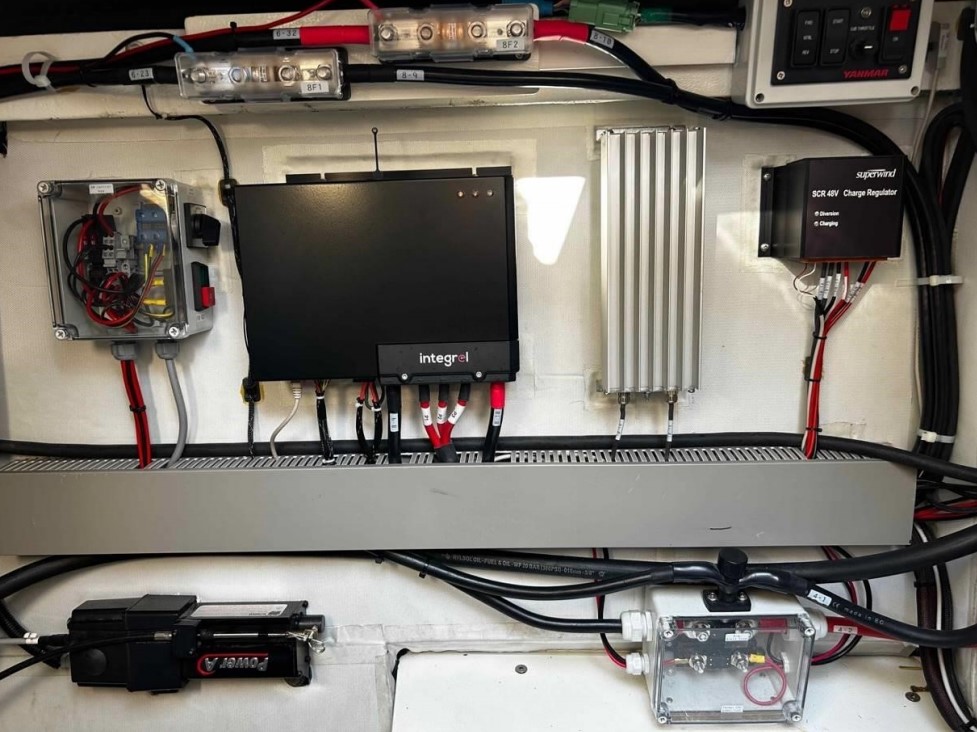

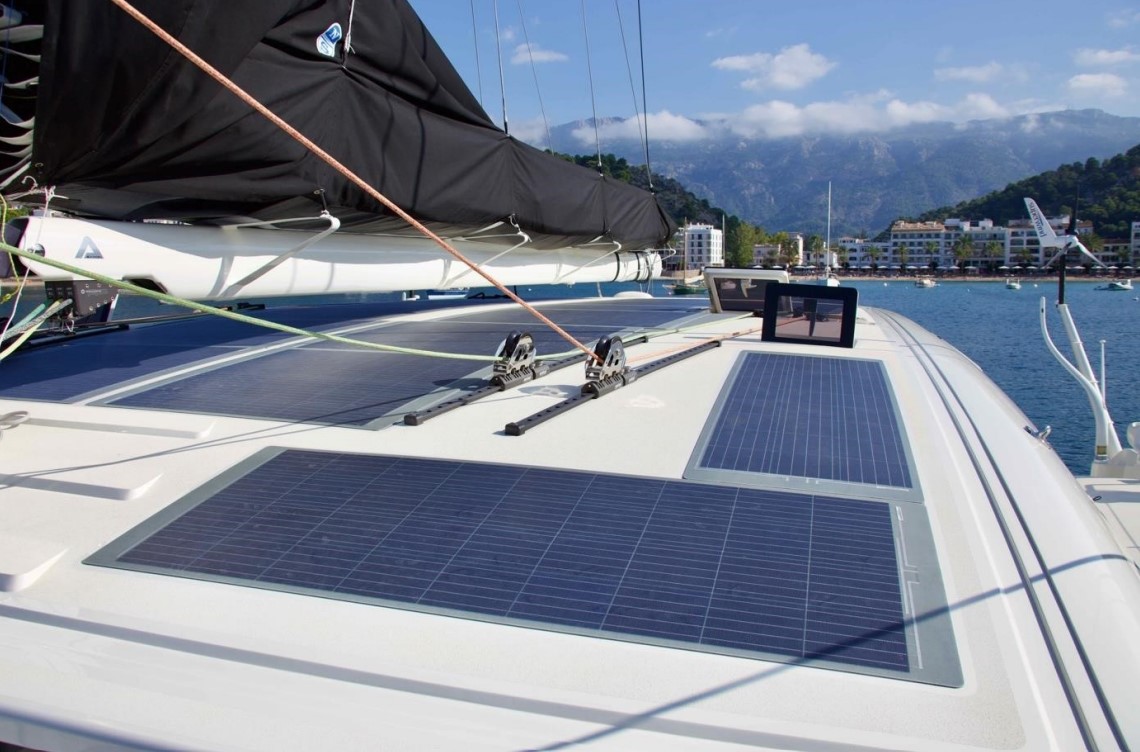

    ELECTRICITY 12, 24, 48 V and 220 V circuits Shore power: MASTERVOLT ENR Energy system: 3 kW solar panels 700 W wind turbines Batteries: Service MG LFP - 25.6 V/280 Amp/7,200 W - ref. MGLFP240280 Engines start 2 Charger: MG MASTER LV – 24/48 V / 600 Amp – ref. MGLFP240280 Inverter: VICTRON Lynx-Ion 1,000 Amp
SPARS & RIGGING
    Sails

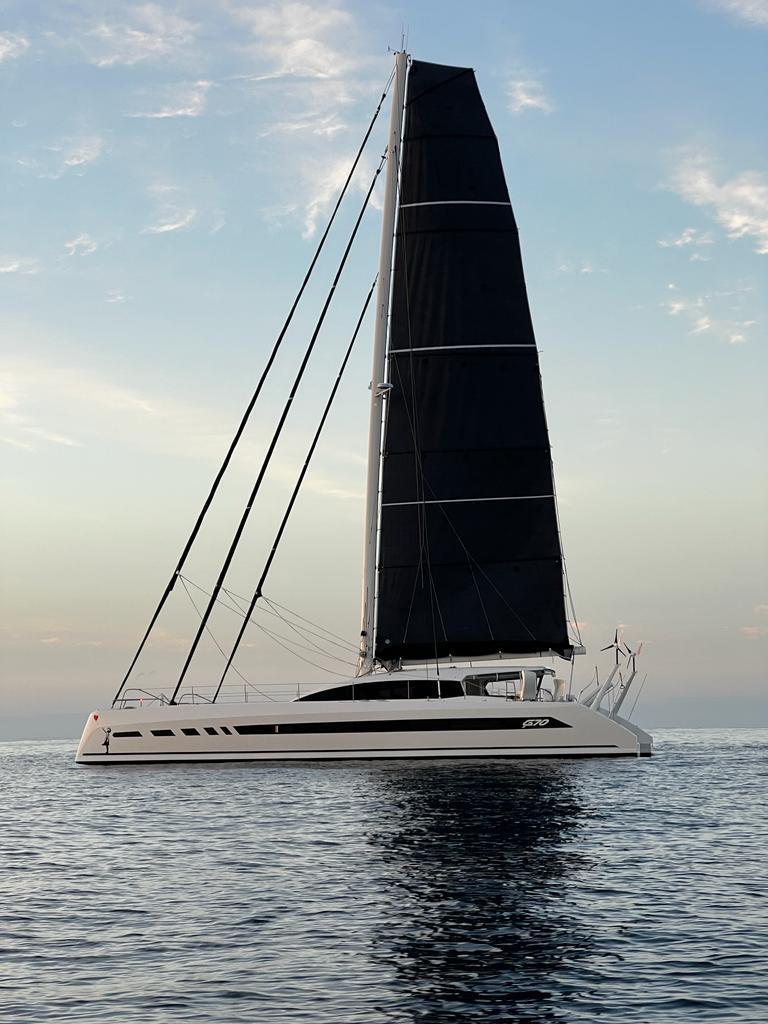

    Compete NORTH SAILS set of sails from 2023 • Mainsail 3Di, square top • Furling J2 3Di • Furling J3, 3Di • Furling J4 3Di • Asymmetrical Spinnaker A3 • Code 0 Sail area: *Upwind: 219 m² *Downwind: 460 m²
    Rigging
    Rod
    Mast
    CARBON
    Boom
    AXXON CARBON

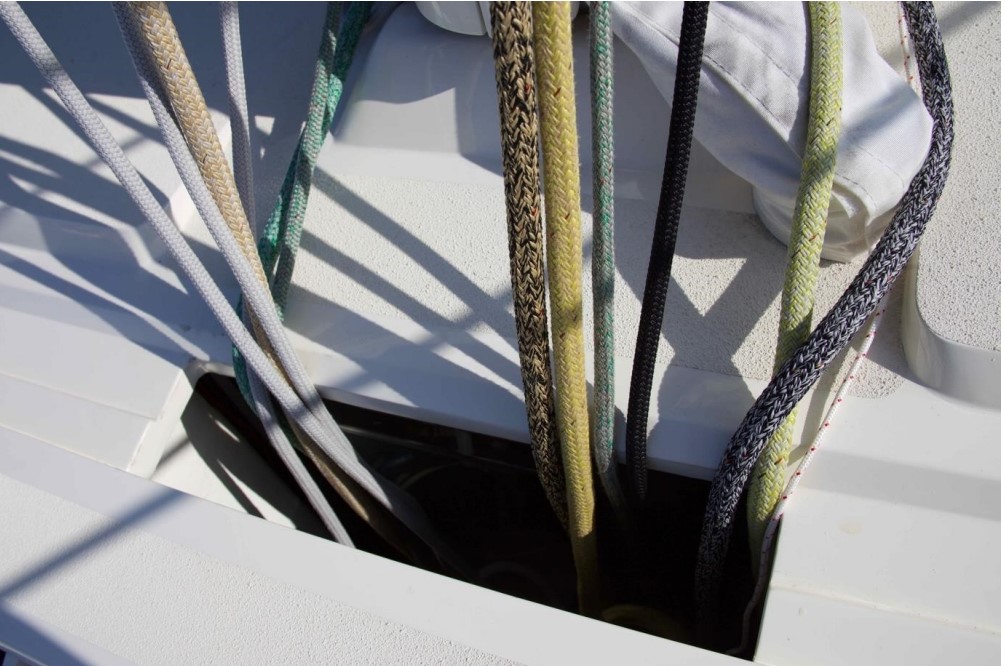

    Running rigging
    Dyneema

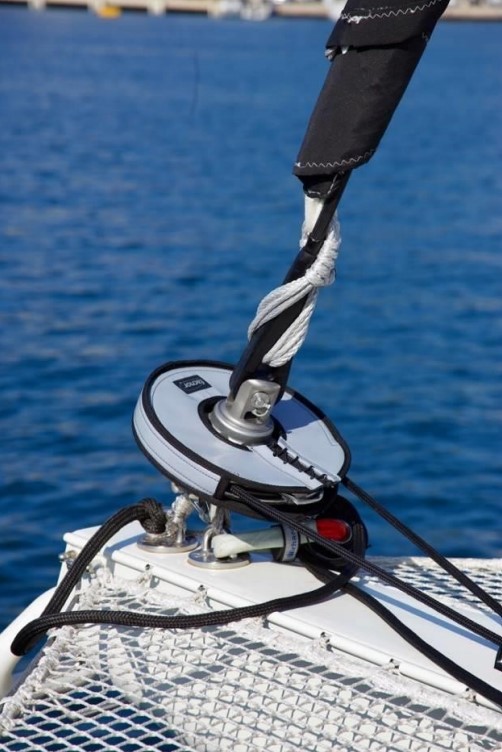

    Furling system
    FACNOR
    Spars and rigging notes

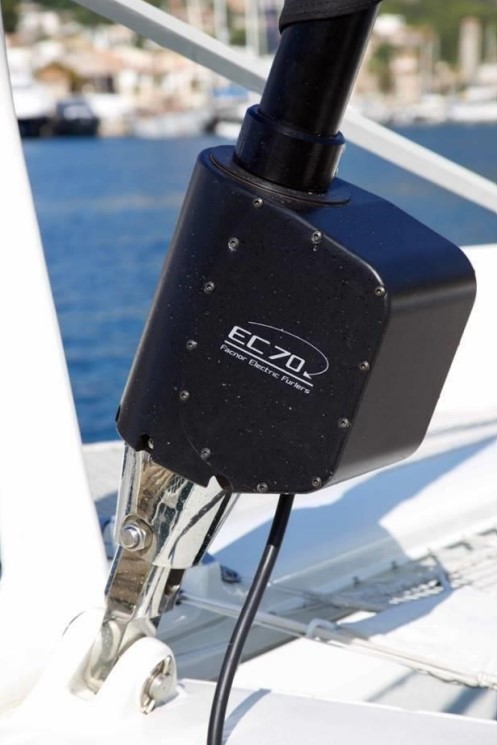

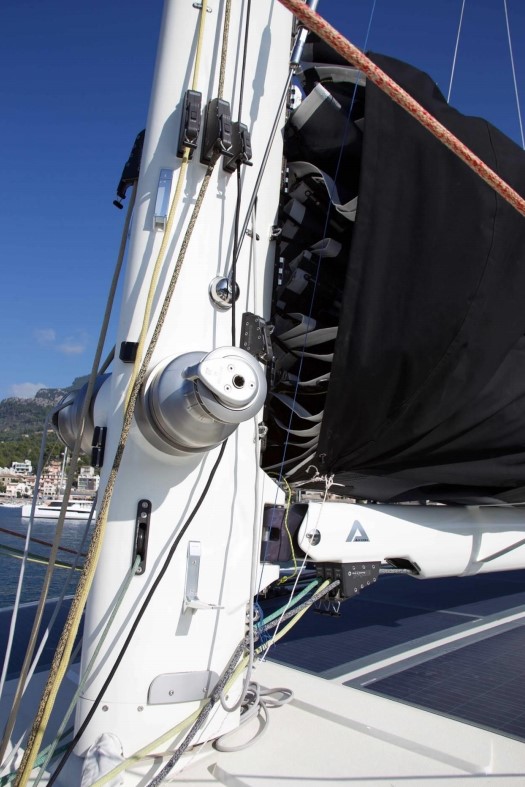

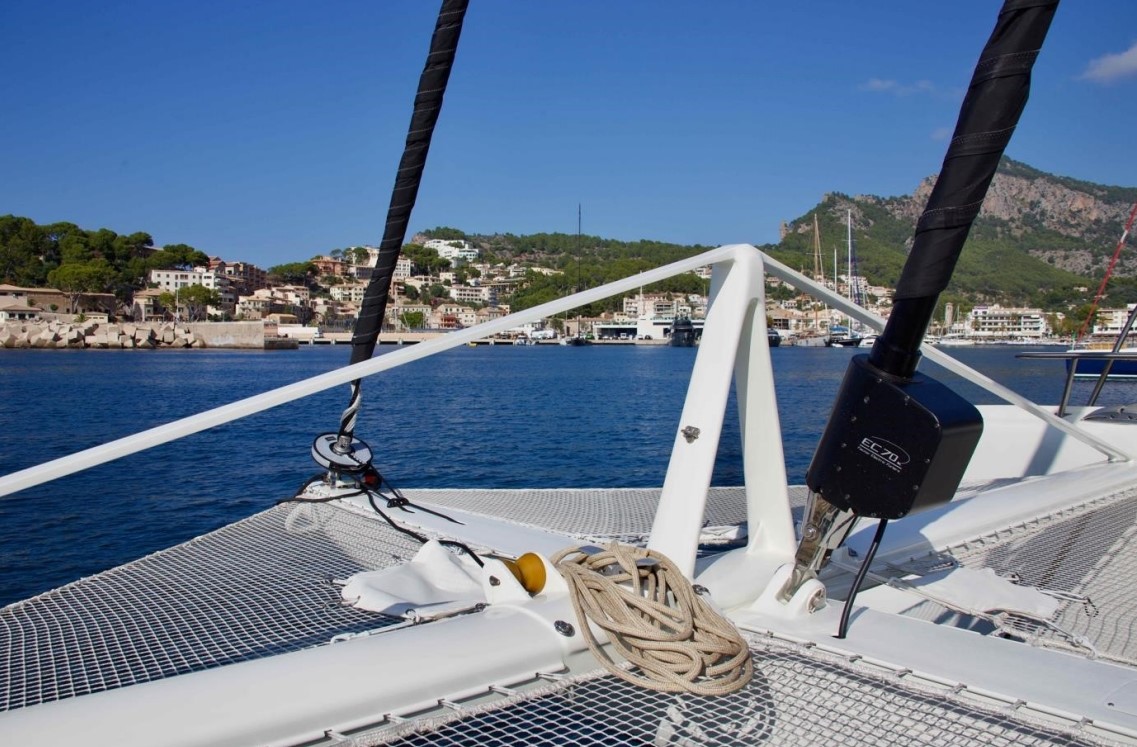

    RIGGING SPARS: Mast AXXON carbon HR 40 high modulus mast Boom AXXON carbon HR 40 high modulus mast Standing rigging: SS rod rigging DIAMAND & Aramide Running rigging: Dyneema Furlers: Jib FACNOR EC70 electric Staysail FACNOR manual Code O FACNOR manual
DECK EQUIPMENT
    Deck hardware
    ANTAL
    Winches
    ANDERSEN - ANTAL
    Deck equipment notes

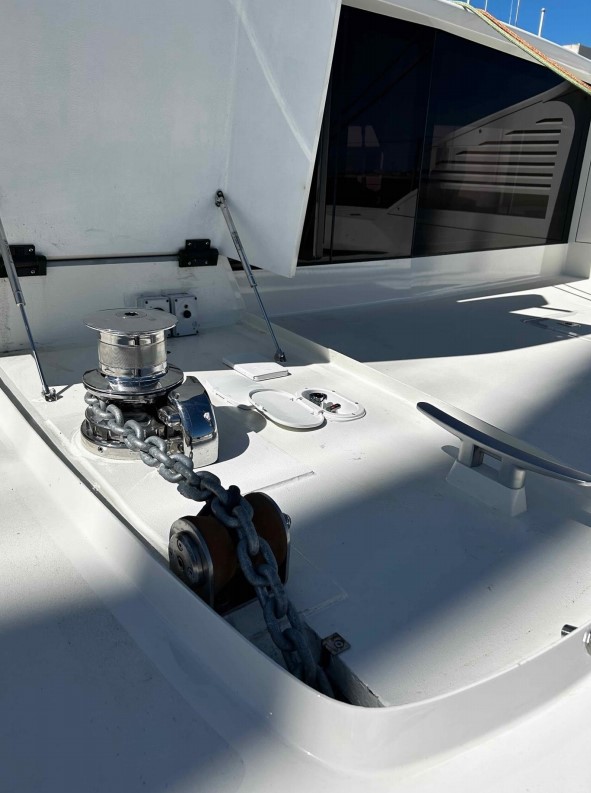

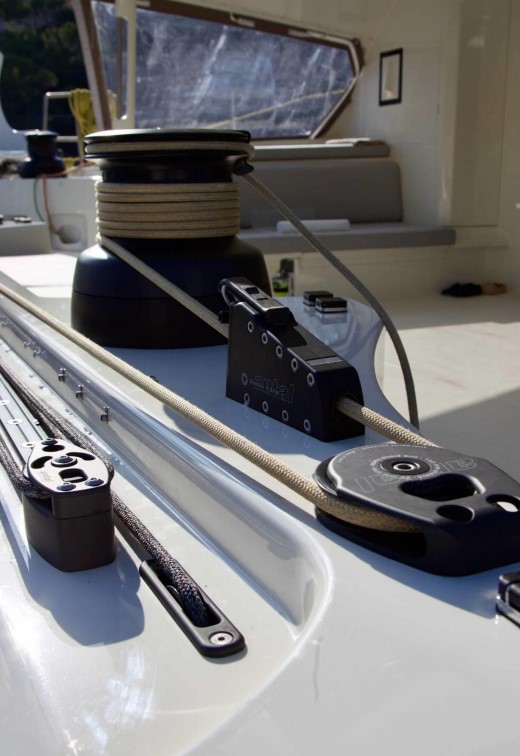

    Mast winches 1 x ANDERSEN 72ST Compact Motor TM Electric 1 x ANDERSEN 62ST Compact Motor TM Electric Deck winches 4 x ANTAL ST (XT80.3EH24/AL) – 80:1, 2kW, 3 speeds - ELECTRIC Jammers SPINLOCK Windlass: QUICK regal Vertical RG5 – 3,000 W/24 V – for 12 mm chain
SAFETY EQUIPMENT
    CE Registration
    EU
    Fire-extinguishers
    yes
    Epirb
    McMURDO Smartfind
    Liferaft
    1 x for 10 persons
    Safety equipment notes

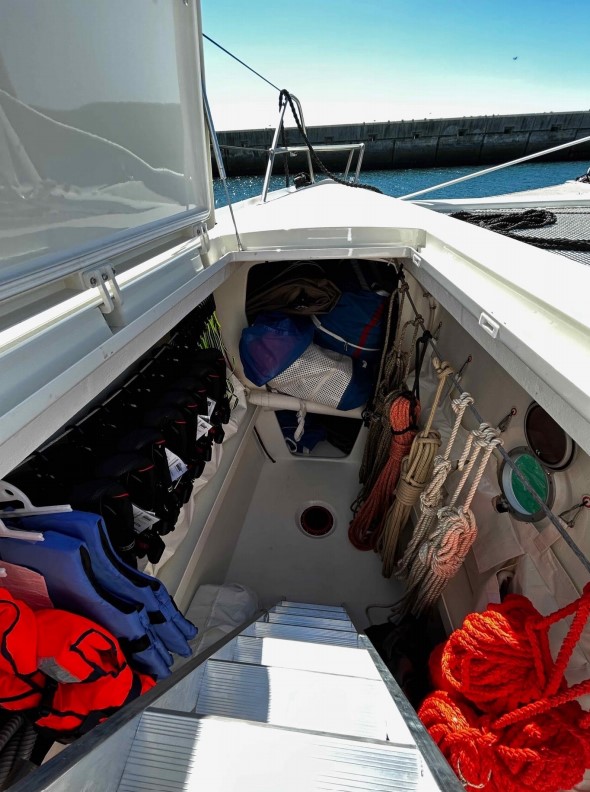

    Life raft: 1 x for 10 persons Life jackets: 18 x SECUMAR MOB devices: 2 x Jonbuoy EPIRB: McMURDO Smartfind
CONSTRUCTION
    Construction notes
    *Hull: Glass Corecell Epoxy sandwich *Superstructure: Carbon Epoxy foam sandwich *Deck:Carbon Epoxy foam sandwich *Complete postcure process Colour: *Hull: Oyster White *Superstructure: Oyster White *Deck: Non-skid Oyster White MOORING Windlass: QUICK Regal Vertical RG5 3,000W /4V 12mm Anchor: CQR Chain: 110 m of 12 mm
EXTRA
    Television
    YES
    Radio CD
    YES
    Speakers
    YES
    Shower in Cockpit
    YES
    Swimming ladder
    YES
    Extra notes
    ENTERTAINEMENT TV: recessed 32’ flat screen in the saloon + Owners cabin Sound system: FUSION 4G router: PEPWAVE Max BR1 Pro LTEA with Wi-Fi router NMEA 2000 YDNR-02 TENDERS AND TOYS 3.80 m HIGHFIELD CL380 tender with aluminium hull 25 HP YAMAHA F25GMH outboard engine Swimming Ladder: Stainless retractable from the stern Passarella: Stainless manual
FINAL NOTES
    Final notes
    Cathegory of Conception A - 11 CREW Cathegory of Conception B - 11 CREW Cathegory of Conception C - 14 CREW Cathegory of Conception D - 16 CREW
