BUILDER: QBOATS.
DESIGNER: Judel&Vrolijk.
LOCATED IN ALMERIA (SPAIN).
The hull received a preventative treatment in 2018.
Antifouling VC-17 International.
DESIGN
Builder
Q BOATS
Designer
Judel&Vrolijk
DIMENSIONS
LOA
11.00m
Beam
3.2m
Draft
2.2m
Displacement
5300kg
ENGINES
Engines
YANMAR
Propeller
Gori
Engines notes
Yanmar 29cv engine in good condition
Gori propeller year 2019
TANKS
Fuel
60l
Water
110l

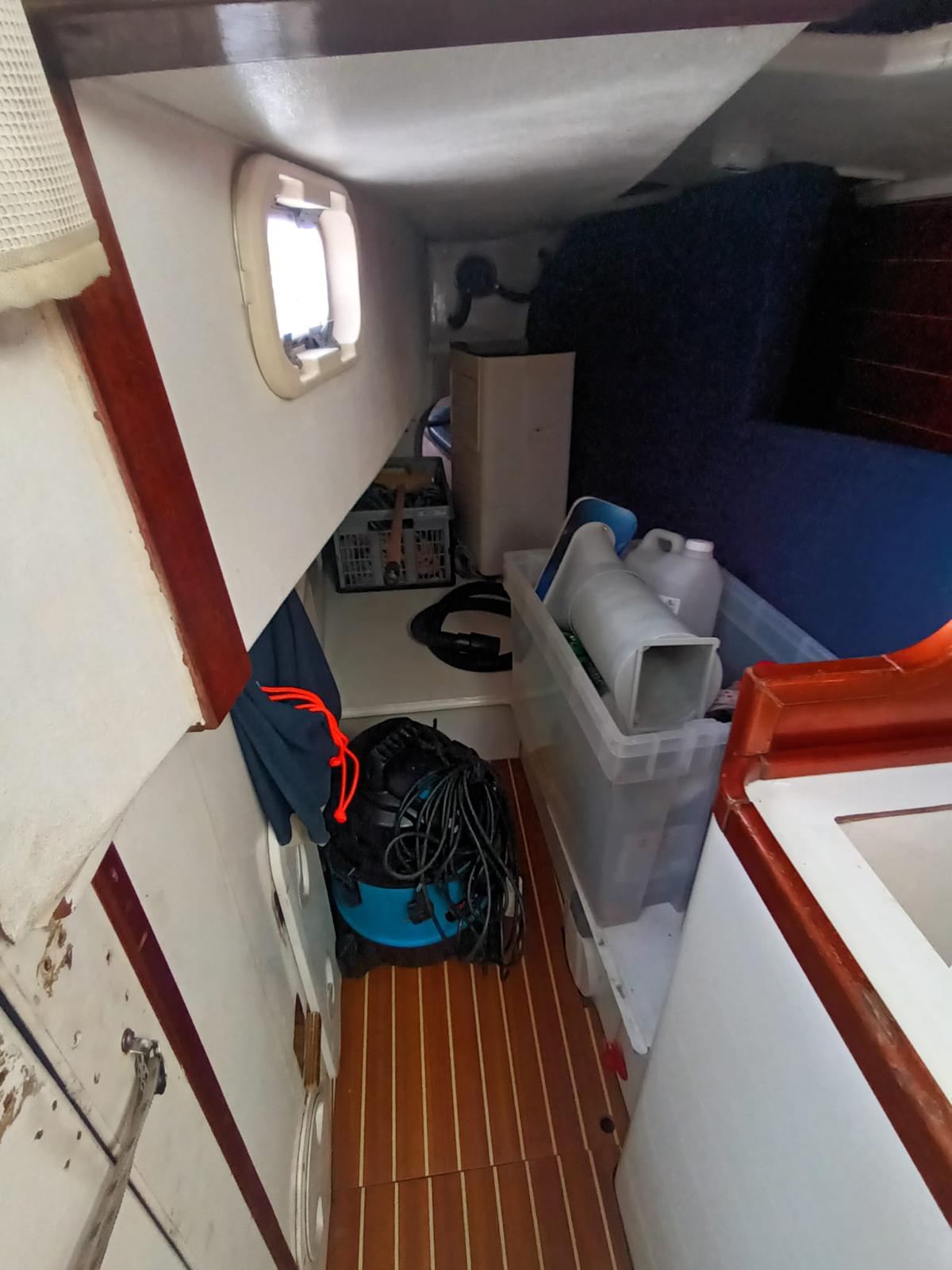

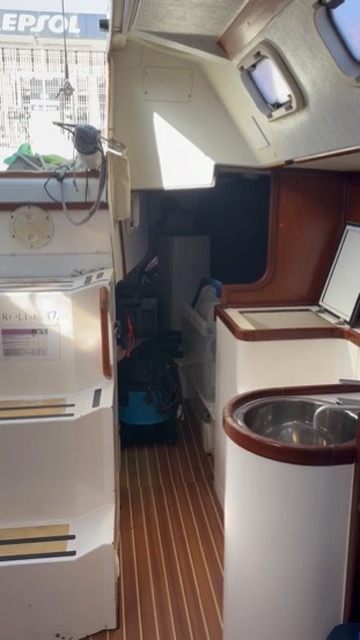

ACCOMMODATIONS
Berths number
3 DOUBLE
Shower
No
Accommodations notes

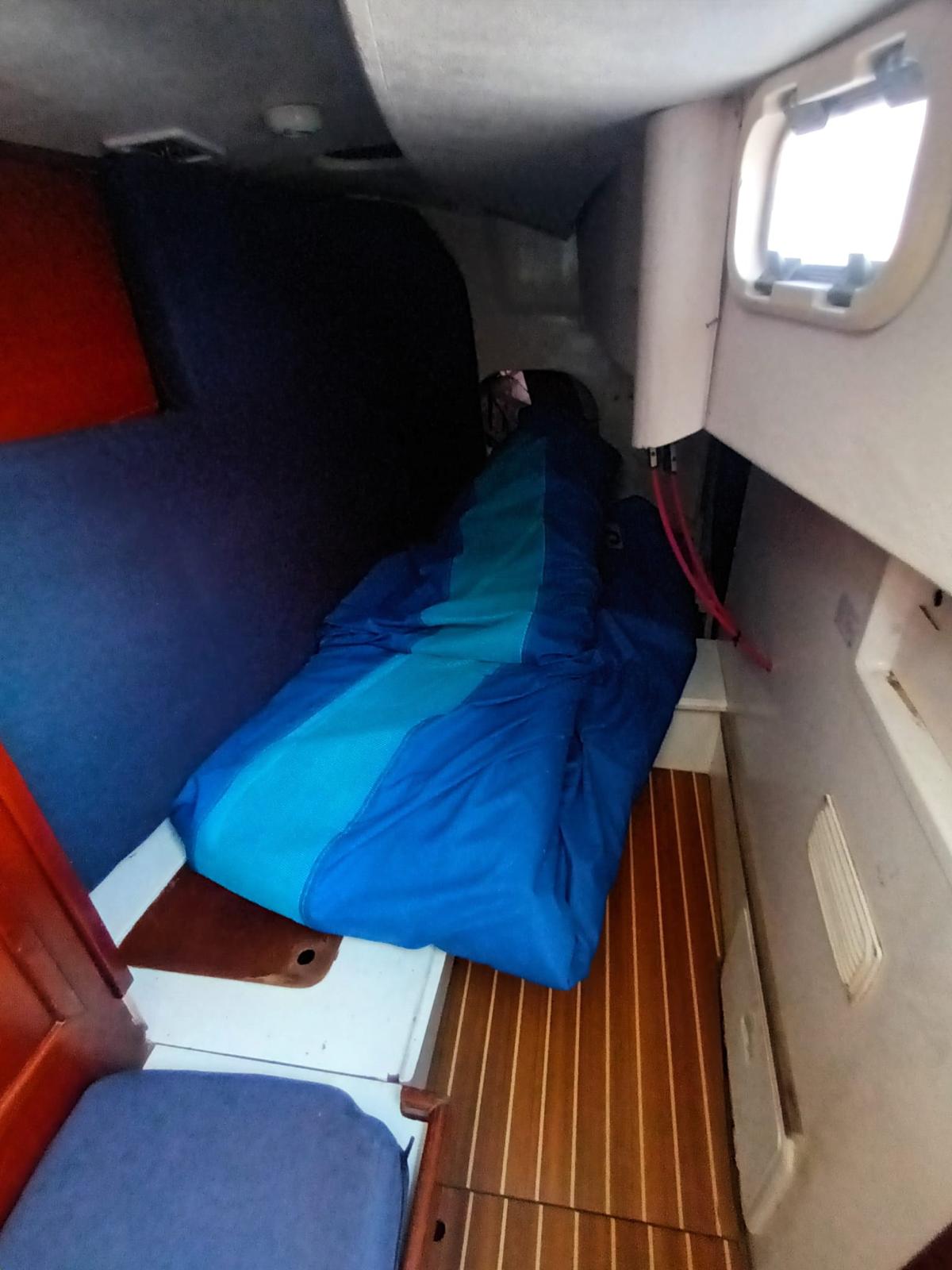

3 double beds and 2 bunk beds in the living room.
Sockets in the living room.
Main Tyra Ply 2023-Sailingsur- practically new
Main AS06 triradial 2022-Sailingsur good condition
Greater Heavy Dacron Transport - UK Sailmaker
J1film-film Carbon Jib 2022 Sailingsur - good condition
J1.5 2019 Liteskin Carbon Jib Olimpic Sails - half life
Jib J2 2018 Film-Film black Carbon Olimpic Sails - Used
Jib J1 2018 Film-Film black Carbon Olimpic Sails - Used
North Sails J 3.5 Triradial Jib - Used

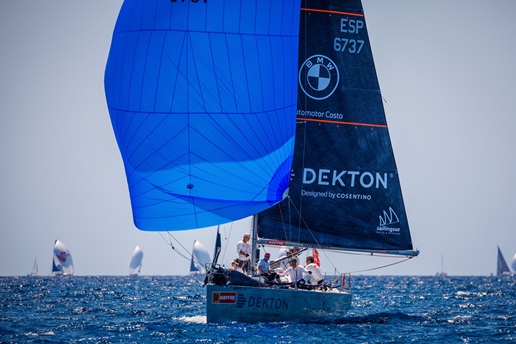

Spi S1 80m2 2018 Olimpic Sails- Half Life
Spi S2 80m2 2018 Olimpic Sails-Media Vida
Spi S2 86m2-Pretty Used North Sails
SPi S1 90m2 Sailingsur- Very new
Spi S1.5 90m2 Olimpic Sails. Good condition
New breathable grey boom cover
Complete ropework in Dynema-Alpha Ropes year 2022
Main halyard in 2:1
All halyards with Tylaska
Rigging
Rod
Mast
Aluminium
Boom
Aluminium
Vang
Yes
Spinnaker pole
Carbon
Tuff Luff
Yes
Running rigging
Dyneema
Spars and rigging notes
Rudder profiled in 2019 by Oscar Bustos
Profiled and inertied centerboard 2019 by Oscar Bustos
Carbon tiller with stick.
It has a carbon rudder wheel
SpartCraft Performance mast
SpartCraft Performance boom
Carbon spinnaker pole
Complete new rigging rod 2018
DECK EQUIPMENT
Deck hardware
Harken
Winches
Harken
Deck equipment notes
Harken jib spreaders and cars year 2018
SAFETY EQUIPMENT
CE Registration
yes
Fire-extinguishers
yes
Epirb
YES
Liferaft
for 8 person
CONSTRUCTION
Construction notes
The hull received a preventative treatment in 2018
Antifouling VC-17 International
