#103

Corby 347

SOLD

GENERAL
Name
Corby 347
Model
Corby 347
Year
2004
Hull material
GRP
Sail number
NED 490
Color hull
Hull blue, deck white
Located
Scheveningen, The Netherlands
Price
PRICE AT REQUEST
VAT
NOT PAID
Flag
Dutch
Type
CRUISER
Slogan
.
Description

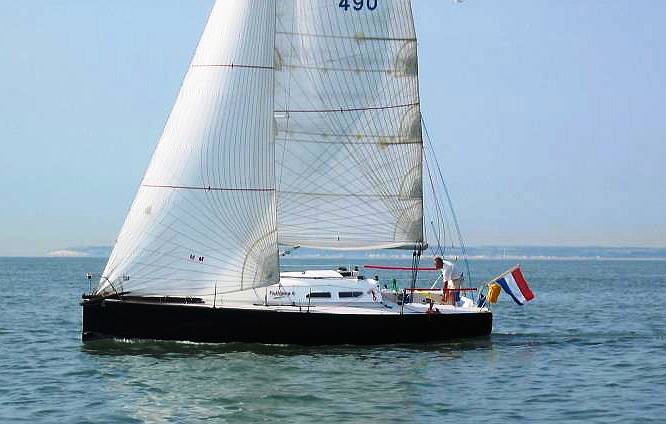

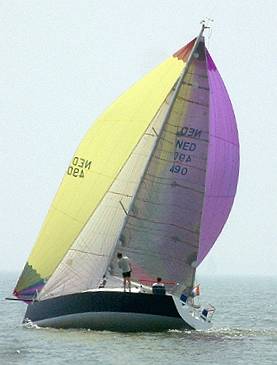

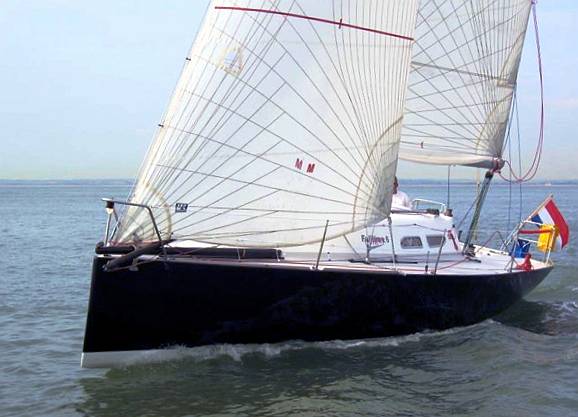

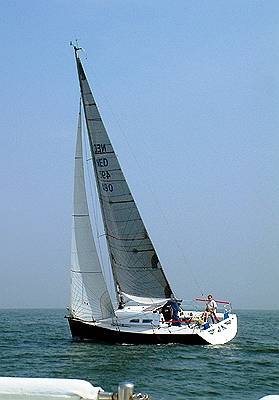

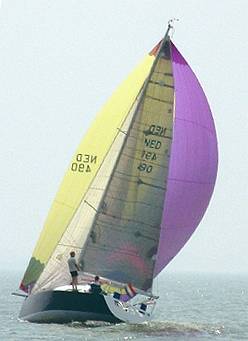

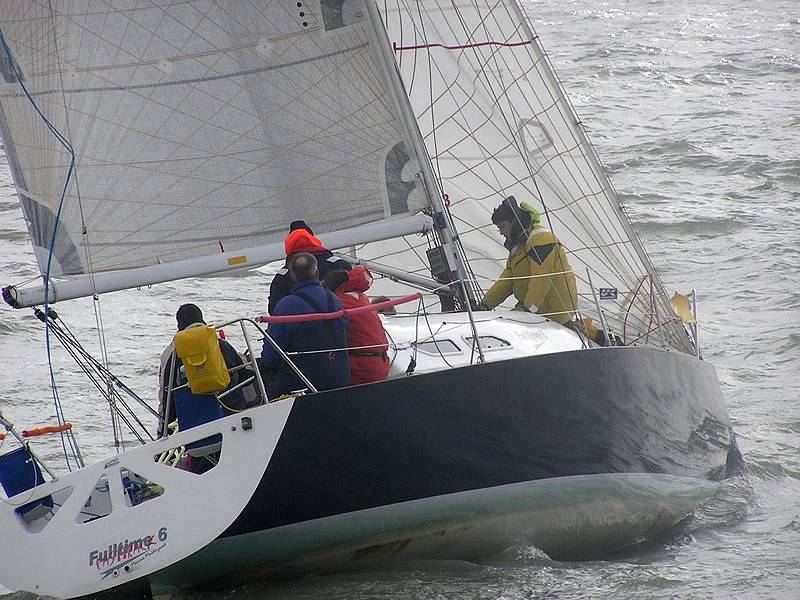

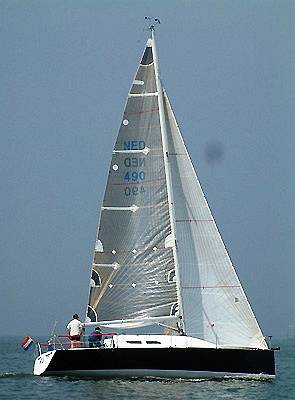

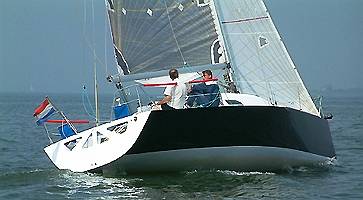

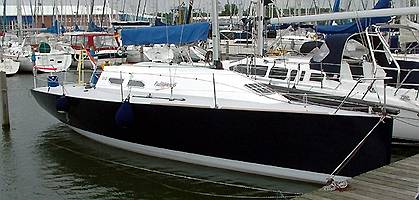

Fulltime 6 is a custom built Corby 34.7 Racer. Newly designed by England's leading raceboat designer John Corby of Cowes. Top of the bill design and construction aimed at high speed racing / spacious interior provides for sensible comfort when racing or performance cruising offshore. Launched May 2004. Built by experienced owner/builder Lucas Adriaanse - NL. Now for sale at a fraction of replacementcost in order to be able to start building yet another, larger Corby design.
DESIGN
    Builder
    Lucas Adriaanse
    Designer
    John Corby
    Design notes
    Hull and deck were built with vacuumtechniques. Using epoxy resins, glues and fillers. Laminates are built up in a matrix of Twaron (kevlar) between e-glass woven rovings for both hull and deck (all over !) The slamming area & bow have multiple Twaron layers. Laminates over stringers and keelfloors are built up in e-glass diagonals and 4000gr carbon unidirectionals. The aft keelfloor is extra strong to prevent hull damage in case of grounding. Core material for stringers and floors is wood. The hull and deck have a 20mm Divinycell H80 foamcore. As have most of the bulkheads. This construction is stiff, tough, light and durable. Top quality ! The rudder is a carbon/kevlar blade on a full carbon stock. Self-aligning bearings by JP3.
DIMENSIONS
    LOA
    10.00m
    Beam
    3,42m
    Draft
    2,18m
    Displacement
    1kg
ENGINES
    Engines
    Ruggerini 10Hp
    Cruising speed
    5,5kn
    Propeller
    6,7
TANKS
    Fuel
    35l
ACCOMMODATIONS
    Shower
    Yes
    Accommodations notes
    Two lightweight pipecots aft provide for the ultimate sleepingcomfort at sea; they are gimballed. The two setteeberths are quite wide and the double V-berth in the forecabin can be lengthened to 2m70 ! There is lots (1m90) of headroom .... even in the heads with lightweight (3kg) seawater toilet. Storage under all berths is spacious! The navstation with 50cm x 80cm charttable also has sufficient storage behind lockers. Floorboards are 'elm-striped on teak' panels (Bruynzeel wood).
GALLEY
    Galley notes
    The galley with two burner gaz cooker, 12v electrical fridge and pressurized freshwater (cold) has plenty of lockers.
ELECTRICAL
    Batteries
    105 Ah battery for domestic/navigational
    Battery charger
    6 Ah batterycharger
    Electrical notes
    Separate main switch for engine use. Batteries: 105 Amps for domestic/navigational + 65 Amps for engine start.
SPARS & RIGGING
    Sails
    Fulltime 6 comes with a full set of used racing/delivery sails for free only if sailnumbers will not be re-used in Holland. Sailnumber and yachts' name to be retained by owner. Sails are in reasonably good order. A new racingset could be ordered at costprice. Main, 36m², Mylar/Kevlar tapedrive, UK Sailmakers Main, 32m², Technora Black/Kevlar tapedrive, UK Sailmakers Genoa 105%, 24m², Mylar/Kevlar tapedrive, UK Sailmakers Genoa 98%, 20m², Mylar/Kevlar tapedrive, UK Sailmakers Jib, 15m², Dacron, UK Sailmakers Spinnaker, 86m², 0.75 Ounce, UK Sailmakers Gennaker, 80m², 1.2 Ounce fractional hoist, UK Sailmakers Gennaker, 122m², 0.75 Ounce masthead hoist, Hagoort Sails Stormjib, 6m², Dacron, UK Sailmakers
    Spinnaker pole
    Fulltime 6 has both a retractable carbon bowsprit and a carbon spinnakerpole.
    Spars and rigging notes
    Winches by Meissner, tracks and blocks by Frederiksen, aluminium mast, boom and vang by Sparcraft (Performance section) with Dyform rigging. Most running rigging in Dyneema.
DECK EQUIPMENT
    Winches
    Meissner
    Deck equipment notes
    Cleats by Ronstan and halyard stoppers by Spinlock. Hatches and portholes by Lewmar. A 50x50 Lewmar hatch gives acces to a large locker underneath the cockpitfloor (approx. 1m10 x 2m10). Ample storage for mooringlines, fenders and genoas. The navstation with 50cm x 80cm charttable also has sufficient storage behind lockers.
