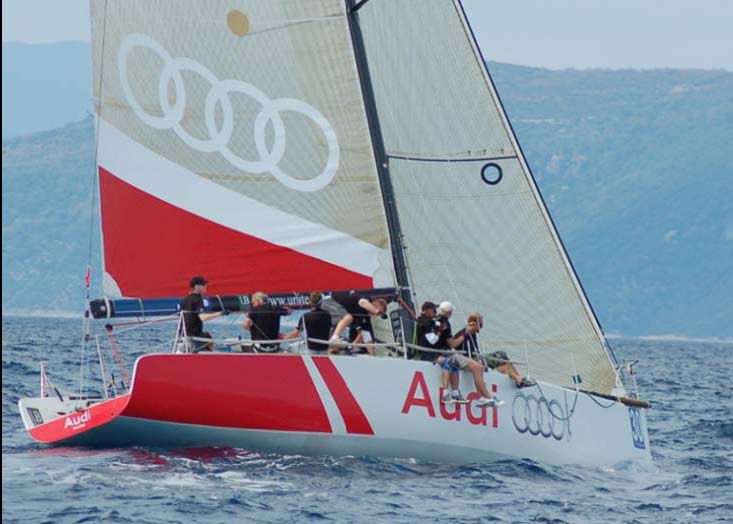

RM: 193,0 KG M
GPH: 571,9 sec/mile
KEEL WEIGHT: 3200 kg
ENGINES
Engines
Yanmar 40 hp with saildrive.
Propeller
Two bladed Gori folding propeller.
Engines notes
Diesel engine.
TANKS
Fuel
75l
Water
2 x 100l
Tanks notes
Fuel tank: 90 LITRE stainless.
Fuel filter and water separator.
Spinlock throttle control unit in cockpit.
Fuel gauge.
Waterlock with silencer.
Water tanks: 2 x 100 liter (flexible).
Fresh water system with hand pumps at galley and heads basins.
Galley and Vanity sink with overboard drain.
Manual bilge pumps:
1 cockpit, 1 below deck.
Electric bilge pump below deck.
Marine head plumbed for intake of sea water.
Flush seacock on all openings below decks.
Stove: 2 burner.
ACCOMMODATIONS
Shower
Yes
Accommodations notes
SAFETY EQUIPMENT CATEGORY ORC 3
INTERIOR COVERS AND COCKPIT COVERS
CARBON TILLER
Interior Layout is designed to meet the IMS Cruiser/Racer Regulations as well as the ORC Special Regulations to Category 2.
Care has been taken in the layout to ensure good weight distribution and a good working interior.
The interior will be lightweight and elegant.
Interior minimum headliner with halogen lighting.
Interior styling should feature composite/metal entrance steps.
Simple combination of wood trimming with Carbon in-lay on saloon table, chart area, galley and sole.
GALLEY
Galley notes
Icebox: Insulated. No compressor.
NAVIGATION INSTRUMENTS
Electronics
B&G Hercules 3000 processor installed by B&G technicians.
GPS
Differential GPS antenna.
VHF
VHF with external speaker.
Automatic pilot
Automatic Pilot B&G.
Plotter
Raymarine C70 chart plotter with GPS.
Navigation instruments notes
2 FFD B&G display in cockpit.
4 20/20 with carbon mast support.
Heel sensor.
Rudder sensor.
Mast Head Unit 1050 mm.
Serial wire to be connected to a computer.
ELECTRICAL
Batteries
3
Electrical notes
12 Volt DC distribution panel with appropriate breakers, switches, etc.
Battery condition meter
Circuit breakers of appropriate amperage
Main battery switch
Batteries: 3 * 80Amp hour batteries
Alternator, 80Amp on engine
ORC approved navigation lights
Red & White dome lights for general illumination
Recessed Halogen lights in saloon, galley, nav area
Halogen reading lights in cabins
SPARS & RIGGING

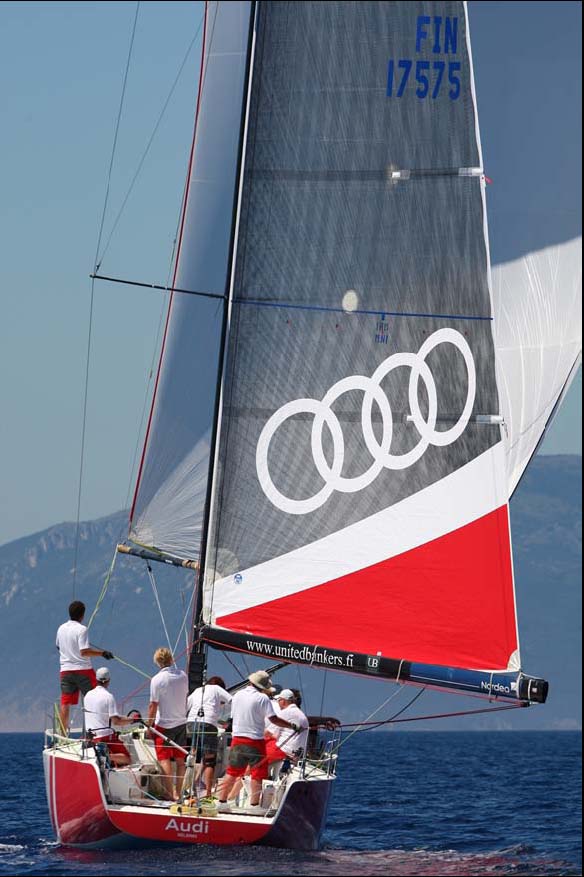

Sails
The sails made by Quantum have been build as Membrane system
2005:
Genoa code 1 carbon, 0 - 9 TWS.
Genoa code 2 carbon 8 - 14.
Genoa code 3 carbon 13 - 17
Genoa code 3 North 3 DL carbon 13 - 17
Genoa code 4 carbon (a little bit smaller and flatter than code 3).
Spi 0,5 VMG.
Spi 0,5 AP light.
Spi 0,5 Runner.
Spi 0,7 AP.
Storm jib.
Try Sail.
2006:
Mainsail carbon.
Genoa Code 1.
Genoa Code 2.
Genoa Code 3.
Spi 0,5 VMG.
Spi 0,6 Runner.
Spi 0,5 AP.
2007:
Genoa code 5 dacron WB-Sails.
2008:
Genoa code 1 carbon North 0 - 9.
2009:
Mainsail, carbon, Quantum.
Code 0, CZ 15 Quantum.
2010/2011:
Spi 0,5 Runner (10% larger than original).
Spi 0,5 VMG (10% larger than original).
Genoa Code 1 carbon Quantum.
Genoa Code 2 carbon Quantum.
Spi Stay Sail Quantum.
2012:
Mainsail North 3DL carbon.
Genoa code 1 North 3DL carbon.
Spinnaker North code S0.
Delivery sails:
Mainsail Dc for delivery proposal.
Smaller than racing sail Kevlar jib code 2 for delivery proposal.
Rigging
Custom carbon rod rig Hall Spar USA
Boom
Custom full depth carbon boom
Vang
Hall Spars Quickvang
Spinnaker pole
Carbon spinnaker pole
Spars and rigging notes
2 Carbon Rudder Stock with Epoxy/Carbon blade, JP3 Custom
Upper and lower self aligning bearings
Custom alloy emergency tiller
Custom composite tiller, reinforced Custom carbon rig: builder Hall Spar USA
Two sets carbon curved swept spreaders (16 degrees)
Internal hydraulic + external Enerpack
Adjustable mast foot
Roller bearing Spinnaker pole track
Course outhaul to exit underneath boom for easy trimming
DECK EQUIPMENT
Deck equipment notes
Pulpits: S/s custom bow & stern rails with lights.
Stanchions: 6 tapered with braces, 4 tapered.
Stanchion bases: custom flush fit to deck radius.
Lifelines: Upper & Lower 1*19 s/s wire.
Spinlock Rope clutches for halyards, boom reef(4).
Spinlock jammer boom reef, main halyard (2).
Transverse jib tracks, Fully adjustable with under deck purchase leading aft to jib trimmer.
Cunningham.
Mainsheet System
‘German’ style, lead under deck and back to main trimmer.
Spinnaker fore guy.
Foredeck Hatch Cockpit Lewmar hatches Low Profile Size 20 (2).
Life raft locker in cockpit floor.
SAFETY EQUIPMENT
Safety equipment notes
Acording ORC category 3
CONSTRUCTION
Keel
Full lead keel
Construction notes
Epoxy E-glass/foam deck, sandwich, carbon utilized in all areas permitted under IMS Rule. Between 0.3LOA and 0.7LOA.
Post Cured to SP specs.
Keel floor support structure:
Composite grid utilizing carbon where permitted by IMS rules.
0.3LOA-0.7LOA.
Keel:
Part Lead fin with Stainless support structure and glass wood shoe.
Shoe May be changed for optimum IRC rating.
FINAL NOTES
Final notes
Special Cradle
The boat will be sold with polar files and tuning information
Serial number: IT-CDP42R23C505
