#257

Evento 46

SOLD

GENERAL
Name
Evento 46
Model
J&V 46
Year
2004
Hull material
GRP
Sail number
GER 5755 – Bj. 2004
Color hull
SILVER
Located
GERMANY
Price
PRICE AT REQUEST
VAT
PAID
Flag
GERMAN
Type
CRUISER-RACER
Slogan
.
Description
The Evento 46 is designed by Judel/Vrolijk & Co. The boat is very competitive and wins the Worlds in 2007. The boat gets a new painting in 2007 and is maintained by a professional boats men so the boat is in very good shape.
DESIGN
    Builder
    Judel/Vrolijk & Co. Bremerhaven
    Designer
    JUDEL & VROLIJK
    Shipyard
    Indiana Yachting, Scarlino Italien
DIMENSIONS
    LOA
    14.00m
    LWL
    11.61m
    Beam
    3.5m
    Draft
    2.86m
    Displacement
    8630kg
ENGINES
    Engines
    Yanmar 55HP
    Propeller
    Folding blade propeller Gori
TANKS
    Fuel
    110l
    Tanks notes
ACCOMMODATIONS
    Berths number
    6
    Shower
    Yes
    Accommodations notes

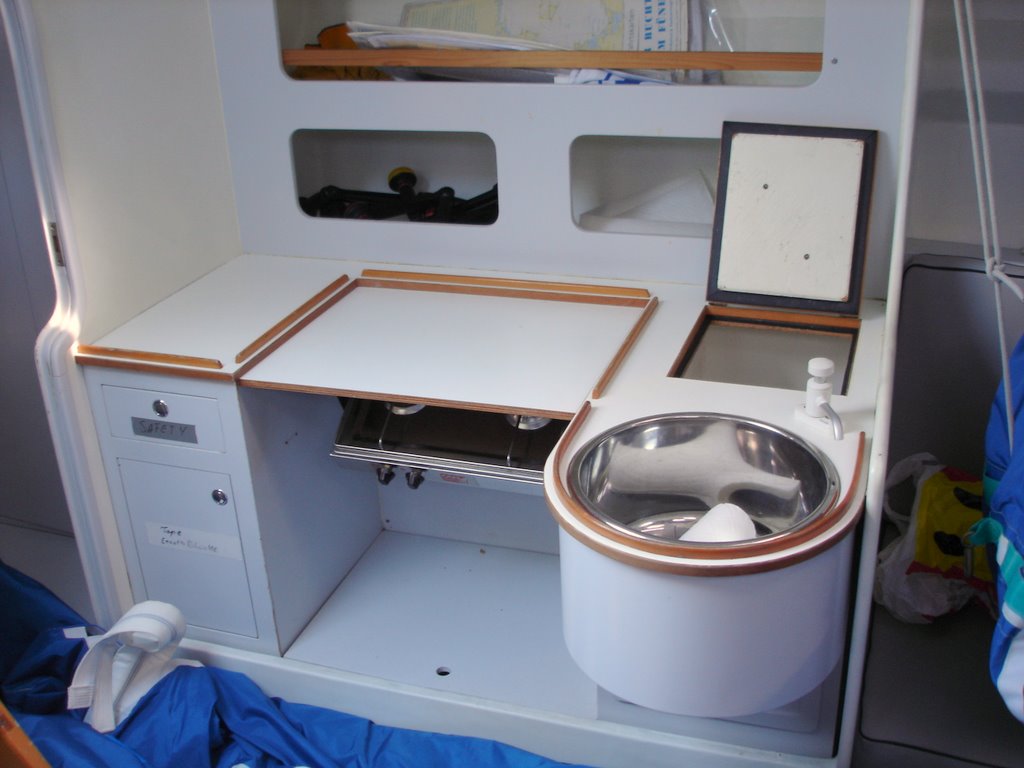

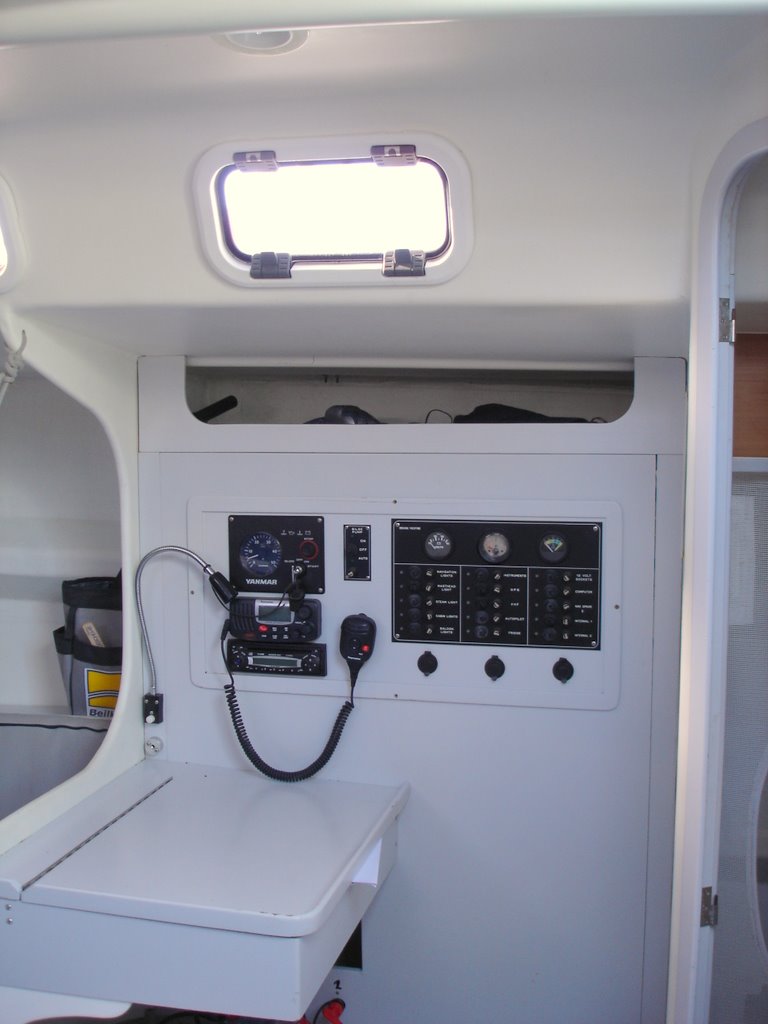

    Below deck Beluga Sailing the main impression one gets is of total purism. Heavy interior has been totally neglected. The for and the aft are completely empty to optimise weight balance and are only divided by nets. Six berths cater for an urgent need for sleep during long distance racing. Furthermore the porta potty and a small galley are available if needed. The navigator always moves to the windward side with his movable navigation unit. Fridge: Place yes, but no cooling
ELECTRICAL
    Batteries
    Auto-start battery
    Electrical notes
    Batteriecharger 220V more batteries
SPARS & RIGGING
    Sails

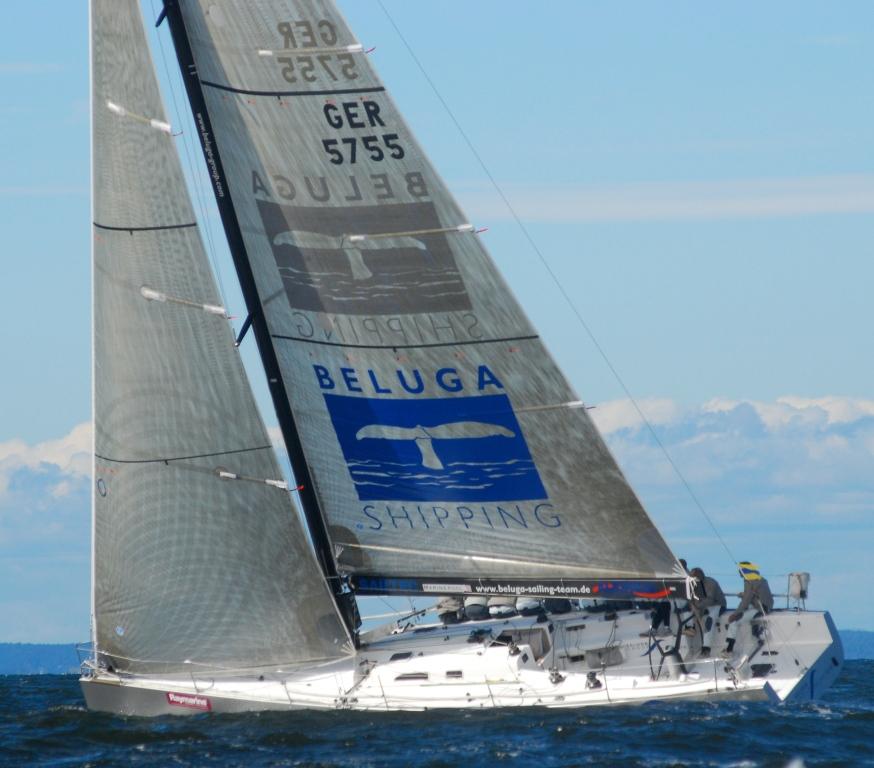

    Sails are Carbon sails by North and date from 2006 and 2007. The boat has a couple of sails from North 3 DL. The newest set is from 2006 and 2007 in 3DL Carbon mostly. If you want you can have a separate list of sails.
    Mast
    Carbon mast (2 spreaders). Carbon with Rodrigg, King Composite
    Boom
    Carbon boom. King Composite
    Spinnaker pole
    Carbon spinnaker pole. 2 x carbon.
    Tuff Luff
    Yes
    Spars and rigging notes
    Double set of jib and spinnaker halyards. Hydraulic mast pump. Stopper Spinlock. Backstay Aramid. - Mastjack, integriert - Magic Wheel Backstay - Tuff Luff
DECK EQUIPMENT
    Hatches
    Lewmar
    Winches
    2 x main harken2 x genoa harken2 x spinnaker harken
    Deck equipment notes

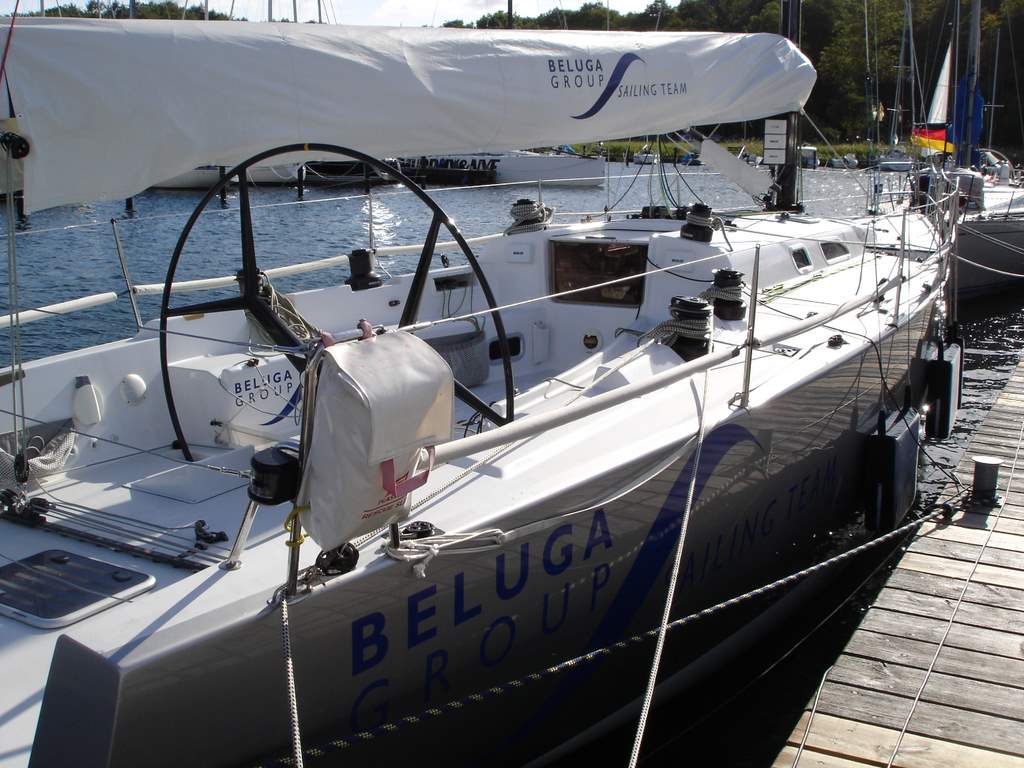

    The huge working area in the cockpit is dominated by the broad traveller and the huge carbon wheel using maximum beam. The main sheet covered under deck is trimmed by two 53 self tailing winches by Harken on either side of the boat. Two more 48 Harken self tailing winches are mounted just in front of them. The narrow and low cabin roof allows for optimal crew agility and trim. All halyards and necessary trim options are channelled on the cabin roof to be worked on by the pit man with his pair set of 48 self tailing winches. All genoa leads are fully adjustable even under full load and the heavy sheeted “Anakonda” is the pointing turbo as the genoa can be sheeted even tighter to the mid ship line. This allows for extreme pointing abilities in light and medium wind conditions. A huge round bow hatch allows for a safe spinnaker take away. The backstay is adjustable from the steering console by the main trimmer. Rudder mechanism Jefa with carbon rudder. Steering wheel Jefa carbon. - Extra place for liferaft in the Cockpit - Possibility to go throw the hull with Endoskop - Possibility to put Lead inside the keel from the inside oft he boat to bring up the stability quickly.
CONSTRUCTION
    Construction notes
    • moderate U-hull • low freeboard • 2 spreader fractional rigg • 110% jib • short waterline • „spanisch shoe“
FINAL NOTES
    Final notes
    Helm: Jefa Carbon Wheel Mast height: approx. 20 m Sail area upwind: 119 m² GPH: 552 sec/nm Propeller: Gori 2-Foil-Foldable
