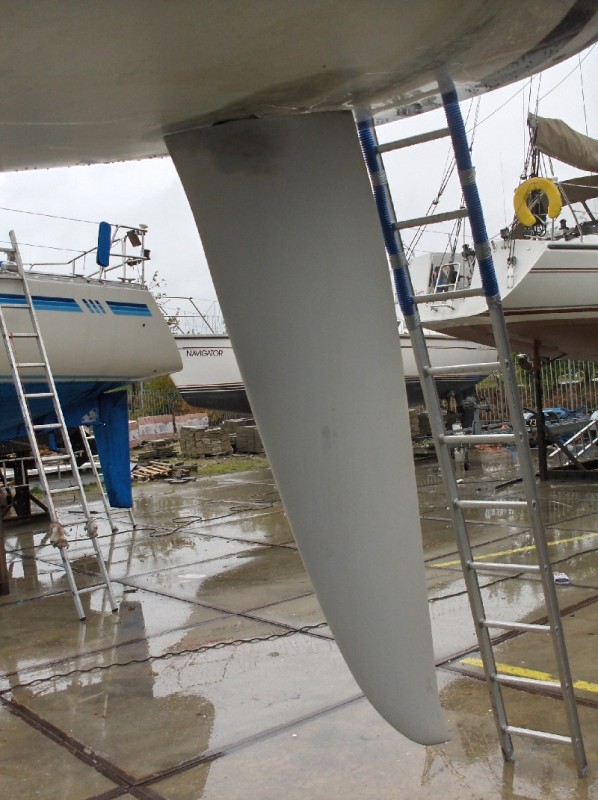

The new X-35 One Design followd the traditions of the X-79 and X-99, as popular large fleet one-design racers. During 2006 the first hundred X-35s were racing around the world. Her hull, keel and rudder gives the helmsman a very light and direct feel of the yacht, she will respond to minor connections. The sail plan, with a powerful main sail and a 106% max jib has the ability to accelerate the X35 out of tacks and keep her in fast lane upwind. The X35, a one design class to ensure racing on a high and equal level.
DESIGN
Builder
X- yachts
Designer
Niels Jeppesen
DIMENSIONS
LOA
11.00m
LWL
9.12m
Beam
3.27m
Draft
2.15m
Ballast
1700kg
Displacement
4300kg
ENGINES
Engines
Volvo Penta 20 HP
Cruising speed
Cruising Speed: 6kn
TANKS
Fuel
50l
Water
100l
ACCOMMODATIONS
Cabins number
2 cabins and saloon
Shower
Yes
Heating
yes
Accommodations notes

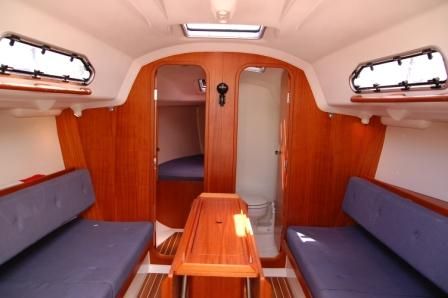

Mahogany interior, hand polished finished. Forward cabin with V-berth, head with manual u.w. toilet, integrated sink with mixer tap. Saloon with foldable table and two large sofas. Starboard the navigation table together with the top opening GRP coolbox. The aft sleeping berths are separated into two sections via a centre wooden longitudinal bulkhead.
GALLEY
Hot water
boiler hot water system
Refrigerator
12v fridge

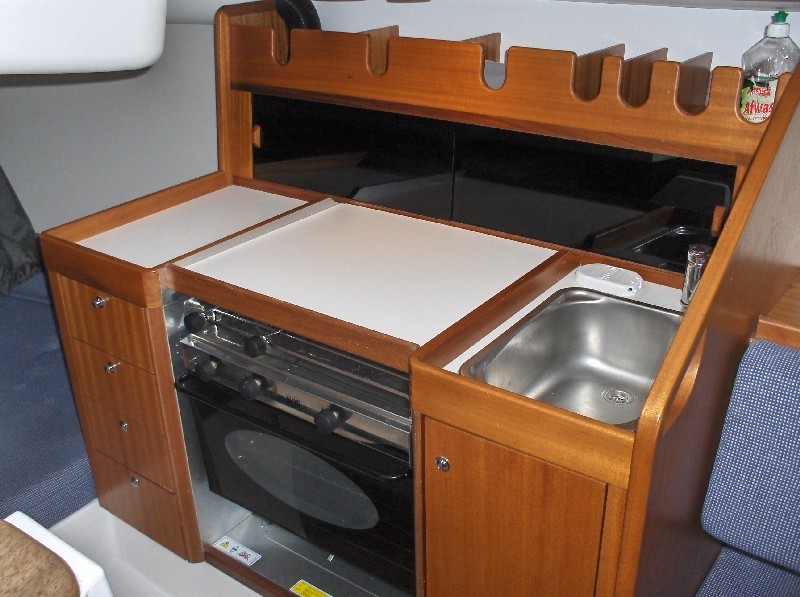

Galley notes
Galley to port of the companionway.
Two burner gasstove with oven.
NAVIGATION INSTRUMENTS
Electronics
Silva Log, Silva Echosounder, Silva Windset
VHF
Silva VHF
Automatic pilot
Silva autopilot
Compass
yes

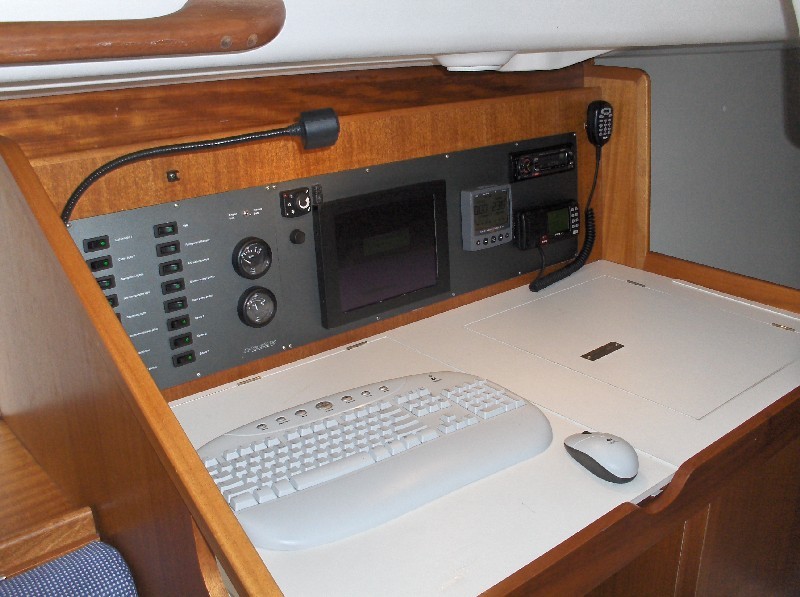

Navigation instruments notes

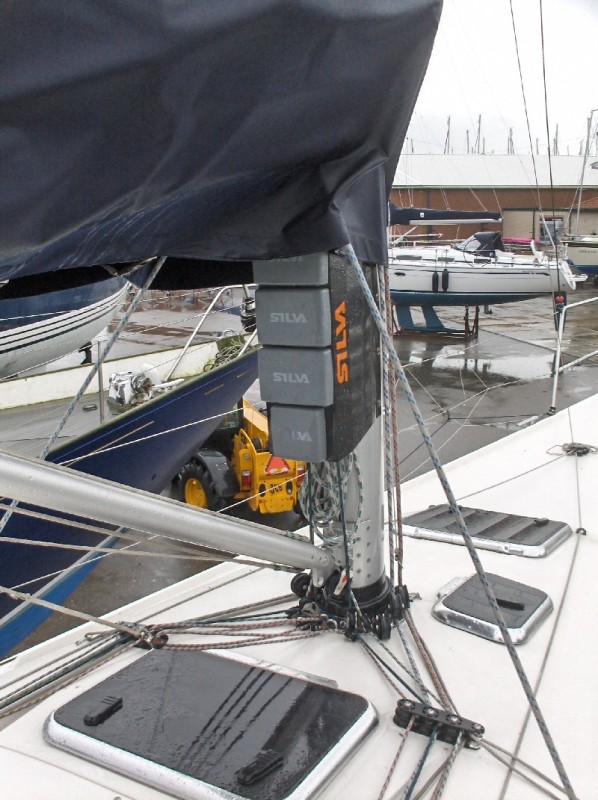

4 x Silva mast displays
Silva display at nav table
Pc + plotter
ELECTRICAL
Batteries
1 x 120amp Gel batterie, 1 x 55amp batterie
Battery charger
yes
Electrical notes
12v/220v electrical system
shore power
SPARS & RIGGING
Sails
Quantum sails:
Code 1 jib
Code 1 spinnaker
Mainsail Fusion M Carbon twaron
Fusion M code 2 Medium Carbon twaron
Fusion M ORC code 3 heavy Carbon twaron
Code 2 spinnaker medium
Fusion M mainsail carbon/technora Taffeta
Fusion M furling #3 Kevlar
Rigging
Discontinued rod-rigging
Mast
Double spreaded tapered aluminium mast, specially designed for the X-35
Spinnaker pole
Carbon Fibre Spi-pole.
Spars and rigging notes

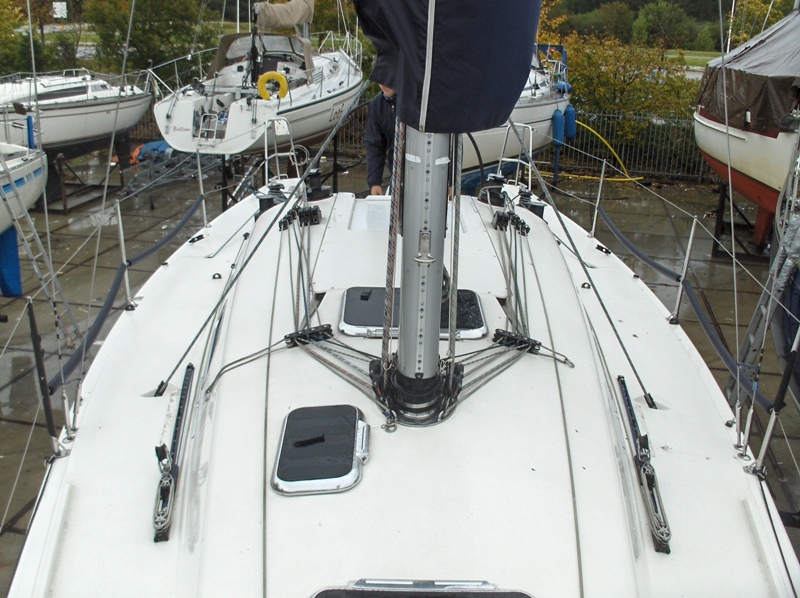

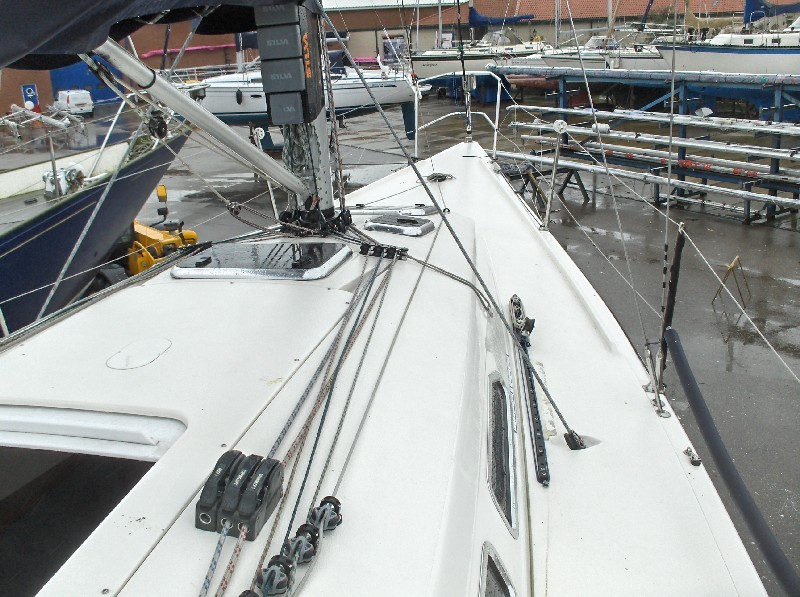

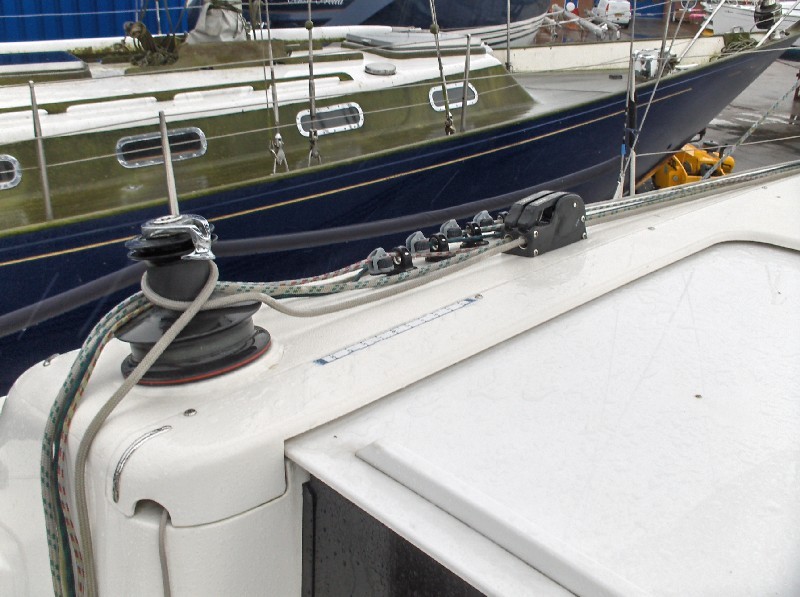

Backstay system with power magic wheel. All halyards are led via deck organizers to the two halyard winches, cunningham, outhaul and vang are led back on both sides to cam cleat bases. Main / Genoa and spin halyards from Spectra.
DECK EQUIPMENT
Winches
All winches Harken
Deck equipment notes

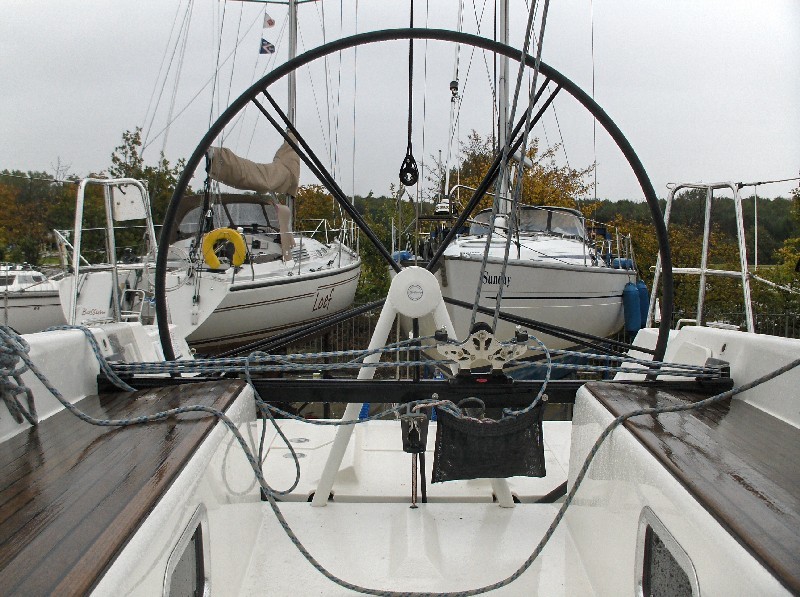

German mainsheet system with the sheet running to self tailing mainsheet winches placed near the helmsman for easy handling. Ball bearing car for mainsheet.
