#529

FARR 40.7

SOLD

GENERAL
Name
FARR 40.7
Model
FARR 40.7
Year
1993
Hull material
GRP
Located
HOLLAND
Price
PRICE AT REQUEST
VAT
NOT PAID
Flag
DUTCH
Type
CRUISER-RACER
Slogan
READY TO RACE!
Description

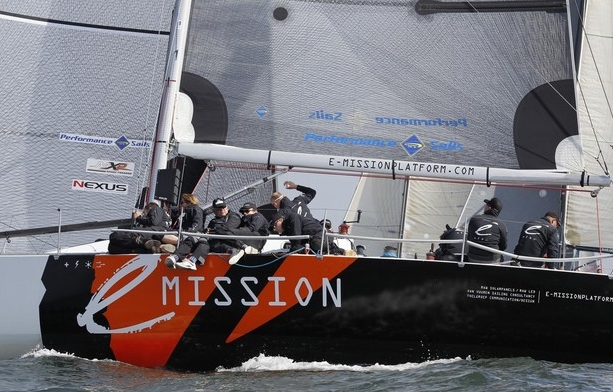

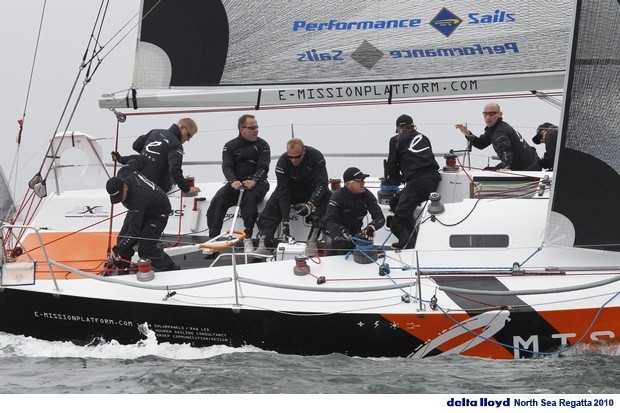

The E-mission was completely and professional refitted in 2010. She is professionally maintained and is ready to go! Palmares: 1st North Sea Regatta (Vuurschepen Race) IRC 1 2nd Dutch ORC Championships 5th Dutch IRC Championships 1st Little Britain Cup (IRC 1) etcetc
DESIGN
    Builder
    BENETEAU
    Designer
    FARR
    Design notes
    Design 289 IRC: 1.133 (endorsed) ORC gph: 562.4 (2010)
DIMENSIONS
    LOA
    12.00m
    Beam
    3.95m
    Draft
    2.55m
    Ballast
    2501kg
    Displacement
    5855kg
ENGINES
    Engines
    Volvo 2003S Turbo 45 hp (overhaul 2010)
    Propeller
    Racing propeller 2 blade folding
TANKS
    Fuel
    Fuel 150L Diesel Tankl
ACCOMMODATIONS
    Shower
    Yes
    Accommodations notes

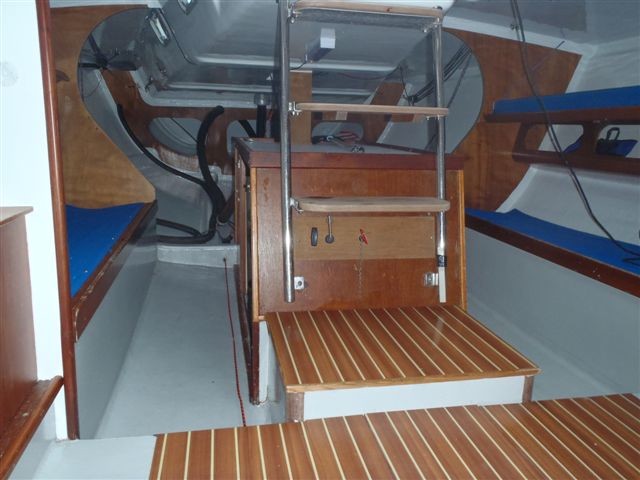

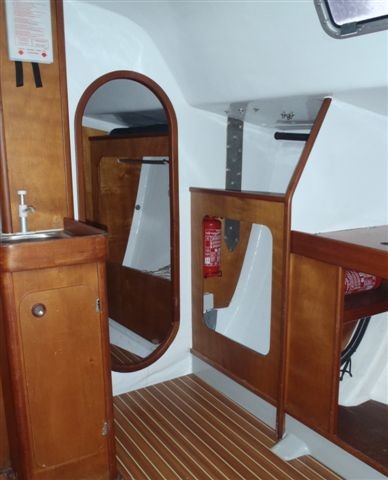

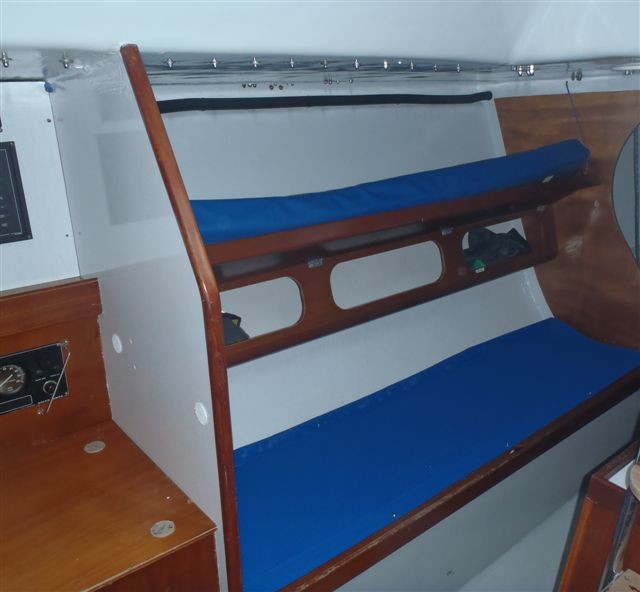

    Navigator’s area with desk, storage, instrument panel, electronic switchgear Separate head area with Marine pump toilet , sink & storage area 4 berths, 2 aft pipecots have been removed but are included and easily re-installed Marine pump toilet
GALLEY
    Galley notes
    Galley with insulated cool box, sink, food and equipment storage New two-burner stove Origo 3000 (2010)
ELECTRICAL
    Batteries
    1 start battery, 1 service battery (2009)
    Battery charger
    Battery charger 2010 Mastervolt Chargemaster 12/25-3
    Electrical notes
    New electrical cable system 2010 Digital Battery condition meter Mastervolt 2010 Main battery switch
SPARS & RIGGING
    Sails

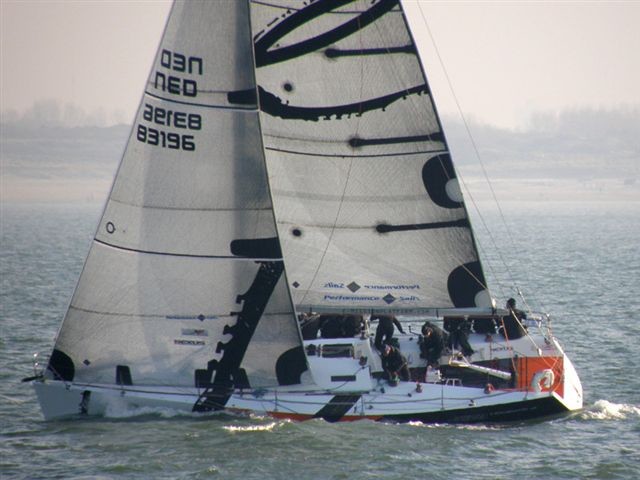

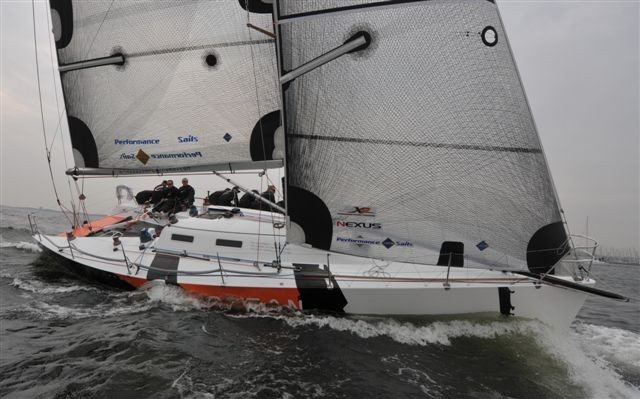

    New wardrobe in 2010 Mainsail: Performance Sails 2010 70/30 carbon-kevlar Code #1 Heavy: Performance Sails 2010 135% 70/30 carbon-kevlar Code #1 Heavy Performance Sails 2010 135% kevlar Code #2 Light-Medium: Performance Sails 2010 135% 70/30 carbon-kevlar Code #3: Performance Sails 2010 100% 70/30 carbon-kevlar Code #4: Farrar 2005 Symmetrical spinnakers: S2 (Performance Sails 2010), S4 (Performance Sails 2010) Asymmetrical spinnakers: A1,5 (Performance Sails 2010) Staysail with furler (Performance Sails 2010) Storm Jib (Dacron) Many Delivery & training sails; from North Sails/Farrar (1x mainsail 3x genoa / 3x spinnaker) Cover for mainsail on boom. Bags and covers for all sails
    Rigging
    All new rod standing rigging 2010
    Mast
    Sparcraft three spreader mast & racing boom (complete refit of the mast in 2010)
    Spinnaker pole
    Carbon max length spinnakerpole
    Spars and rigging notes
    Boom with reef line and internal 24:1 cascade outhaul control New PBO runners 2010 and dyneema checkstays Covered Kevlar backstay 2010 Twin groove Tuff Luff headstay 2010 Halyards vectran (2010) or spectra, most with Tylaska & Lewmar shackles Mechanical vang
DECK EQUIPMENT
    Deck hardware

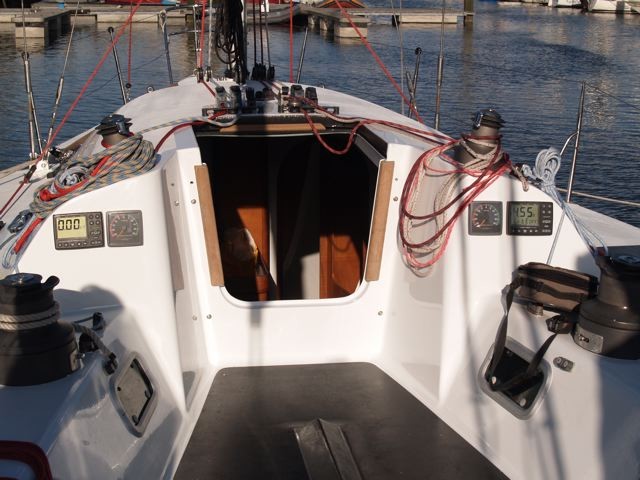

    All Lewmar and Harken deck gearTraveler & checkstay controls under deckSpinlock tiller extension
    Winches
    2 Lewmar 48 Self-tailing winches ‘Runners’2 Lewmar 46 Self-tailing for Mainsheet2 Lewmar 44 Self-tailing on coach roof2 Barient 44 Primary 3-speed genoa winches
    Deck equipment notes

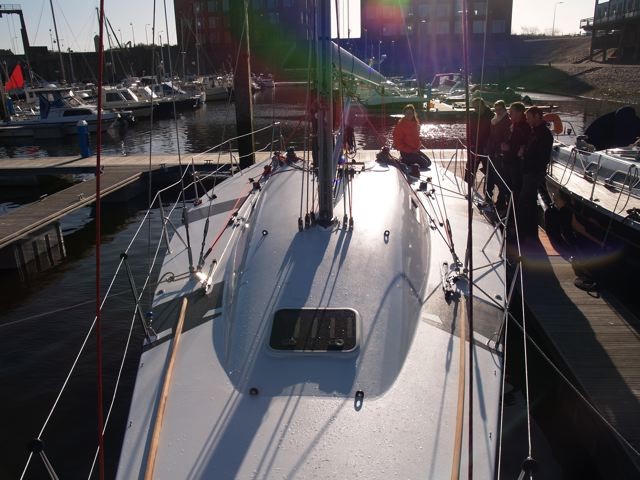

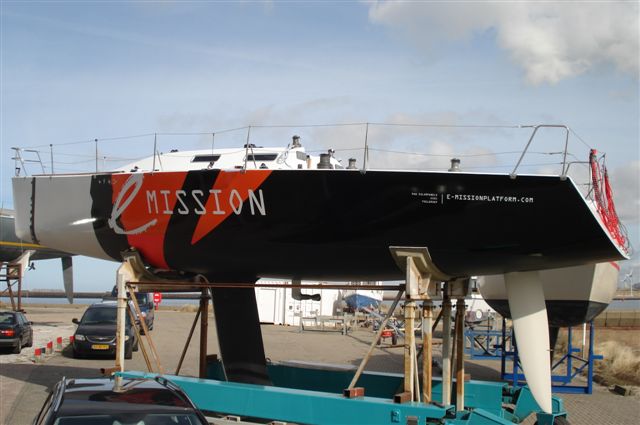

    Deck painted white & black including new anti-slip Hull graphics are high quallity stickers Underwaterhull is totally faired in 2010
SAFETY EQUIPMENT
    Safety equipment notes
    Anchor, chain & warp 4 fenders and 3 x 10metre mooring Lines 1 foghorn 1 safety pump for bailing water Several soft plugs 1 rig cutter 1 spare VHF antenna 1 hourse shoe bouys 2 safety lines on deck 1 set of flares
CONSTRUCTION

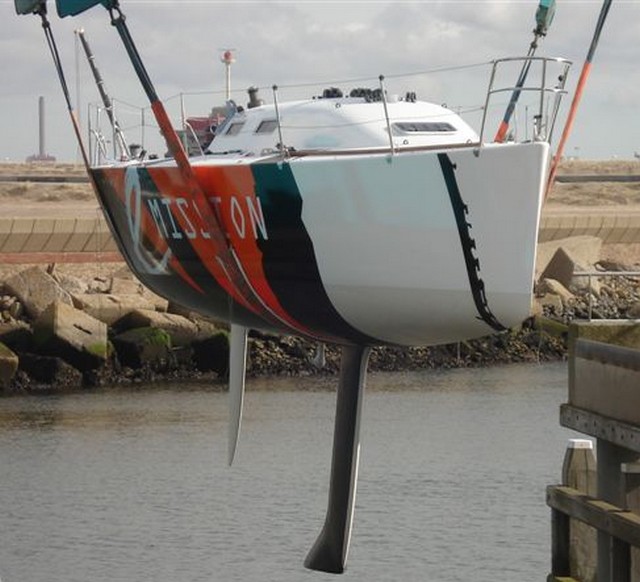

    Keel
    Lead fin
EXTRA
    Extra notes
    The tiller steering can be replaced with a custom Lewmar twin wheel system which includes an instrument console.
FINAL NOTES
    Final notes
    Complete overhaul in- and exterior 2010
