Yanmar Model 4JH5E.
Power 36kw.
Engine Nr. E11881.
Sail drive.
TANKS
Fuel
80 l.l

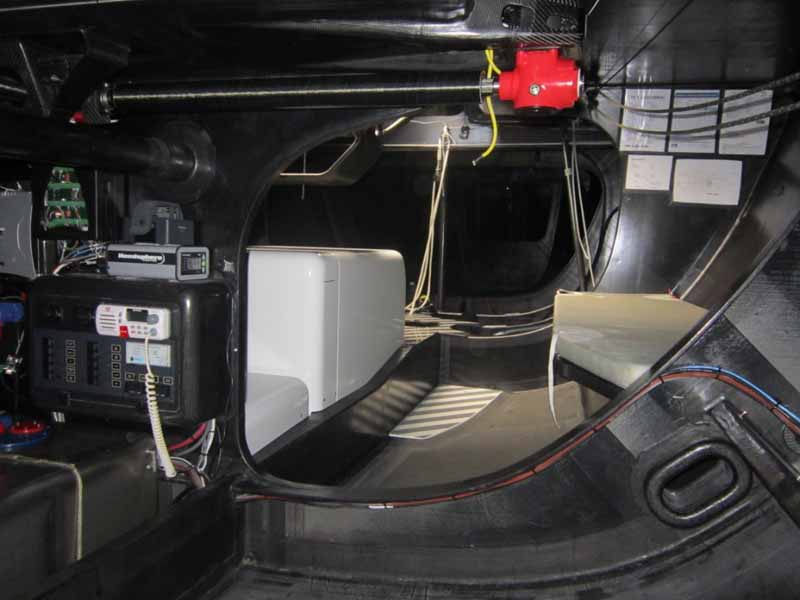

NAVIGATION INSTRUMENTS
Navigation instruments notes
Supplied and fitted VMG Racing.
Bravo processer.
2 x H3000 20/20 Displays on mast 2 FFD also on mast.
3 x H3000 FFD Displays in cockpit.
2 x B&G 57” VHMU.
Depth sensor.
2 x signet Paddlewheel.
Vector Heding-GPS- Hemisphere Vs111.
2 x lightweight mast cable.
Celesco potentiometers on forestay rake and rudder.
VHF fixed GME in + 2 walkie ICM35.
Hopkins endoscope & custom thru hull fittings.
Wireless router w/external aerial.
Laptop Panasonic CT19.
Panasonic hand display.
Lightweight wiring looms through out.
Custom switch panel.
2 x lithium light weight batters.
1 x light weight starter battery.
5 x whale bilge pumps 1100GPH.
SPARS & RIGGING
Sails
All sails are North Sails, latest 3DL and 3DI technology, partially sticker branded artwork.
Sail (Date) (Hours)
MAINSAILS
Mn - 1 (May-03) (75.7)
Mn - 2 (May-03) (33.89)
Mn - 3 (July-8) (64.51)
JIBS
L - 1 (May-03) (15.56)
L - 2 (May-03) (10.42)
LM - 1 (July-27) (18.5)
LM -2 (September-21) (?)
M - 1 (May-03) (15.73)
M - 2 (May-03) (13.08)
M - 3 (July-21) (2.56)
H - 1 (May-03) (5.8)
H - 3 (July-7) (8.71)
H + -1 (April-20) (1.36)
H + -2 (May-03) (18.62)
HWJ - 1 (May-03) (7.18)
Storm Jib (May-03)
Trisail (May-03)
Delivery Jib
Delivery Main
GENNAKERS
A1 - 1 (May-03) (3.8)
A1.5 - 1 (May-03) (4.91)
A1.5 - 2 (July-7) (6.7)
A2 - 1 (May-03) (7.17)
A2 - 2 (May-03) (7.16)
A2 - 3 med (July-7) (1.53)
A2 - 4 med (September-8) (3.72)
A2+ - 1 (May-03) (7.4)
A2+ - 2 (September-21) (?)
A3 - 1 (May-03) (1.28)
A4 - 1 (May-03) (2.88)
A4 - 2 (September-21) (?)
A4 - P
STAY SAILS
SS - 1 (May-03) (5.04)
SS - 2 (May-03) (9.21)
Spars and rigging notes
Mast:
Hall spars( NL) High Modulus Three spreader mast and boom.
Minimum class weight with 10kg correctors.
Standing rigging Navtec Stainless steel internal Tangs.
Spare head stay strop, spare bobstay,spare set of runners.
3 x J lift head foils.
Adjustable heel plate.
Adjustable spreaders.
Low windage vang strut.
Running rigging:
Tylaska clips latest rope technology using 78,90,PBO,Vectran & PBO covers.
4 x Spinnaker halyards.
2 x Jib halyard.
2 x Main halyard.
2 x Tackline.
4 x Spinnaker sheets.
4 x Jib sheets.
2 x Mainsheet.
2 x Staysail sheet.
Custom Harken, fitted/designed by John Williams.
2 x Pedestals with overdrives.
2 x 65.3 Primary.
2 x 65.3 Runners.
2 x 65.3 Mainsheet.
Custom spi take down wheel system contacted to grinder system.
Deck equipment notes

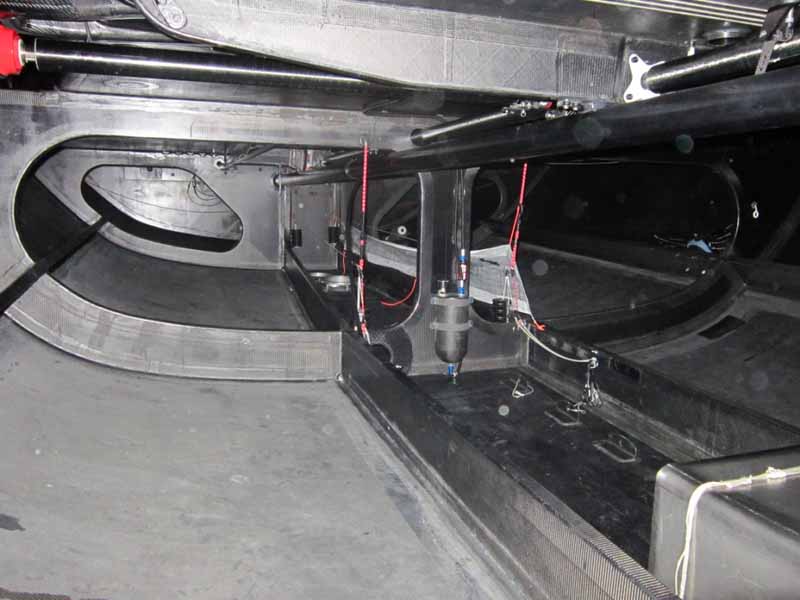

Hydraulics:
Cariboni System with 2x double speed pumps connected with s/s tubes and hose.
Forestay ram.
Jib cunningham.
Jib lead up down.
Main outhaul.
SAFETY EQUIPMENT
Liferaft
2 life rafts in dry bags.
Safety equipment notes
Full ORC Cat. 2 for 13 persons ( all minimum weight ).

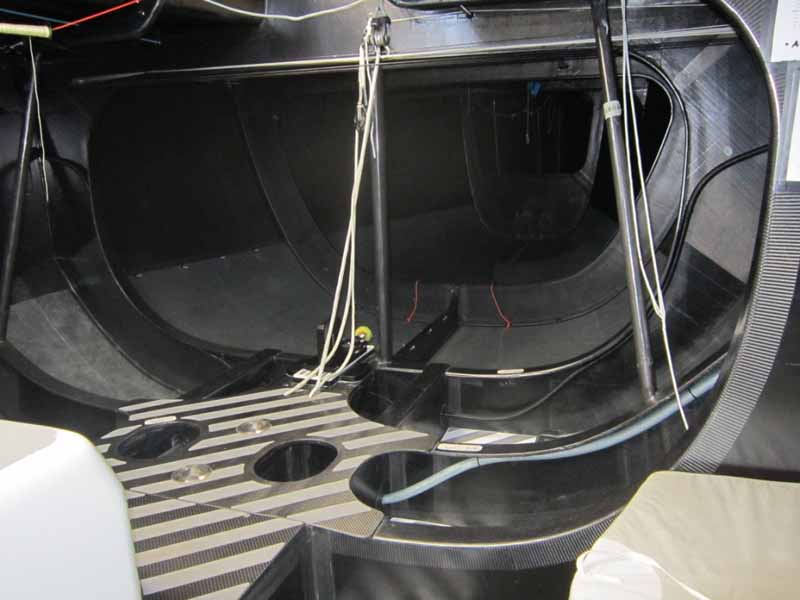

CONSTRUCTION
Construction notes
Single tool female hull & deck mould.
Structure made of prepreg carbon fibre - Kevlar Nomex.
Honeycomb core, Duropox paint systems.
Keel and Bulb:
CNC Machined from one part solid castings, both on max. class weights.

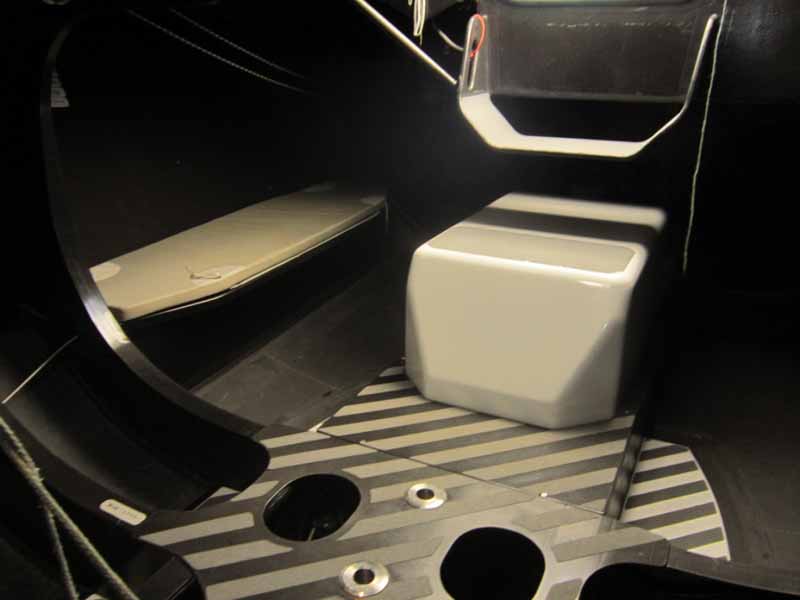

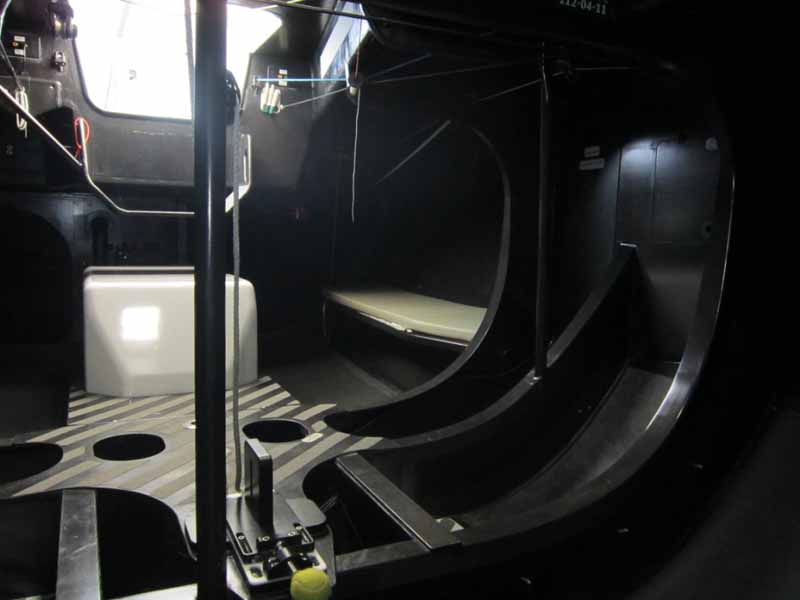

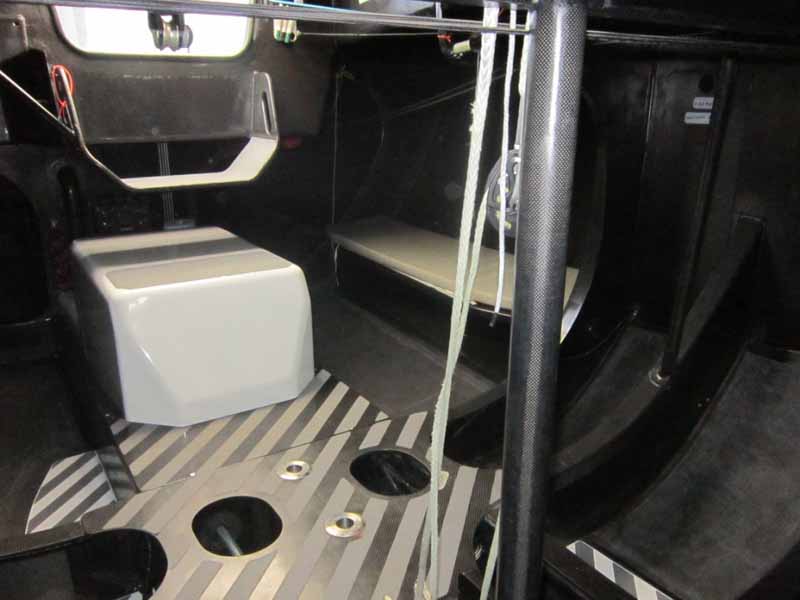

Interior:
Carbon fibre finish 80l water with sink,1 burner cooking.
Cradle:
Galvanized dismountable cradle with legs, 2 heights keel and bulb cradle, separate stove.
FINAL NOTES
Final notes
1.384; TP52 rating / 121 kg internal ballast.
Miscellaneous:
6 x Dock lines.
6 x Inflatable fenders & cover.
1 x Boom cover.
Centre lift and strop.
Dock bag.
Boom tent.
Spares:
Bow sprit.
Tiller.
Tiller exstensions.
Propeller.
Keel and bulb bolts.
Carbon stanchions.
Pulpits, pushpits.
Full set of winch spares.
