#646

GP 42 Black Jack

FOR SALE

GENERAL
Name
GP 42 Black Jack
Model
GP 42
Year
2006
Hull material
Carbon
Sail number
GRE 4242
Color hull
Carbon Black
Located
Greece
Price
159000
VAT
NOT PAID
Flag
GREECE
Type
RACER
Slogan
The real sailing speed
Description
The GP42 was the attempt of International Sailing Federation and ORC to promote a new “box rule” for fast, pure racing boats in the TP52 style but smaller in dimensions and with more affordable budget. Steering Tiller
DESIGN
    Builder
    Latini Marine
    Designer
    Farr Yacht Design
    Design notes
    This GP42, originally built in 2006 as Roma, was the first ever built by Farr Design and Latini Boatyard in Rome. In 2017, she was significantly updated to more modern specifications. The owner, with the support and guidance of Maurizio Cossutti, modified mast to allow the use of a square top main, and added a long carbon bowsprit to fit big masthead gennakers, instead of the original spinnakers on pole. Finally, there was a complete revision of weights distribution, moving ballast from bilge to keel to increase stability and therefore power, a reshaped keel fin to help upwind performances and an optimized sail-plan made this boat highly competitive again.
DIMENSIONS
    LOA
    12.79m
    LWL
    11.88m
    Beam
    3.89m
    Draft
    3.015m
    Displacement
    4459kg
ENGINES
    Engines
    Yanmar Diesel 3YM30 hp29
    Propeller
    2 blades Gori
TANKS
    Fuel
    INOX TANK 68l
    Water
    2 x Water Soft PVC bagl
ACCOMMODATIONS
    Shower
    No

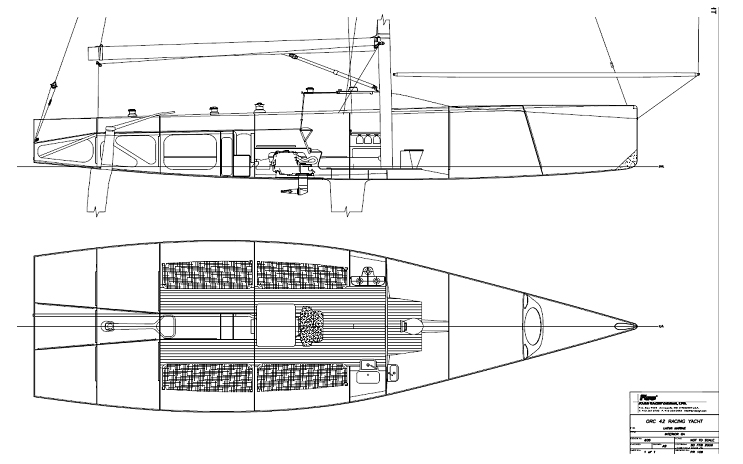

    Accommodations notes
    As per ORC 42 Rule - Structural carbon.
GALLEY
    Galley notes
    Aluminum, 3 ring burner – custom. Galley sink: Carbon - custom.
ELECTRICAL
    Batteries
    2 batteries x 75 Ah = 450Ah. 1 Engine battery x 75Ah.
    Electrical notes
    Electrical panel: Custom 18 switches.
SPARS & RIGGING
    Sails

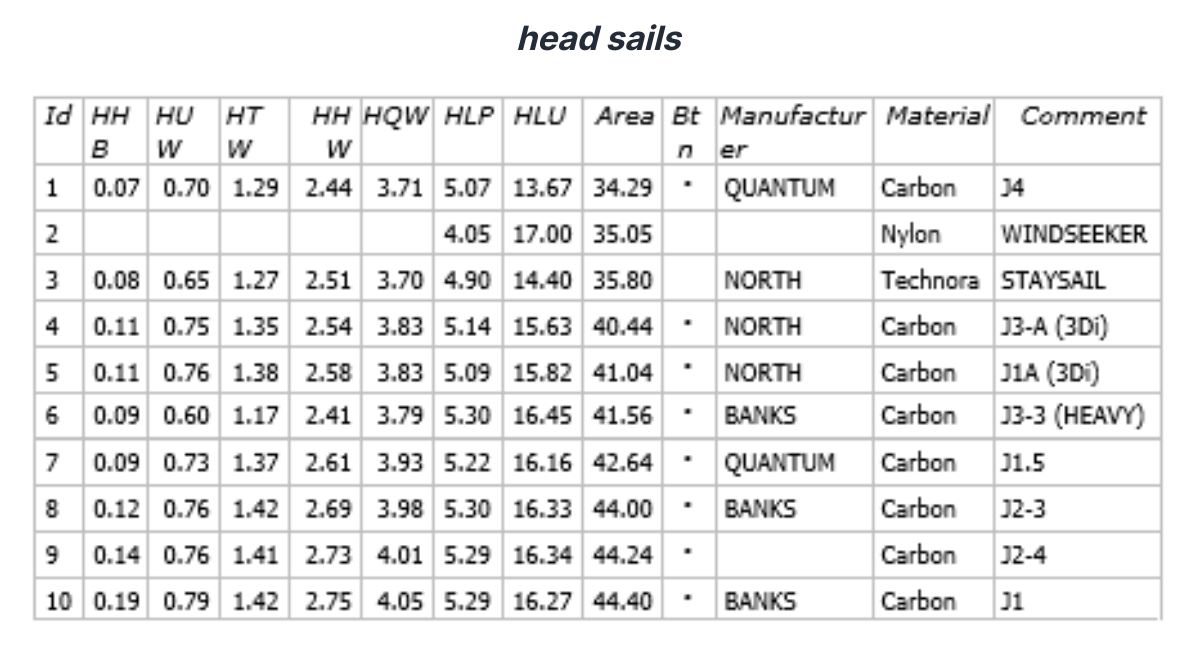

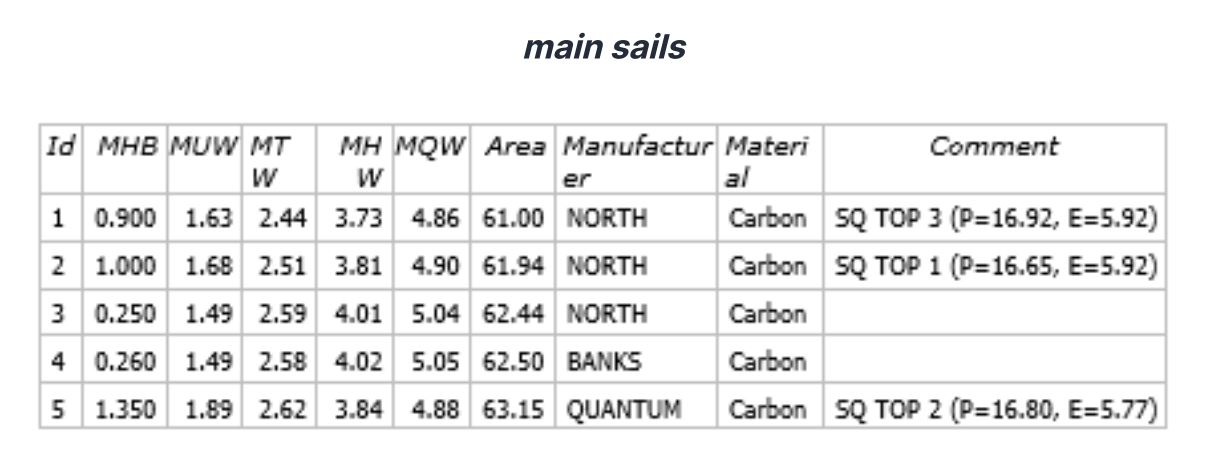

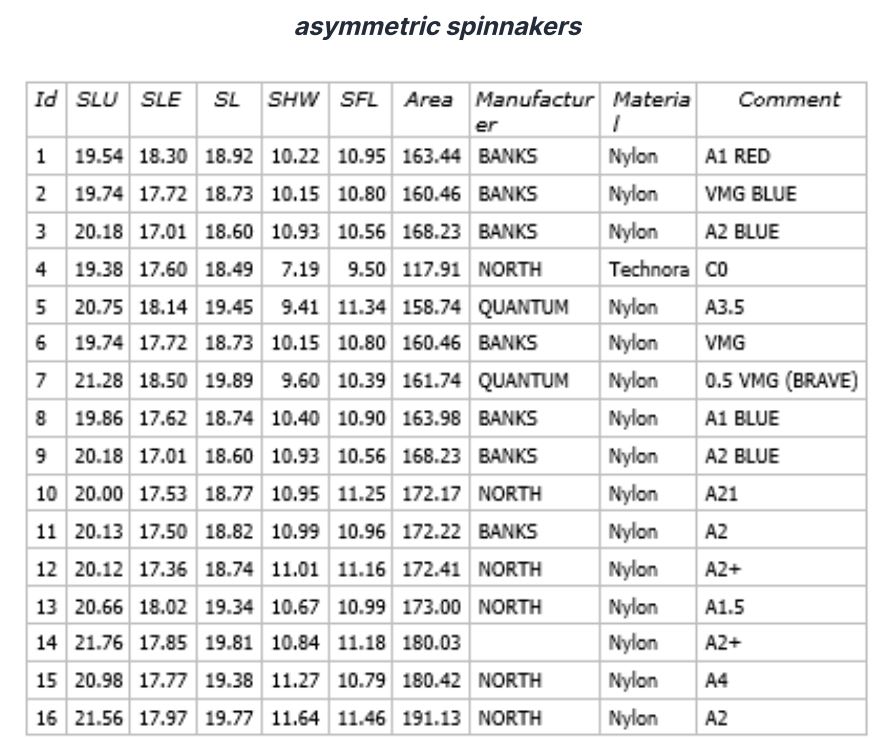

    RACING SAILS – SEE THE TABLES MAIN SAILS 3 SQUARE TOP + 2 STANDARD (all in carbon) HEAD SAILS 9 JIBS (carbon) 1 STAYSAIL ASYMETRIC SPINNAKERS 15 SPINNAKERS 1 CODE CERO
    Rigging
    Rod Navtec
    Mast
    Hall Spars Carbon
    Boom
    Carbon
    Vang
    Yes
    Spinnaker pole
    Bowsprit
    Tuff Luff
    Harken Foil
    Running rigging
    Dyneema
    Spars and rigging notes
    Hall Spars - rule optimized carbon section with taper. 2 sets of carbon fiber spreaders. Carbon fiber boom. Spinlock - jammers & organizer Standing rigging Navtec Series 800, L 834 tip cup, C 890 turnbuckles Mast jack 2 bricks, 2 external hydraulic cylinders and a pump-set with gauge Backstay Composite Headsail foil Harken Carbo RUNNING RIGGING: 6 - Halyards with Tylaska T-8 shackles, tapered. 1 - reefline: 10 mm. 2 - genoa sheets: 10 mm with Equiplite shackles. German type mainsheet system 1 - mainsheet: 10 mm to suit German type mainsheet system. 2 - spinnaker sheets, 8 mm with Tylaska T-8 shackles, tapered. 2 - spinnaker afterguys, 10 mm, tapered. 1 - tackline including T-12 Large Bail shackle. STANDING RIGGING: Navtec SERIES 800, L 834 tip cup, C 890 turnbuckles. Mast Jack - (2) bricks, (2) external hydraulic cylinders and a pump-set with gauge. Composite Backstay. Harken Carbo headsail Foil.
DECK EQUIPMENT

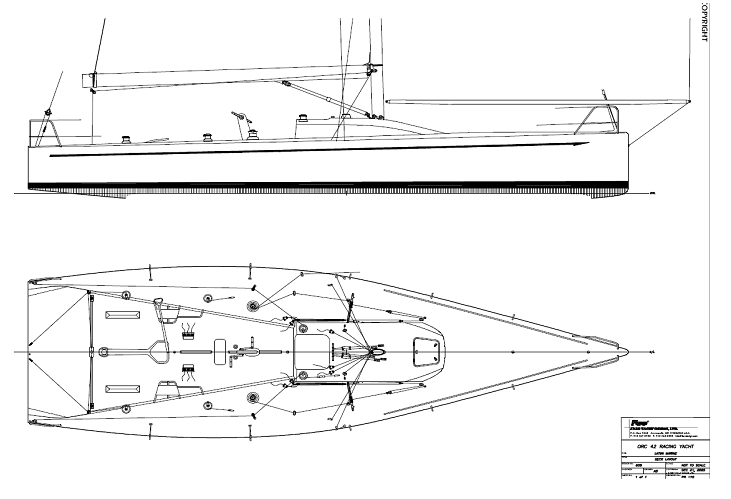

    Deck hardware
    Harken
    Winches
    Harken Grand-Prix winch package.2 - 50STRQ Halyard winches.2 - 55TCR-Wide Body 3 Speed Pedestal-driven Primary winches.2 - 50.2STR Mainsheet winches.2 - 50.2STR Backstay winches.Carbon composite belt-drive pedestal grinder.Assorted winch handl
    Deck equipment notes
    Harken Grand-Prix winch package 2 - 50STRQ halyard winches 2 - 55TCR Wide Body 2 - 50.2STR mainsheet winches 2 - 50.2STR backstay winches Carbon composite belt-drive pedestal grinder Assorted winch handles
SAFETY EQUIPMENT
    Fire-extinguishers
    YES
    Safety equipment notes
    First-aid Kit. Lifejackets. Pyrotechnics. Life lines 2.
CONSTRUCTION
    Keel
    Weldox fin, lead bulb.
    Construction notes
    Steering: Tiller. Deck color: Silver Grey. Hull Male mould: CNC Cut frames - Mahogany Cold moulded and Fibre reinforced laminate. Hull Female Plug: glass fibres injected with epoxy resin, laminated on the male plug. Deck Male Mould: CNC Cut frames - Mahogany Cold moulded and plywood with reinforced laminate. Deck Female Plug: glass fibres injected with epoxy resin, laminated on the male plug. Construction materials: SP SYSTEM Carbon Fibres and Corecell/Airex foams. SP SYSTEM Epoxy resins with Pre-preg or Wet Systems.
EXTRA
    Extra notes
    Shipping Cradle with keel cradle Toolbox. Engine serviced and new belts. Interior cushions. New pedestal grinder buttons. 2 jib sheet old with Tylaska. 4 Spinnaker Blocks. Spinnaker sheet 1. 2 Spinnaker Bob-stays. Batten ends for the main & 2 jibs. Harken handles.
FINAL NOTES
    Final notes
    Design n.: 605
