Cola "Saildrive" with 2 blade folding propeller (2012)
TANKS
Fuel
200l
Water
400l
Tanks notes
2 aluminum diesel tanks of 100 liters with clock level.
2 aluminum water tanks, 400 liters.l

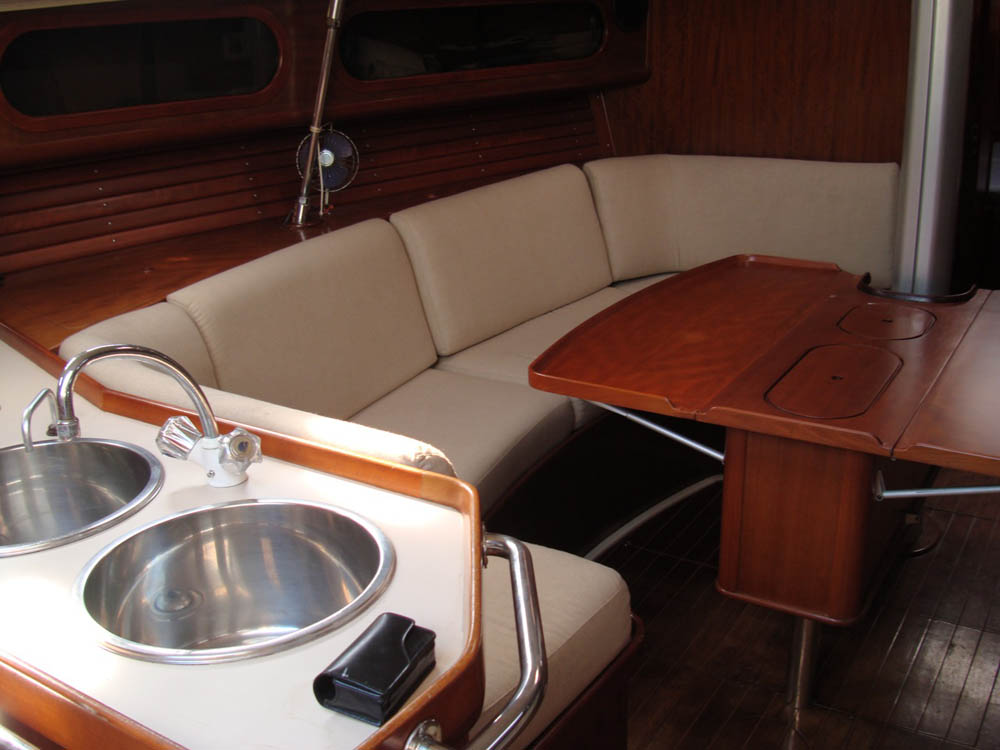

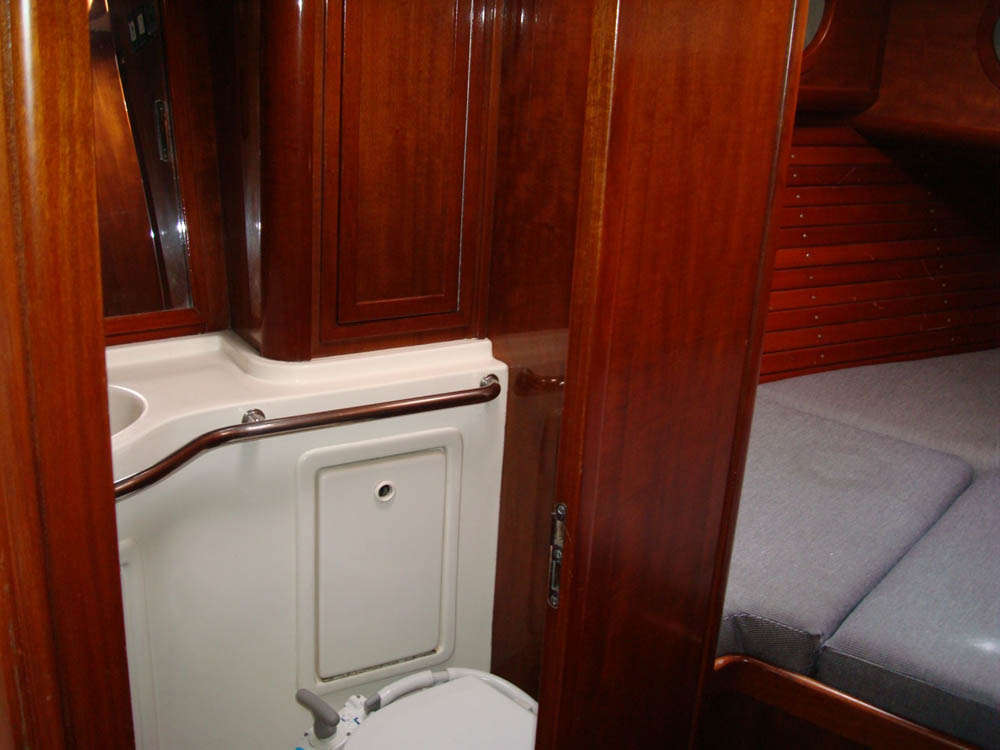

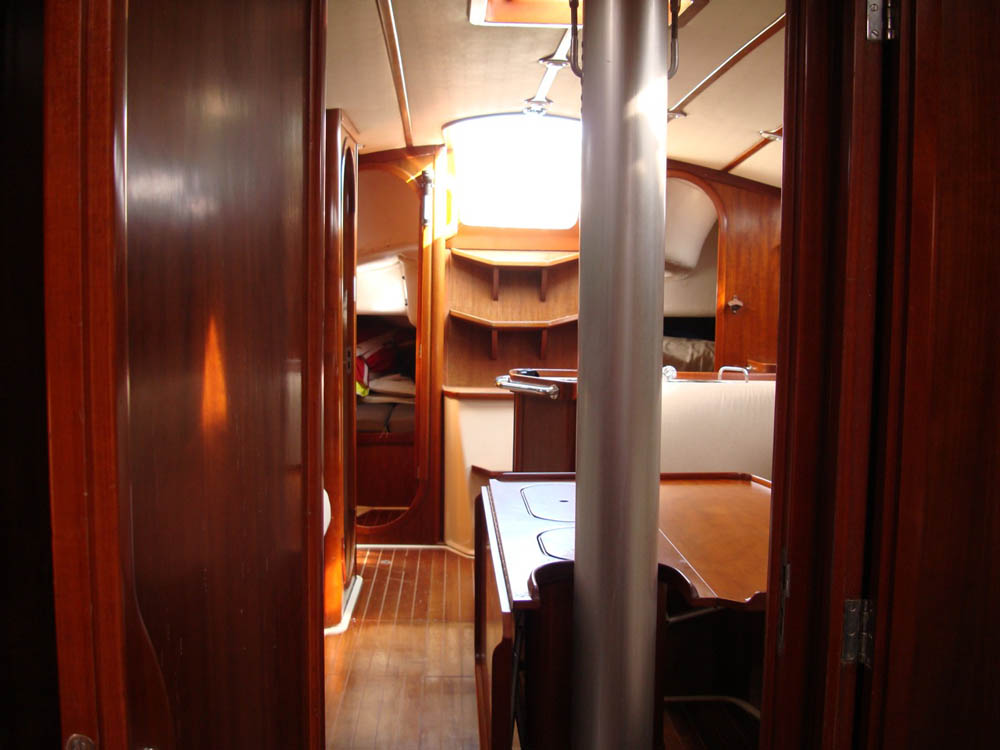

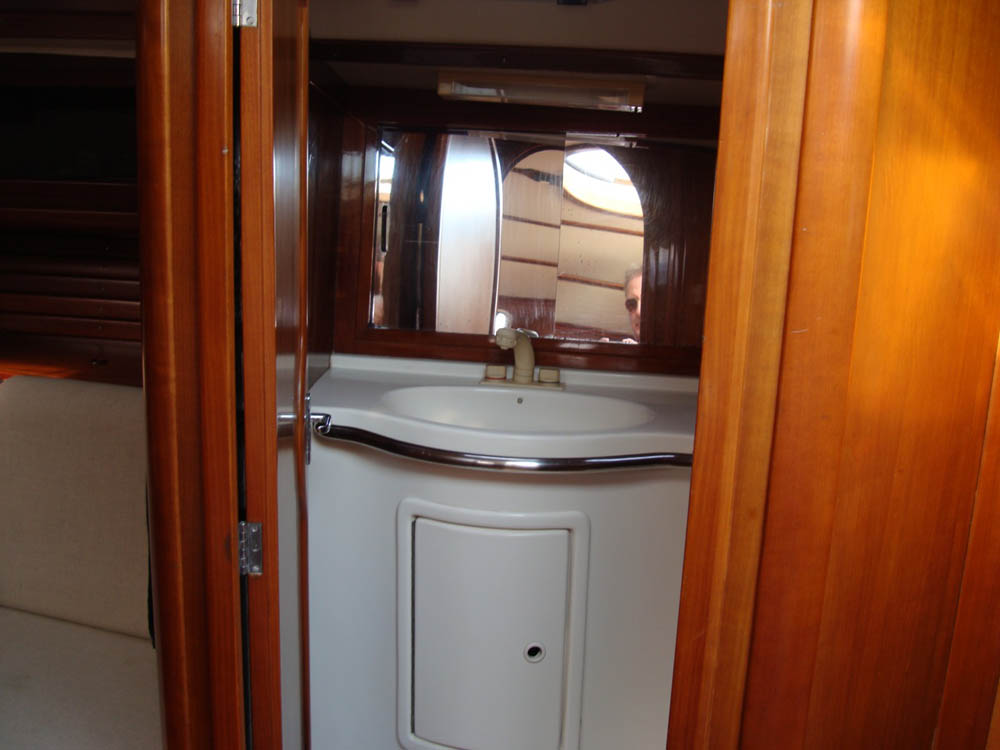

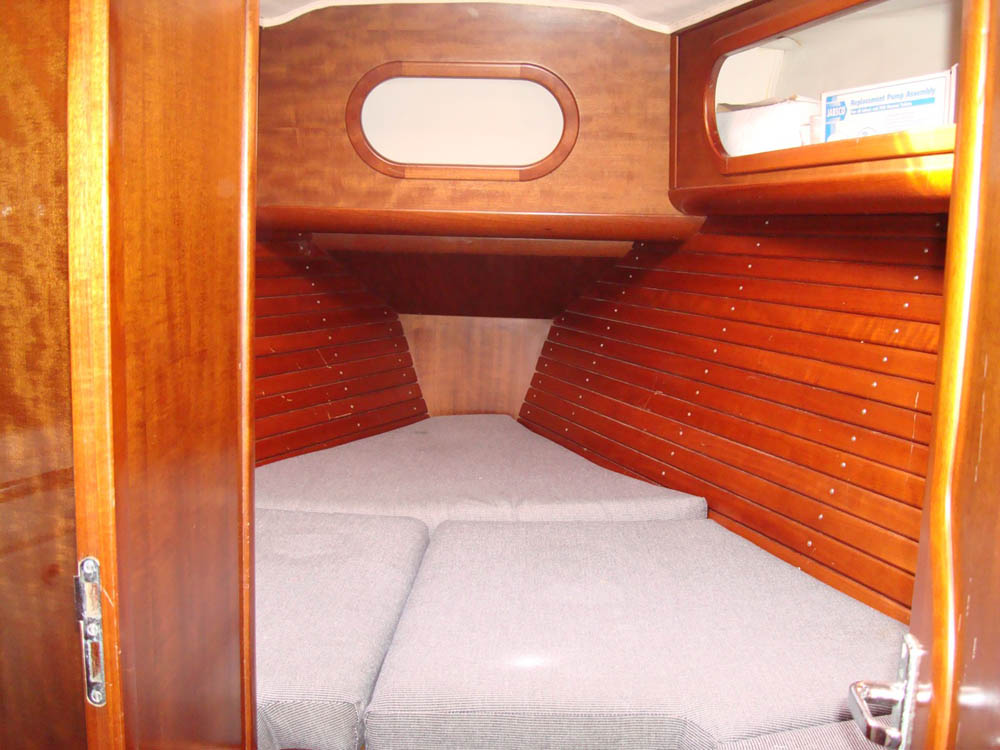

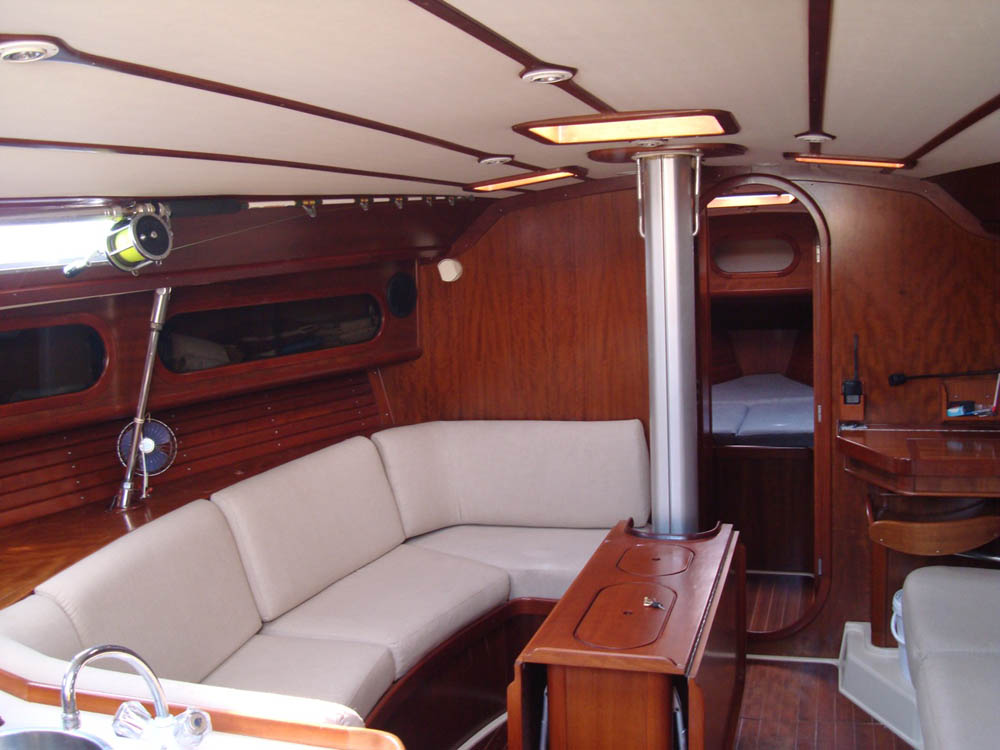

ACCOMMODATIONS
Berths number
8
Cabins number
3
Cabin height
2,1m
Shower
Yes

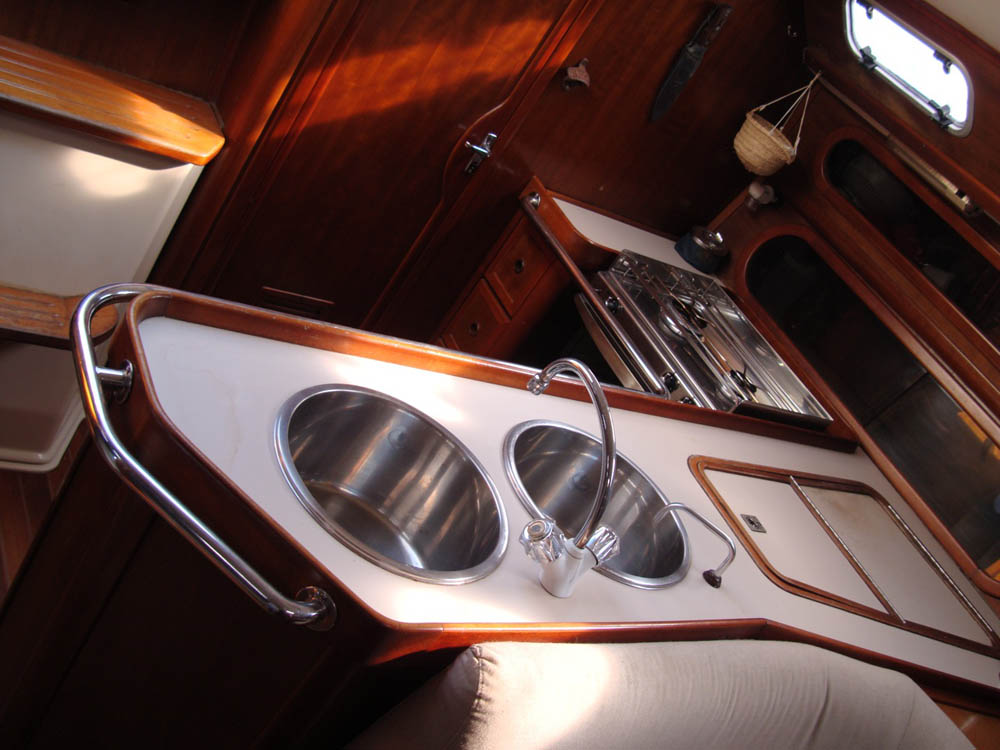

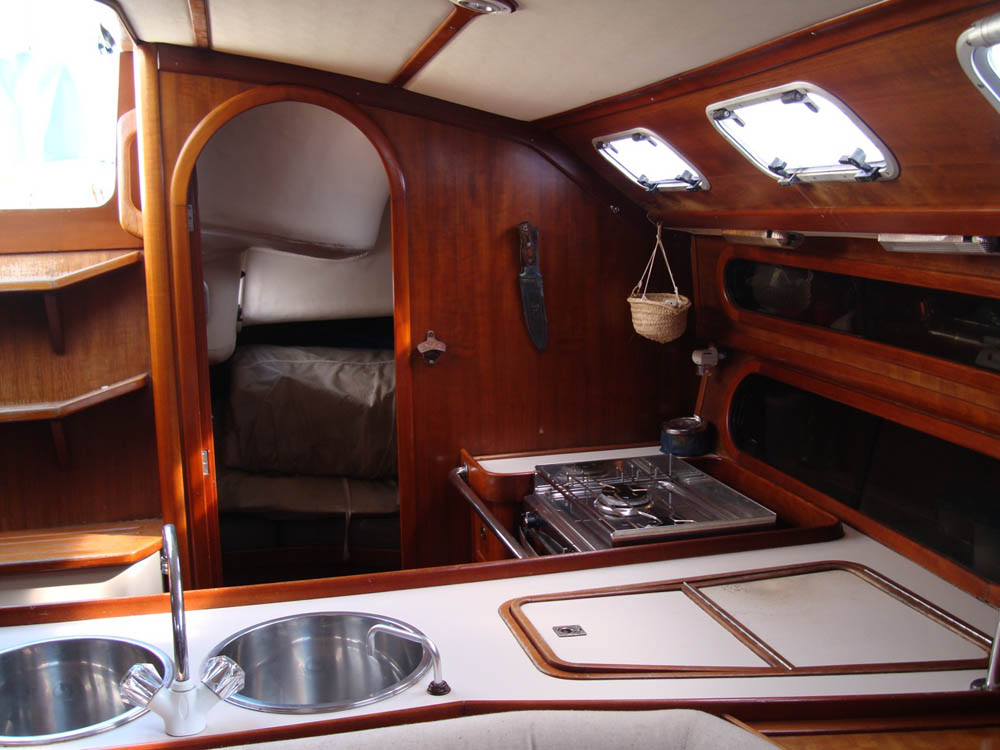

GALLEY
Hot water
Hot water tank of 40 liters
Refrigerator
12/220 volt refrigerator.
Galley notes
1 electric bilge pumps and 1 manual.
Pressure circuit freshwater electrical outlets on both toilets, sinks and aft.
Circuit pressure salt water sink.
Water level watch.

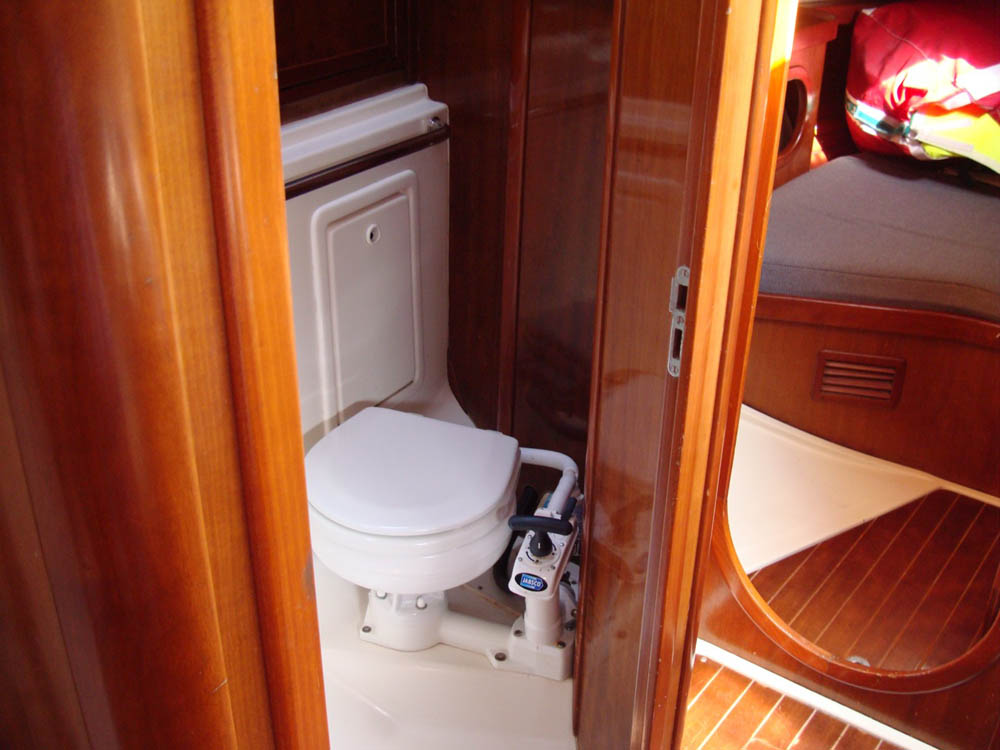

Installation of hot water in both toilets and sink.
Manual foot pump fresh and salt water in sink.

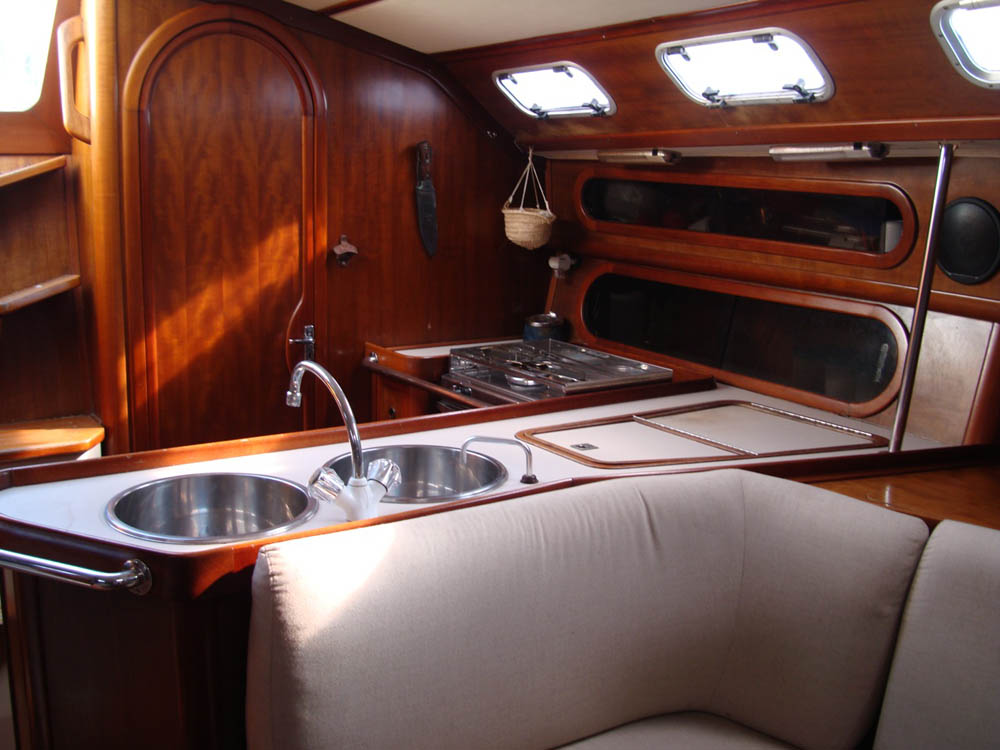

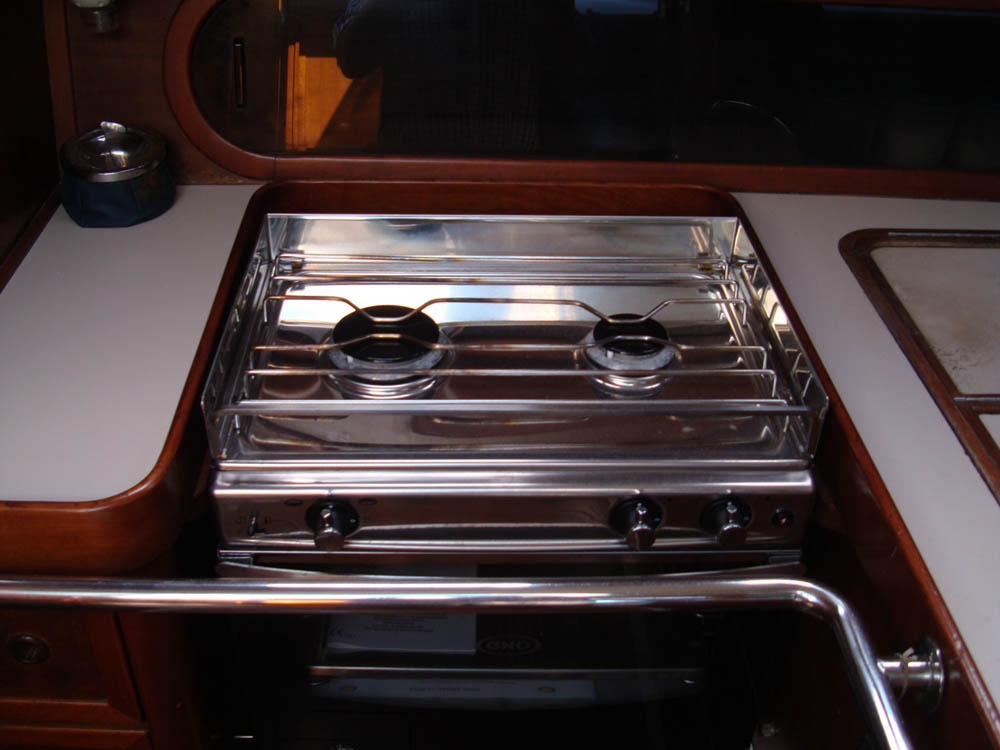

Kitchen with 2 burner gas oven and butane (bottles aft) (2011).
With domestic gas detector.

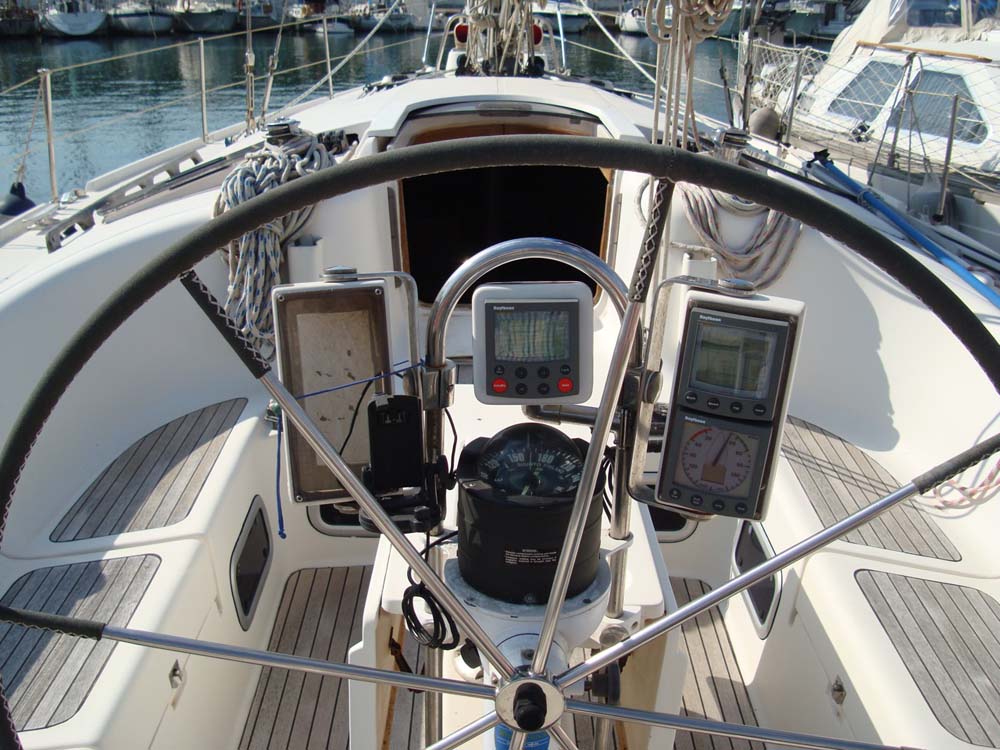

NAVIGATION INSTRUMENTS
Electronics
Raymarine Tridata
GPS
Magellan 320 and Magellan 5000
VHF
SAILOR and Pronav RT 2500
Automatic pilot
Robertson HLD 2000
Navigation instruments notes
DSC UHF internal speaker in cockpit (2009).
Top mast antenna.
Radar deflector.
ELECTRICAL
Battery charger
Battery charger 25 amp.
Electrical notes
25 A alternator.

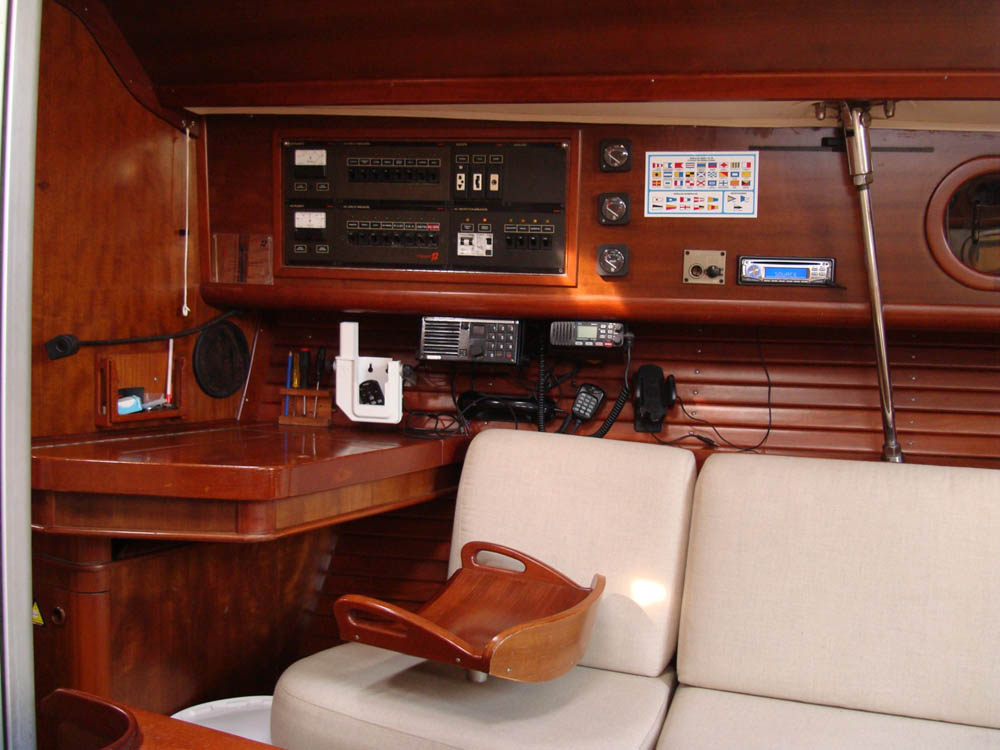

Power panel with magneto-thermal.
12 volt system and 220 in all the boat.
Control of amps and volts.
2 batteries of 180 amp service (2010).
1 battery of 75 amp motor.
Lighter socket
General interior lighting with halogen and adjustable reading lights.
External navigation lights, anchor and cover.

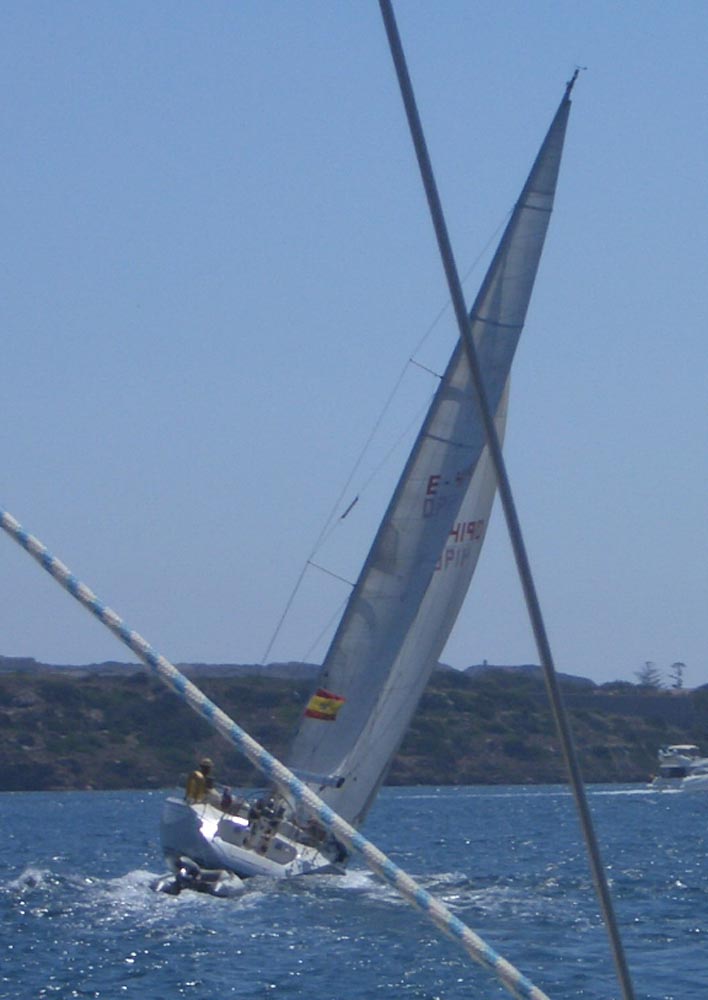

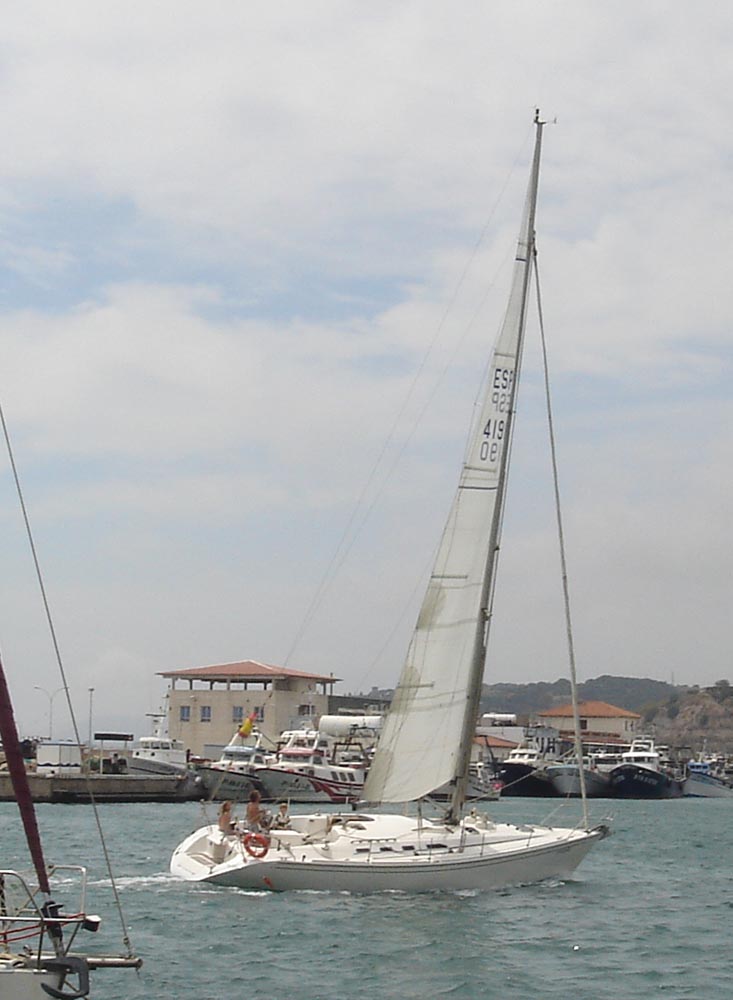

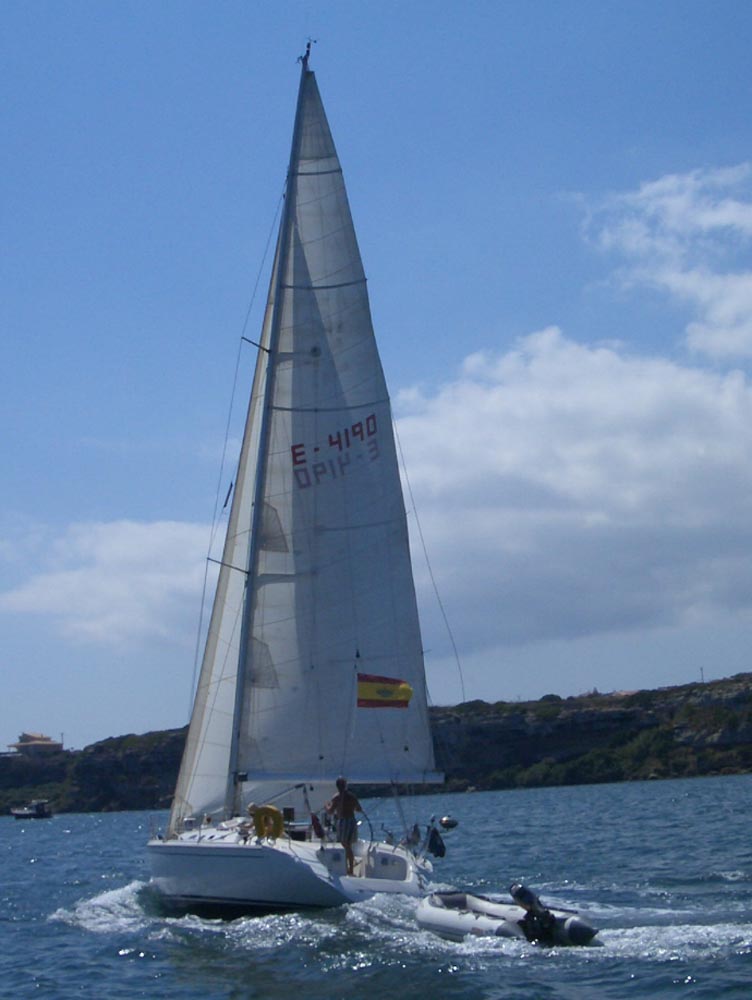

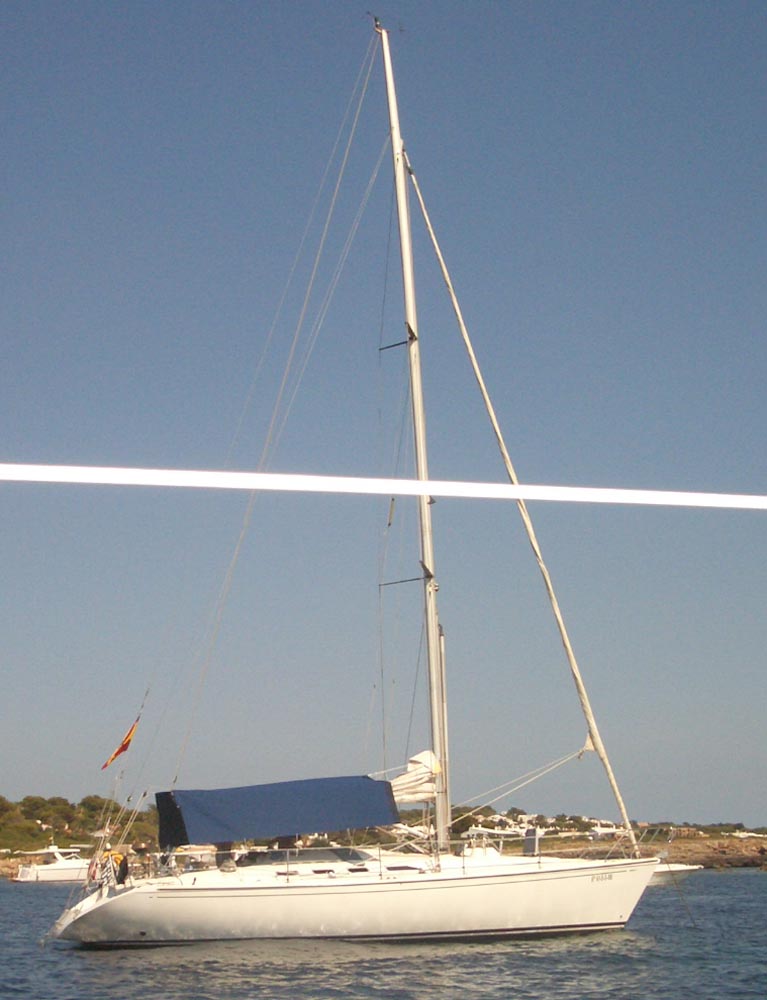

SPARS & RIGGING
Sails
Heavy Genoa 150 %
Genoa 1 Kevlar Mylar
Genoa II 130 %
Genoa 3 100 %
2 Main - Dacron and pentex
2 Spis (one just few hours)
Mast
Selden
Furling system
Furlex
Spars and rigging notes
Boom, vang, y spinnaker pole.
Aluminum "Selden" Mast above keel (adjustable).
Fractional rig 7/8 with two pairs of spreaders to 22º.
"Furlex" racing furling system hidden in anchorchest.
Continuous rigging (2008).
Double halyard of genoa, spinnaker and main.
10 stoppers "Antal".
Blocks for spinnaker maneuver "Antal".
Top mast Windex.
Standing rigging
Running stays for trimming.
DECK EQUIPMENT
Winches
6 winches "Andersen" Aluminum (40-52-40).
Deck equipment notes
Anchor winch "Horizon" 1000 w., with stainless steel chain.
SAFETY EQUIPMENT
Fire-extinguishers
2 extinguishers.
Epirb
Yes.
Liferaft
Yes
Safety equipment notes
Lifebuoy with light-flash.
Tiller respect.
Technical Manual of the boat and all the instruments.
CONSTRUCTION
Construction notes
New cockpit teak deck 2010.
EXTRA
Radio CD
Radio-CD with 6 speakers interior and 2 in cockpit.
