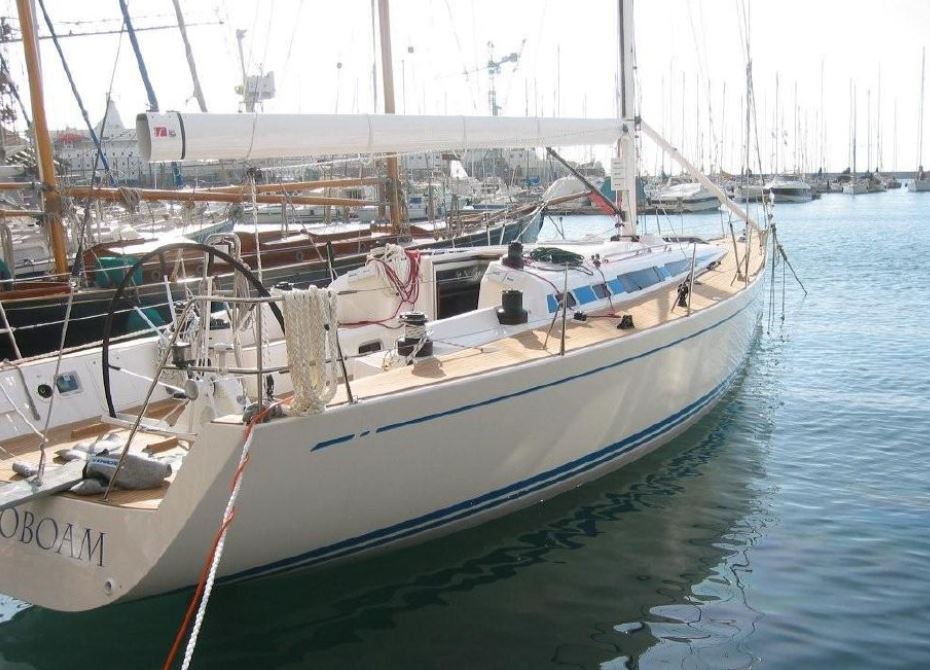

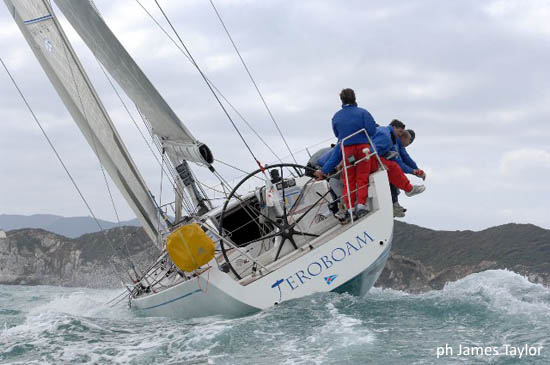

Swan 45 JEROBOAM

SOLD

GENERAL
Name
Swan 45 JEROBOAM
Model
Swan 45 - 030
Year
2004
Hull material
GRP
Color hull
White
Located
ITALY
Price
300000 €
VAT
PAID
Flag
ITALY
Type
CRUISER-RACER
Slogan
Swan 45
Description
The Swan 45 is a modern classic and one of the most aesthetically appealing yachts ever conceived. Hugely successful on the international regatta circuit over the past decade, these yachts are more popular then ever and have become the iconic performance cruiser. Nautor's Swan 45 Jeroboam is an excellent example of this hugely successful one design fleet. Since her delivery she has only been used for class racing hence her interior is in immaculate condition. She still has everything it takes to be competitive in the Swan 45 one-design class and is offered for sale at a very attractive price.
DESIGN
    Builder
    Nautor
    Designer
    Frers Naval Architecture
    Shipyard
    SWAN
    Design notes
    HULL Glass/ vinylester laminate with carbon reinforcement in selected area. Sandwich topside and single skin bottom fiber reinforcement are multiaxial or unidirectional. Structural bulkhead are of veneered sandwich construction or marine grade waterproof plywood. Bottom stiffeners reinforced with unidirectional carbon and multiaxial glass fibre in selected areas. GRP engine beds. Durepox bottom treatment and faired (2016) Composite mast step with movable shoe. KEEL Antimony alloyed lead bulb and fin with upper flange recessed into hull. Fin bolted to hull with high tensile steel bolts. Deep floors inside, possibility for 400 Kg keel weight adjustment by removable lead pigs about 50 Kg each inside bulb. Foam filled rudder with carbon/epoxy stock.
DIMENSIONS
    LOA
    14.00m
    LWL
    12.07m
    Beam
    3.91m
    Draft
    2.80m
    Displacement
    9850kg
ENGINES
    Engines
    Volvo Penta D2-75, 55kW
    Propeller
    Two-bladed racing propeller
    Engines notes
    ENGINE Volvo Penta D2-22 marine diesel 39 Kw, 53 Hp, 3000 RPM. Engine control panel in cockpit Sail drive and 2-blade racing folding propeller 150 lt fuel in one tank of aluminium Fire-estinguisher under the steps entrance New alternator 2017
TANKS
    Fuel
    150l
    Water
    330l
    Tanks notes
    Composite sea cocks for all through hull fitting below waterline Sea water for toilet flushing Fresh water 320 lt in polythene tank consisting of three interconnected compartments Drinking water purifier Sea-water spout with foot pump in galley Drainage system, Y-valve in forward head Pressurized hot and cold water, backup foot pump for fresh water Oras single lever mixing faucets Polythene holding tank 60 lt with level indication for forward toilet. Manual toilet discharging to holding tank. Tank emptied by hand pump or deck suction Bilge pumps, two manual and one electric Isotemp water heater 22 lt Isotherm , Compact magnum. Whale Gusper pump 10 MK3 pump Whale Gulper 220 Shower/Galley Waste and bilge pump Whale Gusper Urchin bilge pump Jabsco model 36740- series Johnson pump aqua jet water pressure system Jabsco, vented lups Jabsco Y-valve Level indicators for fuel and water tanks Engine space air inlet from deck, outlet with blower to transom

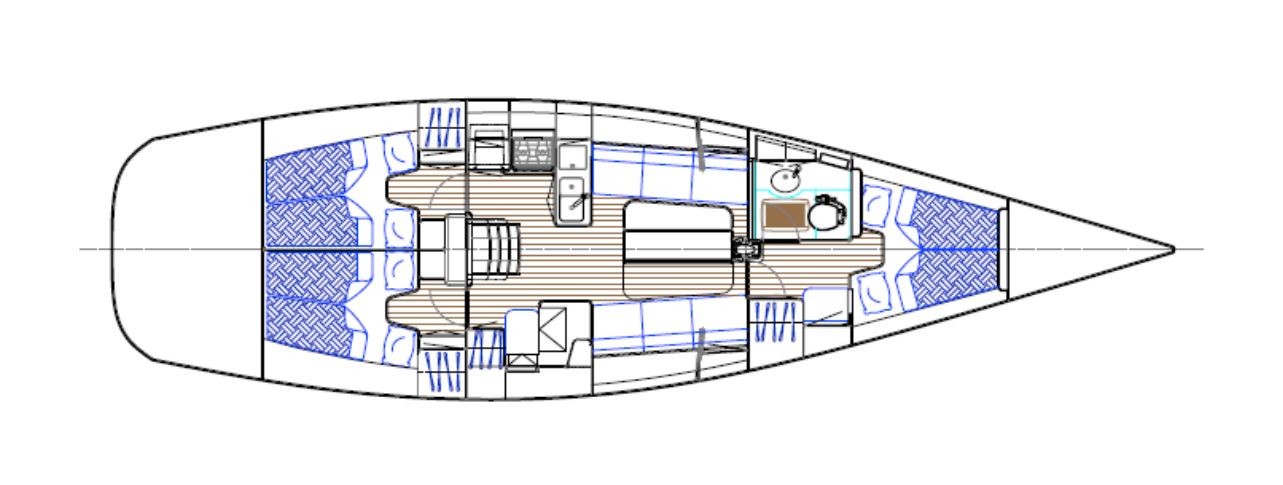

ACCOMMODATIONS
    Berths number
    6
    Cabins number
    3
    Cabin height
    2m
    Shower
    Yes
    Accommodations notes

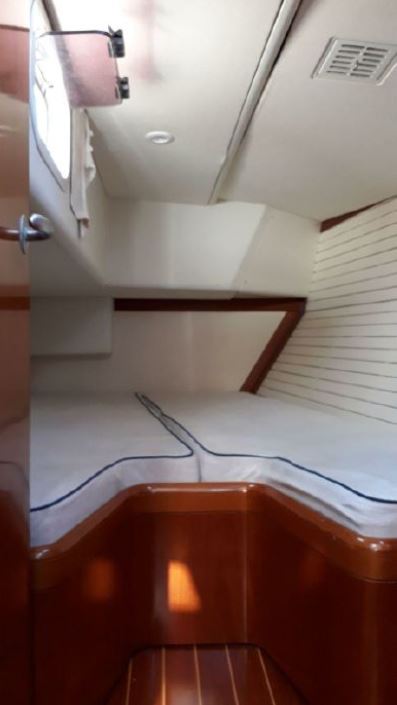

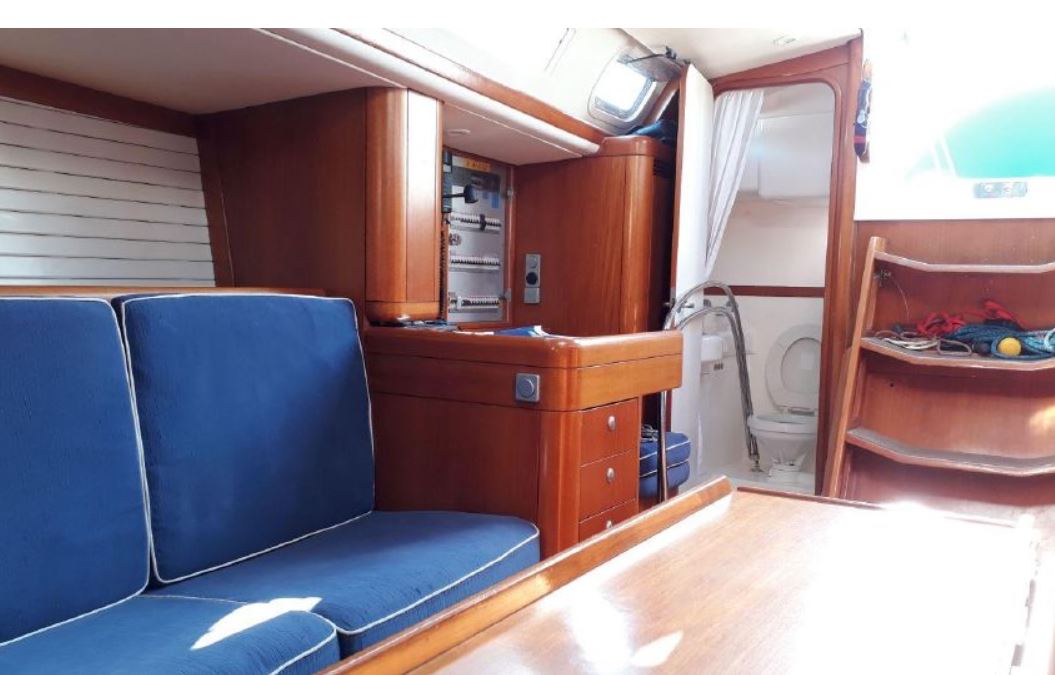

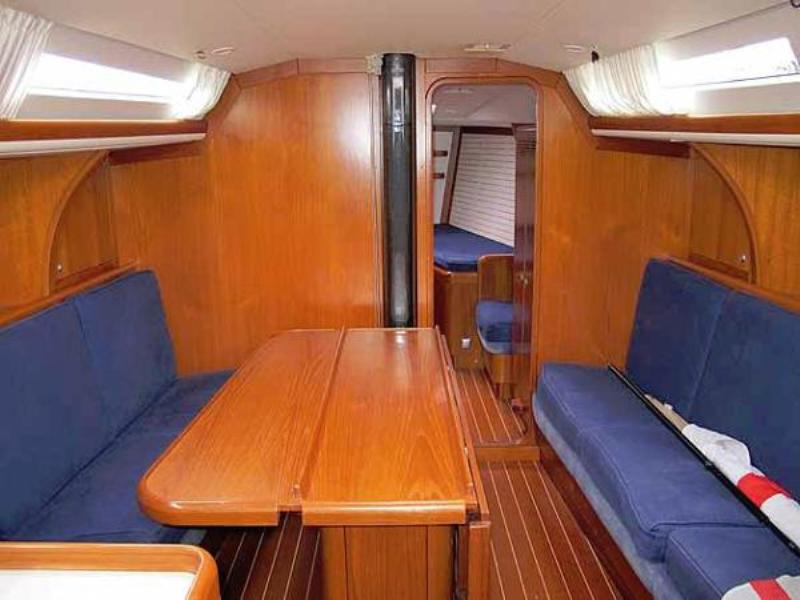

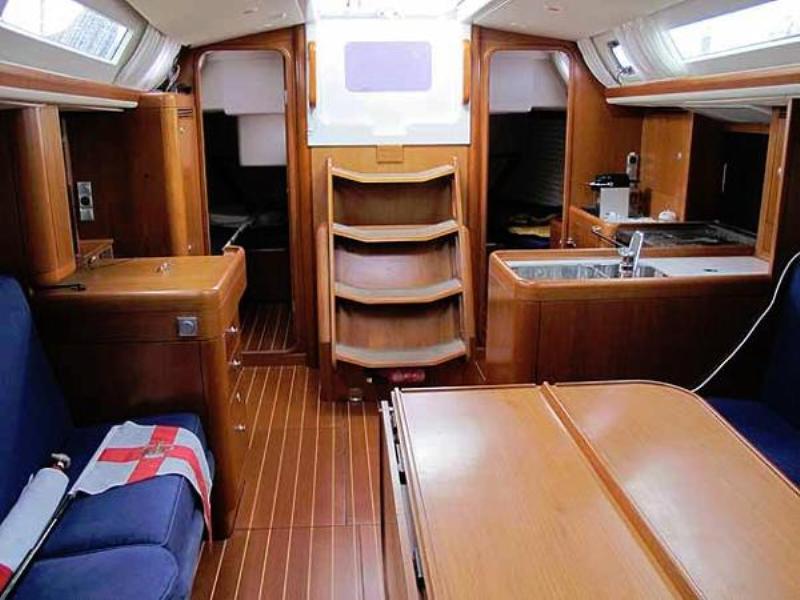

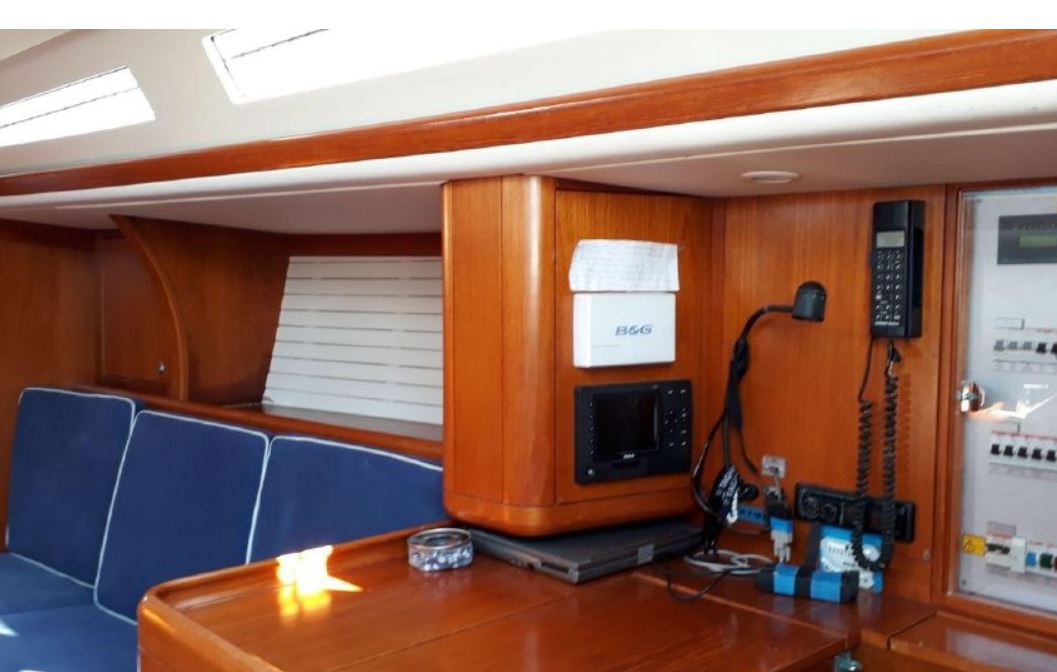

    OWNER CABIN Double berth with stowage under Hanging locker and seat Seat in front of forward bulkhead HEAD White GRP interior module to half height with wash basin Fresh water tap, shower, mirror and waste container GALLEY Gimballed two burner stove with oven, protected by stainless steel guard Stainless steel double sinks with fresh water tap, Corian Cameo white counter tops and sink cover Drawers and lockers . Front loading refrigerator 70 lt. Garbage bin MAIN CABIN Folding leaf table. Locker outboard Settee backrests fold up and convert into Pullman berth. NAVIGATION STATION Forward facing chart table with seat Chart stowage under table top Electronics recessed in panel above Chest of drawers AFT CABINS Double berths Stowage under berths Hanging lockers

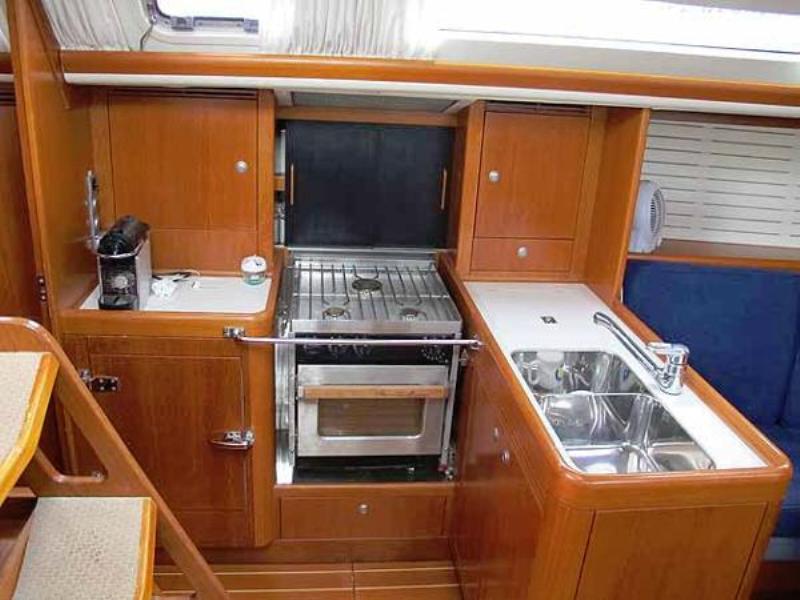

GALLEY
    Hot water
    Yes
    Coolbox
    Yes
    Refrigerator
    Yes
    Water system
    Yes
ELECTRICAL
    Batteries
    New service batteries
    Battery charger
    YES
    Electrical notes
    Victron 3500 inverter/charger 12 DC insulated return system for lighting and general service Main switchboard 12 V DC outboard of chart table Battery capacity 240 Ah (new batteries 2016) Bottom of mast, shroud and stay grounded to keel Flexible chart light and red night light at navigation station Shore power inlet 220 V Red/green navigation lopolight on pulpit White stern lopolight on push pit Battery charger mass 12/80
SPARS & RIGGING
    Sails

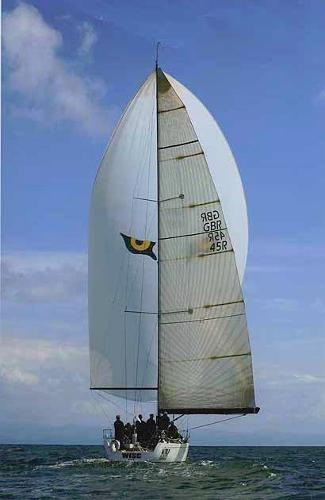

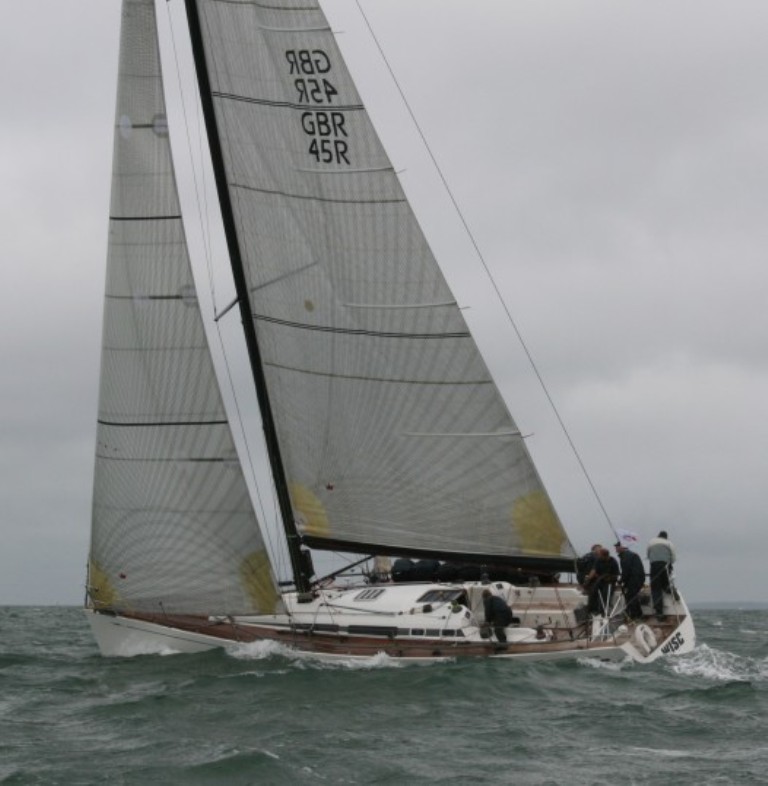

    Sails: A 2015 set of Sails total 9 sails The Sails are actually been useed for the races of the 34 west Liguria Championship in San Remo where jeroboam is actually first A. 2016 set of sails total 7 Sails made for the last World in Porto Cervo sept 2016 and were not used after that. The boat with these Sails was the fastest of the fleet A cruising main Sail A cruising furling Jib
    Rigging
    Rod
    Mast
    Carbon
    Boom
    Carbon
    Vang
    Yes
    Spinnaker pole
    Carbon
    Tuff Luff
    Yes
    Running rigging
    Dyneema
    Furling system
    Yes
    Spars and rigging notes

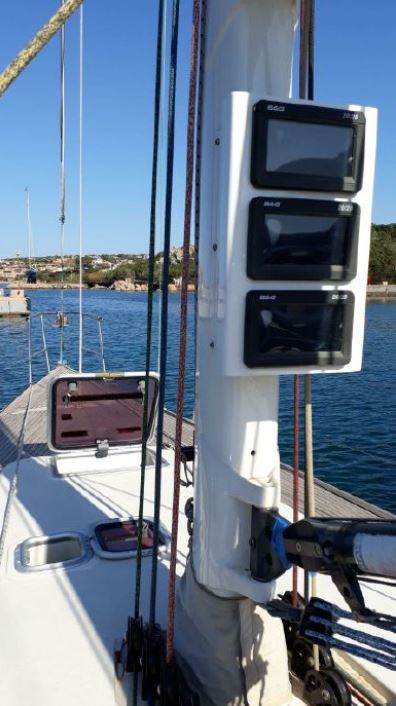

    Hall Spars Carbon fibre double spreader 15/16 fractional rig, swept 20 degrees Hall Spars Carbon fibre main boom Hall Spars 2x Carbon fibre spinnaker pole Mast, boom and spinnaker pole painted 2016 Navtec rod rigging with discontinuous shrouds Mechanical vang Hydraulic backstay adjustment, with control panel each side in cockpit Hydraulic outhaul adjuster in boom, with control panel each side in cockpit Removable hydraulic mast jack Forestay with Tuff luff 2nd forestay with furler Navtec system 50 All Sheets for RACING and cruising
DECK EQUIPMENT
    Deck hardware
    Harken
    Hatches
    LEWMAR
    Winches
    Harken.
    Deck equipment notes

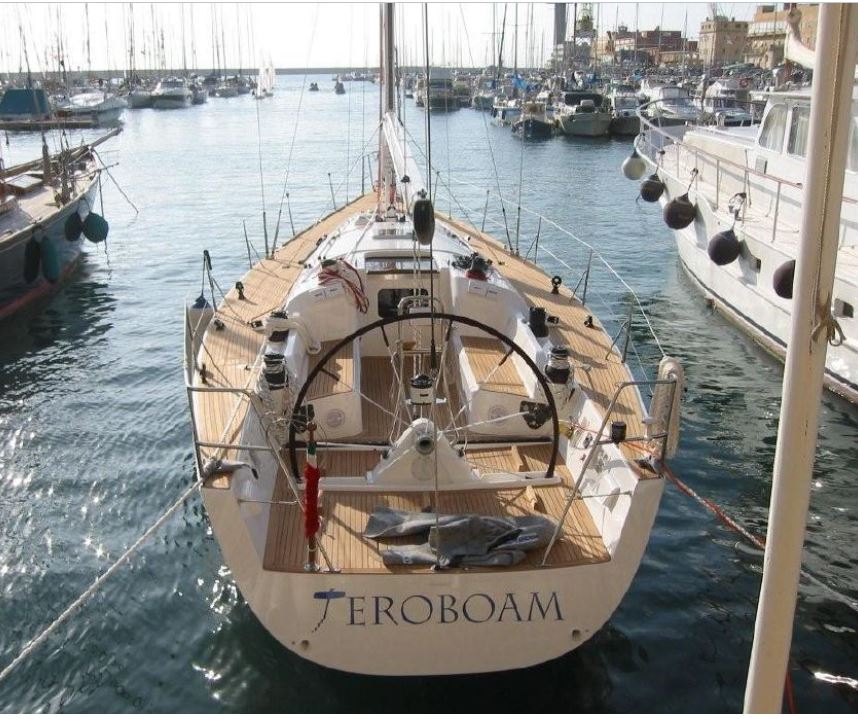

    Advanced laminate sandwich deck with Sprint prepeg skins and low density closed cell foam core. Pained white Teak in cockpit and side decks 30 mm high toe rails forward of mast Custom jib lead line inlets in cockpit Carbon steering wheel Main companionway sliding hatch garage flush with coach roof and Esthec details. 4 pcs footsteps in cockpit Cruising pedestal bracket with 7in Chart Plotter Stainless steel pushpit, pulpit and stanchions with matt finish 600 mm high life lines Composite mast collar Grab rails each side of companionway Headstay attachment on stemhead Folding eyes for harness attachment in cockpit Pad eyes for safety lines, Wichard 6504, 3 pcs Pad eye for outboard sheeting, Wichard 6505 Harken aluminum jib and main sheet tracks Two separate lockers to be mounted in cockpit for cruising. Harken blocks Spinlock jammers (partly upgraded (2016) WINCHES Winches are Harken Primary sheet B55/3 STR Halyard B 48.3 Mainsheet B53.3 A NEW original sprayhood and Bimini 2017
SAFETY EQUIPMENT
    CE Registration
    YES
    Fire-extinguishers
    YES
    Epirb
    YES
    Liferaft
    YES
EXTRA
    Radio CD
    YES
    Speakers
    YES
    Shower in Cockpit
    YES
    Swimming ladder
    YES
