Swan 45 - ELU

FOR SALE

GENERAL
Name
Swan 45 - ELU
Model
Swan 45
Year
2002
Hull material
GRP
Sail number
ESP 6491
Color hull
White
Located
SPAIN
Price
340000 €
VAT
PAID
Flag
SPAIN
Type
CRUISER-RACER
Slogan
One Design winner in ORC & IRC
Description
The Swan 45 is a modern classic and one of the most aesthetically appealing yachts ever conceived. Hugely successful on the international regatta circuit over the past decade, these yachts are more popular than ever and have become the iconic performance cruiser. Nautor's Swan 45 is an excellent example of this hugely successful one design fleet, built as a Two Cabin version with twin heads and a large sail locker accessed from the cockpit. Since her delivery she has only been used for class racing hence her interior is in excellent condition. This Swan 45 has been professionally maintained by a full-time skipper. She has benefited from significant upgrades and continuous maintenance. She is fully optimised for Swan Class racing and can be quickly converted into full IRC mode, in which she has won several coveted prizes. In her current ownership she has had the hull, keel and rudder filled and faired utilising Swan Class templates, the anti-foul has been sprayed to a fine racing finish, the rudder bearings have been upgraded also giving a superior feel to the helm. The Rod rigging has been professionally inspected and replaced as necessary and all mast boom and spars repainted regularly. Batteries, charging and shore power have all been upgraded to allow for offshore events, and an invertor system is installed to power the navigation and raceware IT systems. The twin groove race forestay foil can be swiftly and easily switched to the roller furling foil for delivery and cruising. swan 45 Elu also benefits from a triple reef main for short-handed sailing and delivery trips. She still has everything it takes to be competitive in the Swan 45 one-design class and IRC / ORC Classes and is offered for sale at a very attractive price. A steel shipping container is available (Lying Scotland) fully fitted with power lighting and racking for sail and spares storage to one side and a workbench to the opposite.
DESIGN
    Builder
    Nautor
    Designer
    Germàn Frers
    Shipyard
    Nautor's Swan
DIMENSIONS
    LOA
    14.00m
    LWL
    12.07m
    Beam
    3.91m
    Draft
    2.80m
    Ballast
    3910kg
    Displacement
    9850kg
ENGINES
    Engines
    Volvo Penta D2-75 55Kw
    Cruising speed
    7,5kn
    Propeller
    Racing propeller
    Engines notes
    - New engine tail 2022 - Complete engine revision - Change of all elements.
TANKS
    Fuel
    150l
    Water
    330l
    Tanks notes

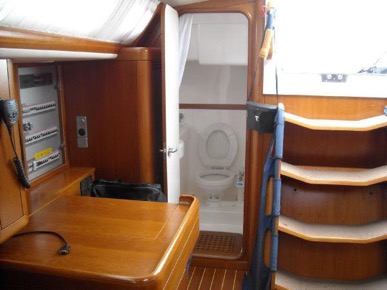

    -PLUMBING SYSTEMS -Fresh water 330 li in polythene tank consisting of three interconnected compartments. Johnson pump aqua jet water pressure system. Pressurized hot and cold water with a backup foot pump for fresh water, single lever mixing faucets. Sea-water spout with foot pump in galley, Y-valve in forward head. Drinking water purifier Polythene holding tank 60 li with level indication for forward toilet. Manual toilet discharging to holding tank. Tank emptied by hand pump or deck suction Bilge pumps, two manual and one electric. Isotemp water heater 22 li Isotherm Compact magnum Whale Gusher pump 10 MK3 pump Whale Gulper 220 Shower/Galley Waste and bilge pump Whale Gusher bilge pump Jabsco model 36740- series Level indicators for fuel and water tanks Composite sea cocks for all through hull fitting below waterline. Sea water for toilet flushing. Engine space air inlet from deck, outlet with blower to transom .- DRAINAGE SYSTEM Whale Gulper 220 Shower/Galley Waste and bilge pump Whale Gusher bilge pump Jabsco model 36740- series The holding tank is emptied by hand pump or deck suction. Bilge pumps, two manual and one electric. Cockpit scupper drains.

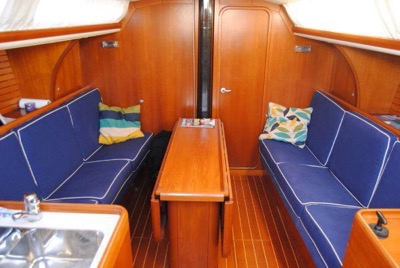

ACCOMMODATIONS
    Berths number
    5
    Cabins number
    2
    Shower
    Yes
GALLEY
    Hot water
    Yes
    Coolbox
    Top Loading Freezer
    Refrigerator
    Front loading refrigerator 70 lt.
    Water system
    Yes
    Galley notes

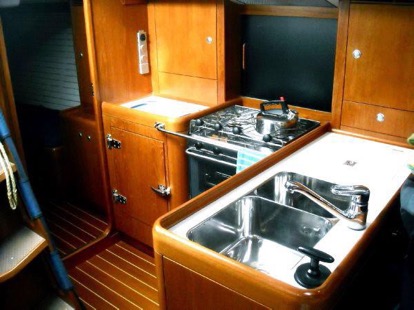

    - Gimballed two burner stove with oven, protected by stainless steel guard - Stainless steel double sinks with fresh water tap, Corian Cameo white counter tops and sink cover - Bathroom pumps-2023 - Antifouling - Auust 2023
ELECTRICAL
    Batteries
    3
    Battery charger
    Battery charger mass 12/80
    Electrical notes
    - New service batteries 202 - Victron 3500 inverter/charger - 12 DC insulated return system for lighting and general service - Main switchboard 12 V DC outboard of chart table - Shore power inlet 220 V -
SPARS & RIGGING
    Sails
    SAILS 2023 We have a full sail upgrade available for you. MAINSAIL NORTH SAILS:YEAR 2022 /MATERIAL:3DI / STATE:NEW / MEASURE:SC 45 /REGATTA:INSHORE ULTIMATE SAILS:YEAR 2018/MATERIAL:MEMBRANE/STATE:LIGHT-MEDIUM--70% LIVE/MEASURE:SC 45/REGATTA:INSHORE ULTIMATE SAILS: YEAR 2018/MATERIAL:MEMBRANE/STATE:NEW/MEASURE:SC 45/REGATTA:OFFSHORE JIB NORTH SAILS-J1:YEAR 2022/MATERIAL:3DI/STATE:NEW/MEASURES:SC 45/REGATTA:INSHORE NORTH SAILS-J2:YEAR 2022/MATERIAL:3DI/STATE:NEW /MEASURES:SC 45/REGATTA:INSHORE ULTIMATE SAILS-J1:YEAR 2018/MATERIAL:MEMBRANE/STATE:LIGHT-MEDIUM--70% LIVE/MEASURES:SC 45/REGATTA:INSHORE ULTIMATE SAILS-J2:YEAR 2018 /MATERIAL:MEMBRANE MEDIUM--70% LIVE/MEASURES:SC 45/REGATTA:INSHORE ULTIMATE SAILS-J3:YEAR 2018/MATERIAL:MEMBRANE 70% LIVE/MEASURES:SC 45/REAGATTA:INSHORE ULTIMATE SAILS-J4:YEAR 2018/MATERIAL:MEMBRANE 70% LIVE/MEASURES:SC 45/REGATTA:INSHORE
    Rigging
    Navtec rod rigging with discontinuous shrouds
    Mast
    Hall Spars Carbon
    Boom
    Hall Spars Carbon
    Vang
    Mechanical vang
    Spinnaker pole
    Carbon
    Tuff Luff
    Forestay with Tuff luff 2nd forestay with furler Navtec system 50
    Running rigging
    Dyneema
    Furling system
    Yes
    Spars and rigging notes
    - Hall Spars Carbon fibre double spreader 15/16 fractional rig, swept 20 degrees - IRC Carbon fibre spinnaker pole - Hydraulic backstay adjustment, with control panel each side in cockpit. - Backstay pumps – upgraded to two speed operations, to pump the backstay down faster. - Forestay with Tuff luff 2nd forestay with furler Navtec system 50
DECK EQUIPMENT
    Deck hardware
    LEWMAR
    Hatches
    Lewmar
    Winches
    Lewmar Grand Prix
    Deck equipment notes

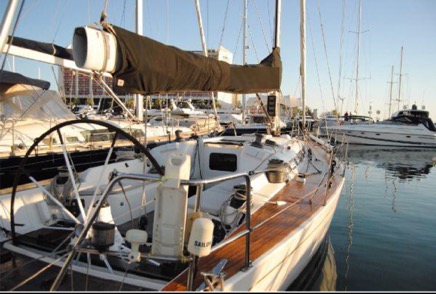

    - Advanced laminate sandwich deck with Sprint prepeg skins and low density closed cell foam core.Teak in cockpit and side decks, 30 mm high toe rails forward of mast Custom jib lead line inlets in cockpit Carbon navigation wheel. - Main companionway sliding hatch garage flush with coach roof and Esthec details. - 4 pcs footsteps in cockpittainless steel pushpit, pulpit and stanchions with 600 mm high life lines Composite mast collar.Grab rails each side of companionway. -Lewmar Grand prix winch option instead of standard: Primary winch Lewmar 60/3 AOR Halyard B 48.3 Halyard winch Lewmar 48 STOR-SR
SAFETY EQUIPMENT
    CE Registration
    Category ‘A’ Ocean - CE
    Fire-extinguishers
    Yes
    Epirb
    Yes
    Liferaft
    Yes
    Safety equipment notes
    Complete
CONSTRUCTION
    Construction notes
    Glass/ vinylester laminate with carbon reinforcement in selected area. Sandwich topside and single skin bottom fiber reinforcement are multiaxial or unidirectional. Structural bulkquantity are of veneered sandwich development or marina grade waterproof plywood. Bottom stiffeners are reinforced with unidirectional carbon and multiaxial glass fibre in selected areas. Antimony alloyed lead bulb and fin with upper flange recessed into body. Fin bolted to body with high tensile steel bolts. Deep floors inside, possibility for 400 Kg keel weight adjustment by removable lead pigs about 50 Kg each inside bulb. Foam filled rudder with carbon/epoxy stock. - TEAK TREATMENT-2023 - JARCIA INSPECTION - NDT—ULTRASOUND OF TERMINALS—2022
EXTRA
    Radio CD
    Sony XR C5200R
    Speakers
    Two loudspeakers Poly-Planer 905
    Shower in Cockpit
    Yes
    Swimming ladder
    Yes
    Extra notes
    Loudspeakers in cockpit, Sony XS-MP-61
FINAL NOTES
    Final notes
    - Carbon steering wheel - Main companionway sliding hatch garage flush with coach roof.. - 4 pcs footsteps in cockpit - Stainless steel pushpit, pulpit and stanchions with 600 mm high life lines - Composite mast collar - Grab rails each side of companionway - Headstay attachment on stemhead - Folding eyes for harness attachment in cockpit Pad eyes for safety lines, - Wichard 6504, 3 pcs Pad eye for outboard sheeting, - Wichard 6505 Harken aluminum jib and main sheet tracks - Two separate lockers to be mounted in cockpit for cruising. - Harken blocks - Spinlock jammers (partly upgraded (2016) - Anchor windlass Ocean 1 Gypsy only, 12V not fitted - Original sprayhood and Bimini
