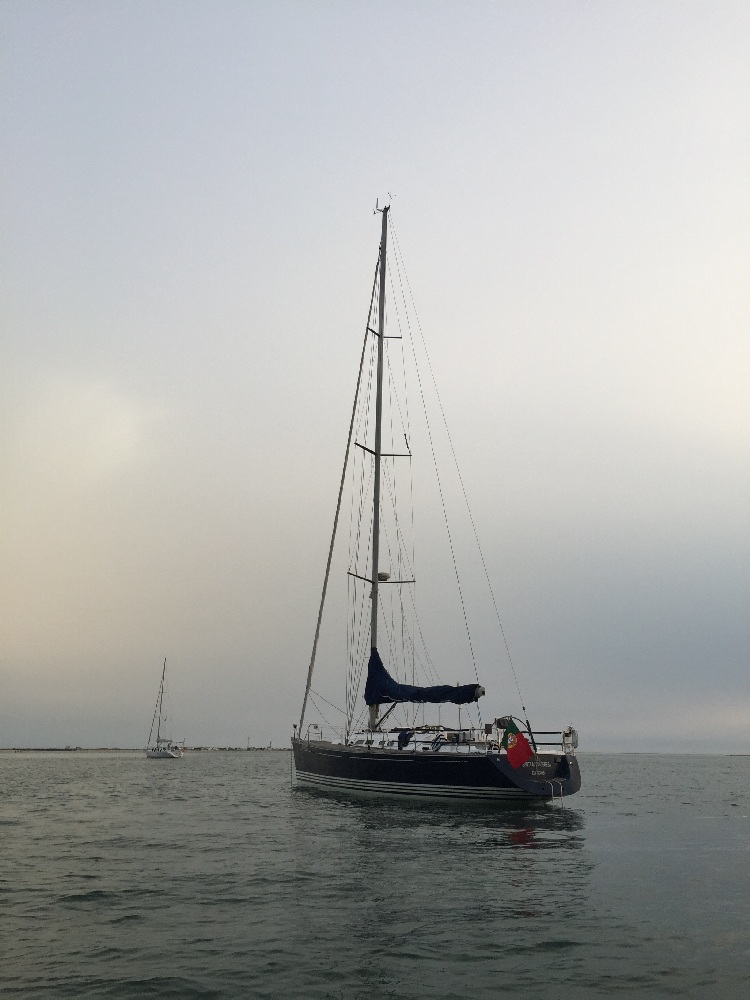

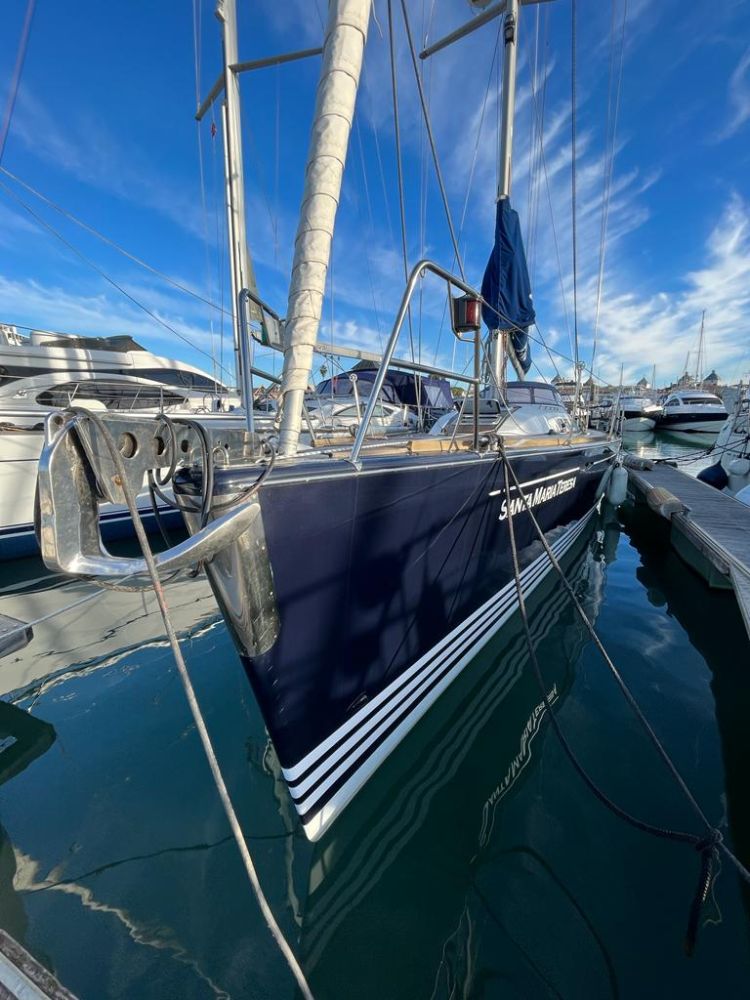

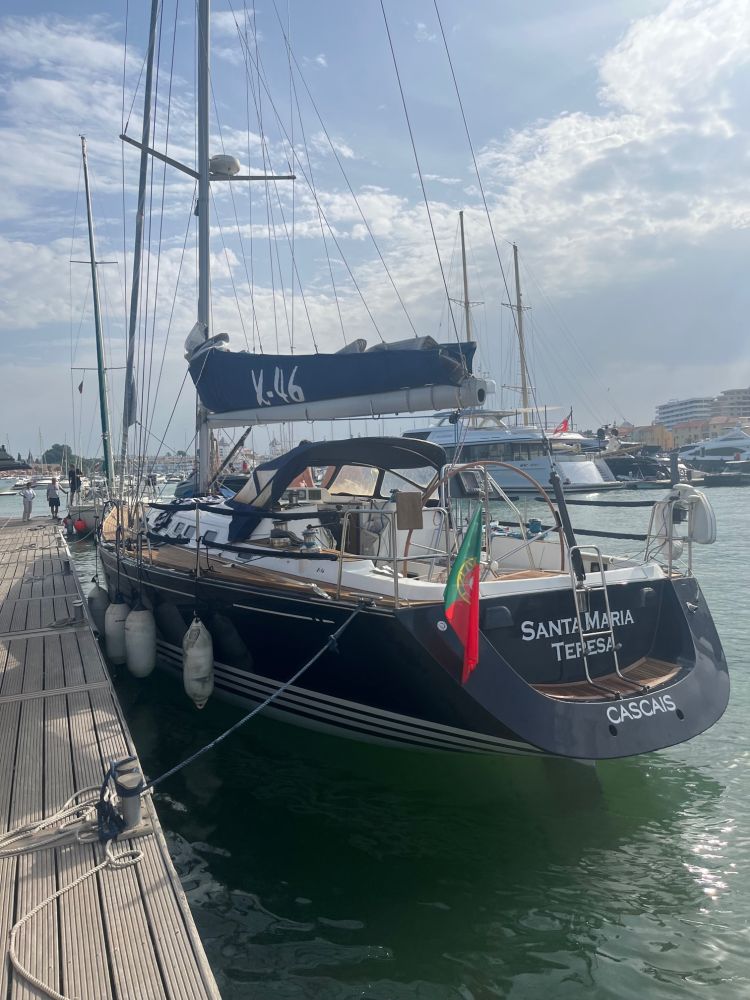

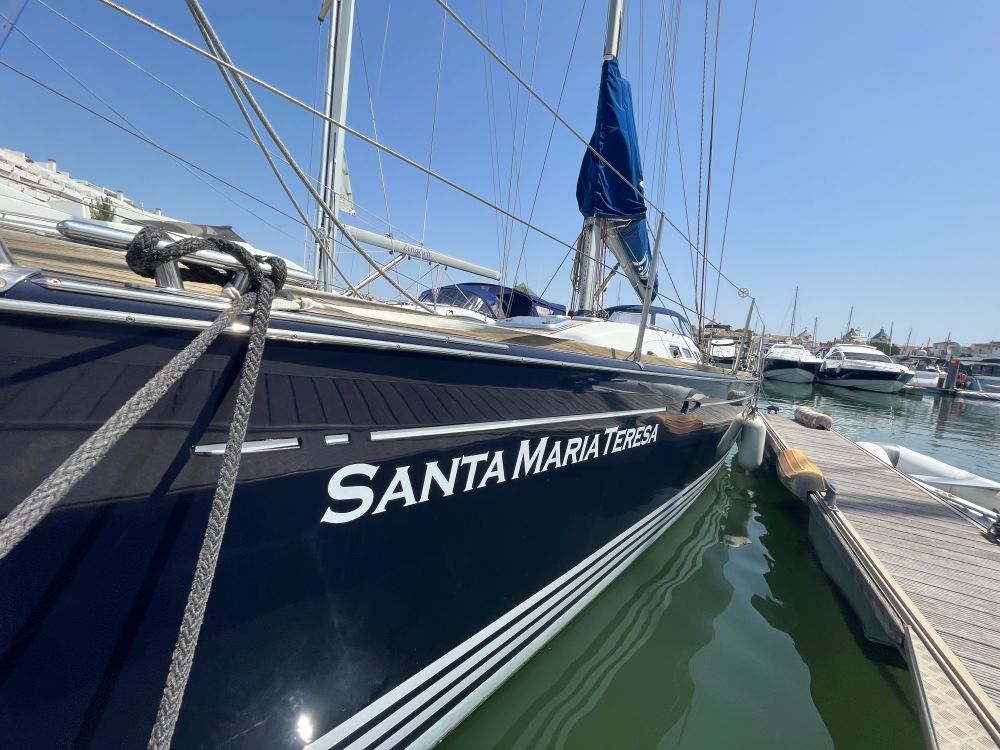

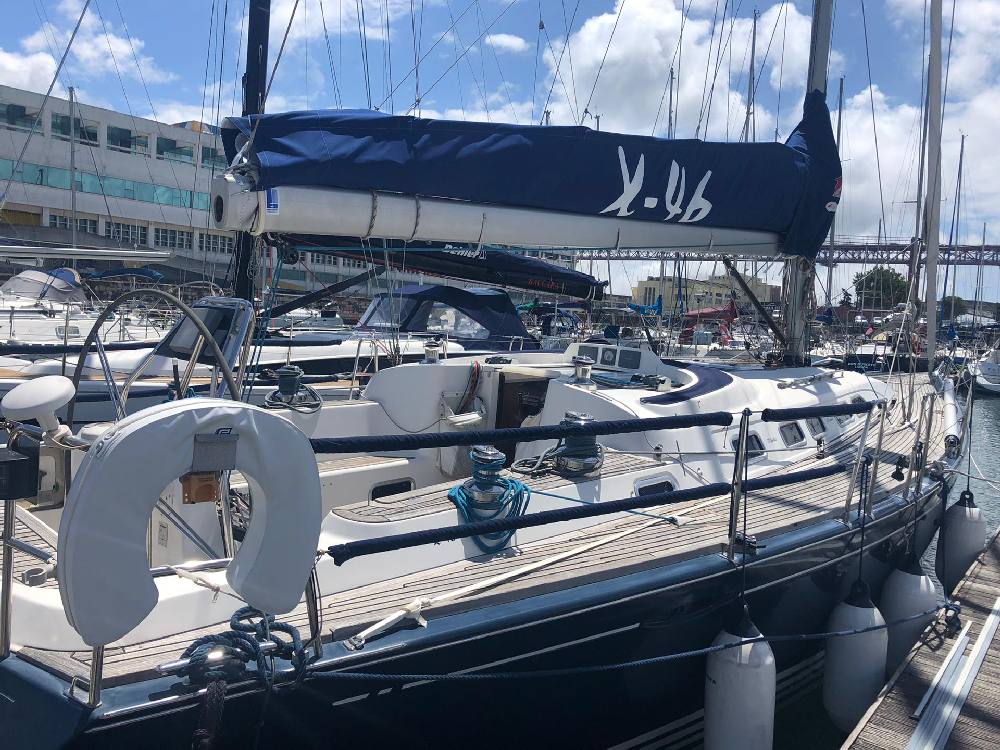

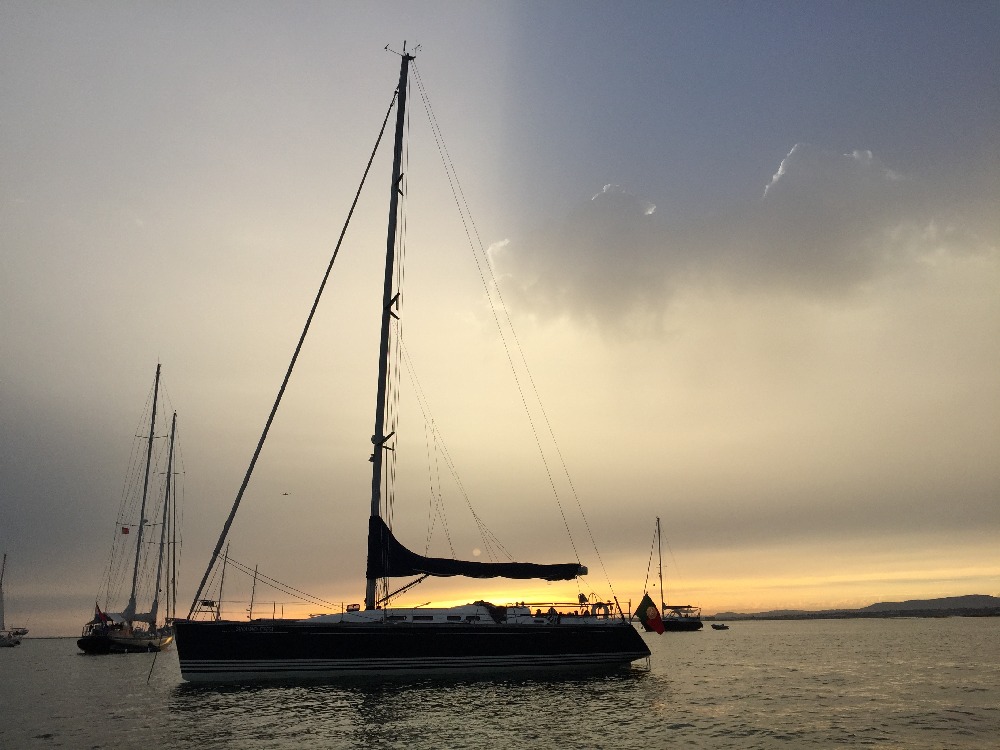

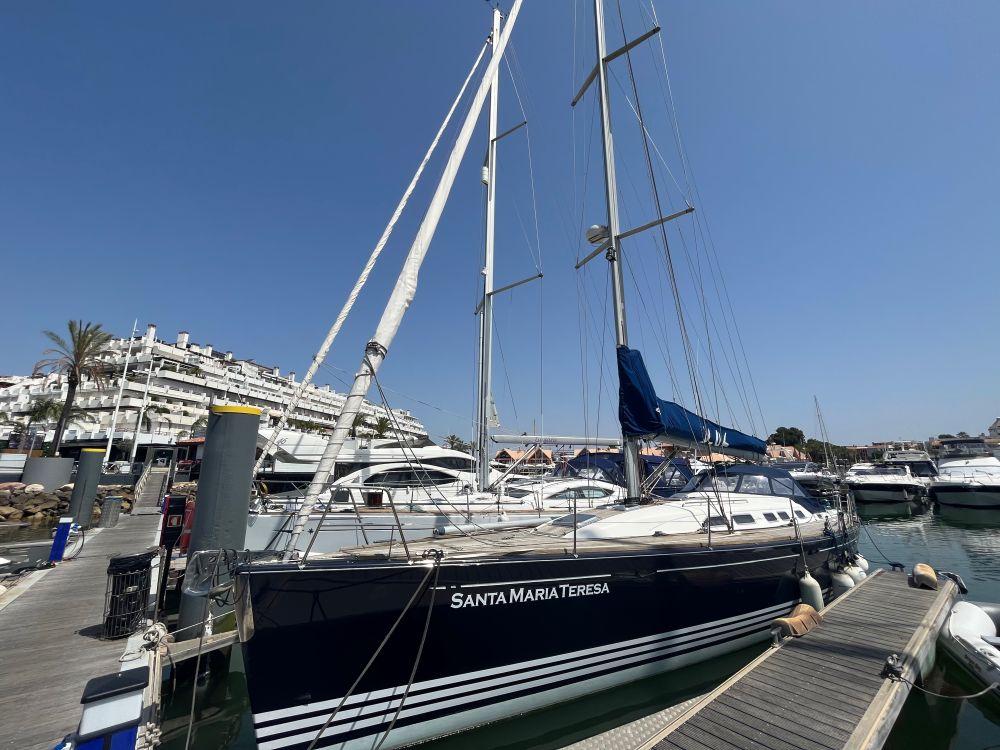

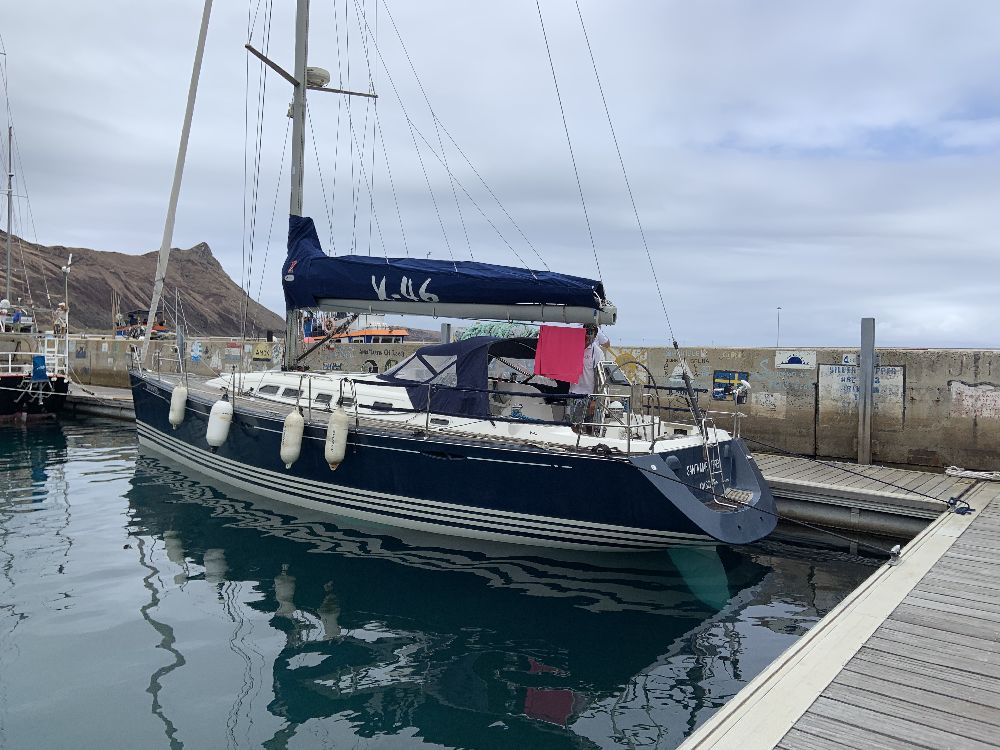

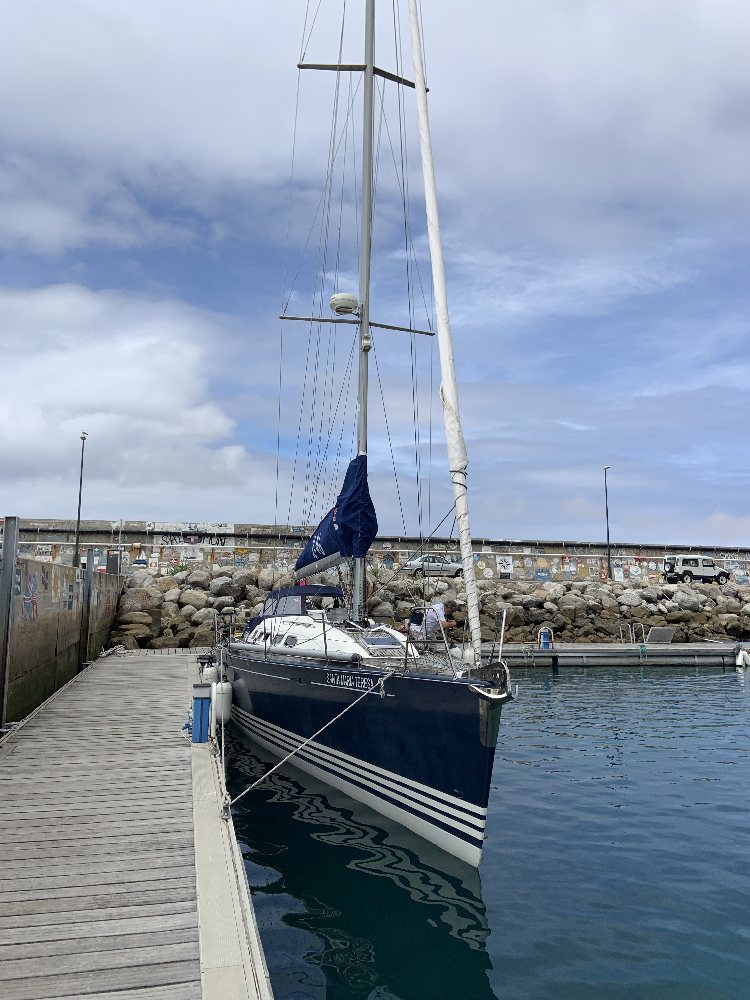

Fantastic X-46 painted in classic and elegant dark blue color. Prepared for blue water navigations, with extensive and good equipment and in very good condition.

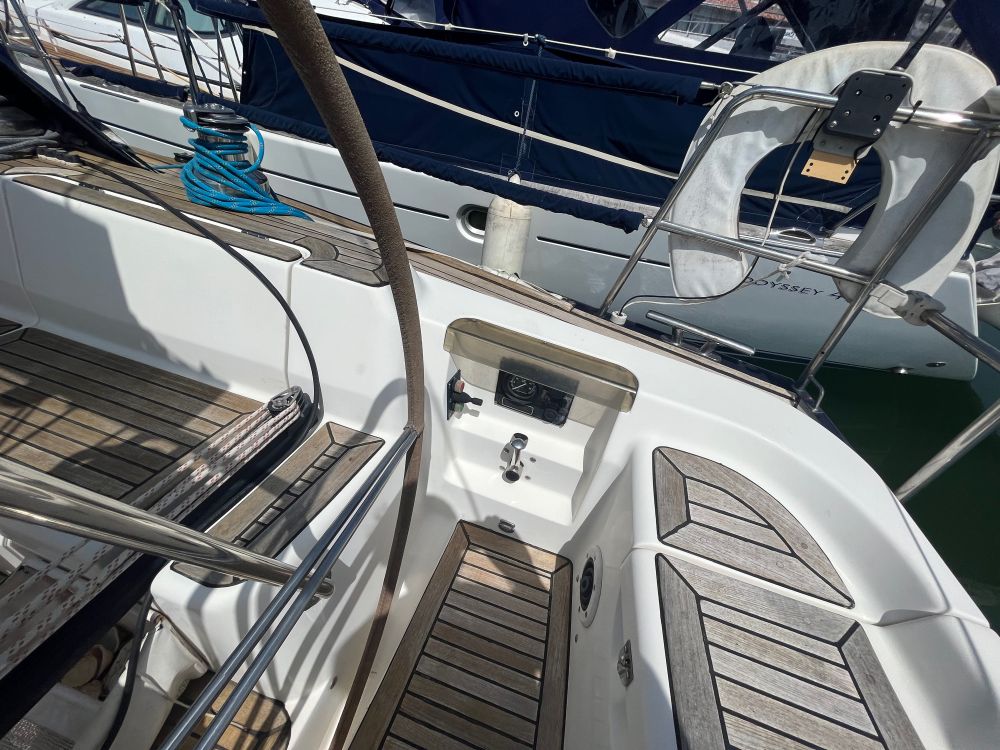

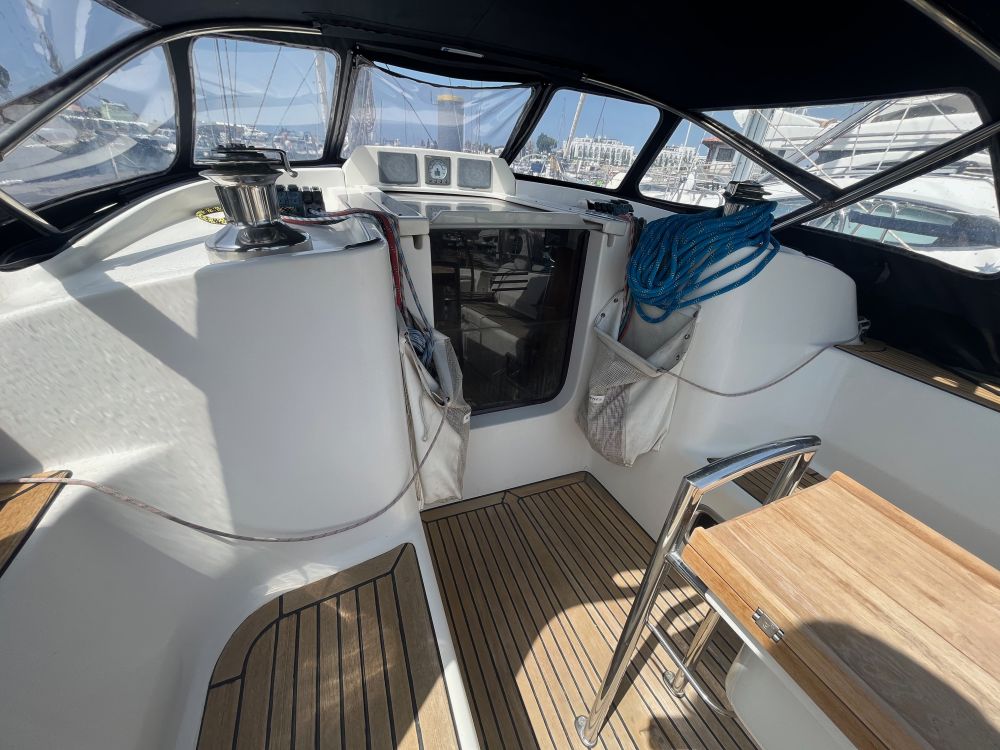

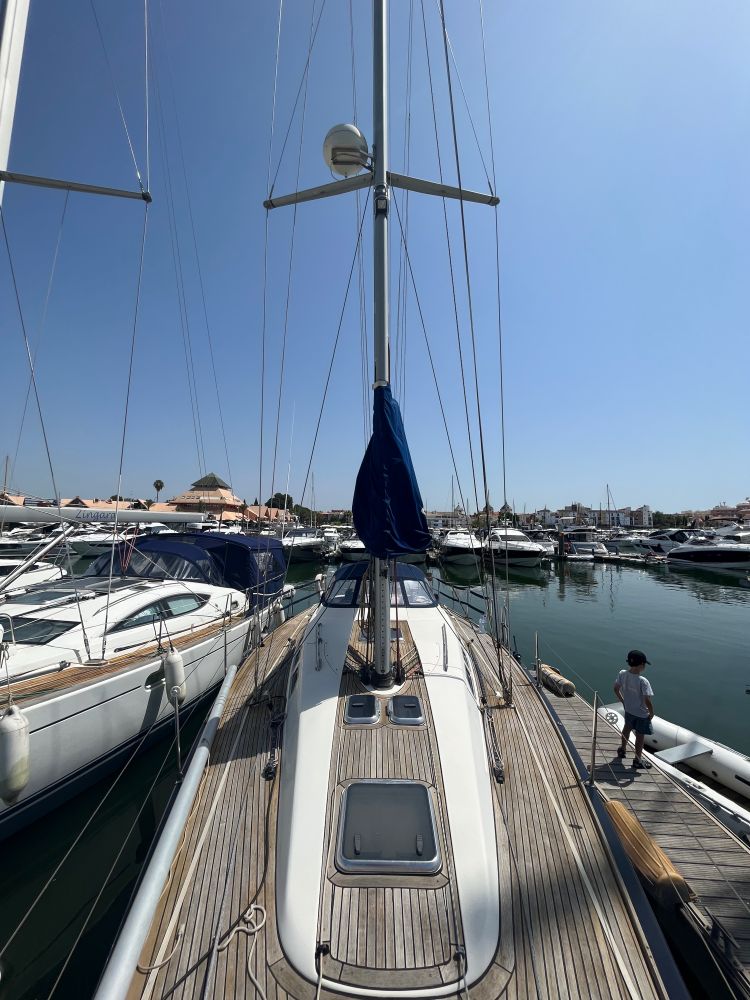

On deck, everything about the boat bespeaks performance. The German-style double-ended mainsheet leads from the gooseneck through blocks and under the deck back to the cockpit, giving a clean, efficient appearance.

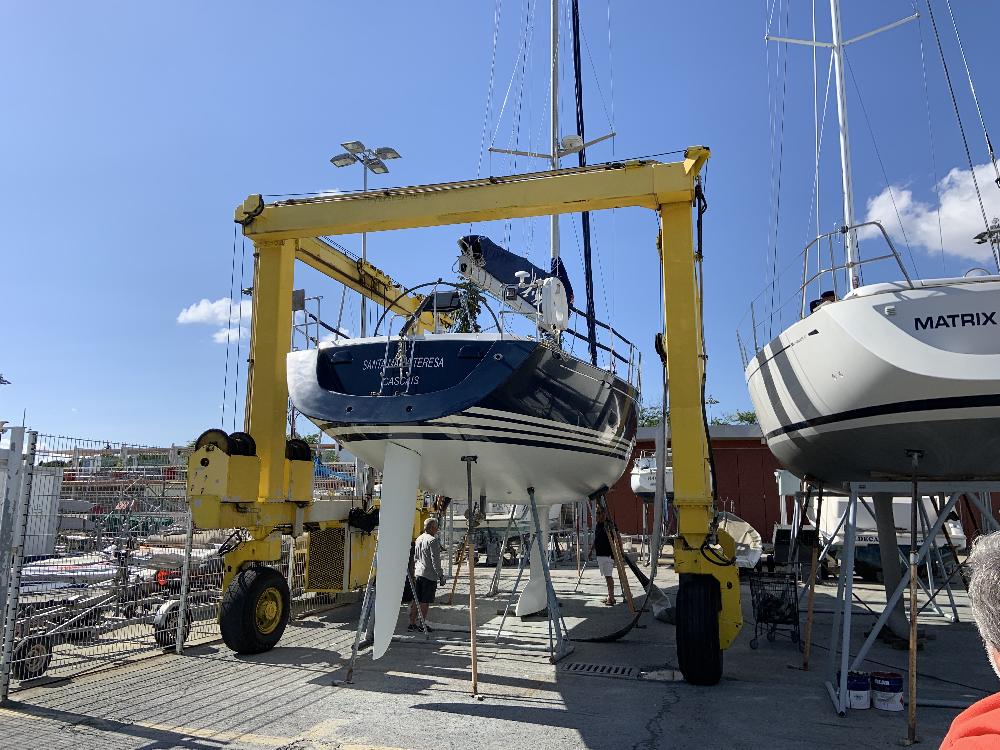

The X-46’s interior is sumptuous, with pleasing details everywhere you look. The grain in the high-quality teak is carefully matched throughout; battens under bunks promote ventilation and comfort; a single lifting eye at the boat’s midpoint simplifies hauling and shipping.
Like other X-Yachts, the structure of the 46 stands out. The boat’s backbone is a massive galvanized-steel grid that picks up all the rig, keel, and machinery loads, rendering the vessel uncommonly stiff. Biaxial glass over divinycell orients the laminate strength where it’s needed.

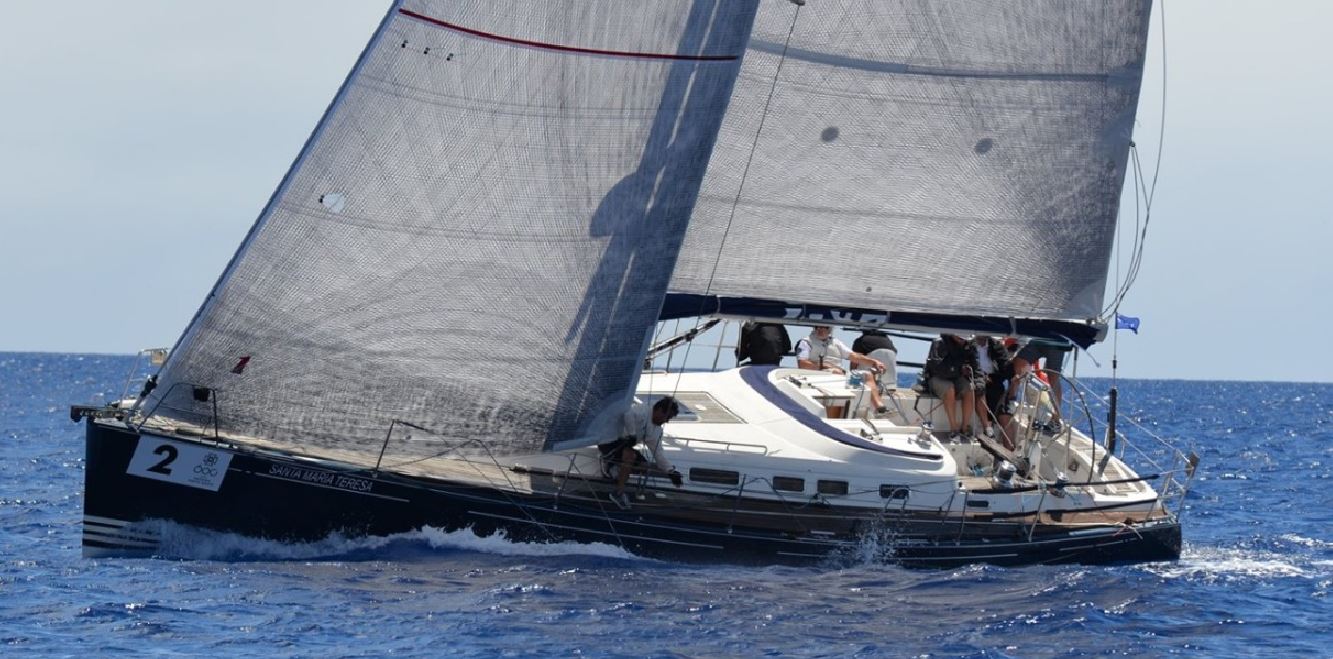

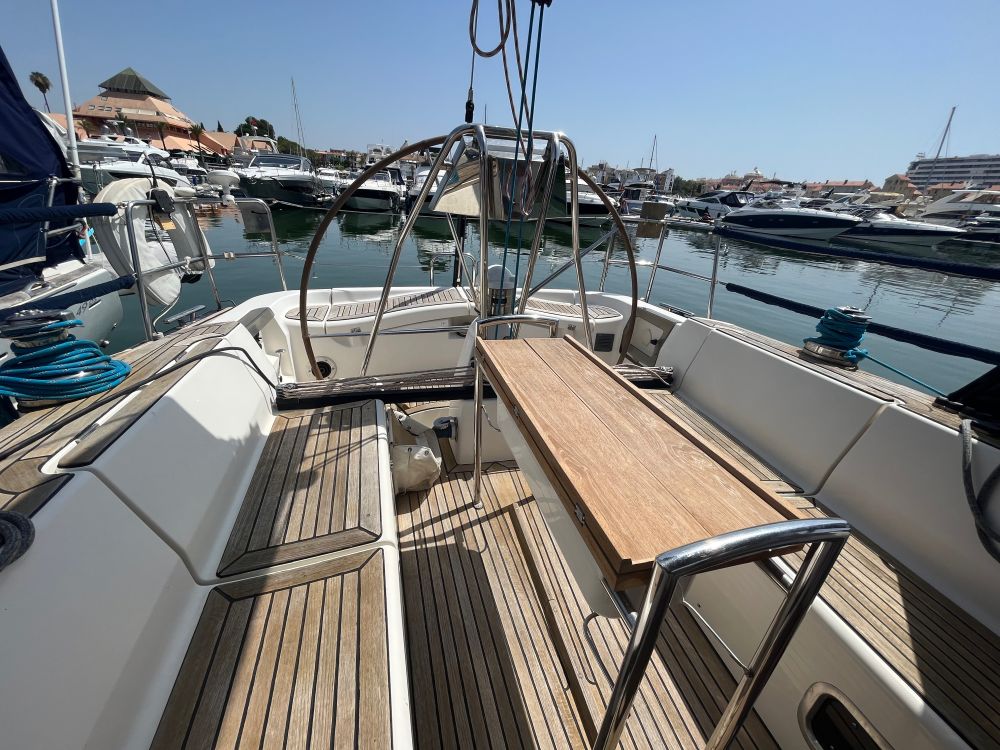

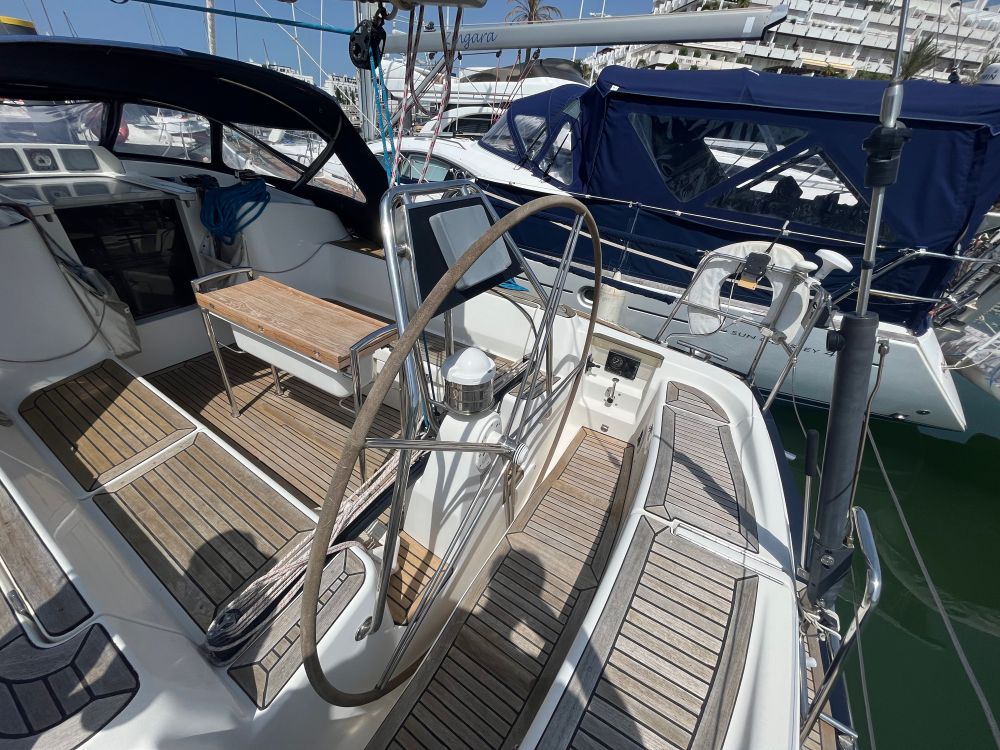

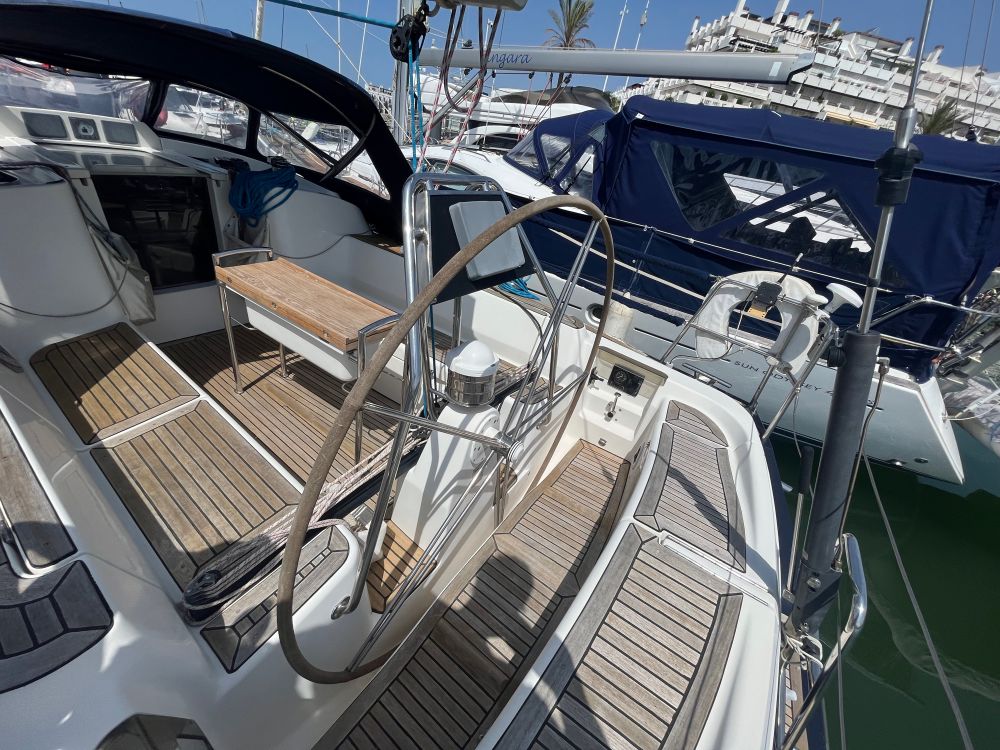

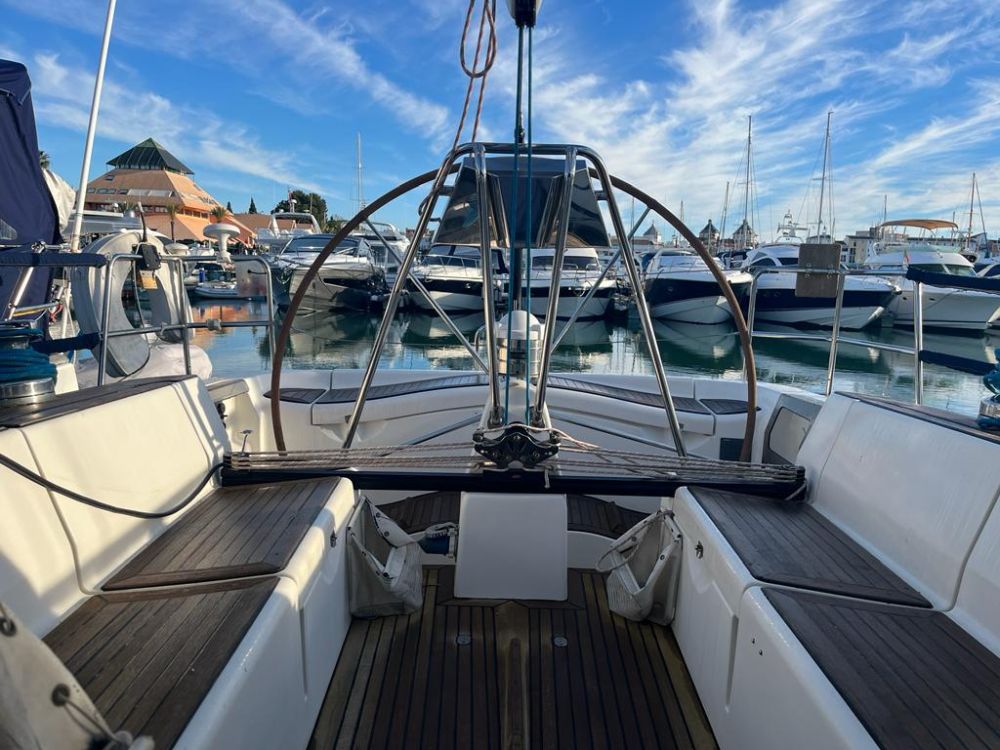

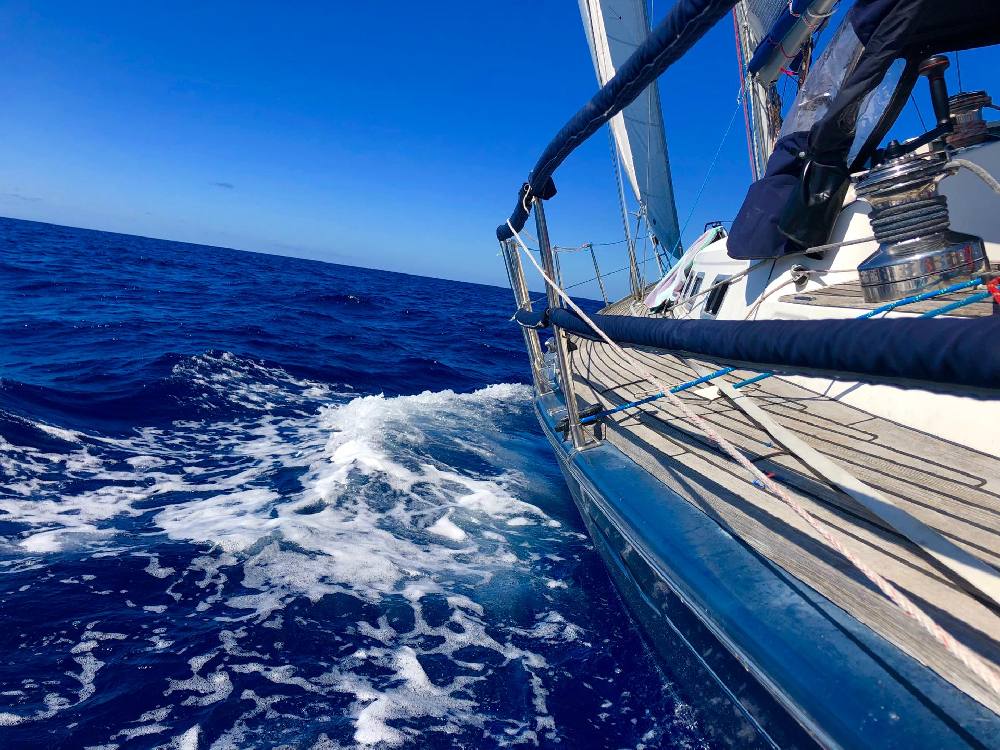

If poetry in motion is what you’re looking for, get thee behind this wheel.
DESIGN
Builder
X-YACHTS
Designer
JEPPESEN
Design notes
Hull number # 27
DIMENSIONS
LOA
14.01m
Beam
4.092m
Draft
2.356m
Ballast
4.500kg
Displacement
10.246kg
ENGINES
Engines
Volvo Penta D2 – 55/S
Cruising speed
7kn
Propeller
folding propeller
Engines notes
Volvo Penta D2 – 55/S 55hp diesel engine mounted on rubber suspension with S-drive installation and 460mm folding propeller. Engine is run with fresh water cooling system.
Engine compartment
Bow thruster Max Power 150 VIP
Situated between the two aft cabins excellent access is provided through removing the sides and opening the companionway stair’s top hinges. The engine compartment is insulated with special foam material and allows space for additional electrical equipment such as a generator. The compartment is fitted with two ventilation units as standard.
TANKS
Fuel
200l
Water
380l
Tanks notes
Holding tank with water pump forward toilet.
Fuel tank 200-litre aluminum fuel tank with VDO analogue tank level gauge, deck fill, separator incl. filter and shut off valve.
ACCOMMODATIONS
Berths number
6
Cabins number
3
Cabin height
2m
Shower
Yes
Heating
Yes
Accommodations notes

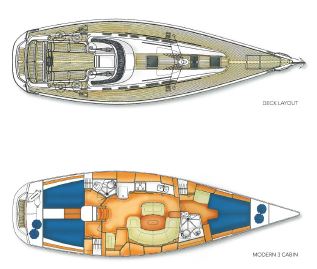

MODERN 3 cabin version
Wooden interior is teak in hand polished satin finish Leather in saloon.
Eberspächer D5 with 5 outlets
Main saloon – Leather 02048 Beige Cabins forward & aft – Aron Blue 510

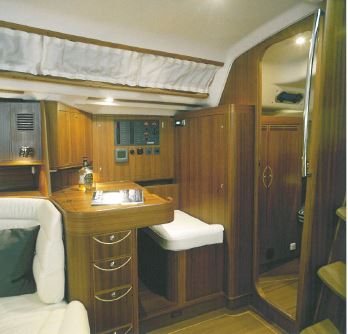

The yacht’s wooden interior is teak in hand polished satin finish. All carpentry is carried out in accordance with best yacht practice, and the numbers of visible screws have been reduced to a minimum. The modern inner liner has integrated dome halogen spotlights and Oceanair units in the hatches.
All windows are equipped with curtains except for the aft cabin windows, where white push button blinds are supplied.

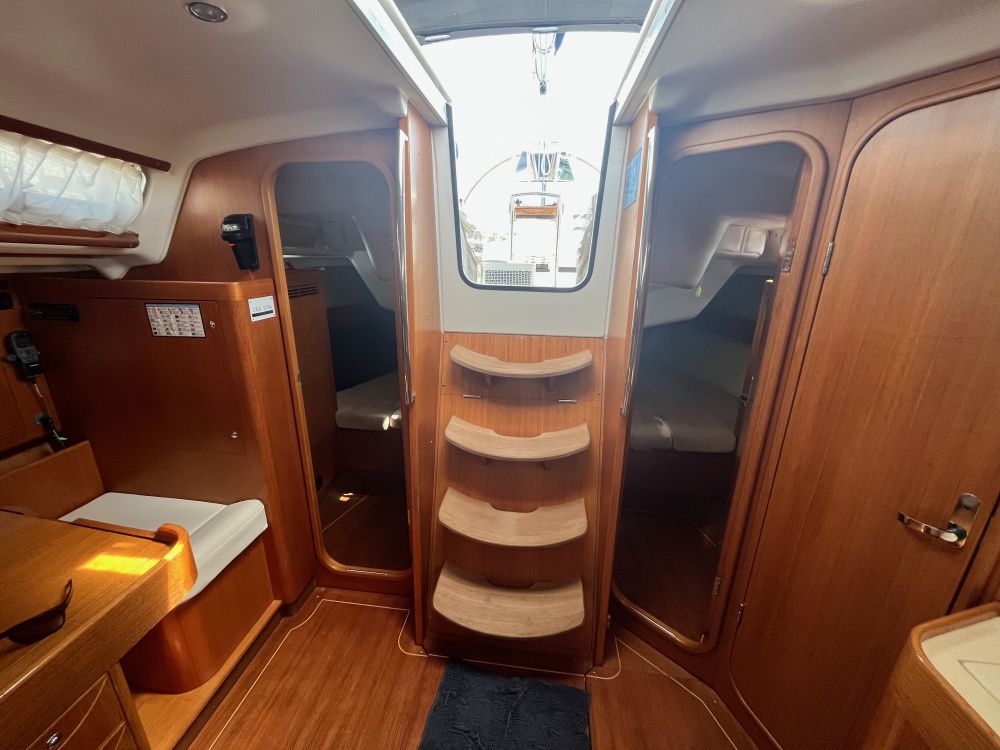

The floorboards are made of laminated teak and allow access to the bilge whereas the companionway steps are shaped teak.

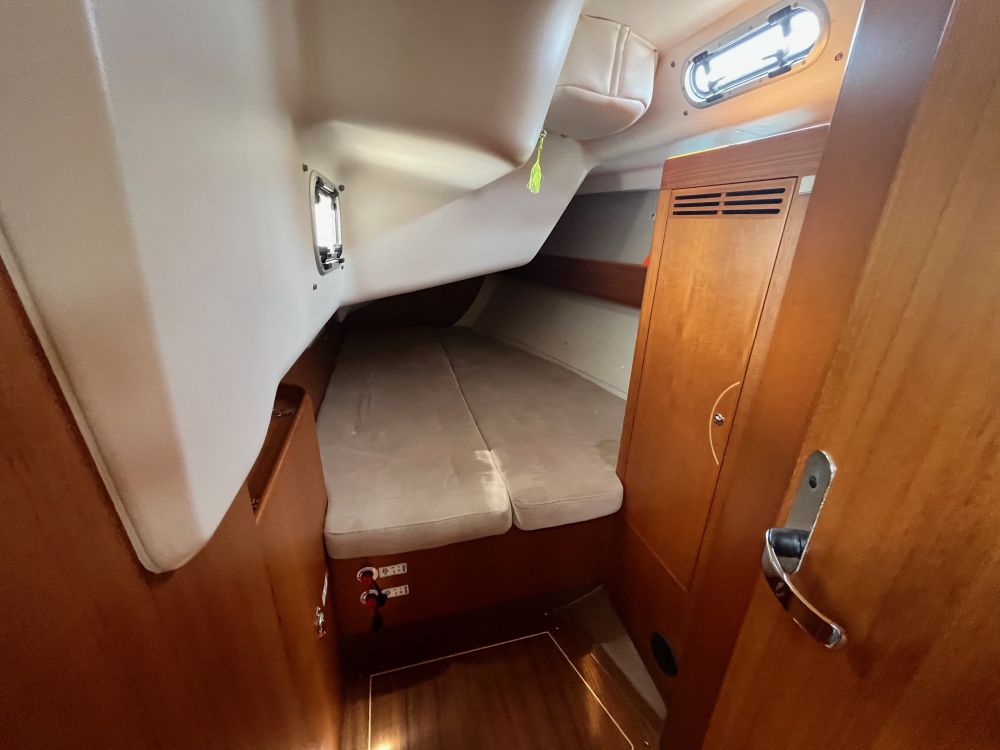

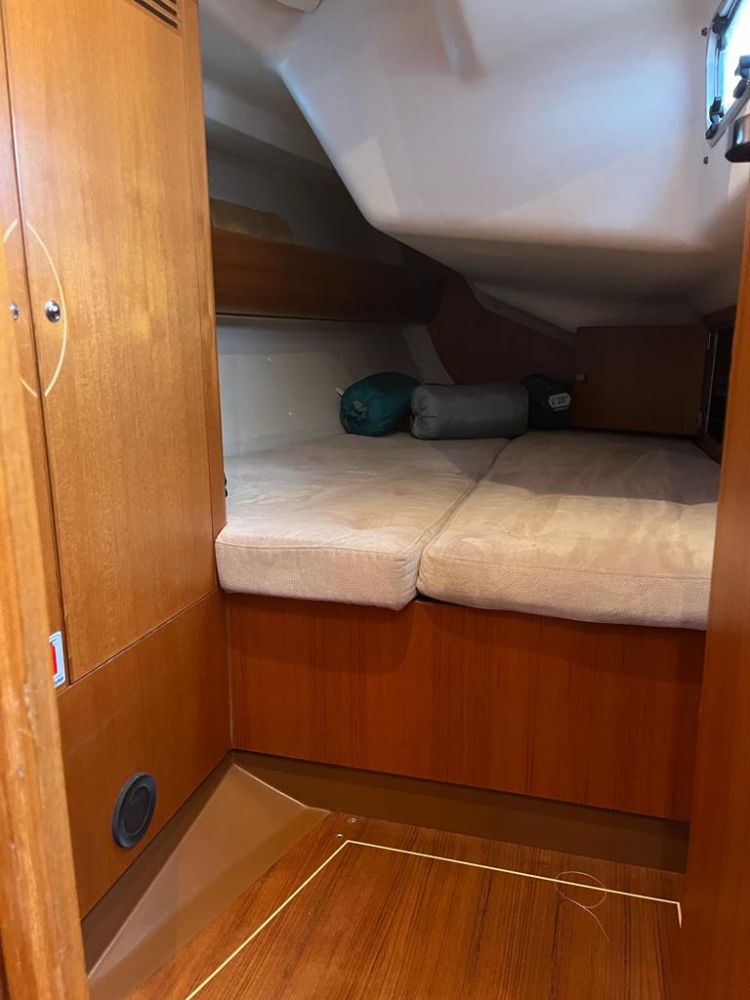

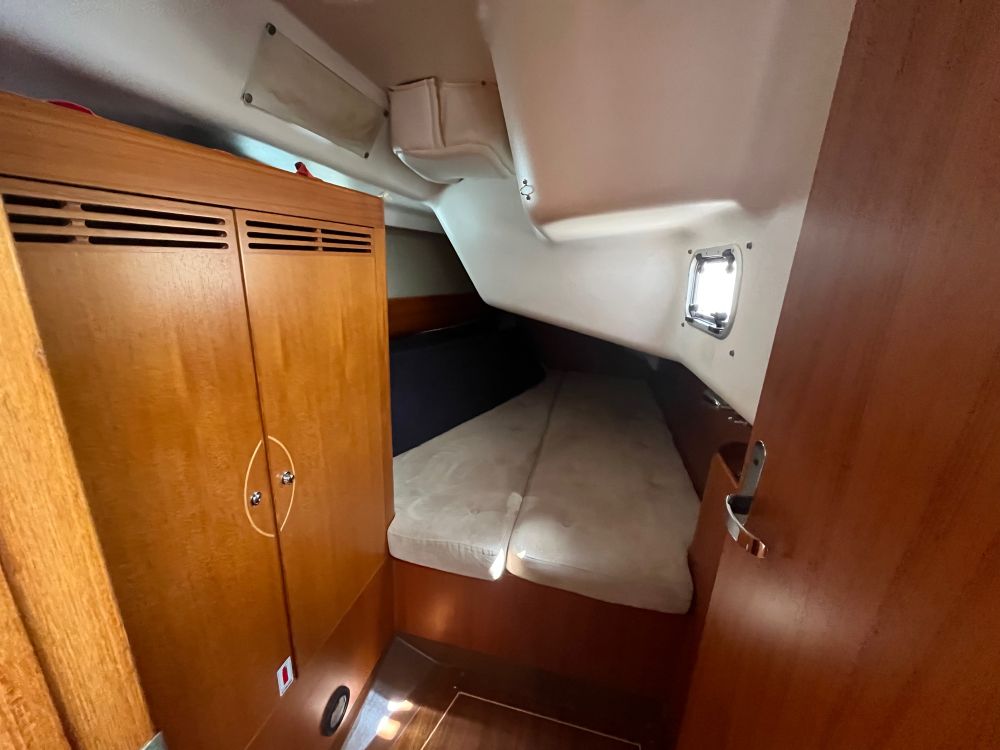

Aft cabins
Two aft cabins and aft head.
The aft cabins have one large double berth (205x150/100 cm) each. The starboard aft cabin has a wardrobe (85x70 cm deep) with shelves and hangers; the port side cabin has a wardrobe (40x75 cm deep) for hangers; both cabins have an additional open top shelve.

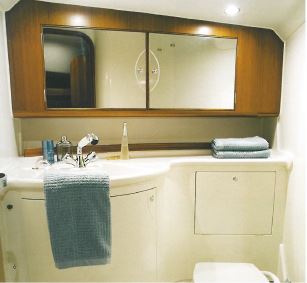

Heads (2 units)

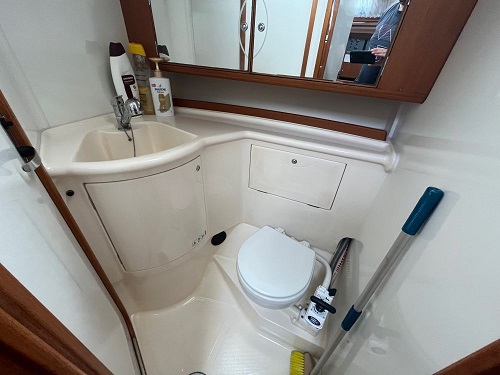

Each head has a water-flushed pump toilet and GRP sinks with hot/cold water mixing tap/shower units. The heads are equipped with s/s towel hooks and toilet paper holder. Mirrors are mounted on front opening lockers.

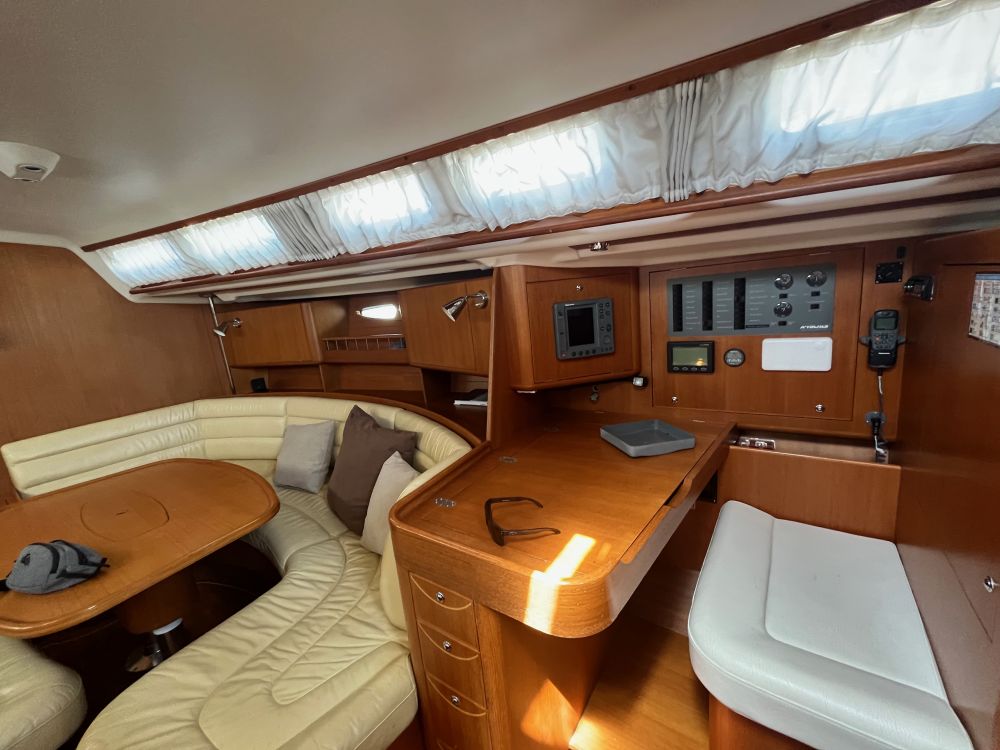

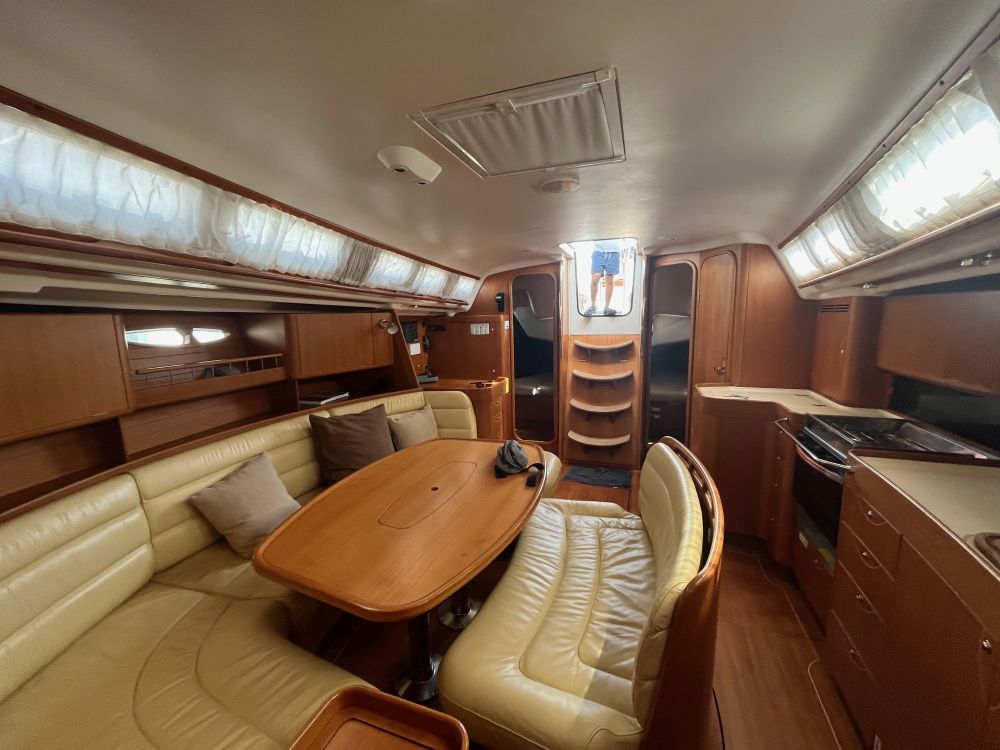

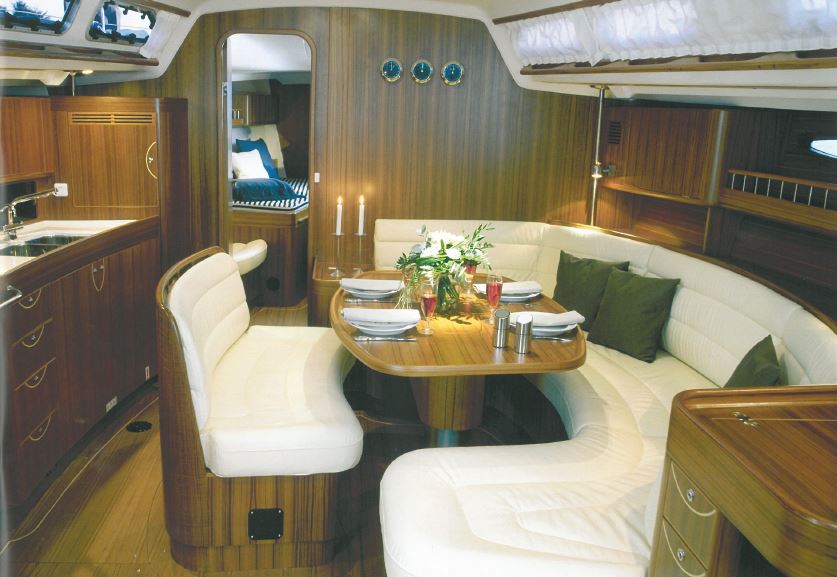

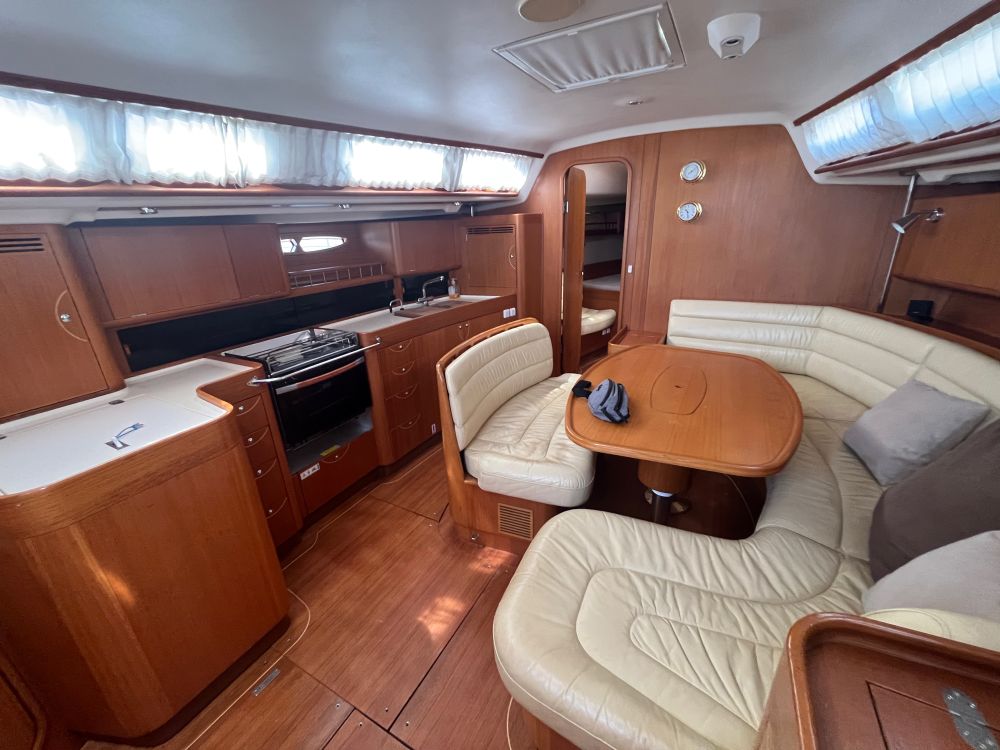

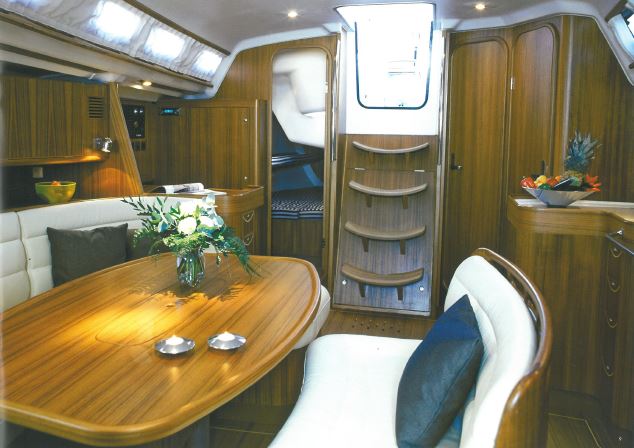

Saloon
On starboard side there is a U-shaped large sofa (310 cm) surrounding the oval table (80x125 cm), which has a built-in bar.
The middle 2-seater sofa (120 cm) rounds off the saloon.
In the upper cabinets behind the large sofa, storage space is available for glasses etc. On port side, facing the main bulkhead, a wardrobe with shelves is fitted.

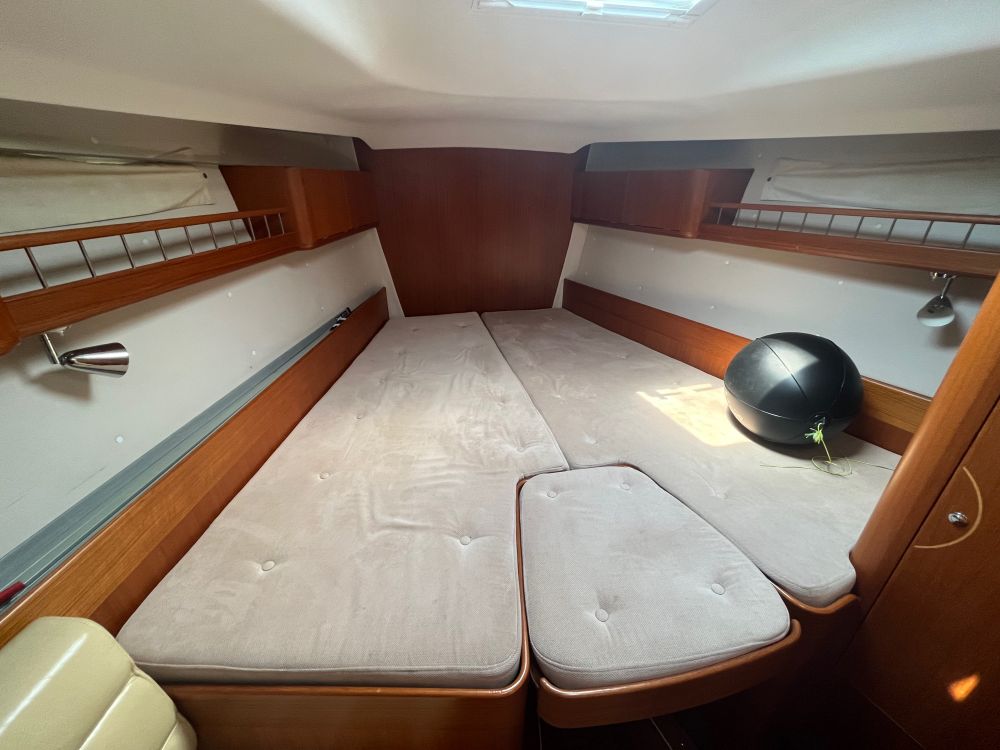

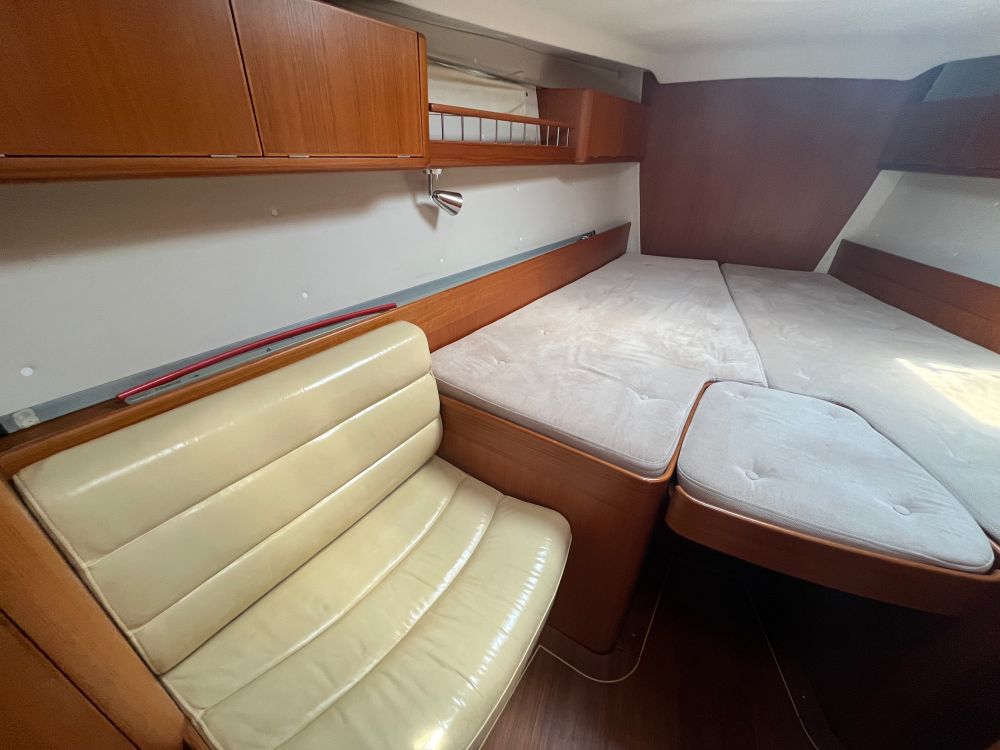

Owner’s cabin
The cabin has a large double berth (205x150/120 cm) and a settee (100x70 cm). For storage, the modern design incorporates a double wardrobe (75x80cm deep) with shelves and hangers and an additional 2 drawers underneath.
Further 3 drawers are positioned on starboard side, and bedding can be stored underneath the berth. Natural light from the hatch, the skylight and hull-lights is employed to compliment the polished teak woodwork, achieving a warm and cosy atmosphere, also during daylight.
The freeboard lining is made of white sky. Also here, the batten system under the cushions ensures a more comfortable sleeping environment.
GALLEY
Hot water
yes
Coolbox
yes
Refrigerator
yes
Water system
yes
Galley notes

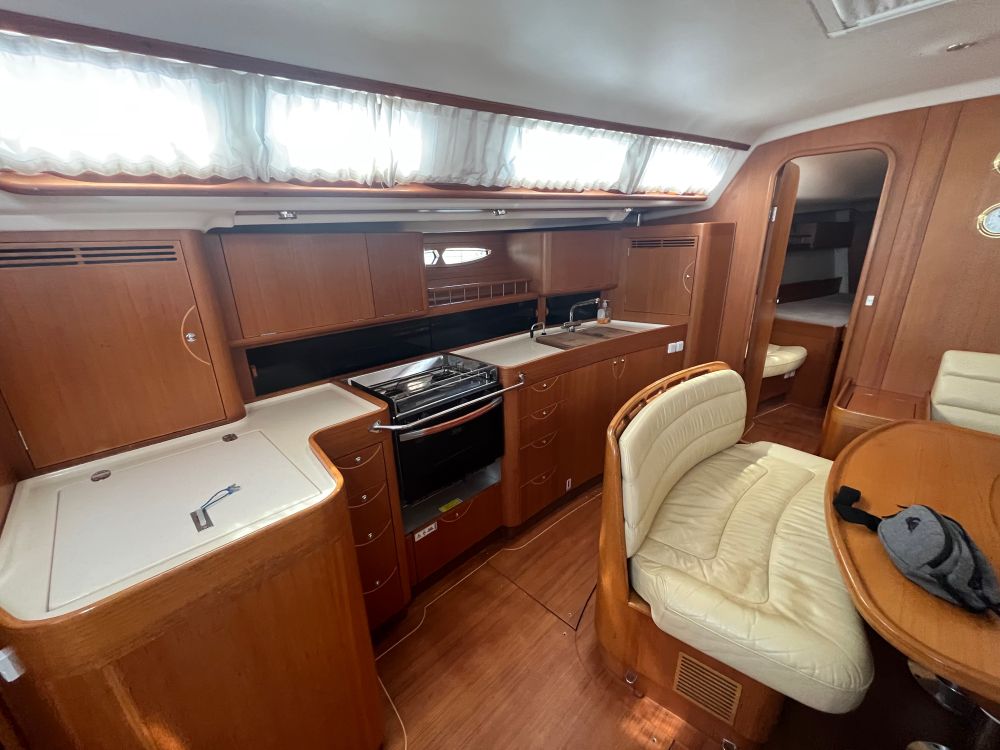

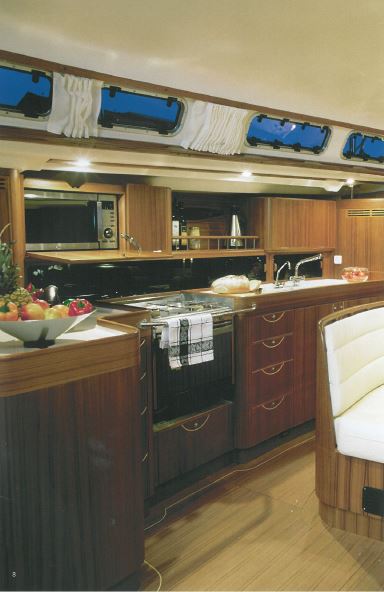

The well-equipped galley has a large work (130x55 cm deep) surface. The top opened GRP (150 l) cooling box with 100 mm insulation, cooled efficiently by a refrigerator unit, provides a large cold storage capacity.
For hotter climates we recommend the seawater-cooled Isotherm SP (see extras). Twin stainless steel rectangular sinks (52x27 cm) with hot/cold water-mixing tabs are integrated in the white melamine-working surface.
The s/s gimballed gas stove has 2 jets and an oven. A 3 kg gas bottle is stored in the aft cockpit locker.
New micro-wave.
Shelves, lockers with plexi glass sliding doors and 4 x drawers (35 cm wide) and 3 drawers (20 cm wide) give ample storage space for plates, cutlery, pans, cups and glasses etc.
Further storage is available under the navigation table and sofa.
NAVIGATION INSTRUMENTS
Electronics
Raymarine
GPS
Raymarine 7"
VHF
Ray 240E VHF DSC-D
Automatic pilot
ST290 Autopilot
Plotter
Raymarine 7" Radar / Chart plotter
Radar
Raymarine 7" Radar
Navigation instruments notes

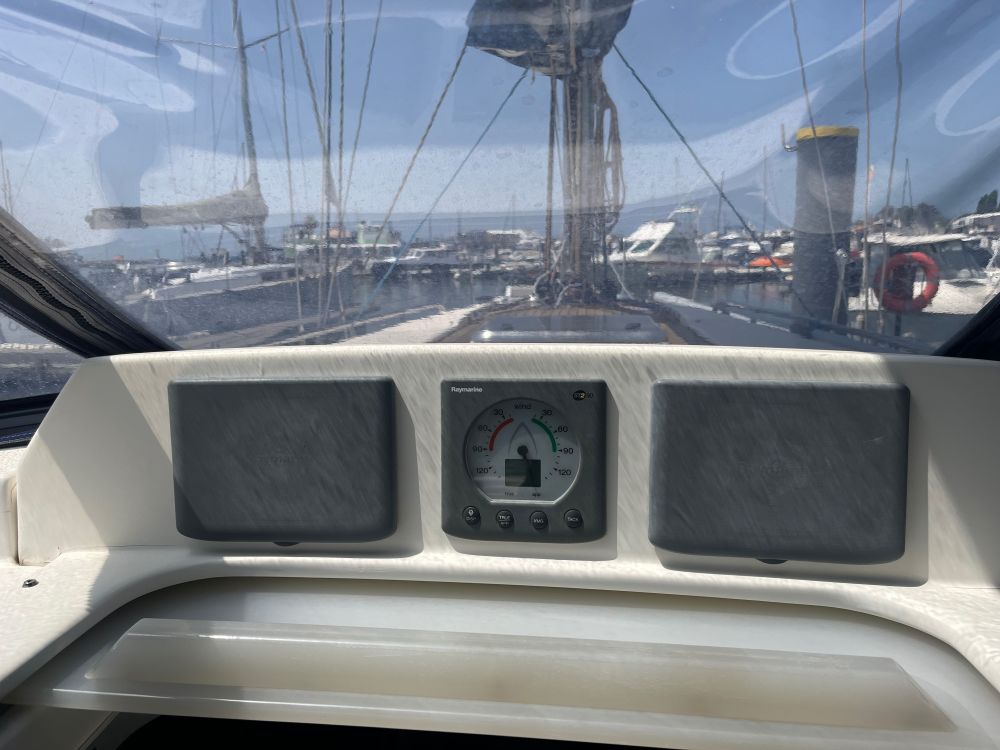

ST290 Wind repeater
ST290 Graphic display X 2
Ray 240E Dual station for cockpit Mounted at Nav station:
Ray 240E VHF DSC-D
7" Radar / Chart plotter including GPS sensor Processor,junction box, log and echo transducer
Mounted on Mast: ST290 Wind sensor
Sea Me Radar reflector with display at Nav Station
Mounted at Binnacle on Large instrument Box:
Raymarine 7" Radar / Plotter repeater with HSB cable ST290 Autopilot
ELECTRICAL
Batteries
3
Battery charger
yes
Electrical notes
Gel battery x 3 120 AH plus separate engine start battery 230 Mastervolt Mass 12v/60 A Battery charger
Mass 12/2000 DC/AC inverter
New Batteries, inverter and battery charger 2021
SPARS & RIGGING
Sails

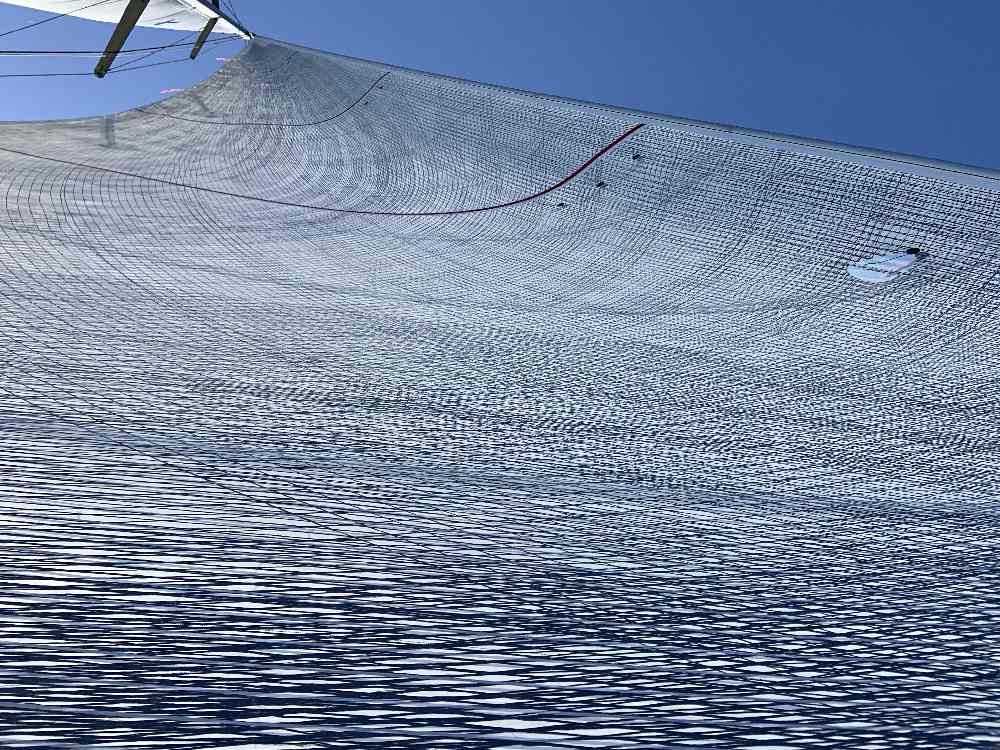

Main sail “One sails” 4Tforte from 2019
Main sail for cruising - Hood
Genoa “One sails” 4Tforte from 2019
Genoa for cruising

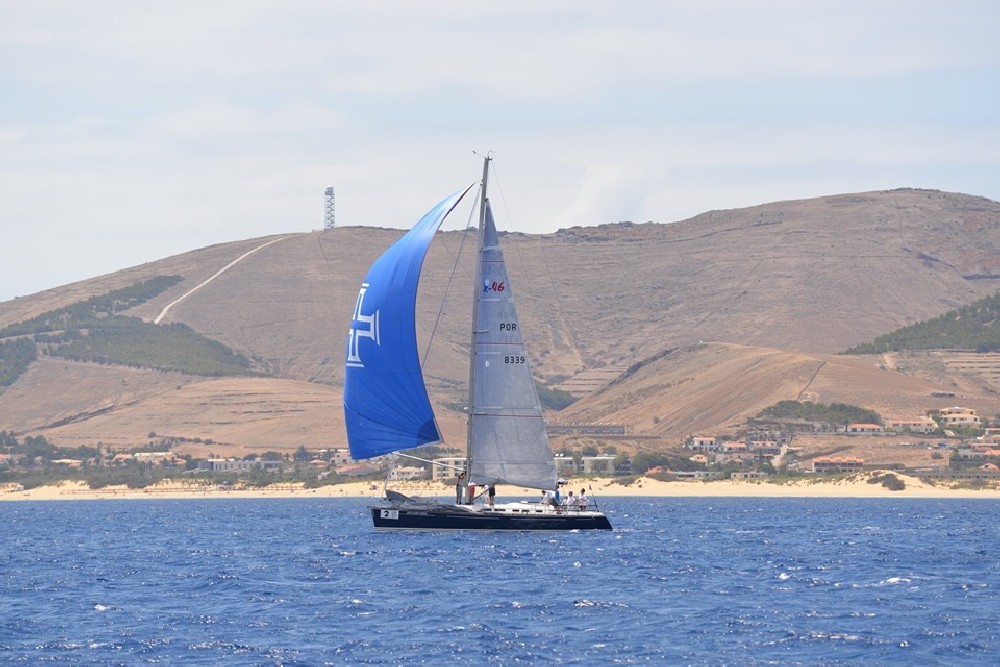

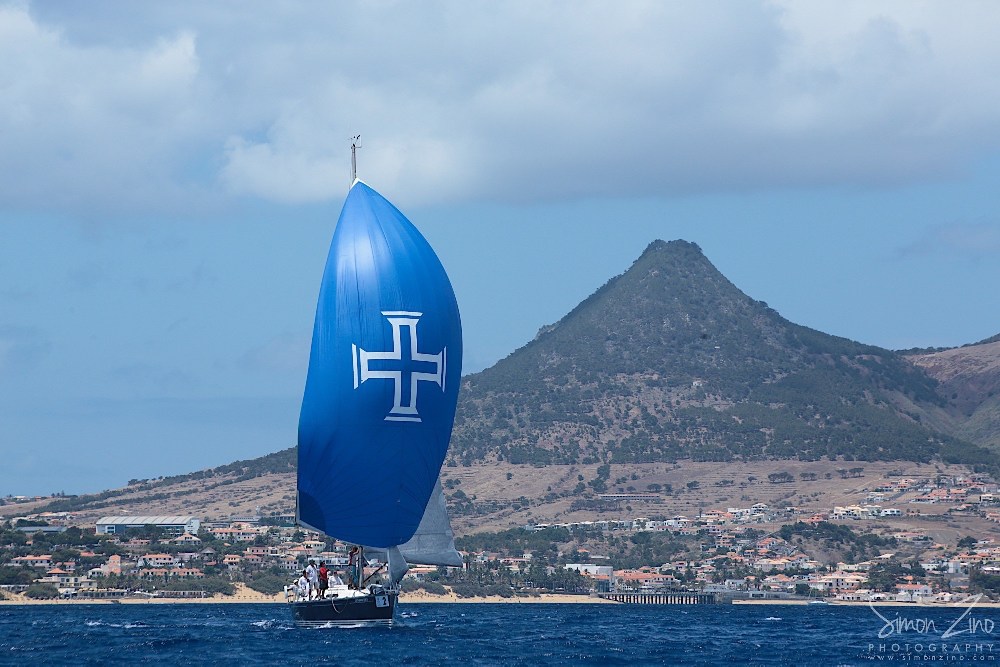

Symmetric Spinnaker - Velas Pires de Lima - 150m2
Asymmetric Spinnaker - North Sails
Mainsail Cover

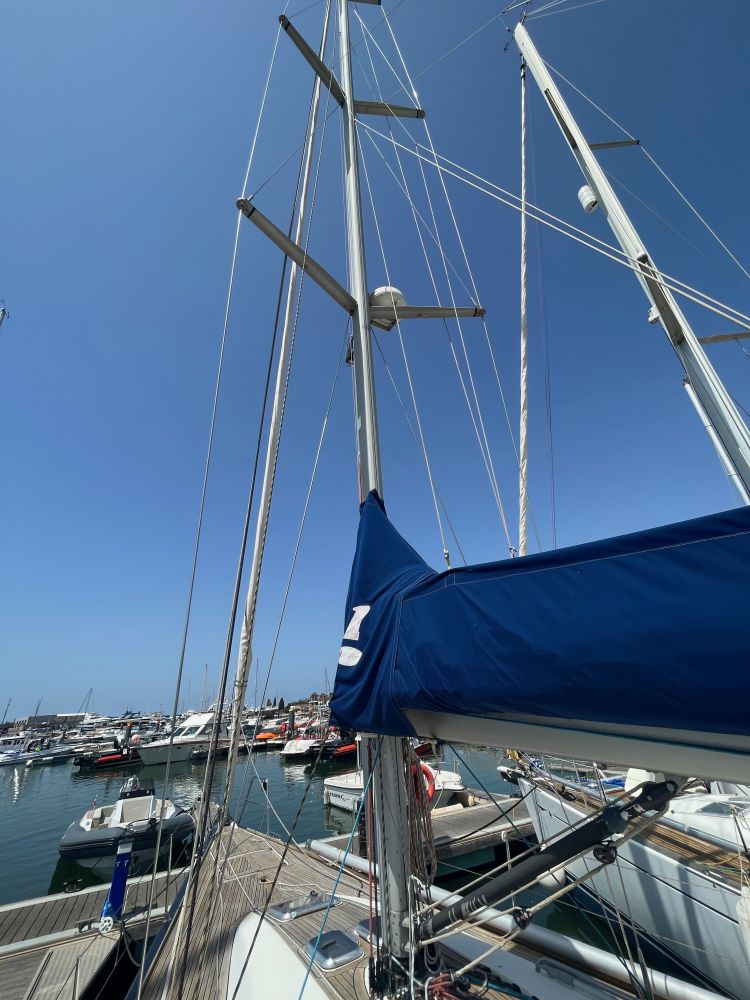

Rigging
Rod
Mast
Aluminium
Boom
Aluminium
Vang
yes
Spinnaker pole
yes
Running rigging
dynema
Furling system
Profurl
Spars and rigging notes
Steaming / deck floodlight
Rod rigging replaced in 2021
DECK EQUIPMENT
Deck hardware
Ronstan - Frederiksen
Hatches
yes
Winches
Andersen
Deck equipment notes

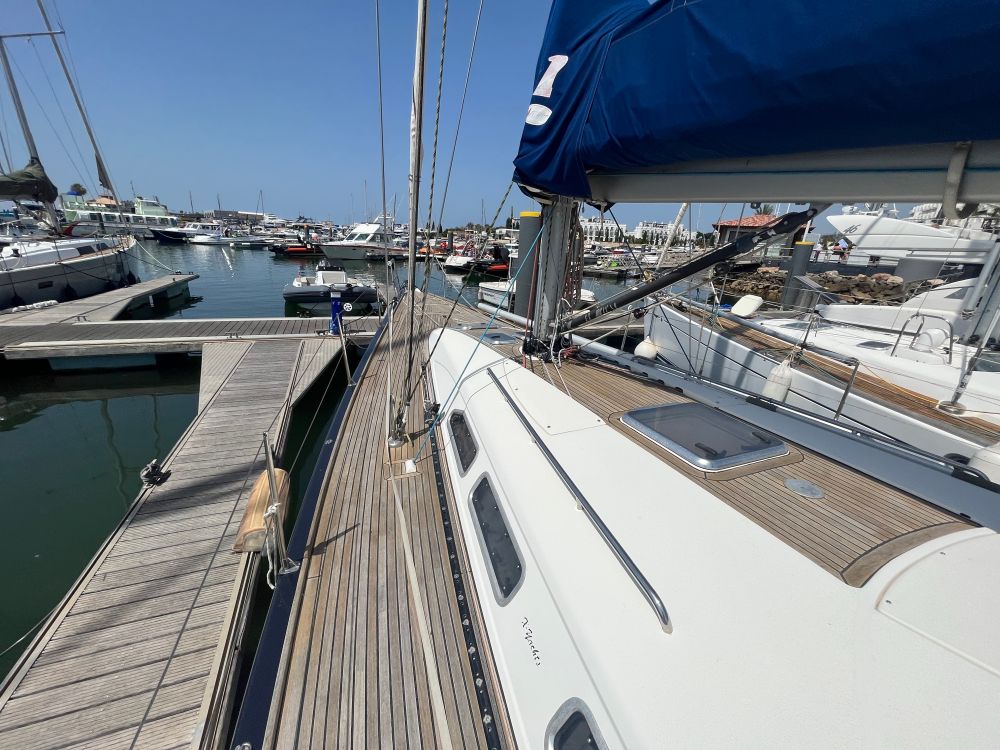

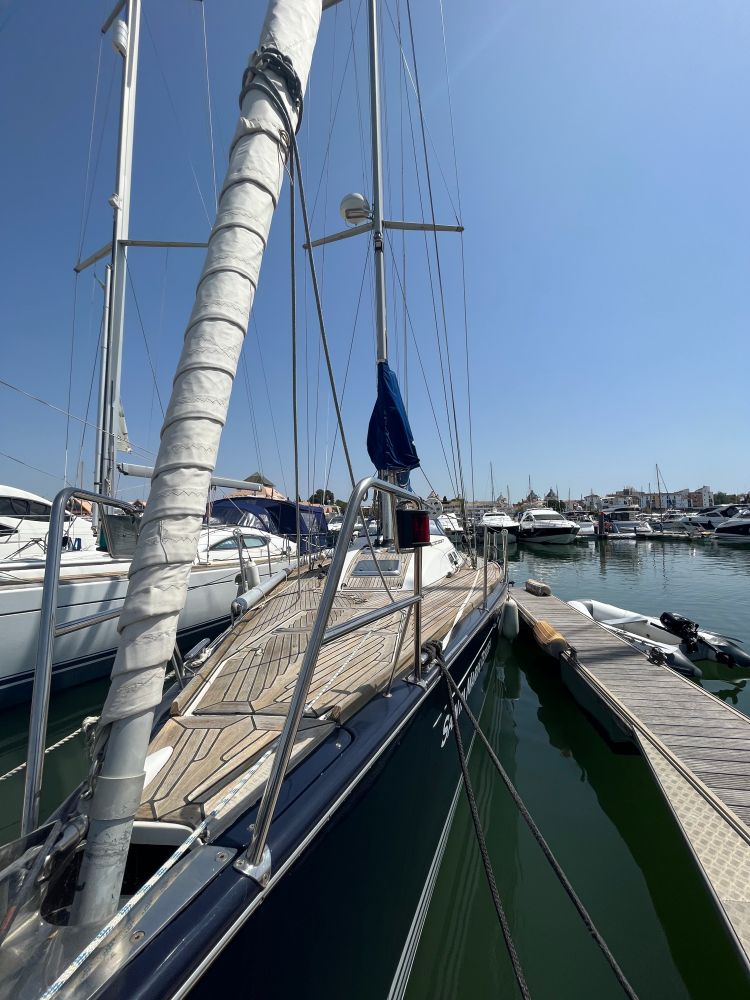

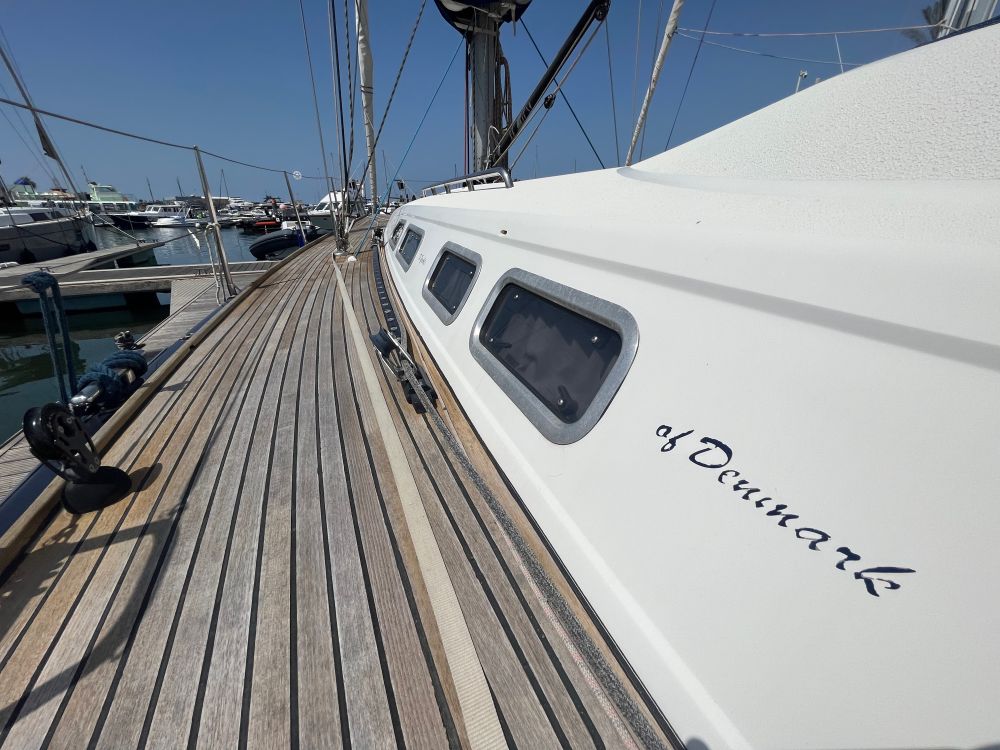

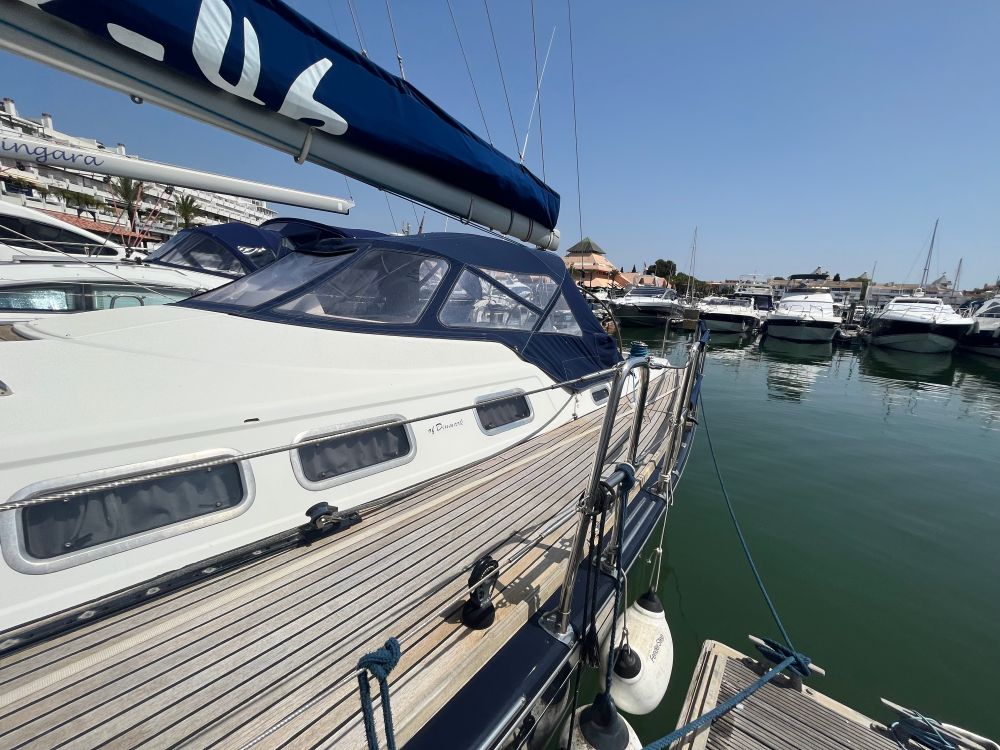

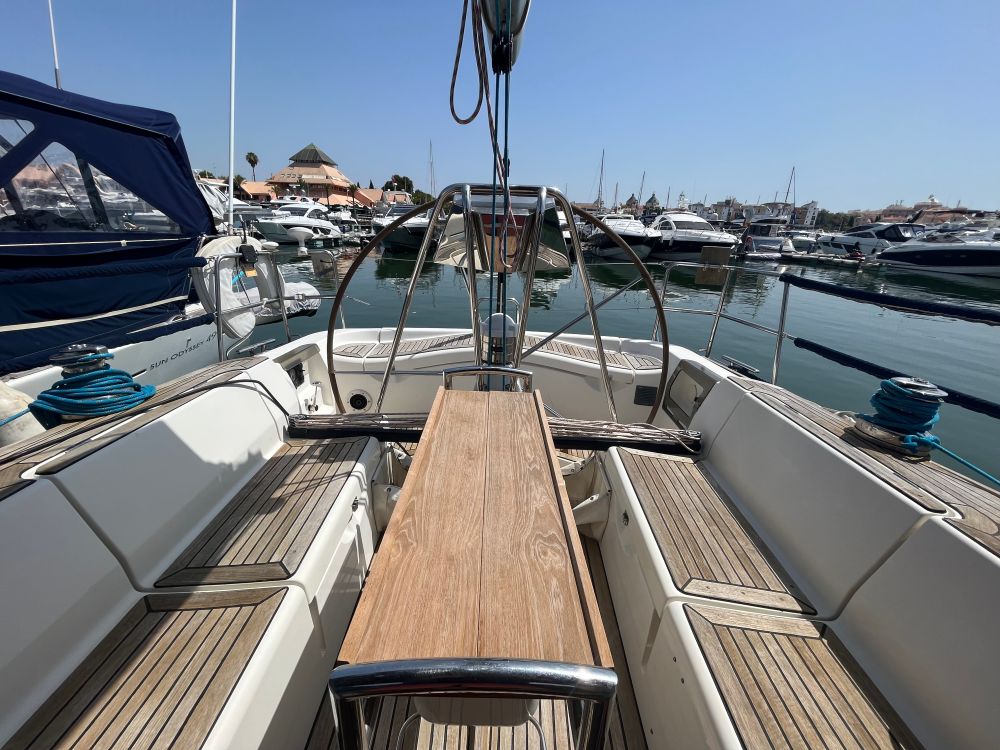

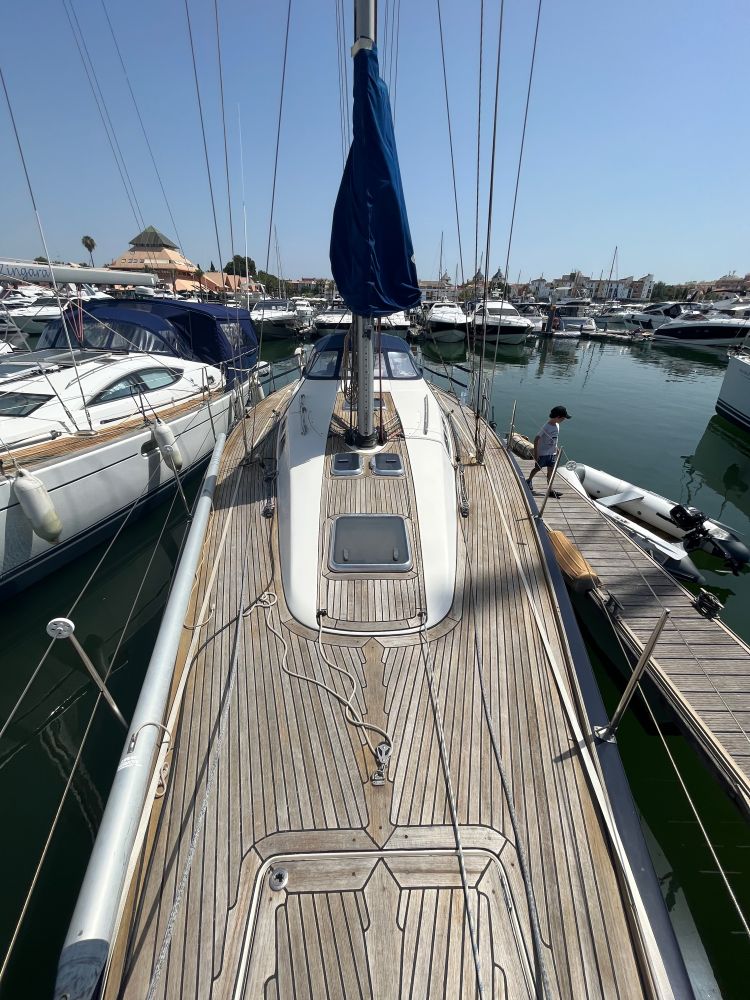

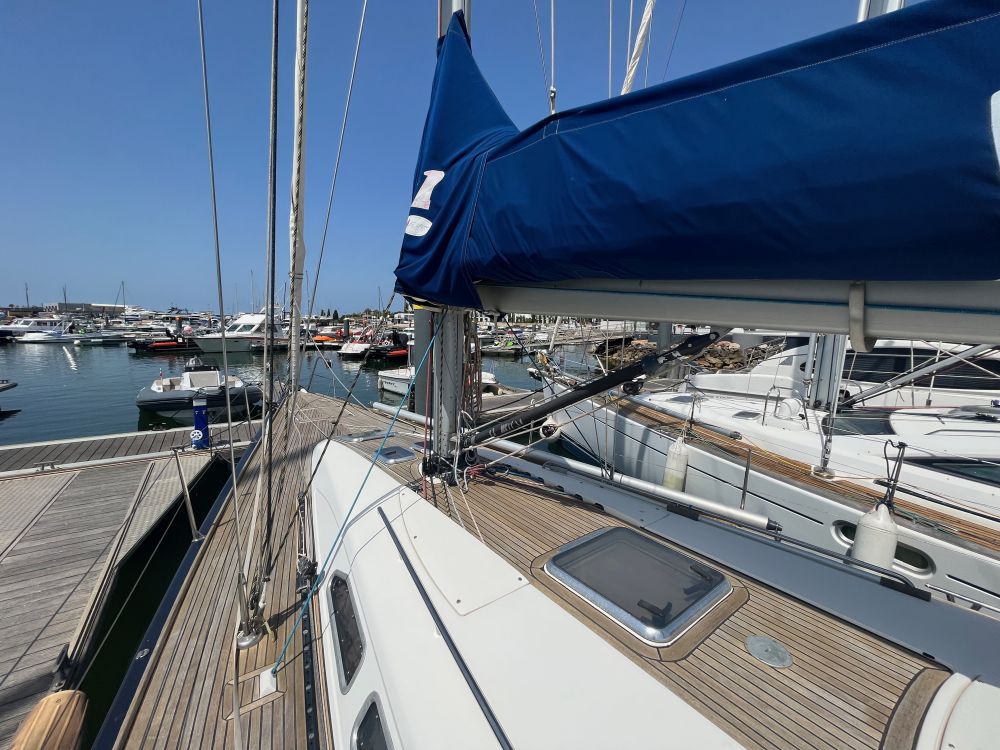

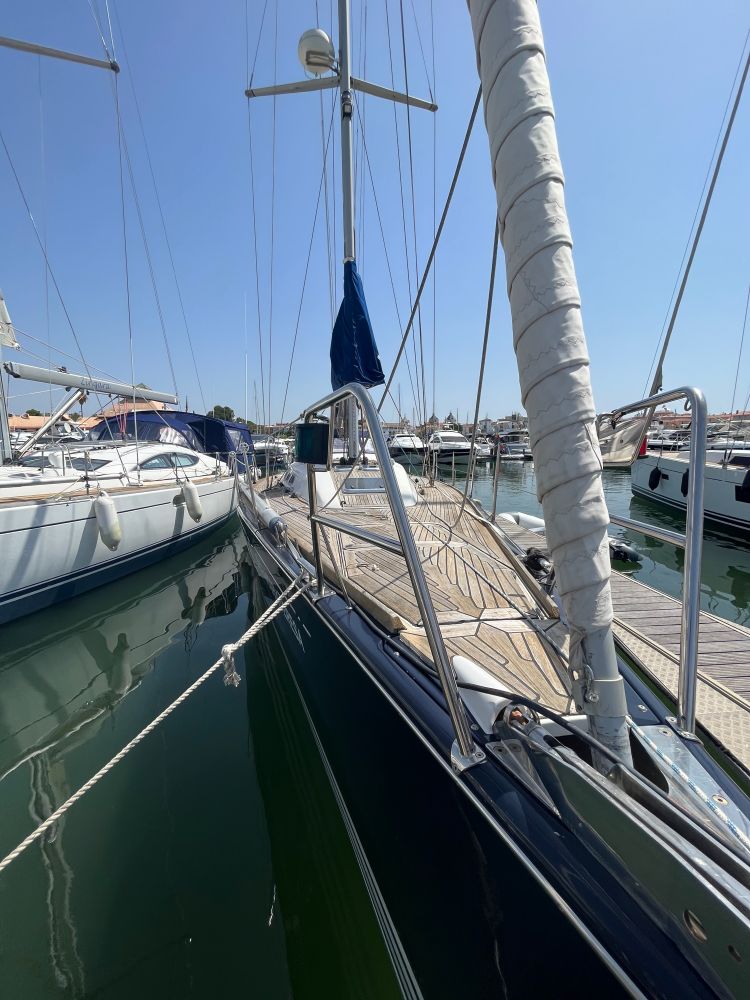

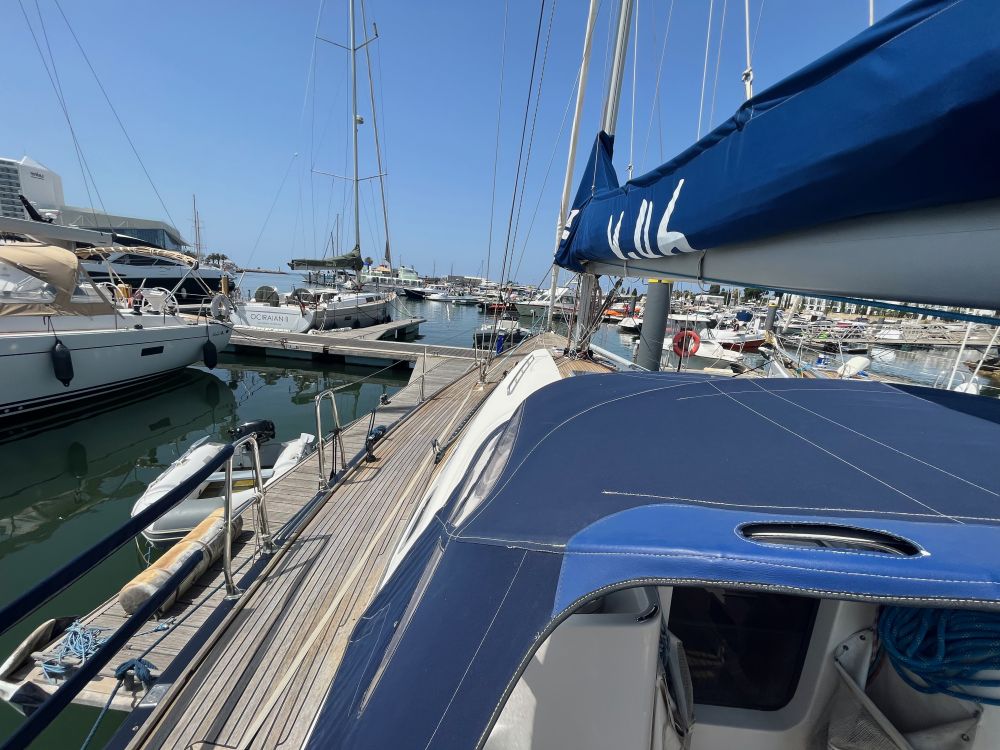

Teak on side deck and on central deckhouse Teak seats on pushpits
Complete Teak deck refurbishment in 2021

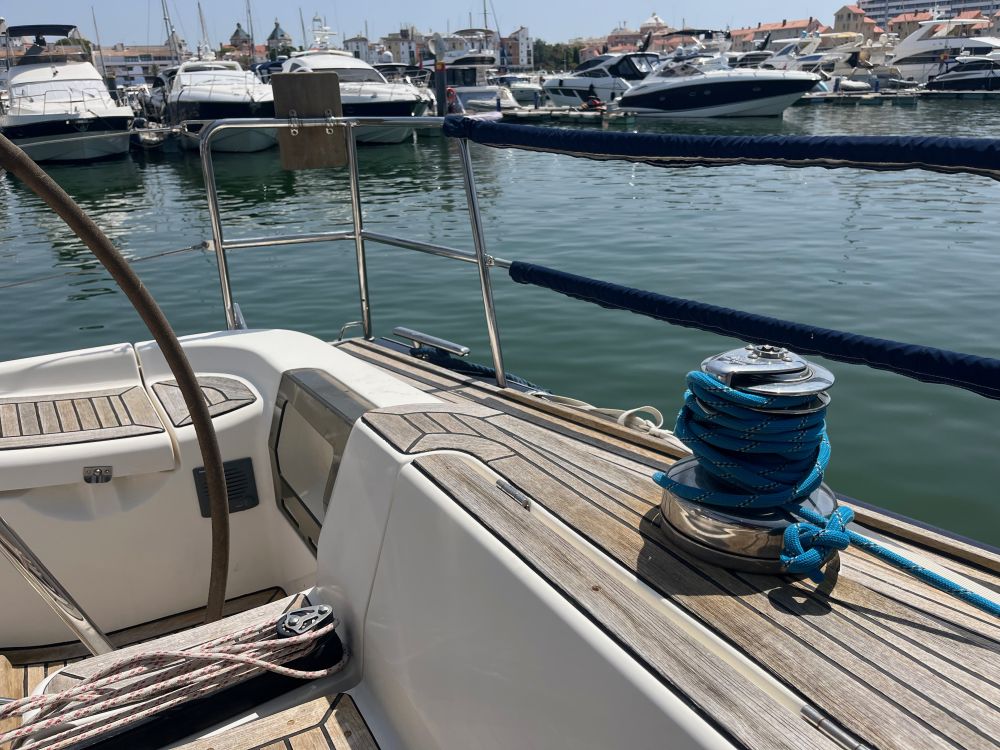

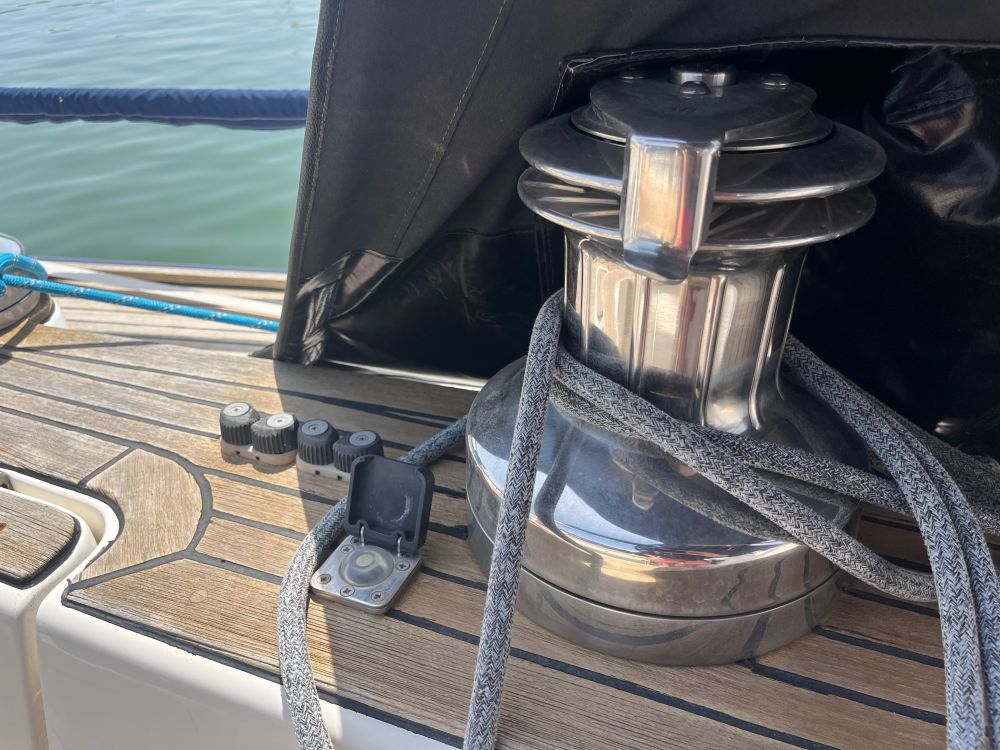

Primaries/genoa: 2 x Andersen 568STE-FS 12V 2 speed electrical primaries instead of standard.
Halyards: 2 x Andersen 46 ST-FS
Mainsheet German style: 2 x Andersen 46 ST-FS

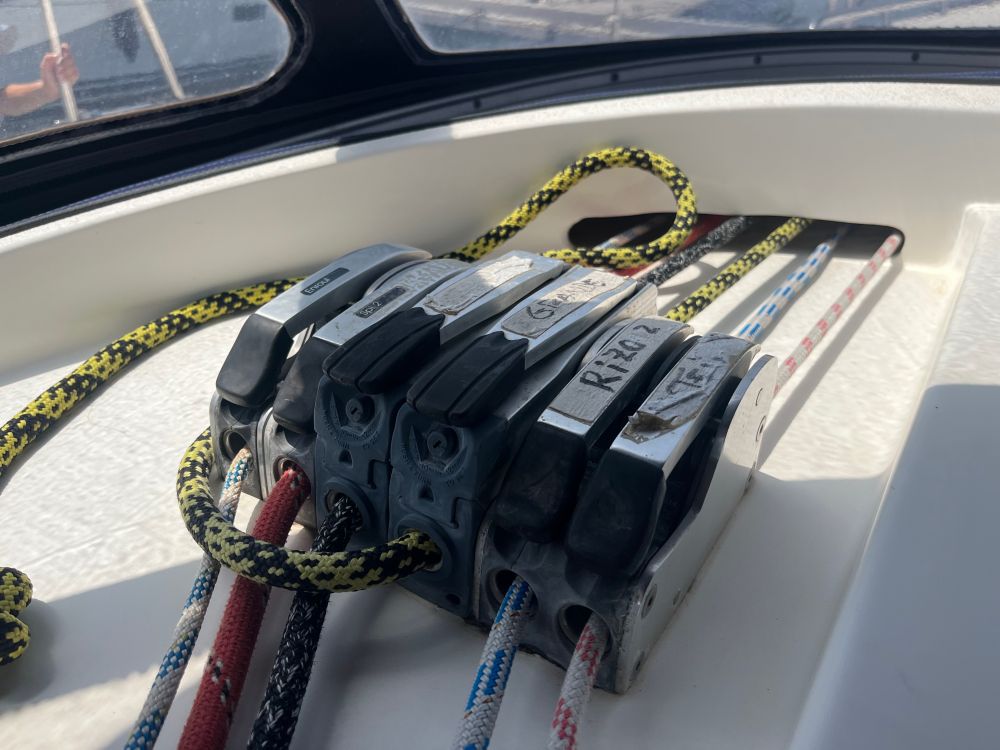

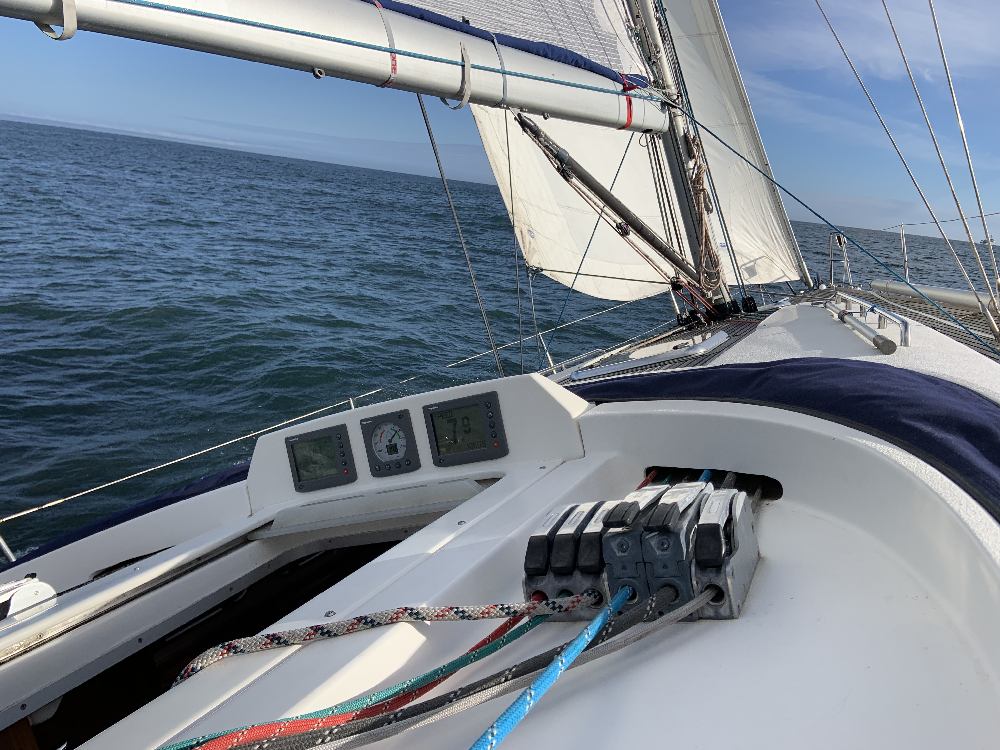

Spinlock clutches for halyards reef and control lines Pro furl Roller furling on Head stay.
Gates in life lines Spinnaker equipment Continuous rail protection.
Mooring cleats amidships for springs.
SAFETY EQUIPMENT
CE Registration
yes
Fire-extinguishers
yes
CONSTRUCTION
Keel
Divinycell and Solid laminate
Construction notes
Hull and deck are built in a sandwich construction made up of isolatic polyester resin and biaxial E-glass fabric.
Further reinforcements are with particular positioned biaxial E-glass fabric in high stress areas. Core material is 25-30 mm compressed Divinycell®
Solid laminate is used around keel, rudder and through-hull fittings for maximum strength.
Hull painted in 2021.
Antifoulling every year.
