#1087

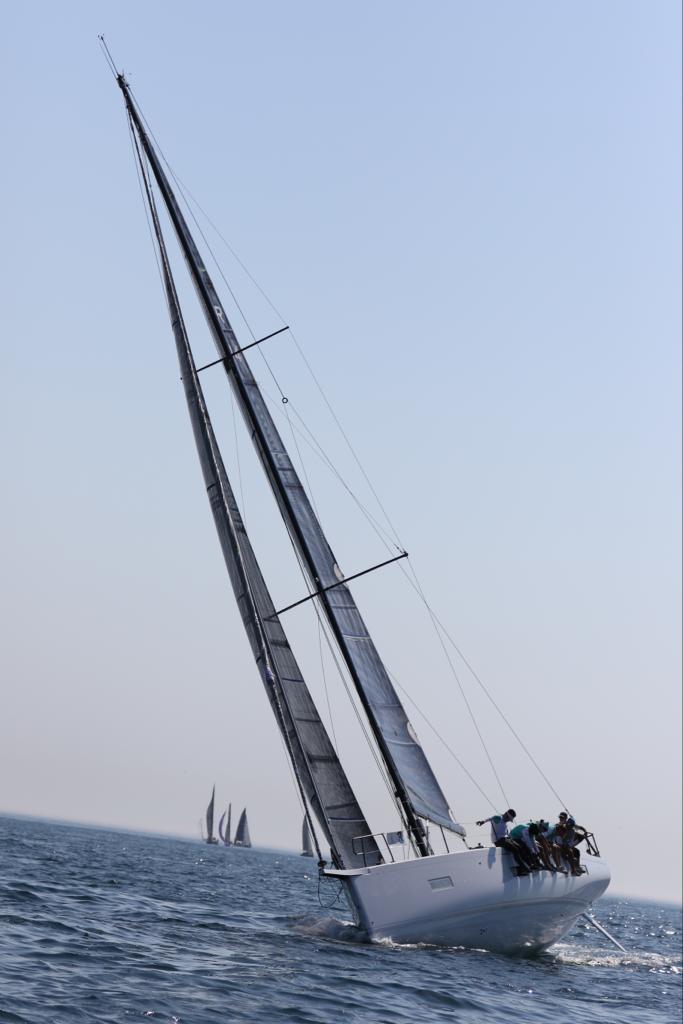

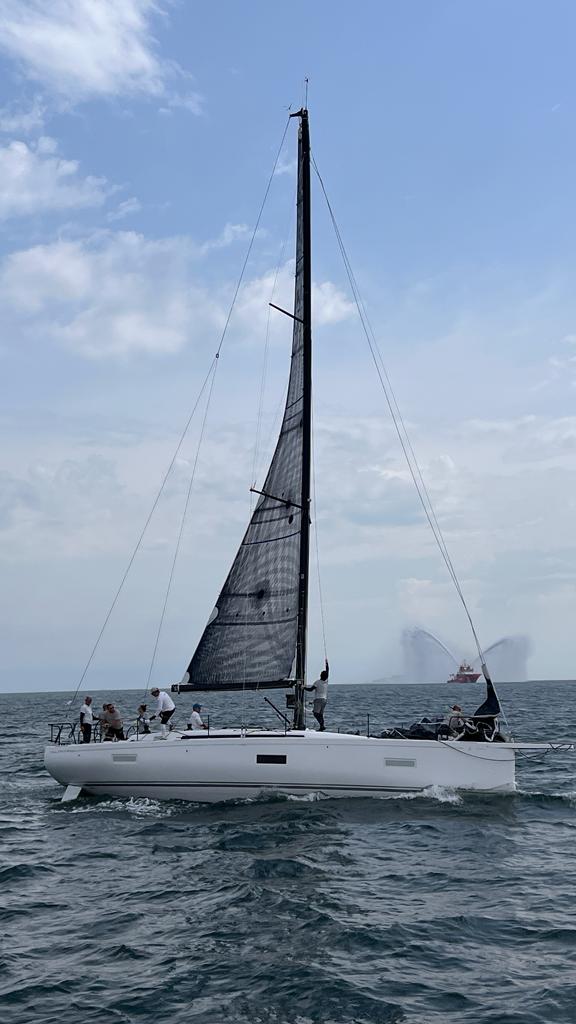

Beneteau First 44 Pinokyo

FOR SALE

GENERAL
Name
Beneteau First 44 Pinokyo
Model
First 44 Pinokyo
Year
2023
Hull material
GRP
Sail number
TUR4404
Color hull
WHITE
Located
Turkey
Price
495000 €
VAT
NOT PAID
Flag
Turkey
Type
CRUISER-RACER
Slogan
With the First 44, BENETEAU achieves the noblest expression of cruising-racing
Description
This splendid sailboat Beneteau First 44 Pinokyo Performance version, with an exceptional design, is today the natural link between the First 36 and 53. It cultivates efficiency, elegance and comfort at the same time, thanks in particular to the quality of the equipment that offers unparalleled sailing pleasure. With the First 44, BENETEAU achieves the noblest expression of cruising-racing: a sailboat whose seaworthy qualities ensure happiness under sail, without ever sacrificing comfort and elegance. The generous sail plan allows the First 44 to be dynamic and efficient in all conditions. INTERIOR EQUIPMENT AMBIANCE • Interior upholstery according to colour chart: Fabrics, Leather, Nubuck, Ultraleather DOMESTIC APPLIANCES • 3 burners ENO Grand Large Gas cooker + Tempered glass cover on the hotplate INTERIOR • Alpi teak woodwork and white lacquered wood on bulkheads • Alpikord teak flooring • Lounge Falcon 162 fabric interior upholstery • Mattresses in the cabins (HR foam 35 kg/m³, thickness 120 mm/5’’) • Beige padded ceilings
DESIGN
    Builder
    BISCONTINI YACHT DESIGN
    Designer
    LORENZO ARGENTO
DIMENSIONS
    LOA
    14.65m
    LWL
    12,82m
    Beam
    4,25m
    Draft
    2,60m
    Ballast
    3.300kg
    Displacement
    10 660kg
ENGINES
    Engines
    YANNMAR
    Propeller
    3 Blade Folding propeller
    Engines notes
    Inboard engine. • Engine Yanmar Diesel: - 57 HP, Sail Drive, Common Rail (standard) • Engine control at the starboard helm station - Control panel • Engine compartment: - Soundproofing foam - Ventilation: 2 air intakes and 1 forced air outlets • 1 Alternator (12V / 125Ah) • 1 Rotomoulded diesel tank 200 L / 53 US Gal (under port aft berth) - Electronic gauge - Low level alarm - 1 Deck filler • Filters: Seawater - Diesel - Water separator • Foldable three-blade propeller • 1 Engine access through companionway (opening with 2 gas struts) • 2 Engine access through aft cabins
TANKS
    Fuel
    200l
    Water
    330l
    Tanks notes
    PLUMBING • 1 Rotomoulded freshwater tank 330 L / 87 US Gal, under berth in forward cabin - 1 Deck filler • Pressurised electric water pump - Expansion tank - Inline filter • 40 L / 11 US Gal Electric water heater (engine use) • 1 Rigid black water holding tank for each WC • Electrical shower drain pumps • 1 Electric bilge pump • 1 Manual bilge pump • Additional water tanks (200L / 53 US Gal), under aft starboard cabin berth • Seawater electric pump, in galley • TECMA electric fresh water/sea water WC in the owner's head • Quiet Flush fresh water/seawater electric WC in the aft starboard head
ACCOMMODATIONS
    Cabins number
    3
    Shower
    Yes
    Heating
    yes
    Accommodations notes
    3 Cabins 2 heads ON BOARD COMFORT EQUIPMENT • Berth in saloon (Electric saloon table pedestal + cushion matching the saloon upholstery for Lounge area use) • 12V / 230V inverter - 2 000 VA • 1 200Ah Lithium batteries to replace the AGM batteries - Weight saving: Approximately 110 kg / 242 lbs The lithium batteries can be used in exactly the same way as the greater number of AGM batteries that they replace. This technology allows 100% of the battery capacity to be used compared with 75% for the AGM batteries. The engine battery is still AGM. • Spring mattress in the owner's cabin (thickness: 180mm / 7’’) • Air conditioning 16 000 BTU in saloon and forward cabin (+ Shore socket extension cord 15m / 49’3’’) - 32A • 24 000 BTU air conditioning full boat (only for use via shore power supply) + Shore socket extension cord 15m / 49’3’’ • Tableware - 6 people COMPANIONWAY Headroom: 1,98m / 6’6’’ • Saloon companionway with 5 suspended Alpikord teak non-slip steps, LED lighting below each step • 1 Leather-covered stainless steel handrail (DK02 - chocolat color) OWNER'S CABIN Headroom: 1,93m / 6’4’’ • Central double bed (2,04m x 1,12m - 1,60m / 6’9’’ x 3’8’’ - 5’3’’) • Padding along the hull and at headboard: Beige PVC • 1 Bed access sideboard • 1 Chair on each side of bed • 1 Hanger closet, with incorporated LED lighting • 2 Flexible and adjustable bedside lamps • 1 T60 flush deck hatch with blind/mosquito net • 1 Flush opening deck hatch (330mm x 140mm) • 2 Portholes with rigid sliding blind • 1 230V power socket to starboard • 1 dual USB port outlet on each side of the bed • LED indirect lighting + 2 overhead lights
GALLEY
    Hot water
    yes
    Coolbox
    yes
    Refrigerator
    yes
    Water system
    yes
    Galley notes

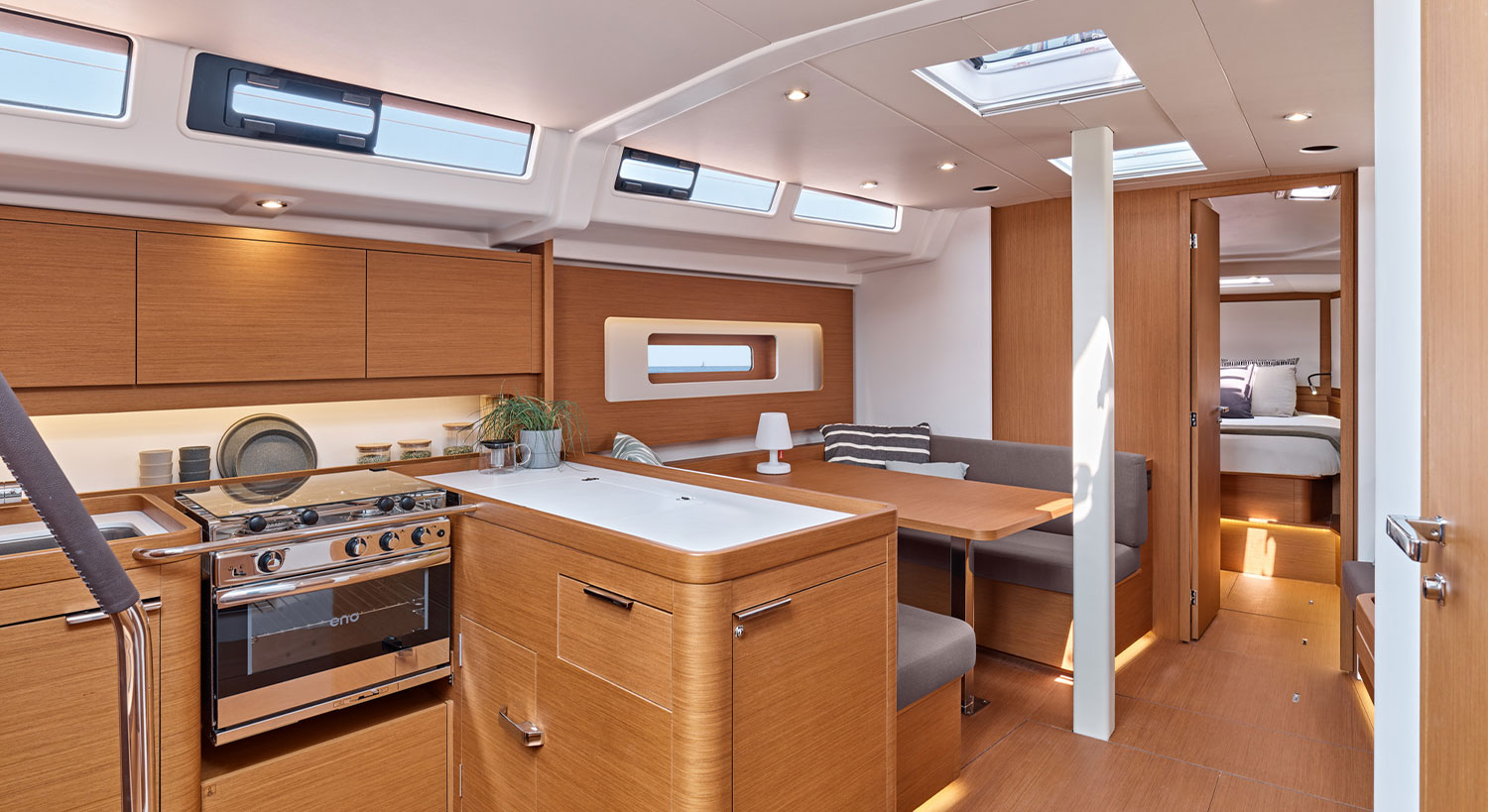

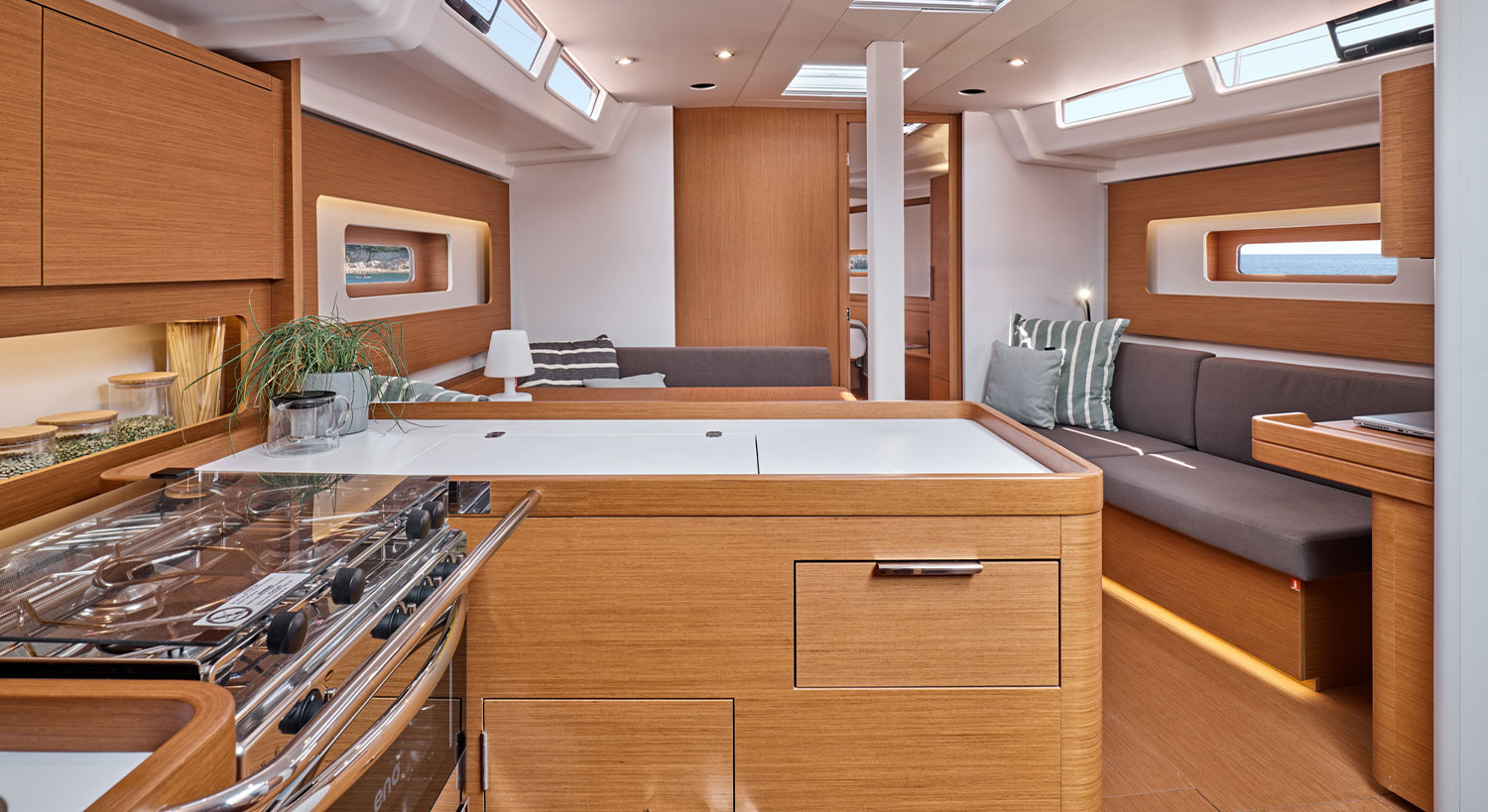

    GAS • 1 Box for 2 gas bottles in the anchor locker (Diameter: 0,39 x 0,39m/ 1’3’’ x 1’3’’ - Height: 0,51m / 1’8’’) • Regulator and safety tap • Gas leak detector Headroom: 1,92m / 6’4’’ • L-shaped galley • Corian Glacier White work top with moulded Apli teak beading • 1 1 rectangular stainless steel sink - 1 Mixer tap with hot/cold water under pressure • 1 Gas cooker 2 burners - Stainless steel/grill fitted on swivel joints(19L) - Stainless steel protection handrail -Stowage below the oven with drop-down door • 1 Storage unit with 1 door and 1 internal drawer for cutlery • 190L / 50 US Gal icebox, with top and front opening • Fitted lockers and closed shelving • 1 Bin (20L) • 1 Opened compartment along the side of the hull • 1 Opening portlight with curtains in the coachroof side window
ELECTRICAL
    Battery charger
    yes
    Electrical notes
    • 12 V electrical panel (Breaker, Voltmeter, Water gauge, Fuel gauge, Battery warning, Fuel warning, Water warning) + Single USB port + Navicolor 2.4’’ screen • 12V circuit • 2 AGM service batteries - 100Ah (For First 44 version) • 1 AGM engine battery - 50Ah • Battery cut-off switch in the aft starboard cabin (under bed) • 1 Battery charger (40Ah) • 1 Power distributor • 5 230V Sockets: - 1 in the forward cabin - 1 in the aft cabins - 1 in the saloon (Starboard) - 1 at chart table - 1 in galley • 6 USB sockets: - 2 in the forward cabin - 1 in the aft cabins - 1 on the electrical panel - 1 at chart table • 1 Shore power socket 230 V, in the port cockpit locker • LED lighting: - Overhead lights - Reading lights - Indirect lighting • LED navigation lights: - 1 Masthead light - 1 Steaming light - 1 Anchor light on masthead
SPARS & RIGGING
    Sails

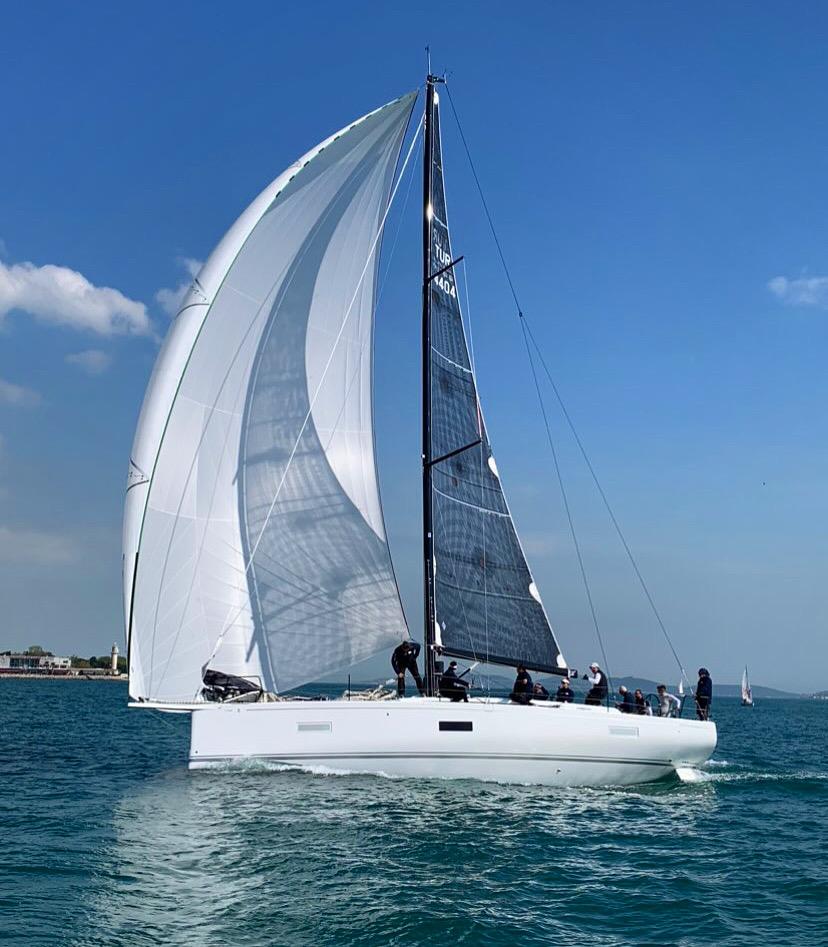

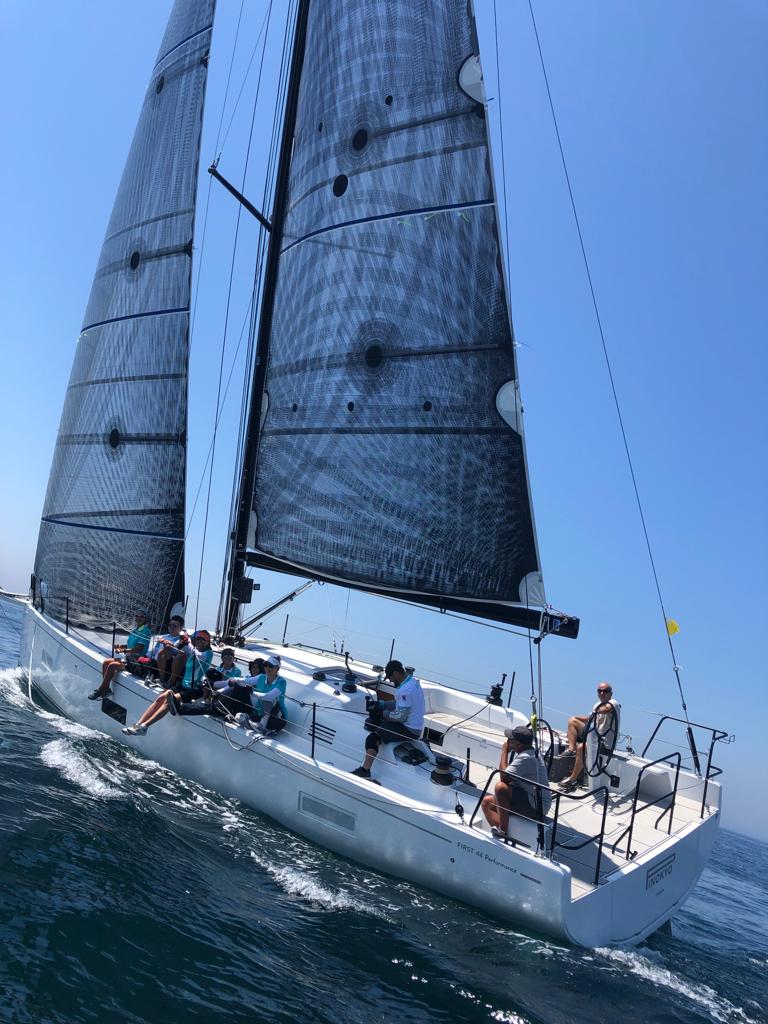

    SAILS 1 main 3 jib Code 0 A1 A2 code 5
    Rigging
    Rod
    Mast
    Carbon
    Spinnaker pole
    3
    Running rigging
    dynema
    Spars and rigging notes
    RIGGING . 1 Aft Rigging (sets) - C-strand Rigging, - Harken Element blocks at foot of mast, - Facnor Facsilde FR25 mainsail track (without traveller) • Carbon classical mast tapered, deck-stepped (+ 1,60m / 5’3’’, Weight saving: 75kg / 165 lbs) 2 Aft swept spreaders, Sparcraft, Black lacquered boom with LED lighting - warm white - ROD Standing rigging - Harken Black Magic blocks at mast foot - Harken System A mainsail track (without traveller) - Mainsail sheets track in the bottom of the cockpit - Harken 1,80 m/5’11’’ + track Note: The carbon mast requires a mastjack (both for installation on delivery and for tensioning the shrouds during regattas), equipment not supplied by the yard. • Black lacquered aluminum rigid kicking strap with Dyneema tackle and friction rings • Genoa tracks on the roof with traveller and hauling line controlled from the cockpit • Manual Genoa furler on the deck (Facnor Flatdeck) • Dyneema Complete running rigging: - Mainsheet halyard sheave block, - Genoa halyard, - Boom uphaul (polyester) with cleat on mast, - Mainsheet, - 2 Genoa sheets, - 2 Automatic reefing system • Harken pulleys • 2 Spinnaker sheet chain plates/code 0 • Running rigging hidden
DECK EQUIPMENT
    Deck hardware
    Harken
    Winches
    Harken
    Deck equipment notes
    First 44 Performance • Upgrade: 2 Harken Performa (H60.2 STPEH) electric manoeuvre winches Winches - HARKEN Performa • 2 H50.2 STP Harken Performa manual manoeuvre winches on the roof + 3 clutches on port and starboard roof • 2 H60.2 STP Harken Performa manual genoa winches behind cockpit benches • 2 H60.2 STP Harken Performa manual Spinnaker winches (For manoeuvring: main sail sheet, adjustment of Genoa sail carriagestaysail sheet - downhaul - foot of main sail + reef 1&2 - and for spinnaker sheets - spinnaker tack - barber hauler) • 4 Aluminum Speed Grip winch handles • Winch handle storage in dedicated space in rope bags Other specificities of the PERFORMANCE version • 1 Lithium battery replacing the AGM batteries (Weight saving: Approximately 110 kg / 242 lbs) • 3 Lee cloth (Saloon & Aft cabins)
SAFETY EQUIPMENT
    CE Registration
    yes
    Fire-extinguishers
    yes
    Liferaft
    yes
CONSTRUCTION
    Keel
    IRON
    Construction notes
    Low vcg iron+lead keel. No wing keel. • Design in accordance with European Directive requirements and according to CE certification • ISO 12215 certified structure • Balsa sandwich infusion hull • Vacuum infused structural inner liner (Fabrics - resin) bonded to the hull • Fiberglass sandwich, PET foam, balsa wood infusion deck, with diamond pattern non-slip coating • Cast iron keel attached with bolts and bonded stainless steel backplate. • Polyester bowsprit, 1m / 3’3’’ • Twin rudders hung with stainless steel stock • White coloured hull - Aluminum grey hull decoration • 6 Hull portholes 1 PRIVATE HEAD to port Headroom: 1,92m / 6’4’’ • 1 Shower with foldable perspex door • 1 Manual toilet • 1 64 L / 17 US Gal rigid holding tank • Work top in Corian Glacier White • 1 Integrated polyester basin - Mixer tap • 1 Cabinet - Mirror • Toilet accessories • 1 Deck hatch with opaque film • LED indirect lighting + Spot lighting PORT AND STARBOARD AFT CABINS Headroom: 1,94m / 6’4’’ • 1 Double bed (2,04m x 1,38m / 6’8’’ x 4’6’’) • 1 Hanging locker, 1 Cupboard with shelves, with incorporated LED lighting • 1 Top-opening storage in front of the wardrobe • 1 Opened compartment along the side of the hull • 2 Flexible and adjustable reading lights • 1 dual USB port • 1 230 V socket • 1 Porthole with rigid sliding blind • 1 Opening window with below cockpit seat with pleated blind • 1 Opening window on coaming with pleated blind
EXTRA
    Speakers
    yes
    Swimming ladder
    yes
    Extra notes

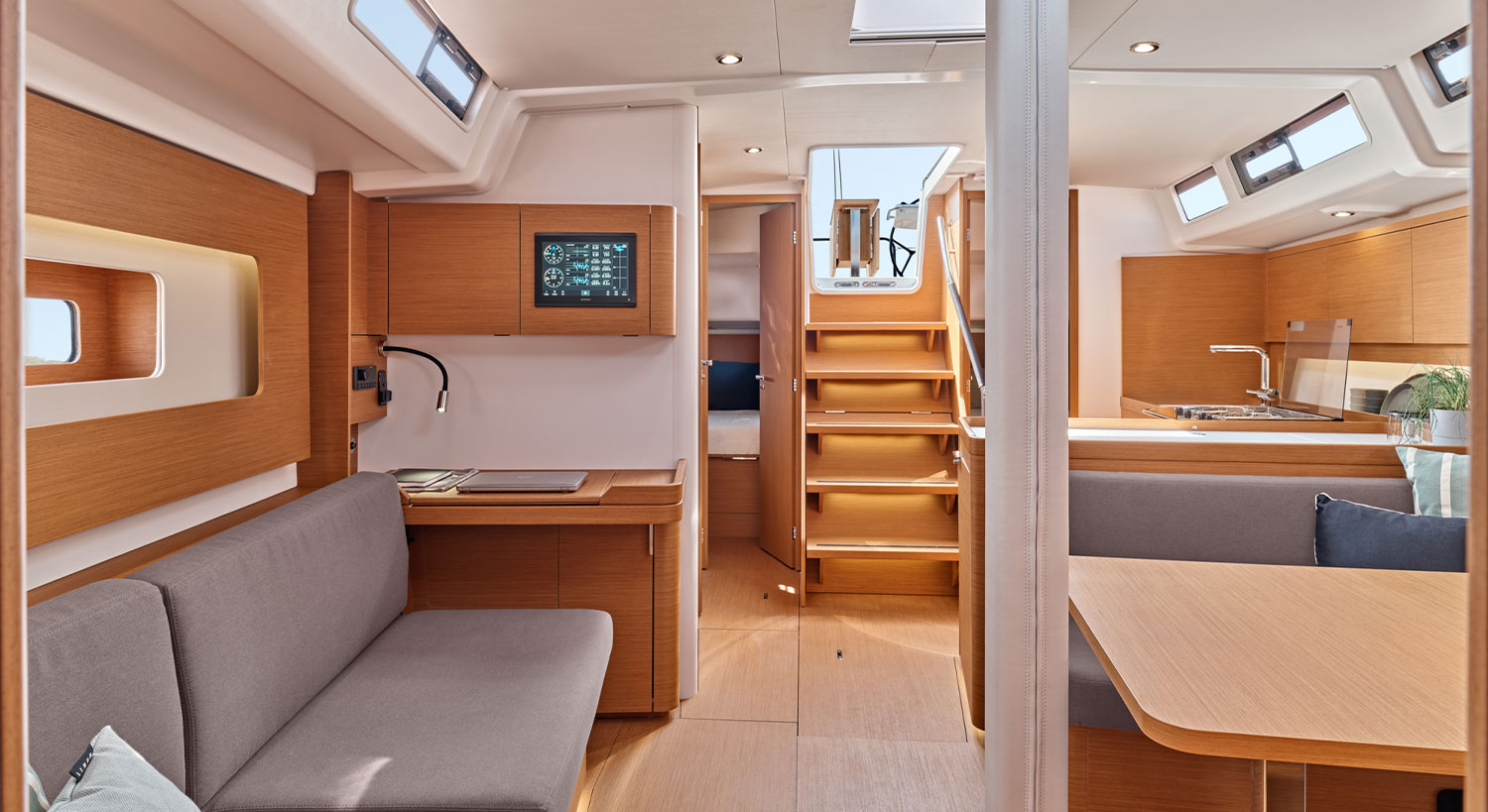

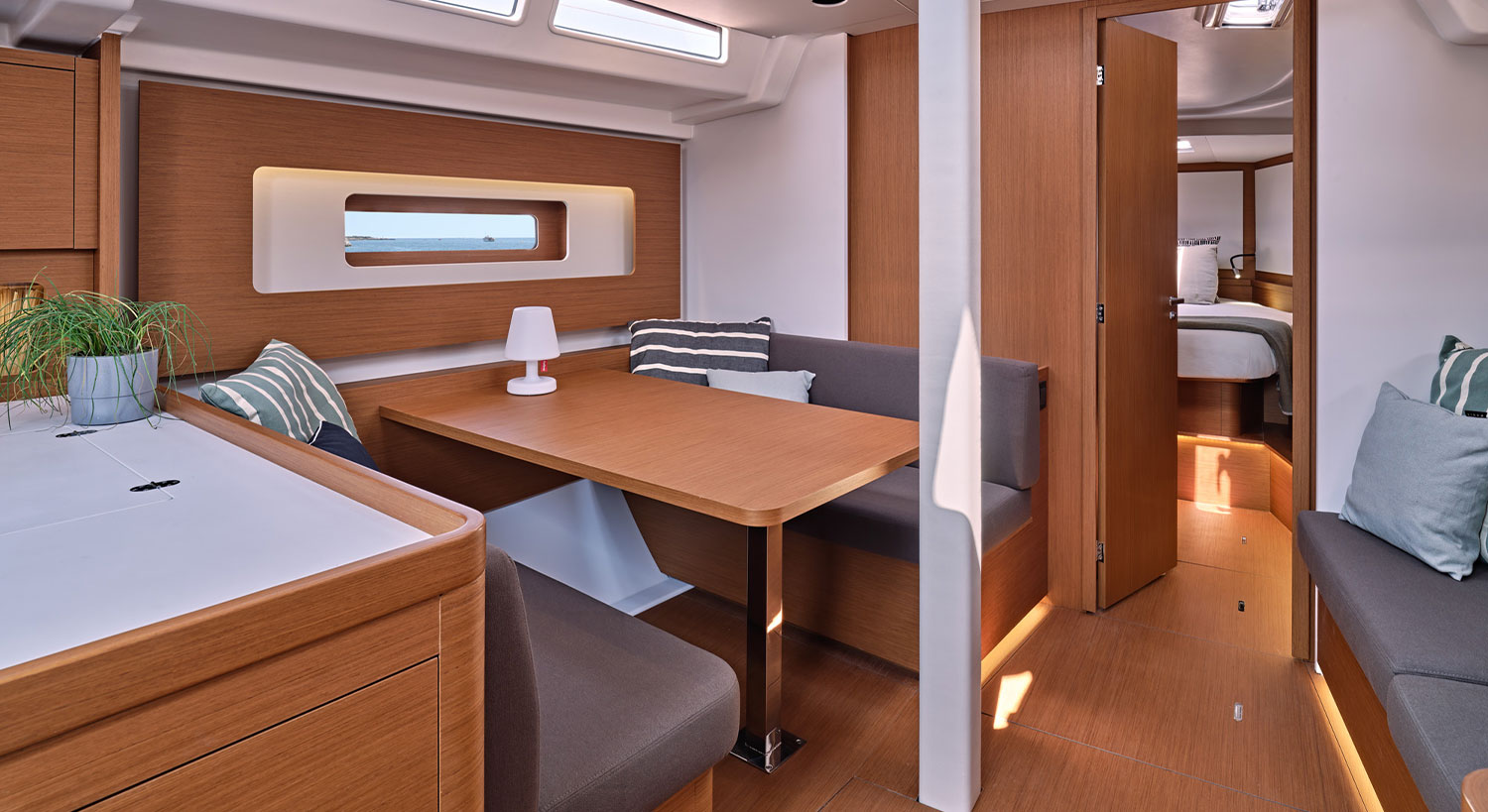

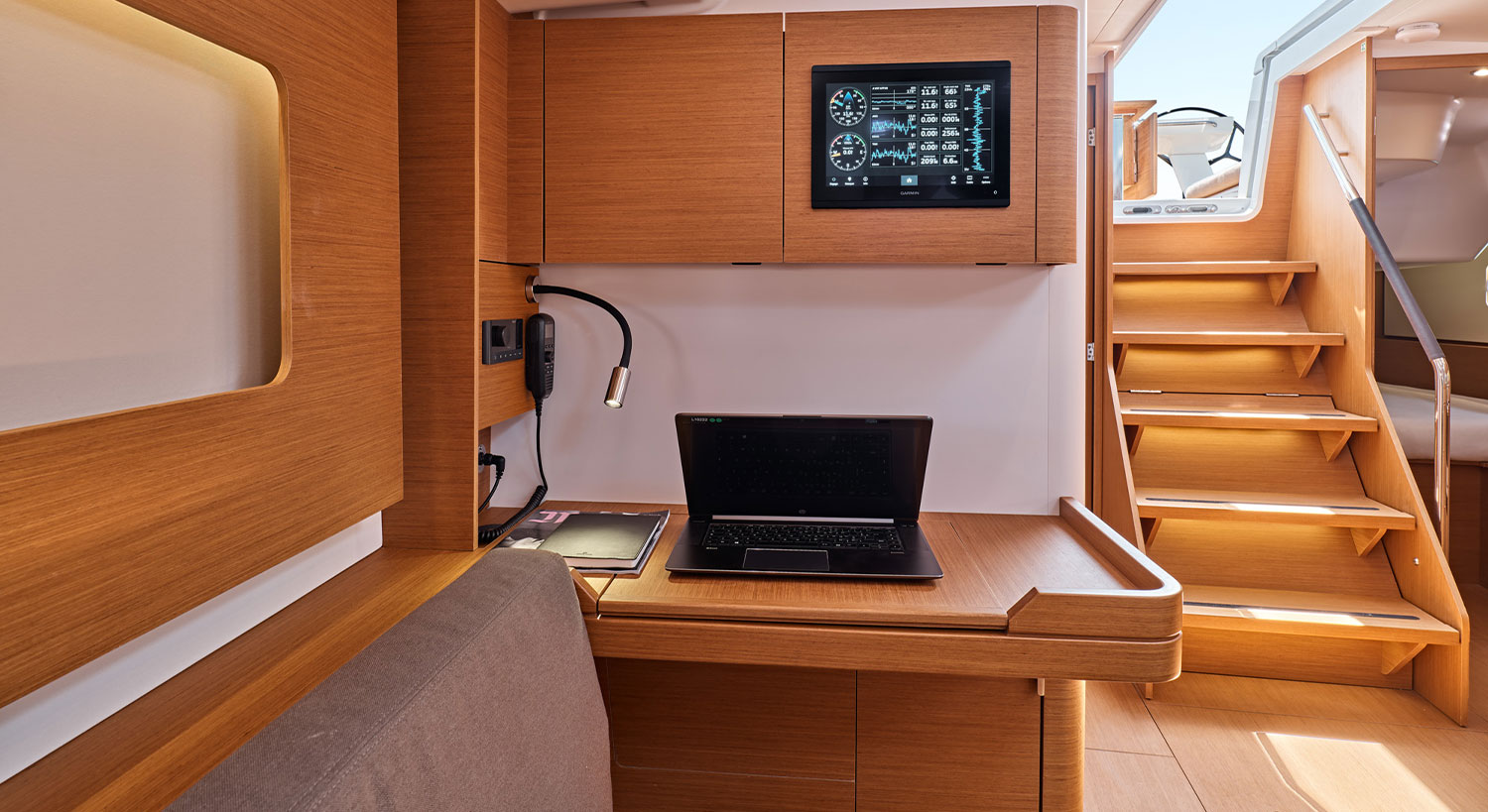

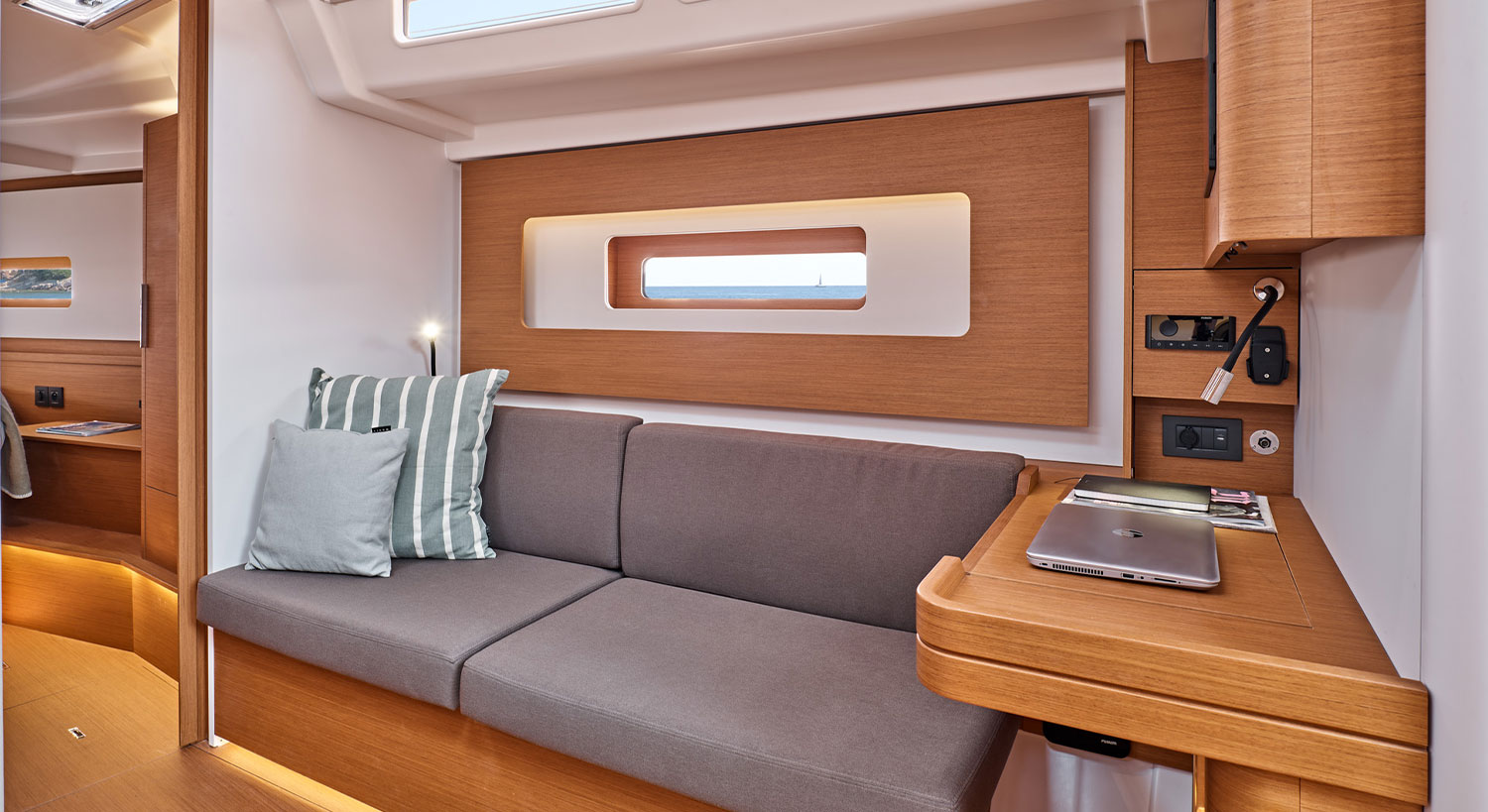

    • Smoke detector • Cleaning kit: eco-friendly cleaning products kit CHART TABLE to starboard from the companionway • Long chart table with fiddles, storage under the lifting top • High cabinet with storage (or, in option, navigation screen) • 1 Adjustable reading light • 1 dual USB port • 1 230 V socket SALOON Headroom: 1,95m / 6’5’’ Port saloon • Alpi teak saloon table with fixed top (can seat up to 6 diners) • Face to face benches with large storages under seat • Face to face saloon convertible into double berth as option Starboard saloon • Comfortable sofa facing the saloon: - seats with HR26 and HR30 foam - softness thanks to the finish with hollow fibres + padding - Storage under seating • 1 230 V socket • 1 Electrical panel to starboard incorporated into a high cabinet • 2 T44 Opening deck hatches with mosquito screen/blinds • Indirect LED lighting below the soft and the upper part of the portholes • 1 Adjustable reading light • Pillar with beige cover AFT STARBOARD HEAD COMPARTMENT Headroom: 1,93m / 6’4’’ Access through saloon • Shower separated with a perspex door - 1 Mixer tap - White polyester shower base • Work top in Corian Glacier White • 1 Manual toilet • 1 64 L / 17 US Gal rigid holding tank • 1 Washbasin - 1 Mixer tap • 1 Cabinet + Storage space under the basin • 1 Mirror • Toilet accessories • 1 Opening porthole on coaming in side window, opaque film, mosquito screen • LED indirect lighting + 1 overhead light
FINAL NOTES
    Final notes
    HULL - DECK - COCKPIT • Pearl grey gel-coat (Hull & Bowsprit), hull decoration white pearl • Metallic hull paint (Hull, Aft transom, Bowsprit) • Iro-Deck slatted side decks • LED lighting of spreaders, for anodized aluminium mast, black lacquered aluminum mast, carbon mast • Electrically opening bathing platform, Control at steering station + Remote control • Water ballast in the aft cabins (not compatible with full boat air conditioning and heating options) • Roof solar panels (400 W) Compatible with First 44 and First 44 Performance version • Ballast Performance (Cast iron/Lead) • Retractable bow thruster + 2 Dedicated batteries (50 Amps - 12V) - Control on starboard console • White composite steering wheels • Outboard engine bracket • Polyester folding gangway (2,60m / 8’6’’) • Electric inflator/deflator for tender and fenders (portable, batterypowered) • Shore fresh water supply • 1,20 m/3’11’’ carbon flagstaff (in lieu of standard) COCKPIT COMFORT - First 44 • Outside cockpit upholstery with backrests. Filter foam 80 mm/3’’ (Density: 60F + 20S). - Sunbrella Loop Sand - Dolce 51 OUTSIDE PROTECTIONS - First 44 • Sprayhood with LED lighting, Strataglass windows, Charcoal Grey • Bimini Charcoal Grey (sprayhood option required) • Sunshade for the cockpit, Charcoal Grey (compatible with all booms)
