Available for the upcoming sailing season right away
Description

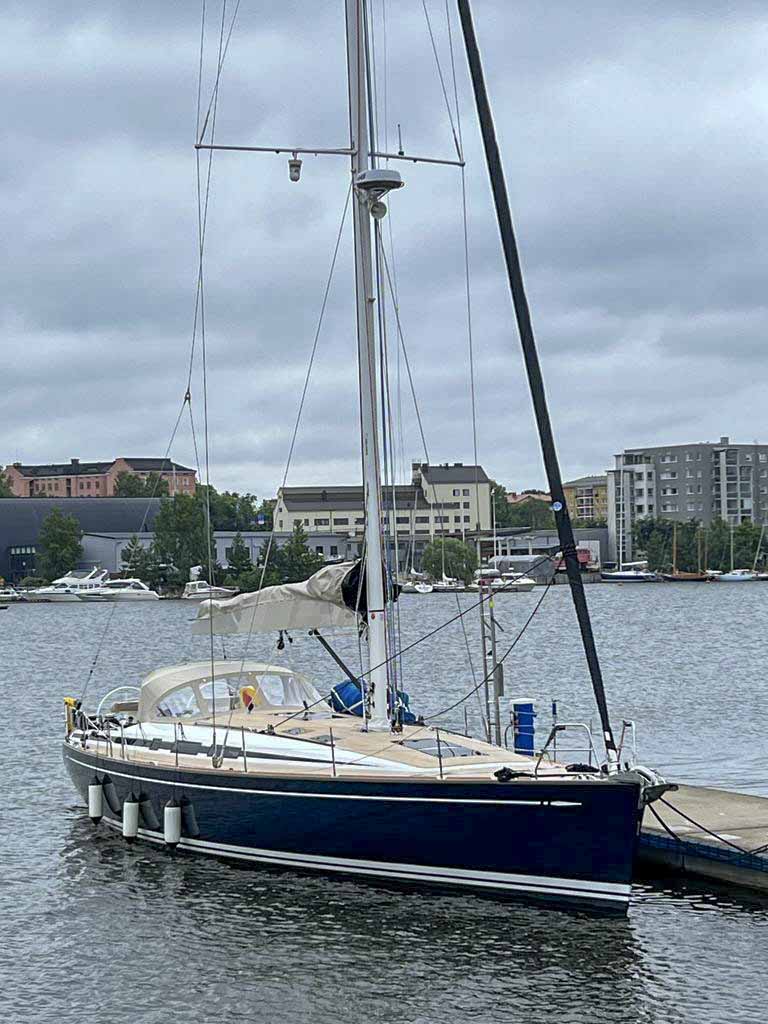

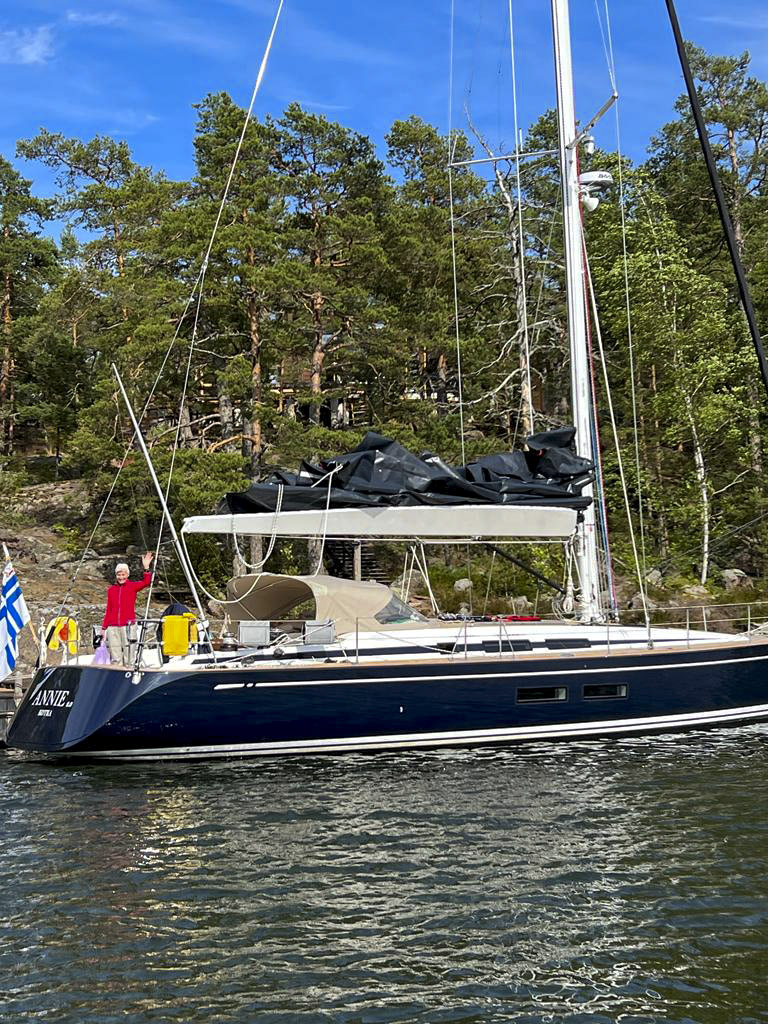

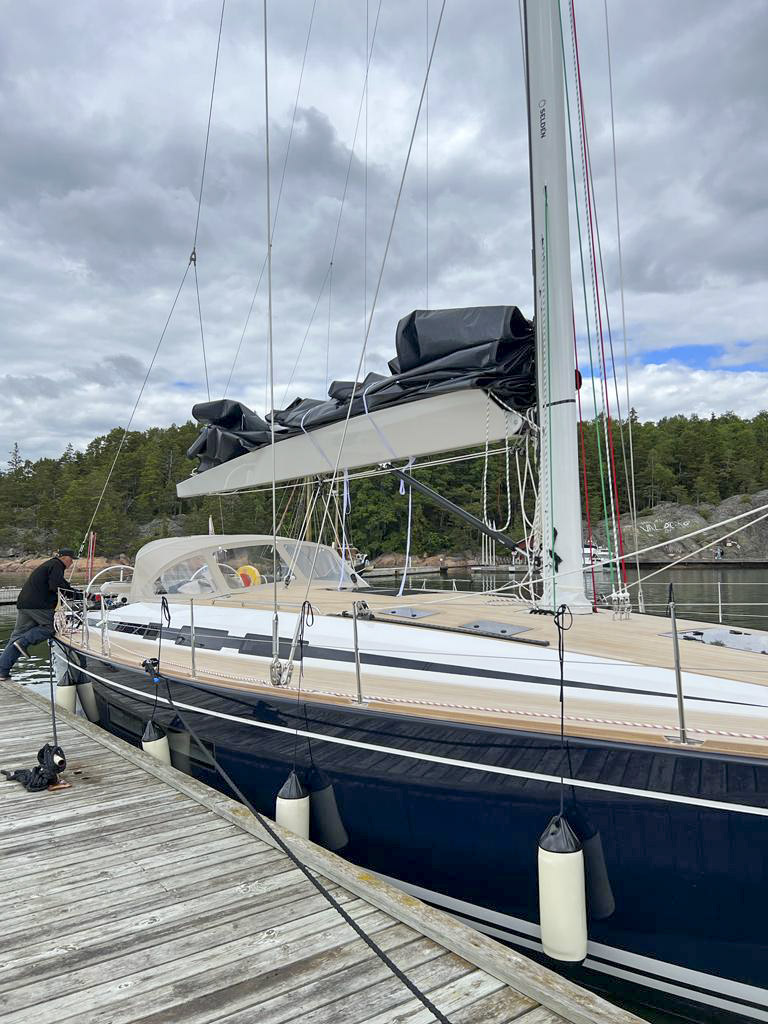

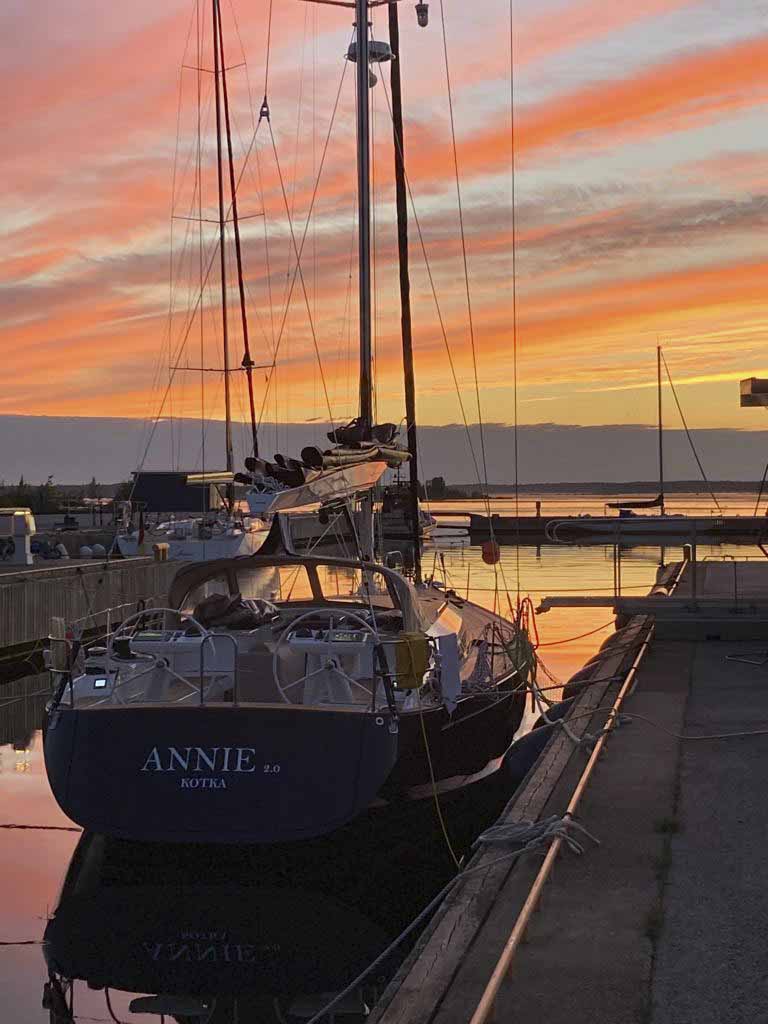

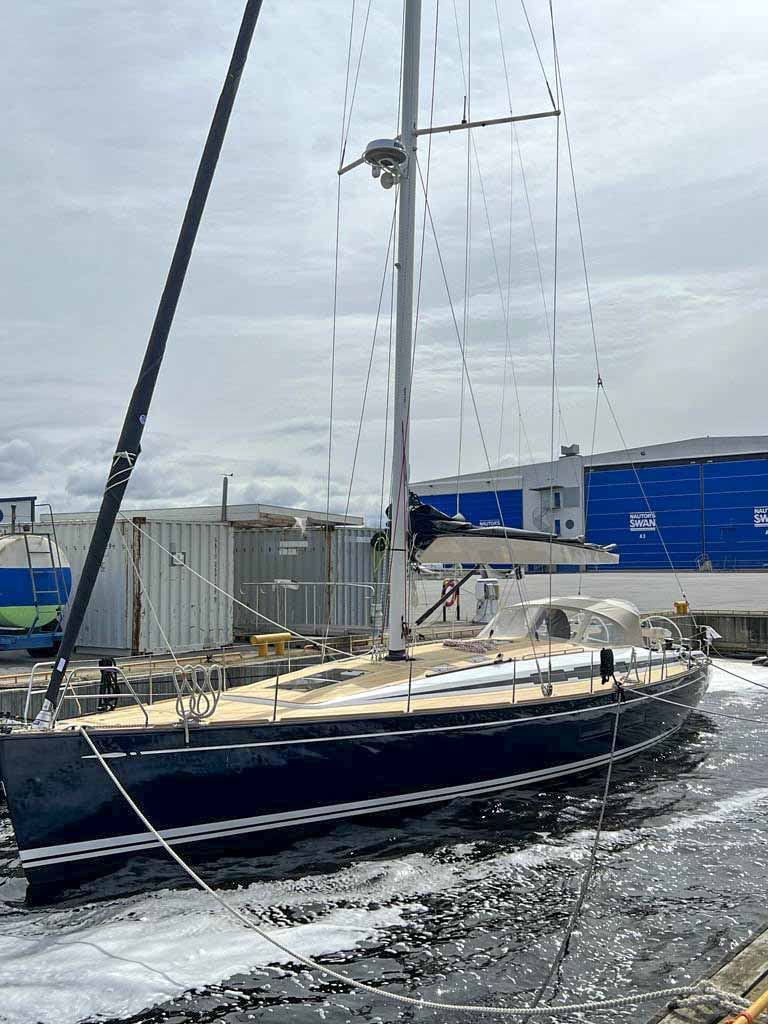

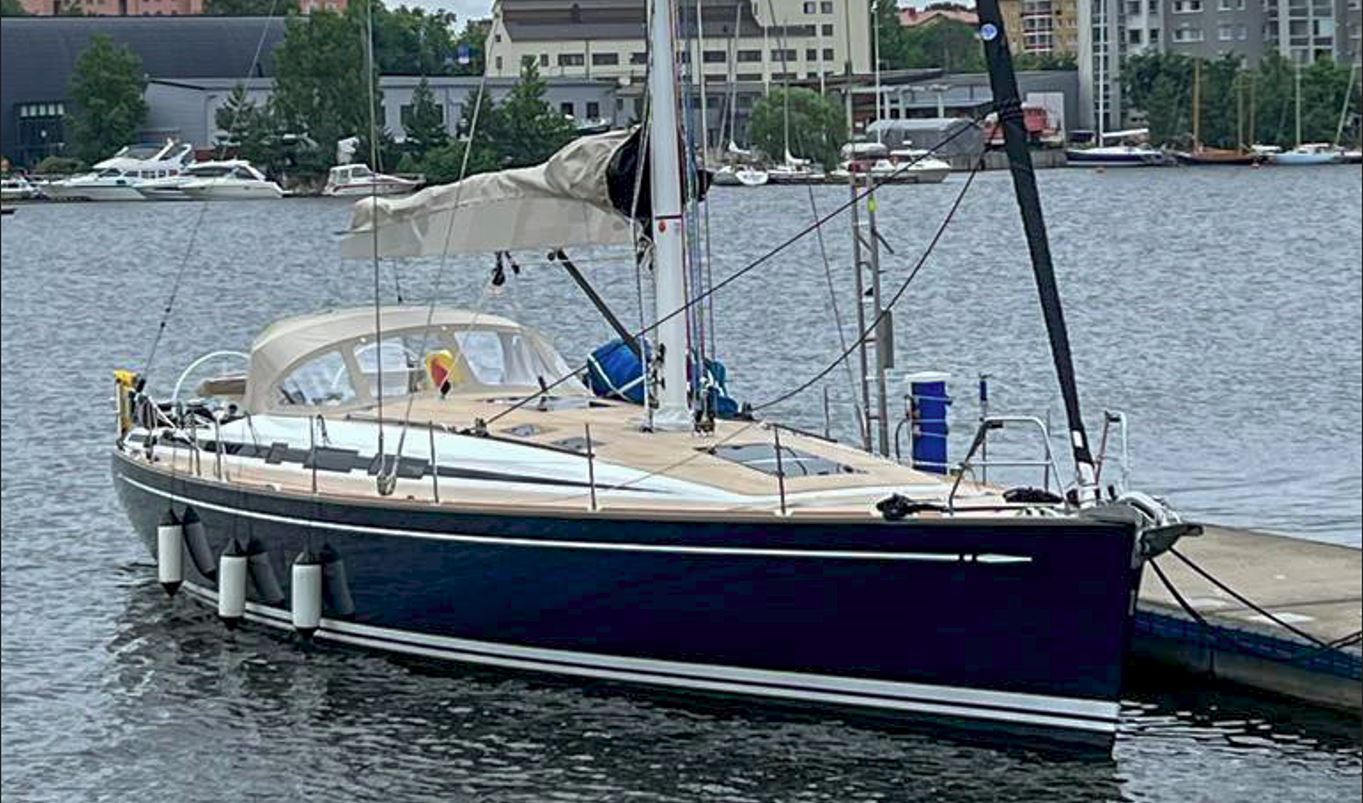

New Swan 54 from 2022 available for the upcoming sailing season right away.
She has been in the water for only couple of months in 2022. The yacht is fully equipped for blue water cruising.
She is a spacious three cabin plus crew cabin version with two heads.
The yacht has a lifting keel, which enables docking in almost every harbor and natural harbor.
She is equipped with a carbon fiber mast and carbon park avenue boom. Full North Sails 3Di Ocean sail inventory.
One owner since new and professionally maintained.
The yacht has a valid manufacturer warranty.
Possibility of VAT deduction.
DESIGN
Builder
Nautor Swan
Designer
Germán Frers
DIMENSIONS
LOA
16.48m
Beam
4.75m
Draft
3.7m
Displacement
22000kg
ENGINES
Engines
Yanmar 4JH110 (110hp)
Propeller
Three blade folding
Engines notes
Yanmar 4JH110
110hp
Year 2022
Shaft driven
Three blade folding propelle
TANKS
Fuel
600l
Water
730l
Holding
120l
Tanks notes
Hot water tank: 50L
ACCOMMODATIONS
Berths number
3 double + 1 single
Cabins number
4
Shower
Yes
Air conditioning
yes
Accommodations notes

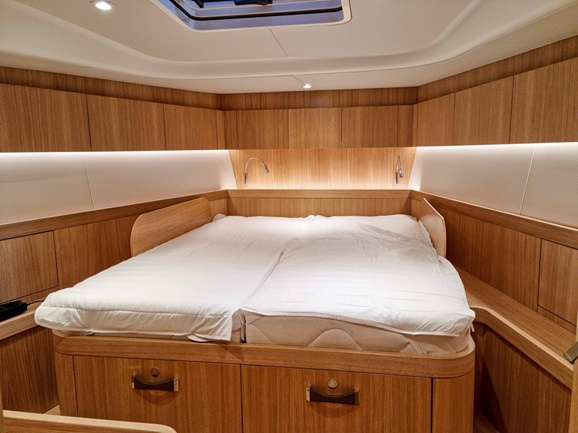

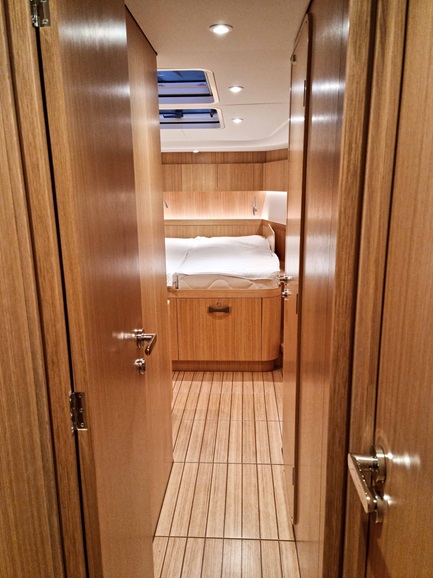

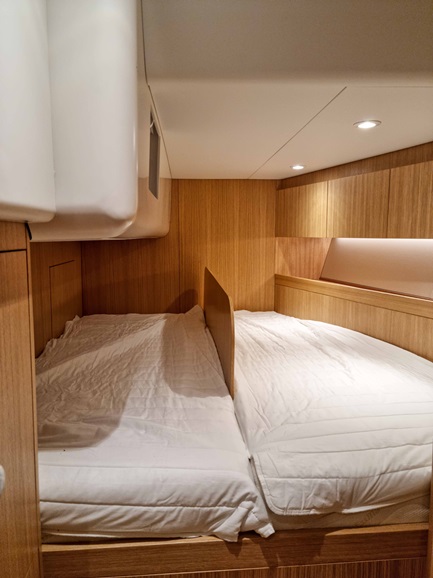

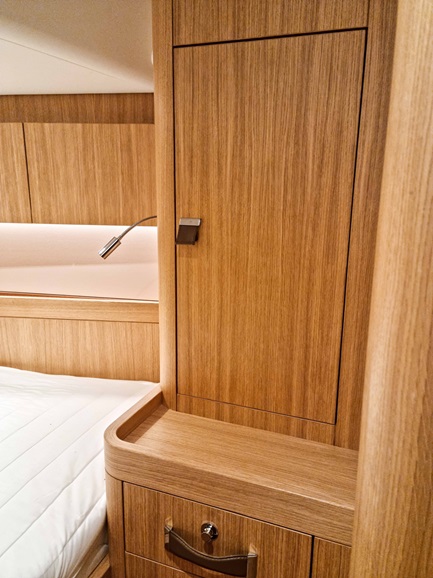

Front owner´s cabin with a double berth.
Mid-boat guest cabin with a double berth.
Aft guest cabin with a double berth.

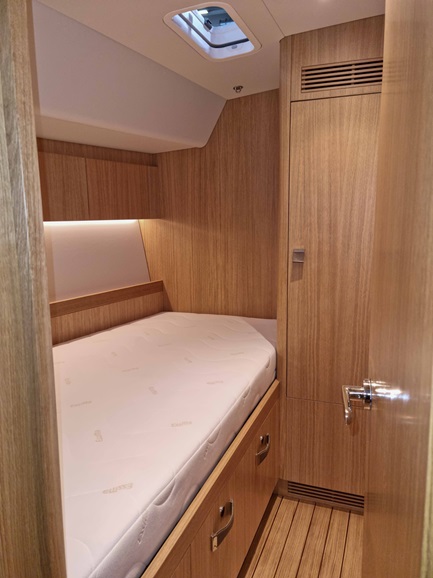

Aft crew cabin with a single berth.
Floorboard covers for saloon and galley.
2 x selfpiping dining chairs for saloon.
Mosquito screens and blinds for all deck hatches.

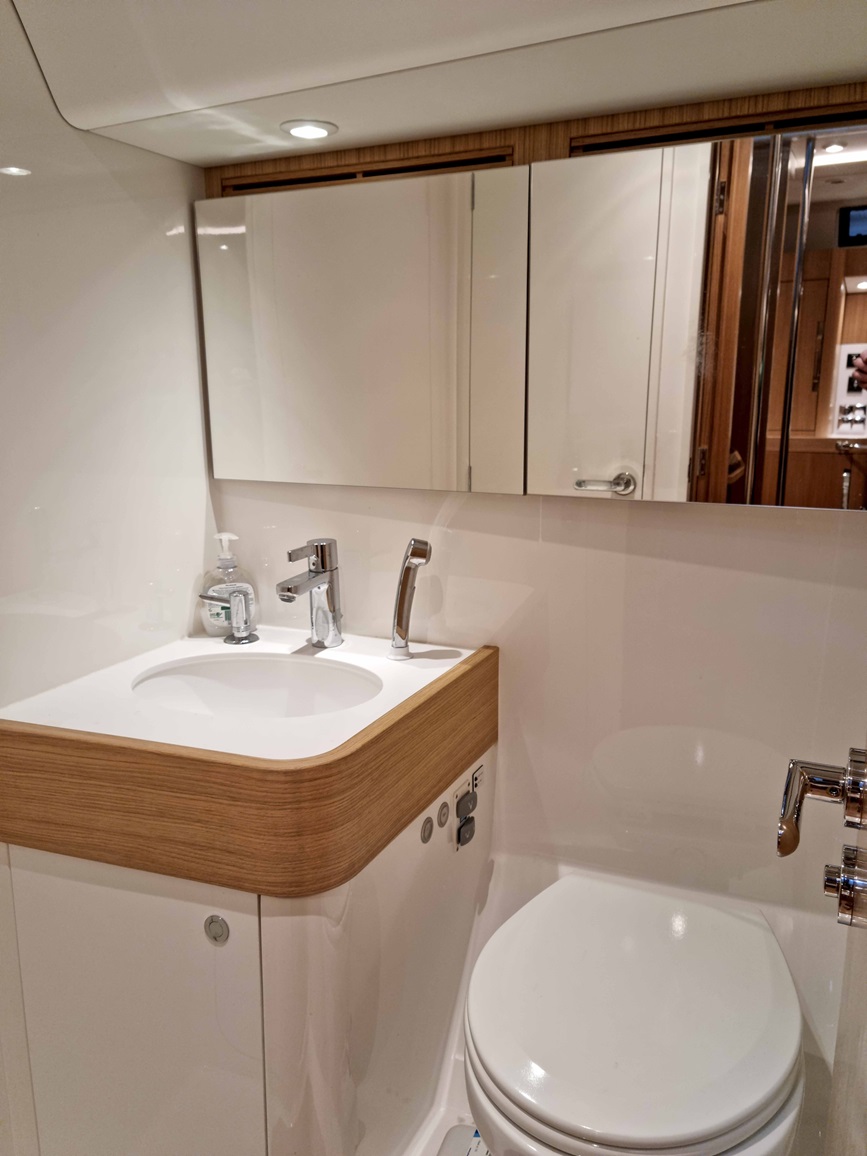

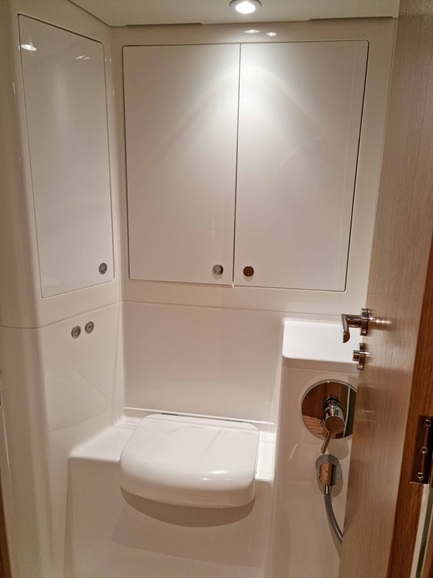

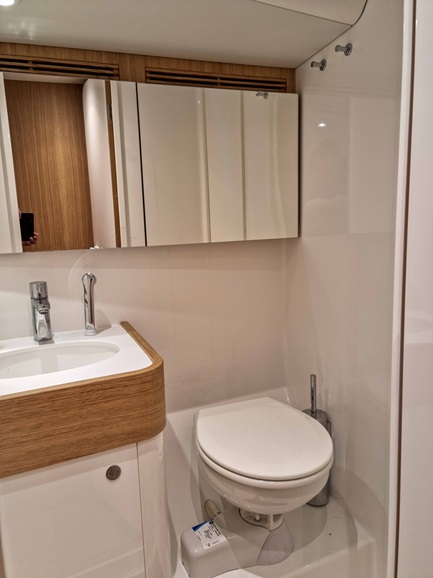

2 x head with electric flush toilets (Jabsco Quiet Flush, fresh water),one is with shower department.
Air condition Climma DC35 RC, 230V, 50/60Hz, 1ph, 5.3kW, capacity 35.000BTU/h cooling.
Eberspächer Hydronic diesel heater working together with air conditioning system.

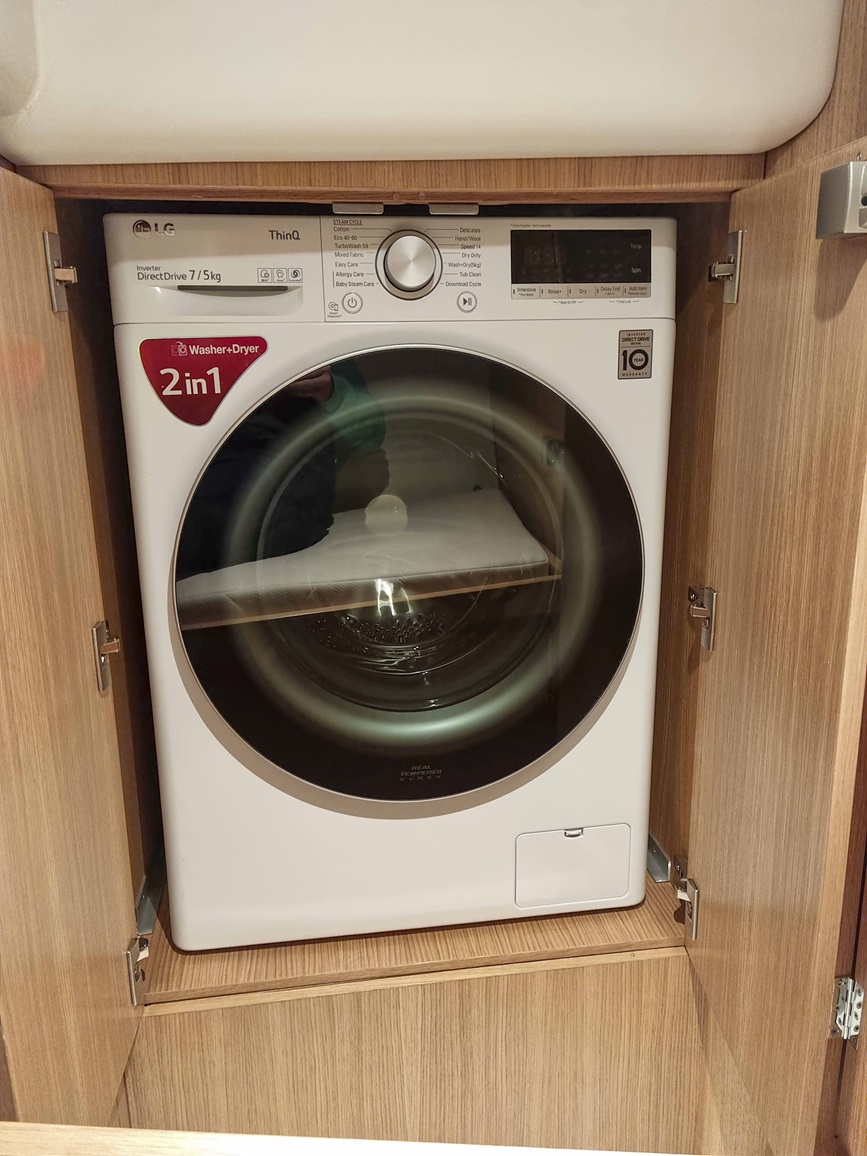

Washer/dryer LG 7kg
Fixed automatic fire extinguisher in engine room.
Dinghy inflation pump, inflate and deflate.
GALLEY
Hot water
yes
Refrigerator
yes
Water system
yes
Galley notes
Modern main salon and galley
LED-lights, partly with dimmers
2 x front loaded refrigerator
One toap loaded freezer/refrigerator
Force 10 3-burner gimballed LPG stove and oven
Bosch SKS62E22EU dishwasher
Ebm Papst galley extractor
Watermaker Schenker ZEN 50, 24V DC, capacity 50L/h, 1200L/day
NAVIGATION INSTRUMENTS
Electronics
B&G Zeus
VHF
B&G V100
Automatic pilot
B&G Triton
Radar
B&G HALO24
Navigation instruments notes
Electronics:
2 x B&G Zeus 3S 12” multifunction displays one on each pedestals
B&G HALO24 radar antenna
Marine Thermal Pan/Tilt Camera Flir M232
B&G Triton autopilot
2 x B&G Triton2 Graphic 4.1.” displays on deck

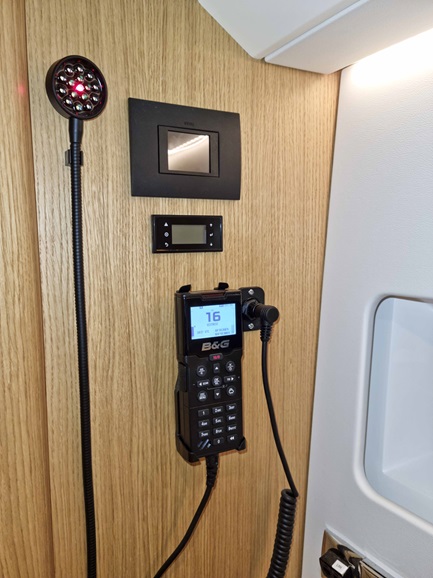

B&G V100 VHF with two wired handsets
B&G V3100 class B AIS including B&G NSPL-500 antenna splitter
B&G Precision 9 compass
B&G combined depth/speed sensor
B&G forward scan sensor + B&G Sonic hub
B&G mast head unit/wind sensor
Yachtspot internet Wi-Fi system
Marco EW2 24V foghorn
Fusion MS-RA770 audio system, speakers inside and outside
Samsung 32” The Frame Full HD QLED Smart TV with DVB-T2 digital tuner, TV-lift
ELECTRICAL
Batteries
2x 12V 10A
Battery charger
Shore power + Mastervolt Mass 24V 80A
Generator
Fischer Panda 10000 PMS 8.0KW/9.4KVA
Electrical notes
Shore power + Mastervolt Mass 24V 80A charger
Fischer Panda 10000 PMS 8.0KW/9.4KVA generator
Inverter 24V/2500VA, output 230V
A voltage stabilizer for instruments with 2 x 12V 10A batteries
Engine battery AGM 50Ah 12V
Enersys 7 PzV 525 service battery bank 24V 525Ah, maintenance-free gel type
Mastervolt 24V 110A altenator
12V DC and USB outlets
Bow thruster Side-Power SRLP170DC, separate 24V battery bank, retractable
Stern thruster Side-Power SRLP 100 DC, separate 24V battery bank, retractable
SPARS & RIGGING
Sails

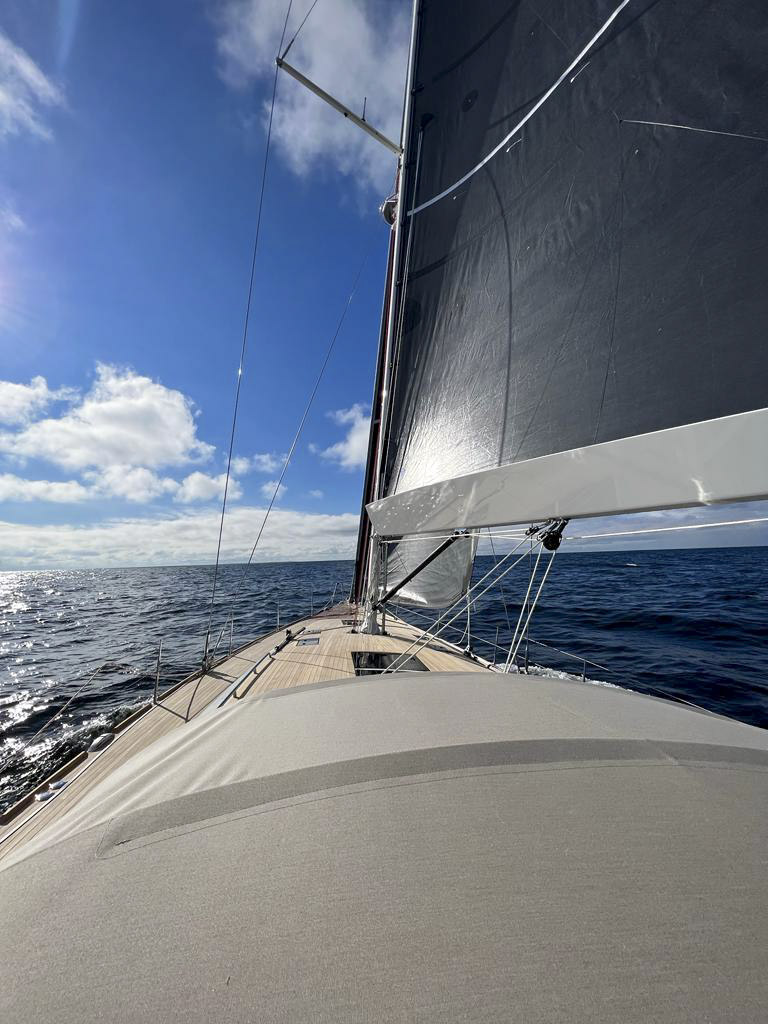

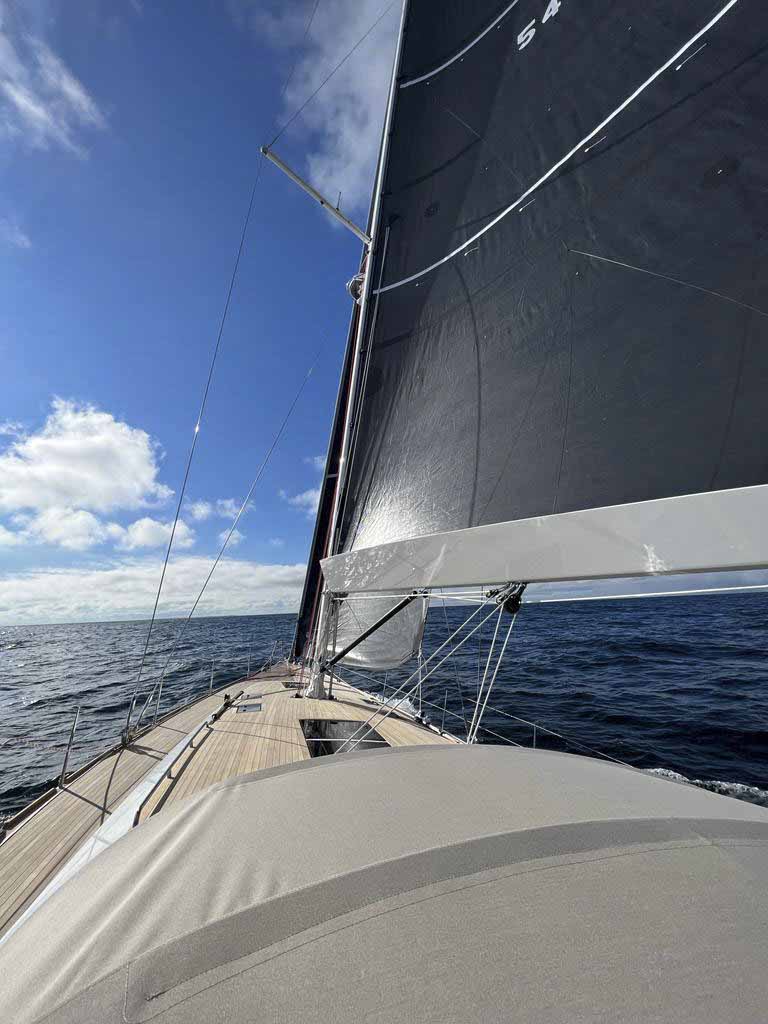

North Sails 3Di OCEAN 700 full batten mainsail
North Sails 3Di OCEAN 700 medium/heavy furling jib with battens
North Sails 3Di ENDURANCE 780 light/medium furling jib with battens
North Sails 3Di ENDURANCE 760 furling inner jib
North Sails NPL spinnaker staysail
North Sails Code 65 3Di Downwind 600 code-0 with Karver 6T furler + halyard lock

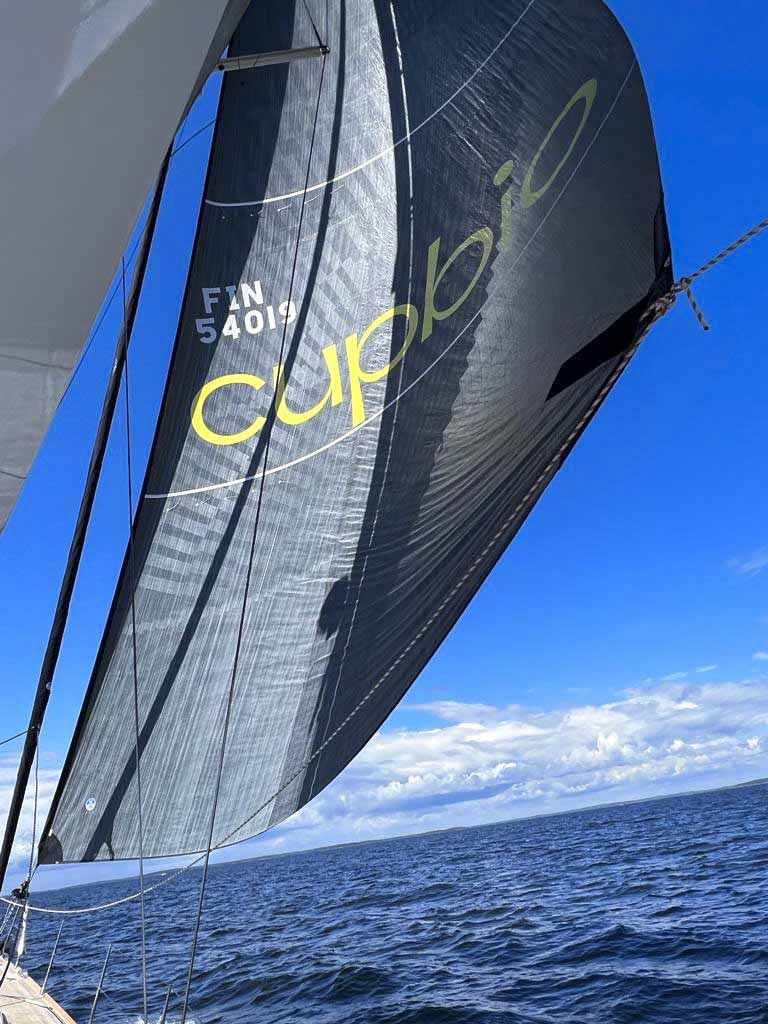

North Sails A2 Asymmetric SuperLite/Kote SK150
North Sails A4 Asymmetric SuperLite/Kote SK250
North Sails Storm Jib
North Sails Trysail with additional mast track
Spars and rigging notes

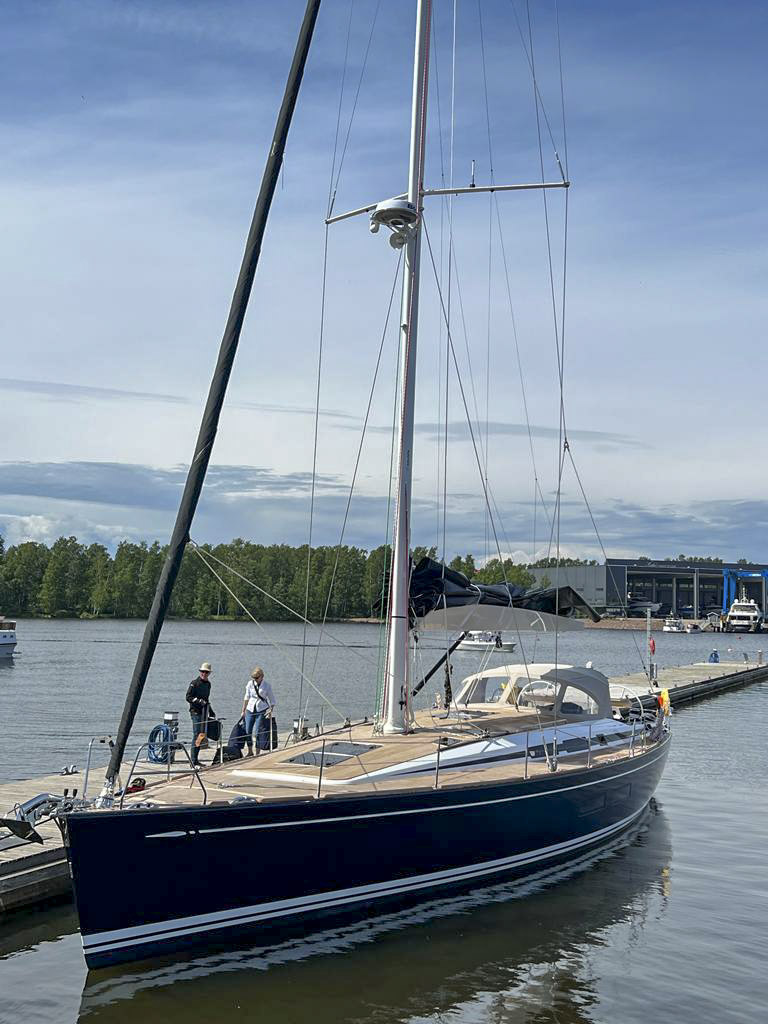

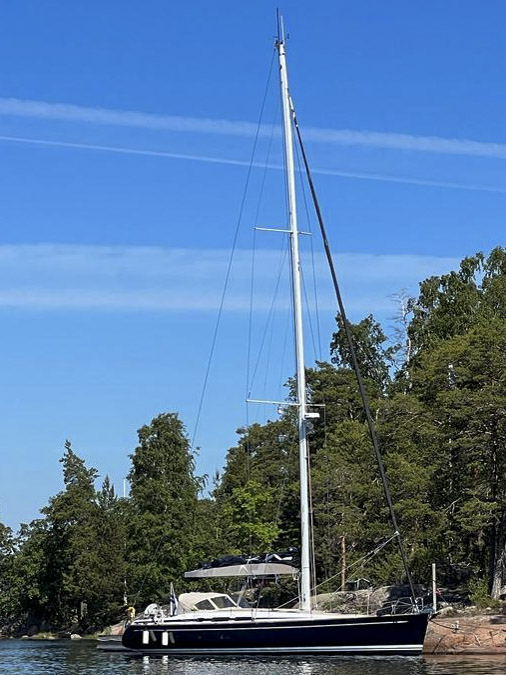

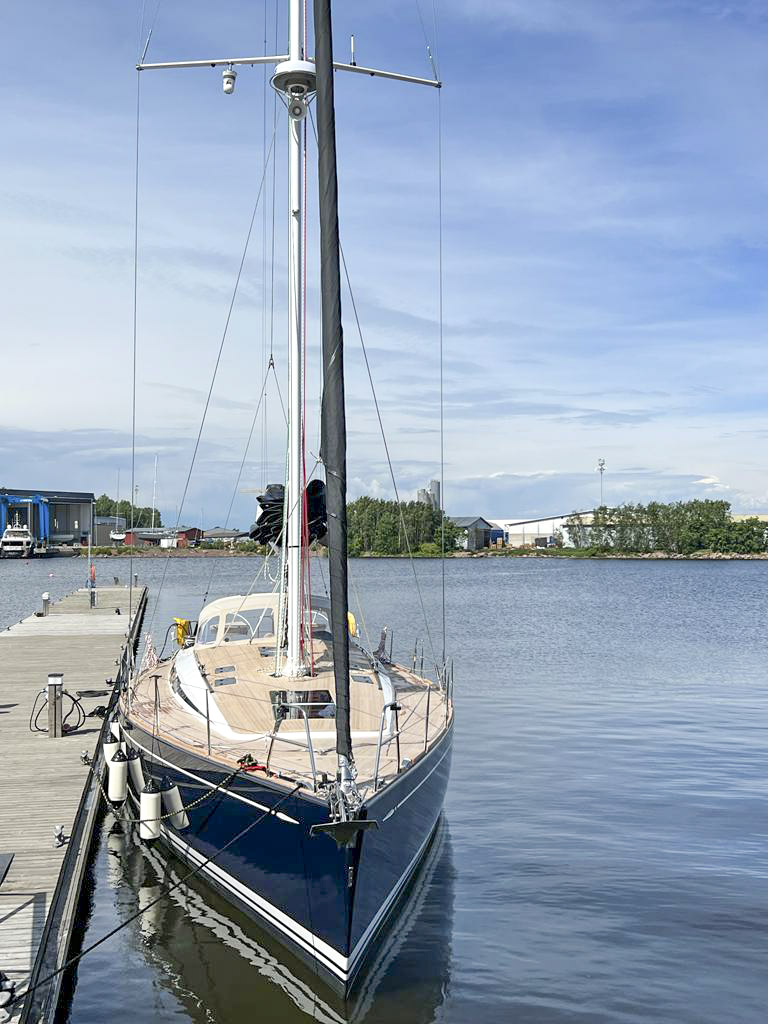

Seldén Carbon Fibre mast, white painted
Trysail track, Antal
Hydraulic mast jack
Seldén Carbon Fibre V-boom (parkavenue), white painted
Double spreader 15/16 fractional rig
Wichard padeyes for for inner forestay and for staysail
Nitronic 50 Rod rigging
Electrical Jib Furler TD400E 24V
German mainsheet system
Dyneema halyards and sheets
Hydraulic boomvang, outhaul and 2 x backstay cylinder
Folding padeyes for preventer
DECK EQUIPMENT
Deck equipment notes

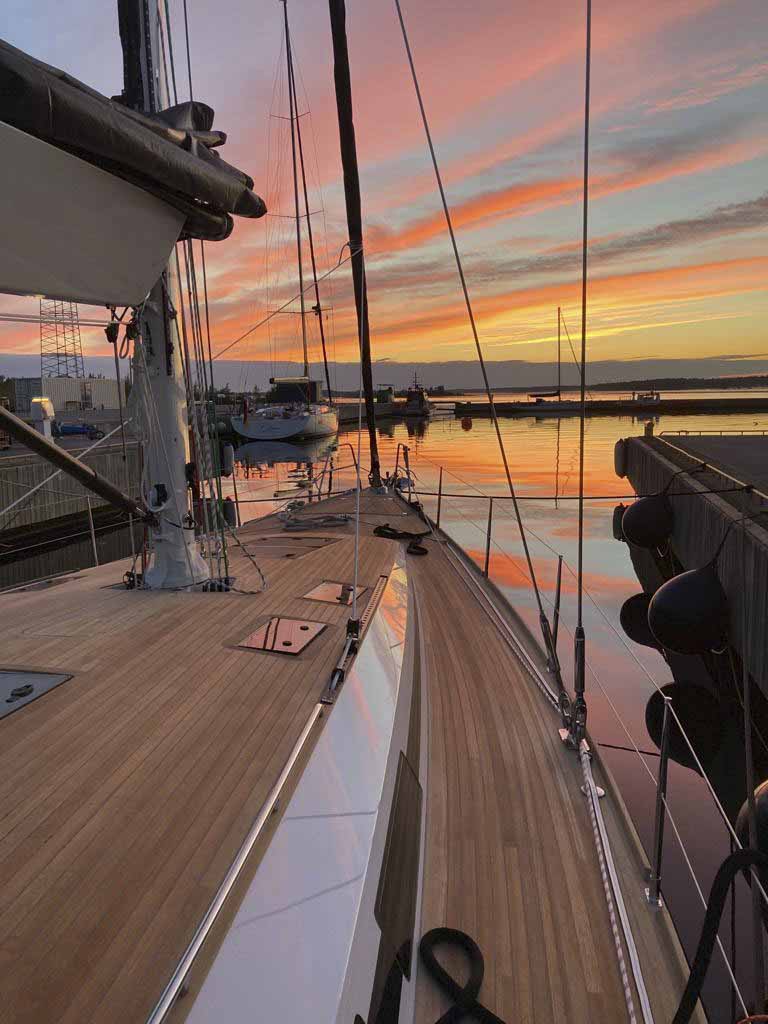

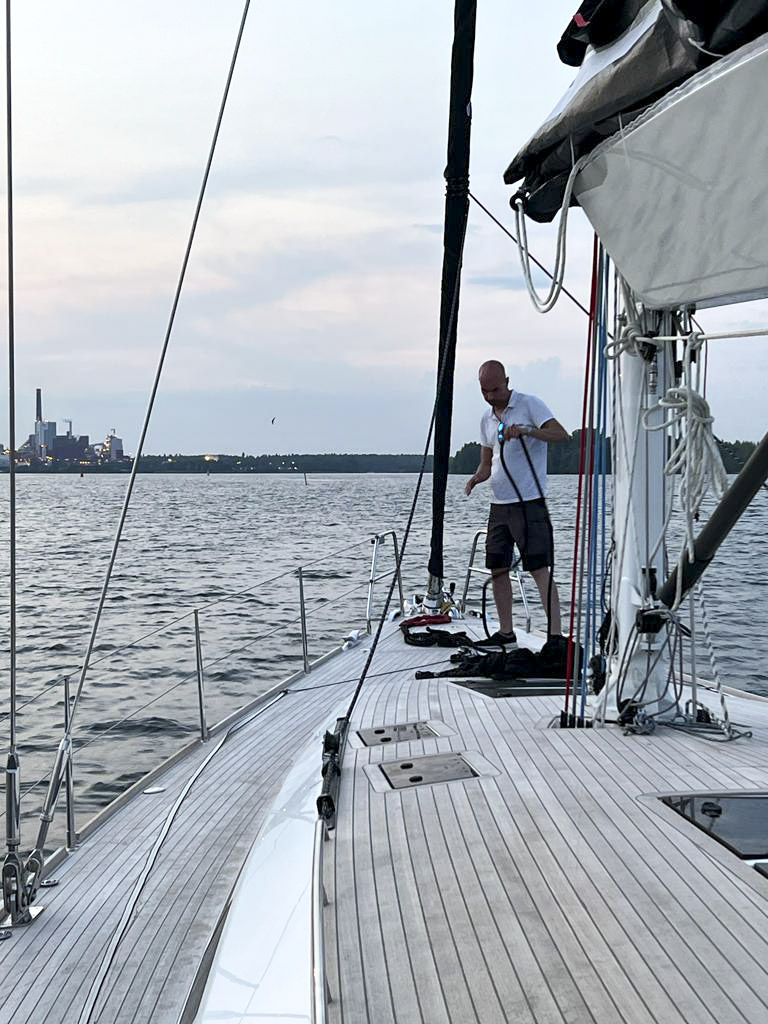

Teak deck, cockpit and swimming platform – original, ca 9 mm thickness
2 x Harken 60.2 STEA electric main sheet winches, 2 x Harken 70.2 STEA electric primery winches
Stainless steel anchor 27 kg with 80m 10mm Grade 40 chain
Spare anchor FX-55 15kg with 40m lead rope
Gennaker equipment
2 x Silva 125FT magnetic compass

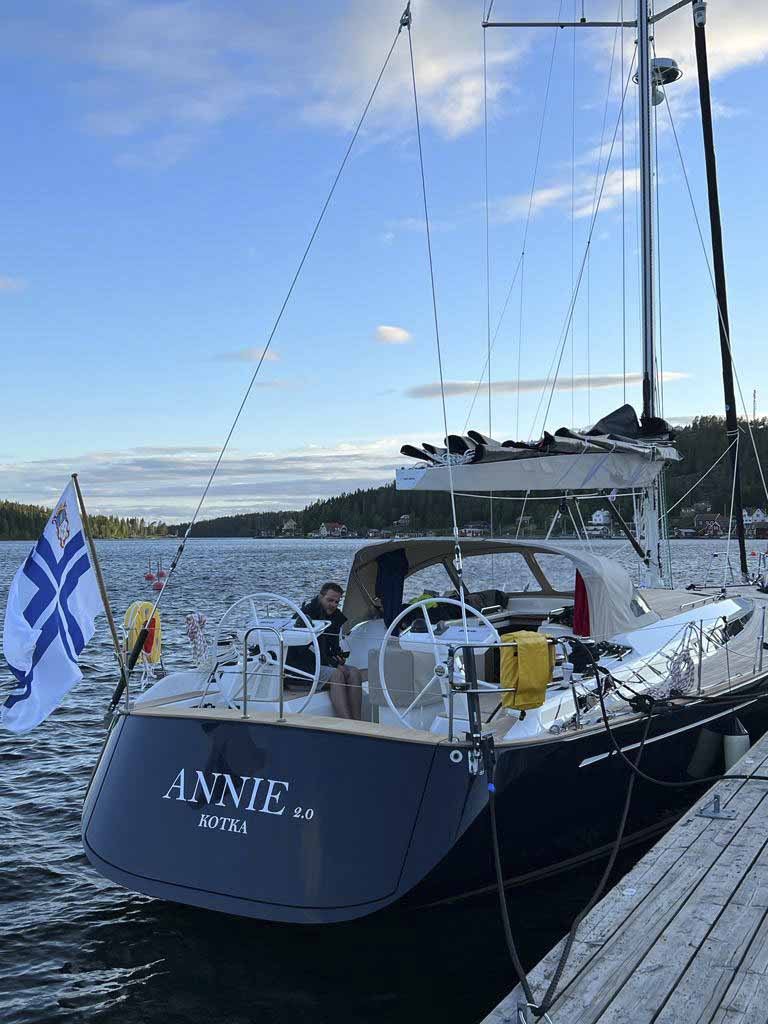

2 x glass fiber steering wheels
Emergency tiller
Sprayhood
Sunbrella covers for steering wheels and pedestals
Sunbrella cover for the cockpit table
Spreader lights and one boom light
Navigation lights + tricolour at the mast top
Windex light
Removable bow ladder
Swimming/bathing ladder
Checkstay preparations on deck for later installatio
SAFETY EQUIPMENT
CE Registration
yes
Liferaft
yes
Safety equipment notes
Liferaft
Safety lines for deck
CONSTRUCTION
Keel
Lifting daggerboard
Construction notes

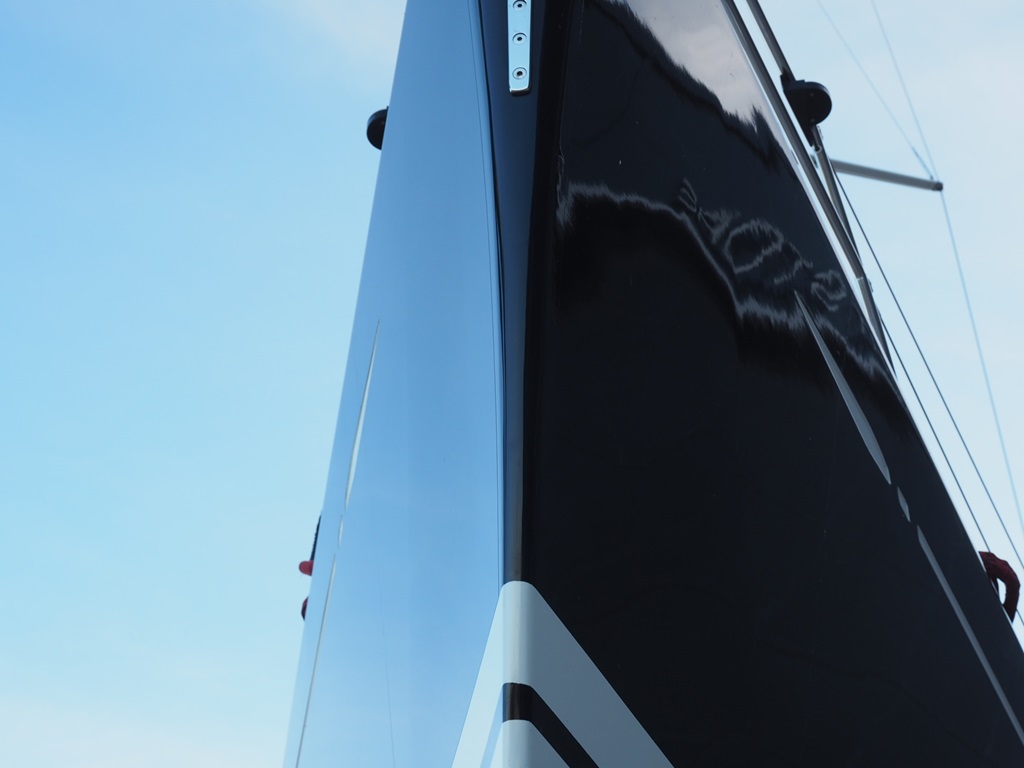

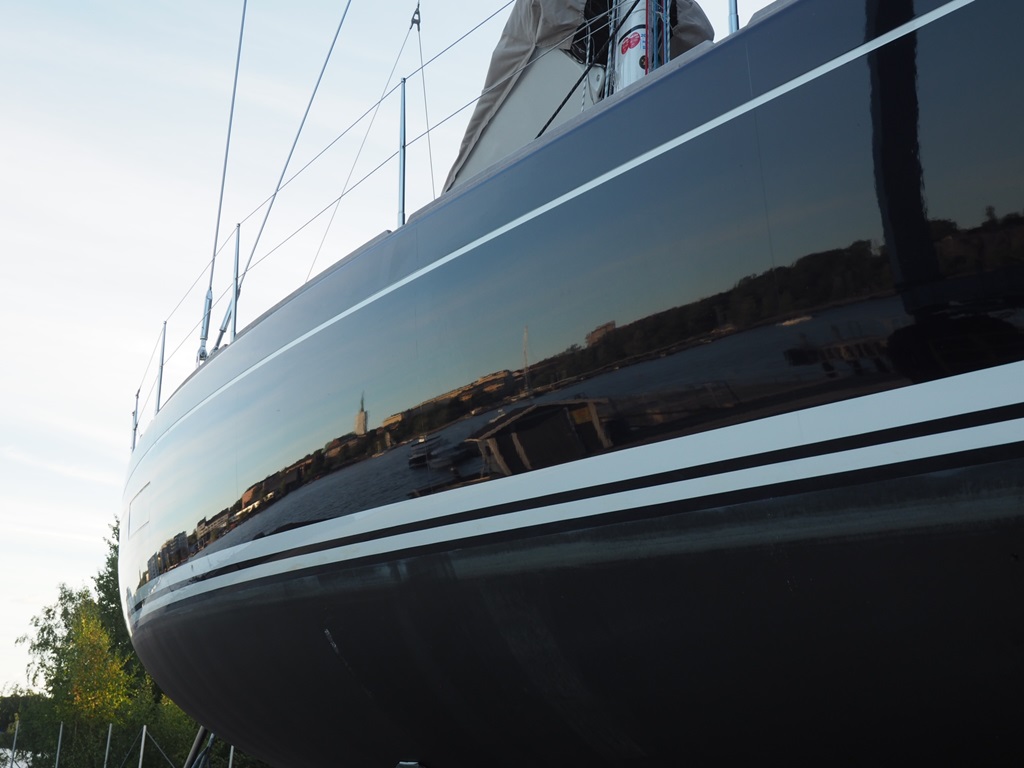

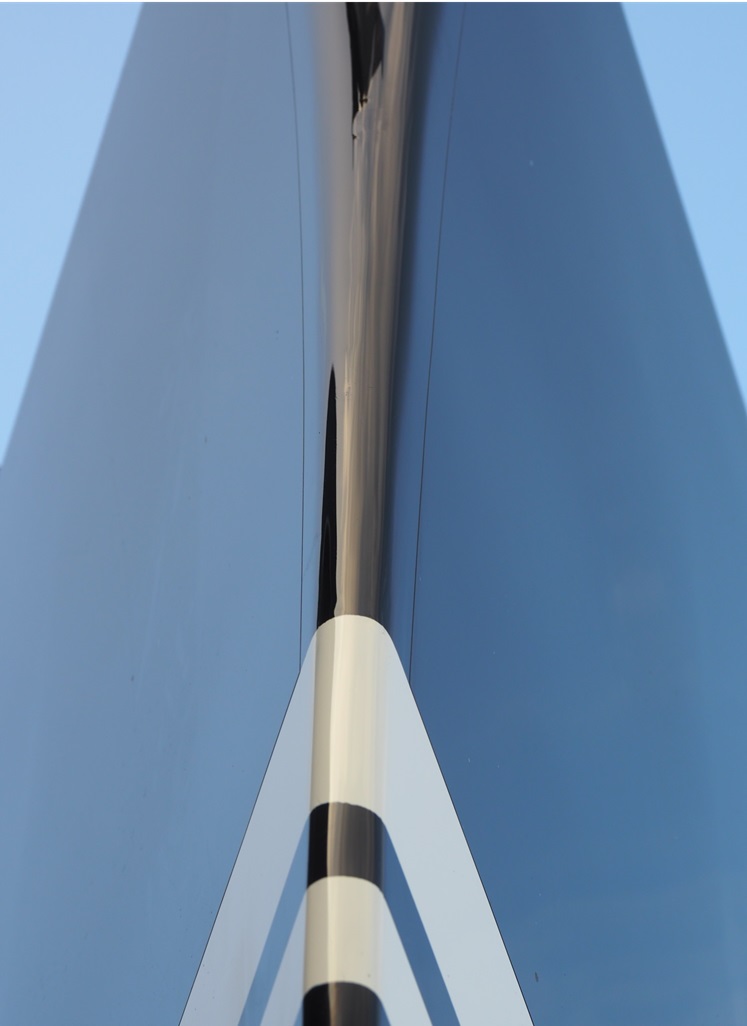

Color: Dark blue
Lifting daggerboard keel
Twin rudder
Additional hull windows 2 pair in saloon
EXTRA
Television
yes
Radio CD
yes
Speakers
yes
Swimming ladder
yes
FINAL NOTES
Final notes
Flagpole
Other navigation equipment (triangles, flames, etc.)
Fenders
Mooring lines
Owner´s manuals
Annual inspection and services done since new. Blue Ocean reserve the right of chances in the
specification list
